Halogen-free PUR reeling cables0.6/1 kV12 N/mm² TensileRandom-Winding PUR Reel

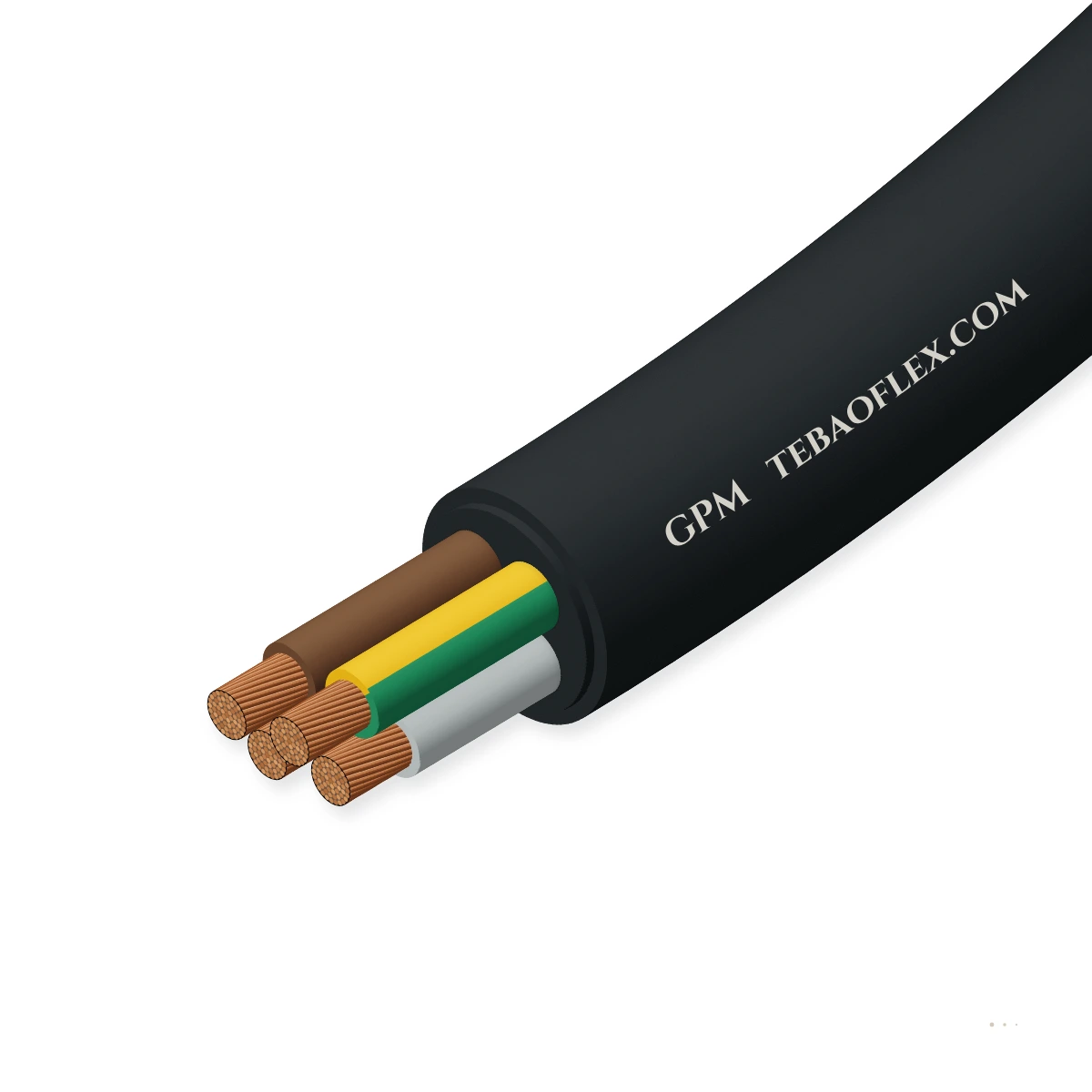

GMP (GPM) 0.6/1 kV Halogen-Free PUR Cable for Random-Winding ReelsCompact polypropylene-insulated, black PUR-sheathed cable for spring & motor reels

Halogen-free 0.6/1 kV PUR round reeling cable (GMP / GPM) for random-winding reels and horizontal machinery up to 60 m/min, with Class 5 copper cores, polypropylene insulation around a reinforced central filler and a black PUR jacket.

Flame-retardant

Oil-resistant

Outdoor & humid

Ozone, UV & moisture

Cores × cross-section

Order designation: GMP (GPM) 4G4
OD min: 11.3 mm
OD max: 12.5 mm
Weight ≈: 250 kg/km
Max. pull: 192 N

Check against my drum All sizes (7)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 0.6/1 kV
Tensile load: 12 N/mm²
Travel speed: 60 m/min
Bending radius: 6 × D spool
Flexing temp.: -25 to +90 °C
Max. conductor: +80 °C

Typical values for this cable type, based on IEC 60502-1 / IEC 60228 — confirmed in the datasheet and quotation for your order.

Application fit

Is GMP (GPM) right for your machine?

GMP (GPM) is built for compact random-winding spring and motorized reels supplying 3-, 4- and 5-core power (2.5 to 6 mm²) at travel speeds up to 60 m/min, using thin-wall polypropylene core insulation and an abrasion-resistant black polyurethane outer sheath.

Motorised monospiral reel

Suitable

Primary duty: standard-duty random-winding reels and horizontal mobile machinery up to 60 m/min.

Use GPM-RF for heavy-duty 90 m/min reels

Cylindrical / multi-layer drum

Suitable

Compact 9.0–16.0 mm outer diameters allow tight 6 × D spool winding on spring and motorized drums.

Festoon & line chain

With conditions

Suitable for guided horizontal loops at ≥ 9 × D; use dedicated PUR festoon cables for high-speed trolleys.

Use (N)12YRD11Y-J/O for 210 m/min festoons

Immersion & wet locations

Not suitable

Rated for dry, humid, wet and outdoor environments, but not designed for continuous water immersion.

Use (N)12YRD11YT11Y-J for AD8 50 m water

Typical machinesRandom-winding spring & motor reelsTransfer cars & horizontal gantriesErgonomic handling & manipulator armsAutomated warehouse & conveyor linesIndoor & outdoor industrial cranesMobile workshop & port service equipment

Construction

Layer by layer

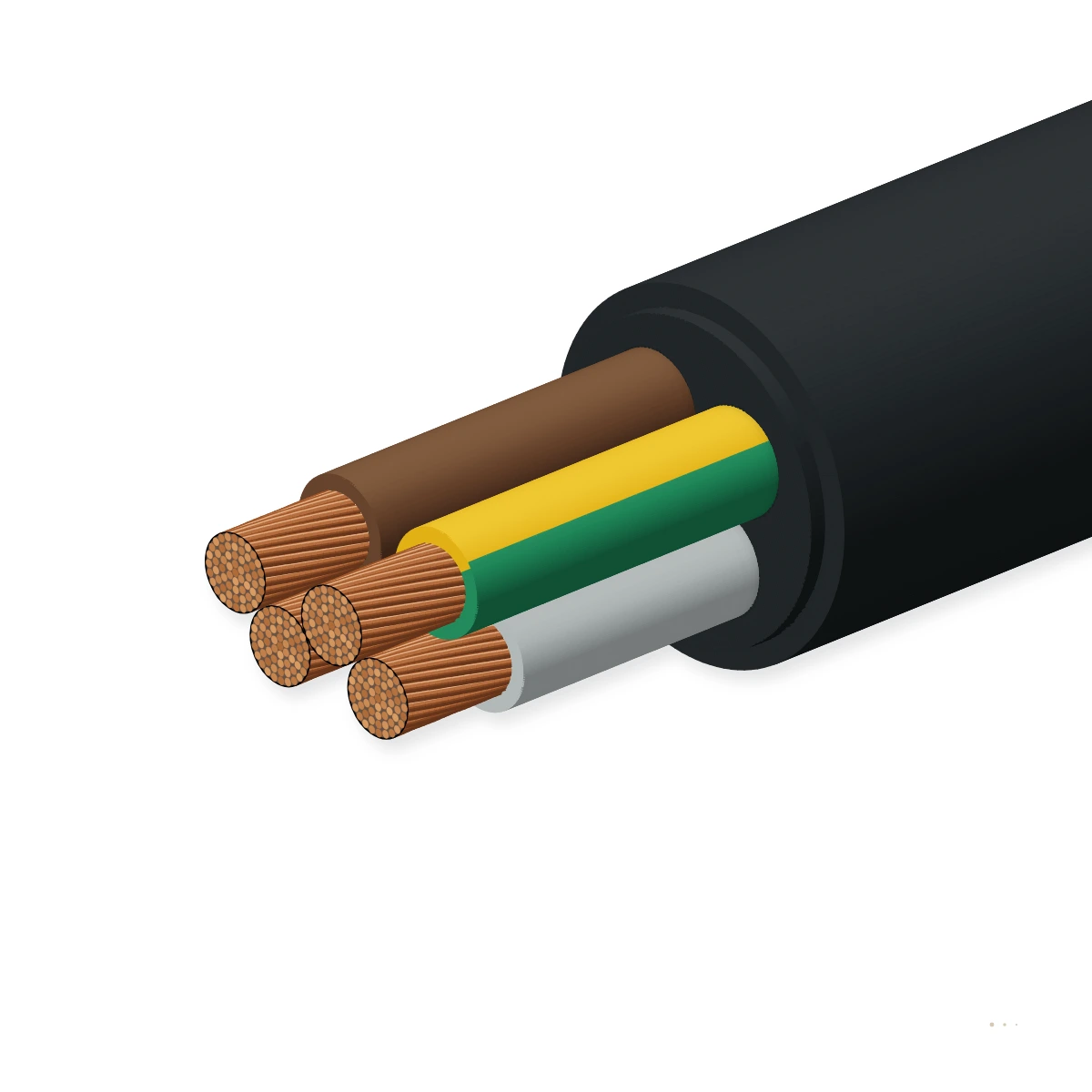

Shown: GMP (GPM) 4G4 — four 4.0 mm² Class 5 copper cores (green-yellow, brown, black, grey) with special polypropylene insulation stranded in short lay around a polypropylene-reinforced central filler inside a black PUR outer jacket.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Conductor	Flexible bare copper strands, Class 5IEC 60228 / DIN VDE 0295 / BS 6360 Class 5
2	Central reinforced filler	Polypropylene-reinforced central core filler supporting the short-lay conductor bundle12 N/mm² tensile load-bearing capacity
3	Core insulation	Special halogen-free polypropylene (PP) compound, colour-coded3G: gnye/bu/bn · 4G: gnye/bn/bk/gy · 5G: gnye/bu/bn/bk/gy
4	Outer sheath	Highly abrasion-resistant halogen-free polyurethane (PUR) jacket, blackOil, ozone, UV & moisture resistant · Low flammability IEC 60332-1

GMP (GPM) 3G2.5 – 5G2.5

2.5 mm² control & light power reeling cables (3, 4 and 5 cores · 90 to 150 N pull)

GMP (GPM) 4G4 – 5G6

4.0 mm² and 6.0 mm² 4-core and 5-core power reeling cables (192 to 360 N pull)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60502-1 / IEC 60228. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV (IEC 60502-1)
Voltage test: 3.5 kV AC per IEC 60502-1

Thermal

Ambient temperature — flexing / fixed: -25 to +90 °C flexing · -30 to +90 °C fixed
Max. conductor operating temperature: +80 °C (short-circuit +200 °C)

Mechanical

Max. horizontal travel speed: Up to 60 m/min on standard-duty random-winding reels (higher speeds on request)
Permissible tensile load: 12 N/mm² (90 N on 3G2.5 up to 360 N on 5G6)
Min. bending radius: 4 × D on anti-tension drum · 6 × D on reel spool · 9 × D on guiding device

Reference standards

Reference standards: IEC 60228 / DIN VDE 0295 / BS 6360 Class 5 · IEC 60502-1 · IEC 60332-1
Environmental resistance: Halogen-free · Oil, ozone, UV & moisture resistant · Indoor & outdoor service

Sizes

Dimensions, weights & electrical ratings

7 standard-duty GMP (GPM) 0.6/1 kV PUR reeling configurations (3G2.5 to 5G6)

Dimensions & weights
Order designation	Cores × mm²	AWG ≈	OD min mm	OD max mm	Copper kg/km	Weight ≈ kg/km	Spool R (6×D) mm	Max. pull N
All sizes
2.5 mm² (3G–5G)
GMP (GPM) 3G2.5	3 G 2.5	14	9.0	10.0	72	150	60	90
GMP (GPM) 4G2.5	4 G 2.5	14	9.9	11.3	96	170	68	120
GMP (GPM) 5G2.5	5 G 2.5	14	10.8	12.0	120	200	72	150
4.0 & 6.0 mm² (4G–5G)
GMP (GPM) 4G4	4 G 4	12	11.3	12.5	154	250	75	192
GMP (GPM) 5G4	5 G 4	12	12.6	14.0	192	300	84	240
GMP (GPM) 4G6	4 G 6	10	12.6	14.0	230	320	84	288
GMP (GPM) 5G6	5 G 6	10	14.4	16.0	288	410	96	360

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Spool R (6×D) applies on the reel drum barrel; allow 9 × D over guiding rollers and 4 × D on the anchor anti-tension drum.

Ampacity, voltage drop & resistance
Configuration	AWG ≈	Max. current A	Voltage drop V/(A·km)	Max. R20 Ω/km
3 G 2.5	14	36	14	7.98
4 G 2.5	14	31	14	7.98
5 G 2.5	14	31	14	7.98
4 G 4	12	42	8.8	4.95
5 G 4	12	42	8.8	4.95
4 G 6	10	54	5.9	3.3
5 G 6	10	54	5.9	3.3

Apply reel layer derating factors according to the number of wound layers on the drum.

Reel check

Will it fit your machine?

A first screen using datasheet values. Engineering confirms drum geometry, acceleration and tension with your quotation.

Cable sizeDrum core diameter (mm)

Travel speed (m/min)

m/min

Cable length on drum (m)

Drum core 200 mm ≥ 150 mmBending radius OK (6 × OD 12.5 mm)

45 m/min ≤ 60 m/minWithin the rated travel speed

Minimum bending radius: 75 mm
Min. drum core diameter: ≈ 150 mm
Cable weight on drum: 10.0 kg
Copper content: 6.2 kg

Indicative only: based on the datasheet outer diameter and 6 × OD bending radius. Current derating for wound layers per DIN VDE 0298-4 is assessed separately.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage test	Acc. to IEC 60502-1 (3.5 kV)	Every length
Conductor resistance	IEC 60228 / DIN VDE 0295 Class 5	Every length
Sample tests
Flame & halogen-free check	IEC 60332-1 · Halogen-free	Per batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

0.6/1 kVCE · LVDRoHS · REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX GMP (GPM) 4G4 0.6/1 kV · HALOGEN-FREE PUR · CE · [year] · [metre mark]

Standard packing: Drums or custom cut reeling lengths
HS code: 8544.49

Technical documents

Downloads

PDFGMP (GPM) 0.6/1 kV Halogen-Free PUR Cable for Random-Winding Reels – technical datasheet7 sizes · construction, technical data, approvals XLSXGMP (GPM) spec data (Excel)All 7 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Are GMP and GPM the same cable series?

Yes. 'GMP' on the product page title is a transposition of the industry-standard 'GPM' designation (as shown in the datasheet's own dimensional table 'Control GPM 3 G 2.5 ... Power GPM 5 G 6') for standard-duty 0.6/1 kV polypropylene/PUR random-winding reel cables.

How does GMP (GPM) differ from GPM-RF?

GMP (GPM) is a compact single-sheath black PUR cable rated for 12 N/mm² tensile load and 60 m/min travel speed in 3G2.5 to 5G6 sizes. GPM-RF adds an inner PUR sheath under a green (RAL 6032) outer PUR jacket, raising tensile load to 20 N/mm² and speed to 90 m/min across 7G2.5–39G2.5 control and 4G10–3×185+3G35 power sizes.

What are the three bending radius ratings (4 × D, 6 × D and 9 × D) used for?

Allow at least 4 × D on the static anchor/anti-tension drum turns, 6 × D for dynamic winding on the reel spool barrel, and 9 × D over roller guide mouths.

Can GMP (GPM) be routed over deflecting pulleys?

Standard single-sheath GMP (GPM) is designed for direct horizontal reeling without intermediate deflecting pulleys; where multi-plane deflection sheaves or higher pulling forces occur, specify double-sheathed GPM-RF or textile-braided (N)12YRD11YT11Y-J.
