Product

Control & signal cableDIN EN 61340-5-1 ESDISO 14644-1 Cleanroom-40 °C to +180 °C Silicone

Besilen ESD Control Cable300/500 V -40 to +180 °C antistatic ESD-dissipative silicone ISO Class 1 cleanroom cable

Besilen ESD Control Cable (300/500 V, -40 to +180 °C) for Electrostatic Protected Areas (DIN EN 61340-5-1) and ISO 14644-1 Class 1 cleanrooms, featuring Class 5/6 tinned copper cores, EI2 silicone insulation, and a 10⁴–10⁷ Ω ESD-dissipative silicone jacket.

Approved
Low-EMC design
Flame-retardant
Anti-torsion braid
Order designation
Besilen ESD 7G0.75
Outer Ø ≈
8.00 mm
Wall thickness
0.90 mm
Total weight ≈
119.5 kg/km
Min. bend R (fixed)
80 mm
All sizes (19)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Surface resist.
10⁴–10⁷ Ω
ESD dissipative (EN 61340-5-1)
Cleanroom class
ISO Class 1
Low-particulate & low-outgassing
Rated voltage
300/500 V
2000 V AC dielectric test
Service temp.
-40…+180 °C
High-temp silicone elastomer
Conductor
Sn-Cu Class 5/6
Fine or extra-fine tinned Cu
Halogen-free
IEC 60754-1/2
Non-corrosive & flame-retardant

Typical values for this cable type, based on DIN EN 61340-5-1 ESD / ISO 14644-1 Class 1 Cleanroom / EN 50525-2-83 Silicone — confirmed in the datasheet and quotation for your order.

Application fit

Is Besilen ESD Control Cable right for your machine?

Select Besilen ESD Control Cable for wafer handling robots, OLED/FPD inspection stages, e-beam/vacuum load-lock auxiliaries, and thermal chucks inside ESD-protected cleanrooms.

Switchgear & control cabinet wiring

Suitable

Dissipative silicone sheath (10⁴–10⁷ Ω) drains triboelectric static charges safely to ground without particle attraction.

Furnace, kiln & high-temp zone

Suitable

Besilen silicone rubber cores and jacket operate continuously from -40 °C to +180 °C in wafer bake & autoclave zones.

Energy chain / drag chain

Suitable

Low-friction antistatic matte surface prevents stick-slip particle shedding and static tribocharging in cleanroom flexing.

Mine roadway & tunnel wall hangers

Not suitable

Silicone elastomer has lower cut/tear resistance than PUR; for heavy industrial abrasion outside cleanrooms, use JZ-50440 CP.

Use JZ-50440 CP for heavy industrial PUR
Typical machinesSemiconductor Wafer Fab & Lithography (EPA)OLED / MicroLED & Flat-Panel CleanroomsHigh-Temperature Wafer Bake & Thermal ChucksPharmaceutical Autoclave & Aseptic LinesPrecision Metrology & Electron Microscopy

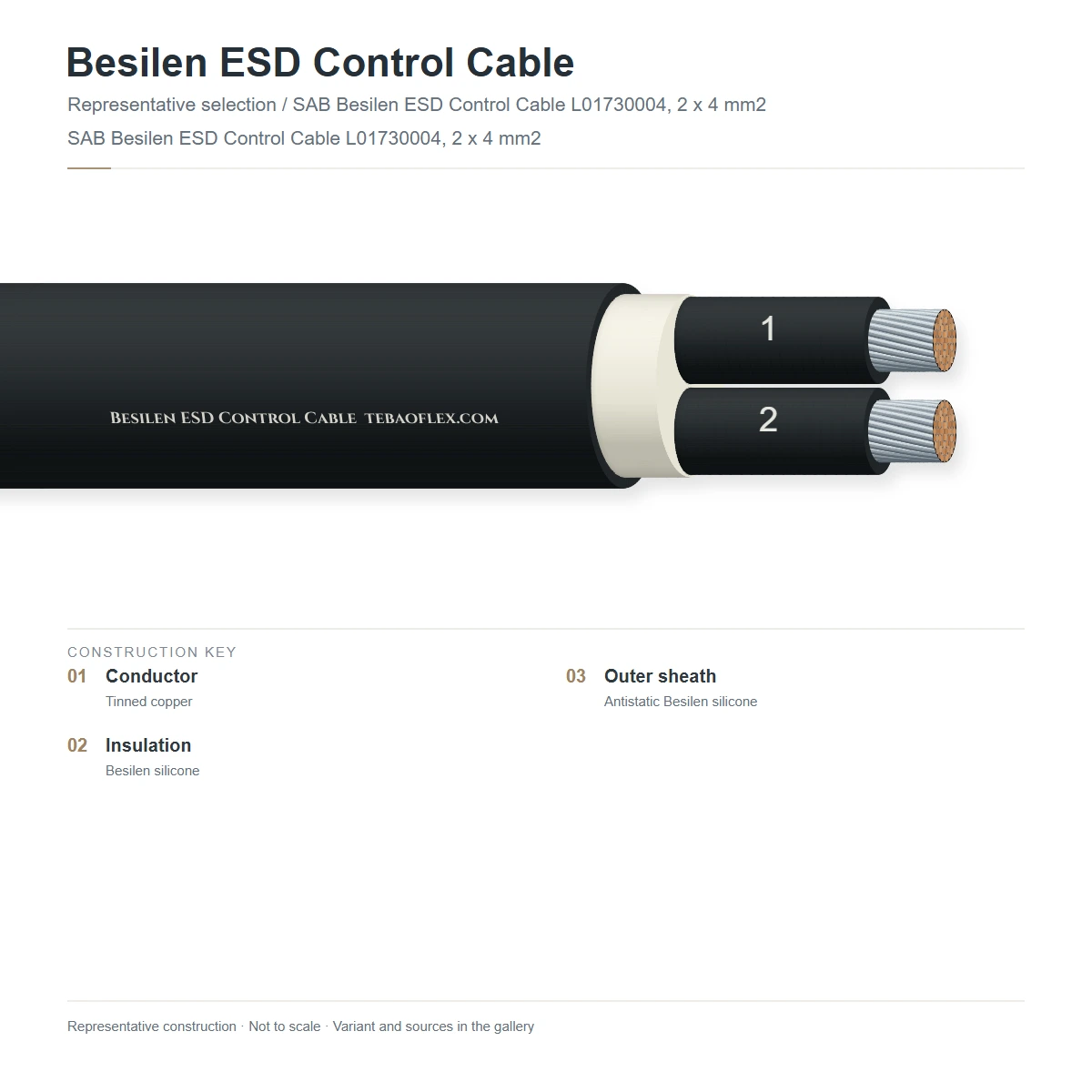

Construction

Layer by layer

ESD silicone cleanroom construction: Class 5/6 tinned copper conductors, Besilen EI2 silicone rubber core insulation, PTFE/fleece release wrap (optional tinned copper braid screen), and antistatic carbon-doped silicone outer sheath (10⁴–10⁷ Ω).

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Tinned copper conductorsFine-stranded or extra-fine-stranded tinned copper wire (IEC 60228 Class 5 / Class 6)Tin plating prevents copper oxidation up to +180 °C and ensures reliable crimping/soldering
2Besilen EI2 silicone insulationHigh-purity cross-linked silicone elastomer (colour-coded per DIN 47100 or numbered + GNYE)Remains supple from -40 °C to +180 °C with high dielectric strength
3Low-friction PTFE / fleece wrapNon-shedding fluoropolymer/synthetic separation tape over the core bundleEliminates internal talc/chalk dust so stripping inside a cleanroom releases zero powder
4Antistatic ESD silicone outer jacketVolume-conductive carbon-modified Besilen silicone elastomer (jet black, R_surface 10⁴–10⁷ Ω)Dissipates electrostatic charges per DIN EN 61340-5-1 when grounded via an ESD gland

Besilen ESD Unscreened (2×0.25–18G1.5)

Antistatic silicone cleanroom control and sensor cable with 10⁴–10⁷ Ω dissipative outer sheath

Besilen ESD-C Screened (2×0.25–12G1.5)

EMC tinned-copper-braid screened + antistatic ESD outer sheath version for noisy wafer stages

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN EN 61340-5-1 ESD / ISO 14644-1 Class 1 Cleanroom / EN 50525-2-83 Silicone. Values for your order are confirmed in the datasheet and quotation.

Electrical

ESD surface resistance
10⁴ to 10⁷ Ω (dissipative per EN 61340-5-1)
Rated voltage U0/U
300/500 V AC (up to 0.5 mm²: 300/300 V)
AC dielectric test voltage
2,000 V AC (core-to-core)
Core insulation resistance
≥ 200 MΩ·km at +20 °C

Thermal

Operating temperature (fixed)
-40 °C to +180 °C (short-term +200 °C)
Flexing temperature range
-25 °C to +180 °C

Mechanical

Cleanroom classification
ISO 14644-1 Air Cleanliness Class 1
Min. bending radius (flexing)
10 × overall cable diameter
Min. bending radius (fixed)
4 × overall cable diameter
Talc-free construction
100 % chalk- and talc-free for cleanrooms

Resistance

Halogen-free & low smoke
IEC 60754-1/2 & IEC 61034-1/2 pass
Flame retardance
IEC 60332-1-2 self-extinguishing
Cleanroom wipe resistance
Resists IPA (isopropanol), H₂O₂ & steam

Reference standards

ESD protection standard
DIN EN 61340-5-1 (EPA compliant)
Cleanroom qualification
ISO 14644-1 Class 1 (Fraunhofer IPA)
RoHS & REACH
RoHS 3, REACH & LABS/PWIS-controlled

Identification

Outer sheath colour
Jet black (conductive/dissipative ESD)
Surface legend
TEBAOFLEX BESILEN ESD CLEANROOM [n×mm²] EN 61340-5-1
Customs tariff (HS)
8544.49

Sizes

19 standard configurations (Besilen ESD Control Cable)

Engineering dimensions, conductor stranding, mass and electrical ratings for Besilen ESD Control Cable per DIN EN 61340-5-1 ESD / ISO 14644-1 Class 1 Cleanroom / EN 50525-2-83 Silicone.

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard Besilen ESD Control Cable configurations
Besilen ESD 2×0.252×0.25 mm²Class 5/6 Sn-Cu (0.25 mm²)0.904.904.830.749
Besilen ESD 4×0.254×0.25 mm²Class 5/6 Sn-Cu (0.25 mm²)0.905.609.643.556
Besilen ESD 8×0.258×0.25 mm²Class 5/6 Sn-Cu (0.25 mm²)0.907.0019.272.170
Besilen ESD 2×0.52×0.5 mm²Class 5/6 Sn-Cu (0.5 mm²)0.905.509.642.355
Besilen ESD 4×0.54×0.5 mm²Class 5/6 Sn-Cu (0.5 mm²)0.906.3019.262.163
Besilen ESD 7G0.57G0.5 mm²Class 5/6 Sn-Cu (0.5 mm²)0.907.3033.691.273
Besilen ESD 12G0.512G0.5 mm²Class 5/6 Sn-Cu (0.5 mm²)1.109.9057.6163.599
Besilen ESD 3G0.753G0.75 mm²Class 5/6 Sn-Cu (0.75 mm²)0.906.2021.663.162
Besilen ESD 4G0.754G0.75 mm²Class 5/6 Sn-Cu (0.75 mm²)0.906.8028.878.768
Besilen ESD 7G0.757G0.75 mm²Class 5/6 Sn-Cu (0.75 mm²)0.908.0050.4119.580
Besilen ESD 12G0.7512G0.75 mm²Class 5/6 Sn-Cu (0.75 mm²)1.1010.7086.4210.0107
Besilen ESD 3G13G1 mm²Class 5/6 Sn-Cu (1 mm²)0.906.6028.875.866
Besilen ESD 4G14G1 mm²Class 5/6 Sn-Cu (1 mm²)0.907.2038.494.472
Besilen ESD 7G17G1 mm²Class 5/6 Sn-Cu (1 mm²)0.908.5067.2145.285
Besilen ESD 12G112G1 mm²Class 5/6 Sn-Cu (1 mm²)1.1011.50115.2258.0115
Besilen ESD 3G1.53G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)0.907.7043.2107.277
Besilen ESD 4G1.54G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)0.908.4057.6133.884
Besilen ESD 7G1.57G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)0.9010.00100.8208.8100
Besilen ESD 12G1.512G1.5 mm²Class 5/6 Sn-Cu (1.5 mm²)1.1013.60172.8372.6136
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for Besilen ESD Control Cable subject to standard manufacturing tolerances per DIN EN 61340-5-1 ESD / ISO 14644-1 Class 1 Cleanroom / EN 50525-2-83 Silicone.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per DIN EN 61340-5-1 ESD / ISO 14644-1 Class 1 Cleanroom / EN 50525-2-83 SiliconeEvery manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for Besilen ESD Control CableEvery spool or drum length
Sample tests
Insulation resistance & dimensional verificationWall thickness, concentricity and insulation resistance per DIN EN 61340-5-1 ESD / ISO 14644-1 Class 1 Cleanroom / EN 50525-2-83 SiliconePer production batch
Environmental, mechanical & EMC qualificationQualified to DIN EN 61340-5-1 ESD / ISO 14644-1 Class 1 Cleanroom / EN 50525-2-83 Silicone thermal, mechanical and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN EN 61340-5-1 ESD / ISO 14644-1 Class 1 Cleanroom / EN 50525-2-83 SiliconeCE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX BESILEN ESD CONTROL 7G0.75 300/500V -40/+180C EN 61340-5-1
Delivery form
Export wooden drums, tactical reels or coils
Standard lengths
100 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFBesilen ESD Control Cable – technical datasheet19 sizes · construction, technical data, approvalsXLSXBesilen ESD Control Cable spec data (Excel)All 19 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does an ESD-protected silicone jacket prevent electrostatic damage and particle attraction in a cleanroom?
Standard insulating cable jackets (surface resistance > 10¹² Ω) accumulate triboelectric static charges up to several kilovolts when flexed or wiped with isopropanol. Those charges both attract sub-micron airborne particles onto the cable and risk ESD discharge into sensitive wafers or OLED panels. Besilen ESD Control Cable uses a dissipative silicone jacket (10⁴–10⁷ Ω) that bleeds charge continuously to ground.
How must the antistatic outer sheath be grounded during installation?
To drain static charge into the equipment earth, clamp the outer black ESD silicone jacket inside a conductive metallic cable gland or conductive ESD clip bonded to the grounded machine frame.
Why choose Besilen ESD Silicone over SABclean S 776 / S 780 C TPE/PUR cleanroom cables?
Choose Besilen ESD when you need either (a) active electrostatic charge dissipation per DIN EN 61340-5-1 or (b) thermal endurance up to +180 °C (autoclave sterilization, wafer bake plates, thermal chucks). For high-cycle room-temperature drag chains (-40 to +80 °C), choose SABclean S 776 / S 780 C.
Is the cable free of talc and chalk separating powders?
Yes. Standard rubber cables use talcum powder inside the jacket to prevent core sticking, which contaminates cleanrooms when the jacket is stripped. Besilen ESD uses a non-shedding fluoropolymer/fleece release wrap instead of powder.
