Mining trailing & reeling cablesAS/NZS 19721.1 & 3.3 kVTypes 1, 2S & 2S.3

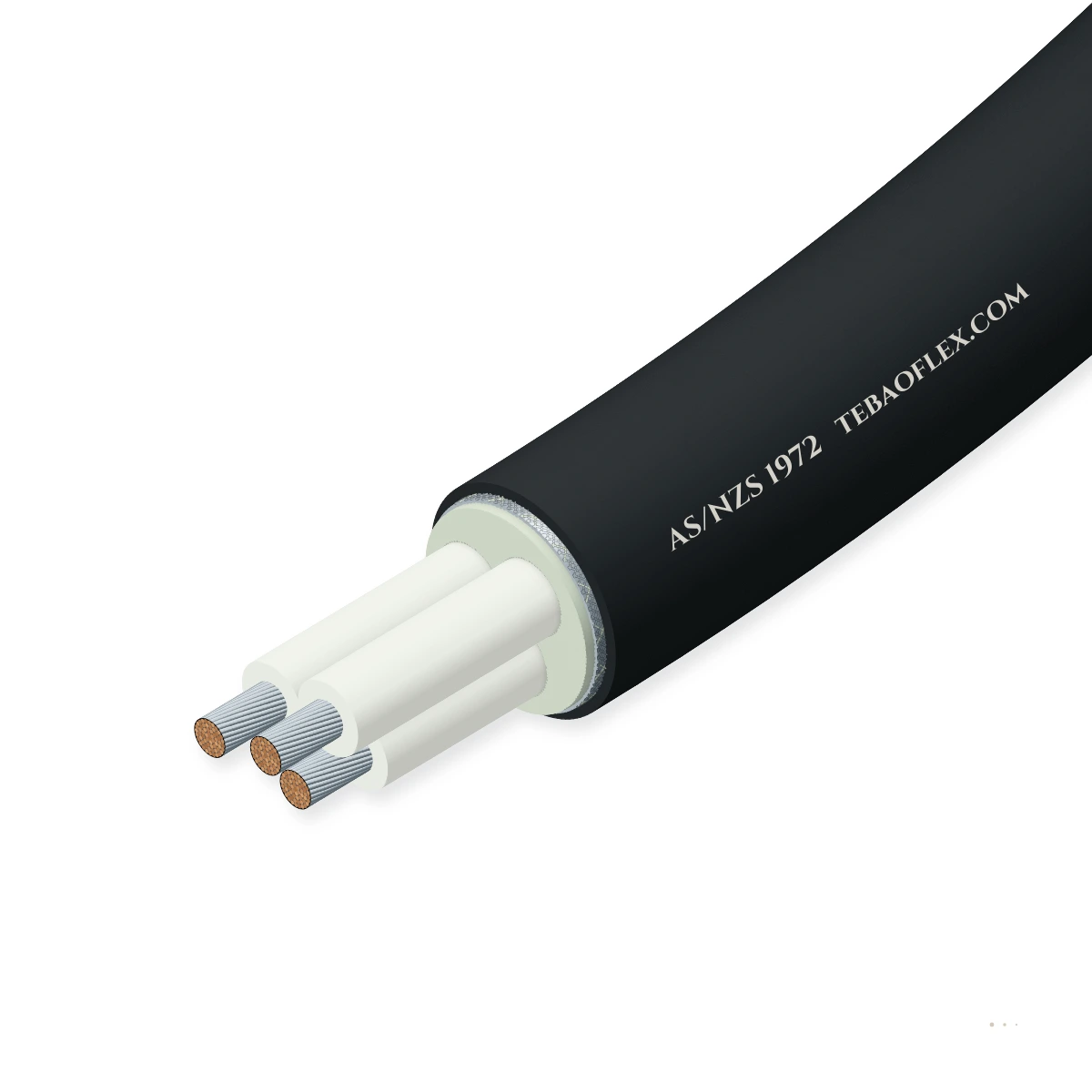

AS/NZS 1972 Underground Mining Machine & Feeder CablesTypes 1, 2S & 2S.3 screened machine and lighting cables, 1.1 & 3.3 kV

AS/NZS 1972 fixed and semi-fixed underground mine feeder cables: Type 1 (1.1/1.1 kV V-90/5V-90 PVC), Type 2S (1.1/1.1 kV R-EP-90/HD-90-CPE), and Type 2S.3 (3.3/3.3 kV R-EP-90/HD-90-CPE) with collective or individual copper/textile braid screens.

EMC screen

Flame-retardant

Oil-resistant

Water-resistant

Select AS/NZS 1972 construction

Order designation: Type 2S.3 Ind. · 3.3/3.3 kV · 3×35 + 3×1.5P mm²
Voltage U0/U: 3.3/3.3 kV
Pilot cores: 3 × 1.5 mm²
Nominal OD: 39.8 mm
Total mass: 2,750 kg/km

All sizes (43)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 1.1 & 3.3 kV
Conductor size: 1.5–120 mm²
Conductor temp.: +90 °C
Min. temp.: −25 °C / 0 °C
Flame rating: Cat. C1 / C3
Screen design: Ind. or Coll.

Typical values for this cable type, based on AS/NZS 1972 — confirmed in the datasheet and quotation for your order.

Application fit

Is AS/NZS 1972 right for your machine?

Semi-flexible elastomer-sheathed underground mine roadway and shaft feeder cable to AS/NZS 1972 (1.1 kV to 11 kV) with individual metallic screens.

Mine roadway & tunnel wall hangers

Suitable

Primary duty — suspended on roadway rib hangers or catenary hooks from portal to underground substations.

Fixed installation

Suitable

Fixed installation on trays, cleats and culvert brackets in underground coal and metalliferous mines.

Free-hanging vertical run

Suitable

Suitable for borehole and shaft drop feeders when supported with approved shaft cleats.

Motorised monospiral reel

Not suitable

Semi-flexible feeder construction — never wind onto dynamic crane or shuttle-car reels.

Use AS/NZS 1802 Reeling

Longwall shearer & Bretby handler

Not suitable

Too stiff for continuous flexing in longwall shearer Bretby handlers.

Use AS/NZS 1802 Type 241

Typical machinesContinuous miner wiringRoadheader motor leadsShuttle car interconnectsLongwall face lightingPersonnel transportersFlameproof switchgear

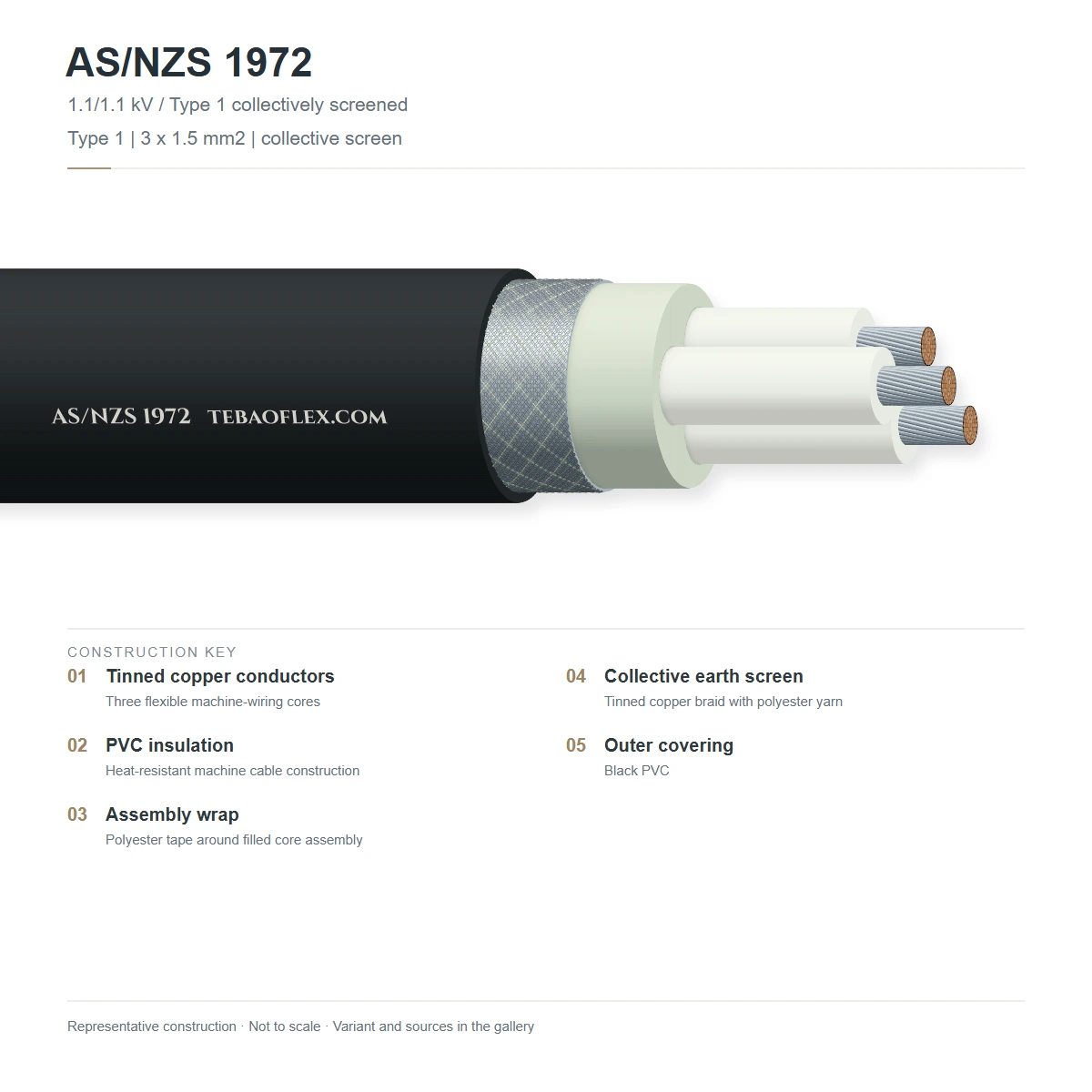

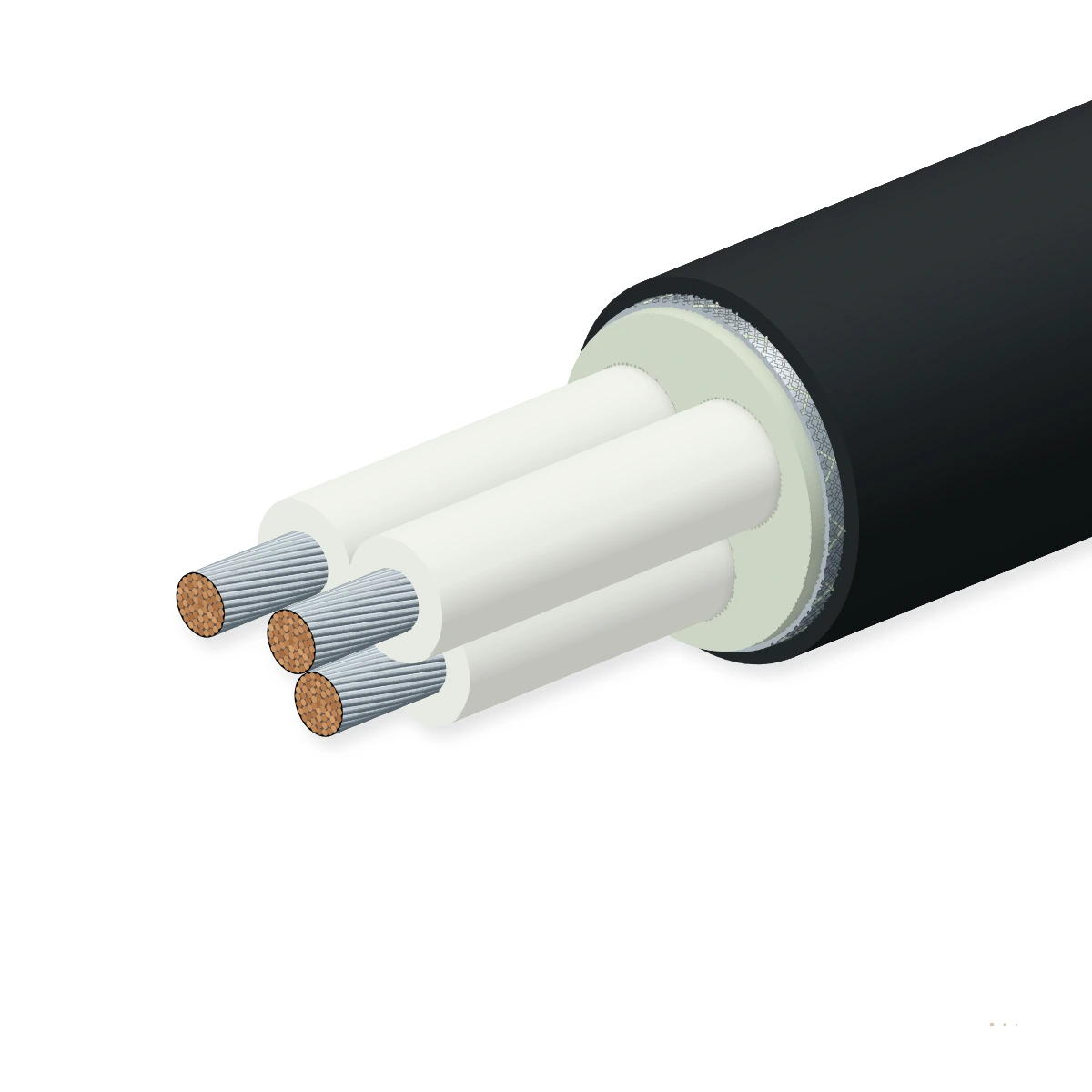

Construction

Layer by layer

Available in two compound systems per AS/NZS 1972: Type 1 (V-90 PVC insulation + 5V-90 PVC covering for ducted/hosed machine wiring) and Type 2S / 2S.3 (R-EP-90 EPR insulation + heavy-duty HD-90-CPE elastomer sheath for unprotected external runs).

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible tinned copper conductor	Flexible stranded tinned annealed copper conductor per AS/NZS 1125AS/NZS 1125
2	90 °C core insulation (R-EP-90 EPR or V-90 PVC)	Thermoset ethylene propylene rubber (R-EP-90 on Types 2S & 2S.3) or heat-resistant V-90 PVC (on Type 1) per AS/NZS 3808AS/NZS 3808
3	Composite tinned copper / polyester earth screen	Tinned annealed copper wire interwoven with polyester yarn applied over each individual core (2–4C) or collectively over the laid-up bundle (2–30C)AS/NZS 1972
4	Interstitial pilot conductors (Type 2S & Type 2S.3)	Optional 1, 2 or 3 × 1.0 mm² (Type 2S) or 3 × 1.5 mm² (Type 2S.3) R-EP-90 insulated tinned copper pilot coresAS/NZS 1972
5	Outer sheath / covering (HD-90-CPE or 5V-90 PVC)	Heavy-duty black chlorinated polyethylene elastomer (HD-90-CPE on Types 2S & 2S.3, Cat. C1) or heat-resistant 5V-90 PVC covering (on Type 1, Cat. C3)AS/NZS 3808

Type 1 · 1.1/1.1 kV (V-90 / 5V-90 PVC)

Compact PVC-insulated and PVC-covered screened machine cable (individually or collectively screened) for routing inside machine ducts or protective conduit.

Type 2S · 1.1/1.1 kV (R-EP-90 EPR / HD-90-CPE)

Elastomer-insulated and heavy-duty CPE-sheathed cable with optional 1–3 pilot cores; approved for external non-protected machine interconnect and longwall lighting.

Type 2S.3 · 3.3/3.3 kV (R-EP-90 EPR / HD-90-CPE + 3 Pilots)

Medium-voltage 3.3/3.3 kV individually screened three-core + 3 × 1.5 mm² pilot cable for high-power cutter-head and pump motor interconnections.

Types in this range

V-90 / 5V-90 PVC · 1.1/1.1 kVType 1 Individually Screened

2, 3 & 4 cores (1.5–16 mm²) with individual composite Cu/PET screens · requires external duct/hose protection

Protected onboard wiring between control boxes and motors

Datasheet

V-90 / 5V-90 PVC · 1.1/1.1 kVType 1 Collectively Screened

2 to 30 × 1.5 mm² control cores with overall composite Cu/PET screen and 5V-90 PVC covering

Multi-core control & pilot wiring inside machine enclosures

Datasheet

R-EP-90 / HD-90-CPE · 1.1/1.1 kVType 2S Individually Screened

2, 3 & 4 cores (6–50 mm²) with individual Cu/PET screens, optional 1–3 pilots & self-protected HD-90-CPE sheath

Exposed motor interconnections & longwall lighting systems

Datasheet

R-EP-90 / HD-90-CPE · 1.1/1.1 kVType 2S Collectively Screened

2 to 30 × 1.5 mm² EPR control cores with collective Cu/PET screen and heavy-duty HD-90-CPE outer sheath

Unprotected multi-core control & solenoid interconnections

Datasheet

R-EP-90 / HD-90-CPE · 3.3/3.3 kVType 2S.3 Individually Screened

3 × 10 to 3 × 120 mm² MV power cores + 3 × 1.5 mm² pilots with individual Cu/PET screens & HD-90-CPE sheath

3.3 kV cutter-head, traction and pump motor leads onboard miners

Datasheet

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on AS/NZS 1972. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 1.1/1.1 kV (Types 1 & 2S); 3.3/3.3 kV (Type 2S.3)
Screening configurations: Individually screened (2–4C) or collectively screened (2–30C)
Electrical symmetry: Cables rated > 20 A are electrically symmetrical
Pilot conductors (Type 2S/2S.3): Optional 1, 2 or 3 × 1.0 mm² (2S); 3 × 1.5 mm² (2S.3)

Thermal

Max. continuous conductor temp.: +90 °C (V-90 PVC on Type 1; R-EP-90 EPR on Type 2S)
Short-circuit temperature: +250 °C (R-EP-90 Type 2S); +160 °C (V-90 PVC Type 1)
Min. installation temperature: −25 °C (Type 2S / 2S.3); 0 °C (Type 1 PVC)

Mechanical

Conductor stranding: Flexible stranded tinned annealed copper (AS/NZS 1125)
External protection requirement: Type 1 requires duct/hose; Type 2S self-protected in free air
Minimum bend radius: 6 × D fixed machine wiring; 10 × D flexing interconnect

Resistance

Flame retardance: AS/NZS 1660.5.6 Cat. C1 (Type 2S/2S.3) & Cat. C3 (Type 1)
Oil & water performance: Immersion resistant (Type 2S HD-90-CPE); splash resistant (Type 1)

Reference standards

Primary design standard: AS/NZS 1972 (underground coal mining — non-reeling/trailing)
Compounds & conductors: AS/NZS 3808 (V-90, 5V-90, R-EP-90, HD-90-CPE); AS/NZS 1125

Identification

Insulation & sheath materials: Type 1: V-90 / 5V-90 PVC; Type 2S: R-EP-90 EPR / HD-90-CPE
Outer sheath colour: Black heavy-duty HD-90-CPE (Type 2S/2S.3) or 5V-90 PVC (Type 1)

Sizes

43 standard sizes across Types 1, 2S & 2S.3 (AS/NZS 1972)

Complete dimensional, pilot and electrical schedules for individually and collectively screened 1.1/1.1 kV and 3.3/3.3 kV underground machine cables.

Dimensions & mass (43)
Type · grade · size	Voltage U0/U	Main cores	Core area (mm²)	Pilot cores	Conductor Ø (mm)	Insulation wall (mm)	Outer wall (mm)	Nominal OD (mm)	Total mass (kg/km)
Type 1 · Individually Screened · 1.1/1.1 kV · V-90/5V-90 PVC (7)
Type 1 Ind. · 1.1/1.1 kV · 2×1.5 mm²	1.1/1.1 kV	2	1.5	None	1.6	0.8	0.8	10.2	150
Type 1 Ind. · 1.1/1.1 kV · 3×1.5 mm²	1.1/1.1 kV	3	1.5	None	1.6	0.8	0.8	10.8	200
Type 1 Ind. · 1.1/1.1 kV · 3×10 mm²	1.1/1.1 kV	3	10.0	None	4.6	1.0	1.0	18.1	600
Type 1 Ind. · 1.1/1.1 kV · 3×16 mm²	1.1/1.1 kV	3	16.0	None	6.2	1.0	1.3	22.0	850
Type 1 Ind. · 1.1/1.1 kV · 4×1.5 mm²	1.1/1.1 kV	4	1.5	None	1.6	0.8	0.8	11.9	250
Type 1 Ind. · 1.1/1.1 kV · 4×10 mm²	1.1/1.1 kV	4	10.0	None	4.6	1.0	1.3	20.5	750
Type 1 Ind. · 1.1/1.1 kV · 4×16 mm²	1.1/1.1 kV	4	16.0	None	6.2	1.0	1.3	24.3	1,100
Type 1 · Collectively Screened · 1.1/1.1 kV · V-90/5V-90 PVC (6)
Type 1 Coll. · 1.1/1.1 kV · 2×1.5 mm²	1.1/1.1 kV	2	1.5	None	1.6	0.8	0.8	9.4	150
Type 1 Coll. · 1.1/1.1 kV · 3×1.5 mm²	1.1/1.1 kV	3	1.5	None	1.6	0.8	0.8	9.9	150
Type 1 Coll. · 1.1/1.1 kV · 4×1.5 mm²	1.1/1.1 kV	4	1.5	None	1.6	0.8	0.8	10.7	200
Type 1 Coll. · 1.1/1.1 kV · 6×1.5 mm²	1.1/1.1 kV	6	1.5	None	1.6	0.8	1.0	12.8	250
Type 1 Coll. · 1.1/1.1 kV · 16×1.5 mm²	1.1/1.1 kV	16	1.5	None	1.6	0.8	1.3	18.8	550
Type 1 Coll. · 1.1/1.1 kV · 30×1.5 mm²	1.1/1.1 kV	30	1.5	None	1.6	0.8	1.5	24.7	900
Type 2S · Individually Screened · 1.1/1.1 kV · R-EP-90/HD-90-CPE (16)
Type 2S Ind. · 1.1/1.1 kV · 2×10 mm²	1.1/1.1 kV	2	10.0	None	4.6	1.0	1.8	18.9	600
Type 2S Ind. · 1.1/1.1 kV · 2×16 mm²	1.1/1.1 kV	2	16.0	None	6.2	1.0	1.8	22.1	850
Type 2S Ind. · 1.1/1.1 kV · 3×10 mm²	1.1/1.1 kV	3	10.0	None	4.6	1.0	1.8	20.1	750
Type 2S Ind. · 1.1/1.1 kV · 3×16 mm²	1.1/1.1 kV	3	16.0	None	6.2	1.0	1.8	23.5	1,050
Type 2S Ind. · 1.1/1.1 kV · 4×10 mm²	1.1/1.1 kV	4	10.0	None	4.6	1.0	1.8	22.1	950
Type 2S Ind. · 1.1/1.1 kV · 4×16 mm²	1.1/1.1 kV	4	16.0	None	6.2	1.0	1.8	25.9	1,300
Type 2S Ind. · 1.1/1.1 kV · 2×16 + 1×1P mm²	1.1/1.1 kV	2	16.0	1 × 1.0 mm²	6.2	1.0	1.8	22.1	1,000
Type 2S Ind. · 1.1/1.1 kV · 2×6 + 2×1P mm²	1.1/1.1 kV	2	6.0	2 × 1.0 mm²	3.5	1.0	1.8	16.9	500
Type 2S Ind. · 1.1/1.1 kV · 2×10 + 2×1P mm²	1.1/1.1 kV	2	10.0	2 × 1.0 mm²	4.6	1.0	1.8	19.0	650
Type 2S Ind. · 1.1/1.1 kV · 2×16 + 2×1P mm²	1.1/1.1 kV	2	16.0	2 × 1.0 mm²	6.2	1.0	1.8	22.1	900
Type 2S Ind. · 1.1/1.1 kV · 3×6 + 3×1P mm²	1.1/1.1 kV	3	6.0	3 × 1.0 mm²	3.5	1.0	1.8	19.8	700
Type 2S Ind. · 1.1/1.1 kV · 3×10 + 3×1P mm²	1.1/1.1 kV	3	10.0	3 × 1.0 mm²	4.6	1.0	1.8	21.3	850
Type 2S Ind. · 1.1/1.1 kV · 3×16 + 3×1P mm²	1.1/1.1 kV	3	16.0	3 × 1.0 mm²	6.2	1.0	1.8	23.5	1,100
Type 2S Ind. · 1.1/1.1 kV · 3×25 + 3×1P mm²	1.1/1.1 kV	3	25.0	3 × 1.0 mm²	7.2	1.2	1.8	26.8	1,550
Type 2S Ind. · 1.1/1.1 kV · 3×35 + 3×1P mm²	1.1/1.1 kV	3	35.0	3 × 1.0 mm²	8.4	1.2	1.8	29.5	1,900
Type 2S Ind. · 1.1/1.1 kV · 3×50 + 3×1P mm²	1.1/1.1 kV	3	50.0	3 × 1.0 mm²	9.7	1.4	1.9	33.4	2,450
Type 2S · Collectively Screened · 1.1/1.1 kV · R-EP-90/HD-90-CPE (6)
Type 2S Coll. · 1.1/1.1 kV · 2×1.5 mm²	1.1/1.1 kV	2	1.5	None	1.6	1.0	1.8	12.2	200
Type 2S Coll. · 1.1/1.1 kV · 3×1.5 mm²	1.1/1.1 kV	3	1.5	None	1.6	1.0	1.8	12.7	250
Type 2S Coll. · 1.1/1.1 kV · 4×1.5 mm²	1.1/1.1 kV	4	1.5	None	1.6	1.0	1.8	13.7	250
Type 2S Coll. · 1.1/1.1 kV · 6×1.5 mm²	1.1/1.1 kV	6	1.5	None	1.6	1.0	1.8	16.0	350
Type 2S Coll. · 1.1/1.1 kV · 16×1.5 mm²	1.1/1.1 kV	16	1.5	None	1.6	1.0	1.8	22.8	750
Type 2S Coll. · 1.1/1.1 kV · 30×1.5 mm²	1.1/1.1 kV	30	1.5	None	1.6	1.0	1.8	29.1	1,200
Type 2S.3 · Individually Screened · 3.3/3.3 kV · R-EP-90/HD-90-CPE (8)
Type 2S.3 Ind. · 3.3/3.3 kV · 3×10 + 3×1.5P mm²	3.3/3.3 kV	3	10.0	3 × 1.5 mm²	4.6	3.0	1.8	30.5	1,400
Type 2S.3 Ind. · 3.3/3.3 kV · 3×16 + 3×1.5P mm²	3.3/3.3 kV	3	16.0	3 × 1.5 mm²	6.2	3.0	1.9	34.7	1,850
Type 2S.3 Ind. · 3.3/3.3 kV · 3×25 + 3×1.5P mm²	3.3/3.3 kV	3	25.0	3 × 1.5 mm²	7.2	3.0	2.0	37.3	2,350
Type 2S.3 Ind. · 3.3/3.3 kV · 3×35 + 3×1.5P mm²	3.3/3.3 kV	3	35.0	3 × 1.5 mm²	8.4	3.0	2.0	39.8	2,750
Type 2S.3 Ind. · 3.3/3.3 kV · 3×50 + 3×1.5P mm²	3.3/3.3 kV	3	50.0	3 × 1.5 mm²	9.7	3.0	2.1	42.8	3,250
Type 2S.3 Ind. · 3.3/3.3 kV · 3×70 + 3×1.5P mm²	3.3/3.3 kV	3	70.0	3 × 1.5 mm²	12.0	3.0	2.3	48.3	4,350
Type 2S.3 Ind. · 3.3/3.3 kV · 3×95 + 3×1.5P mm²	3.3/3.3 kV	3	95.0	3 × 1.5 mm²	13.3	3.0	2.4	51.4	5,150
Type 2S.3 Ind. · 3.3/3.3 kV · 3×120 + 3×1.5P mm²	3.3/3.3 kV	3	120.0	3 × 1.5 mm²	15.3	3.0	2.5	56.4	6,400

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Type 1 cables have a 5V-90 PVC outer covering and require external mechanical protection (conduit, duct or protective hose) when installed outside enclosures.
Type 2S and Type 2S.3 cables have a heavy-duty HD-90-CPE elastomer outer sheath and do not require further mechanical protection for external non-protected machine interconnections.

Electrical parameters (43)
Type · grade · size	Voltage U0/U	Main cores	Core area (mm²)	AC resistance 90 °C (Ω/km)	Reactance 50 Hz (Ω/km)	Voltage drop (mV/A·m)	Max. DC res. combined (Ω/km)
Type 1 · Individually Screened · 1.1/1.1 kV (7)
Type 1 Ind. · 1.1/1.1 kV · 2×1.5 mm²	1.1/1.1 kV	2	1.5	17.500	0.1200	30.300	13.700
Type 1 Ind. · 1.1/1.1 kV · 3×1.5 mm²	1.1/1.1 kV	3	1.5	17.500	0.1200	30.300	13.700
Type 1 Ind. · 1.1/1.1 kV · 3×10 mm²	1.1/1.1 kV	3	10.0	2.580	0.0923	4.470	6.060
Type 1 Ind. · 1.1/1.1 kV · 3×16 mm²	1.1/1.1 kV	3	16.0	1.580	0.0854	2.740	3.720
Type 1 Ind. · 1.1/1.1 kV · 4×1.5 mm²	1.1/1.1 kV	4	1.5	17.500	0.1280	30.300	13.700
Type 1 Ind. · 1.1/1.1 kV · 4×10 mm²	1.1/1.1 kV	4	10.0	2.580	0.0998	4.470	6.060
Type 1 Ind. · 1.1/1.1 kV · 4×16 mm²	1.1/1.1 kV	4	16.0	1.580	0.0929	2.740	3.720
Type 1 · Collectively Screened · 1.1/1.1 kV (6)
Type 1 Coll. · 1.1/1.1 kV · 2×1.5 mm²	1.1/1.1 kV	2	1.5	17.500	0.1060	30.300	13.700
Type 1 Coll. · 1.1/1.1 kV · 3×1.5 mm²	1.1/1.1 kV	3	1.5	17.500	0.1060	30.300	13.700
Type 1 Coll. · 1.1/1.1 kV · 4×1.5 mm²	1.1/1.1 kV	4	1.5	17.500	0.1140	30.300	13.700
Type 1 Coll. · 1.1/1.1 kV · 6×1.5 mm²	1.1/1.1 kV	6	1.5	17.500	0.1230	30.300	13.700
Type 1 Coll. · 1.1/1.1 kV · 16×1.5 mm²	1.1/1.1 kV	16	1.5	17.500	0.1520	30.300	13.700
Type 1 Coll. · 1.1/1.1 kV · 30×1.5 mm²	1.1/1.1 kV	30	1.5	17.500	0.1690	30.300	13.700
Type 2S · Individually Screened · 1.1/1.1 kV (16)
Type 2S Ind. · 1.1/1.1 kV · 2×10 mm²	1.1/1.1 kV	2	10.0	2.580	0.0953	4.470	6.060
Type 2S Ind. · 1.1/1.1 kV · 2×16 mm²	1.1/1.1 kV	2	16.0	1.580	0.0879	2.740	3.720
Type 2S Ind. · 1.1/1.1 kV · 3×10 mm²	1.1/1.1 kV	3	10.0	2.580	0.0953	4.470	6.060
Type 2S Ind. · 1.1/1.1 kV · 3×16 mm²	1.1/1.1 kV	3	16.0	1.580	0.0879	2.740	3.720
Type 2S Ind. · 1.1/1.1 kV · 4×10 mm²	1.1/1.1 kV	4	10.0	2.580	0.1030	4.470	6.060
Type 2S Ind. · 1.1/1.1 kV · 4×16 mm²	1.1/1.1 kV	4	16.0	1.580	0.0954	2.740	3.720
Type 2S Ind. · 1.1/1.1 kV · 2×16 + 1×1P mm²	1.1/1.1 kV	2	16.0	1.580	0.0786	2.740	3.720
Type 2S Ind. · 1.1/1.1 kV · 2×6 + 2×1P mm²	1.1/1.1 kV	2	6.0	4.320	0.0936	7.480	8.210
Type 2S Ind. · 1.1/1.1 kV · 2×10 + 2×1P mm²	1.1/1.1 kV	2	10.0	2.580	0.0860	4.470	6.060
Type 2S Ind. · 1.1/1.1 kV · 2×16 + 2×1P mm²	1.1/1.1 kV	2	16.0	1.580	0.0786	2.740	3.720
Type 2S Ind. · 1.1/1.1 kV · 3×6 + 3×1P mm²	1.1/1.1 kV	3	6.0	4.320	0.1190	7.490	8.210
Type 2S Ind. · 1.1/1.1 kV · 3×10 + 3×1P mm²	1.1/1.1 kV	3	10.0	2.580	0.1040	4.470	6.060
Type 2S Ind. · 1.1/1.1 kV · 3×16 + 3×1P mm²	1.1/1.1 kV	3	16.0	1.580	0.0879	2.740	3.720
Type 2S Ind. · 1.1/1.1 kV · 3×25 + 3×1P mm²	1.1/1.1 kV	3	25.0	0.951	0.0870	1.650	2.240
Type 2S Ind. · 1.1/1.1 kV · 3×35 + 3×1P mm²	1.1/1.1 kV	3	35.0	0.698	0.0837	1.220	1.640
Type 2S Ind. · 1.1/1.1 kV · 3×50 + 3×1P mm²	1.1/1.1 kV	3	50.0	0.523	0.0828	0.917	1.230
Type 2S · Collectively Screened · 1.1/1.1 kV (6)
Type 2S Coll. · 1.1/1.1 kV · 2×1.5 mm²	1.1/1.1 kV	2	1.5	17.500	0.1180	30.300	13.700
Type 2S Coll. · 1.1/1.1 kV · 3×1.5 mm²	1.1/1.1 kV	3	1.5	17.500	0.1190	30.300	13.700
Type 2S Coll. · 1.1/1.1 kV · 4×1.5 mm²	1.1/1.1 kV	4	1.5	17.500	0.1260	30.300	13.700
Type 2S Coll. · 1.1/1.1 kV · 6×1.5 mm²	1.1/1.1 kV	6	1.5	17.500	0.1350	30.300	13.700
Type 2S Coll. · 1.1/1.1 kV · 16×1.5 mm²	1.1/1.1 kV	16	1.5	17.500	0.1640	30.300	13.700
Type 2S Coll. · 1.1/1.1 kV · 30×1.5 mm²	1.1/1.1 kV	30	1.5	17.500	0.1810	30.300	13.700
Type 2S.3 · Individually Screened · 3.3/3.3 kV (8)
Type 2S.3 Ind. · 3.3/3.3 kV · 3×10 + 3×1.5P mm²	3.3/3.3 kV	3	10.0	2.580	0.1250	4.470	6.060
Type 2S.3 Ind. · 3.3/3.3 kV · 3×16 + 3×1.5P mm²	3.3/3.3 kV	3	16.0	1.580	0.1160	2.740	3.720
Type 2S.3 Ind. · 3.3/3.3 kV · 3×25 + 3×1.5P mm²	3.3/3.3 kV	3	25.0	0.951	0.1100	1.660	2.240
Type 2S.3 Ind. · 3.3/3.3 kV · 3×35 + 3×1.5P mm²	3.3/3.3 kV	3	35.0	0.698	0.1050	1.220	1.640
Type 2S.3 Ind. · 3.3/3.3 kV · 3×50 + 3×1.5P mm²	3.3/3.3 kV	3	50.0	0.523	0.1010	0.923	1.230
Type 2S.3 Ind. · 3.3/3.3 kV · 3×70 + 3×1.5P mm²	3.3/3.3 kV	3	70.0	0.346	0.0950	0.621	0.813
Type 2S.3 Ind. · 3.3/3.3 kV · 3×95 + 3×1.5P mm²	3.3/3.3 kV	3	95.0	0.271	0.0926	0.496	0.636
Type 2S.3 Ind. · 3.3/3.3 kV · 3×120 + 3×1.5P mm²	3.3/3.3 kV	3	120.0	0.210	0.0897	0.396	0.492

Cables rated in excess of 20 A are electrically symmetrical per AS/NZS 1972.
'Max. DC res. combined (Ω/km)' specifies the maximum combined DC resistance at 20 °C of the composite earth screen (plus any earth conductor) for fault-loop impedance verification.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
Conductor & composite earth-screen DC resistance test	100 % drum verification of phase conductor DC resistance (AS/NZS 1125) and combined earth-screen DC resistance per AS/NZS 1972	Every production length
High-voltage AC dielectric withstand test	5-minute AC voltage test on all insulated cores (3.5 kV for 1.1/1.1 kV; 6.5 kV for 3.3/3.3 kV) per AS/NZS 1972	Every production length
Sample tests
Flame propagation (AS/NZS 1660.5.6 Category C1 / C3)	Category C1 vertical flame test on Type 2S / 2S.3 (HD-90-CPE) and Category C3 on Type 1 (5V-90 PVC)	Type approval & periodic sample

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

AS/NZS 1972 Underground Coal Mining Machine & Interconnect CableAS/NZS 1660.5.6 Category C1 (Type 2S/2S.3) & Category C3 (Type 1)

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX — AS/NZS 1972 — TYPE <1 / 2S / 2S.3> — <1.1/1.1 OR 3.3/3.3 kV> — <CORES × AREA mm²> — SCREENED — YEAR — METRE MARK

Standard packing: 250 m, 500 m or 1,000 m wooden drums; custom machine-kit cut lengths
Screening options: Individually screened power cores (2–4C) or collectively screened control cores (2–30C)
Export tariff code: HS 8544.60 (> 1,000 V screened mining cables)

Technical documents

Downloads

PDFAS/NZS 1972 Underground Mining Machine & Feeder Cables – technical datasheet43 sizes · construction, technical data, approvals XLSXAS/NZS 1972 spec data (Excel)All 43 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the scope of AS/NZS 1972 compared with AS/NZS 1802?

AS/NZS 1802 covers dynamic reeling and trailing cables that drag behind or reel onto mobile underground coal mining machines (Types 209 to 275). AS/NZS 1972 covers underground coal mining cables 'other than reeling and trailing' — specifically screened cables fixed onboard continuous miners, shuttle cars, roadheaders and personnel transporters to interconnect flameproof switchgear, cutter motors, hydraulic pump motors and longwall lighting.

When should I specify AS/NZS 1972 Type 2S instead of Type 1?

Type 1 uses heat-resistant V-90 PVC insulation and a thin 5V-90 PVC outer covering (0.8–1.5 mm) to minimize diameter inside tight machine ducts, conduits or protective hydraulic hoses, and requires external mechanical protection. Type 2S and Type 2S.3 use thermoset R-EP-90 EPR insulation and a heavy-duty HD-90-CPE elastomer outer sheath (1.8–2.5 mm, Category C1 flame retardant), allowing direct exposed installation on machine frames and longwall lighting runs without secondary hose protection.

What is the difference between individually screened and collectively screened AS/NZS 1972 cables?

Individually screened constructions (2, 3 or 4 cores from 1.5 mm² to 120 mm²) wrap each phase conductor in its own composite tinned-copper/polyester braid so any phase-to-earth fault is immediately intercepted before a phase-to-phase arc can develop. Collectively screened constructions (2 to 30 × 1.5 mm²) apply a single composite copper/polyester braid over the entire laid-up control core bundle for low-current auxiliary and control circuits.

Why does AS/NZS 1972 require cables rated above 20 A to be electrically symmetrical?

On underground coal face machinery, unbalanced phase-to-earth impedance or asymmetric core lay-up in high-current motor leads can induce circulating currents in the composite earth screens and nuisance-trip sensitive earth-leakage relays. Symmetrical three-core lay-up (with three interstitial pilots where fitted) balances mutual inductance across all three phases.

Request a quote

Get an engineering quote for AS/NZS 1972

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

Reel typeDrum core diameter (mm)Cable length on drum (m)Travel speed (m/min)Max. accelerationCycles per hourLength and quantityAmbient temperatureExposure (outdoor, water, oil, abrasion)Destination countryEquipment and operating conditions

03Message for our engineers

AS/NZS 1972 Type 1 Screened Machine Cable 1.1/1.1 kV

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:

Send via WhatsApp

Datasheet Request a quote

AS/NZS 1972 Underground Mining Machine & Feeder CablesTypes 1, 2S & 2S.3 screened machine and lighting cables, 1.1 & 3.3 kV

Mine roadway & tunnel wall hangers

Fixed installation

Free-hanging vertical run

Motorised monospiral reel

Longwall shearer & Bretby handler

Type 1 · 1.1/1.1 kV (V-90 / 5V-90 PVC)

Type 2S · 1.1/1.1 kV (R-EP-90 EPR / HD-90-CPE)

Type 2S.3 · 3.3/3.3 kV (R-EP-90 EPR / HD-90-CPE + 3 Pilots)

Types in this range

Electrical

Thermal

Mechanical

Resistance

Reference standards

Identification

Inspection certificate

Product approvals

Company certificates

01Selected sizes

02Reel & motion

03Message for our engineers

AS/NZS 1802

AS/NZS 2802

Type MP-GC
