Control & signal cableH45 ≤ 45 nF/km Low-CapDIN VDE 0816 / DB 416.0115Axle-Counter & ETCS Quads

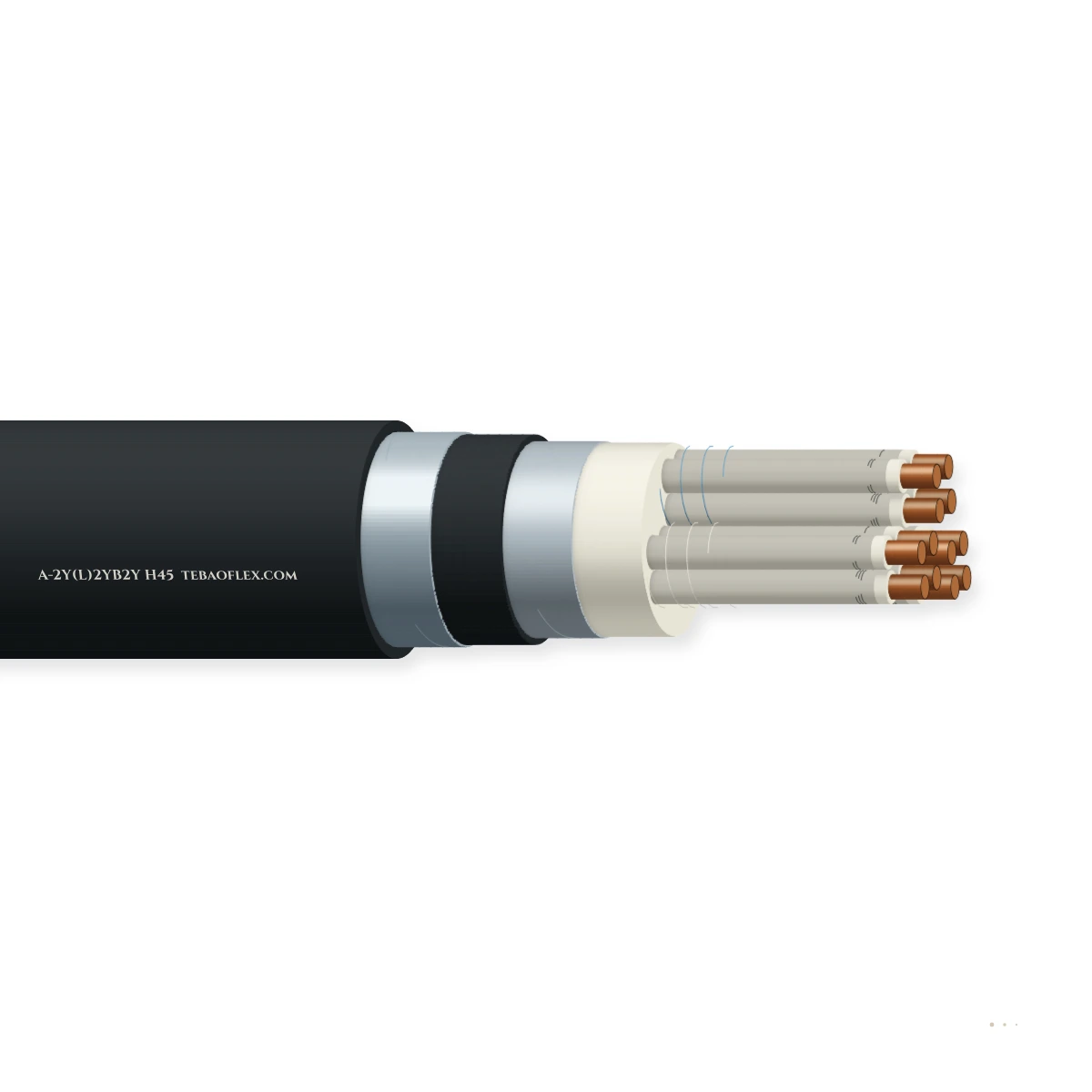

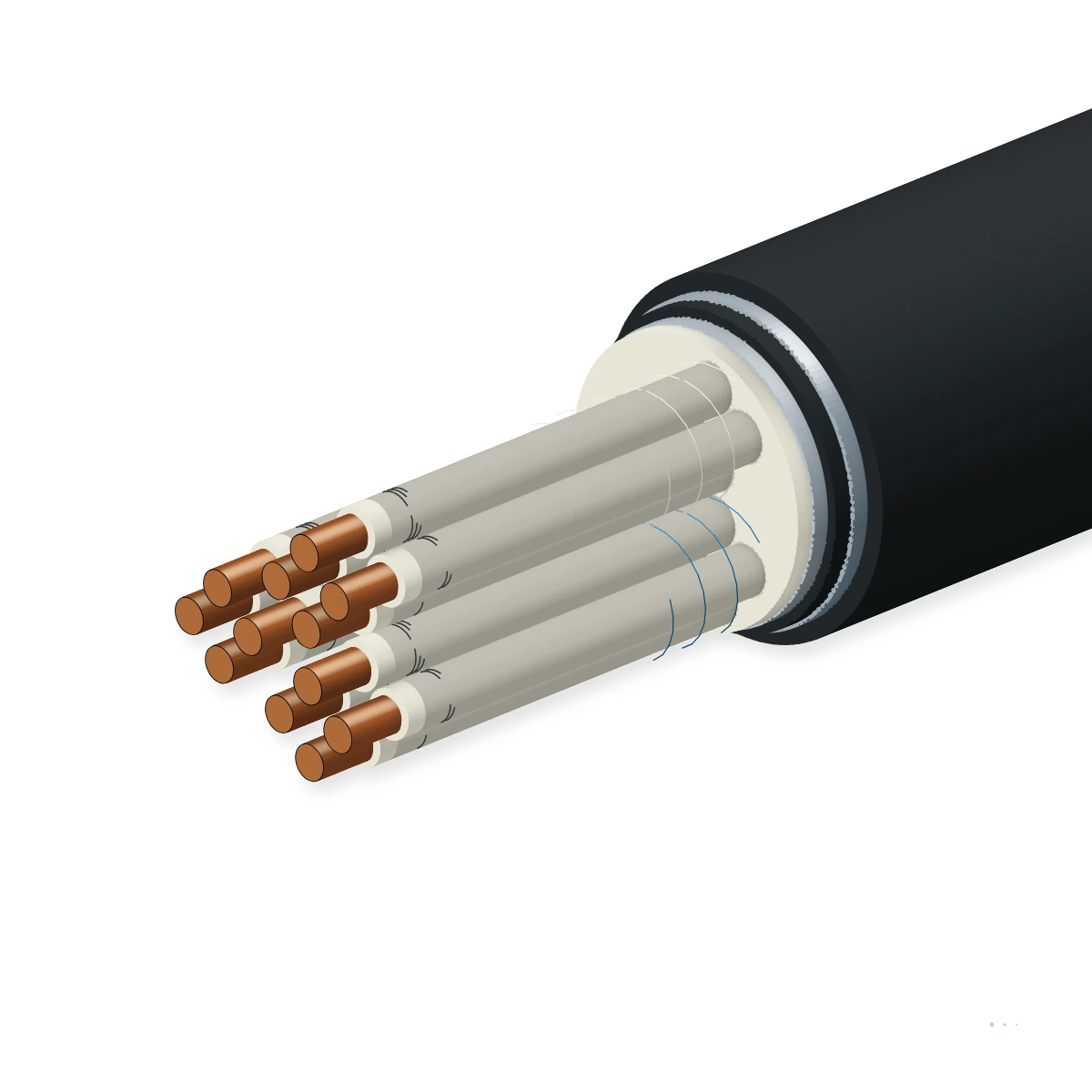

A-2Y(L)2YB2Y H45 Low-Capacitance Armoured Railway Telecom CableDIN VDE 0816 / DB H45 (≤ 45 nF/km) low-capacitance armoured railway star-quad cable

A-2Y(L)2YB2Y H45 low-capacitance armoured railway telecom cable (DIN VDE 0816 / DB 416.0115) with ≤ 45 nF/km ('H45') 0.9–1.4 mm copper star-quads for long axle-counter and ETCS links, '(L)2Y' Al/PE barrier, double steel tape armour ('B'), and HDPE jacket.

EMC screen
Outdoor & humid
Ozone, UV & moisture
Water-resistant
Order designation
A-2Y(L)2YB2Y 4×4×0.9 H45
Outer Ø ≈
18.00 mm
Wall thickness
1.98 mm
Total weight ≈
425.0 kg/km
Min. bend R (fixed)
270 mm
All sizes (11)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Capacitance
H45 ≤ 45 nF/km
Low-loss at 800 Hz for axle counters
Quad conductor
0.9–1.4 mm Cu
Solid bare Cu star-quads (x4)
Barrier sheath
(L)2Y Al/PE
Bonded aluminum moisture barrier
Armouring (B)
2 × steel tape
Rodent & crush-resistant armour
Test voltage
2500 V AC
Core-to-core & core-to-screen
Service temp.
-40…+70 °C
Trackside trough & direct burial

Typical values for this cable type, based on DIN VDE 0816 / DB 416.0115 H45 Low-Capacitance Axle-Counter & Telecom Specification — confirmed in the datasheet and quotation for your order.

Application fit

Is A-2Y(L)2YB2Y H45 right for your machine?

Select A-2Y(L)2YB2Y H45 for railway axle-counter evaluators, FSK/DSL wayside modems, and ETCS interlocking circuits where standard 52–55 nF/km cables exceed line attenuation budgets.

Fixed installation

Suitable

H45 low capacitance (≤ 45 nF/km) extends unrepeatered transmission reach for audio-frequency and digital axle counters.

Immersion & wet locations

Suitable

Laminated '(L)2Y' Al/PE sheath blocks radial moisture while double steel tape armour ('B') resists rodents and ballast.

Energy chain / drag chain

Not suitable

Solid copper star-quads and double steel tape armour are designed exclusively for static burial and trough routing.

Use JZ-50440 CP for drag-chain control
Typical machinesRailway Axle-Counter Evaluator LinksETCS Level 1/2 Wayside SignallingSHDSL / Voice-Frequency Block CircuitsTrackside Cable Troughs & Direct BurialRegional & Industrial Rail Networks

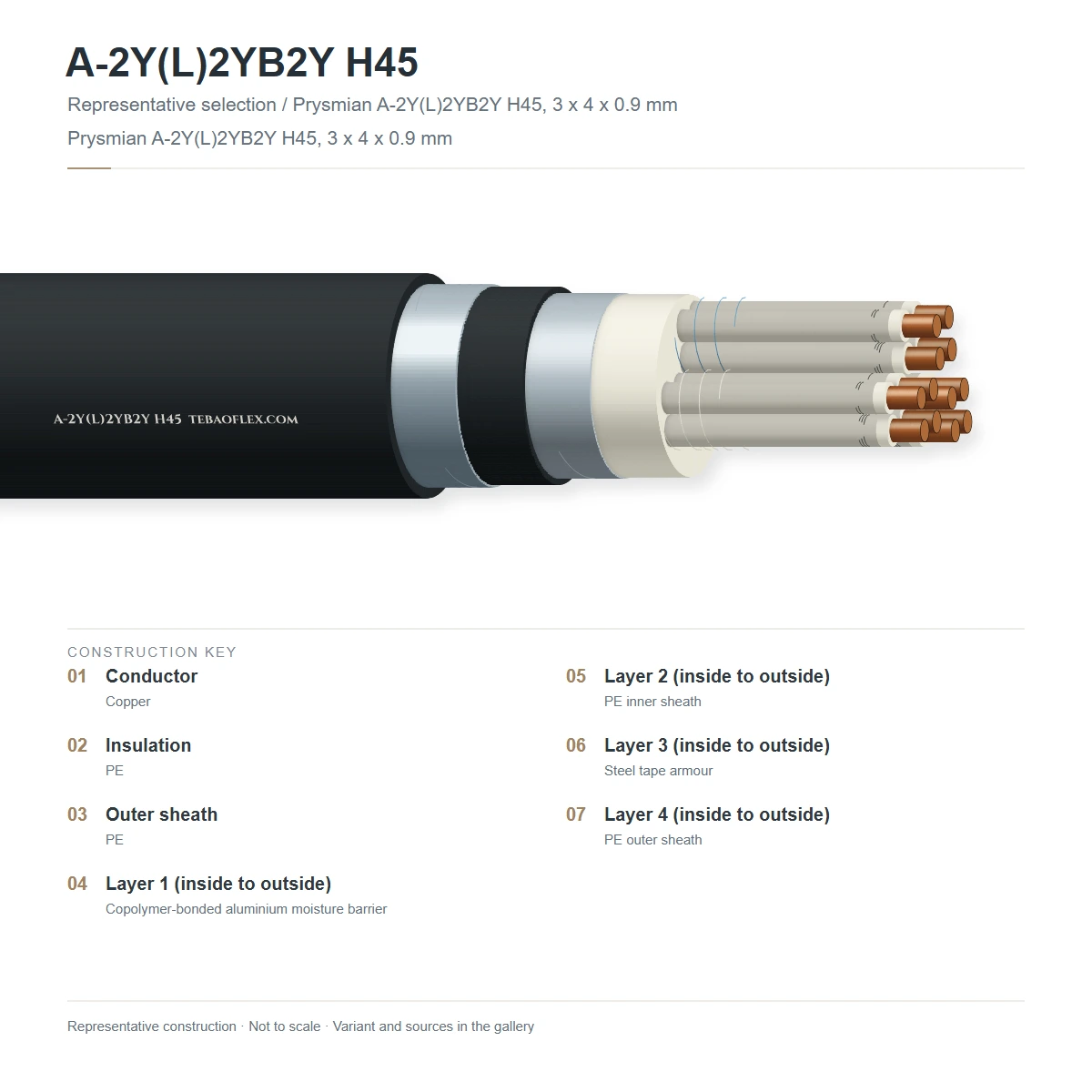

Construction

Layer by layer

DB 416.0115 H45 construction: solid copper conductors (0.9 / 1.2 / 1.4 mm) with thickened low-permittivity 2Y PE insulation (≤ 45 nF/km), (L)2Y Al/PE laminated inner sheath, double steel tape armour (B), and 2Y HDPE jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Solid bare copper star-quadsAnnealed solid bare copper wire (0.9 mm, 1.2 mm, or 1.4 mm) twisted into balanced star-quadsPrecision quad pitch minimises capacitive unbalance (k1, k9–12) at audio and carrier frequencies
2H45 low-capacitance 2Y PEIncreased-wall low-density/cellular polyethylene (2Y) core insulationGuarantees mutual operating capacitance ≤ 45 nF/km at 800 Hz
3(L)2Y Al/PE laminated inner sheathLongitudinally applied copolymer-coated aluminum tape fused to an extruded PE inner sheathBlocks radial moisture diffusion and provides electrostatic shielding
4Double steel tape armour (B)Two helically lapped galvanised steel tapes over protective beddingHigh crush resistance and rodent protection in trackside troughs and trenches
52Y black HDPE outer sheathUV-resistant carbon-black polyethylene outer jacketDurable burial and duct jacket resistant to soil chemicals and ballast abrasion

A-2Y(L)2YB2Y n×4×0.9 H45

0.9 mm H45 (≤ 45 nF/km) star-quad cable for axle-counter heads and digital wayside modems

A-2Y(L)2YB2Y n×4×1.2 / 1.4 H45

1.2 mm and 1.4 mm H45 star-quad cable for extended-reach axle counters and block signalling

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0816 / DB 416.0115 H45 Low-Capacitance Axle-Counter & Telecom Specification. Values for your order are confirmed in the datasheet and quotation.

Electrical

Mutual capacitance (H45)
≤ 45 nF/km at 800 Hz
Loop resistance (+20 °C)
≤ 56.6 Ω/km (0.9) · ≤ 31.8 Ω/km (1.2) · ≤ 23.4 Ω/km (1.4)
Insulation resistance
≥ 5,000 MΩ·km at +20 °C
AC dielectric test voltage
2,500 V AC (core/core & core/screen)

Thermal

Operating temperature (fixed)
-40 °C to +70 °C
Installation temperature
-20 °C to +50 °C

Mechanical

Quad construction
Low-capacitance star-quads (H45)
Armouring
Double galvanised steel tape ('B')
Min. bending radius
15 × overall cable diameter
Max. pulling tension
50 N/mm² of total copper area

Resistance

Moisture barrier
Al/PE laminated inner sheath (L)2Y
Rodent & impact protection
Double steel tape armour ('B')
UV & weather resistance
Carbon-black HDPE jacket (EN 50290-2-23)

Reference standards

Primary standards
DIN VDE 0816 & DB TL 416.0115 (H45)
RoHS & REACH
RoHS 3 & REACH compliant

Identification

Outer sheath colour
Black (RAL 9005)
Surface legend
TEBAOFLEX A-2Y(L)2YB2Y [n×4×d] H45 VDE 0816 [year]
Customs tariff (HS)
8544.49

Sizes

11 standard configurations (A-2Y(L)2YB2Y H45)

Engineering dimensions, conductor stranding, mass and electrical ratings for A-2Y(L)2YB2Y H45 per DIN VDE 0816 / DB 416.0115 H45 Low-Capacitance Axle-Counter & Telecom Specification.

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard A-2Y(L)2YB2Y H45 configurations
A-2Y(L)2YB2Y 1×4×0.9 H451×4×0.9Solid / Stranded Cu1.4313.0099.0225.0195
A-2Y(L)2YB2Y 2×4×0.9 H452×4×0.9Solid / Stranded Cu1.7415.80138.6315.0240
A-2Y(L)2YB2Y 4×4×0.9 H454×4×0.9Solid / Stranded Cu1.9818.00187.0425.0270
A-2Y(L)2YB2Y 6×4×0.9 H456×4×0.9Solid / Stranded Cu2.2420.40237.6540.0305
A-2Y(L)2YB2Y 10×4×0.9 H4510×4×0.9Solid / Stranded Cu2.6023.60323.4735.0355
A-2Y(L)2YB2Y 20×4×0.9 H4520×4×0.9Solid / Stranded Cu3.2829.80523.61,190.0450
A-2Y(L)2YB2Y 1×4×1.2 H451×4×1.2Solid / Stranded Cu1.5814.40127.6290.0215
A-2Y(L)2YB2Y 4×4×1.2 H454×4×1.2Solid / Stranded Cu2.2220.20255.2580.0305
A-2Y(L)2YB2Y 1×4×1.4 H451×4×1.4Solid / Stranded Cu1.7115.50147.4335.0235
A-2Y(L)2YB2Y 4×4×1.4 H454×4×1.4Solid / Stranded Cu2.4021.80305.8695.0330
A-2Y(L)2YB2Y 10×4×1.4 H4510×4×1.4Solid / Stranded Cu3.2629.60589.61,340.0445
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for A-2Y(L)2YB2Y H45 subject to standard manufacturing tolerances per DIN VDE 0816 / DB 416.0115 H45 Low-Capacitance Axle-Counter & Telecom Specification.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per DIN VDE 0816 / DB 416.0115 H45 Low-Capacitance Axle-Counter & Telecom SpecificationEvery manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for A-2Y(L)2YB2Y H45Every spool or drum length
Sample tests
Insulation resistance & dimensional verificationWall thickness, concentricity and insulation resistance per DIN VDE 0816 / DB 416.0115 H45 Low-Capacitance Axle-Counter & Telecom SpecificationPer production batch
Environmental, mechanical & EMC qualificationQualified to DIN VDE 0816 / DB 416.0115 H45 Low-Capacitance Axle-Counter & Telecom Specification thermal, mechanical and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0816 / DB 416.0115 H45 Low-Capacitance Axle-Counter & Telecom SpecificationCE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX A-2Y(L)2YB2Y 4x4x0.9 H45 VDE 0816 DB AXLE COUNTER
Delivery form
Export wooden drums, tactical reels or coils
Standard lengths
100 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFA-2Y(L)2YB2Y H45 Low-Capacitance Armoured Railway Telecom Cable – technical datasheet11 sizes · construction, technical data, approvalsXLSXA-2Y(L)2YB2Y H45 spec data (Excel)All 11 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does 'H45' mean in A-2Y(L)2YB2Y H45?
'H45' specifies a maximum mutual operating capacitance of 45 nF/km at 800 Hz (compared with 50–55 nF/km in standard St I / St III telecom cables). Lower capacitance directly reduces high-frequency line attenuation (dB/km), allowing railway axle counters and SHDSL wayside links to span longer track sections without repeaters.
Why are wheel sensors and axle-counter evaluators sensitive to cable capacitance?
Modern railway axle counters transmit carrier-frequency FSK or digital signals between trackside wheel detection heads and interlocking evaluators. Excessive pair capacitance attenuates carrier amplitude and causes phase shift; H45 (≤ 45 nF/km) preserves signal margin over long block sections.
How does A-2Y(L)2YB2Y H45 differ from AJ-2Y(L)2YDB2Y H45?
Both feature H45 (≤ 45 nF/km) low-capacitance star-quads and double steel tape armour ('B'). AJ-2Y(L)2YDB2Y H45 adds a heavy copper wire screen ('D') beneath high-permeability steel tapes ('AJ-') to achieve a low reduction factor (r_k ≤ 0.1–0.3) against 16.7 Hz / 50 Hz AC catenary induction.
Can A-2Y(L)2YB2Y H45 be direct-buried in railway embankments?
Yes. Its '(L)2Y' aluminum-laminated PE inner sheath, double galvanised steel tape armour ('B'), and UV-stabilised HDPE outer sheath ('2Y') are rated for direct burial and concrete trackside troughs.
