Control & signal cableDIN VDE 0816-1OF Petrolatum Water-BlockedDouble Steel Tape Armour (B)

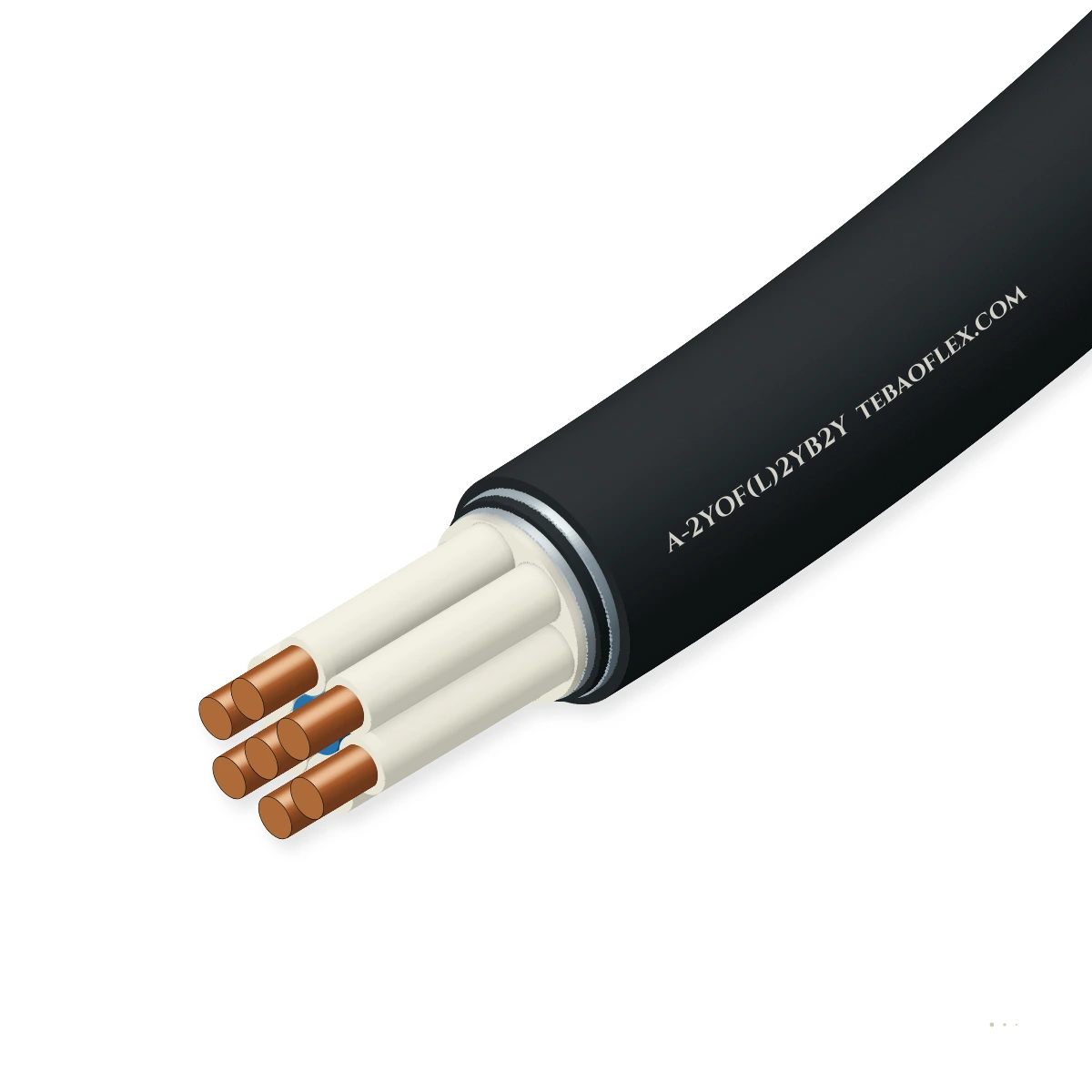

A-2YOF(L)2YB2Y Jelly-Filled Armoured Outdoor Telecom CableDIN VDE 0816-1 jelly-filled ('OF') & Al/PE-barrier steel-armoured outdoor telecom cable

A-2YOF(L)2YB2Y jelly-filled armoured outdoor telecom cable (DIN VDE 0816-1) with 0.6–1.4 mm solid copper star-quads, 2Y PE insulation, 'OF' petrolatum longitudinal water blocking, '(L)2Y' Al/PE radial barrier, double steel tape armour ('B'), and HDPE jacket.

Water-resistant
EMC screen
Outdoor & humid
Ozone, UV & moisture
Order designation
A-2YOF(L)2YB2Y 10×2×0.8
Outer Ø ≈
17.00 mm
Wall thickness
1.87 mm
Total weight ≈
370.0 kg/km
Min. bend R (fixed)
255 mm
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Water blocking
OF jelly-filled
Longitudinal + radial (L)2Y seal
Quad conductor
0.6–1.4 mm Cu
Solid bare Cu star-quads (x4)
Mutual cap.
≤ 50–55 nF/km
At 800 Hz (St III / St I quads)
Armouring (B)
2 × steel tape
Rodent & direct-burial armour
Test voltage
2000–2500 V AC
Core/core & core/screen
Buried temp.
-40…+70 °C
-20…+50 °C during laying

Typical values for this cable type, based on DIN VDE 0816-1 / EN 50290-2-23 Jelly-Filled Armoured Outdoor Telecom Specification — confirmed in the datasheet and quotation for your order.

Application fit

Is A-2YOF(L)2YB2Y right for your machine?

Select A-2YOF(L)2YB2Y for direct-buried utility trenches, waterlogged ducts, pipeline SCADA corridors, and railway rights-of-way requiring longitudinal water blocking and steel armour.

Immersion & wet locations

Suitable

Petrolatum compound filling ('OF') fills all core interstices to prevent longitudinal water migration if the jacket is punctured.

Fixed installation

Suitable

Double galvanised steel tape armour ('B') and tough HDPE outer jacket withstand direct trench burial, rocky backfill, and rodent attack.

Typical machinesDirect-Buried Telecom & Utility NetworksPipeline & Water-Utility SCADA LinksRailway & Highway Wayside CommunicationsFlooded Cable Ducts & High-Water-Table SitesIndustrial Plant Perimeter Interlocks

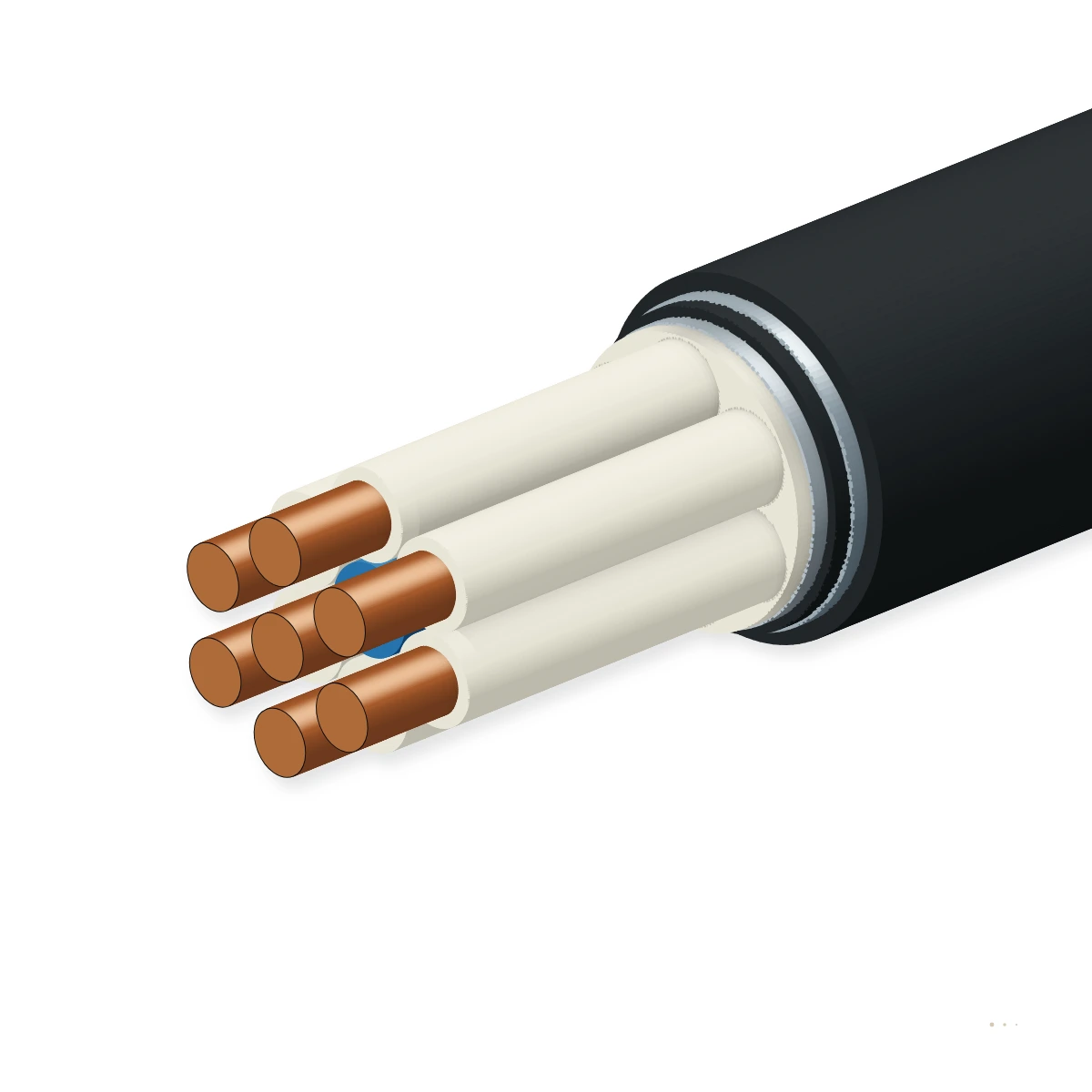

Construction

Layer by layer

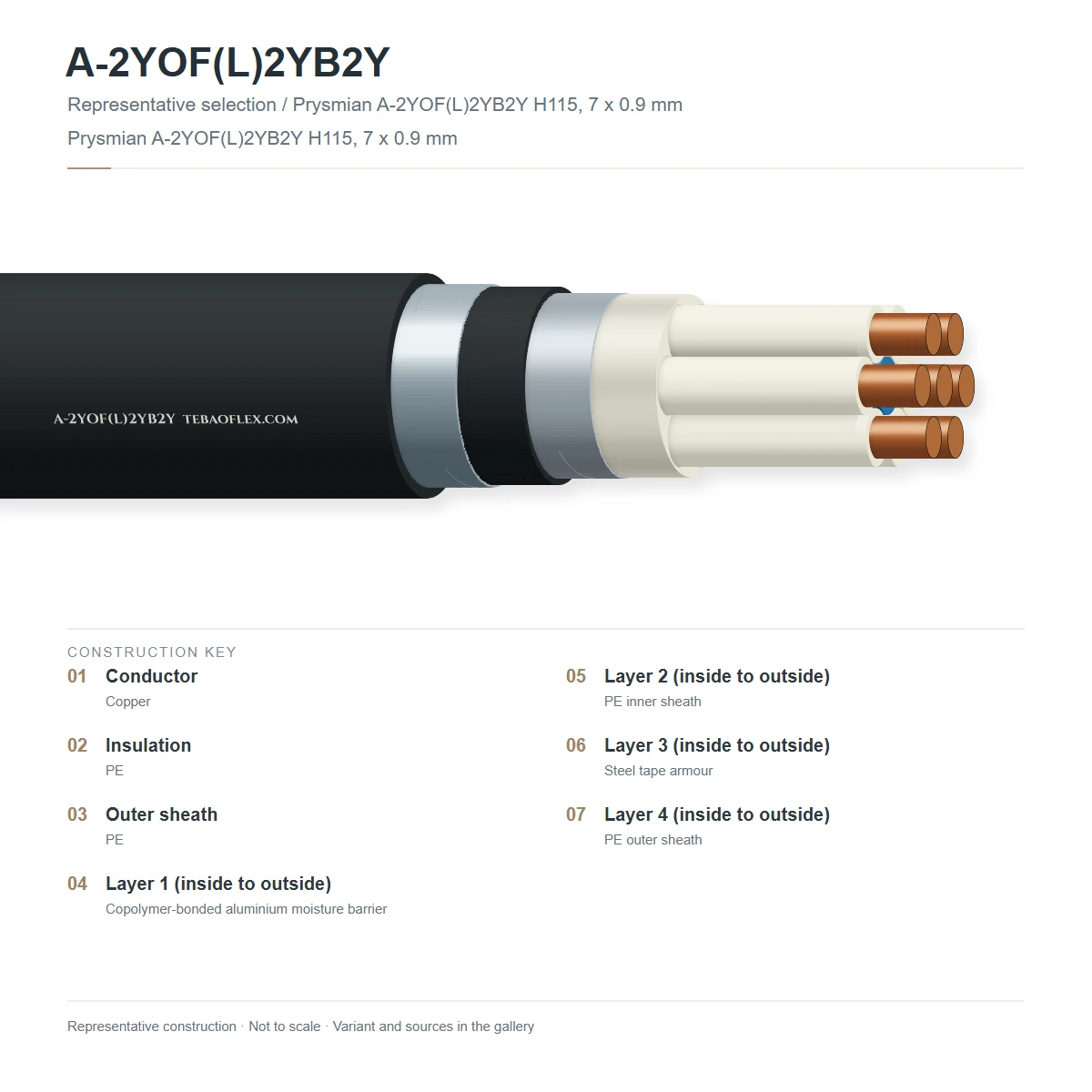

DIN VDE 0816-1 construction: solid copper star-quads, 2Y PE insulation, OF petrolatum jelly filling, (L)2Y Al/PE laminated moisture-barrier sheath, double galvanised steel tape armour (B), and black 2Y HDPE jacket.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Solid bare copper star-quadsAnnealed solid bare copper wire (0.6, 0.8, 0.9, 1.2, or 1.4 mm) twisted in balanced star-quadsLow attenuation and low crosstalk for voice, SCADA, and xDSL/modem circuits
22Y polyethylene core insulationSolid or cellular-skin polyethylene (2Y) compensated for jelly permittivityMaintains ≤ 50–55 nF/km operating capacitance inside the petrolatum filling
3OF petrolatum core fillingNon-hygroscopic, drop-point-stabilised hydrocarbon jelly ('OF' = Öl-/Petrolat-Füllung)Stops longitudinal water travel per IEC 60794-1-22 Method F5
4(L)2Y Al/PE laminated inner sheathCopolymer-coated aluminum tape fused longitudinally to an extruded PE inner sheath100 % radial water-vapour barrier and electrostatic screen
5Double steel tape armour (B)Two helically applied galvanised steel tapes over protective beddingCrushing, shovel-impact, and rodent protection for direct burial
62Y black HDPE outer sheathUV-stabilised carbon-black polyethylene outer jacketImpervious to groundwater, soil acids, and solar UV

A-2YOF(L)2YB2Y n×2×0.6 / 0.8 St III

0.6 mm and 0.8 mm jelly-filled armoured subscriber, intercom, and SCADA trunk cable

A-2YOF(L)2YB2Y n×4×0.9 / 1.4 St I

0.9 mm and 1.4 mm jelly-filled armoured long-distance railway and utility quad cable

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0816-1 / EN 50290-2-23 Jelly-Filled Armoured Outdoor Telecom Specification. Values for your order are confirmed in the datasheet and quotation.

Electrical

Loop resistance (+20 °C)
≤ 130 (0.6) · ≤ 73.2 (0.8) · ≤ 56.6 (0.9) · ≤ 23.4 Ω/km (1.4)
Mutual capacitance (800 Hz)
≤ 50 nF/km (St III) · ≤ 52–55 nF/km (St I)
Insulation resistance
≥ 5,000 MΩ·km at +20 °C
AC dielectric test voltage
2,000 V AC (core/core & core/screen)

Thermal

Operating temperature (fixed)
-40 °C to +70 °C
Installation temperature
-20 °C to +50 °C
Jelly drop-point stability
≥ +70 °C (no compound drainage)

Mechanical

Core water blocking
Full petrolatum jelly filling ('OF')
Armouring
Double galvanised steel tape ('B')
Min. bending radius
15 × overall cable diameter
Max. pulling tension
50 N/mm² of total copper area

Resistance

Longitudinal water tightness
IEC 60794-1-22 Method F5 pass
Radial moisture barrier
(L)2Y laminated aluminum/PE inner sheath
Rodent & crush resistance
Double steel tape armour ('B')

Reference standards

Construction standard
DIN VDE 0816-1
RoHS & REACH
RoHS 3 & REACH compliant

Identification

Outer sheath colour
Black (RAL 9005) with handset symbol
Surface legend
TEBAOFLEX A-2YOF(L)2YB2Y [dim] VDE 0816 [year] [m]
Customs tariff (HS)
8544.49

Sizes

10 standard configurations (A-2YOF(L)2YB2Y)

Engineering dimensions, conductor stranding, mass and electrical ratings for A-2YOF(L)2YB2Y per DIN VDE 0816-1 / EN 50290-2-23 Jelly-Filled Armoured Outdoor Telecom Specification.

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard A-2YOF(L)2YB2Y configurations
A-2YOF(L)2YB2Y 6×2×0.66×2×0.6Solid / Stranded Cu1.4513.2096.8220.0200
A-2YOF(L)2YB2Y 10×2×0.610×2×0.6Solid / Stranded Cu1.5914.50116.6265.0220
A-2YOF(L)2YB2Y 20×2×0.620×2×0.6Solid / Stranded Cu1.8917.20169.4385.0260
A-2YOF(L)2YB2Y 50×2×0.650×2×0.6Solid / Stranded Cu2.5323.00312.4710.0345
A-2YOF(L)2YB2Y 6×2×0.86×2×0.8Solid / Stranded Cu1.6515.00125.4285.0225
A-2YOF(L)2YB2Y 10×2×0.810×2×0.8Solid / Stranded Cu1.8717.00162.8370.0255
A-2YOF(L)2YB2Y 20×2×0.820×2×0.8Solid / Stranded Cu2.3121.00255.2580.0315
A-2YOF(L)2YB2Y 4×4×0.94×4×0.9Solid / Stranded Cu2.0418.50202.4460.0280
A-2YOF(L)2YB2Y 10×4×0.910×4×0.9Solid / Stranded Cu2.6624.20347.6790.0365
A-2YOF(L)2YB2Y 4×4×1.44×4×1.4Solid / Stranded Cu2.4822.50330.0750.0340
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for A-2YOF(L)2YB2Y subject to standard manufacturing tolerances per DIN VDE 0816-1 / EN 50290-2-23 Jelly-Filled Armoured Outdoor Telecom Specification.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per DIN VDE 0816-1 / EN 50290-2-23 Jelly-Filled Armoured Outdoor Telecom SpecificationEvery manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for A-2YOF(L)2YB2YEvery spool or drum length
Sample tests
Insulation resistance & dimensional verificationWall thickness, concentricity and insulation resistance per DIN VDE 0816-1 / EN 50290-2-23 Jelly-Filled Armoured Outdoor Telecom SpecificationPer production batch
Environmental, mechanical & EMC qualificationQualified to DIN VDE 0816-1 / EN 50290-2-23 Jelly-Filled Armoured Outdoor Telecom Specification thermal, mechanical and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0816-1 / EN 50290-2-23 Jelly-Filled Armoured Outdoor Telecom SpecificationCE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX A-2YOF(L)2YB2Y 10x2x0.8 St III VDE 0816-1 WATER-BLOCKED
Delivery form
Export wooden drums, tactical reels or coils
Standard lengths
100 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFA-2YOF(L)2YB2Y Jelly-Filled Armoured Outdoor Telecom Cable – technical datasheet10 sizes · construction, technical data, approvalsXLSXA-2YOF(L)2YB2Y spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does 'OF' mean in A-2YOF(L)2YB2Y?
'OF' stands for petrolatum jelly core filling (Öl-/Petrolat-Füllung). Unlike air-spaced cables where water entering a jacket puncture can wick tens of metres along the core interstices, the hydrophobic petrolatum compound fills every void between the star-quads for permanent longitudinal water blocking.
How do 'OF' and '(L)2Y' work together against groundwater?
The '(L)2Y' copolymer-coated aluminum tape fused to the inner PE sheath blocks radial water-vapour permeation through the jacket wall, while the 'OF' petrolatum filling prevents longitudinal water propagation if the cable is mechanically damaged.
Does petrolatum jelly filling increase the cable's mutual capacitance?
Because petrolatum jelly has a permittivity (εr ≈ 2.2) higher than air (εr = 1.0), the 2Y polyethylene core insulation wall thickness or cellular-skin structure is proportioned so mutual capacitance remains ≤ 50–55 nF/km at 800 Hz.
What is the difference between St III (n×2) and St I (n×4) versions?
Both use 4-wire star-quad twisting; in subscriber telecom notation (St III), a 20-pair cable is designated 20×2 (10 star-quads), whereas railway and trunk cables (St I) state the quad count directly as n×4 (e.g., 10×4×0.9 mm).
