PN-G-90006 Polish Underground Mining Power & Control Cables (YnOGY / YKGY / YHKGY)PN-G-90006 · YKGYFoyn / -żo0.6/1 kV · Round Steel-Wire Armour (Fo)Inclined Drift & Shaft Tensile Duty

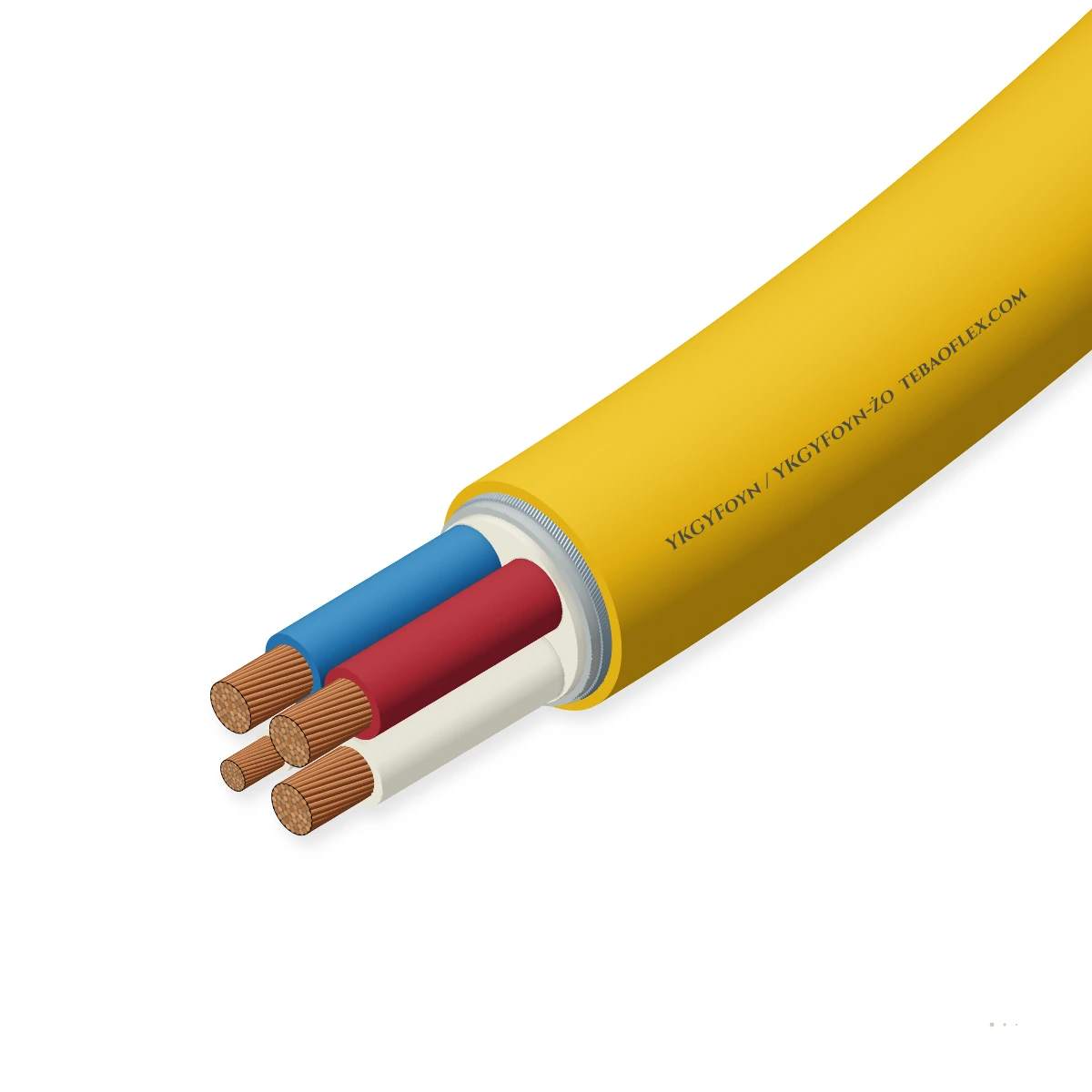

YKGYFoyn / YKGYFoyn-żo Steel-Wire Armoured PVC Mining CablePN-G-90006 0.6/1 kV PVC-insulated (Y), Cu (G), round galvanized steel-wire armoured

YKGYFoyn / YKGYFoyn-żo Steel-Wire Armoured PVC Mining Cable is a Polish-standard (PN-G-90006) 0.6/1 kV underground mine shaft, inclined drift, and high-convergence roadway power and control cable constructed with Class 5/2 copper conductors ('G', with or

Flame-retardant

EMC screen

Oil-resistant

Water-resistant

Cores × Size

Order designation: YKGYFoyn-żo 5 × 10 mm² 0.6/1 kV
Outer Ø ≈: 26.2 mm
Copper weight: 480 kg/km
Total weight ≈: 1,490 kg/km
Min. bend R (fixed): 262 mm

All sizes (6)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Standard: PN-G-90006
Designation: YKGYFoyn / -żo
Rated voltage: 0.6/1 kV AC
Conductor: Class 5 / 2
Armouring: Round Steel Wire
Outer sheath: yn Mining FR-PVC

Typical values for this cable type, based on PN-G-90006 / PN-E-90401 (YKGYFoyn / YKGYFoyn-żo 0.6/1 kV Steel-Wire Armoured Mining Cable) — confirmed in the datasheet and quotation for your order.

Application fit

Is YKGYFoyn / YKGYFoyn-żo right for your machine?

Engineered for vertical mine shafts, steep inclined drifts (up to 90°), subsiding longwall roadways, and heavy haulage galleries where the cable must withstand both longitudinal tensile loads and

Fixed installation

Suitable

Galvanized round steel wire armour ('Fo') supports vertical shaft cleats and resists axial tension in subsiding mining ground.

Switchgear & control cabinet wiring

Suitable

Available with ('YKGYFoyn-żo') or without ('YKGYFoyn-o') a green-yellow protective core to match IT/TN mine earthing.

Immersion & wet locations

Suitable

Galvanized armour wires bedded in extruded inner PVC and jacketed in heavy 'yn' mining PVC resist wet shaft water.

Energy chain / drag chain

Not suitable

Fixed steel-wire armoured shaft and roadway cable.

YKGYFtZnyn

Typical machinesVertical mine shafts & steep inclined driftsSubsiding coal & copper mining roadwaysPit-bottom dewatering pump stationsUnderground haulage & winder power supply

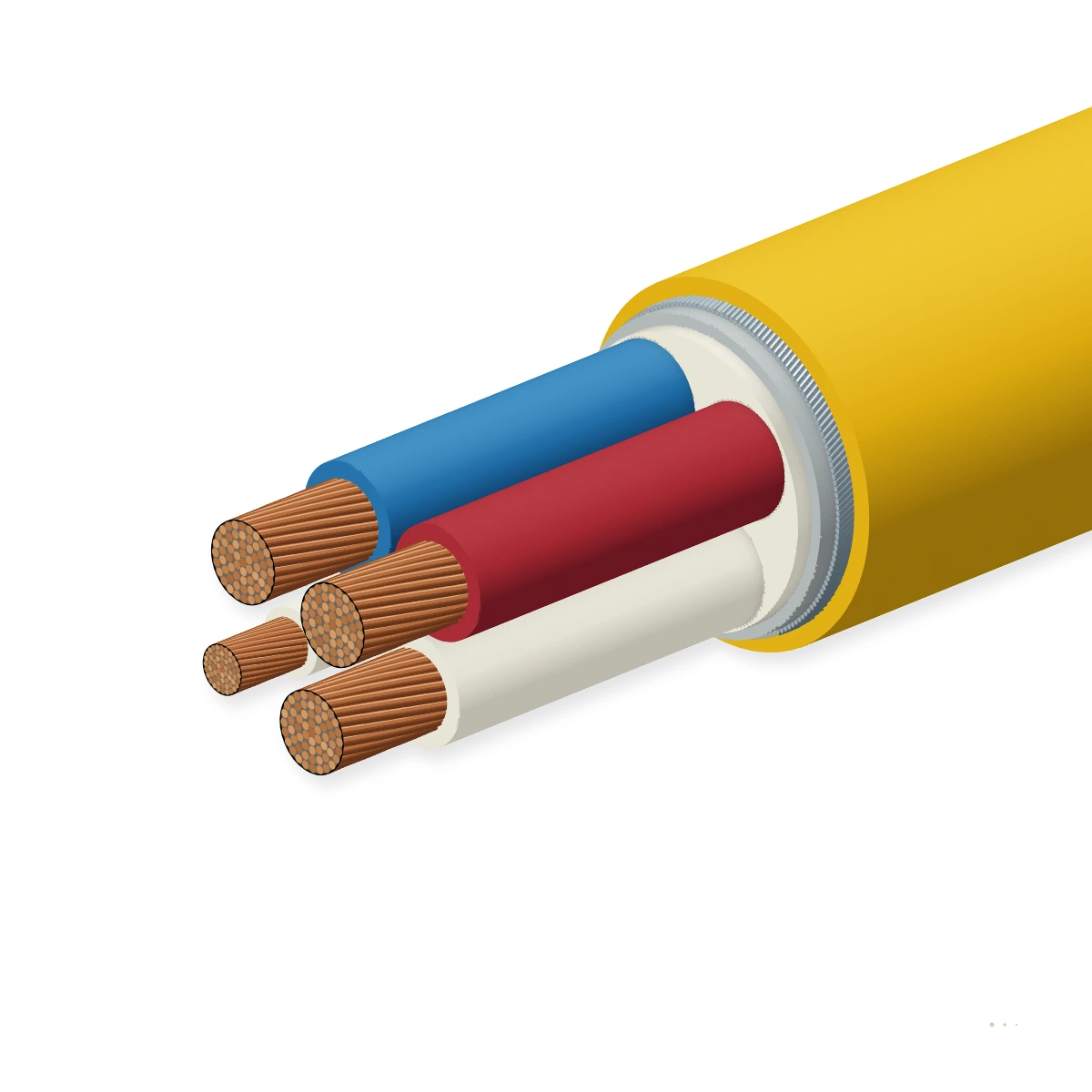

Construction

Layer by layer

Multi-wire stranded copper conductors (PN-EN 60228 Class 5 or Class 2, 2.5 to 150 mm²), PVC core insulation ('Y'), extruded PVC inner

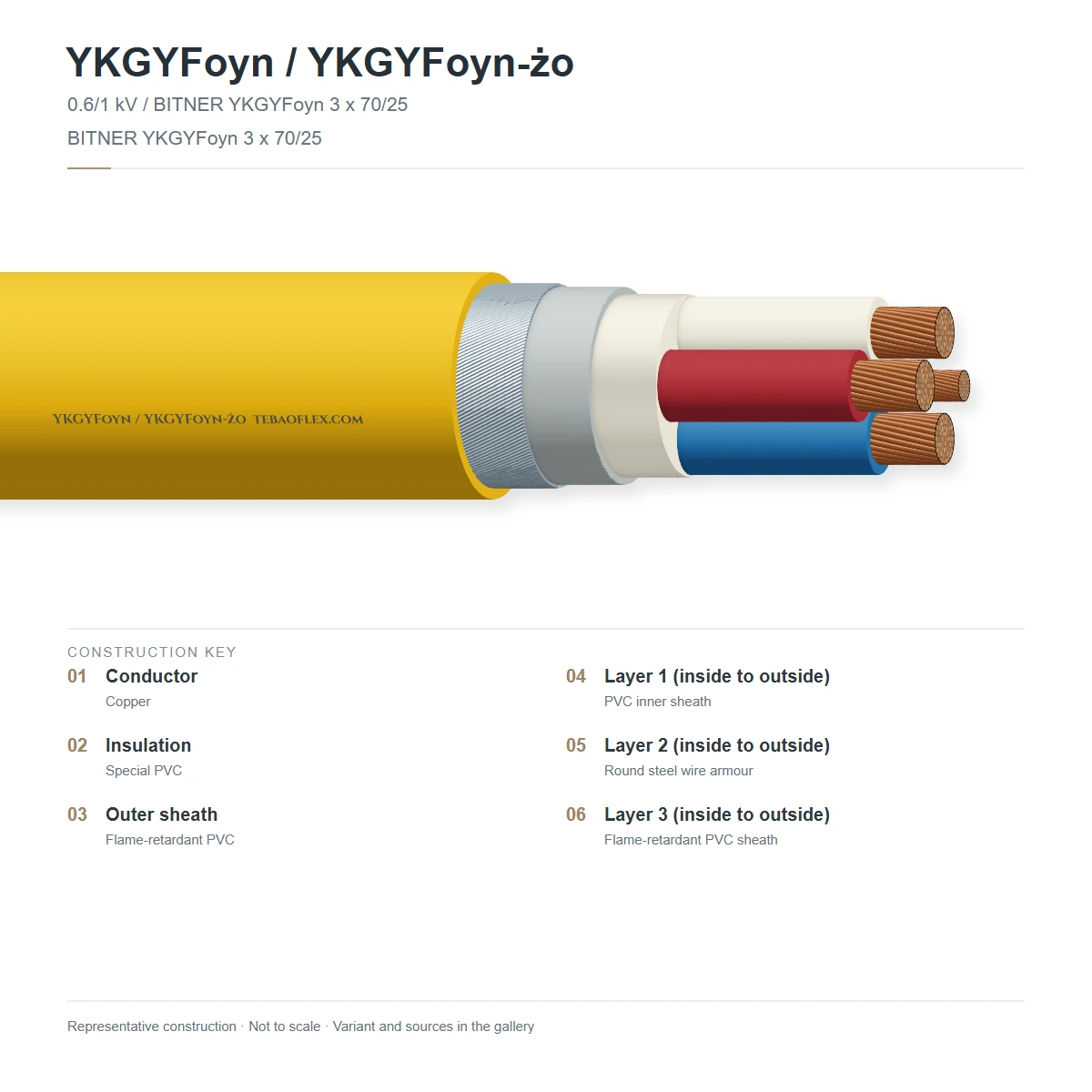

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Multi-wire stranded copper conductor (G)	Flexible Class 5 (or Class 2 stranded) annealed copper per PN-EN 60228PN-G-90006 / PN-EN 60228
2	PVC core insulation (Y)	Insulating polyvinyl chloride (PVC) compound (with or without -żo core)PN-G-90006
3	Extruded PVC inner bedding (Y)	Extruded PVC inner sheath cushioning the round wire armourPN-G-90006
4	Galvanized round steel wire armour (Fo)	Helical layer of galvanized round steel wires (Fo) bound with counter-helical steel tapePN-G-90006 / PN-EN 10257-1
5	Flame-retardant mining PVC outer	Self-extinguishing, oil-resistant mining PVC compound (yn)PN-G-90006 / PN-EN 60332-1-2

YKGYFoyn-żo (With Green-Yellow Core, 3×2.5 to 5×95 mm²)

Steel-wire armoured 0.6/1 kV shaft and roadway power/control cable with dedicated -żo PE core.

YKGYFoyn / YKGYFoyn-o (Without Green-Yellow Core, 3×16 to 4×150 mm²)

Steel-wire armoured 3-phase and multi-core control cable using the Fo wire armour or external earth.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90006 / PN-E-90401 (YKGYFoyn / YKGYFoyn-żo 0.6/1 kV Steel-Wire Armoured Mining Cable). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 0.6/1 kV AC (600/1000 V)
AC dielectric test voltage: 3,500 V AC for 5 minutes
Max. conductor operating temp.: +70 °C continuous · +160 °C short-circuit
Min. insulation resistance @ 20 °C: ≥ 20 MΩ·km

Thermal

Operating temperature range: -25 °C to +70 °C (fixed installation)
Minimum installation temp.: -5 °C

Mechanical

Min. bending radius: 10 × overall diameter (D) for round-wire
Armour type: Galvanized round steel wires ('Fo', pancerz

Resistance

Flame retardance: PN-EN 60332-1-2 & PN-G-04035 mining flame
Tensile & impact resistance: High axial tensile load capacity for

Reference standards

Primary specification: PN-G-90006 · PN-E-90401 · WUG underground
Conductor & armour standards: PN-EN 60228 · PN-EN 10257-1

Identification

Core identification: HD 308 S2 colour code (-żo or -o) or black
Outer sheath colour: Black (or Yellow mining visibility sheath)

Sizes

6 standard configurations (YKGYFoyn / YKGYFoyn-żo)

Nominal dimensions, copper weights, DC resistance and current ratings for YKGYFoyn / YKGYFoyn-żo per PN-G-90006 / PN-E-90401 (YKGYFoyn / YKGYFoyn-żo 0.6/1 kV

Dimensions & weights
Order designation	Cores × Size	Main cross-section	Outer Ø ≈ mm	Copper kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard YKGYFoyn / YKGYFoyn-żo configurations
YKGYFoyn-żo 5 × 4.0 mm² 0.6/1 kV	5G 4.0 mm²	4.0 mm²	20.6	192	890	206
YKGYFoyn-żo 5 × 10 mm² 0.6/1 kV	5G 10 mm²	10.0 mm²	26.2	480	1,490	262
YKGYFoyn 4 × 25 mm² 0.6/1 kV	4 × 25 mm²	25.0 mm²	31.8	960	2,280	318
YKGYFoyn 4 × 50 mm² 0.6/1 kV	4 × 50 mm²	50.0 mm²	40.4	1,920	3,790	404
YKGYFoyn 4 × 95 mm² 0.6/1 kV	4 × 95 mm²	95.0 mm²	51.6	3,648	6,380	516
YKGYFoyn 4 × 150 mm² 0.6/1 kV	4 × 150 mm²	150.0 mm²	61.4	5,760	9,350	614

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90006 / PN-E-90401 (YKGYFoyn / YKGYFoyn-żo 0.6/1 kV Steel-Wire Armoured Mining Cable).

Electrical & ampacity
Configuration	Max. DC R @ 20 °C Ω/km	Iz free air A	Iz tray / duct A	Isc (1 s) kA	Voltage drop mV/A/m	Dielectric test V
5G 4.0 mm²	4.95	34	31	0.46	10.90	3,500
5G 10 mm²	1.91	60	54	1.15	4.20	3,500
4 × 25 mm²	0.78	102	92	2.88	1.72	3,500
4 × 50 mm²	0.39	154	139	5.75	0.86	3,500
4 × 95 mm²	0.21	232	209	10.93	0.46	3,500
4 × 150 mm²	0.13	310	279	17.25	0.29	3,500

Conductor DC resistance at +20 °C per IEC 60228 and reference current ratings at 30 °C ambient per PN-G-90006 / PN-E-90401 (YKGYFoyn / YKGYFoyn-żo 0.6/1 kV Steel-Wire Armoured Mining Cable).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
3.5 kV AC dielectric & insulation resistance	3,500 V AC for 5 min per PN-G-90006	100 % of drums
Conductor DC resistance & Fo wire continuity	PN-EN 60228 & galvanized steel wire armour check	100 % of drums
Sample tests
Fo steel wire tensile strength & zinc coat	PN-EN 10257-1 round armour wire verification	Per production batch
PN-EN 60332-1-2 & PN-G-04035 mining flame test	Pass Polish underground mining fire propagation test	WUG / type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90006 / PN-E-90401PN-EN 60332-1-2CE / WUG Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX YKGYFoyn / YKGYFoyn-zo 0.6/1KV

Delivery form: Non-returnable timber drums or heavy export
Standard drum lengths: 250 m · 500 m · 1000 m · custom cut lengths
MOQ: 100 m (stock variants) · 500 m (custom)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFYKGYFoyn / YKGYFoyn-żo Steel-Wire Armoured PVC Mining Cable – technical datasheet6 sizes · construction, technical data, approvals XLSXYKGYFoyn / YKGYFoyn-żo spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
