PN-G-90006 Polish Underground Mining Power & Control Cables (YnOGY / YKGY / YHKGY)PN-G-90006 · YHKGYyn0.6/1 kV & 3.6/6 kV · H-ScreenedUnarmoured Double-Sheathed FR-PVC (yn)

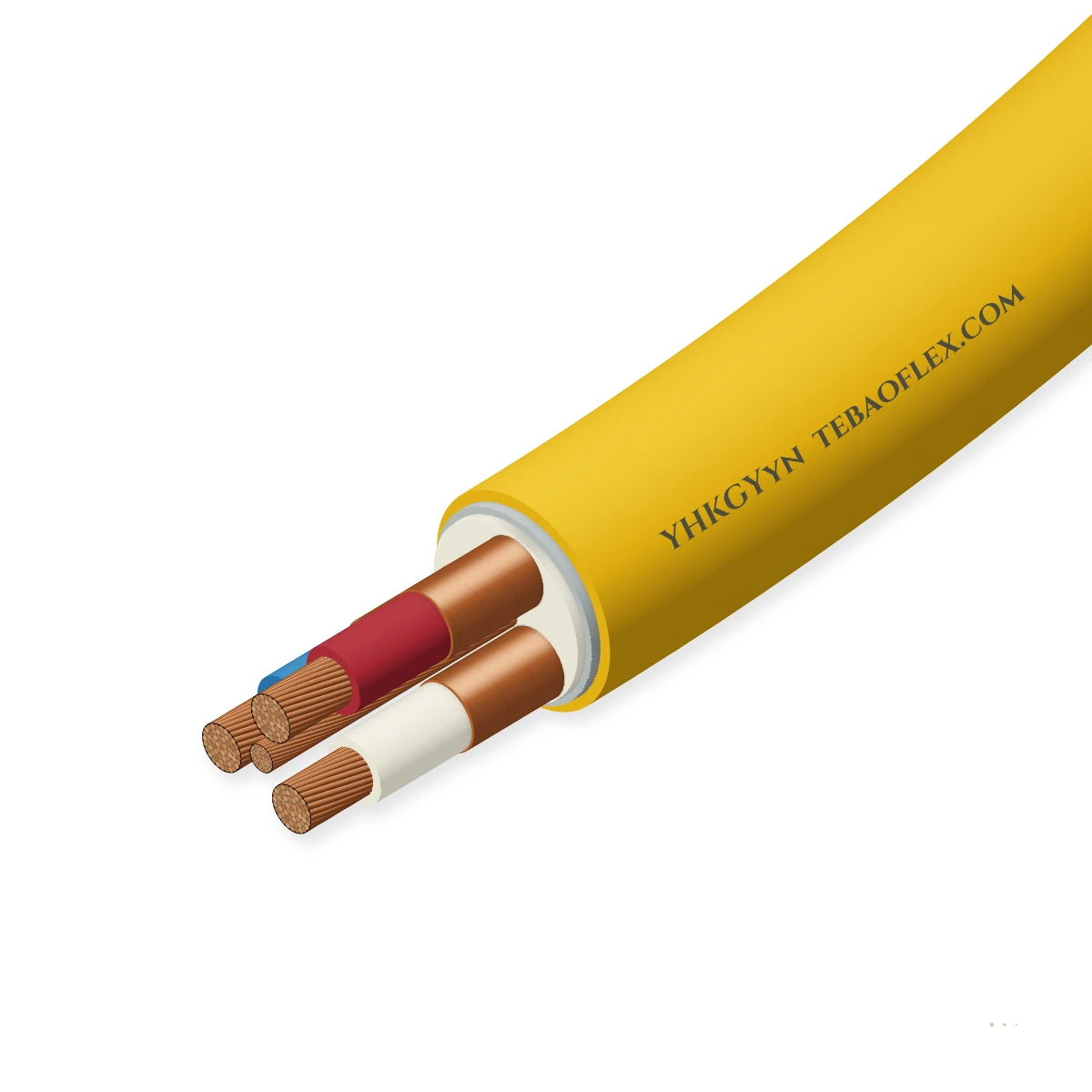

YHKGYyn CablePN-G-90006 0.6/1 kV & 3.6/6 kV PVC (Y), electrostatic-screened (H), Cu (G), FR-PVC (yn)

YHKGYyn Cable is a Polish-standard (PN-G-90006) unarmoured electrostatic-screened ('H') underground mining power cable rated for 0.6/1 kV and 3.6/6 kV networks, combining flexible Class 5/2 copper conductors ('G'), PVC core insulation ('Y')

Flame-retardant
EMC screen
Oil-resistant
Water-resistant
Order designation
YHKGYyn 4 × 25 mm² 0.6/1 kV
Outer Ø ≈
28.6 mm
Copper weight
995 kg/km
Total weight ≈
1,580 kg/km
Min. bend R (fixed)
286 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
PN-G-90006
Polish underground mining specification
Designation
YHKGYyn
H = electrostatic / semi-conductive
Voltage ratings
0.6/1 kV &
LV & MV underground mining power
Conductor
Class 5 / 2
PN-EN 60228 stranded copper ('G')
Screen system
H Electrostatic
Eliminates surface static & field stress
Outer sheath
yn Mining FR-PVC
Self-extinguishing high-LOI PVC

Typical values for this cable type, based on PN-G-90006 / ZN-TF (YHKGYyn 0.6/1 kV & 3.6/6 kV H-Screened Mining Cable) — confirmed in the datasheet and quotation for your order.

Application fit

Is YHKGYyn right for your machine?

Engineered for underground coal and copper mine galleries, transformer bays, and overhead messenger-wire suspensions where electrostatic/field screening ('H') is required without the weight of

Fixed installation

Suitable

Unarmoured double-sheathed design hangs cleanly on insulated roadway hooks and routes easily into MV/LV switchgear.

Switchgear & control cabinet wiring

Suitable

Electrostatic 'H' screen equalizes radial dielectric stress on 3.6/6 kV and 0.6/1 kV mining feeders.

Immersion & wet locations

Suitable

Dual extruded PVC sheaths (Y inner + yn outer) protect the screened core assembly against mine moisture.

Energy chain / drag chain

Not suitable

Fixed/semi-fixed underground gallery power cable.

YHKGYekyn
Typical machinesMethane-hazardous (Group I) underground coal galleries3.6/6 kV & 0.6/1 kV underground substationsCopper & salt mine overhead cable hangersFlameproof transformer & motor interconnections

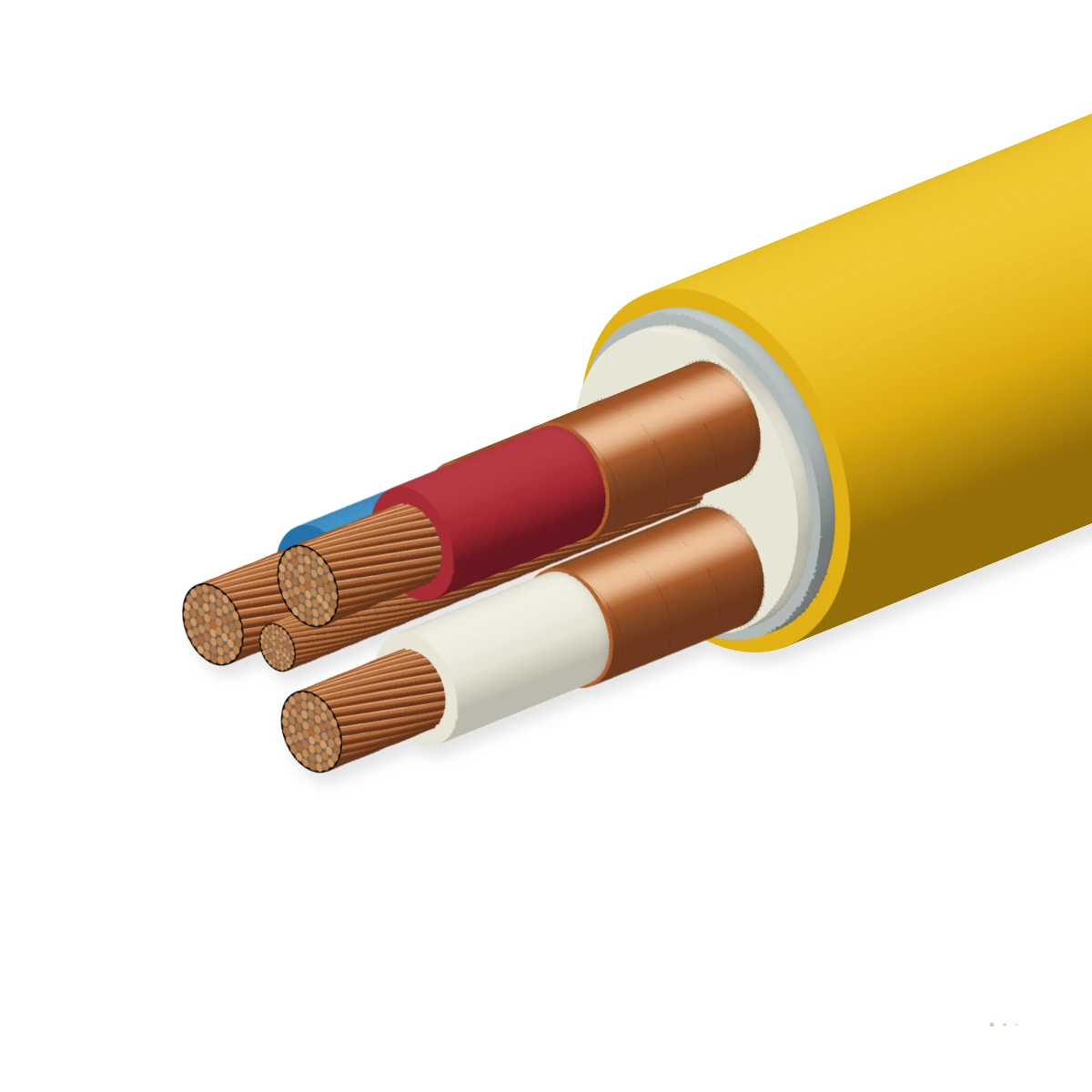

Construction

Layer by layer

Multi-wire stranded copper conductors (PN-EN 60228 Class 5 or Class 2, 10 to 150 mm²), PVC insulation ('Y'), semi-conductive/electrostatic

12345

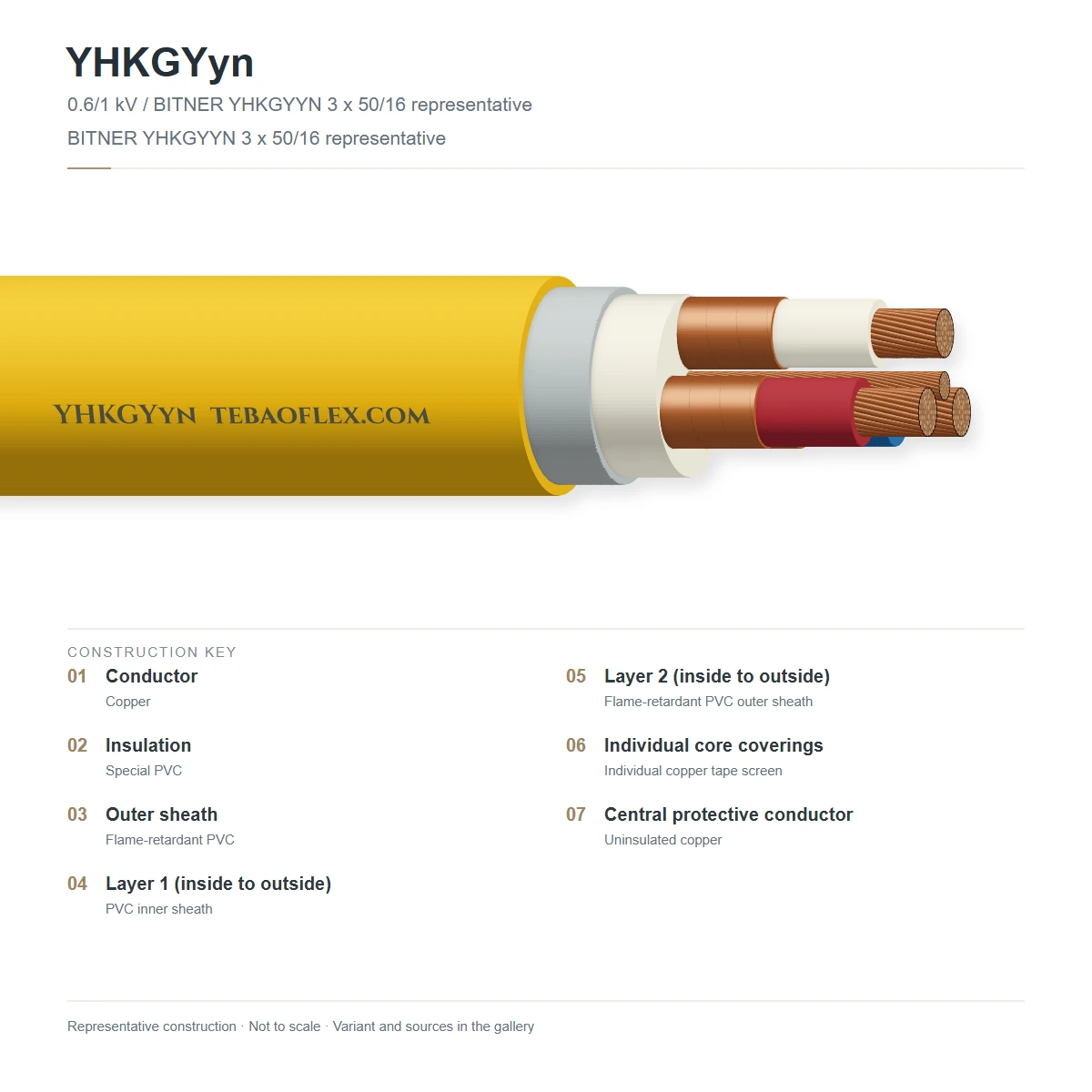

Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Multi-wire stranded copper conductor (G)Flexible Class 5 (or Class 2) annealed copper per PN-EN 60228PN-G-90006 / PN-EN 60228
2PVC core insulation (Y)Insulating polyvinyl chloride (PVC) compoundPN-G-90006
3Electrostatic / semi-conductive screenSemi-conductive electrostatic screen layer (H) with copper continuity tape/wiresPN-G-90006
4Extruded PVC inner sheath (Y)Pressure-extruded PVC inner sheathPN-G-90006
5Flame-retardant mining PVC outerSelf-extinguishing, oil-resistant mining PVC compound (yn)PN-G-90006 / PN-EN 60332-1-2

YHKGYyn 0.6/1 kV (3×10 to 4×120 mm²)

Electrostatic-screened 0.6/1 kV unarmoured underground gallery power cable.

YHKGYyn 3.6/6 kV (3×16 to 3×150 mm²)

Medium-voltage 3.6/6 kV H-screened unarmoured substation and gallery jumper cable.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90006 / ZN-TF (YHKGYyn 0.6/1 kV & 3.6/6 kV H-Screened Mining Cable). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV AC & 3.6/6 kV AC
AC dielectric test voltage
3.5 kV AC (0.6/1 kV) · 11 kV AC (3.6/6 kV)
Max. conductor operating temp.
+70 °C continuous · +160 °C short-circuit
Electrostatic screening
H-type semi-conductive/metallic screen per

Thermal

Operating temperature range
-25 °C to +70 °C (fixed installation)
Minimum installation temp.
-5 °C

Mechanical

Min. bending radius
10 × overall diameter (D)
Sheath construction
Unarmoured double-sheathed (Y inner + yn

Resistance

Flame retardance
PN-EN 60332-1-2 & PN-G-04035 mining flame
Mine water & oil resistance
Resistant to acidic/saline mine water and

Reference standards

Primary specification
PN-G-90006 · ZN-TF / WUG underground mining
Conductor standard
PN-EN 60228

Identification

Core identification
HD 308 S2 colour code or numbered phase cores
Outer sheath colour
Black (0.6/1 kV) or Red/Yellow (3.6/6 kV)

Sizes

6 standard configurations (YHKGYyn)

Nominal dimensions, copper weights, DC resistance and current ratings for YHKGYyn per PN-G-90006 / ZN-TF (YHKGYyn 0.6/1 kV & 3.6/6 kV H-Screened Mining Cable).

Dimensions & weights
Order designationCores × SizeMain cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard YHKGYyn configurations
YHKGYyn 4 × 10 mm² 0.6/1 kV4 × 10 mm² (0.6/1 kV)10.0 mm²21.4410820214
YHKGYyn 4 × 25 mm² 0.6/1 kV4 × 25 mm² (0.6/1 kV)25.0 mm²28.69951,580286
YHKGYyn 4 × 50 mm² 0.6/1 kV4 × 50 mm² (0.6/1 kV)50.0 mm²36.81,9702,790368
YHKGYyn 3 × 25 mm² 3.6/6 kV3 × 25 mm² (3.6/6 kV)25.0 mm²33.28101,790332
YHKGYyn 3 × 50 mm² 3.6/6 kV3 × 50 mm² (3.6/6 kV)50.0 mm²39.81,5602,840398
YHKGYyn 3 × 95 mm² 3.6/6 kV3 × 95 mm² (3.6/6 kV)95.0 mm²48.62,9104,620486
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90006 / ZN-TF (YHKGYyn 0.6/1 kV & 3.6/6 kV H-Screened Mining Cable).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV / 11 kV AC dielectric voltage test5 minutes AC withstand per PN-G-90006100 % of drums
Conductor DC resistance & H-screen continuityPN-EN 60228 & electrostatic screen check100 % of drums
Sample tests
yn sheath oxygen index (LOI) & wall checkSelf-extinguishing mining PVC verificationPer production batch
PN-EN 60332-1-2 & PN-G-04035 mining flame testPass Polish underground mining fire propagation testWUG / type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90006PN-EN 60332-1-2CE / WUG Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX YHKGYyn 0.6/1KV / 3.6/6KV
Delivery form
Non-returnable timber drums or heavy export
Standard drum lengths
250 m · 500 m · 1000 m · custom cut lengths
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFYHKGYyn Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXYHKGYyn spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
