PN-G-90006 Polish Underground Mining Power & Control Cables (YnOGY / YKGY / YHKGY)PN-G-90006 · YHKGYFoyn0.6/1 kV, 3.6/6 kV & 6/10 kVH-Screened + Round Steel-Wire Armour (Fo)

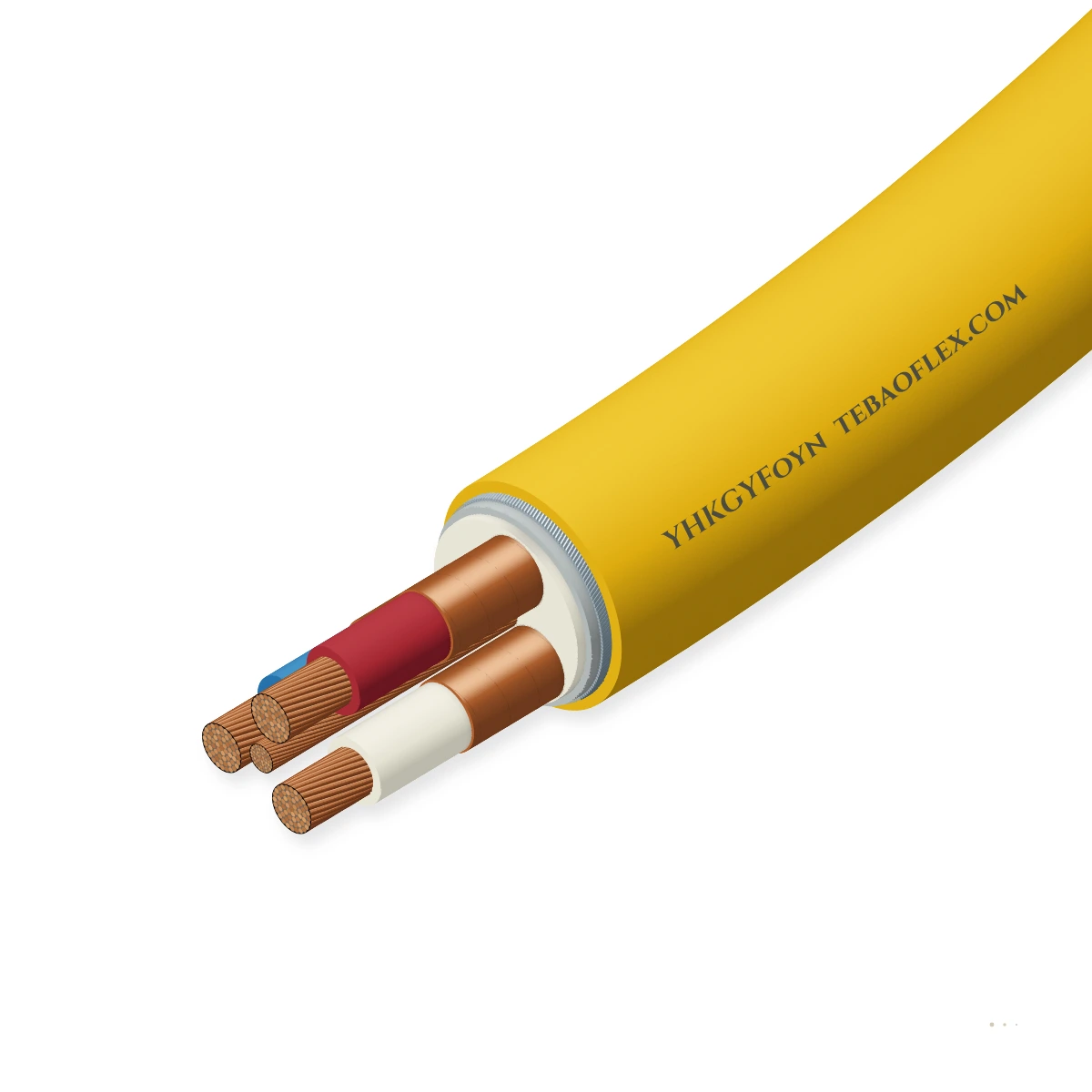

YHKGYFoyn Screened Steel-Wire Armoured PVC Mining CablePN-G-90006 0.6/1 kV, 3.6/6 kV & 6/10 kV H-screened, round steel-wire armoured (Fo)

YHKGYFoyn Screened Steel-Wire Armoured PVC Mining Cable is the heavy-duty Polish-standard (PN-G-90006) underground mine shaft, steep inclined drift, and high-convergence roadway trunk cable rated for 0.6/1 kV, 3.6/6 kV, and 6/10 kV networks, combining

Flame-retardant
EMC screen
Oil-resistant
Water-resistant
Order designation
YHKGYFoyn 3 × 35 mm² 3.6/6 kV
Outer Ø ≈
40.8 mm
Copper weight
1,120 kg/km
Total weight ≈
3,280 kg/km
Min. bend R (fixed)
490 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
PN-G-90006
Polish underground mining specification
Designation
YHKGYFoyn
H (screened) + Fo (round steel wire)
Voltage ratings
1 kV / 6 kV
0.6/1 kV, 3.6/6 kV & 6/10 kV
Conductor
Class 5 / 2
PN-EN 60228 stranded copper ('G')
Armouring
Round Steel Wire
Fo high-tensile shaft & incline armour
Outer sheath
yn Mining FR-PVC
Self-extinguishing high-LOI PVC

Typical values for this cable type, based on PN-G-90006 / ZN-TF (YHKGYFoyn 0.6/1 kV to 6/10 kV Screened Steel-Wire Armoured Mining Cable) — confirmed in the datasheet and quotation for your order.

Application fit

Is YHKGYFoyn right for your machine?

Engineered for vertical mine shafts, steep inclined drifts (up to 90°), subsiding longwall roadways, and methane-hazardous 6 kV / 10 kV trunk feeders where both radial field screening ('H') and

Fixed installation

Suitable

Galvanized round steel wire armour ('Fo') carries vertical shaft self-weight and longitudinal ground-subsidence tension.

Switchgear & control cabinet wiring

Suitable

Internal 'H' electrostatic screen with copper earth continuity ensures radial electric field control and fast earth-fault isolation.

Immersion & wet locations

Suitable

Extruded inner PVC bedding, galvanized armour wires, and heavy 'yn' outer sheath resist wet shaft environments.

Energy chain / drag chain

Not suitable

Fixed high-tensile shaft and roadway trunk cable.

YHKGYFtZnyn
Typical machinesVertical mine shafts & steep inclined drifts6 kV & 10 kV underground coal & copper trunk mainsSubsiding mining ground & tectonic fault zonesMain pit-bottom dewatering & haulage substations

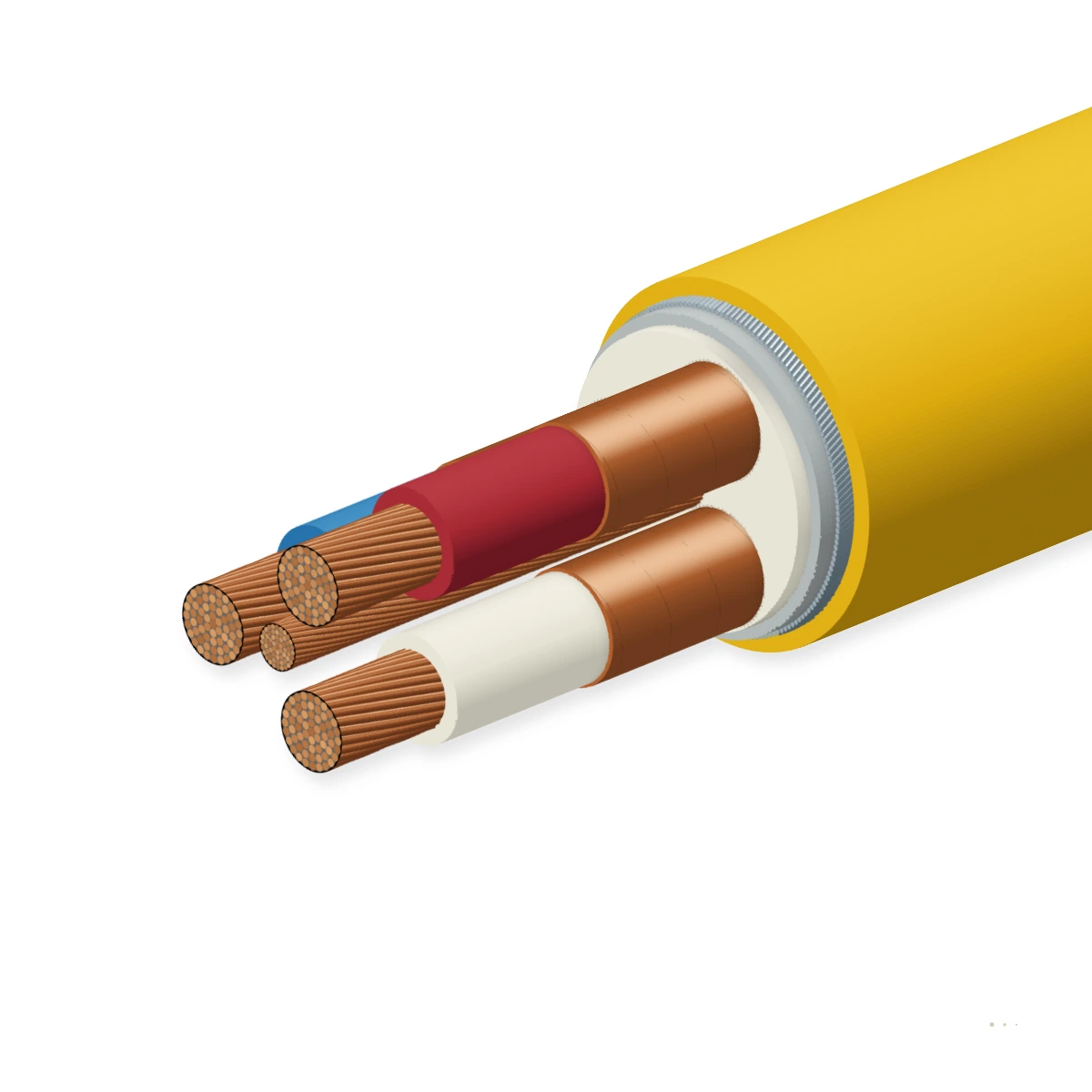

Construction

Layer by layer

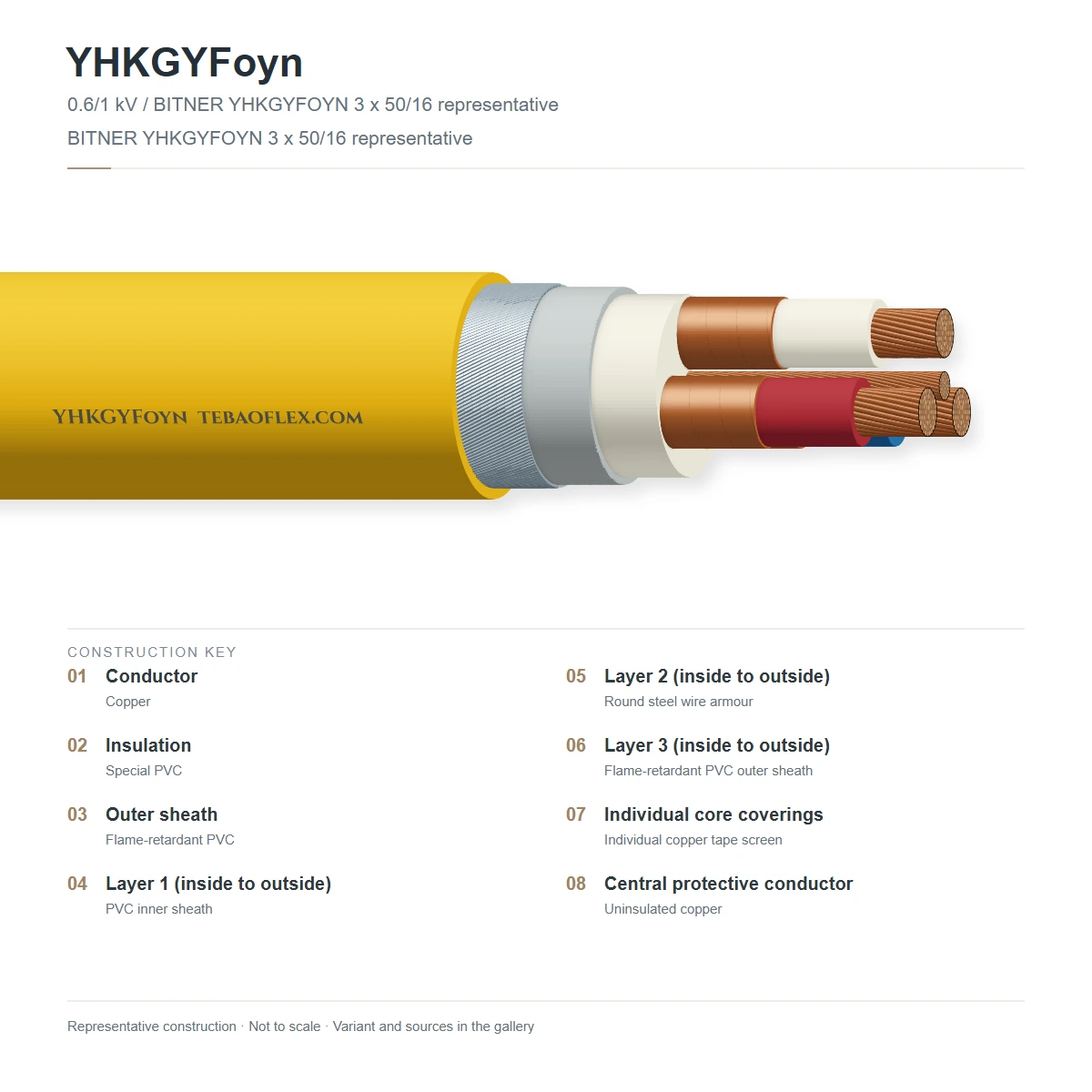

Multi-wire stranded copper conductors (PN-EN 60228 Class 5 or Class 2, 16 to 185 mm²), PVC insulation ('Y'), semi-conductive/electrostatic

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Multi-wire stranded copper conductor (G)Flexible Class 5 (or Class 2) annealed copper per PN-EN 60228PN-G-90006 / PN-EN 60228
2PVC insulation (Y) with H semi-conInsulating PVC compound with semi-conductive/electrostatic screen (H) and copperPN-G-90006
3Extruded PVC inner bedding (Y)Pressure-extruded PVC inner sheath cushioning the round wire armourPN-G-90006
4Galvanized round steel wire armour (Fo)Helical layer of galvanized round steel wires (Fo) bound with counter-helical steel tapePN-G-90006 / PN-EN 10257-1
5Flame-retardant mining PVC outerSelf-extinguishing, oil-resistant mining PVC compound (yn)PN-G-90006 / PN-EN 60332-1-2

YHKGYFoyn 0.6/1 kV (3×16 to 4×150 mm²)

H-screened round-steel-wire armoured 0.6/1 kV shaft and inclined drift feeder.

YHKGYFoyn 3.6/6 kV & 6/10 kV (3×25 to 3×185 mm²)

Medium-voltage H-screened round-steel-wire armoured trunk cable for vertical mine shafts and inclines.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90006 / ZN-TF (YHKGYFoyn 0.6/1 kV to 6/10 kV Screened Steel-Wire Armoured Mining Cable). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV · 3.6/6 kV · 6/10 kV AC
AC dielectric test voltage
3.5 kV (1 kV) · 11 kV (6 kV) · 17 kV (10
Max. conductor operating temp.
+70 °C continuous · +160 °C short-circuit
Screening system
H-type semi-conductive/metallic screen per

Thermal

Operating temperature range
-25 °C to +70 °C (fixed installation)
Minimum installation temp.
-5 °C

Mechanical

Min. bending radius
12 × D (0.6/1 kV) · 15 × D (3.6/6 kV & 6/10
Armour type
Galvanized round steel wires ('Fo') for

Resistance

Flame retardance
PN-EN 60332-1-2 & PN-G-04035 mining flame
Tensile & crush resistance
High longitudinal tensile capacity + radial

Reference standards

Primary specification
PN-G-90006 · ZN-TF / WUG underground mining
Conductor & armour standards
PN-EN 60228 · PN-EN 10257-1

Identification

Core identification
Numbered phase cores or HD 308 S2 colour code
Outer sheath colour
Red (3.6/6 kV & 6/10 kV MV) or Black (0.6/1

Sizes

6 standard configurations (YHKGYFoyn)

Nominal dimensions, copper weights, DC resistance and current ratings for YHKGYFoyn per PN-G-90006 / ZN-TF (YHKGYFoyn 0.6/1 kV to 6/10 kV Screened Steel-Wire

Dimensions & weights
Order designationCores × SizeMain cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard YHKGYFoyn configurations
YHKGYFoyn 4 × 25 mm² 0.6/1 kV4 × 25 mm² (0.6/1 kV)25.0 mm²33.41,0102,490401
YHKGYFoyn 3 × 35 mm² 3.6/6 kV3 × 35 mm² (3.6/6 kV)35.0 mm²40.81,1203,280490
YHKGYFoyn 3 × 50 mm² 3.6/6 kV3 × 50 mm² (3.6/6 kV)50.0 mm²44.61,5804,020535
YHKGYFoyn 3 × 70 mm² 3.6/6 kV3 × 70 mm² (3.6/6 kV)70.0 mm²48.82,1905,040586
YHKGYFoyn 3 × 120 mm² 3.6/6 kV3 × 120 mm² (3.6/6 kV)120.0 mm²58.23,6907,540698
YHKGYFoyn 3 × 150 mm² 6/10 kV3 × 150 mm² (6/10 kV)150.0 mm²66.04,6209,480792
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90006 / ZN-TF (YHKGYFoyn 0.6/1 kV to 6/10 kV Screened Steel-Wire Armoured Mining Cable).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV / 11 kV / 17 kV AC dielectric test5 minutes AC withstand per PN-G-90006100 % of drums
Conductor DC resistance & H-screen/Fo checkPN-EN 60228 resistance & screen/wire armour continuity100 % of drums
Sample tests
Fo steel wire tensile strength & yn LOIPN-EN 10257-1 wire tensile & self-extinguishing PVC checkPer production batch
PN-EN 60332-1-2 & PN-G-04035 mining flame testPass Polish underground mining fire propagation testWUG / type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90006PN-EN 60332-1-2CE / WUG Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX YHKGYFoyn 0.6/1KV / 3.6/6KV
Delivery form
Non-returnable timber drums or heavy export
Standard drum lengths
250 m · 500 m · 1000 m · custom cut lengths
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFYHKGYFoyn Screened Steel-Wire Armoured PVC Mining Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXYHKGYFoyn spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How do all the letters in 'YHKGYFoyn' decode?
Under Polish PN-G-90006 rules: 'Y' = PVC core insulation; 'H' = semi-conductive/electrostatic screen over the cores; 'K' = power cable; 'G' = multi-wire flexible/stranded copper conductors; 'Y' = extruded PVC inner bedding; 'Fo' = galvanized round steel wire armour bound with a counter-spiral steel tape; and 'yn' = flame-retardant mining PVC outer sheath.
How does YHKGYFoyn compare with British Coal MGM 109 Type 3123 and MGM 118 Type 6110?
Both are screened, round-steel-wire-armoured medium-voltage underground mining feeder cables with flame-retardant PVC outer sheaths. YHKGYFoyn is built to Polish standard PN-G-90006 for 0.6/1 kV, 3.6/6 kV, and 6/10 kV systems using multi-wire 'G' copper and special PVC insulation, whereas MGM 109/118 uses BS 6708 1.9/3.3 kV and 3.8/6.6 kV ratings with 90 °C EPR insulation.
Why is YHKGYFoyn mandatory for inclined drifts and vertical mine shafts?
When a heavy 6 kV or 10 kV feeder is installed in a vertical shaft or steep incline, the weight of the cable must be supported by the armour wires clamped in shaft cleats. Only round steel wire armour ('Fo') provides the axial tensile strength to prevent conductor elongation.
What is the role of the counter-spiral steel binder tape over the 'Fo' armour wires?
In Polish 'Fo' armour construction, an open counter-helical steel tape is wound over the round galvanized steel armour wires to hold the wires tightly in place during vertical shaft lowering and prevent birdcaging under axial compression. Each production drum undergoes 100 % conductor DC
