Product

Control & signal cableECOLAB Washdown Certified300/500 V (4000 V Test)210 Unscreened & 215C Screened

TPE Robust 210 / 215C Food & Beverage Control Cable300/500 V -50 to +80 °C ECOLAB-tested TPE food/beverage washdown & bio-oil cable

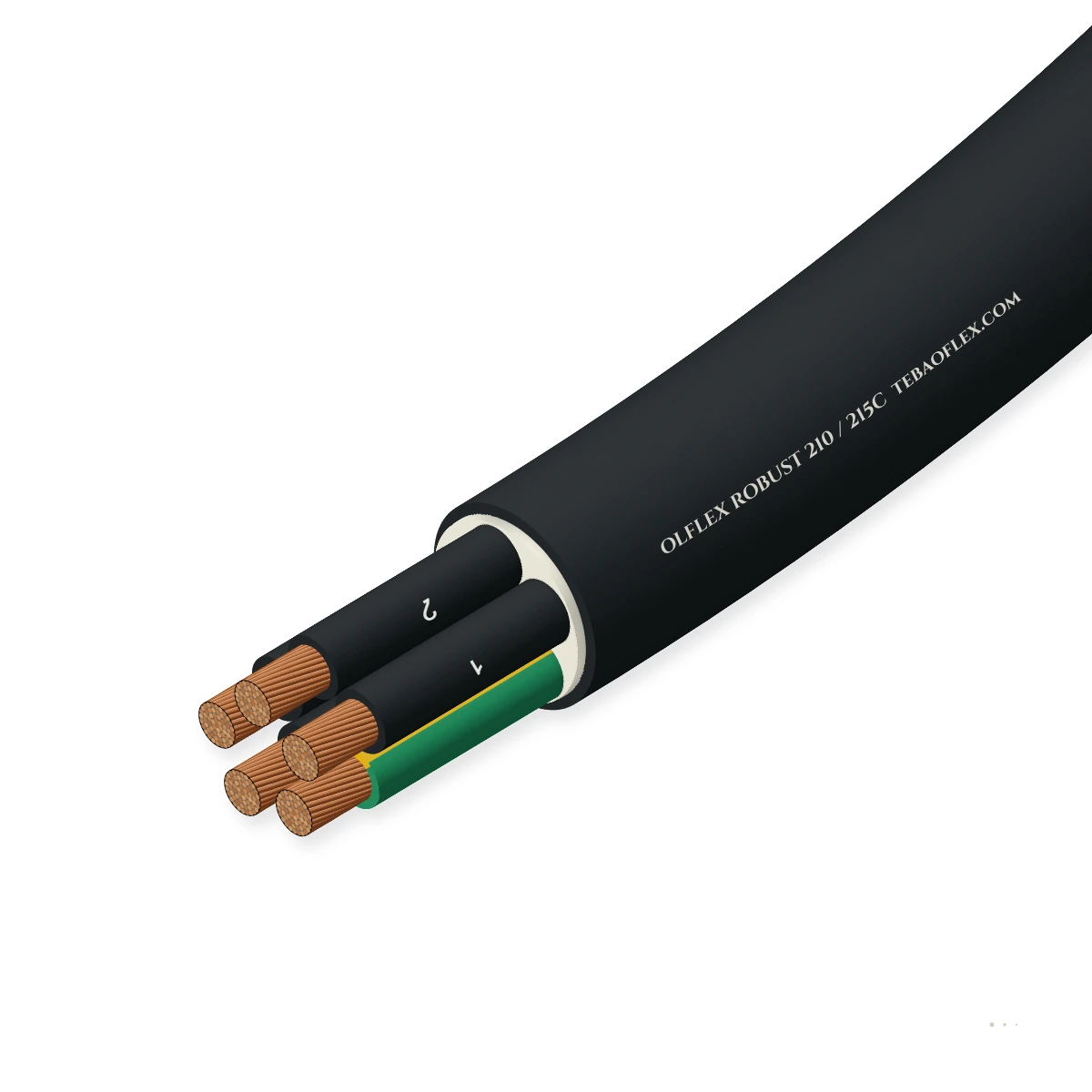

ROBUST 210 (unscreened) and 215C (Cu-braid screened) halogen-free food and beverage control cable (300/500 V, 4,000 V test, -50 to +80 °C) with PP/TPE core insulation and an ECOLAB-certified TPE jacket resistant to hot washdown and bio-oils.

Oil-resistant
Water-resistant
Ozone, UV & moisture
EMC screen
Order designation
ROBUST 210 / 215C 4G1.5
Outer Ø ≈
8.40 mm
Wall thickness
0.90 mm
Total weight ≈
133.8 kg/km
Min. bend R (fixed)
126 mm
All sizes (29)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
300/500 V
4000 V AC high dielectric test
Temp. range
-50…+80 °C
-40…+80 °C flexing service
Washdown rating
ECOLAB certified
Alkaline/acid CIP & hot water
Bio-oil resist.
Fats & esters
Animal fats, plant oils, emulsions
Versions
210 & 215C
Unscreened (210) or Cu-braid (215C)
Halogen-free
IEC 60754-1/2
PP/TPE core + special TPE sheath

Typical values for this cable type, based on VDE 0250 / EN 50525 / ECOLAB Food & Beverage Washdown Control Specification — confirmed in the datasheet and quotation for your order.

Application fit

Is TPE Robust 210 / 215C right for your machine?

Select ROBUST 210 (unscreened) or 215C (screened) for dairy, meat-packing, brewery, and bottling lines exposed to daily high-pressure hot-water and ECOLAB chemical washdowns.

Immersion & wet locations

Suitable

Special hydrophobic TPE outer jacket (< 0.05 % water absorption) withstands daily +80 °C high-pressure washdown and ECOLAB CIP foams.

Offshore platform & shipboard deck trays

Suitable

Special non-polar TPE outer jacket resists dairy butterfat, blood/tallow, rapeseed/soybean bio-oils, and cutting emulsions.

VFD inverter to AC motor screened feeder

Suitable

Choose 215C (≥ 80 % Sn-Cu braid screen) for VFD conveyor drives, load cells, and flowmeters in washdown zones.

Furnace, kiln & high-temp zone

Not suitable

TPE thermoplastic elastomer is rated to +80 °C; for +180 °C baking ovens or autoclaves, use Besilen ESD or silicone control cable.

Use Besilen ESD for +180 °C silicone
Typical machinesDairy, Cheese & Ice-Cream Processing LinesMeat, Poultry & Seafood Packing PlantsBrewery, Winery & Beverage Bottling WashdownMachine Tools with Bio-Ester Cutting FluidsCar-Wash Portals & Agricultural Composting Plants

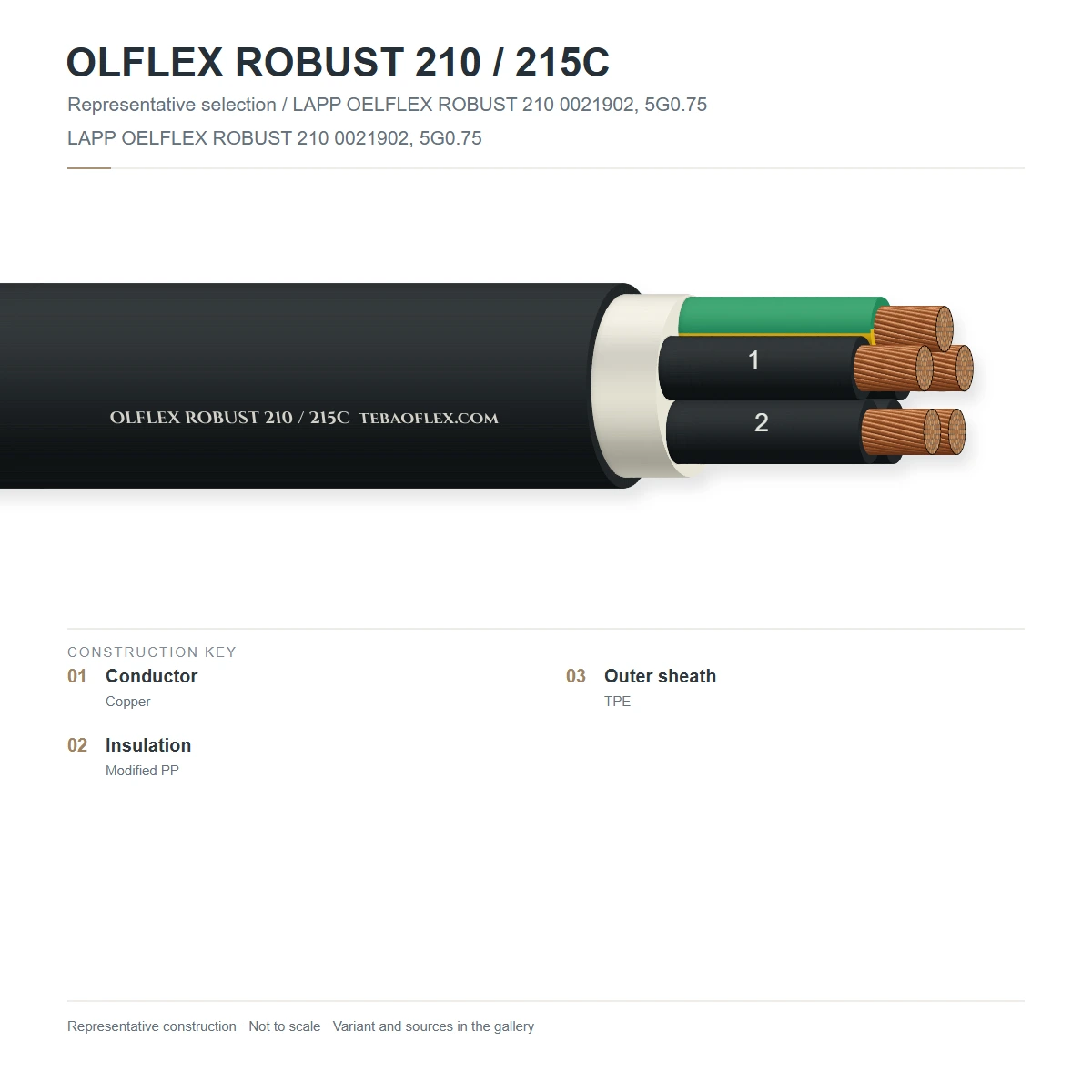

Construction

Layer by layer

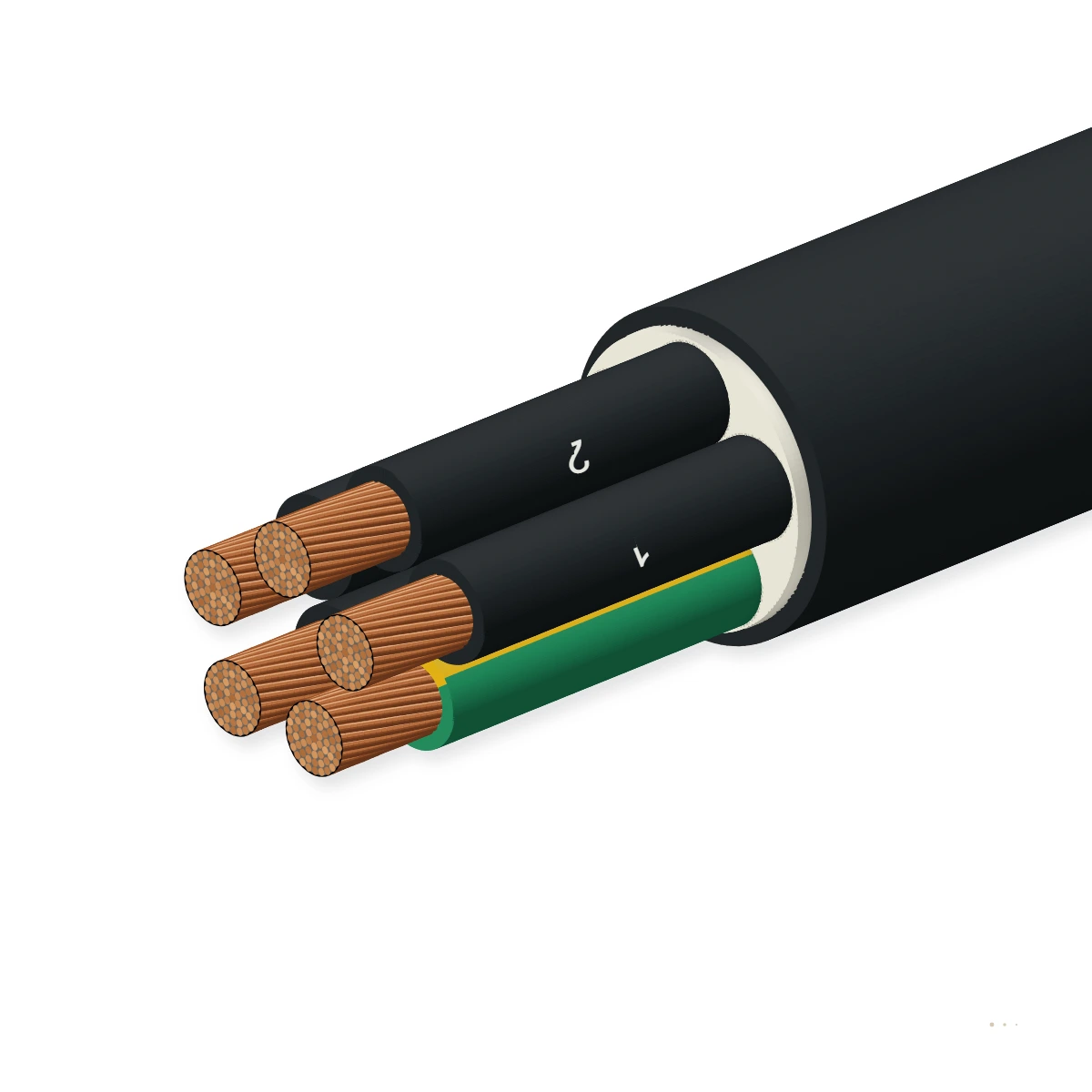

210 / 215C food-grade washdown construction: IEC 60228 Class 5 bare copper conductors, low-capacitance modified PP/TPE core insulation (black numbered + GNYE), optional tinned copper braid screen (215C), and jet-black chemical-resistant TPE jacket.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Fine-stranded Class 5 copperFlexible annealed bare copper wire (IEC 60228 / DIN VDE 0295 Class 5)Supple routing along stainless-steel hygienic cable trays and filling carousels
2Modified PP/TPE core insulationHalogen-free, low-capacitance polypropylene/TPE compound (black cores with white numbers + GNYE)10× higher insulation resistance than PVC and tested at 4,000 V AC
3Tinned copper braid screen (215C)215C version only: braided tinned copper wires (≥ 80 % optical coverage) over PTFE/fleece wrapShields weighing cells, dosing pumps, and VFD signals against electromagnetic interference
4Bio-oil & washdown TPE outer jacketSpecial cross-linked/thermoplastic elastomer compound (black, RAL 9005, halogen-free & UV-resistant)Certified resistant to ECOLAB detergents, lactic/citric acids, caustic soda, and vegetable oils

ROBUST 210 (2×0.5 to 25G2.5 mm²)

Unscreened TPE bio-oil and ECOLAB washdown-resistant food & beverage control cable

ROBUST 215C (2×0.5 to 25G2.5 mm²)

Tinned-copper-braid screened ('C') TPE food & beverage washdown control cable for EMC-sensitive zones

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on VDE 0250 / EN 50525 / ECOLAB Food & Beverage Washdown Control Specification. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
300/500 V AC
AC dielectric test voltage
4,000 V AC (core/core) · 2,000 V (core/screen)
Insulation resistance
≥ 20 GΩ·cm (≥ 200 MΩ·km) at +20 °C
Mutual capacitance
Approx. 70–90 nF/km (low-loss PP/TPE)

Thermal

Fixed installation temp.
-50 °C to +80 °C (deep-freeze to washdown)
Occasional flexing temp.
-40 °C to +80 °C

Mechanical

Conductor stranding
IEC 60228 Class 5 fine-stranded copper
Min. bending radius (flexing)
15 × OD (210 unscreened) · 20 × OD (215C)
Min. bending radius (fixed)
4 × OD (210) · 6 × OD (215C)

Resistance

Food & CIP chemical resistance
ECOLAB certified (acid/alkali foam & disinfectants)
Bio-oil & emulsion resistance
EN 60811-404 animal fats, plant oils & esters
Halogen-free & UV resistance
IEC 60754-1/2 halogen-free · ISO 4892-2 UV pass

Reference standards

Core & design reference
DIN VDE 0250 / EN 50525-2-51
RoHS & REACH
RoHS 3, REACH & food-zone compliant

Identification

Outer sheath colour
Jet black (RAL 9005, UV-resistant)
Surface legend
TEBAOFLEX ROBUST 210 [or 215C] [nGmm²] 300/500V TPE
Customs tariff (HS)
8544.49

Sizes

29 standard configurations (ROBUST 210 / 215C)

Engineering dimensions, conductor stranding, mass and electrical ratings for ROBUST 210 / 215C per VDE 0250 / EN 50525 / ECOLAB Food & Beverage Washdown Control Specification.

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard ROBUST 210 / 215C configurations
ROBUST 210 / 215C 3G0.53G0.5 mm²Class 5 Cu (0.5 mm²)0.905.8014.450.787
ROBUST 210 / 215C 4G0.54G0.5 mm²Class 5 Cu (0.5 mm²)0.906.3019.262.194
ROBUST 210 / 215C 5G0.55G0.5 mm²Class 5 Cu (0.5 mm²)0.906.8024.073.9102
ROBUST 210 / 215C 7G0.57G0.5 mm²Class 5 Cu (0.5 mm²)0.907.3033.691.2110
ROBUST 210 / 215C 12G0.512G0.5 mm²Class 5 Cu (0.5 mm²)1.109.9057.6163.5148
ROBUST 210 / 215C 3G0.753G0.75 mm²Class 5 Cu (0.75 mm²)0.906.2021.663.193
ROBUST 210 / 215C 4G0.754G0.75 mm²Class 5 Cu (0.75 mm²)0.906.8028.878.7102
ROBUST 210 / 215C 5G0.755G0.75 mm²Class 5 Cu (0.75 mm²)0.907.3036.093.6110
ROBUST 210 / 215C 7G0.757G0.75 mm²Class 5 Cu (0.75 mm²)0.908.0050.4119.5120
ROBUST 210 / 215C 12G0.7512G0.75 mm²Class 5 Cu (0.75 mm²)1.1010.7086.4210.0160
ROBUST 210 / 215C 18G0.7518G0.75 mm²Class 5 Cu (0.75 mm²)1.1012.50129.6298.4188
ROBUST 210 / 215C 3G13G1 mm²Class 5 Cu (1 mm²)0.906.6028.875.899
ROBUST 210 / 215C 4G14G1 mm²Class 5 Cu (1 mm²)0.907.2038.494.4108
ROBUST 210 / 215C 5G15G1 mm²Class 5 Cu (1 mm²)0.907.8048.0113.7117
ROBUST 210 / 215C 7G17G1 mm²Class 5 Cu (1 mm²)0.908.5067.2145.2128
ROBUST 210 / 215C 12G112G1 mm²Class 5 Cu (1 mm²)1.1011.50115.2258.0172
ROBUST 210 / 215C 18G118G1 mm²Class 5 Cu (1 mm²)1.1013.40172.8366.7201
ROBUST 210 / 215C 3G1.53G1.5 mm²Class 5 Cu (1.5 mm²)0.907.7043.2107.2116
ROBUST 210 / 215C 4G1.54G1.5 mm²Class 5 Cu (1.5 mm²)0.908.4057.6133.8126
ROBUST 210 / 215C 5G1.55G1.5 mm²Class 5 Cu (1.5 mm²)0.909.2072.0163.4138
ROBUST 210 / 215C 7G1.57G1.5 mm²Class 5 Cu (1.5 mm²)0.9010.00100.8208.8150
ROBUST 210 / 215C 12G1.512G1.5 mm²Class 5 Cu (1.5 mm²)1.1013.60172.8372.6204
ROBUST 210 / 215C 18G1.518G1.5 mm²Class 5 Cu (1.5 mm²)1.1015.90259.2532.2238
ROBUST 210 / 215C 25G1.525G1.5 mm²Class 5 Cu (1.5 mm²)1.1018.60360.0733.6279
ROBUST 210 / 215C 3G2.53G2.5 mm²Class 5 Cu (2.5 mm²)0.908.7072.0153.7130
ROBUST 210 / 215C 4G2.54G2.5 mm²Class 5 Cu (2.5 mm²)0.909.6096.0195.5144
ROBUST 210 / 215C 5G2.55G2.5 mm²Class 5 Cu (2.5 mm²)0.9010.50120.0239.1158
ROBUST 210 / 215C 7G2.57G2.5 mm²Class 5 Cu (2.5 mm²)0.9011.40168.0308.4171
ROBUST 210 / 215C 4G44G4 mm²Class 5 Cu (4 mm²)0.9011.90153.6306.5178
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for ROBUST 210 / 215C subject to standard manufacturing tolerances per VDE 0250 / EN 50525 / ECOLAB Food & Beverage Washdown Control Specification.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per VDE 0250 / EN 50525 / ECOLAB Food & Beverage Washdown Control SpecificationEvery manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for ROBUST 210 / 215CEvery spool or drum length
Sample tests
Insulation resistance & dimensional verificationWall thickness, concentricity and insulation resistance per VDE 0250 / EN 50525 / ECOLAB Food & Beverage Washdown Control SpecificationPer production batch
Environmental, mechanical & EMC qualificationQualified to VDE 0250 / EN 50525 / ECOLAB Food & Beverage Washdown Control Specification thermal, mechanical and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

VDE 0250 / EN 50525 / ECOLAB Food & Beverage Washdown Control SpecificationCE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX ROBUST 210 / 215C 4G1.5 300/500V ECOLAB TPE
Delivery form
Export wooden drums, tactical reels or coils
Standard lengths
100 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFTPE Robust 210 / 215C Food & Beverage Control Cable – technical datasheet29 sizes · construction, technical data, approvalsXLSXTPE Robust 210 / 215C spec data (Excel)All 29 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why do standard PVC and nitrile rubber cables fail quickly in food and beverage washdown zones?
Food and dairy processing lines are cleaned daily with hot water (+70 to +80 °C) and aggressive alkaline/acidic foaming disinfectants (such as ECOLAB P3-topax), while also contacting animal fats, lactic acid, and vegetable oils. These extract the plasticizers from PVC cables within months — causing the jacket to harden and crack. The non-polar TPE jacket on ROBUST 210 / 215C contains no leachable plasticizers and resists both bio-oils and ECOLAB sanitizers.
What is the difference between ROBUST 210 and ROBUST 215C?
ROBUST 210 is the unscreened version for general power, solenoid, and contactor control. ROBUST 215C adds a tinned copper wire braid screen ('C', ≥ 80 % optical coverage) beneath the TPE outer jacket for EMC-sensitive analog sensors, load cells, flowmeters, and VFD-driven conveyors.
Why is the cable tested at 4,000 V AC despite its 300/500 V rating?
The low-capacitance modified PP/TPE core insulation provides exceptionally high dielectric strength, allowing a 4,000 V AC routine test voltage that gives extra safety margin in wet washdown environments.
Can ROBUST 210 / 215C also be used in blast freezers and outdoor plants?
Yes. Its cold-elastic TPE compound remains flexible down to -40 °C (flexing) and -50 °C (fixed) for spiral blast freezers and cold-storage warehouses, and the black jacket is UV-stabilised per ISO 4892-2 for outdoor use.
