Product

UL 1277 / UL 2225 TC-ER-HL 600 V cableUL 1277 & UL 2225 TC-ER-HL600 V · Class I Div 1 / Zone 12000 lbf Crush · −40…+90 °C

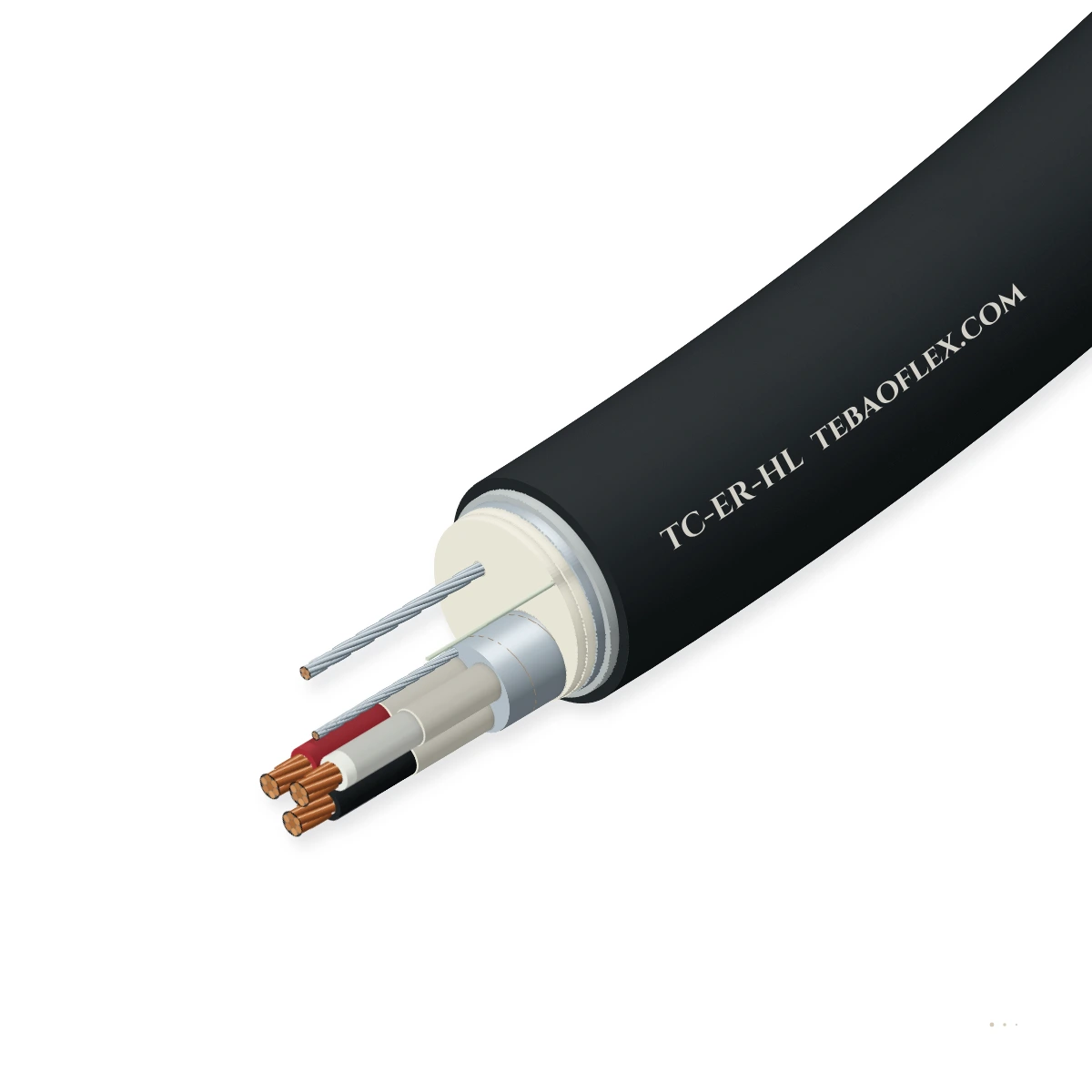

TC-ER-HL Instrumentation Tray CableUL 2225 600 V Class I Div 1 & Zone 1 hazardous location Exposed Run tray cable

Heavy-duty 600 V Type TC-ER-HL instrumentation tray cable certified to UL 1277 and UL 2225 for NEC Class I Division 1 and Zone 1 hazardous locations without metal armour, featuring 90 °C XHHW-2 insulation, IS/OS foil shields and a 2,000 lbf crush CPE jacket.

Low-EMC design
EMC screen
Oil-resistant
Outdoor & humid
Order designation
TC-ER-HL 4P×16AWG IS/OS
Outer Ø ≈
15.6 mm
Copper weight
146 kg/km
Total weight ≈
326 kg/km
Min. bend R (fixed)
94 mm
All sizes (16)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
600 V rms
UL 1277 TC-ER & UL 2225 -HL
Hazardous area
Class I Div 1
Zone 1 & Div 2 (NEC 501/505)
Crush & impact
2000 lbf / 50 ft
UL 2225 HL severe impact test
Temperature
−40…+90 °C
wet & dry · −40 °C cold impact
Gas blocking
UL 2225 Gas Seal
blocked interstices + grounding
Bend radius
6 × OD
tighter & lighter than MC-HL

Typical values for this cable type, based on UL 1277 / UL 2225 / NEC Articles 336, 501.10(A) & 505 — confirmed in the datasheet and quotation for your order.

Application fit

Is TC-ER-HL right for your machine?

Engineered as a lighter, tighter-bending, corrosion-free alternative to welded-armour MC-HL for Class I Division 1, Zone 1 and Class I Division 2 hazardous areas on offshore drilling rigs, FPSOs, refineries and chemical skids (for cable ODs ≤ 1.0 in / 25.4 mm per NEC 501.10(A)(1)(e)).

Fixed installation

Suitable

Approved for Class I Div 1 (NEC 501.10(A)(1)(e)), Zone 1 (NEC 505.15(B)(1)(i)) and Class I Div 2 trays and Exposed Run drops.

Offshore platform & shipboard deck trays

Suitable

Heavy-duty CPE/TPE outer jacket resists drilling mud, diesel, hydraulic oil, salt spray and UV sunlight.

TBM gantry & advancing tunnel reel

Suitable

UL Direct Burial listed with 2,000 lbf crush resistance.

Free-hanging vertical run

Suitable

Approved for top-drive service loops and mast drops on land and offshore drilling rigs.

Typical machinesOffshore Drilling Rigs & Top-Drive LoopsClass I Division 1 & Zone 1 Process SkidsFPSO & Production Platform ModulesLNG, Refinery & Petrochemical UnitsHazardous-Area Gas Detection & ESD Loops

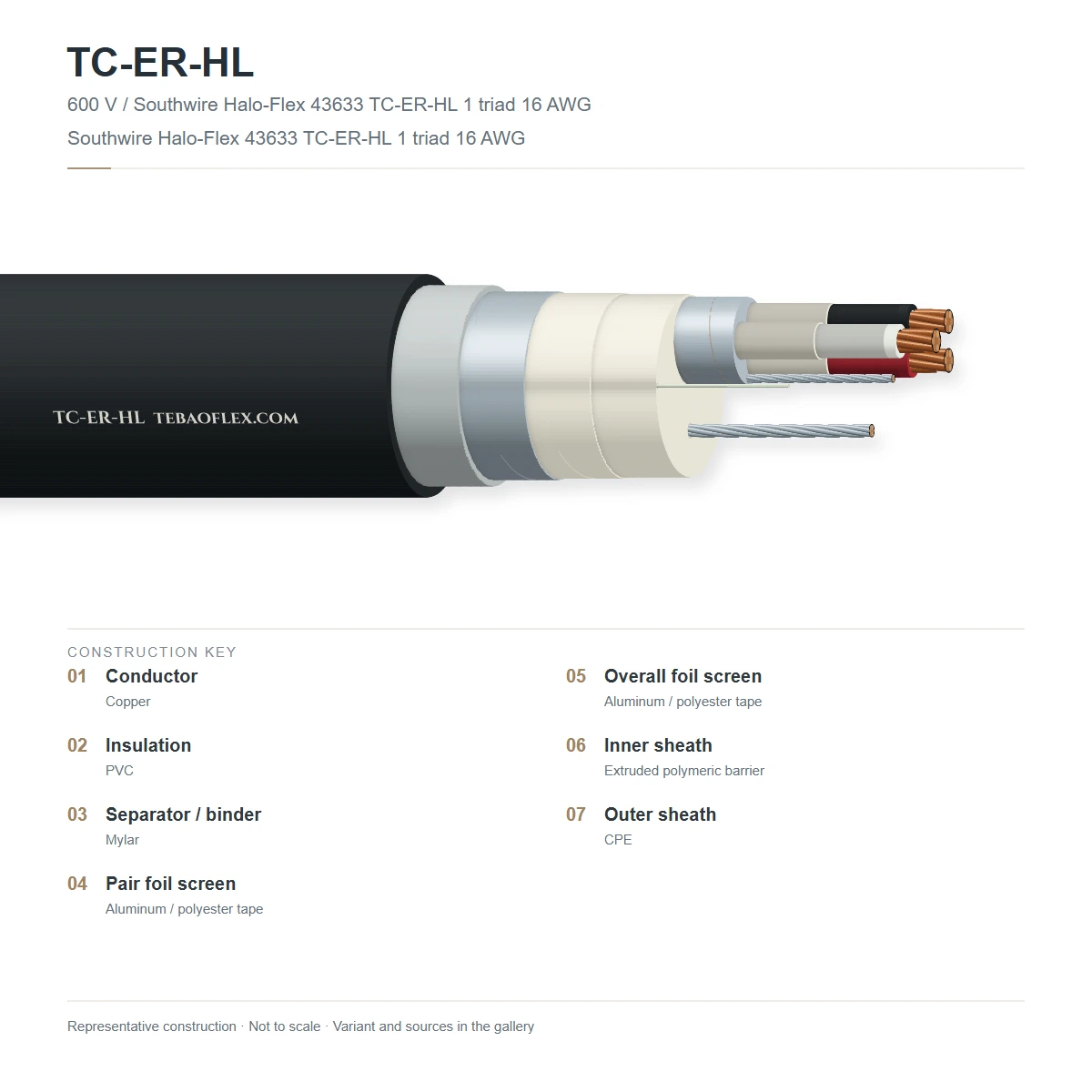

Construction

Layer by layer

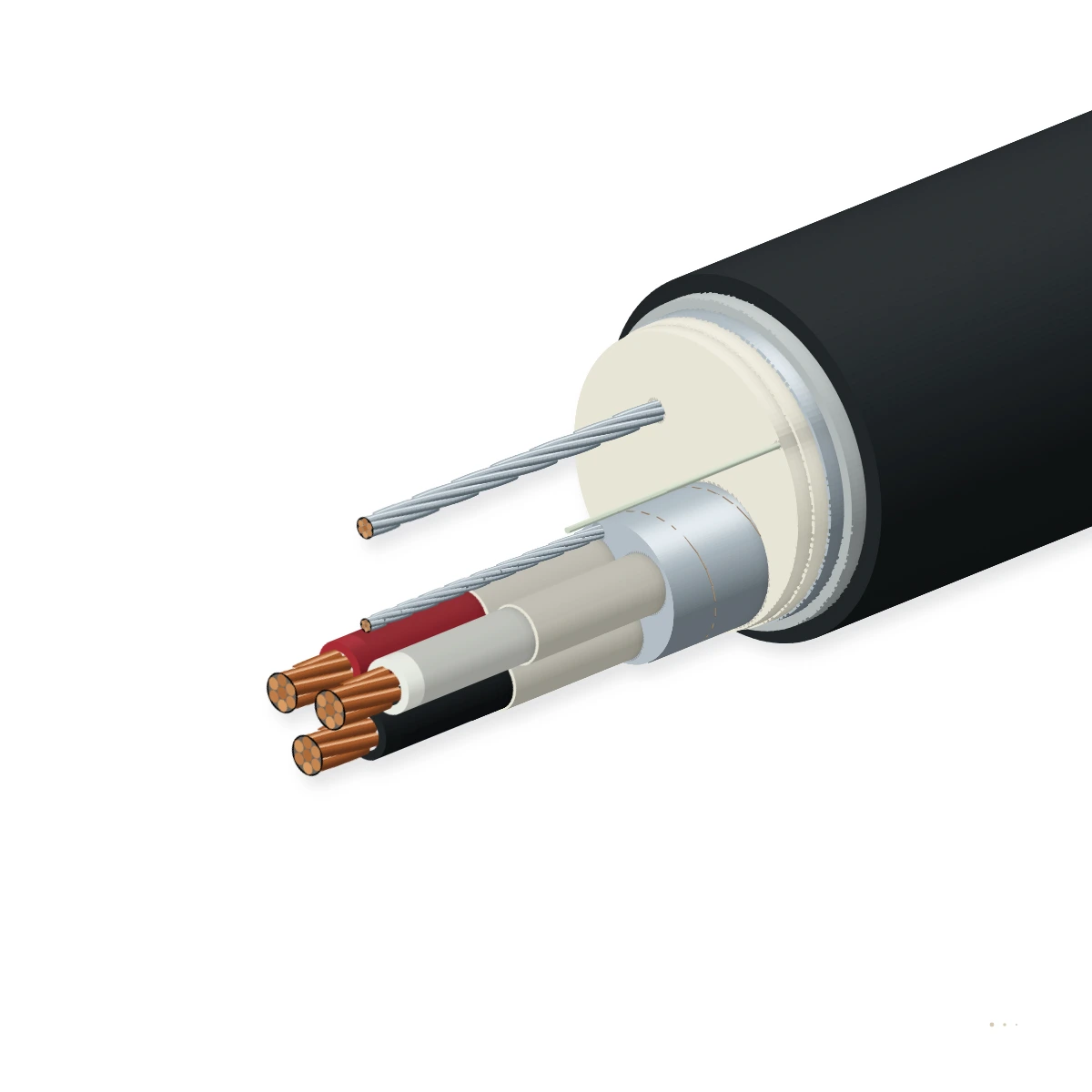

Shown: TC-ER-HL 4P×16AWG IS/OS with 7-strand tinned copper pairs, 600 V 90 °C XHHW-2 XLPE insulation, green/yellow equipment grounding conductor, gas-blocking interstitial fillers, individual & overall Al/PET shields and heavy-duty Black CPE/TPE -HL jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded tinned copper conductors + ground18 AWG, 16 AWG or 14 AWG Class B/C stranded tinned copper pairs/triads plus full-sized insulated green/yellow equipment grounding conductorMeets NEC 501.10(A)(1)(e) grounding requirement for Class I Div 1
2600 V 90 °C XHHW-2 cross-linked polyethyleneHeavy-wall thermoset XLPE (UL 44 XHHW-2 rated +90 °C wet and dry)High dielectric strength, low capacitance (~85 pF/m) and +250 °C short-circuit rating
3Individual & overall 100 % Al/PET shieldsIsolated Aluminium/PET pair shields (IS) + overall Al/PET shield (OS) with tinned copper drain wires100 % electrostatic noise immunity
4UL 2225 gas/vapour-blocking core fillersNon-wicking elastomeric interstitial blocking compound and circular polymeric inner beddingLimits internal gas/vapour transmission core space to pass UL 2225 pressure-tightness
5Heavy-duty UL 2225 -HL CPE / TPE outer jacketExtra-heavy-duty cross-linked Chlorinated Polyethylene (CPE) or Arctic TPE, BlackPasses 2,000 lbf (8.9 kN) crush and 50 ft-lbf (68 J) impact at −25 °C / −40 °C

TC-ER-HL OS (Single Pair / Triad)

600 V 1P or 1T + Equipment Ground with overall Al/PET shield and UL 2225 -HL jacket

TC-ER-HL IS/OS (Multi-Pair)

600 V 2P to 12P + Equipment Ground with individual & overall shields (OD ≤ 25.4 mm for Div 1)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on UL 1277 / UL 2225 / NEC Articles 336, 501.10(A) & 505. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V rms (UL 1277 Type TC-ER-HL)
Dielectric test voltage
2000 V AC rms for 5 min (XHHW-2 conductors)
Insulation resistance
≥ 2000 MΩ·km at +20 °C
Nominal mutual capacitance
≈ 80–95 pF/m (XHHW-2 XLPE dielectric)

Thermal

Operating temperature
−40 °C to +90 °C (wet or dry)
Cold bend & cold impact
Passes −40 °C cold bend and −25 °C / −40 °C impact

Mechanical

UL 2225 -HL crush test
≥ 2,000 lbf (8,900 N) crush load without shorting
UL 2225 -HL impact test
≥ 50 ft-lbf (68 J) falling weight impact
Max. cable OD for Class I Div 1
≤ 1.0 in. (25.4 mm) per NEC 501.10(A)(1)(e)
Min. bending radius
6 × OD

Resistance

Flame test ratings
UL 1685 / IEEE 1202 (70,000 BTU/hr) · IEC 60332-3-22 Cat A · FT4
Oil, mud & sunlight
UL Oil Res I & II · NEK 606 mud-resistant CPE option · Sun Res

Reference standards

Certification standards
UL 1277 & UL 2225 Listed Type TC-ER-HL
NEC & Coast Guard
NEC Art. 336, 501.10(A)(1)(e), 505.15(B) · USCG 46 CFR 111.60

Identification

Core identification
Black / White numbered pairs + Green/Yellow equipment ground
Outer jacket colour
Black (or Blue stripe for Ex-i)
Customs tariff (HS)
8544.49

Sizes

16 standard TC-ER-HL 600 V Class I Div 1 instrumentation sizes

All listed sizes have an overall diameter ≤ 25.4 mm (1.0 in.) to comply with NEC 501.10(A)(1)(e) for Class I Division 1.

Dimensions & weights
Order designationConfigurationShieldingOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
18 AWG (0.82 mm²) XHHW-2 — 600 V Type TC-ER-HL
TC-ER-HL 1P×18AWG OS1 Pair × 18 AWG + GNDOS8.62810252
TC-ER-HL 1T×18AWG OS1 Triad × 18 AWG + GNDOS9.23611855
TC-ER-HL 2P×18AWG IS/OS2 Pairs × 18 AWG + GNDIS+OS11.85217871
TC-ER-HL 4P×18AWG IS/OS4 Pairs × 18 AWG + GNDIS+OS14.29626585
TC-ER-HL 8P×18AWG IS/OS8 Pairs × 18 AWG + GNDIS+OS18.6182445112
TC-ER-HL 12P×18AWG IS/OS12 Pairs × 18 AWG + GNDIS+OS22.1268615133
16 AWG (1.31 mm²) XHHW-2 — 600 V Type TC-ER-HL
TC-ER-HL 1P×16AWG OS1 Pair × 16 AWG + GNDOS9.44212456
TC-ER-HL 1T×16AWG OS1 Triad × 16 AWG + GNDOS10.15614561
TC-ER-HL 2P×16AWG IS/OS2 Pairs × 16 AWG + GNDIS+OS12.87821277
TC-ER-HL 4P×16AWG IS/OS4 Pairs × 16 AWG + GNDIS+OS15.614632694
TC-ER-HL 8P×16AWG IS/OS8 Pairs × 16 AWG + GNDIS+OS20.4278548122
TC-ER-HL 12P×16AWG IS/OS12 Pairs × 16 AWG + GNDIS+OS24.4410765146
14 AWG (2.08 mm²) XHHW-2 — 600 V Type TC-ER-HL
TC-ER-HL 1P×14AWG OS1 Pair × 14 AWG + GNDOS10.56415863
TC-ER-HL 2P×14AWG IS/OS2 Pairs × 14 AWG + GNDIS+OS14.411827486
TC-ER-HL 4P×14AWG IS/OS4 Pairs × 14 AWG + GNDIS+OS17.6224428106
TC-ER-HL 8P×14AWG IS/OS8 Pairs × 14 AWG + GNDIS+OS23.0428725138
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Every TC-ER-HL cable includes a dedicated green/yellow equipment grounding conductor per NEC 501.10(A)(1)(e).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
2000 V AC dielectric test & spark test2.0 kV AC for 5 min on XHHW-2 insulated conductorsEvery manufactured reel
Sample tests
UL 2225 Hazardous Location crush (2,000 lbf) & impact (50 ft-lbf) testPass MC-HL-equivalent mechanical crush and impact without metal armourUL follow-up audit
UL 2225 core gas/vapour tightness & IEEE 1202 flame testPass internal gas transmission limit and 70,000 BTU/hr vertical flame testPeriodic audit

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

UL 1277 & UL 2225 Listed Type TC-ER-HL (600 V)NEC 501.10(A)(1)(e) Class I Div 1 & 505 Zone 1USCG 46 CFR 111.60 & ABS / DNV Offshore

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX <size> E-FILE (UL) TYPE TC-ER-HL XHHW-2 600V 90C WET/DRY SUN RES OIL RES I/II DIR BUR FT4
Delivery form
Non-returnable fumigated wooden drums
Standard lengths
500 m · 1000 m standard drums (cut lengths on request)
MOQ
500 m (stock sizes) · 1000 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFTC-ER-HL Instrumentation Tray Cable – technical datasheet16 sizes · construction, technical data, approvalsXLSXTC-ER-HL spec data (Excel)All 16 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does Type TC-ER-HL qualify for Class I Division 1 hazardous locations without metal armour?
Under UL 2225 and NEC 501.10(A)(1)(e) / 505.15(B), a non-armoured tray cable with an overall diameter ≤ 1.0 inch (25.4 mm) is approved for Class I Division 1 and Zone 1 if it passes the exact same 2,000 lbf crush and 50 ft-lbf impact tests required for Metal-Clad (MC-HL) cable, includes an equipment grounding conductor, and restricts internal core gas-migration spaces.
Why do offshore drilling rigs and modular skids prefer TC-ER-HL over welded-armour MC-HL?
TC-ER-HL is 25–35 % lighter than aluminium-sheathed MC-HL, bends to 6 × OD (vs 10–12 × OD for corrugated MC-HL), never suffers from armour fatigue cracking on vibrating drilling derricks, and strips in half the time into standard TC-ER-HL barrier cable glands.
When must I still use MC-HL Instrumentation instead of TC-ER-HL?
NEC 501.10(A)(1)(e) caps Type TC-ER-HL in Class I Division 1 at an overall diameter of 1.0 inch (25.4 mm). For high-pair-count home-run trunks (such as 16, 24, or 36 pairs) whose outer diameter exceeds 25.4 mm in Class I Division 1, you must specify MC-HL Instrumentation.
How should the screen and drain wire of TC-ER-HL be earthed in instrumentation and Ex-i loops?
To prevent circulating 50/60 Hz ground-loop currents from coupling into millivolt or 4–20 mA signals, the Al/PET screen and tinned copper drain wire of TC-ER-HL should be bonded to the clean instrumentation earth bar at one end only (typically in the control/marshalling cabinet) and insulated against chassis contact at the field transmitter or junction box, in accordance with IEC 60079-14 and EN 50288-7.
