SAE J1127 Automotive & Heavy-Duty Starter / Ground Battery CablesSAE J112760 V DC (25 V AC)-40 to +105 °C

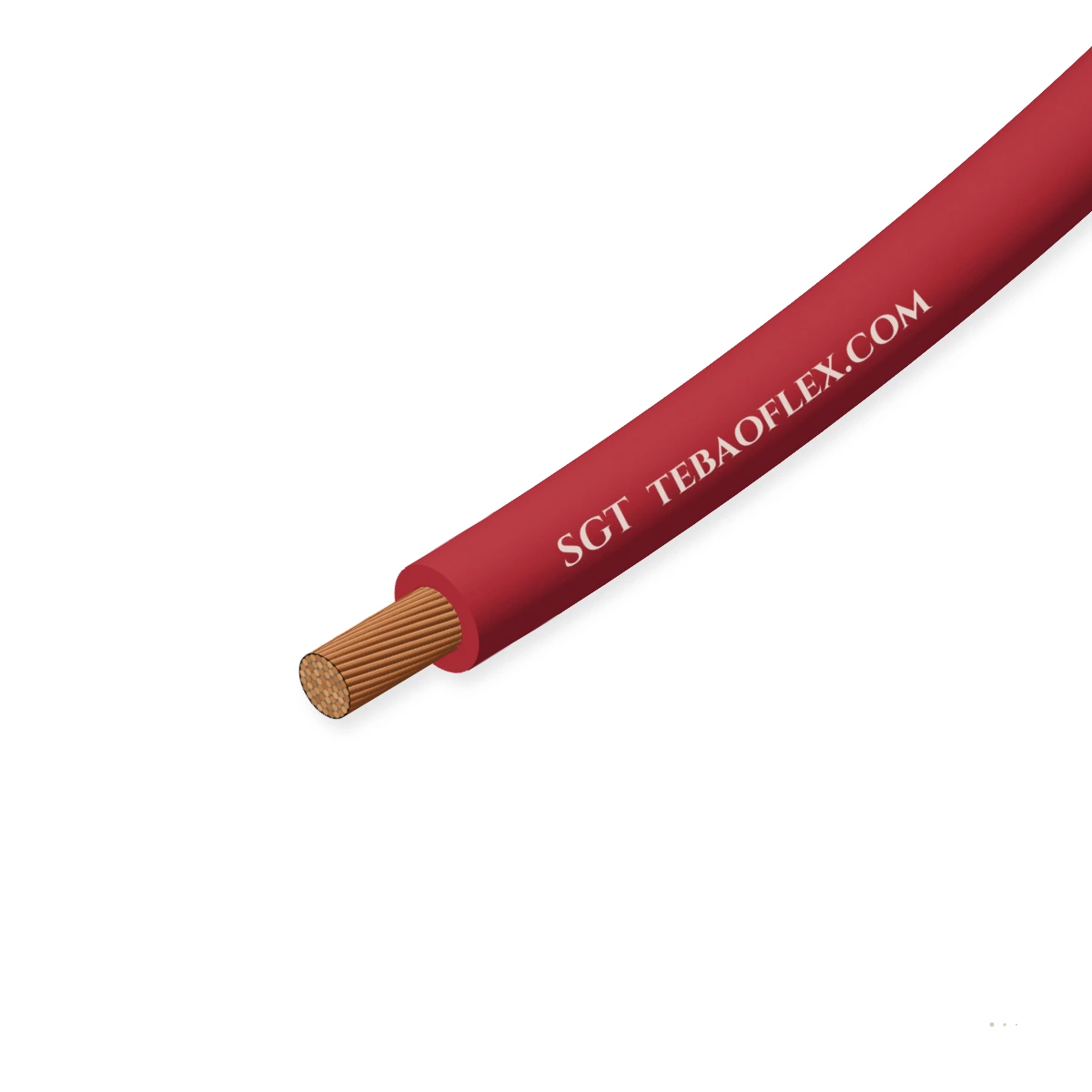

SGT PVC Battery CableSAE J1127 Type SGT 60 V DC starter and ground thermoplastic PVC-insulated automotive batte

SGT is an SAE J1127 Type SGT starter and ground battery cable engineered for 60 V DC automotive, commercial vehicle, agricultural tractor, and off-highway equipment battery-to-starter and chassis earthing circuits. Built around rope-lay bunch-stranded annealed

Oil & Acid Res.
SAE J1127 Flame
-40 to +105 °C
SAE J1127 SGT
Order designation
SGT 1 AWG (42.4 mm²)
Nom. OD
13.60 mm
Copper mass
246.5 kg/km
Total mass ≈
425.0 kg/km
Min. bend R
81.6 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
60 V DC (25 V AC
Max 60 V DC
Test voltage
1000 V AC (spark
Dielectric withstand
Operating temp
-40 to +105 °C
Short-circuit +150 °C
Min. bend radius
5 × D
Flexing 8 × D
Primary standard
SAE J1127
SAE J1127 Type SGT; ISO 6722-1
Flame rating
SAE J1127 45° fl
Fire & safety compliance

Typical values for this cable type, based on SAE J1127 — confirmed in the datasheet and quotation for your order.

Application fit

Is SGT right for your machine?

Used for 12 V / 24 V / 48 V DC battery-to-starter motor power feeds, chassis ground leads, and battery bank interconnects in trucks, tractors, construction equipment, and standby diesel generators.

Motor stator, traction & converter leads

Suitable

Engineered specifically for 12 V, 24 V, and 48 V DC battery-to-starter motor leads and alternator connections

Switchgear & control cabinet wiring

Suitable

Standard choice for vehicle chassis ground straps, battery box interconnects, and DC power distribution

Fixed installation

Suitable

Suitable for clipped routing along vehicle frame rails, battery trays, and genset skids

Trailing & towing

With conditions

Suitable for battery jumper harnesses; for high-flex rubber welding/battery leads use SGR or H01N2-D

Typical machinesCommercial Truck & Tractor Starter LeadsStandby Diesel Generator Cranking CircuitsAgricultural & Off-Highway Equipment

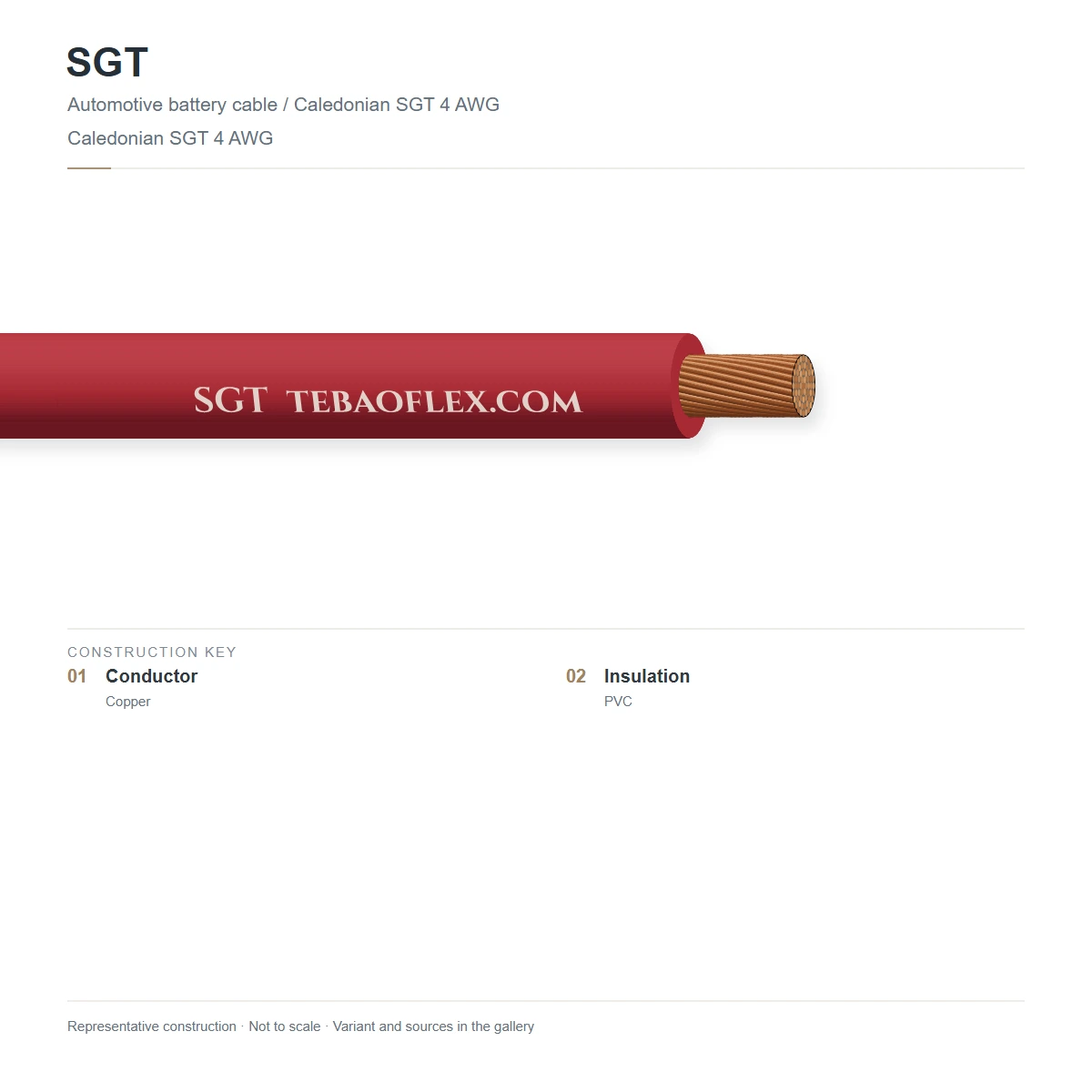

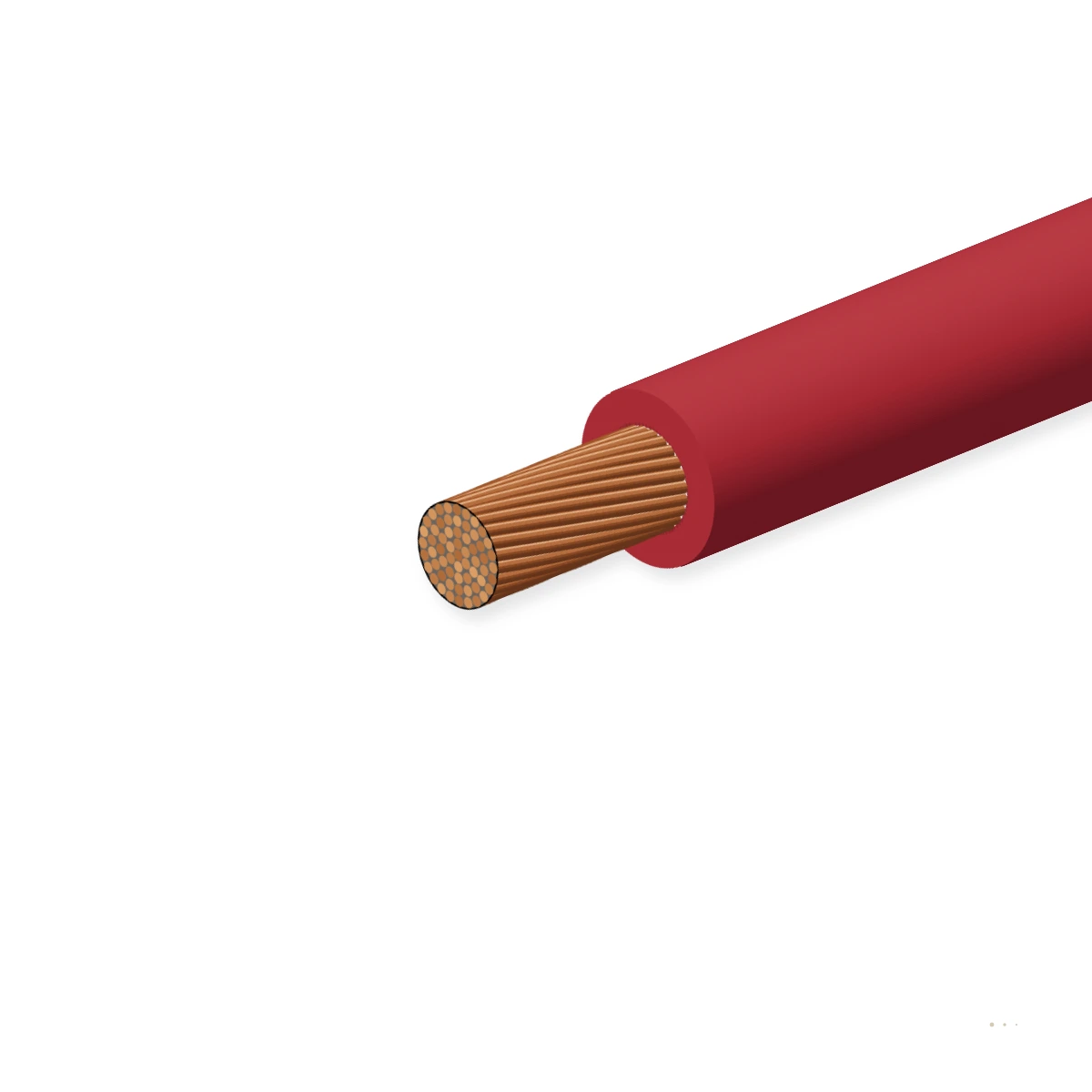

Construction

Layer by layer

Rope-lay bunch-stranded annealed bare copper (SAE J1127); Full-wall thermoplastic Polyvinyl Chloride (PVC) battery compound (SAE J1127 Type SGT); Paper separator tape over rope-lay copper conductor strands where required for clean stripping; Integral single-layer full-wall PVC battery insulation and jacket (Black or Red).

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1ConductorRope-lay bunch-stranded annealed bare copper conductor (SAE J1127)SAE J1127
2TapeNon-stick paper separator wrap for clean terminal lug strippingSAE J1127
3SheathFull-wall oil- and acid-resistant thermoplastic PVC battery insulation (Black / Red)SAE J1127

Commercial Truck & Tractor Starter Leads

Connects 12 V and 24 V lead-acid or AGM battery banks to heavy-duty starter solenoids and engine block grounds.

Standby Diesel Generator Cranking Circuits

Provides oil- and battery-acid-resistant DC cranking cables on stationary industrial diesel generator skids.

Agricultural & Off-Highway Equipment

Withstands diesel fuel, hydraulic oil, and road salt splash along frame rails of harvesters, loaders, and excavators.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on SAE J1127. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
60 V DC (25 V AC)
Max. operating voltage
60 V DC
Dielectric test voltage
1000 V AC (spark/dielectric test per SAE J1127)
Insulation resistance
SAE J1127 pinch, abrasion & dielectric compliance

Thermal

Operating temperature range
-40 °C to +105 °C
Dynamic / flexing temperature
-40 °C to +105 °C
Max. short-circuit temperature
+150 °C

Mechanical

Min. bend radius (fixed)
5 × D
Min. bend radius (flexing)
8 × D
Max. tensile pulling load
15 N/mm²
Vibration & mechanical duty
Engine vibration & chassis routing

Resistance

Flame retardancy
SAE J1127 45° flame test (self-extinguishing within 70 s)
Oil & fluid resistance
SAE J1127 hot oil, battery acid, diesel fuel & antifreeze fluid immersion resistant
UV, weather & ozone
Weather, moisture & under-hood ozone resistant
Chemical & environmental
Resistant to sulfuric battery acid, engine oil, transmission fluid, gasoline and coolant

Reference standards

Governing standard
SAE J1127 (2020) — Surface Vehicle Standard — Low Voltage Battery Cable (Type SGT)
Applicable clauses
SAE J1127 Type SGT; ISO 6722-1
Secondary reference
ISO 6722-1 — Road vehicles — 60 V and 600 V single-core cables

Identification

Core identification
Single-core battery conductor (Red for positive +, Black for negative/ground -)
Outer sheath colour
Black or Red
Surface print legend
TEBAOFLEX — SGT — SAE J1127 — <AWG> — 60V DC — -40°C TO +105°C

Sizes

8 standard configurations (SGT)

Nominal dimensions, copper weight, total mass and electrical parameters for SGT per SAE J1127.

Dimensions & masses
DesignationSize / ConfigurationStranding · WallNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
SGT size schedule
SGT 6 AWG (13.3 mm²)6 AWG (13.3 mm²)133/27 · 2.1 mm8.7095.7165.052.2
SGT 4 AWG (21.2 mm²)4 AWG (21.2 mm²)133/25 · 2.4 mm10.60136.3235.063.6
SGT 2 AWG (33.6 mm²)2 AWG (33.6 mm²)259/26 · 2.5 mm12.50200.1345.075.0
SGT 1 AWG (42.4 mm²)1 AWG (42.4 mm²)259/25 · 2.5 mm13.60246.5425.081.6
SGT 1/0 AWG (53.5 mm²)1/0 AWG (53.5 mm²)259/24 · 2.5 mm14.90301.6520.089.4
SGT 2/0 AWG (67.4 mm²)2/0 AWG (67.4 mm²)259/23 · 2.5 mm16.30371.2640.097.8
SGT 3/0 AWG (85.0 mm²)3/0 AWG (85.0 mm²)259/22 · 2.5 mm18.00461.1795.0108.0
SGT 4/0 AWG (107.2 mm²)4/0 AWG (107.2 mm²)413/23 · 2.5 mm19.80574.2990.0118.8
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to SAE J1127.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric voltage withstand & conductor DC resistance1000 V AC (spark/dielectric test per SAE J1127)100 % of production lengths
Sample tests
Insulation wall thickness, hot-set / pinch & cold bendConforms to SAE J1127 sample scheduleEvery production batch
Fluid immersion, flame propagation & thermal agingSAE J1127 45° flame test (self-extinguishing within 70 s)Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

SAE J1127 Type SGT; ISO 6722-1ISO 6722-1 (2011)RoHS 3 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX — SGT — SAE J1127 — <AWG> — 60V DC — -40°C TO +105°C
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSGT PVC Battery Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXSGT spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does Type SGT mean in SAE J1127?
In SAE J1127, 'S' stands for Starter, 'G' stands for Ground, and 'T' stands for Thermoplastic (PVC) full-wall insulation rated for 60 V DC automotive battery service.
When should I choose SGX or STX over SGT?
SGT uses thermoplastic PVC rated up to +80 °C/+105 °C. When routing near hot turbochargers, exhaust manifolds, or tight engine bays requiring +125 °C thermal endurance and zero melt-back during soldering or overload, select cross-linked XLPE Type SGX or thin-wall Type STX.
Why is there a paper separator inside SGT battery cable?
The thin paper separator wrap prevents the extruded PVC compound from keying into the outer rope-lay copper strands, ensuring rapid, clean insulation stripping prior to crimping or soldering heavy-duty battery lugs.
What voltage and temperature ratings apply to SGT under SAE J1127?
SGT is rated for 60 V DC (25 V AC) (maximum operating voltage 60 V DC, dielectric test voltage 1000 V AC (spark/dielectric test per SAE J1127)) and continuous operation from -40 °C to +105 °C (short-circuit up to +150 °C) per SAE J1127.
