Continuous-Flex Drag-Chain PUR Data CablesTwisted-Pair (TP) ChainClass 6 · 7.5×D FlexRS-485 & Servo Encoders

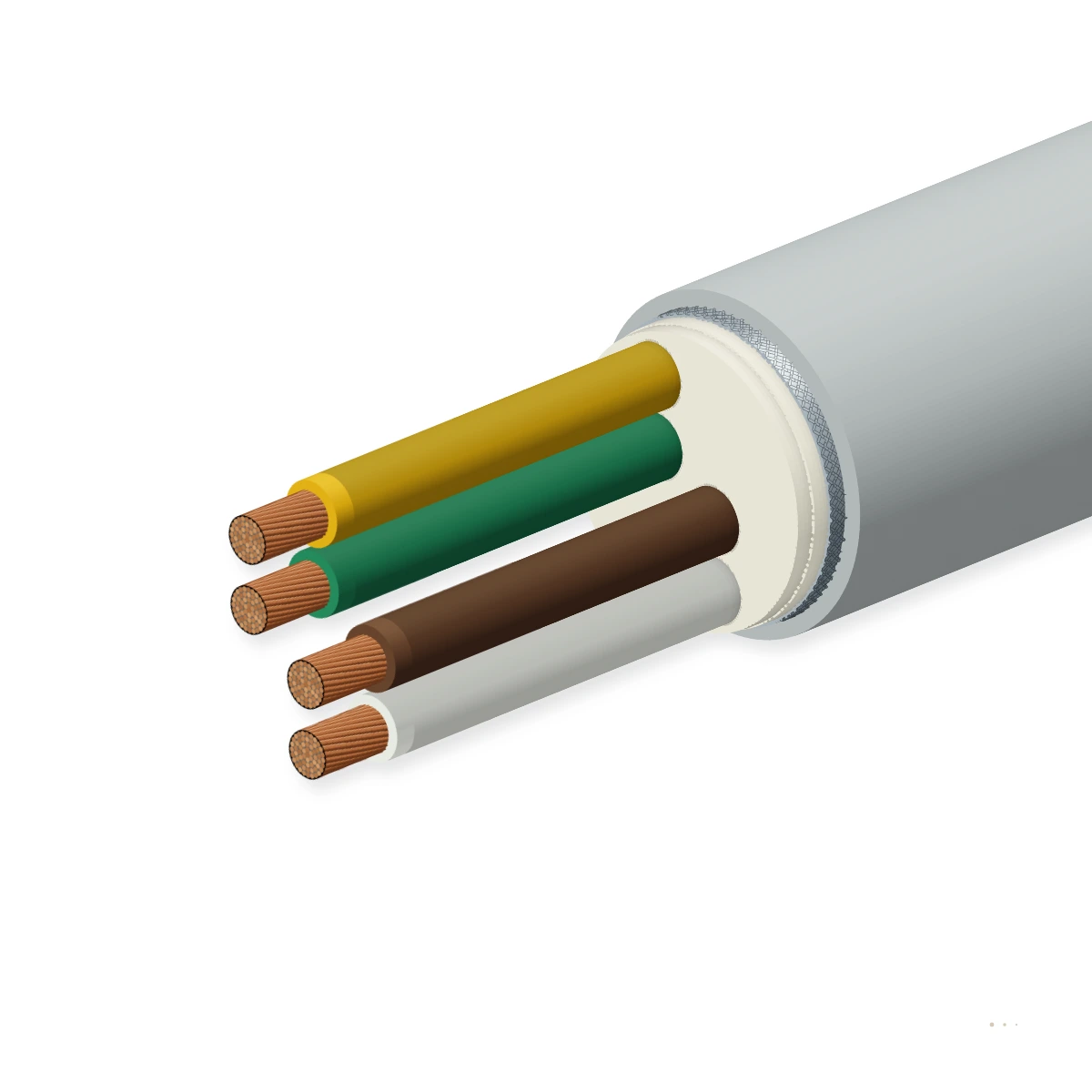

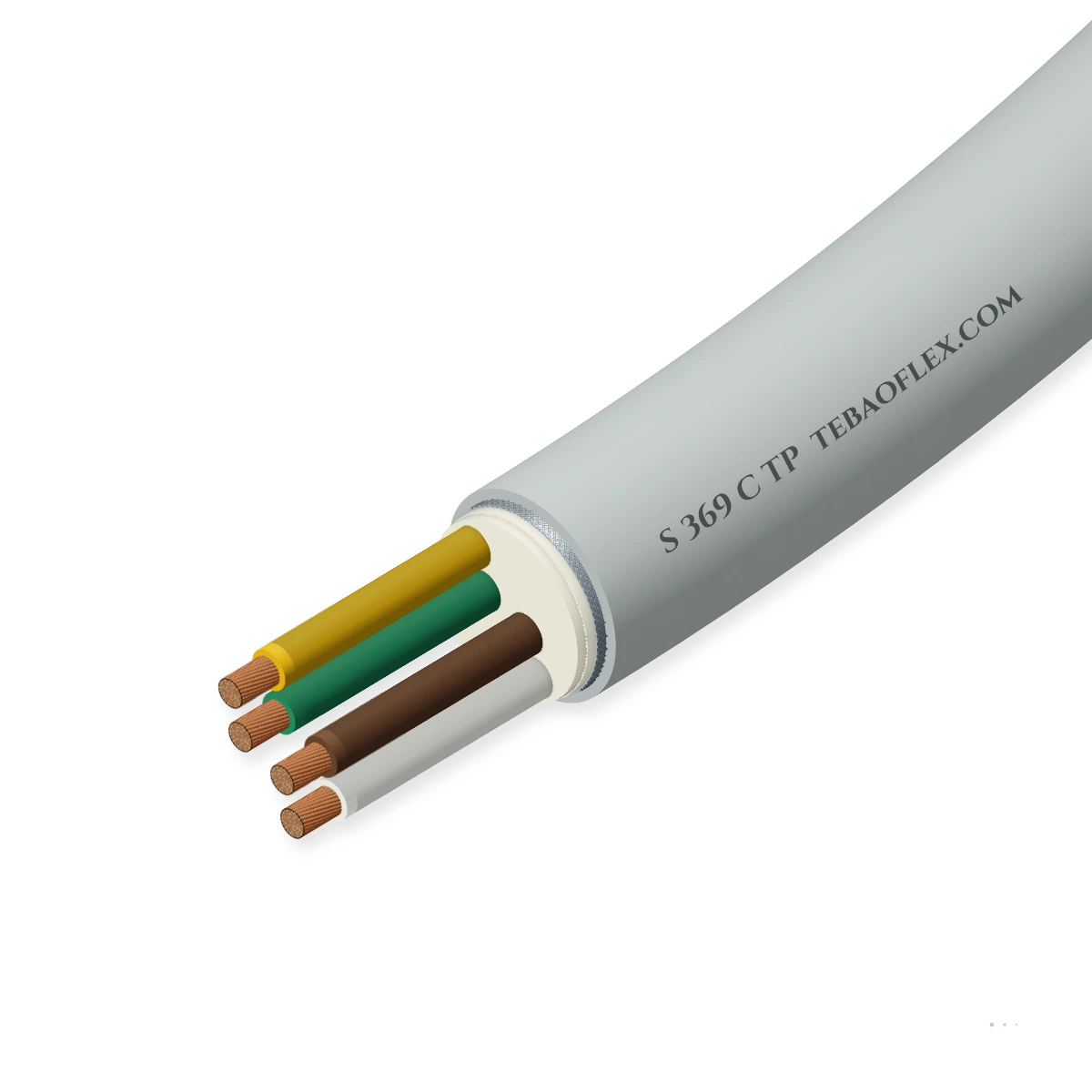

S 369 C TP Screened Twisted-Pair PUR Cable-Chain Data CableDIN VDE 0812 / UL 20233 · 350/500 V · 2×2 to 24×2 × 0.14–1.5 mm² · Class 6 Cu · TP · TC

S 369 C TP is a continuous-flex screened twisted-pair (TP) data cable (0.14 mm² to 1.5 mm², 350/500 V) engineered for differential RS-422/RS-485 bus links, incremental/absolute servo encoders (A/Ā, B/B̄, Z/Z̄, EnDat, Hiperface, BiSS, SSI), and

EMC screen
Low-EMC design
Oil-resistant
Flame-retardant
Order designation
S 369 C TP 2 × 2 × 0.25 mm²
Outer Ø ≈
6.10 mm
Metal weight
21.0 kg/km
Total weight ≈
44.0 kg/km
Min. bend R (fixed)
24 mm
All sizes (5)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Pair geometry
2×2 to 24×2 TP
Decoupled differential lay pitches
Cross-sections
0.14 to 1.5 mm²
DIN 47100 pair colour coding
Peak voltage
350 V / 500 V
300 V UL AWM Style 20233/21198
Mutual cap.
Approx. 65 pF/m
Low-loss TPE/PP core insulation
Min. bend radius
7.5×D (chain)
4×D static · 5–10M flex cycles
EMC screening
≥ 85 % TC braid
> 70 dB NEXT crosstalk rejection

Typical values for this cable type, based on DIN VDE 0812 / EN 50288-7 / UL AWM 20233 — confirmed in the datasheet and quotation for your order.

Application fit

Is S 369 C TP right for your machine?

Purpose-built for servo feedback encoders, RS-422/RS-485 fieldbuses, CAN-bus drops, LVDS sensors, and differential analog transmitters moving continuously inside CNC and robotic drag chains.

Energy chain / drag chain

Suitable

Short-pitch twisted pairs stranded around a tension-neutral core centre survive 5–10 million drag-chain cycles at 7.5 × D.

Trailing & towing

Suitable

Halogen-free polyether PUR jacket resists CNC cutting oils, coolants, and welding spatter.

Fixed installation

Suitable

Directly links moving gantry junction boxes right into the cabinet servo drive without intermediate splices.

Self-supporting pendant & push-button drop

With conditions

Supports ± 30°/m multi-axis dress pack twist along robot arms.

Typical machinesServo Motor Encoder & Resolver FeedbackRS-422 / RS-485 & CAN Motion BusesCNC Linear Scales & Laser InterferometersRobotic Welding & Assembly CellsSemiconductor Wafer Stage Gantries

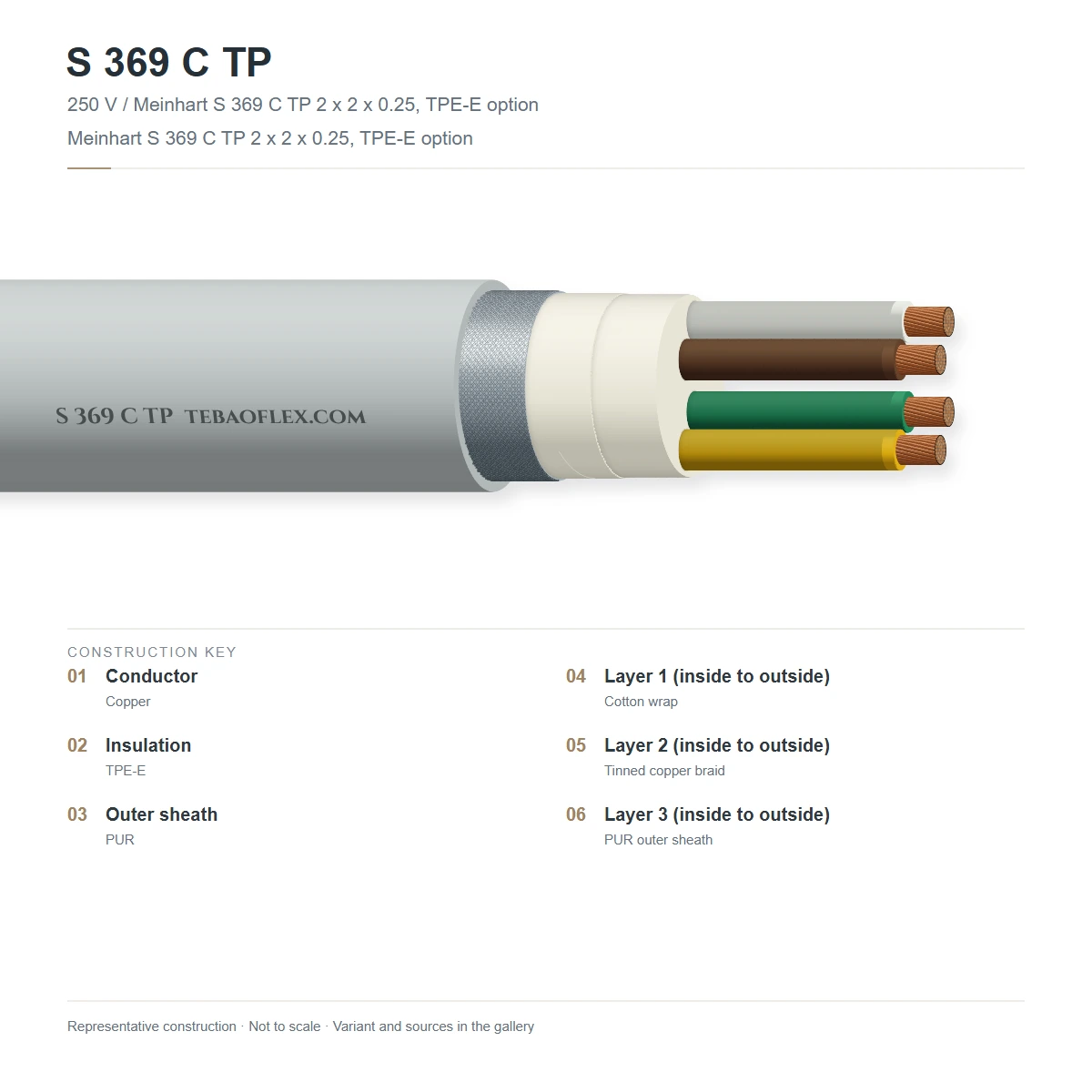

Construction

Layer by layer

Superfine Class 6 bare copper conductors, low-capacitance PP/TPE insulation twisted into decoupled pairs (DIN 47100), non-woven sliding

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Superfine Class 6 bare copper conductorsExtra-fine stranded annealed bare copper per IEC 60228 Class 6 / VDE 0295 Class 6IEC 60228 Cl. 6
2Low-capacitance TPE / PP twisted pairsHalogen-free polyolefin/TPE cores twisted into balanced differential pairs withDIN 47100 / VDE 0812
3Low-friction sliding fleece separatorSynthetic non-woven wrap decoupling pair bundle from the braided screen during linearVDE 0812
4High-flex tinned copper wire braidOptimised-angle tinned copper wire braid (≥ 85 % optical coverage) shielding against VFDEN 50288-7
5Halogen-free oil-resistant PUR outerPolyether polyurethane (TMPU per EN 50363-10-2), matte grey RAL 7001 or blackEN 50363-10-2

S 369 C TP (0.14–0.34 mm², 350 V)

High-speed differential encoder (A/B/Z, SSI, EnDat, BiSS) and RS-422/485 drag-chain pair cable.

S 369 C TP (0.50–1.50 mm², 500 V)

Twisted-pair drag-chain cable for longer 24 V supply pairs, hybrid encoder power+signal, and fieldbus drops.

Hybrid Encoder (4×2×0.14 + 4×0.50 mm²)

Dedicated servo feedback topology combining 4 signal pairs with 4×0.50 mm² 5V/24V encoder power cores.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0812 / EN 50288-7 / UL AWM 20233. Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic differential
Approx. 100 Ω ± 15 Ω (at 1–10 MHz)
Mutual pair capacitance
Approx. 65 pF/m at 800 Hz
Core-to-screen capacitance
Approx. 110 pF/m at 800 Hz
Operating peak voltage
350 V (≤ 0.34 mm²) / 500 V (≥ 0.50 mm²)
Dielectric test voltage
1,500 V AC (≤ 0.34 mm²) / 2,000 V AC (≥ 0.5
Near-end crosstalk (NEXT @ 1 MHz)
≥ 65 dB between adjacent pairs

Thermal

Fixed operating temperature
-40 °C to +80 °C
Dynamic drag-chain temperature
-30 °C to +80 °C
UL AWM temperature rating
+80 °C (300 V Style 20233 / 21198)
Flame retardance
IEC 60332-1-2, UL VW-1 & CSA FT1
Halogen-free verification
IEC 60754-1/2
Cold-bend flexibility
-40 °C without sheath cracking

Mechanical

Conductor stranding class
IEC 60228 Class 6 superfine stranding
Pair stranding geometry
Staggered short-pitch twisted pairs (TP)
Min. bend radius (fixed / chain)
4 × D (fixed) / 7.5 × D (drag chain)
Max. travel speed / acceleration
Up to 5–10 m/s · 50 m/s²
Typical drag-chain cycle life
5,000,000 to 10,000,000 bend cycles
Pair count range
2×2, 3×2, 4×2, 6×2, 8×2, 10×2, 12×2 to 24×2

Resistance

Oil & coolant resistance
EN 60811-404 / VDE 0473-811-404
VFD PWM common-mode immunity
Balanced TP + ≥ 85 % tinned Cu braid
Hydrolysis & microbe resistance
Polyether PUR resists synthetic emulsions
Abrasion & tear strength
High-density matte PUR outer jacket
LABS / silicone-free status
PWIS-free for automotive assembly lines
RoHS / REACH status
RoHS 3 compliant

Reference standards

German data cable design norm
DIN VDE 0812 / VDE 0295 Class 6
Sheath material standard
EN 50363-10-2 (TMPU polyurethane)
Pair colour identification
DIN 47100 pair sequence
North American approval
UL/cUL AWM Style 20233 / 21198
Halogen & flame standards
IEC 60754-1 & IEC 60332-1-2 / FT1
Quality certification
EN 10204 3.1 + chain flex qualification

Identification

Pair colour code
DIN 47100 (e.g., Pair 1: white/brown, Pair
Outer sheath colour
Grey (RAL 7001), Black, or Green (RAL 6018
Surface legend
TEBAOFLEX S 369 C TP [N×2×mm²] PUR CHAIN
Standard drum lengths
100 m, 300 m, 500 m, 1000 m
Application code
S 369 C TP Screened Twisted-Pair Chain
Batch traceability
Lot number & sequential metre mark

Sizes

5 standard configurations (S 369 C TP)

Dimensional, physical and high-frequency electrical parameters for S 369 C TP per DIN VDE 0812 / EN 50288-7 / UL AWM 20233.

Dimensions & construction
Order designationConstruction / VariantConductorOuter Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard S 369 C TP variants
S 369 C TP 2 × 2 × 0.25 mm²2 Twisted Pairs + TC Braid (PUR)0.25 mm² (24 AWG)6.1021.044.024
S 369 C TP 4 × 2 × 0.25 mm²4 Twisted Pairs + TC Braid (PUR)0.25 mm² (24 AWG)7.3036.068.029
S 369 C TP 6 × 2 × 0.25 mm²6 Twisted Pairs + TC Braid (PUR)0.25 mm² (24 AWG)8.4051.092.034
S 369 C TP 4 × 2 × 0.34 mm²4 Twisted Pairs + TC Braid (PUR)0.34 mm² (22 AWG)8.1046.085.032
S 369 C TP 4 × 2 × 0.50 mm²4 Twisted Pairs + TC Braid (PUR)0.50 mm² (20 AWG)9.2063.0112.037
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are nominal production values subject to manufacturing tolerances per DIN VDE 0812 / EN 50288-7 / UL AWM 20233.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand & pair continuity1.5 kV / 2.0 kV AC for 5 min without breakdownEvery drum
Mutual pair capacitance & NEXT crosstalk≤ 70 pF/m mutual capacitance; NEXT ≥ 65 dB at 1 MHzEvery drum
Sample tests
Linear drag-chain flex endurance test> 5,000,000 cycles at 7.5 × D without pair unlaying or breakQualification
EN 60811-404 oil & IEC 60754-1 halogen-freePasses IRM 902 oil immersion and halogen-free testQualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0812 / EN 50363UL / cUL AWM 20233Halogen-Free / RoHS 3

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX S 369 C TP [N×2×mm²] TWISTED PAIR
Delivery form
Spools, reels or export wooden drums
Standard reel lengths
100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ
100 m (stock) · 305–500 m (production)
Lead time
1–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFS 369 C TP Screened Twisted-Pair PUR Cable-Chain Data Cable – technical datasheet5 sizes · construction, technical data, approvalsXLSXS 369 C TP spec data (Excel)All 5 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why must incremental and absolute servo encoders use twisted-pair S 369 C TP when routed alongside VFD motor cables?
Inside a drag chain, PWM servo motor cables generate steep dV/dt magnetic and capacitive fields; twisting each differential signal pair (A/Ā, B/B̄, Z/Z̄, Clock/Data) ensures equal noise induction on both conductors so the differential receiver cancels common-mode interference. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
How does S 369 C TP prevent 'corkscrewing' inside fast-moving energy chains?
Ordinary twisted-pair cables use soft PVC and long lay lengths that untwist and buckle after ~100,000 cycles; S 369 C TP uses high-modulus TPE/PP core insulation, staggered short pair pitches, a tension-neutral centre filler, and a low-friction fleece separator under the braid. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
Can S 369 C TP be used for RS-485 and RS-422 communication in drag chains?
Yes, its ~100 Ω differential pair impedance and ~65 pF/m mutual capacitance provide clean eye diagrams for RS-422, RS-485, Profibus-DP/FMS drops, and SSI/EnDat/BiSS encoder buses. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
Is a green RAL 6018 encoder jacket option available?
Yes, in addition to standard grey (RAL 7001) and black (RAL 9005), S 369 C TP can be supplied in DESINA green (RAL 6018) for immediate visual identification of feedback encoder lines. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
