SANS 1520 / BS 6708 coal-cutter trailing cablesNF M 82-375 / SCGMS 190501000 V (2A/2B) · 5500 V (3A/3B)Phase-Screened + PCP

SCGMS 19050 Type 2A / 3A / 2B / 3B Screened Underground MiningNF M 82-375 / SCGMS 19050 1000 V (Type 2A/2B) & 5500 V (Type 3A/3B) underground mining

SCGMS 19050 Type 2A / 3A / 2B / 3B is the French standard NF M 82-375 phase-screened flexible rubber trailing cable for underground coal, potash, and bauxite mines, covering 0.6/1 kV (1000 V Type 2A/2B) and 3.2/5.5 kV (5500 V Type 3A/3B) coal shearers

EMC screen
Oil-resistant
Flame-retardant
Anti-torsion braid
Order designation
SCGMS 19050 Type 2B 3×70+3E+1×10P (1000 V)
Outer Ø ≈
49.5 mm
Copper weight
2,540 kg/km
Total weight ≈
4,010 kg/km
Min. bend R (fixed)
297 mm
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
1000 V & 5500 V
0.6/1 kV (2A/2B) · 3.2/5.5 kV (3A/3B)
Standard
NF M 82-375
Charbonnages de France SCGMS 19050
Phase screen
Tinned Cu Braid
Individual phase earth/fault screen
Insulation
+90 °C EPR
Cross-linked elastomer dielectric
Outer sheath
Heavy PCP
Flame-retardant polychloroprene
Min. bend radius
6×D / 10×D
Fixed 6×D · trailing 10×D

Typical values for this cable type, based on NF M 82-375 / SCGMS 19050 — confirmed in the datasheet and quotation for your order.

Application fit

Is SCGMS 19050 Type 2A / 3A / 2B / 3B right for your machine?

Engineered for 1000 V and 5500 V underground mining equipment, shearers, LHD loaders, and mobile transformers in mines specifying French NF M 82-375 / SCGMS 19050 safety standards.

Mine roadway & tunnel wall hangers

Suitable

Individual metallic phase screens trip French/European selective earth-fault relays immediately.

Longwall shearer & Bretby handler

Suitable

Flexible Class 5 tinned copper cores and braided screens handle continuous longwall flexing.

Trailing & towing

Suitable

Type 2B and Type 3B include reinforced double sheathing for heavy roadway dragging.

Fixed installation

Suitable

Approved for underground gallery hooks and 5.5 kV gate-end transformer feeders.

Typical machinesUnderground coal, potash & uranium minesNF M 82-375 Francophone mining operations1000 V & 5500 V longwall shearersUnderground LHD & jumbo feeders

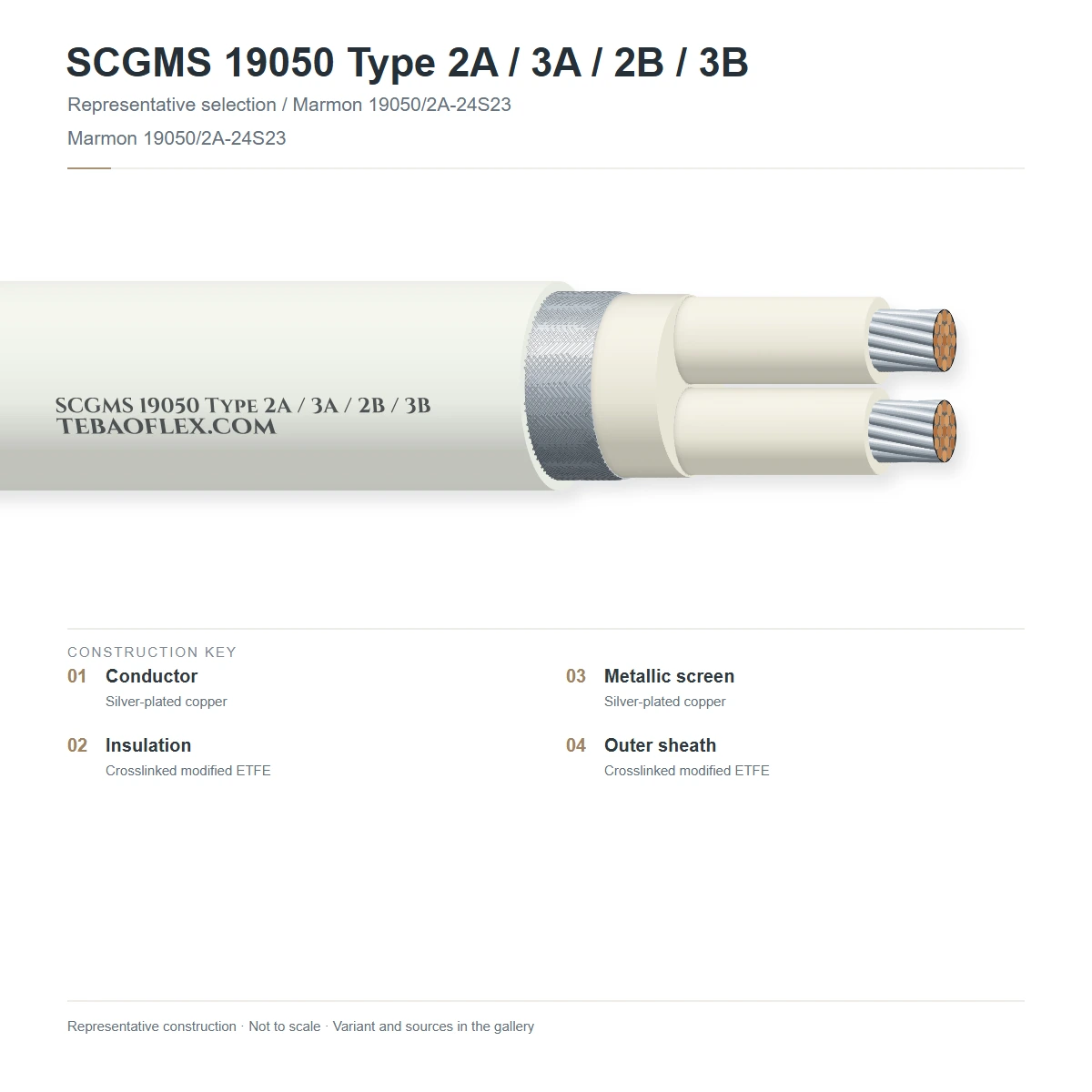

Construction

Layer by layer

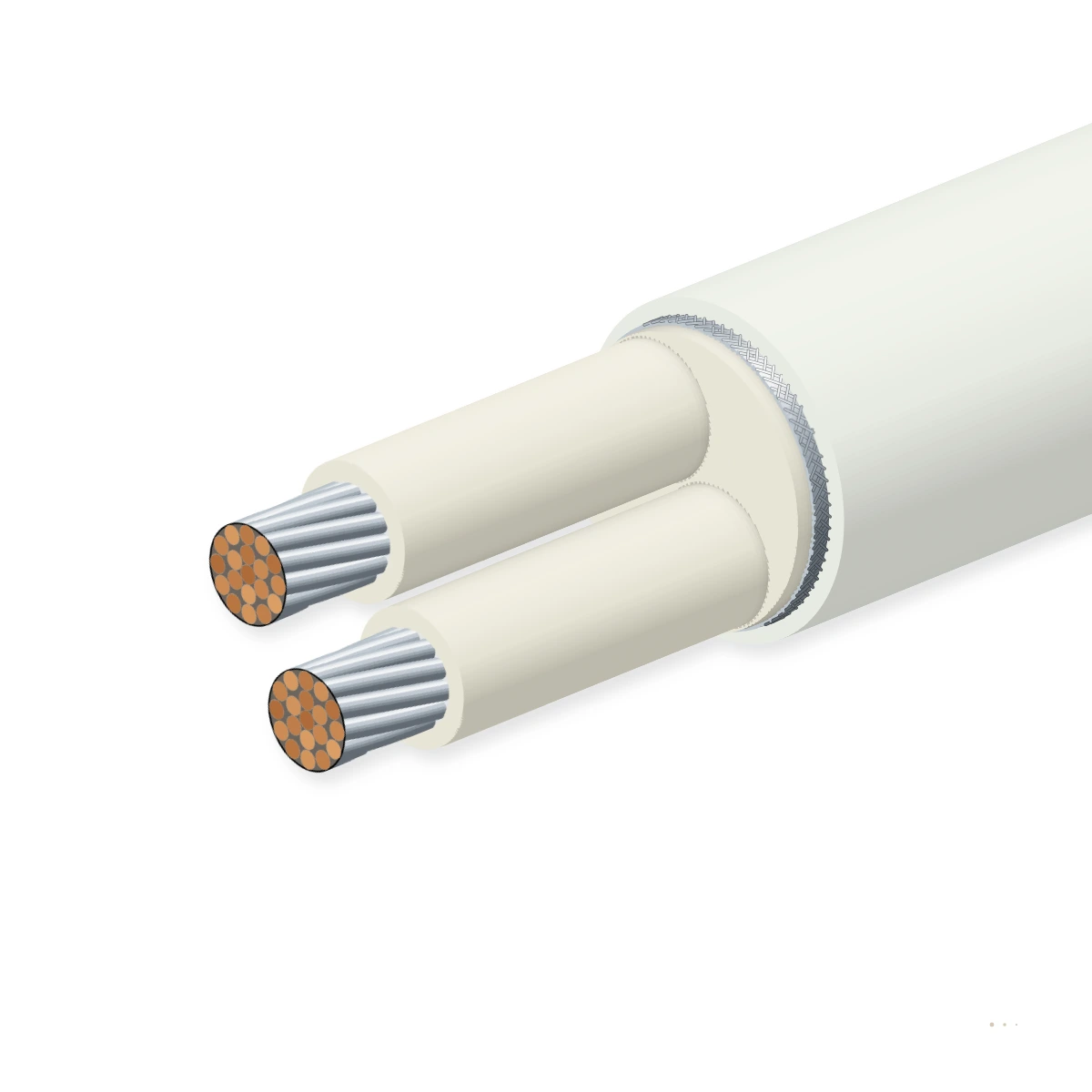

Three Class 5 tinned copper phase conductors with EPR insulation, semi-conductive layers, and individual tinned copper braid/whipcord

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase & pilot conductorsFinely stranded tinned annealed copper, Class 5 per NF EN 60228NF EN 60228 Class 5
2Central elastomeric cradleProfiled rubber centre cradle positioning phase and pilot coresNF M 82-375
3Stress-control layers (Type 3A/3B)Inner and outer semi-conductive elastomeric layers on 3.2/5.5 kV coresNF M 82-375
4EPR core insulationCross-linked ethylene propylene elastomer rated +90 °C (1000 V or 5500 V wall)NF M 82-375
5Individual phase earth screensTinned copper wire/textile composite braid over each phase core forming the PE pathNF M 82-375 / SCGMS 19050
6Reinforced polychloroprene sheathExtra-heavy flame-retardant, oil- and tear-resistant polychloroprene (with textile braidNF M 82-375

Type 2A & Type 2B (0.6/1 kV - 1000 V)

1000 V phase-screened trailing cable (Type 2A standard; Type 2B reinforced anti-tear sheath).

Type 3A & Type 3B (3.2/5.5 kV - 5500 V)

5500 V MV phase-screened trailing cable (Type 3A standard; Type 3B reinforced anti-tear sheath).

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on NF M 82-375 / SCGMS 19050. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV (Type 2A/2B) · 3.2/5.5 kV (Type
AC routine test voltage
3.5 kV rms (Type 2A/2B) · 11 kV rms (Type
Protective earth path
Combined conductance of the 3 tinned Cu
Pilot core rating
1 to 3 insulated/screened pilot cores for

Thermal

Max. conductor operating temp.
+90 °C continuous
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature range
-25 °C to +60 °C

Mechanical

Min. bending radius (fixed
6 × D fixed · 10 × D trailing
Sheath reinforcement (Type 2B / 3B)
Embedded synthetic textile braid between
Max. tensile load on copper
15–20 N/mm²

Resistance

Flame retardancy
NF C 32-070 C2 / IEC 60332-1-2 underground
Oil & hydraulic fluid
NF EN 60811-404 resistant
Impact & crush resistance
NF M 82-375 coal-face impact test

Reference standards

Primary specification
NF M 82-375 / Charbonnages de France SCGMS
Conductor standard
NF EN 60228 Class 5 tinned copper

Identification

Core coding
3 screened phase cores + 1 to 3 pilot cores
Outer sheath colour
Yellow or Black with embossed NF M 82-375

Sizes

10 standard configurations (SCGMS 19050 Type 2A / 3A / 2B / 3B)

Nominal dimensions, copper weights and electrical parameters for SCGMS 19050 Type 2A / 3A / 2B / 3B per NF M 82-375 / SCGMS 19050.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard SCGMS 19050 Type 2A / 3A / 2B / 3B configurations
SCGMS 19050 Type 2A 3×25+3E+1×6P (1000 V)3×25 + 3E + 1×6P (1000 V Type 2A)2535.81,0201,920215
SCGMS 19050 Type 2A 3×35+3E+1×6P (1000 V)3×35 + 3E + 1×6P (1000 V Type 2A)3539.21,3502,380235
SCGMS 19050 Type 2B 3×50+3E+1×10P (1000 V)3×50 + 3E + 1×10P (1000 V Type 2B)5044.51,8603,120267
SCGMS 19050 Type 2B 3×70+3E+1×10P (1000 V)3×70 + 3E + 1×10P (1000 V Type 2B)7049.52,5404,010297
SCGMS 19050 Type 2B 3×95+3E+1×10P (1000 V)3×95 + 3E + 1×10P (1000 V Type 2B)9554.83,4205,120329
SCGMS 19050 Type 3A 3×25+3E+1×10P (5.5 kV)3×25 + 3E + 1×10P (3.2/5.5 kV Type 3A)2542.51,0902,540255
SCGMS 19050 Type 3A 3×35+3E+1×10P (5.5 kV)3×35 + 3E + 1×10P (3.2/5.5 kV Type 3A)3545.81,4103,020275
SCGMS 19050 Type 3B 3×50+3E+1×10P (5.5 kV)3×50 + 3E + 1×10P (3.2/5.5 kV Type 3B)5050.51,9103,810303
SCGMS 19050 Type 3B 3×70+3E+1×10P (5.5 kV)3×70 + 3E + 1×10P (3.2/5.5 kV Type 3B)7055.62,6104,780334
SCGMS 19050 Type 3B 3×95+3E+1×10P (5.5 kV)3×95 + 3E + 1×10P (3.2/5.5 kV Type 3B)9561.03,5105,980366
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per NF M 82-375 / SCGMS 19050.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test3.5 kV (Type 2A/2B) or 11 kV (Type 3A/3B) rms / 5 min100 % of drums
Phase screen conductance checkNF M 82-375 protective earth screen resistance100 % of drums
Sample tests
Coal-face impact & crush testNF M 82-375 dynamic drop-weight impact testPer production batch
Flame & oil resistanceNF C 32-070 C2 / IEC 60332-1-2Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

NF M 82-375SCGMS 19050EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX NF M 82-375 SCGMS 19050 TYPE
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSCGMS 19050 Type 2A / 3A / 2B / 3B Screened Underground Mining – technical datasheet10 sizes · construction, technical data, approvalsXLSXSCGMS 19050 Type 2A / 3A / 2B / 3B spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How are Types 2A, 2B, 3A, and 3B defined in NF M 82-375 / SCGMS 19050?
Type 2A and Type 2B are rated 0.6/1 kV (1000 V service) for low-voltage coal-face machinery, whereas Type 3A and Type 3B are rated 3.2/5.5 kV (5500 V service) with semi-conductive stress control for medium-voltage shearers and mobile transformers. Suffix 'B' denotes a double-layer textile-reinforced outer sheath.
How is the protective earth conductor formed in SCGMS 19050 cables?
Under NF M 82-375, each of the three EPR-insulated phase cores is surrounded by a heavy tinned copper/textile braid screen. In contact with one another around the central cradle, the three phase screens collectively serve as the symmetrical protective earth conductor. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Can Type 3A / 3B (3.2/5.5 kV) also be used on 3.6/6 kV mining networks?
Yes. The 3.2/5.5 kV insulation wall is routine-tested at 11 kV AC for 5 minutes—the exact same test voltage required by DIN VDE 0250-813 for 3.6/6 kV cables—making Type 3A/3B suitable for both 5.5 kV French and 6 kV international mine networks. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
How does SCGMS 19050 compare with British BS 6708 / SANS 1520-1?
Both standards use elastomeric cradles and flexible tinned copper/textile phase screens for coal-face safety, but SCGMS 19050 uses the three phase screens themselves as the full-capacity protective earth rather than a separate fourth earth core. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
