Product

PE2-PA submersible motor winding wireDIN 46399 PE2-PAØ 0.80 – 6.00 mm Cu600 V – 1,000 V / 3.0 kV Wet

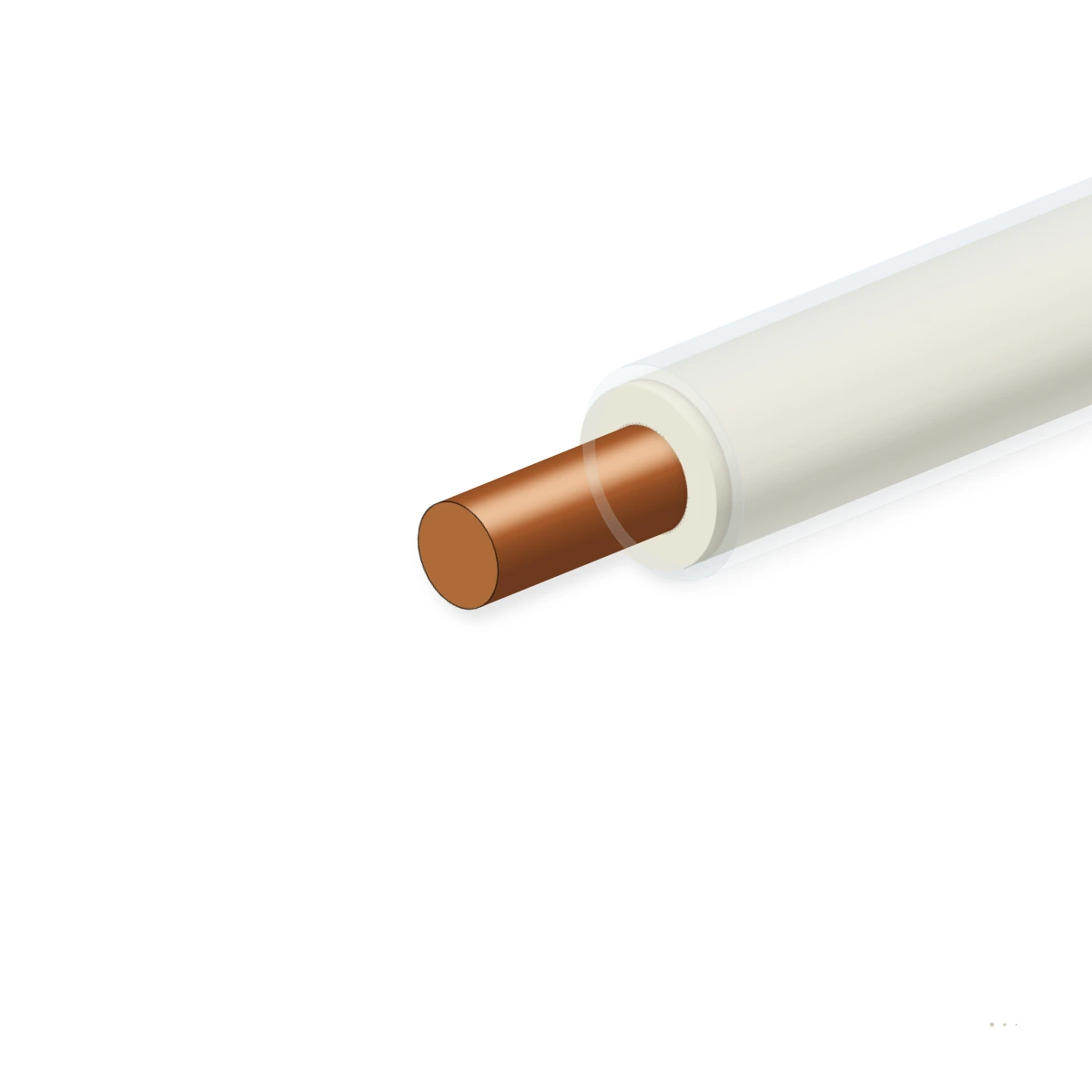

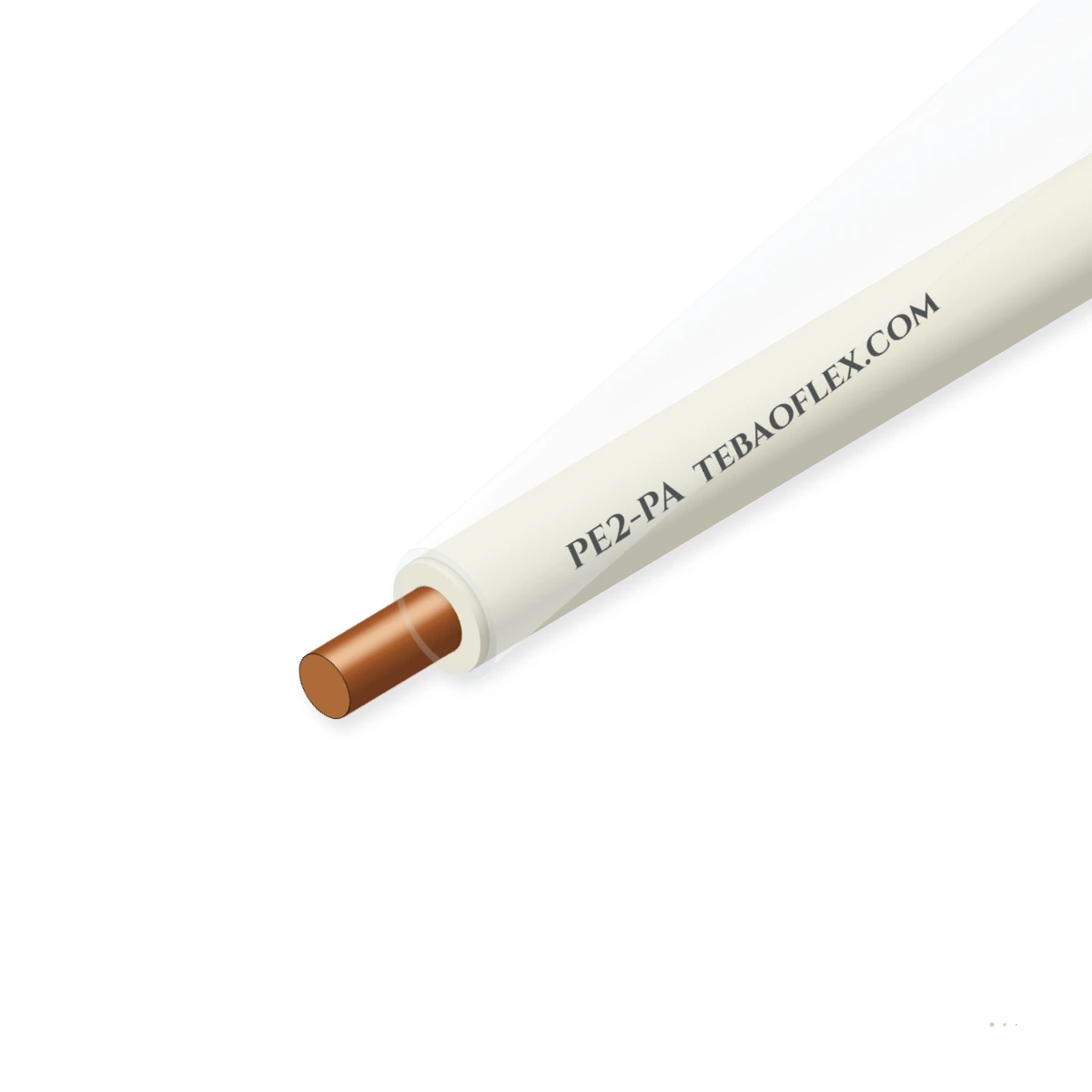

PE2-PA Polyamide-Jacketed Polyethylene Submersible Motor WindingDIN 46399 PE2-PA dual-layer polyethylene + polyamide wet-wound submersible motor winding

Standard dual-extruded submersible motor magnet wire (PE2-PA) built to DIN 46399 for rewindable 6″, 8″, 10″, 12″ and 14″ water-filled borehole, irrigation, fountain and mine-dewatering motors rated up to 1,000 V AC (with 3.0 kV high-build options).

Water-resistant
Ozone, UV & moisture
Approved
Order designation
PE2-PA-2.00
Bare Cu Ø
2.00 mm
Cu area
3.14 mm²
Overall OD
3.10 mm
Max DC R20
5.60 Ω/km
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
Up to 1,000 V AC
3.0 kV AC high-build option
Conductor Ø
0.80 to 6.00 mm
Solid Cu (plus 6–35 mm² stranded)
Dual wall
PE2 + PA (Nylon)
0.35 mm to 1.10 mm radial wall
Water temp
−20 to +90 °C
LDPE/HDPE (+70°C) or XLPE (+90°C)
Water AC test
3.0 – 8.0 kV AC
24 h water-bath routine hipot
Standard
DIN 46399
Rewindable 6″–14″ borehole stators

Typical values for this cable type, based on DIN 46399 / IEC 60317 / NEMA MG 1 — confirmed in the datasheet and quotation for your order.

Application fit

Is PE2-PA right for your machine?

The universal rewind and OEM stator magnet wire for water-glycol filled submersible borehole motors from 4 kW to 400 kW.

Immersion & wet locations

Suitable

PE2 polyethylene core provides ≥ 10,000 MΩ·km insulation resistance under continuous immersion in water/glycol.

Motor stator, traction & converter leads

Suitable

Hard Polyamide (PA) outer skin reduces friction by 50 % so turns slide smoothly through narrow stator slot openings without nicking.

Fixed installation

Suitable

Tight OD tolerances per DIN 46399 maximize copper slot fill factor in 6″, 8″, 10″ and 12″ rewindable submersible stators.

VFD inverter to AC motor screened feeder

With conditions

Standard PE2-PA suits sinusoidal or dV/dt-filtered drives ≤ 1,000 V; for 3.3–13.8 kV stators use HVWW.

Use HVWW 3.3–13.8 kV
Typical machines6″, 8″, 10″, 12″ & 14″ Rewindable Deep-Well Borehole MotorsAgricultural Centre-Pivot & Deep-Aquifer Irrigation PumpsMunicipal Water-Supply, Booster & Fountain Submersible PumpsConstruction Trench, Quarry & Tunnel Dewatering PumpsSubmersible Motor Rewind & Repair Workshops

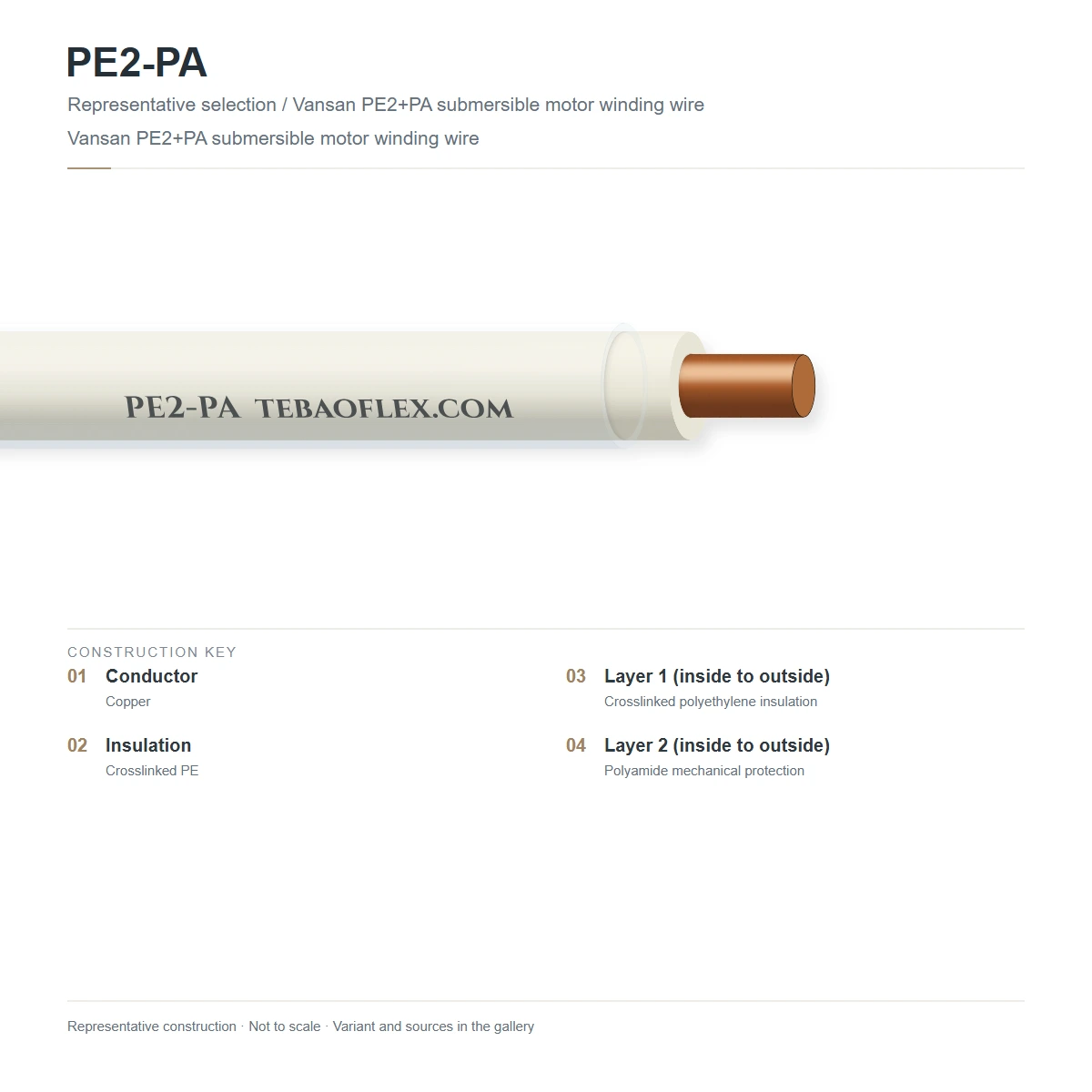

Construction

Layer by layer

Representative DIN 46399 build: Solid annealed electrolytic copper rod Cu-ETP1 / Cu-OF (Ø 0.80 mm to Ø 6.00 mm, or Class 2 stranded 6–35 mm²) + concentric high-purity polyethylene primary insulation (PE2, or cross-linked XLPE for +90 °C) + co-extruded tough Polyamide (PA / Nylon) mechanical protection skin (0.08–0.15 mm).

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Solid soft-annealed oxygen-free copper (Cu-ETP1 / Cu-OF)Precision-drawn and shaved dead-soft round copper wire (Ø 0.80 mm to 6.00 mm, elongation ≥ 30 %) or flexible Class 2 stranded copperWinds tightly around small stator coil formers with minimal springback and zero surface slivers
2High-purity Polyethylene (PE2) or XLPE primary wet dielectricConcentric void-free low/high-density polyethylene (PE2, +70 °C) or cross-linked polyethylene (XLPE, +90 °C) wall (0.30 mm to 0.95 mm radial thickness)Provides a non-polar hydrophobic barrier with ultra-low water absorption (< 0.01 %) and high breakdown voltage
3Co-extruded Polyamide (PA / Nylon) mechanical gliding skinTough, crystalline Polyamide protective outer sheath (0.08 mm to 0.15 mm radial thickness) fused directly over the PE2 insulationPrevents scraping and cut-through against laminated steel stator teeth when pulling coils into the stator slots

PE2-PA Standard (+70 °C, DIN 46399 400–1,000 V Borehole Grade)

Classic dual-layer PE2 polyethylene + PA polyamide solid round wire (Ø 0.80–6.00 mm) for 380–690 V and 1,000 V rewindable water-filled submersible motors

XLPE-PA / PP-PA (+90 °C Upgraded Thermal & VFD Grade)

Cross-linked polyethylene or polypropylene core with Polyamide skin for high-ambient borehole motors and long-cable VFD applications

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN 46399 / IEC 60317 / NEMA MG 1. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated operating voltage
Up to 1,000 V AC (standard DIN 46399) · up to 3,000 V AC (heavy-wall build)
Routine water-bath AC hipot
3.0 kV to 6.0 kV AC rms after immersion in water
In-line dry spark test
10 kV to 20 kV DC 100 % spark test during extrusion
Insulation resistance (in +20 °C water)
≥ 10,000 MΩ·km

Thermal

Max continuous winding temp
+70 °C (standard PE2-PA) · +90 °C (XLPE-PA / PP-PA)
Low-temperature limit
−25 °C

Mechanical

Solid copper diameter range
Ø 0.80 mm to Ø 6.00 mm (in 0.05 / 0.10 mm steps per DIN 46399)
Copper elongation at break
≥ 30 % (soft-annealed for easy stator slot insertion)
Min. winding bend radius
3 × OD

Resistance

Motor fill fluid compatibility
Clean water, OEM-ionized water + propylene glycol & white mineral oil
Slot abrasion resistance
High cut-through & scrape resistance via outer PA nylon skin

Reference standards

Primary standard
DIN 46399 (Winding wires for water-filled submersible motors)
Conductor & test methods
IEC 60317-0-1 · IEC 60851-3 / -5

Identification

Outer appearance
Smooth glossy Natural/Translucent, Amber or Blue Polyamide skin
Customs tariff (HS)
8544.11

Sizes

12 standard DIN 46399 PE2-PA submersible motor winding wire sizes (Ø 1.00 – 4.50 mm)

Nominal bare copper diameter, cross-section, PE2 + PA radial wall thickness, overall OD, DC resistance and weight.

Bare Cu Ø, area, PE2+PA wall, overall OD & R20
Order designationBare Cu Ø
mm		Cu Area
mm²		PE2 + PA Wall
mm		Nom. OD
mm		Max R20
Ω/km		Weight
kg/km		Enquiry
Small & Medium Borehole Stator Sizes (Ø 1.00 mm to Ø 2.20 mm — 6″ & 8″ Motors)
PE2-PA-1.001.000.790.35 + 0.081.8622.408.9
PE2-PA-1.251.251.230.38 + 0.082.1714.3413.3
PE2-PA-1.501.501.770.40 + 0.102.509.9618.6
PE2-PA-1.801.802.550.42 + 0.102.846.9126.0
PE2-PA-2.002.003.140.45 + 0.103.105.6031.8
PE2-PA-2.202.203.800.48 + 0.103.364.6338.2
Large Borehole & Dewatering Stator Sizes (Ø 2.50 mm to Ø 4.50 mm — 10″, 12″ & 14″ Motors)
PE2-PA-2.502.504.910.50 + 0.103.703.5848.6
PE2-PA-2.802.806.160.55 + 0.104.102.8660.5
PE2-PA-3.003.007.070.55 + 0.124.342.4969.2
PE2-PA-3.503.509.620.60 + 0.124.941.8393.0
PE2-PA-4.004.0012.570.65 + 0.125.541.40120.5
PE2-PA-4.504.5015.900.70 + 0.156.201.11152.0
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Intermediate diameters (e.g., 1.10, 1.30, 1.40, 1.60, 1.70, 1.90, 2.10, 2.30, 2.40, 2.60, 2.70, 2.90, 3.20, 5.00, 5.50, 6.00 mm) are stocked for exact stator rewind matching.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Water-immersion AC high-voltage test (3.0 kV to 6.0 kV AC)Every spool is immersed in grounded water and tested for dielectric withstand and insulation resistance100 % of manufactured spools
20 kV DC in-line spark test & dual-axis laser OD controlContinuous pinhole detection andPE2/PA concentricity control during co-extrusion100 % of wire length
Sample tests
Mandrel windability, copper elongation (≥ 30 %) & scrape testVerify zero cracking when wound on a 3 × OD mandrel and high PA skin abrasion resistanceEvery production batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN 46399 Submersible Motor Winding Wire CompliantRoHS & Drinking-Water Glycol Coolant Compatible

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

Smooth Unprinted Polyamide Gliding Skin (Spool Label with DIN 46399 Size & Water Hipot Cert)
Delivery form
K355 / K500 cylindrical spools (25 kg to 200 kg) or wooden drums, zero splices
Diameter steps
0.05 mm and 0.10 mm increments from Ø 0.80 mm to 6.00 mm
Lead time
Stock to 2 weeks ex-works

Technical documents

Downloads

PDFPE2-PA Polyamide-Jacketed Polyethylene Submersible Motor Winding – technical datasheet12 sizes · construction, technical data, approvalsXLSXPE2-PA spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does PE2-PA use both Polyethylene (PE2) and Polyamide (PA) instead of a single PVC or PE layer?
PVC absorbs water over time and has higher dielectric losses, while pure Polyethylene (PE2) has outstanding water-immersed electrical insulation (> 10,000 MΩ·km) but is relatively soft and easily nicked when coils are pulled through sharp laminated steel stator slots. Co-extruding a thin, hard Polyamide (Nylon) outer skin over the PE2 core combines polyethylene's electrical perfection in water with nylon's tough, low-friction mechanical gliding surface.
Why are intermediate copper diameters (like 1.65 mm, 1.85 mm, 2.10 mm) so important when rewinding a submersible motor?
Submersible borehole motors have long, narrow stator cores with fixed slot cross-sections. If a rewind shop substitutes a wire that is even 0.10 mm too thick, the required number of turns will not fit into the slot; if it is too thin, copper resistance increases and motor efficiency drops. Stocking fine 0.05/0.10 mm DIN 46399 diameter steps guarantees an exact OEM match.
When should I choose XLPE-PA (+90 °C) instead of standard PE2-PA (+70 °C)?
Standard thermoplastic PE2-PA is rated for +70 °C maximum winding temperature in cool borehole water. Specify cross-linked XLPE-PA (+90 °C) when the submersible pump operates in warm geothermal/industrial wells (> +35 °C ambient water), is driven by a Variable Frequency Drive (VFD), or experiences frequent start/stop thermal spikes.
How should PE2-PA coil leads be spliced to the flat EPDM drop cable inside the motor?
Because Polyethylene is non-polar, ordinary electrical tape will not seal underwater. Strip the outer PA and PE2 layers in a stepped pencil taper, crimp the copper conductor, wrap tightly with self-amalgamating EPR/butyl splicing tape that bonds to the cleaned PE2 core, and over-wrap with protective vinyl/rubber armour tape.
