PN-G-90100 Polish Mining Rubber CablesPN-G-901030.6/1 kVIndividually Screened 'ekżi'

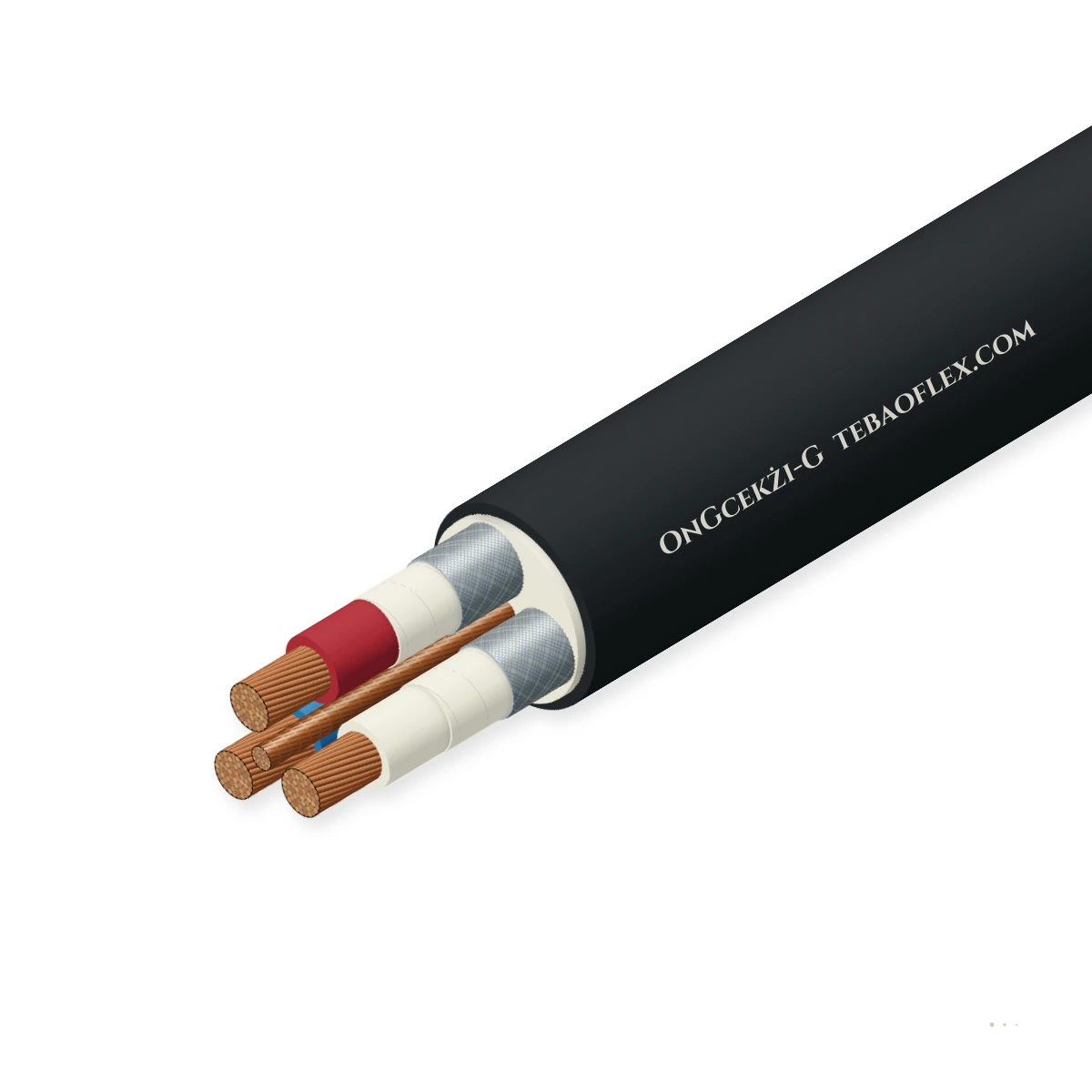

OnGcekżi-G CablePN-G-90103 · 0.6/1 kV · +90 °C EPR · Individually screened cores ('ekżi') · Mining PCP

OnGcekżi-G is a 0.6/1 kV underground mining rubber cable with individually screened ('i') power and control cores to PN-G-90103 / ZN-TF-208. Enclosing every individual core in its own semi-conductive elastomeric screen prevents core-to-core short-circuits

EMC screen
Low-EMC design
Flame-retardant
Oil-resistant
Order designation
OnGcekżi-G 12×1.5 + 1×2.5
Outer Ø ≈
26.6 mm
Copper weight
197 kg/km
Total weight ≈
920 kg/km
Min. bend R (fixed)
160 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.6/1 kV
U0/U AC · Um 1.2 kV
Core screening
Individual 'i'
Per-core semi-conductive screen
Conductor max.
+90 °C
Heat-resistant EPR · +250 °C SC
Min. bend R
6 × D / 10 × D
Fixed installation / mobile flexing
Core range
4 to 24 cores
1.5–10 mm² individually screened
Flame test
IEC 60332-1-2
Underground '-G' PCP outer jacket

Typical values for this cable type, based on PN-G-90103 / ZN-TF-208 — confirmed in the datasheet and quotation for your order.

Application fit

Is OnGcekżi-G right for your machine?

Specified for safety-critical underground longwall control, emergency-stop interlocks, electro-hydraulic roof support automation, and auxiliary feeders where inter-core faults cannot be tolerated.

Mine roadway & tunnel wall hangers

Suitable

Fail-safe individually screened control and automation harness for methane-hazard roadways.

Longwall shearer & Bretby handler

Suitable

Flexible enough for shearer control harnesses routed alongside power feeders in Bretby chains.

Trailing & towing

Suitable

Prevents false start/stop commands if the cable is pinched by roof supports or mobile machinery.

Fixed installation

Suitable

Used between flameproof gate-end boxes, roof-support controllers, and conveyor trip stations.

Motorised monospiral reel

With conditions

Suitable for low-tension control reels without heavy axial pull.

NSHTÖU 0.6/1 kV
Typical machinesLongwall Roof Support AutomationUnderground Coal & Copper MinesFlameproof Control & Interlock GearRoadway Conveyor Trip SystemsMethane-Hazard Gassy Workings

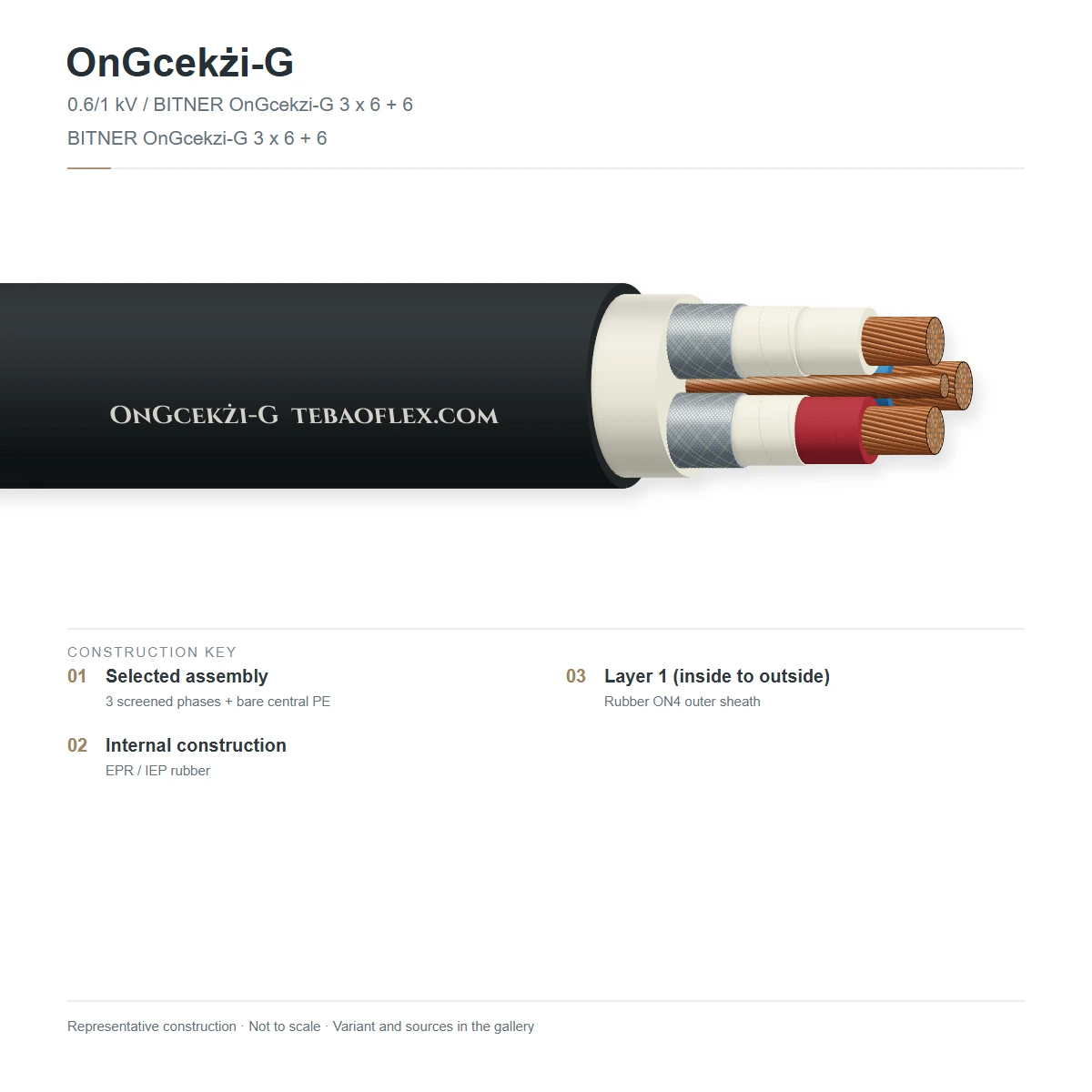

Construction

Layer by layer

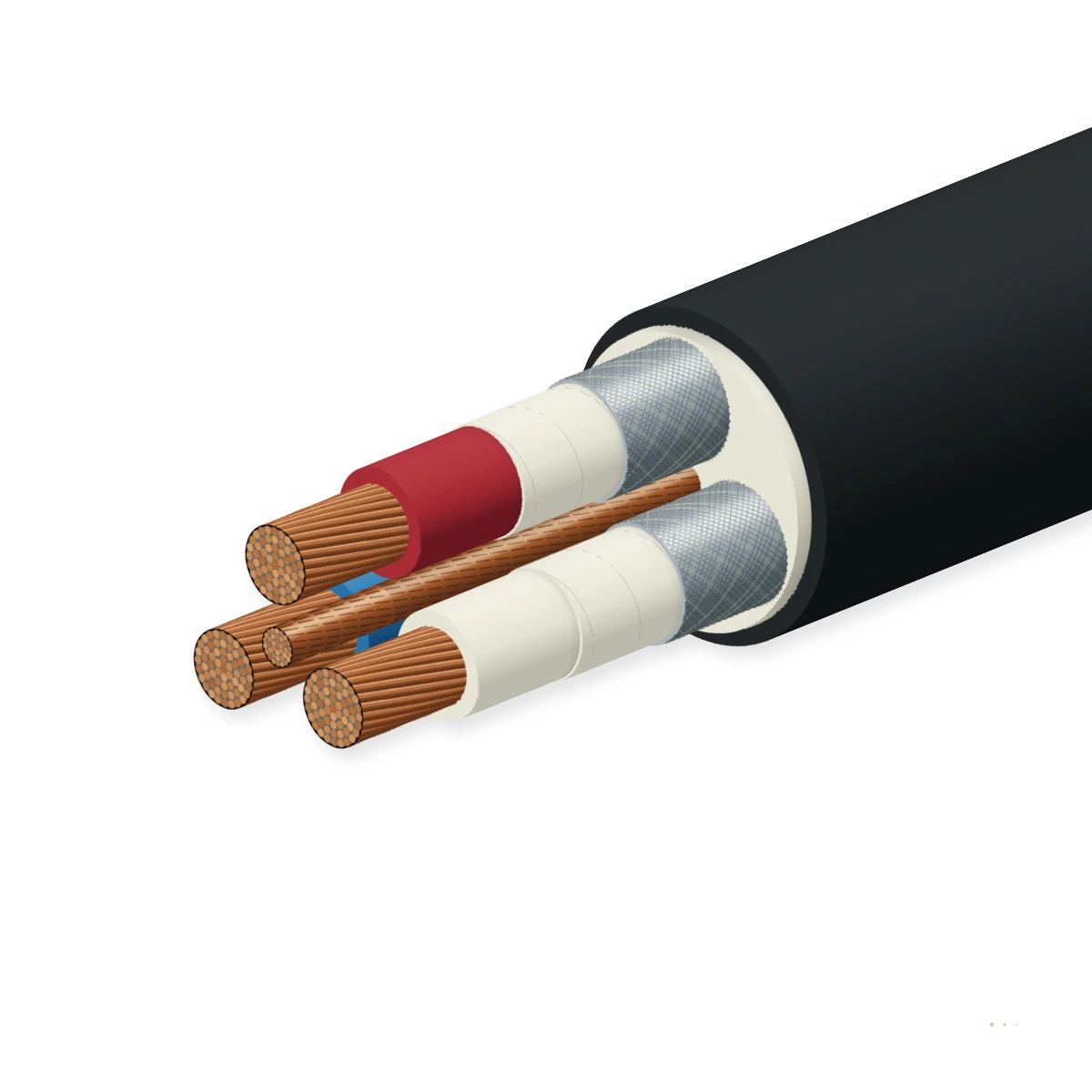

Each +90 °C EPR core is individually wrapped in a semi-conductive elastomeric screen ('ekżi') in contact with a bare copper earth

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductorClass 5 fine-stranded plain or tinned annealed copper wireIEC 60228 Class 5
2+90 °C EPR core insulation ('c')Cross-linked heat-resistant ethylene-propylene elastomerPN-G-90103
3Individual core elastomeric screen ('i')Extruded semi-conductive rubber layer applied individually around every control/power coreZN-TF-208
4Uninsulated protective earth conductorStranded bare or tinned copper earth core laid in continuous contact with all individualPN-G-90103
5Underground mining outer sheath ('-G')Heavy-duty flame-retardant, oil-resistant polychloroprene (PCP) compound, black or yellowPN-G-90100 / PN-G-90103

OnGcekżi-G multi-core control

7 to 24 individually screened 1.5–2.5 mm² control cores plus shared earth conductor for longwall automation.

OnGcekżi-G auxiliary power + pilot

3×(4–16 mm²) + individually screened pilot cores for auxiliary face drives and hydraulic packs.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90103 / ZN-TF-208. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV AC (Um 1.2 kV)
Routine AC test voltage
3.0 kV rms / 5 min
Individual screen resistivity
≤ 500 Ω·m per PN-G-90103
Inter-core fault prevention
100 % core-to-screen earth path
Nominal frequency
50 / 60 Hz & DC telemetry
Conductor resistance class
IEC 60228 Class 5

Thermal

Max. conductor operating temp.
+90 °C continuous ('c' EPR)
Max. short-circuit temperature
+250 °C (max. 5 s)
Mobile ambient range
-25 °C to +60 °C
Fixed ambient range
-40 °C to +60 °C
Min. installation temperature
-15 °C
Thermal overload margin
+105 °C short-term peak

Mechanical

Min. bend radius (fixed)
6 × overall diameter (D)
Min. bend radius (flexing)
10 × overall diameter (D)
Max. tensile pull on copper
15 N/mm² total conductor area
Crush & pinch resistance
Heavy-duty '-G' mining jacket
Abrasion resistance
High-tear PCP outer compound
Flexing endurance
Bretby & roof-support loop duty

Resistance

Flame retardance
IEC 60332-1-2 / PN-G-90100 '-G'
Mineral oil & emulsion
EN 60811-404 resistant PCP
Mine water & humidity
Acidic/alkaline mine water resistant
Ozone & corona stability
Ozone-resistant EPR & semicon
EMC & cross-talk isolation
Per-core semi-conductive screening
Halogen status
Polychloroprene elastomer

Reference standards

Primary product standard
PN-G-90103 / ZN-TF-208
Mining series base standard
PN-G-90100
Conductor standard
IEC 60228 Class 5
Flame propagation test
PN-EN 60332-1-2
Mining safety compliance
WUG Poland intrinsic control rules
Quality certification
EN 10204 3.1 mill certificate

Identification

Core identification
Numbered cores under individual screens
Earth core identification
Uninsulated copper in interstitial contact
Outer sheath colour
Black or yellow
Sheath marking
OnGcekżi-G 0.6/1 kV PN-G-90103
Length marking
Sequential metre marking
Batch traceability
Factory lot & year code

Sizes

12 standard configurations (OnGcekżi-G)

Nominal dimensions, copper weights and electrical parameters for OnGcekżi-G per PN-G-90103 / ZN-TF-208.

Dimensions & weights
Order designationIndividually Screened Cores + PEPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard OnGcekżi-G configurations
OnGcekżi-G 4×2.5 + 1×2.54×2.5 + 1×2.52.520.5120560123
OnGcekżi-G 7×1.5 + 1×2.57×1.5 + 1×2.51.521.8125620131
OnGcekżi-G 10×1.5 + 1×2.510×1.5 + 1×2.51.525.4168830152
OnGcekżi-G 12×1.5 + 1×2.512×1.5 + 1×2.51.526.6197920160
OnGcekżi-G 14×1.5 + 1×2.514×1.5 + 1×2.51.528.02261,030168
OnGcekżi-G 19×1.5 + 1×419×1.5 + 1×41.531.53121,310189
OnGcekżi-G 7×2.5 + 1×47×2.5 + 1×42.524.0206780144
OnGcekżi-G 10×2.5 + 1×410×2.5 + 1×42.528.22781,060169
OnGcekżi-G 12×2.5 + 1×412×2.5 + 1×42.529.53261,180177
OnGcekżi-G 19×2.5 + 1×619×2.5 + 1×62.535.05141,680210
OnGcekżi-G 3×4 + 1×4 + 3×1.53×4 + 1×4 + 3×1.5424.8197810149
OnGcekżi-G 3×6 + 1×6 + 3×1.53×6 + 1×6 + 3×1.5626.8274960161
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90103 / ZN-TF-208.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test3.0 kV rms for 5 minutes between each core and earth screenEvery drum
Per-core semi-conductive screen continuity≤ 500 Ω·m screen resistivity verified on every individual coreEvery drum
Sample tests
Crush & inter-core fault simulationPhase-to-earth contact occurs before core-to-core contact under crushingPer batch
Flame propagation & oil resistancePasses PN-EN 60332-1-2 and EN 60811-404 oil immersionType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90103 / ZN-TF-208IEC 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX OnGcekżi-G 0.6/1 kV [n×mm²]
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents
