PN-G-90100 Polish Mining Rubber CablesPN-G-901051.9/3.3–3.6/6 kVDouble-Screened '/w-GW'

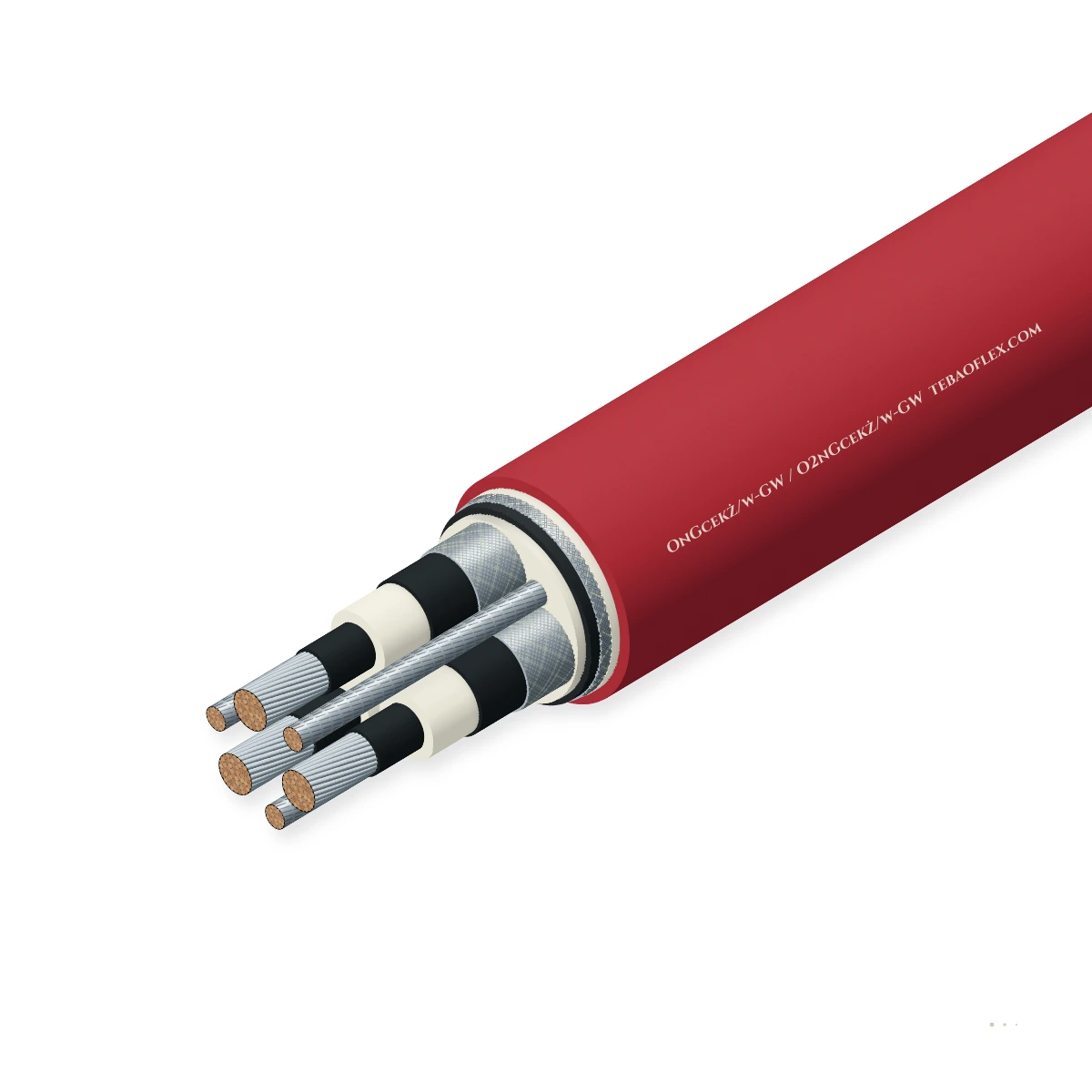

OnGcekż/w-GW / O2nGcekż/w-GW Double-Screened MV Mining RubberPN-G-90105 · 1.9/3.3 & 3.6/6 kV · Double-screened ('ekż/w') · Water-blocked ('-GW') · On

OnGcekż/w-GW and O2nGcekż/w-GW are double-screened ('/w'), water-blocked ('-GW') medium-voltage mining trailing cables (1.9/3.3 kV and 3.6/6 kV) for high-output longwall shearers and roadheaders. They combine individual phase screens with an overall

EMC screen
Water-resistant
Flame-retardant
Anti-torsion braid
Order designation
OnGcekż/w-GW 1.9/3.3 kV 3×95+1×35+4×2.5
Outer Ø ≈
60.2 mm
Copper weight
3,290 kg/km
Total weight ≈
6,010 kg/km
Min. bend R (fixed)
361 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
1.9/3.3 & 3.6/6
High-power longwall shearer MV
Double screen
Phase + overall
Individual 'ek' + collective screen
Water blocking
Sealed '-GW'
Longitudinal hydro-swelling barriers
Conductor max.
+90 °C
MV EPR dielectric · +250 °C SC
Min. bend R
6 × D / 10 × D
Fixed installation / Bretby handler
Sheath options
On / O2n '-GW'
Single or double reinforced PCP

Typical values for this cable type, based on PN-G-90105 / ZN-TF-213 — confirmed in the datasheet and quotation for your order.

Application fit

Is OnGcekż/w-GW / O2nGcekż/w-GW right for your machine?

Built for 3.3 kV and 6 kV longwall coal shearers, heavy bolter-miners, and roadheaders in wet, methane-hazard workings requiring redundant double screening ('/w') and water blocking ('-GW').

Longwall shearer & Bretby handler

Suitable

Engineered for 3.3 kV and 6 kV longwall shearer Bretby cable handler chains under water spray.

Trailing & towing

Suitable

Double screening ('/w') ensures immediate earth-fault trip if a sharp rock penetrates the outer sheath.

Immersion & wet locations

Suitable

Sealed '-GW' longitudinal water-blocking stops water ingress into 3.3/6 kV flameproof couplers.

Mine roadway & tunnel wall hangers

Suitable

Connects MV gate-end boxes to face cutter-loaders and armoured face conveyor drives.

Motorised monospiral reel

Suitable

O2nGcekż/w-GW double-layer reinforced sheath supports tensioned MV shuttle reeling.

Typical machines3.3 kV & 6 kV Longwall ShearersWet Methane-Hazard Coal MinesHeavy Roadheaders & Continuous MinersArmoured Face Conveyor (AFC) DrivesUnderground Potash & Copper Faces

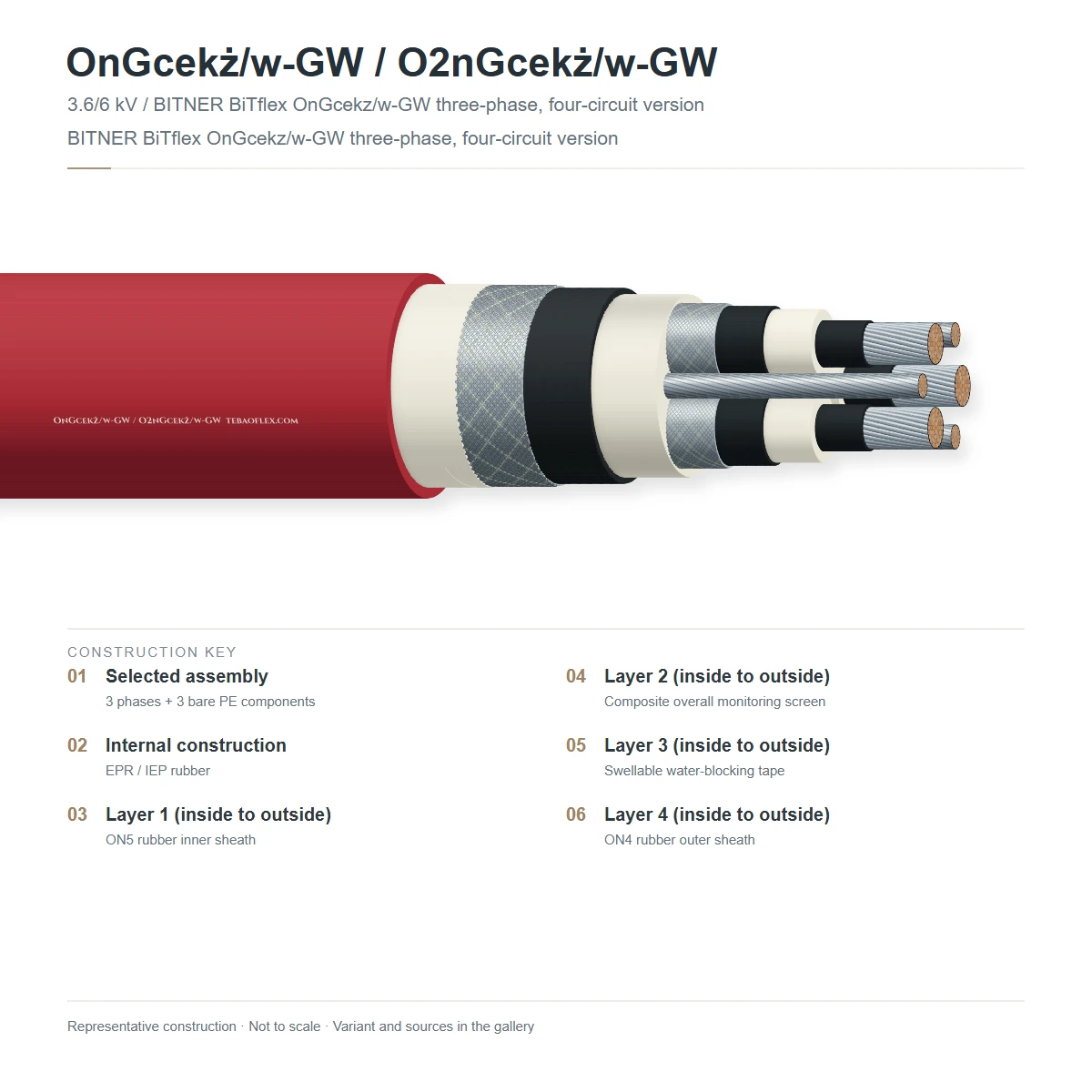

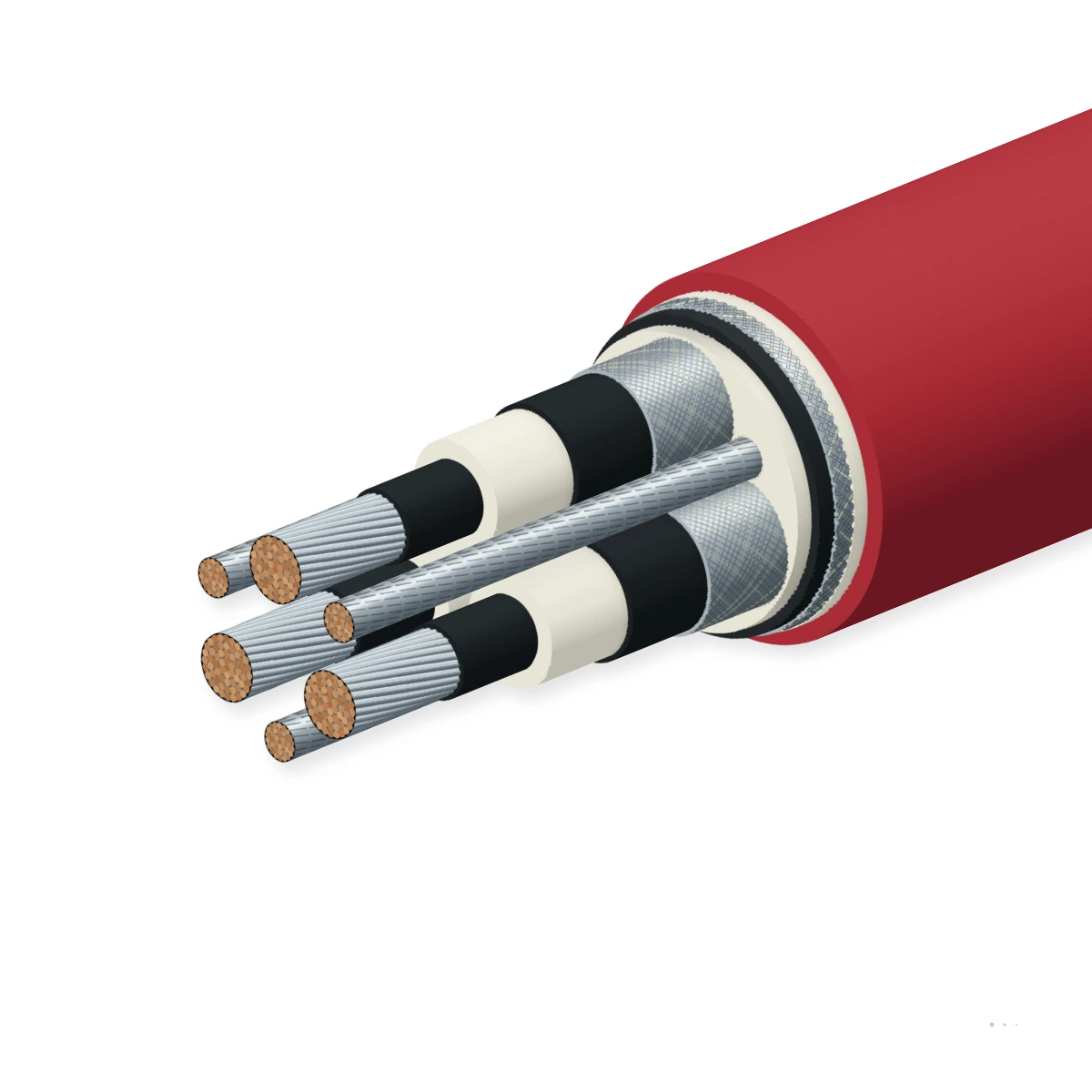

Construction

Layer by layer

Individually screened MV EPR phase cores + pilot bundle, enclosed in a second collective overall screen ('/w'), hydro-swelling barrier

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper phase & pilot conductorsClass 5 fine-stranded plain or tinned copper with water-blocking yarnsIEC 60228 Class 5
2+90 °C MV EPR dielectric ('c')Triple-extruded medium-voltage ethylene-propylene elastomer with inner semiconPN-G-90105
3Individual core elastomeric/Cu screensSemi-conductive elastomer and copper screen over each phase core and over the pilotPN-G-90105
4Hydro-swelling water barrier ('W')Longitudinal water-swellable tapes over the laid-up core assemblyZN-TF-213
5Collective overall second screen ('/w')Overall semi-conductive elastomeric/copper braid penetration barrier enclosing theZN-TF-213
6Single ('On') or double ('O2n') '-GW'Heavy-duty flame-retardant, water-sealed polychloroprene outer sheath (reinforced doublePN-G-90105

OnGcekż/w-GW (1.9/3.3 & 3.6/6 kV)

Double-screened water-blocked MV trailing cable with single heavy-duty '-GW' polychloroprene outer sheath.

O2nGcekż/w-GW (1.9/3.3 & 3.6/6 kV)

Double-screened water-blocked MV trailing cable with double-layer reinforced ('O2n') polychloroprene outer

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90105 / ZN-TF-213. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
1.9/3.3 kV or 3.6/6 kV AC
Maximum system voltage Um
3.6 kV or 7.2 kV AC
Routine AC test voltage
6.5 kV (3.3 kV) / 11 kV (6 kV)
Double screening architecture
Per-core 'ek' + overall '/w' screen
Pilot core rated voltage
250 V AC
Partial discharge level
≤ 20 pC at 1.5 × U0

Thermal

Max. conductor operating temp.
+90 °C continuous ('c' MV EPR)
Max. short-circuit temperature
+250 °C (max. 5 s)
Mobile ambient range
-25 °C to +60 °C
Fixed ambient range
-40 °C to +60 °C
Max. water immersion temp.
+40 °C continuous
Min. laying temperature
-15 °C

Mechanical

Min. bend radius (fixed)
6 × overall diameter (D)
Min. bend radius (flexing)
10 × overall diameter (D)
Max. tensile pull (On / O2n)
15 N/mm² (On) / 25 N/mm² (O2n)
Penetration & crush safety
Dual concentric earth screens
Longitudinal water tightness
Sealed '-GW' swelling barriers
Tear resistance
≥ 20 N/mm on O2n sheath

Resistance

Water & moisture ingress
Sealed '-GW' water-blocked
Flame retardance
IEC 60332-1-2 / PN-G-90100
Mineral oil & hydraulic fluid
EN 60811-404 resistant PCP
Ozone & corona stability
PD-free MV EPR dielectric
Methane-atmosphere protection
Redundant '/w' earth-leakage screen
Halogen status
Polychloroprene elastomer

Reference standards

Primary product standard
PN-G-90105 / ZN-TF-213
Mining series base standard
PN-G-90100
Conductor standard
IEC 60228 Class 5
Flame propagation test
PN-EN 60332-1-2
Mining authority compliance
WUG Poland 3.3/6 kV wet-face rules
Quality certification
EN 10204 3.1 + PD routine test

Identification

Phase core identification
Numbered 1, 2, 3
Pilot core identification
Numbered control cores in screened unit
Outer sheath colour
Red, yellow, or black
Sheath marking
O2nGcekż/w-GW [U0/U] PN-G-90105
Length marking
Sequential metre marking
Batch traceability
Drum serial & HV test report

Sizes

12 standard configurations (OnGcekż/w-GW / O2nGcekż/w-GW)

Nominal dimensions, copper weights and electrical parameters for OnGcekż/w-GW / O2nGcekż/w-GW per PN-G-90105 / ZN-TF-213.

Dimensions & weights
Order designationType, Voltage & ConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
OnGcekż/w-GW — Single heavy sheath double-screened water-blocked MV
OnGcekż/w-GW 1.9/3.3 kV 3×35+1×16+4×2.51.9/3.3 kV 3×35+1×16+4×2.53545.21,3403,090271
OnGcekż/w-GW 1.9/3.3 kV 3×50+1×25+4×2.51.9/3.3 kV 3×50+1×25+4×2.55049.81,8703,890299
OnGcekż/w-GW 1.9/3.3 kV 3×70+1×25+4×2.51.9/3.3 kV 3×70+1×25+4×2.57054.62,4604,820328
OnGcekż/w-GW 1.9/3.3 kV 3×95+1×35+4×2.51.9/3.3 kV 3×95+1×35+4×2.59560.23,2906,010361
OnGcekż/w-GW 3.6/6 kV 3×50+1×25+4×2.53.6/6 kV 3×50+1×25+4×2.55053.51,8904,280321
OnGcekż/w-GW 3.6/6 kV 3×70+1×35+4×2.53.6/6 kV 3×70+1×35+4×2.57058.42,5805,290350
O2nGcekż/w-GW — Double reinforced sheath double-screened water-blocked MV
O2nGcekż/w-GW 1.9/3.3 kV 3×50+1×25+7×2.51.9/3.3 kV 3×50+1×25+7×2.55051.61,9454,180310
O2nGcekż/w-GW 1.9/3.3 kV 3×70+1×35+7×2.51.9/3.3 kV 3×70+1×35+7×2.57056.52,6305,160339
O2nGcekż/w-GW 1.9/3.3 kV 3×95+1×50+7×2.51.9/3.3 kV 3×95+1×50+7×2.59562.03,5106,420372
O2nGcekż/w-GW 3.6/6 kV 3×50+1×25+7×2.53.6/6 kV 3×50+1×25+7×2.55055.21,9604,560331
O2nGcekż/w-GW 3.6/6 kV 3×70+1×35+7×2.53.6/6 kV 3×70+1×35+7×2.57060.22,6505,610361
O2nGcekż/w-GW 3.6/6 kV 3×95+1×50+7×2.53.6/6 kV 3×95+1×50+7×2.59565.83,5306,920395
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90105 / ZN-TF-213.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
MV AC voltage withstand test6.5 kV rms (1.9/3.3 kV) or 11 kV rms (3.6/6 kV) for 5 minutesEvery drum
Inner & outer ('/w') screen continuityBoth per-core and collective screens verified for earth continuityEvery drum
Sample tests
Hydrostatic longitudinal water-blocking testZero water propagation along core interstices per '-GW' specPer batch
Nail/wedge penetration & flame testOuter '/w' screen trips earth relay before phase contact; passes IEC 60332-1-2Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90105 / ZN-TF-213IEC 60332-1-2WUG / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX O2nGcekż/w-GW 1.9/3.3 kV
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
