SANS 1520 / BS 6708 coal-cutter trailing cablesSANS 1520-1 / BS 6708640/1100 V · 1.9/3.3 kVElastomeric Cradle · Type 11/14/16

MGM 115 Type 11 / 14 / 16 Elastomeric-Cradle Coal-Cutter CableSANS 1520-1 / BS 6708 640/1100 V & 1.9/3.3 kV elastomeric-cradle coal-cutter cable (Type

MGM 115 Type 11 / 14 / 16 is an underground coal-cutter, continuous-miner, and shuttle-car flexible trailing cable manufactured to SANS 1520-1 and BS 6708 around a grooved central elastomeric cradle separator that cushions individually screened power

EMC screen
Oil-resistant
Flame-retardant
Anti-torsion braid
Order designation
MGM 115 Type 14 3×50+1×25E+1×10P
Outer Ø ≈
46.8 mm
Copper weight
1,880 kg/km
Total weight ≈
3,340 kg/km
Min. bend R (fixed)
281 mm
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
0.64/1.1–3.3 kV
640/1100 V & 1.9/3.3 kV AC
Core support
Elastomer Cradle
Central grooved crush-cushion core
Cable types
Type 11 / 14
SANS 1520-1 & BS 6708 profiles
Core screen
Cu/Nylon Braid
Tinned copper + nylon cord screen
Outer sheath
HD-PCP RS4/5GM5
Heavy-duty flame/oil polychloroprene
Min. bend radius
6×D / 8×D
Fixed 6×D · coal-face flexing 8×D

Typical values for this cable type, based on SANS 1520-1 / BS 6708 (MGM 115) — confirmed in the datasheet and quotation for your order.

Application fit

Is MGM 115 Type 11 / 14 / 16 right for your machine?

Standard underground coal-face trailing cable for continuous miners, longwall shearers, roof bolters, and shuttle cars in South African (SANS 1520-1) and British Commonwealth (BS 6708) collieries.

Mine roadway & tunnel wall hangers

Suitable

Central elastomeric cradle prevents phase-to-phase core contact under heavy shuttle-car wheel run-over.

Longwall shearer & Bretby handler

Suitable

Copper/nylon composite core screens flex millions of cycles in Bretby handlers without wire breakage.

Trailing & towing

Suitable

HD-PCP outer sheath withstands abrasive coal floor dragging behind continuous miners.

Motorised monospiral reel

Suitable

Type 11 and Type 14 geometries are widely used on shuttle-car and LHD onboard cable reels.

Typical machinesUnderground room-and-pillar coal minesContinuous miners & shuttle carsLongwall shearers & roof boltersSANS 1520 / BS 6708 collieries

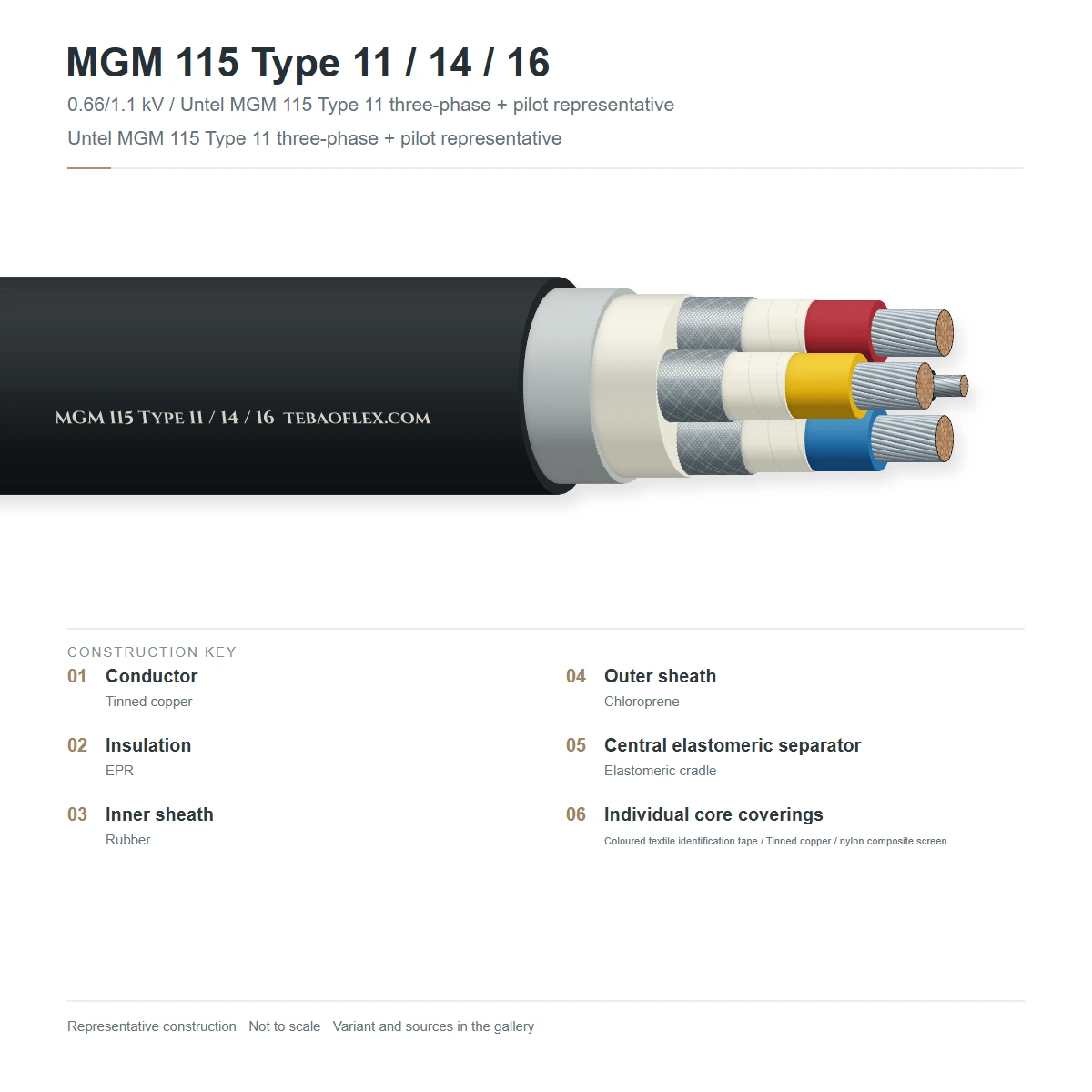

Construction

Layer by layer

Grooved central elastomeric cradle supporting 3 Class 5 tinned copper EPR-insulated and Cu/nylon-braid screened power cores, earth

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase, earth & pilot conductorsTinned finely stranded annealed copper, Class 5 per SANS 1411 / IEC 60228IEC 60228 Class 5
2Central elastomeric cradleExtruded semi-conductive or insulating profiled rubber cradle separating all coresSANS 1520-1 / BS 6708
3Core insulationHigh-grade ethylene propylene elastomer (EPR) rated +90 °CSANS 1520-1 / BS 6708
4Composite core screen (Type 14/16)Whipped/braided tinned copper wires interwoven with high-tenacity nylon cords overBS 6708 / SANS 1520-1
5Reinforced outer sheathExtra-heavy-duty flame-retardant polychloroprene (HD-PCP Type RS4 / 5GM5) with openSANS 1520-1 / BS 6708

Type 11 (3P + E + 2 Pilot)

3 screened power cores + 1 earth + 2 diametrically opposed pilot cores in elastomeric cradle.

Type 14 (3P + E + 1 Pilot)

3 individually Cu/nylon screened power cores + 1 earth + 1 pilot core around central cradle.

Type 16 (5-Core / 6-Core Screened)

Individually screened multi-core coal-cutter and drill cable around profiled elastomeric cradle.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on SANS 1520-1 / BS 6708 (MGM 115). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
640/1100 V (0.64/1.1 kV) & 1.9/3.3 kV
AC routine test voltage
3.5 kV rms (1.1 kV) · 6.5 kV rms (3.3 kV)
Pilot core voltage rating
110 V / 250 V intrinsic safety pilot circuit
Screen earth-fault conductance
Composite tinned Cu + nylon braid per BS 6708

Thermal

Max. conductor operating temp.
+90 °C
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature range
-25 °C to +60 °C

Mechanical

Crush cushioning
Profiled central elastomeric cradle absorbs
Min. bending radius (fixed
6 × D fixed · 8 × D flexing
Max. dynamic tensile load
15 N/mm² on copper conductors

Resistance

Oil & mine water resistance
SANS 1520-1 / BS 7655 RS4 oil & water
Flame retardancy
SANS 1520-1 / IEC 60332-1-2 self-extinguishi
Tear & abrasion resistance
Extra-heavy-duty polychloroprene compound

Reference standards

Primary specification
SANS 1520-1 / BS 6708 (MGM 115 series)
Conductor standard
IEC 60228 / SANS 1411-1 Class 5 tinned copper

Identification

Core identification
Red, Yellow, Blue (or Brown, Black, Grey) +
Outer sheath colour
Black, Yellow, or Orange with embossed

Sizes

10 standard configurations (MGM 115 Type 11 / 14 / 16)

Nominal dimensions, copper weights and electrical parameters for MGM 115 Type 11 / 14 / 16 per SANS 1520-1 / BS 6708 (MGM 115).

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard MGM 115 Type 11 / 14 / 16 configurations
MGM 115 Type 14 3×16+1×16E+1×10P3×16 + 1×16E + 1×10P (Type 14)1634.57901,680207
MGM 115 Type 14 3×25+1×16E+1×10P3×25 + 1×16E + 1×10P (Type 14)2538.21,0602,120229
MGM 115 Type 14 3×35+1×25E+1×10P3×35 + 1×25E + 1×10P (Type 14)3542.01,4302,650252
MGM 115 Type 14 3×50+1×25E+1×10P3×50 + 1×25E + 1×10P (Type 14)5046.81,8803,340281
MGM 115 Type 14 3×70+1×35E+1×10P3×70 + 1×35E + 1×10P (Type 14)7052.02,5804,290312
MGM 115 Type 14 3×95+1×50E+1×10P3×95 + 1×50E + 1×10P (Type 14)9557.53,4805,460345
MGM 115 Type 11 3×35+1×25E+2×6P3×35 + 1×25E + 2×6P (Type 11)3543.21,4602,760259
MGM 115 Type 11 3×50+1×25E+2×6P3×50 + 1×25E + 2×6P (Type 11)5048.01,9103,480288
MGM 115 Type 16 5×16+1×10P5×16 + 1×10P (Type 16)1636.89201,920221
MGM 115 Type 16 5×25+1×10P5×25 + 1×10P (Type 16)2541.21,3502,510247
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per SANS 1520-1 / BS 6708 (MGM 115).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test3.5 kV rms (1.1 kV) or 6.5 kV rms (3.3 kV) for 5 min100 % of drums
Screen & earth continuityBS 6708 / SANS 1520-1 screen resistance check100 % of drums
Sample tests
Cradle crush & impact testSANS 1520-1 dynamic wheel-crush resistancePer production batch
Flame & oil resistanceSANS 1520-1 / IEC 60332-1-2Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

SANS 1520-1BS 6708EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX MGM 115 TYPE 11/14/16 640/1100V
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFMGM 115 Type 11 / 14 / 16 Elastomeric-Cradle Coal-Cutter Cable – technical datasheet10 sizes · construction, technical data, approvalsXLSXMGM 115 Type 11 / 14 / 16 spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the purpose of the profiled elastomeric cradle in MGM 115 Type 11 / 14 / 16?
The central fluted elastomeric cradle sits at the geometric centre of the cable with dedicated scalloped grooves for each power, earth, and pilot core. When a shuttle car or roof fall compresses the cable, the resilient rubber cradle absorbs the load and prevents adjacent phase cores from pinching together.
How do Type 11, Type 14, and Type 16 differ under BS 6708 and SANS 1520-1?
Type 14 has three individually screened power cores, one earth core, and one pilot core laid around the cradle. Type 11 incorporates two pilot cores for dual-loop control/interlock circuits, while Type 16 provides five individually screened main cores plus a pilot core for multi-motor coal-face equipment.
Why are the core screens braided from both tinned copper wires and nylon cords?
A pure copper wire braid suffers fatigue breakage when flexed thousands of times around small shuttle-car sheaves and Bretby links. Interweaving tinned copper wires with high-tenacity nylon cords creates a self-supporting composite screen that resists strand breakage. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
How does MGM 115 Type 11/14/16 compare with MGM 115 Type 7/7M/7S?
Type 11/14/16 uses an insulating or semi-conductive elastomeric cradle at the centre with the earth conductor placed in one of the outer interstitial grooves, whereas Type 7/7M/7S places a large uninsulated or semi-conductive copper earth conductor directly at the centre of the cable. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
