British Coal MGM 109 / MGM 118 & PN-G-90006 Underground Mining Power CablesMGM 109 Type 3013 · BS 67081.9/3.3 kV · 3-Core UnscreenedSingle Wire Armour (SWA ≥ 75 %)

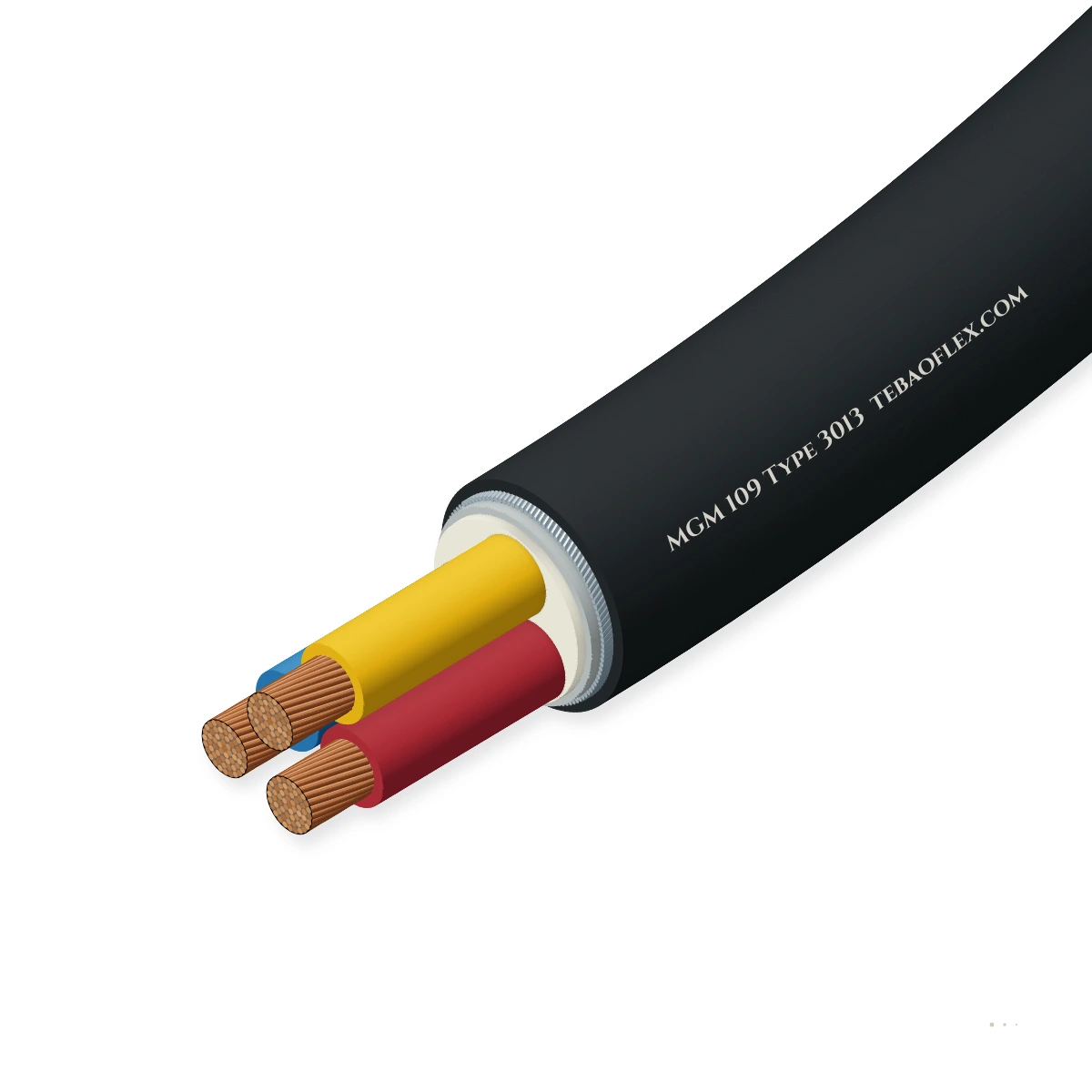

MGM 109 Type 3013 CableBritish Coal MGM 109 / BS 6708 1.9/3.3 kV 3-core unscreened GP4 EPR SWA mining feeder

MGM 109 Type 3013 Cable is a 1.9/3.3 kV 3-core unscreened single-wire-armoured (SWA) mining feeder cable manufactured to British Coal Specification MGM 109 and BS 6708 for horizontal underground roadways, pit-bottom switchrooms, and surface colliery

Flame-retardant
EMC screen
Oil-resistant
Water-resistant
Order designation
MGM 109 Type 3013 3C × 50 mm² SWA (Cu/GSW)
Outer Ø ≈
36.8 mm
Copper weight
1,560 kg/km
Total weight ≈
2,940 kg/km
Min. bend R (fixed)
294 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Specification
MGM 109 Type
3.3 kV · Unscreened (0) · SWA (1) · 3C
Rated voltage
1.9/3.3 kV AC
6.5 kV AC / 5 min dielectric test
Core screening
Unscreened (0)
Collective SWA metallic earth return
Armouring
Single Wire
Galvanized steel (+ Cu wires ≥ 75 %)
Insulation
Type GP4 EPR
90 °C cross-linked rubber BS 7655
Outer sheath
Mining FR-PVC
Heavy-duty flame-retardant Black PVC

Typical values for this cable type, based on British Coal MGM 109 / BS 6708 (Type 3013 1.9/3.3 kV Unscreened SWA) — confirmed in the datasheet and quotation for your order.

Application fit

Is MGM 109 Type 3013 right for your machine?

Engineered for 3.3 kV horizontal underground mine roadways, fixed pump/fan motor feeders, and surface coal-preparation plants where the lighter weight and tighter 8×D bending radius of Single Wire

Fixed installation

Suitable

Single Wire Armour reduces cable weight by 20–25 % compared with Type 3023 DWA for horizontal roadway suspension.

Switchgear & control cabinet wiring

Suitable

8×D minimum bending radius simplifies routing into 3.3 kV flameproof switchgear and motor terminal boxes.

Immersion & wet locations

Suitable

Extruded PVC bedding and mining-grade outer PVC sheath protect against mine water and oil.

Energy chain / drag chain

Not suitable

Fixed armoured 3.3 kV mining feeder.

MGM 109 Type 3023
Typical machines3.3 kV horizontal underground mine roadwaysPit-bottom & surface colliery 3.3 kV switchrooms3.3 kV fixed ventilation fans & slurry pumpsMineral processing & washery motor feeders

Construction

Layer by layer

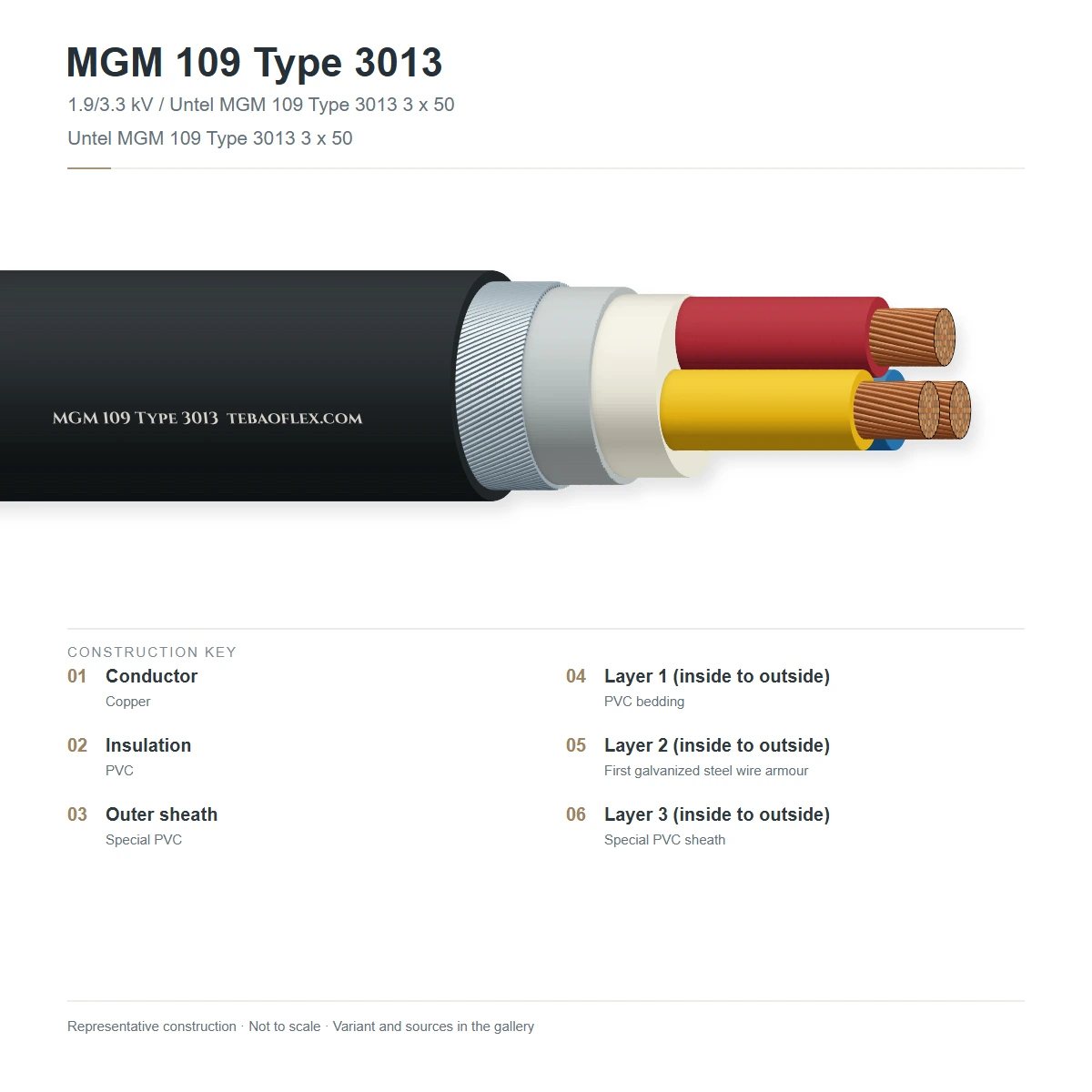

Three circular stranded tinned copper conductors (BS EN 60228 Class 2, 16 to 185 mm²), 90 °C Type GP4 EPR insulation, extruded PVC inner

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded tinned copper conductorBS EN 60228 Class 2 circular stranded tinned annealed copper (16 to 185 mm²)MGM 109 / BS EN 60228
2Type GP4 EPR rubber insulation (90 °C)Cross-linked ethylene-propylene elastomer Type GP4 per BS 7655-1.2MGM 109 / BS 7655-1.2
3Extruded PVC inner beddingFlame-retardant extruded PVC inner beddingMGM 109
4Single Wire Armour (SWA ≥ 75 %Single helical layer of galvanized steel wires (+ tinned copper wires for ≥ 75 % earthMGM 109 / BS 6708
5Mining flame-retardant PVC outer sheathHeavy-duty abrasion- and flame-retardant PVC outer sheath, BlackMGM 109 / BS 7655

MGM 109 Type 3013 Motor & Pump Feeders (3C × 16, 25, 35, 50 mm²)

1.9/3.3 kV unscreened SWA feeders for direct-on-line and VFD 3.3 kV mine motors.

MGM 109 Type 3013 Roadway Distribution (3C × 70, 95, 120, 150, 185 mm²)

1.9/3.3 kV unscreened SWA sub-trunk cables with composite Cu/GSW single-wire armour.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on British Coal MGM 109 / BS 6708 (Type 3013 1.9/3.3 kV Unscreened SWA). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
1.9/3.3 kV AC (1900/3300 V)
AC dielectric test voltage
6,500 V AC for 5 minutes
Max. conductor operating temp.
+90 °C continuous · +250 °C short-circuit
Metallic armour conductance
≥ 75 % of the conductance of one phase

Thermal

Operating temperature range
-15 °C to +90 °C (fixed installation)
Minimum installation temp.
0 °C

Mechanical

Min. bending radius
8 × overall diameter (D) for SWA mining
Armour construction
Single helical layer of round galvanized

Resistance

Flame retardance
BS EN 60332-1-2 & British Coal underground
Water, oil & abrasion
Mining-grade PVC oversheath resists

Reference standards

Primary specification
British Coal Specification MGM 109 (Type
Material standards
BS EN 60228 · BS 7655-1.2 (GP4 EPR) · BS EN

Identification

Core identification
3-Core: Brown, Black, Grey
Outer sheath colour
Black embossed 'MGM 109 TYPE 3013 1900/3300V'

Sizes

6 standard configurations (MGM 109 Type 3013)

Nominal dimensions, copper weights, DC resistance and current ratings for MGM 109 Type 3013 per British Coal MGM 109 / BS 6708 (Type 3013 1.9/3.3 kV

Dimensions & weights
Order designationCores × SizeMain cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard MGM 109 Type 3013 configurations
MGM 109 Type 3013 3C × 25 mm² SWA3 × 25 mm²25.0 mm²30.87201,980246
MGM 109 Type 3013 3C × 50 mm² SWA (Cu/GSW)3 × 50 mm²50.0 mm²36.81,5602,940294
MGM 109 Type 3013 3C × 70 mm² SWA (Cu/GSW)3 × 70 mm²70.0 mm²41.22,2403,820330
MGM 109 Type 3013 3C × 95 mm² SWA (Cu/GSW)3 × 95 mm²95.0 mm²45.83,0804,890366
MGM 109 Type 3013 3C × 120 mm² SWA (Cu/GSW)3 × 120 mm²120.0 mm²49.83,8905,860398
MGM 109 Type 3013 3C × 185 mm² SWA (Cu/GSW)3 × 185 mm²185.0 mm²58.25,9808,340466
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per British Coal MGM 109 / BS 6708 (Type 3013 1.9/3.3 kV Unscreened SWA).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
6.5 kV AC dielectric & insulation resistance6,500 V AC for 5 min per MGM 109 / BS 6708100 % of drums
Phase & SWA armour DC resistance ratioSWA conductance ≥ 75 % of one phase conductor100 % of drums
Sample tests
GP4 EPR hot-set & galvanizing coat weightBS 7655-1.2 EPR & BS EN 10257-1 wire checksPer production batch
Underground mining flame & impact testPass MGM 109 / BS 6708 mechanical and flame qualificationType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

British Coal MGM 109 Type 3013BS 6708CE / UKCA

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX MGM 109 TYPE 3013 1900/3300V
Delivery form
Non-returnable timber drums or heavy export
Standard drum lengths
250 m · 500 m · 1000 m · custom cut lengths
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFMGM 109 Type 3013 Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXMGM 109 Type 3013 spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does the designation 'Type 3013' mean in British Coal MGM 109?
In the 4-digit MGM 109 code '3013': '3' = 1.9/3.3 kV rated voltage; '0' = unscreened phase cores; '1' = Single Wire Armour (SWA); and '3' = 3 power cores. Each production drum undergoes 100 % conductor DC resistance verification, insulation thickness gauging, and
How does MGM 109 Type 3013 compare with standard industrial BS 6622 / BS 5467 3.3 kV SWA cable?
Standard industrial 3.3 kV SWA cable uses plain copper conductors, rigid XLPE insulation, and steel wire armour with only ~20–35 % earth conductance. MGM 109 Type 3013 uses tinned copper conductors, flexible 90 °C GP4 EPR insulation, and composite steel/copper SWA achieving ≥ 75 % earth conductance.
Why does Type 3013 require more copper wires in the armour than Type 3023?
Because Type 3013 has only one layer of armour wires (SWA) rather than two (DWA), a higher proportion of tinned copper wires must be mixed into the single galvanized steel wire layer on sizes ≥ 35 mm² to meet the mandatory ≥ 75 % earth conductance rule.
Where is Type 3013 typically installed in a mine?
Type 3013 is used for 3.3 kV horizontal pit-bottom galleries, fixed pump and booster-fan motor connections, and surface coal-handling washery plants where vertical shaft suspension is not required. Each production drum undergoes 100 % conductor DC resistance verification, insulation thickness gauging, and high-voltage AC
