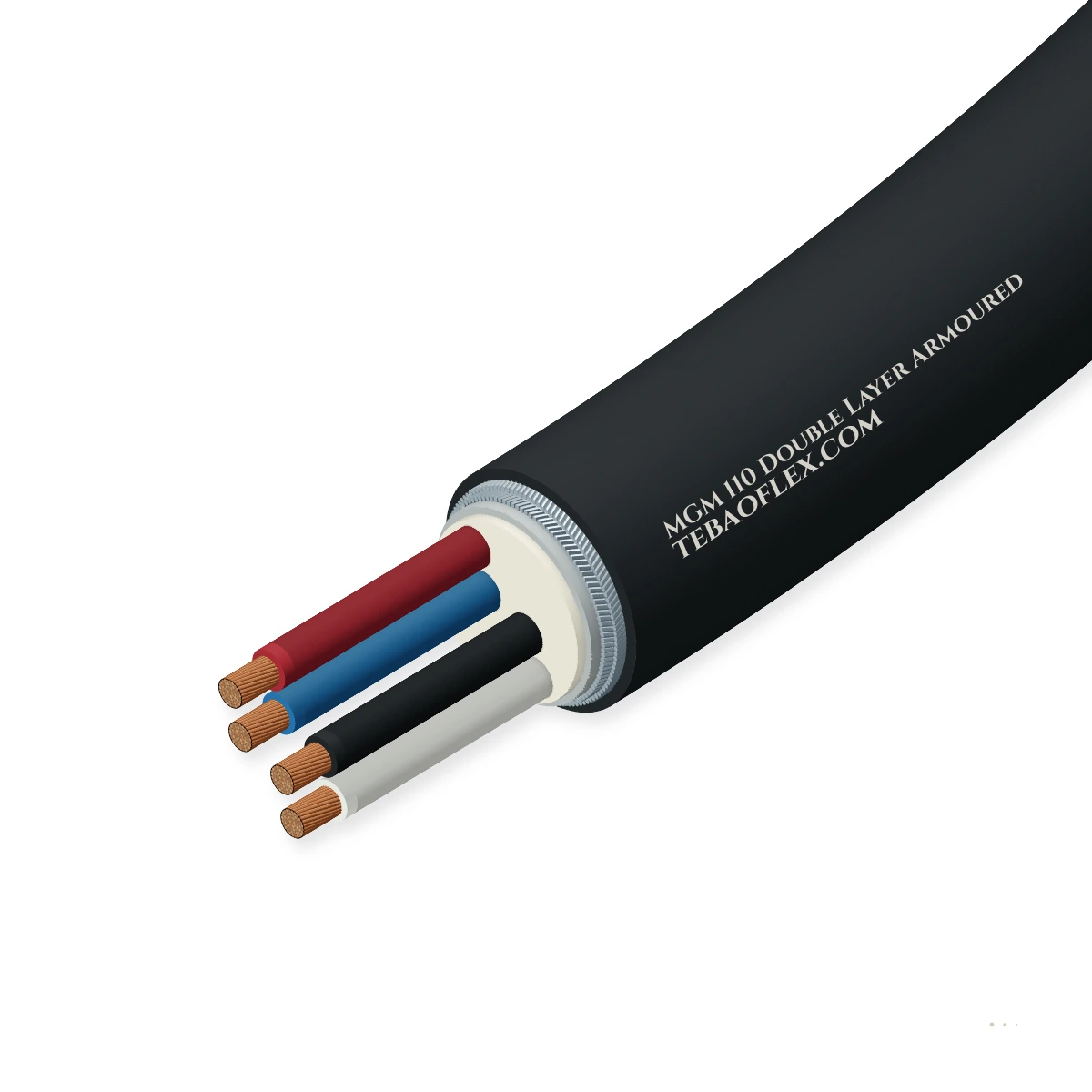

MGM 110 Double Layer Armoured Mining Communication CableMGM 110 / Spec 542 / BS 6708 · 250 V · 1 to 100 Pairs (0.5–0.8 mm²) · PE cores ·

MGM 110 Double Layer Armoured (DWA) Mining Communication Cable is an extra-heavy-duty underground shaft, steep-incline, and severe-impact mine telecommunications cable featuring two counter-helically wound layers of galvanized steel wire armour (DWA) over

EMC screen
Low-EMC design
Flame-retardant
Water-resistant
Order designation
MGM 110 DWA 2 × 2 × 0.5 mm²
Outer Ø ≈
15.80 mm
Metal weight
24.0 kg/km
Total weight ≈
540.0 kg/km
Min. bend R (fixed)
190 mm
All sizes (5)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance Z₀
110 Ω ± 15 Ω
Voice, cadence & RS-485 telemetry
Armouring
Double layer DWA
Counter-helical torque-balanced steel
Pair counts
1, 2, 4, 7 to
0.50 mm² (1/0.8 or 7/0.3) or 0.75 mm²
Mutual cap.
≤ 55–65 nF/km
Low-loss PE core insulation
Loop resistance
≤ 73.6 Ω/km
At 20 °C (0.50 mm² copper pair)
Temp. rating
-20 to +70 °C
Heavy-duty mining PVC or LSZH

Typical values for this cable type, based on NCB / British Coal Spec 542 (MGM 110) / BS 6708 — confirmed in the datasheet and quotation for your order.

Application fit

Is MGM 110 Double Layer Armoured right for your machine?

Engineered for vertical mine shafts, steeply inclined haulage drifts (> 45°), mobile stage-loader/conveyor interfaces, and unstable roof roadways subject to severe rockfall impact and high tensile

Fixed installation

Suitable

Counter-helical double steel wire armour (DWA) prevents cable rotation and core birdcaging in vertical mine shafts.

Switchgear & control cabinet wiring

Suitable

Terminates into heavy-duty mining DWA cone glands on flameproof (Ex d) and intrinsically safe (Ex ia) switchgear.

Trailing & towing

With conditions

Stranded 7/0.30 mm DWA variant withstands periodic stage-loader advance and relocation along longwall gates.

Energy chain / drag chain

Not suitable

Double wire armoured shaft cable is not intended for dynamic energy chains.

S 369 C TP
Typical machinesVertical Mine Shafts & Hoist CommunicationsSteep-Incline Haulage & Drift ConveyorsLongwall Gate-End Signalling & LockoutSevere Rockfall & Blasting Proximity ZonesDeep Subsea & Cavern Civil Tunnels

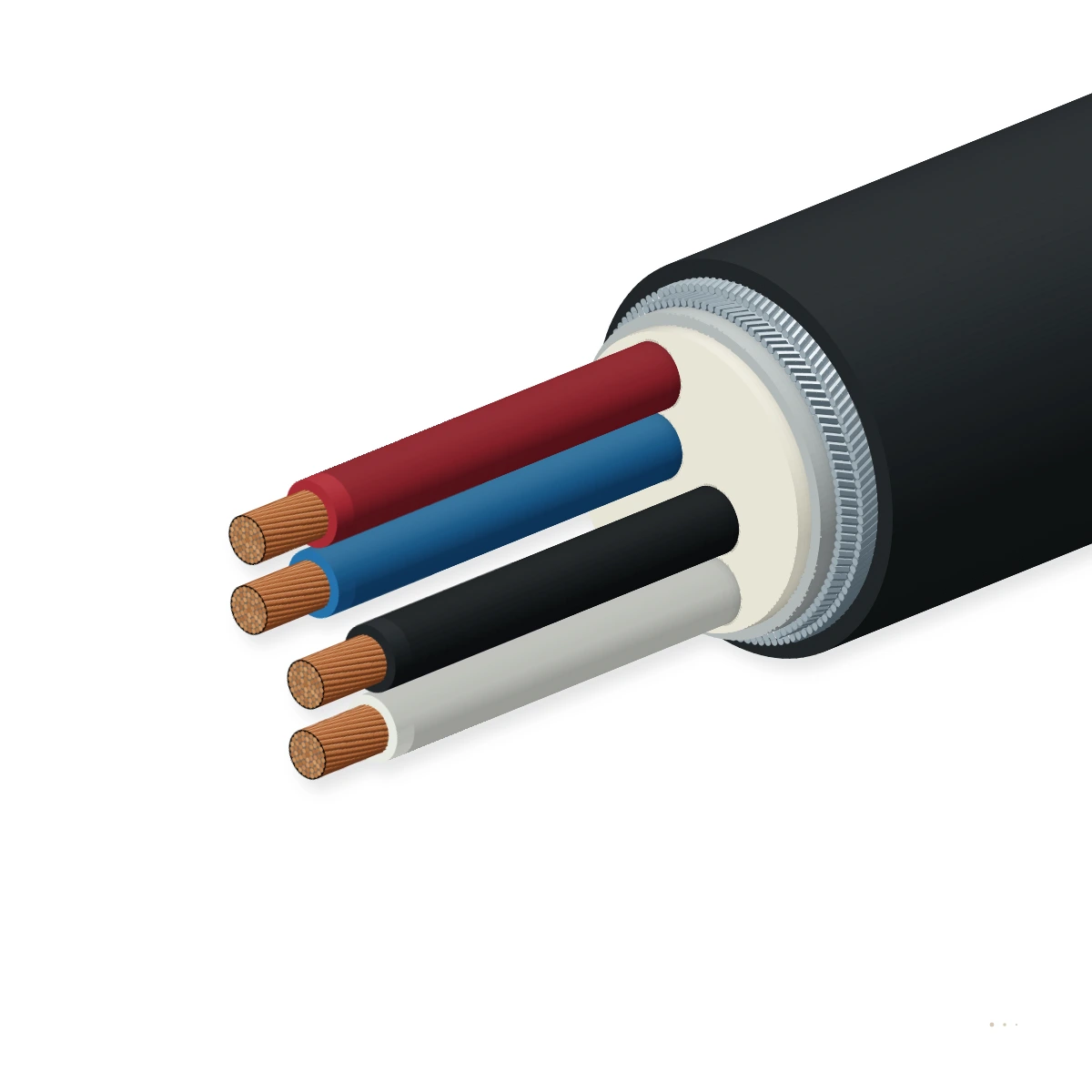

Construction

Layer by layer

0.8 mm solid or 7×0.30 mm stranded copper conductors, solid PE twisted pairs, collective Al-PET screen + drain wire, inner bedding, inner

123456

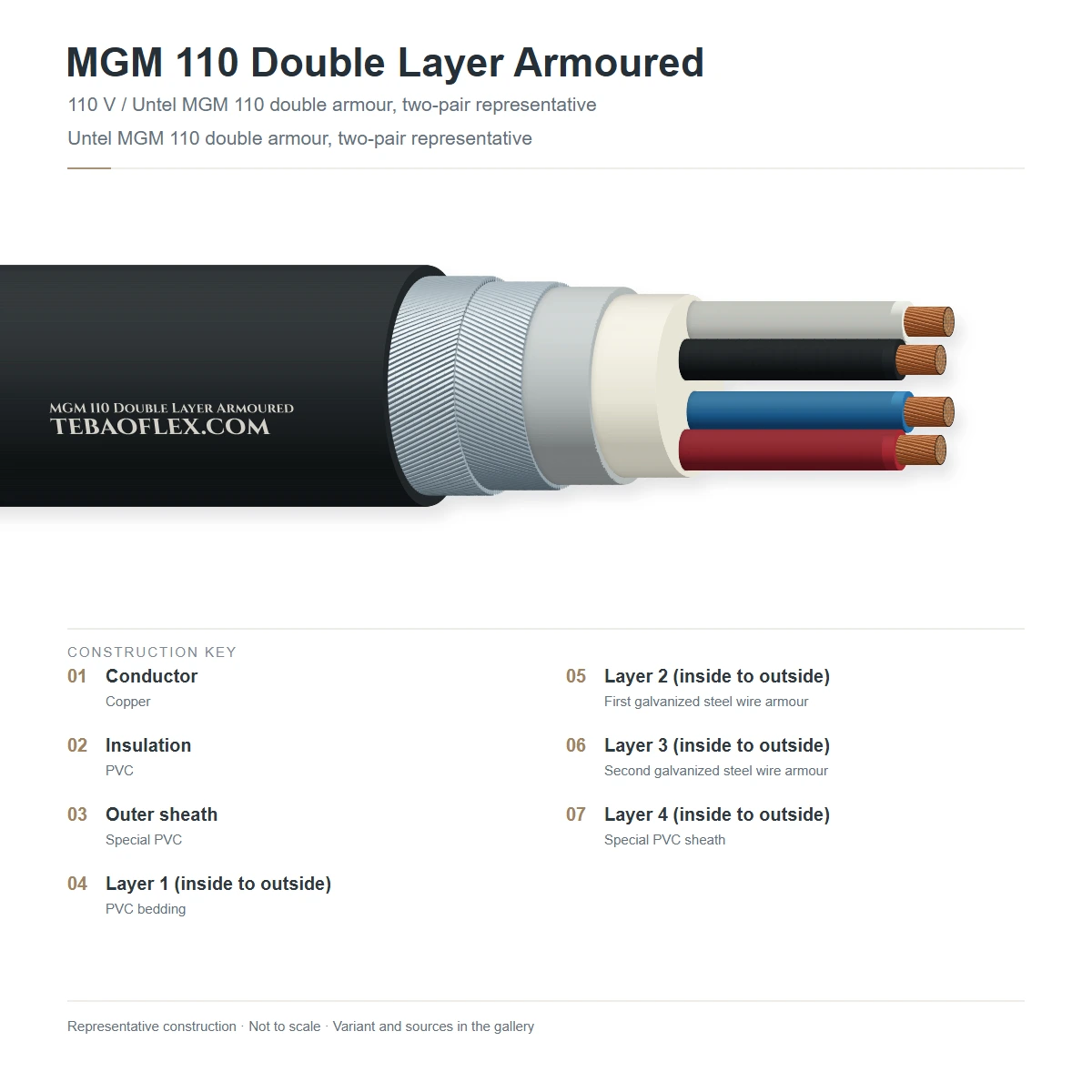

Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Annealed tinned or bare copperØ 0.80 mm solid (0.50 mm²) or 7 × 0.30 mm stranded (0.50 mm²) annealed copper per IECBS 6708 / Spec 542
2Solid polyethylene (PE) twisted pairsLow-capacitance polyethylene core insulation twisted into colour-coded pairs (≤ 65 nF/km)BS 6708 / Spec 542
3Collective Al-PET tape screen + drain100 % coverage aluminium/polyester tape with 0.50 mm² tinned copper drain wireBS 6708 / Spec 542
4Extruded PVC / LSZH inner beddingHeavy-wall thermoplastic inner bedding protecting the screened core bundleBS 6708
5Inner & outer counter-helical steelTwo oppositely laid layers of galvanized round steel wire (BS EN 10257-1) separated by aBS EN 10257-1
6Extra-heavy-duty mining PVC or LSZHAbrasion-, oil-, and flame-retardant black PVC (or Ex-ia blue / low-smoke zero-halogenIEC 60332-3-22

MGM 110 DWA Shaft Grade (1/0.8 mm Solid Cu)

Non-rotating counter-helical double wire armour for vertical shaft telephone and hoist signalling trunks.

MGM 110 DWA Flexible Gate-End (7/0.30 mm Stranded Cu)

Stranded copper conductors + DWA for conveyor pull-key lockout and mobile stage-loader links.

MGM 110 DWA-LSZH (Halogen-Free Shaft & Tunnel)

Low-smoke zero-halogen bedding and outer sheath for main intake air shafts and escape drifts.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on NCB / British Coal Spec 542 (MGM 110) / BS 6708. Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance
Approx. 110 Ω ± 15 Ω
Conductor loop DC resistance
≤ 73.6 Ω/km at 20 °C (0.50 mm² pair)
Max. mutual pair capacitance
≤ 65 nF/km (typically 55 nF/km)
Inductance-to-resistance (L/R)
≤ 25 µH/Ω (Ex ia intrinsically safe
Operating voltage rating
250 V rms
Dielectric test voltage
1,500 V AC (core/core) / 2,000 V AC

Thermal

Operating temperature range
-20 °C to +70 °C
Installation temperature range
-5 °C to +50 °C
Bunched cable fire performance
IEC 60332-3-22 Category A
Single cable flame test
IEC 60332-1-2
LSZH halogen & smoke option
IEC 60754-1/2 & IEC 61034-2
Max. short-circuit core temperature
+130 °C

Mechanical

Conductor construction
1 × 0.80 mm (0.50 mm²) or 7 × 0.30 mm (0.50
Standard pair counts
1, 2, 4, 7, 10, 15, 20, 30, 50, 100 pairs
Armour configuration
2 × counter-helical galvanized steel wire
Min. bend radius (fixed install)
12 × overall cable diameter (12×D)
Crush & impact resistance
> 2 × single-armoured impact absorption
Vertical shaft suspension
Torque-balanced against self-weight rotation

Resistance

Severe rockfall & blasting impact
Dual concentric steel wire armour shells
Torsional spin in vertical shafts
Oppositely wound inner/outer armour layers
Mine water & acid corrosion
Heavy zinc-galvanized steel + thick sheath
Methane & coal-dust atmosphere
Flame-retardant & Ex-ia compatible
Abrasion against roadway rock
Extra-thick extruded outer sheath
RoHS / REACH status
RoHS 3 compliant

Reference standards

Mining telecom specification
NCB / British Coal Spec 542 / MGM 110
British mining cable standard
BS 6708
Armour wire standard
BS EN 10257-1 galvanized steel wire
Intrinsically safe standard
IEC 60079-11 / IEC 60079-14
Fire test standards
IEC 60332-1-2 & IEC 60332-3-22
Quality certification
EN 10204 3.1 + armour conductance report

Identification

Pair colour code
BS 6708 / BT CW1308 multipair colour code
Outer sheath colour
Black (standard) or Royal Blue (Ex ia)
Surface legend
TEBAOFLEX MGM 110 DWA [N×2×0.5] SHAFT COMM
Standard drum lengths
250 m, 500 m, 1000 m (or custom shaft depth)
Armour designation
DWA (Double Wire Armoured)
Batch traceability
Lot number & sequential metre mark

Sizes

5 standard configurations (MGM 110 Double Layer Armoured)

Dimensional, physical and high-frequency electrical parameters for MGM 110 Double Layer Armoured per NCB / British Coal Spec 542 (MGM 110) / BS 6708.

Dimensions & construction
Order designationConstruction / VariantConductorOuter Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard MGM 110 Double Layer Armoured variants
MGM 110 DWA 2 × 2 × 0.5 mm²2 Pairs + Screen + Dual SWA (DWA)0.50 mm² (1/0.8 or 7/0.3)15.8024.0540.0190
MGM 110 DWA 4 × 2 × 0.5 mm²4 Pairs + Screen + Dual SWA (DWA)0.50 mm² (1/0.8 or 7/0.3)17.6043.0665.0211
MGM 110 DWA 10 × 2 × 0.5 mm²10 Pairs + Screen + Dual SWA (DWA)0.50 mm² (1/0.8 or 7/0.3)23.40102.01,150.0281
MGM 110 DWA 20 × 2 × 0.5 mm²20 Pairs + Screen + Dual SWA (DWA)0.50 mm² (1/0.8 or 7/0.3)28.20198.01,620.0338
MGM 110 DWA 50 × 2 × 0.5 mm²50 Pairs + Screen + Dual SWA (DWA)0.50 mm² (1/0.8 or 7/0.3)39.50490.03,280.0474
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are nominal production values subject to manufacturing tolerances per NCB / British Coal Spec 542 (MGM 110) / BS 6708.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Conductor loop & dual-armour DC resistance≤ 73.6 Ω/km pair loop; armour conductance verifiedEvery drum
1.5 kV / 2.0 kV AC dielectric withstand testNo breakdown between cores, screen, and DWA armourEvery drum
Sample tests
Heavy impact crush & torque balance testZero core damage under BS 6708 double-armour impact loadPer batch
IEC 60332-3-22 bunched flame testChar height ≤ 2.5 m under Category A vertical tray burnQualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MGM 110 / Spec 542 / BS 6708IEC 60079-11 / -14 (Ex ia)IEC 60332-3-22

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX MGM 110 DWA [N×2×0.5] DOUBLE
Delivery form
Spools, reels or export wooden drums
Standard reel lengths
100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ
100 m (stock) · 305–500 m (production)
Lead time
1–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFMGM 110 Double Layer Armoured Mining Communication Cable – technical datasheet5 sizes · construction, technical data, approvalsXLSXMGM 110 Double Layer Armoured spec data (Excel)All 5 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
