Product

M12 L-coded & K-coded 16 A power cordsetIEC 61076-2-11116 A / 63 V DC & 630 V AC1.5 & 2.5 mm² PUR

M12 L-coded / K-coded High-Current Power Cordset AssemblyIEC 61076-2-111 M12 L-coded (63 V DC / 16 A) & K-coded (630 V AC / 16 A) power cordset

High-current M12 power cordset to IEC 61076-2-111 in 4+FE L-coded (63 V DC, 16 A for 24 V DC I/O blocks) and 4+PE K-coded (630 V AC, 16 A for AC motors and VFDs), overmoulded on 1.5 mm² and 2.5 mm² drag-chain PUR cable.

Oil-resistant
Flame-retardant
Water-resistant
Approved
Order designation
M12L-5P-250-MSFS-PUR
Cores × size
5×2.5 (14 AWG)
Rating
63V DC / 16A
Cable OD
9.6 mm
Chain bend R
72 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
L-code rating
63 V DC / 16 A
4-pin & 4+FE (PNO 24 V DC standard)
K-code rating
630 V AC / 16 A
4+PE (3-phase AC motor & VFD feed)
Cross-section
1.5 or 2.5 mm²
16 AWG or 14 AWG Class 6 copper
Protection
IP65/IP67/IP69K
0.6 Nm hex-knurl torque lock
Drag-chain life
≥ 5 million
7.5 × OD min. bending radius
Approval
cULus 2238
UL 758 Style 20939 / 21223 1000 V

Typical values for this cable type, based on IEC 61076-2-111 / PNO 2.002 / UL 2238 / UL 758 Style 20939 — confirmed in the datasheet and quotation for your order.

Application fit

Is M12 L-coded / K-coded right for your machine?

Replaces bulky 7/8″-16UNF mini-change and M23 power connectors with a compact M12 footprint carrying up to 16 A per pin.

Energy chain / drag chain

Suitable

Class 6 extra-fine copper stranding and halogen-free PUR jacket are tested for ≥ 5 million drag-chain cycles.

Immersion & wet locations

Suitable

IP65/IP67/IP69K FKM O-ring seal withstands machine-tool coolant spray and washdown.

VFD inverter to AC motor screened feeder

Suitable

Available in unshielded or 85 % tinned-copper braided shielded versions for compact servo/VFD feeds.

Free-hanging vertical run

Not suitable

Not designed for long vertical crane suspension without intermediate clamping.

Use M23 Servo Assembly
Typical machinesPROFINET & EtherCAT Distributed I/O BlocksDecentralised 400/480 V AC Motor StartersAutomotive Body-in-White Welding LinesIntralogistics Roller & Sortation ConveyorsCabinetless Machine Tool Automation

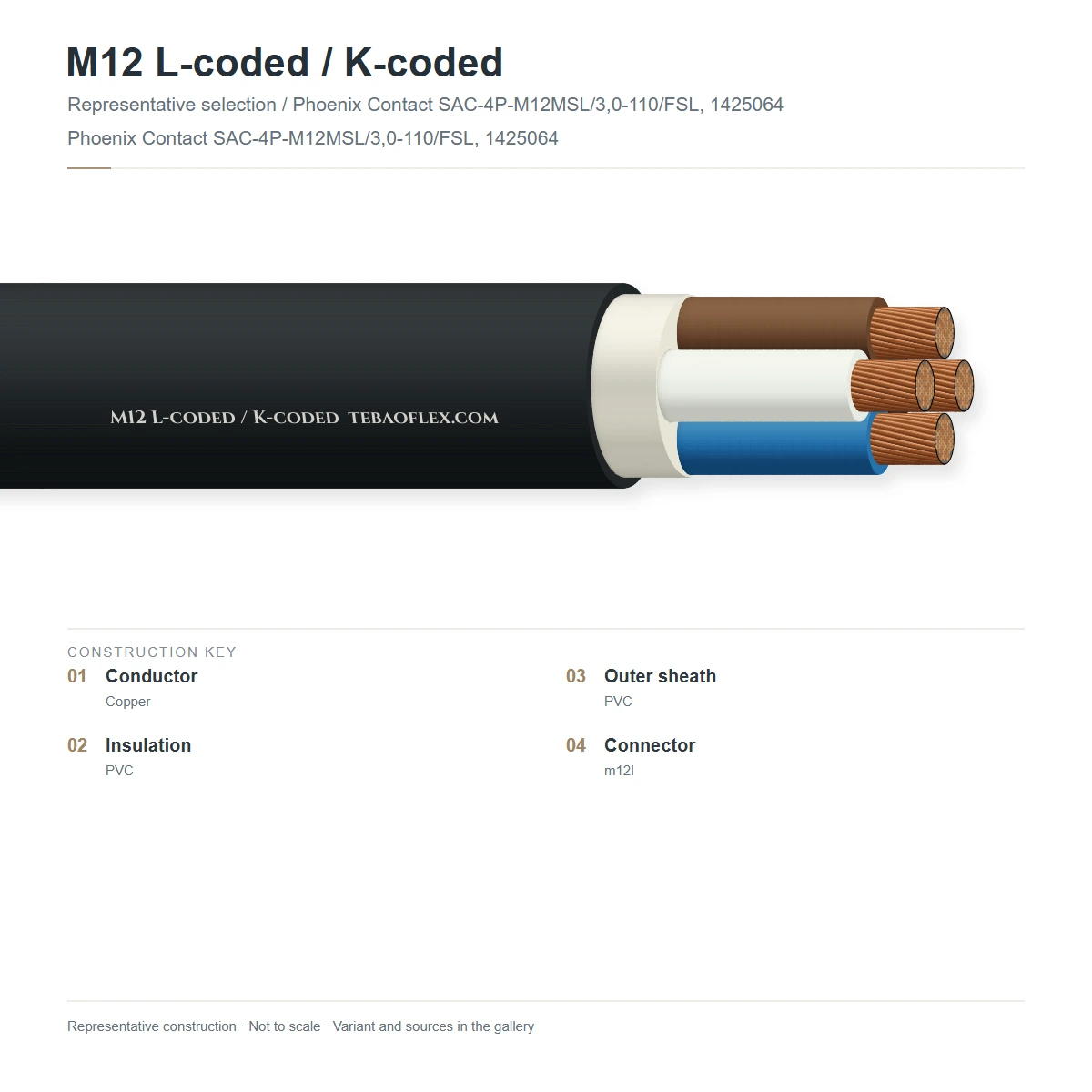

Construction

Layer by layer

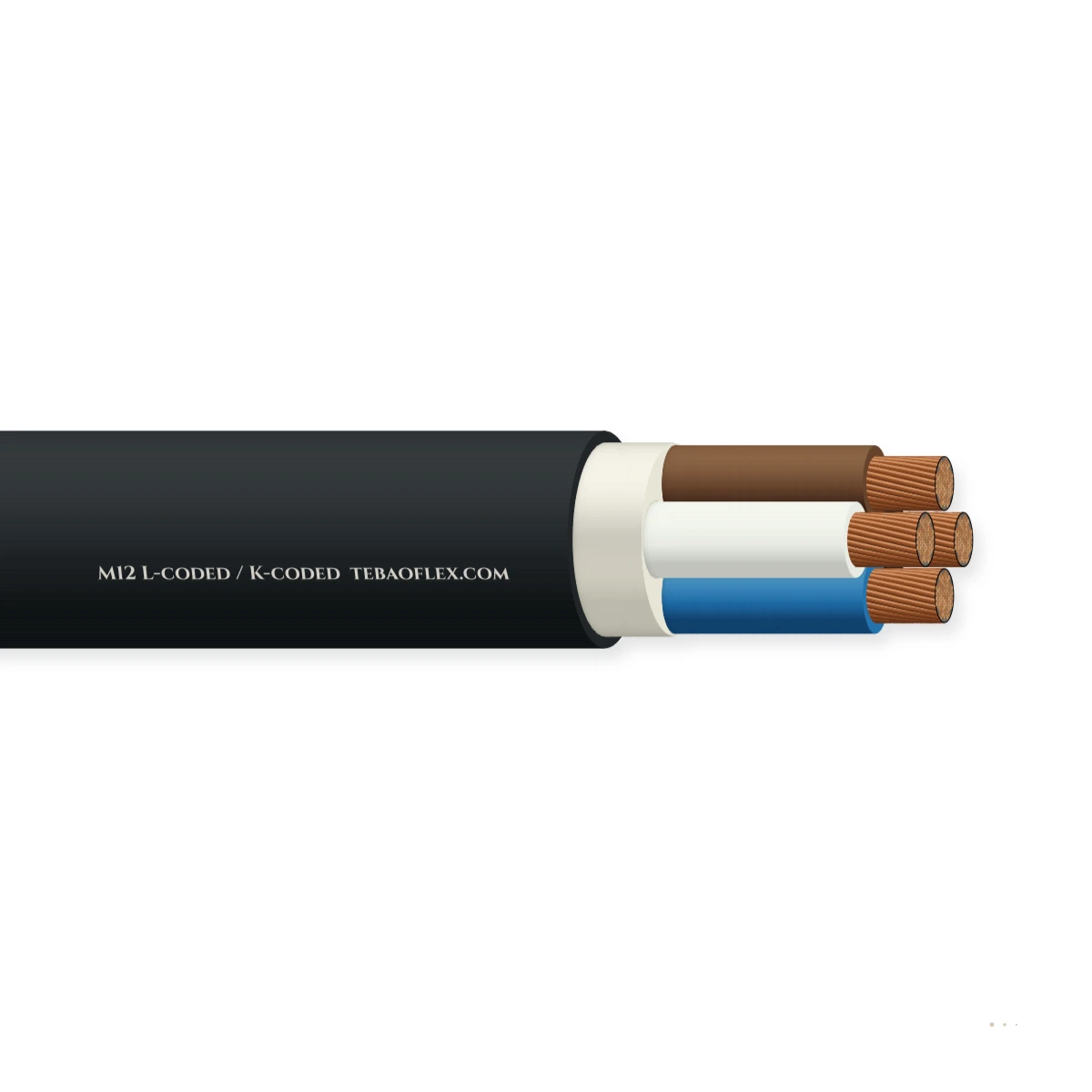

Representative 5 × 1.5 mm² or 5 × 2.5 mm² M12 Power cordset: Class 6 bare copper + PP/TPM insulation + optional tinned-copper braid + flame-retardant black/grey PUR jacket + gold-plated machined 16 A crimp contacts.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Extra-fine Class 6 power conductors4 or 5 × 1.5 mm² (16 AWG, 84×0.15 mm) or 2.5 mm² (14 AWG, 140×0.15 mm) bare copper conductors to IEC 60228 Class 6Delivers 16 A continuous current with low voltage drop across daisy-chained I/O modules
2High-temperature PP / TPM core insulationPolypropylene or cross-linked polyolefin insulation rated to +105 °CPrevents thermal softening at 16 A full-load contact dissipation
3Optional EMC tinned copper braid≥ 85 % optical coverage tinned copper braid (on shielded L-code / K-code variants)Suppresses switching emissions on 630 V AC VFD motor feeders
4Halogen-free drag-chain PUR outer jacketExtruded matte black or grey polyether polyurethane (PUR) jacket (UL 758 Style 20939 / 21223, flame-retardant to IEC 60332-1-2)Resists mineral oils, cutting emulsions and 5 million drag-chain cycles

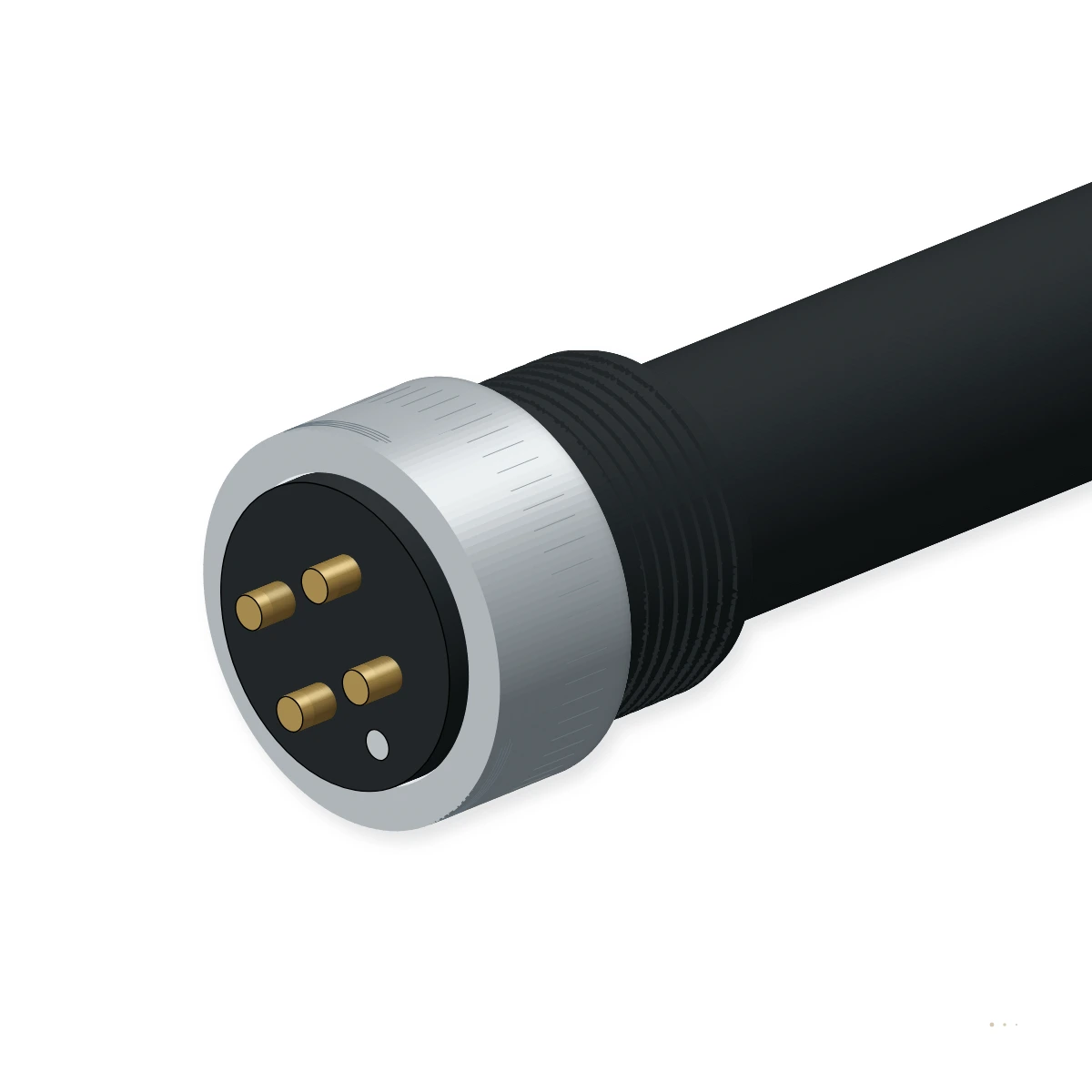

M12-L (L-Coded 4-Pin / 4+FE, 63 V DC, 16 A)

Brown (1: L1+), White (2: L2−), Blue (3: L1−), Black (4: L2+), Pink/Grey (FE: Functional Earth) per PNO PROFINET power profile

M12-K (K-Coded 4+PE, 630 V AC, 16 A)

Black 1, Black 2, Black 3, Black 4 + Green/Yellow PE (600/1000 V UL Style 21223) for 3-phase AC motor & drive supply

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 61076-2-111 / PNO 2.002 / UL 2238 / UL 758 Style 20939. Values for your order are confirmed in the datasheet and quotation.

Electrical

L-coded rated voltage / current
63 V DC / 16 A per contact at 40 °C
K-coded rated voltage / current
630 V AC / 16 A per contact at 40 °C
Rated impulse voltage
1.5 kV (L-coded) · 6.0 kV (K-coded, pollution degree 3)
Contact resistance
≤ 3 mΩ (gold/silver-plated turned contacts)
Conductor resistance (20 °C)
≤ 13.3 Ω/km (1.5 mm²) · ≤ 7.98 Ω/km (2.5 mm²)

Thermal

Operating temperature (fixed)
−40 °C to +90 °C (connector +105 °C)
Operating temperature (drag chain)
−25 °C to +80 °C

Mechanical

Conductor cross-section
4×1.5 mm², 5×1.5 mm² (4+FE/PE), 4×2.5 mm², 5×2.5 mm²
Min. bend radius (fixed / chain)
4 × OD fixed · 7.5 × OD drag chain
Drag-chain endurance
≥ 5,000,000 cycles at 3 m/s, 5 m/s²
Mating durability
≥ 100 mating cycles (IEC 61076-2-111)

Resistance

Ingress protection
IP65 / IP67 / IP69K (mated at 0.6 Nm)
Oil & coolant resistance
UL Oil Res I & II / EN 60811-404
Flame retardancy & halogen
UL 94 V-0 TPU head · UL VW-1 / IEC 60332-1-2 · IEC 60754-1

Reference standards

Connector standard
IEC 61076-2-111
PROFINET power guideline
PNO Order No. 2.002 (M12 L-coded 24 V DC)
Safety approval
cULus Listed UL 2238 & UL 758 Style 20939 / 21223

Identification

Outer jacket colour
Black (RAL 9005) or Grey (RAL 7001)
Coding insert colour
L-code & K-code colour-keyed PA66 contact carriers
Customs tariff (HS)
8544.42

Sizes

12 standard M12 L-coded & K-coded 16 A high-current power cordset configurations

Single-ended feeder cables and double-ended daisy-chain jumpers in 1.5 mm² (16 AWG) and 2.5 mm² (14 AWG).

Coding, cross-section, voltage & dimensions
Order designationCoding & PolesCores × Size
mm² (AWG)		Connector ConfigurationRating
V / A		Cable OD
mm		Cable Wt
kg/km		Chain R
mm		Enquiry
M12 L-Coded Power Cordsets — 63 V DC / 16 A (4-Pin & 4+FE for 24 V DC I/O)
M12L-4P-150-FS-PURL-code 4-pin4×1.5 (16 AWG)Female Straight → Open63V DC / 16A7.48856
M12L-4P-250-FS-PURL-code 4-pin4×2.5 (14 AWG)Female Straight → Open63V DC / 16A8.813266
M12L-5P-150-FS-PURL-code 4+FE5×1.5 (16 AWG)Female Straight → Open63V DC / 16A8.110861
M12L-5P-150-FA-PURL-code 4+FE5×1.5 (16 AWG)Female 90° Angled → Open63V DC / 16A8.110861
M12L-5P-150-MSFS-PURL-code 4+FE5×1.5 (16 AWG)Male Str ↔ Female Str63V DC / 16A8.110861
M12L-5P-250-FS-PURL-code 4+FE5×2.5 (14 AWG)Female Straight → Open63V DC / 16A9.616272
M12L-5P-250-MSFS-PURL-code 4+FE5×2.5 (14 AWG)Male Str ↔ Female Str63V DC / 16A9.616272
M12L-5P-250-SH-MSFSL-code 4+FE Shielded5×2.5 (14 AWG)Shielded Male ↔ Female63V DC / 16A10.419878
M12 K-Coded Power Cordsets — 630 V AC / 16 A (4+PE for 3-Phase AC Drives)
M12K-5P-150-FS-PURK-code 4+PE5G1.5 (16 AWG)Female Straight → Open630V AC / 16A8.611865
M12K-5P-150-MSFS-PURK-code 4+PE5G1.5 (16 AWG)Male Str ↔ Female Str630V AC / 16A8.611865
M12K-5P-250-FS-PURK-code 4+PE5G2.5 (14 AWG)Female Straight → Open630V AC / 16A10.217677
M12K-5P-250-SH-MSFSK-code 4+PE Shielded5G2.5 (14 AWG)Shielded Male ↔ Female630V AC / 16A11.021583
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Standard cordset lengths: 0.5 m, 1.0 m, 1.5 m, 2.0 m, 3.0 m, 5.0 m, 7.5 m, 10.0 m, 15.0 m, and 20.0 m; T-splitters and H-splitters available for L-code daisy-chaining.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % high-voltage & contact resistance test2.2 kV AC (L-code) / 3.3 kV AC (K-code) dielectric test, PE/FE leading-contact check & ≤ 3 mΩ contact checkEvery cordset
Sample tests
16 A temperature-rise (derating) testVerify contact temperature rise ΔT ≤ 30 K at 16 A continuous loadQualification lot
IP67 / IP69K & 5-million-cycle drag-chain testHigh-pressure 80 °C steam-jet washdown and continuous C-track flex testType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 61076-2-111 M12 L-Coded & K-Coded CompliantcULus Listed UL 2238 & PNO PROFINET Power

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX M12 POWER L/K-CODE 16A PUR-HF cULus 2238 [GAUGE]
Packaging
Individually bagged with captive clip-on label sleeves on both ends
Standard lengths
0.5 m · 1 m · 2 m · 3 m · 5 m · 10 m · 15 m · 20 m
Distribution accessories
M12 L-coded & K-coded T-splitters, H-distributors and M16 panel receptacles
Lead time
1–2 weeks ex-works

Technical documents

Downloads

PDFM12 L-coded / K-coded High-Current Power Cordset Assembly – technical datasheet12 sizes · construction, technical data, approvalsXLSXM12 L-coded / K-coded spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why did PI (PROFIBUS & PROFINET International) standardize on M12 L-coded connectors instead of 7/8″ mini-change connectors?
M12 L-coded (IEC 61076-2-111) delivers 16 A at 63 V DC across four 2.5 mm² power pins plus a leading Functional Earth (FE) pin in a footprint 40 % smaller than a 5-pin 7/8″ connector, allowing compact IP67 PROFINET and EtherCAT I/O modules to daisy-chain two independent 16 A 24 V DC power rails (U_S logic and U_A actuator power).
What is the difference between M12 L-coded and M12 K-coded power connectors?
M12 L-coded has 4 power pins + 1 Functional Earth (FE) rated for 63 V DC / 16 A (low-voltage DC fieldbus power). M12 K-coded has 4 power pins + 1 leading Protective Earth (PE) with higher creepage and clearance distances rated for 630 V AC / 16 A (6 kV impulse), designed for 3-phase 400/480 V AC motors and frequency inverters.
When should I choose 2.5 mm² (14 AWG) over 1.5 mm² (16 AWG) for M12 L-coded daisy chains?
At 16 A DC, 1.5 mm² cable drops 0.43 V per metre (loop), whereas 2.5 mm² drops only 0.26 V per metre. Use 2.5 mm² whenever total daisy-chain trunk length exceeds 8–10 m to keep 24 V DC actuator voltage above the 20.4 V minimum threshold.
Are L-coded and K-coded plugs mechanically prevented from mating with standard M12 A-coded or D-coded sockets?
Yes. IEC 61076-2-111 defines distinct L-shaped and K-shaped polarization keyways that cannot mate with A, B, D, X, Y, S, or T-coded M12 connectors, eliminating any risk of applying 24 V/16 A or 630 V AC to signal ports.
