GOST KGE / KGESh screened mining & excavator cablesGOST 24334 / TU 3541660/1140 V · 1.9/3.3 kVPower + G.657A2 / OM3 Fibre

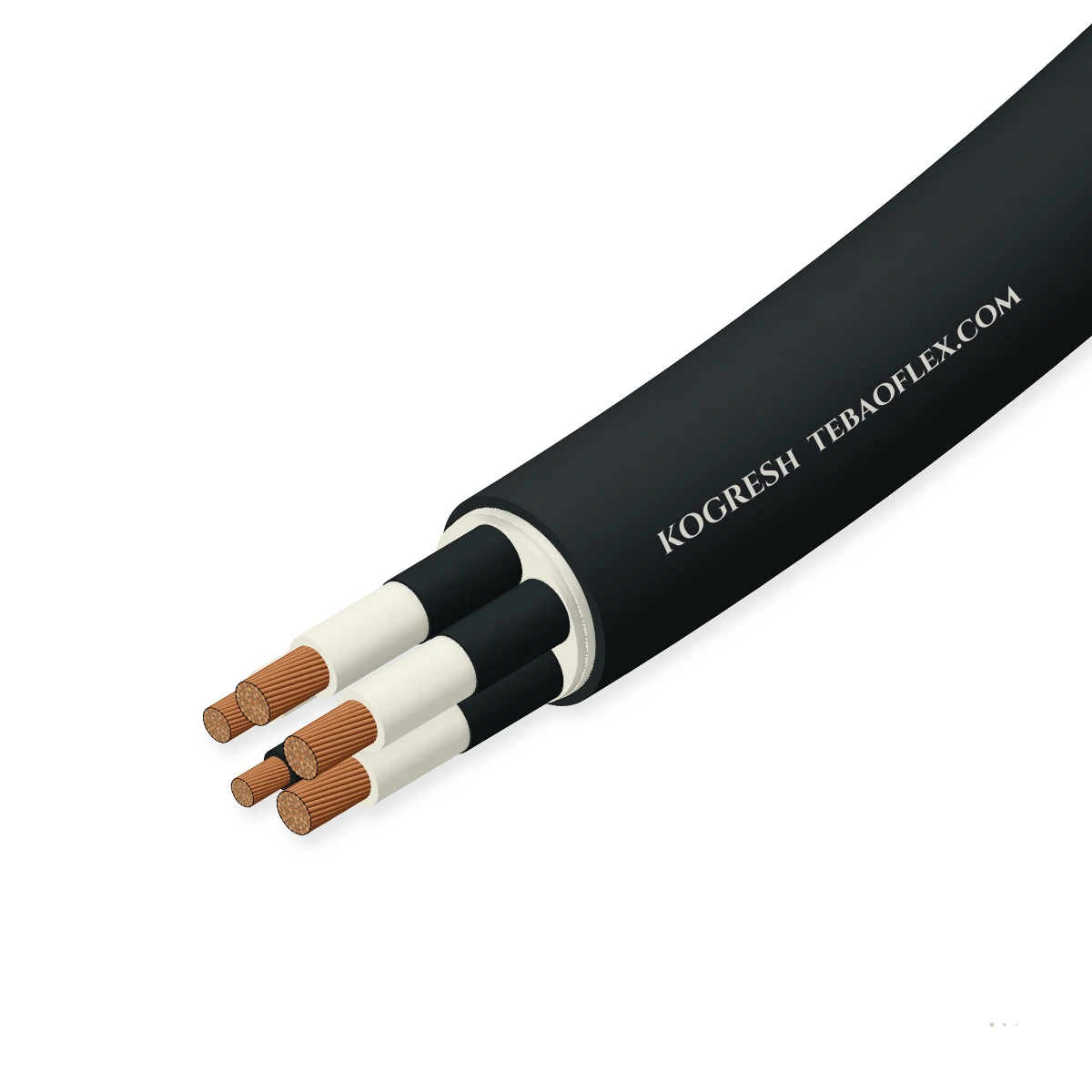

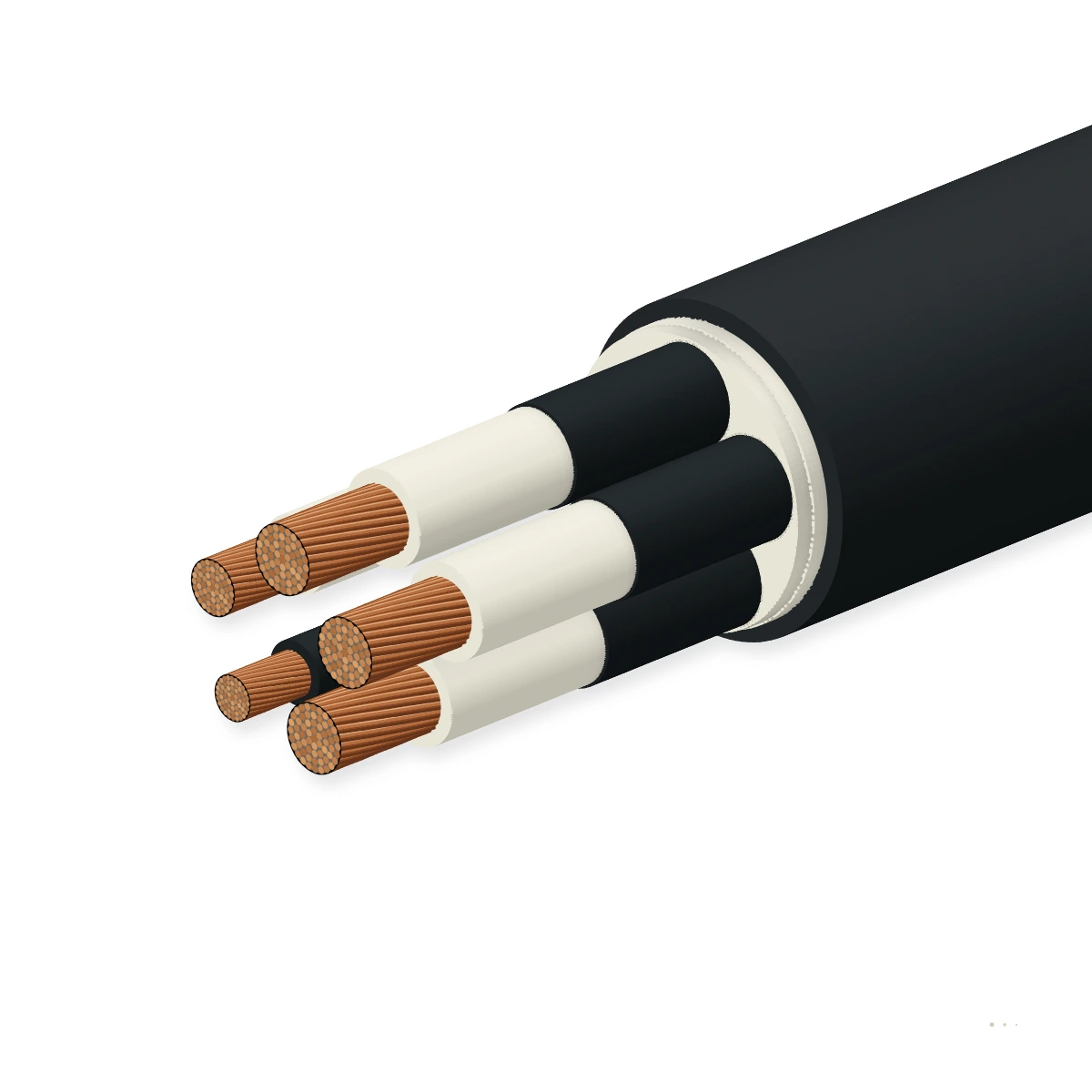

KOGRESh Optical-Power Composite Screened Mining Trailing CableGOST 24334 / TU 3541 660/1140 V & 1.9/3.3 kV optical-power hybrid coal-shearer cable

KOGRESh (КОГРЭШ / КОГРЭСШ) is an optical-power composite (О = оптический модуль) +90 °C EPR-insulated (Р) screened (Э) underground mine (Ш) trailing cable for 660/1140 V and 1.9/3.3 kV automated longwall coal shearers and roadheaders, combining 3 phase

EMC screen
Low-EMC design
Oil-resistant
Flame-retardant
Order designation
KOGRESh 3×95+1×35+3×2.5+8FO(G.657A2) - 1140 V
Outer Ø ≈
57.5 mm
Copper weight
3,170 kg/km
Total weight ≈
5,180 kg/km
Min. bend R (fixed)
345 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
1.14 & 3.3 kV
660/1140 V & 1.9/3.3 kV AC
Optical module
4–12 FO (О)
ITU-T G.657A2 SM or OM3 MM
Insulation
+90 °C EPR (Р)
High-ampacity cross-linked EPR
Screening
Phase & Pilot Э
Individual Cu/semicon core screens
Outer sheath
RShN-1 / 5GM5
Flame-retardant mine PCP (Ш)
Min. bend radius
6×D / 8×D
Protects optical tube in Bretby

Typical values for this cable type, based on GOST 24334 / TU 3541 (КОГРЭШ) — confirmed in the datasheet and quotation for your order.

Application fit

Is KOGRESh right for your machine?

Designed for unmanned and remote-controlled longwall coal shearers, roadheaders, and automated face conveyors requiring gigabit video, LiDAR, and PLC telemetry alongside 1.14 kV or 3.3 kV traction

Longwall shearer & Bretby handler

Suitable

Armoured gel-free/loose-tube G.657A2 optical unit withstands repetitive Bretby chain flexing.

Mine roadway & tunnel wall hangers

Suitable

Eliminates separate fragile communication cables along the longwall face.

Trailing & towing

Suitable

Profiled elastomeric cradle shields the optical module against radial pinch loads.

Fixed installation

Suitable

Used for high-speed optical + power gate-end to shearer umbilical links.

Vertical / spreader reel

With conditions

For vertical shaft suspension specify steel-armoured shaft hybrid cable.

KGEZhTSh
Typical machinesAutomated & unmanned longwall coal facesRemote-controlled roadheadersSmart mine Gigabit Ethernet & video1140 V & 3300 V shearer telemetry

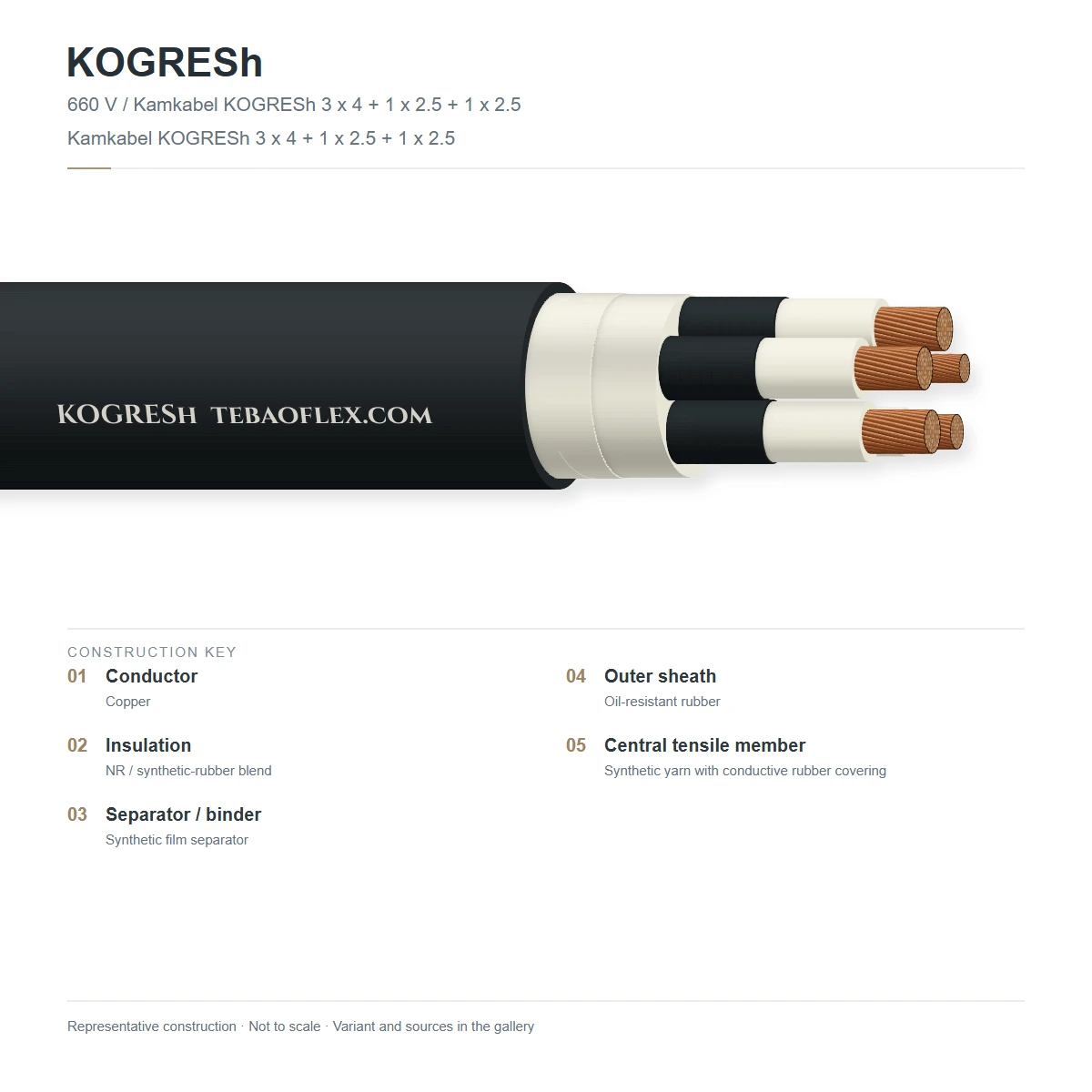

Construction

Layer by layer

Three Class 5 copper phase cores (+90 °C EPR insulation + semi-conductive/metallic screens Э), earth conductor, screened control cores

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase, earth & control conductorsFinely stranded copper, Class 5 per GOST 22483 / IEC 60228GOST 22483 Class 5
2Cradle & optical fibre module (О)4 to 12 ITU-T G.657A2 or OM3 fibres in a crush-protected tube with aramid yarn &TU 3541 / ITU-T G.657A2
3+90 °C EPR insulation (Р)Cross-linked ethylene-propylene rubber (EPR) rated +90 °CGOST 24334 / TU 3541
4Phase & control screens (Э)Semi-conductive elastomer and copper-polymer screen over each power and control coreGOST 24334
5Inner sheath & anti-tear braidPolychloroprene inner bedding + synthetic reinforcement braidTU 3541
6Outer mine sheath (Ш)Heavy-duty flame-retardant, oil- and tear-resistant polychloroprene RShN-1 / 5GM5GOST 24334

KOGRESh 660/1140 V (3P+E+C+FO)

1140 V optical-power composite coal-shearer cable with 4, 6, 8, or 12 SM/MM fibres.

KOGRESh 1.9/3.3 kV (3P+E+C+FO)

3300 V medium-voltage optical-power hybrid trailing cable for high-power automated shearers.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on GOST 24334 / TU 3541 (КОГРЭШ). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
660/1140 V (0.66/1.14 kV) & 1.9/3.3 kV AC
AC routine test voltage
3.5 kV rms (1.14 kV) · 6.5 kV rms (3.3 kV)
Control core rating
220/380 V AC screened pilot/control
Insulation resistance @ 20 °C
≥ 100 MΩ·km

Thermal

Max. conductor operating temp.
+90 °C continuous (Р EPR)
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature range
-30 °C to +55 °C

Mechanical

Min. bending radius (dynamic)
6 × D (1.14 kV) · 8 × D (3.3 kV)
Max. tensile load
24.5 N/mm² on copper cross-section
Optical element crush resistance
≥ 3000 N/100 mm radial crush protection

Optical

Fibre type options
ITU-T G.657A2 bend-insensitive SM (9/125
Attenuation @ 1310 / 1550 nm (SM)
≤ 0.40 dB/km @ 1310 nm · ≤ 0.30 dB/km @
Attenuation @ 850 / 1300 nm (OM3)
≤ 3.5 dB/km @ 850 nm · ≤ 1.5 dB/km @ 1300 nm
Standard fibre count
4, 6, 8, or 12 fibres in aramid-reinforced

Resistance

Flame retardancy
GOST IEC 60332-1-2 underground mine flame
Oil & hydraulic emulsion
DIN EN 60811-404 / GOST RShN-1
Abrasion & tear resistance
Heavy-duty longwall coal-face polychloroprene

Reference standards

Primary specification
GOST 24334 / TU 3541 (КОГРЭШ) / ITU-T G.657A2
Conductor standard
GOST 22483 / IEC 60228 Class 5

Identification

Core coding
3 phase cores + 1 earth + control cores +
Outer sheath colour
Yellow with embossed КОГРЭШ legend

Sizes

8 standard configurations (KOGRESh)

Nominal dimensions, copper weights and electrical parameters for KOGRESh per GOST 24334 / TU 3541 (КОГРЭШ).

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard KOGRESh configurations
KOGRESh 3×35+1×16+3×2.5+6FO(G.657A2) - 1140 V3×35 + 1×16E + 3×2.5 + 6FO (1140 V)3542.51,2452,490255
KOGRESh 3×50+1×16+3×2.5+6FO(G.657A2) - 1140 V3×50 + 1×16E + 3×2.5 + 6FO (1140 V)5047.01,6803,150282
KOGRESh 3×70+1×25+3×2.5+8FO(G.657A2) - 1140 V3×70 + 1×25E + 3×2.5 + 8FO (1140 V)7052.22,3404,050313
KOGRESh 3×95+1×35+3×2.5+8FO(G.657A2) - 1140 V3×95 + 1×35E + 3×2.5 + 8FO (1140 V)9557.53,1705,180345
KOGRESh 3×120+1×35+3×2.5+12FO(G.657A2) - 1140 V3×120 + 1×35E + 3×2.5 + 12FO (1140 V)12062.03,8906,160372
KOGRESh 3×50+1×25+3×4+8FO(G.657A2) - 1.9/3.3 kV3×50 + 1×25E + 3×4 + 8FO (1.9/3.3 kV)5051.21,8303,790307
KOGRESh 3×70+1×35+3×4+8FO(G.657A2) - 1.9/3.3 kV3×70 + 1×35E + 3×4 + 8FO (1.9/3.3 kV)7056.52,5104,790339
KOGRESh 3×95+1×50+3×4+12FO(G.657A2) - 1.9/3.3 kV3×95 + 1×50E + 3×4 + 12FO (1.9/3.3 kV)9562.03,3906,040372
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per GOST 24334 / TU 3541 (КОГРЭШ).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage & OTDR optical test3.5 kV / 6.5 kV AC + 100 % OTDR bidirectional attenuation check100 % of drums
Screen continuity & resistanceGOST 24334 phase and pilot screen check100 % of drums
Sample tests
Bretby flexing optical Δα testAttenuation change Δα ≤ 0.05 dB/km during cyclic flexingPer production batch
Mine flame & oil resistanceGOST IEC 60332-1-2 & EN 60811-404Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

GOST 24334 / TU 3541ITU-T G.657A2 / ISO OM3EN 10204 3.1 + OTDR

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX KOGRESh (КОГРЭШ) 1140V / 3300V
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFKOGRESh Optical-Power Composite Screened Mining Trailing Cable – technical datasheet8 sizes · construction, technical data, approvalsXLSXKOGRESh spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
