GOST KGE / KGESh screened mining & excavator cablesGOST 24334 / TU 3541Steel Wire Rope Core (Ж)1.14 kV · 3.3 kV · 6 kV

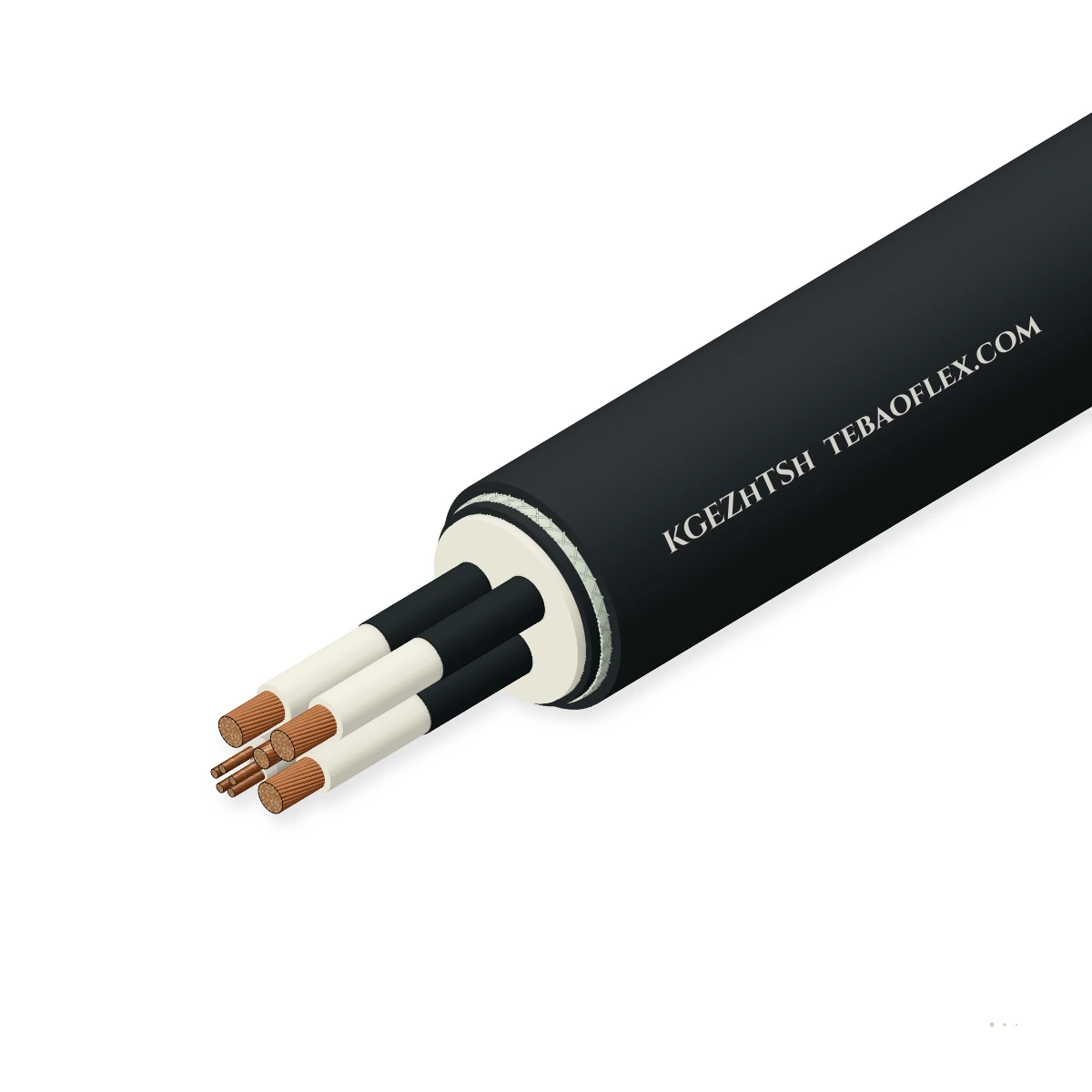

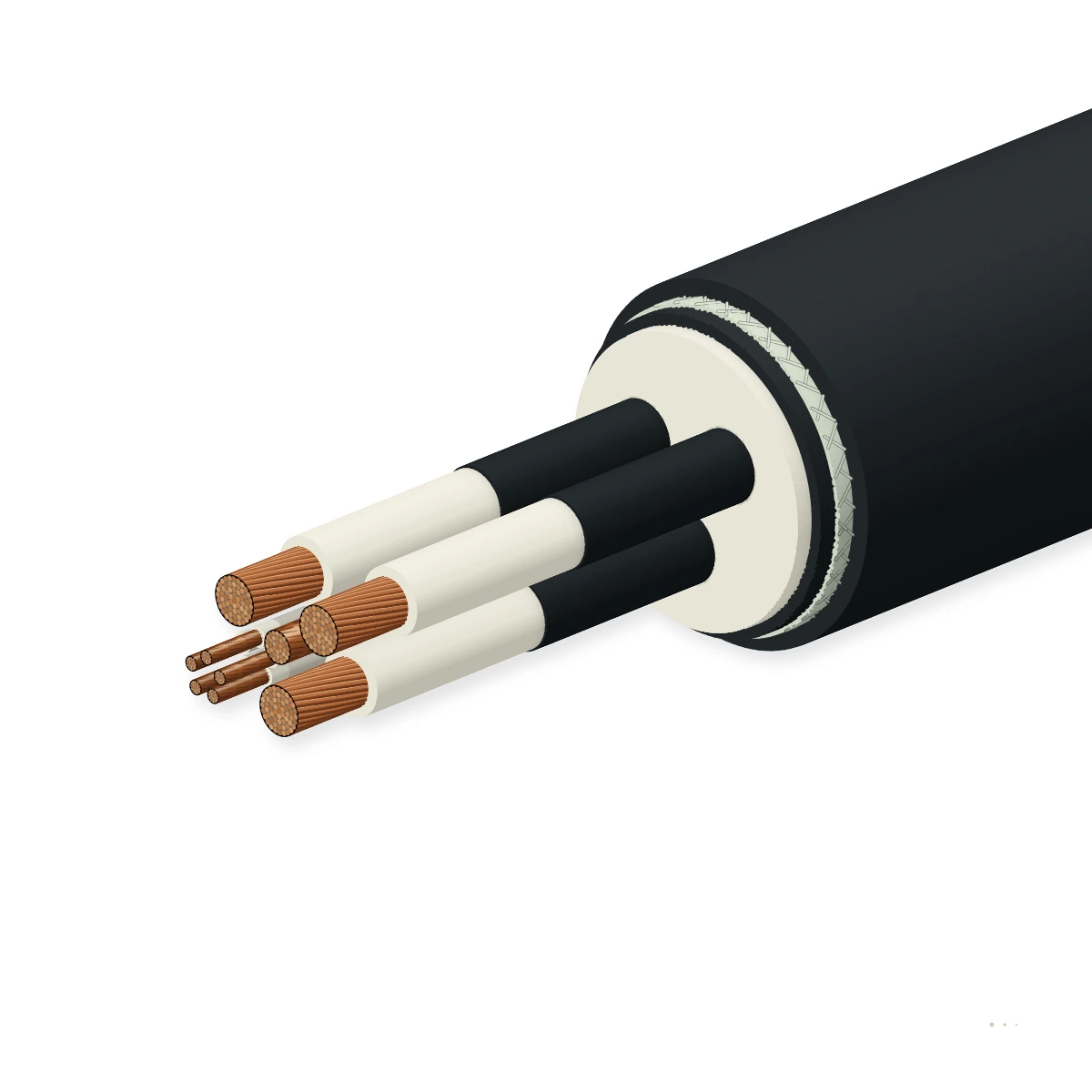

KGEZhTSh Steel-Reinforced Screened Mining Excavator TrailingGOST 24334 / TU 3541 steel-rope reinforced (Ж) heavy-duty screened mining trailing cable

KGEZhTSh (КГЭЖТШ) is a steel-reinforced (Ж = стальной трос / galvanized steel wire rope tension element), heavy-duty (Т), screened (Э) underground and surface mining trailing cable (Ш) for 660/1140 V, 1.9/3.3 kV, and 3.6/6 kV steep-seam coal shearers

EMC screen
Anti-torsion braid
Oil-resistant
Flame-retardant
Order designation
KGEZhTSh 3×70+1×25Zh+3×2.5 - 1140 V
Outer Ø ≈
53.5 mm
Copper weight
2,140 kg/km
Total weight ≈
4,510 kg/km
Min. bend R (fixed)
321 mm
All sizes (9)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
1.14 to 3.6/6 kV
660/1140 V, 1.9/3.3 kV & 3.6/6 kV
Tension element
Steel Rope (Ж)
Galvanized steel wire rope carrier
Duty class
Heavy-Duty (ТШ)
Double-sheath textile reinforced
Screening
Phase & Pilot Э
Individual Cu/semicon core screens
Outer sheath
Dual RShN-1/5GM5
Flame-retardant tear-proof PCP
Breaking load
≥ 35–60 kN
High axial pull via steel rope

Typical values for this cable type, based on GOST 24334 / TU 3541 (КГЭЖТШ) — confirmed in the datasheet and quotation for your order.

Application fit

Is KGEZhTSh right for your machine?

Engineered for steep-seam longwall coal shearers, inclined mine drifts, shaft sinking winches, and heavy excavator trailing spans where extreme axial pulling forces would snap copper conductors.

Mine roadway & tunnel wall hangers

Suitable

Galvanized steel wire rope core (Ж) carries full deadweight and haulage pull on steep coal seams.

Trailing & towing

Suitable

Prevents copper conductor elongation during high-drawbar towing behind excavators and roadheaders.

Vertical / spreader reel

Suitable

Self-supporting steel wire rope core allows vertical and inclined shaft suspension.

Longwall shearer & Bretby handler

Suitable

Fine aircraft-grade galvanized steel rope bends smoothly through heavy Bretby handlers.

Festoon & line chain

With conditions

Heavier than unarmoured cables; for light monorail festoons use NTSKCGECWÖU.

NTSKCGECWÖU
Typical machinesSteep-seam underground coal miningInclined drift & shaft haulageHigh-pull mine excavators & loadersHeavy roadheaders & shearers

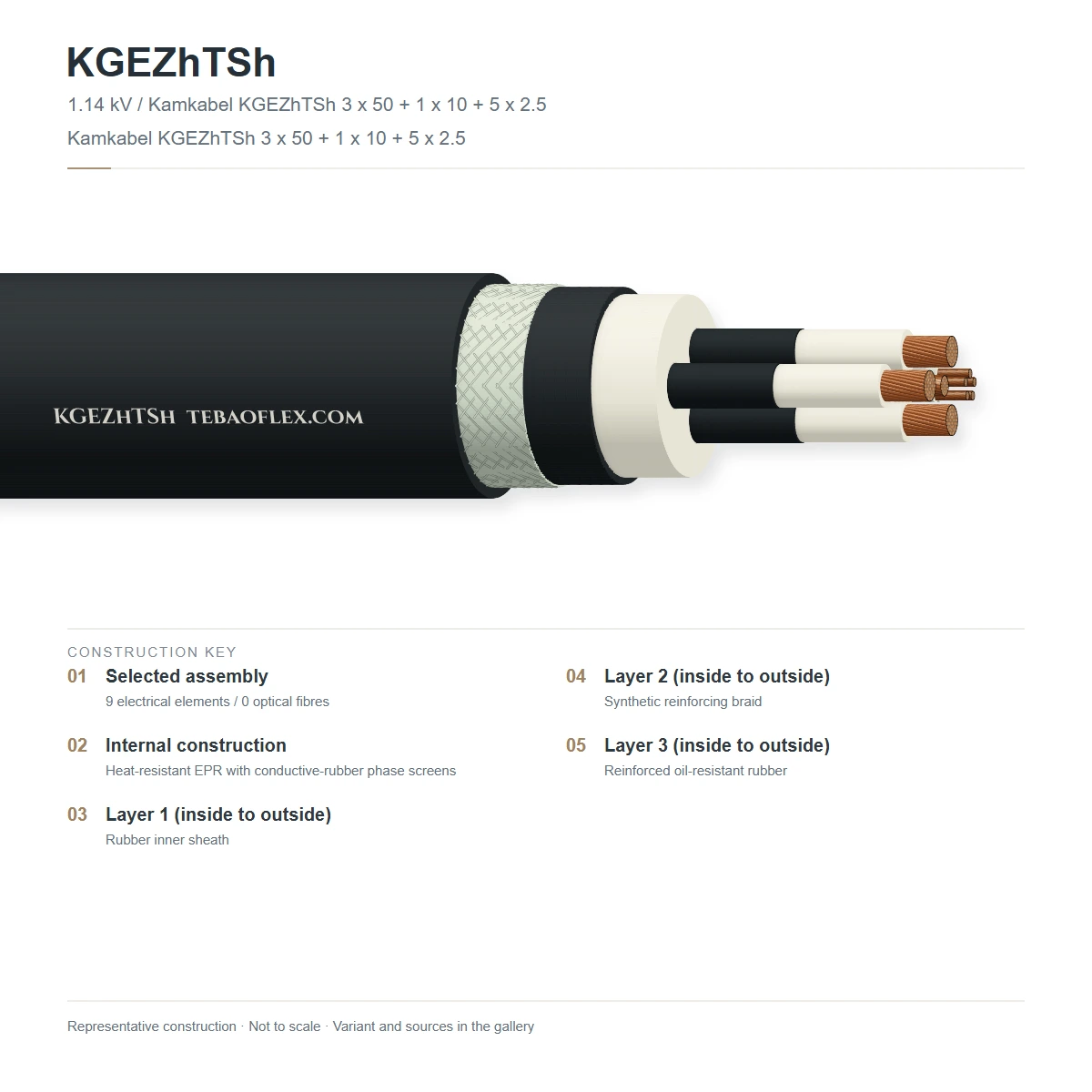

Construction

Layer by layer

Central (or interstitial) flexible galvanized steel wire rope load-bearing core (Ж) coated in elastomer, surrounded by 3 Class 5 copper

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase & control conductorsFinely stranded annealed copper, Class 5 per GOST 22483 / IEC 60228GOST 22483 Class 5
2Galvanized steel wire rope (Ж)Flexible multi-strand galvanized steel wire rope embedded in central elastomeric cradleTU 3541 / GOST 24334
3+90 °C EPR insulationCross-linked ethylene-propylene rubber (EPR) rated +90 °CGOST 24334 / TU 3541
4Phase & control screens (Э)Semi-conductive elastomer and tinned copper/polymer tape screen over each coreGOST 24334
5Inner sheath & textile braid (Т)Elastomer inner bedding + high-tenacity polyamide anti-torsion braidTU 3541
6Heavy-duty outer sheath (Ш)Extra-heavy flame-retardant, oil- and tear-resistant polychloroprene RShN-1 / 5GM5GOST 24334

KGEZhTSh 660/1140 V

1140 V steel-rope reinforced heavy-duty screened mine cable for steep-seam coal shearers.

KGEZhTSh 1.9/3.3 kV & 3.6/6 kV

Medium-voltage steel-rope reinforced trailing cable for heavy shearers and mine excavators.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on GOST 24334 / TU 3541 (КГЭЖТШ). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
660/1140 V · 1.9/3.3 kV · 3.6/6 kV AC
AC routine test voltage
3.5 kV (1.14 kV) · 6.5 kV (3.3 kV) · 11 kV
Steel rope earthing
Galvanized steel wire rope bonded to
Insulation resistance @ 20 °C
≥ 100 MΩ·km

Thermal

Max. conductor operating temp.
+90 °C continuous
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature range
-35 °C to +55 °C

Mechanical

Axial tensile reinforcement
Central/interstitial galvanized steel wire
Max. working tensile pull
Up to 15–30 kN depending on steel rope
Min. bending radius
6 × cable outer diameter

Resistance

Flame retardancy
GOST IEC 60332-1-2 underground mine flame
Oil & hydraulic emulsion
DIN EN 60811-404 / GOST RShN-1
Abrasion, cut & crush resistance
Heavy-duty double sheath + steel core

Reference standards

Primary specification
GOST 24334 / TU 3541 (КГЭЖТШ)
Conductor standard
GOST 22483 / IEC 60228 Class 5

Identification

Core coding
3 phase cores + steel earth/tension rope +
Outer sheath colour
Yellow or Red with embossed КГЭЖТШ legend

Sizes

9 standard configurations (KGEZhTSh)

Nominal dimensions, copper weights and electrical parameters for KGEZhTSh per GOST 24334 / TU 3541 (КГЭЖТШ).

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard KGEZhTSh configurations
KGEZhTSh 3×25+1×16Zh+3×2.5 - 1140 V3×25 + 1×16Zh + 3×2.5 (1140 V)2539.88252,290239
KGEZhTSh 3×35+1×16Zh+3×2.5 - 1140 V3×35 + 1×16Zh + 3×2.5 (1140 V)3543.51,1152,790261
KGEZhTSh 3×50+1×25Zh+3×2.5 - 1140 V3×50 + 1×25Zh + 3×2.5 (1140 V)5048.21,5603,580289
KGEZhTSh 3×70+1×25Zh+3×2.5 - 1140 V3×70 + 1×25Zh + 3×2.5 (1140 V)7053.52,1404,510321
KGEZhTSh 3×95+1×35Zh+3×2.5 - 1140 V3×95 + 1×35Zh + 3×2.5 (1140 V)9559.02,8805,720354
KGEZhTSh 3×120+1×50Zh+3×2.5 - 1140 V3×120 + 1×50Zh + 3×2.5 (1140 V)12063.83,6106,890383
KGEZhTSh 3×50+1×25Zh+3×4 - 3.6/6 kV3×50 + 1×25Zh + 3×4 (3.6/6 kV)5054.01,6104,280324
KGEZhTSh 3×70+1×25Zh+3×4 - 3.6/6 kV3×70 + 1×25Zh + 3×4 (3.6/6 kV)7059.22,1905,290355
KGEZhTSh 3×95+1×35Zh+3×4 - 3.6/6 kV3×95 + 1×35Zh + 3×4 (3.6/6 kV)9564.82,9306,580389
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per GOST 24334 / TU 3541 (КГЭЖТШ).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test3.5 kV (1.14 kV) or 11 kV (3.6/6 kV) rms / 5 min100 % of drums
Screen & steel-rope continuityPhase screen and galvanized steel rope continuity check100 % of drums
Sample tests
Tensile pull & breaking load testTU 3541 steel wire rope axial load verificationPer production batch
Mine flame & oil resistanceGOST IEC 60332-1-2 & EN 60811-404Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

GOST 24334 / TU 3541GOST IEC 60332-1-2EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX KGEZhTSh (КГЭЖТШ) STEEL-REINFORCED
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFKGEZhTSh Steel-Reinforced Screened Mining Excavator Trailing – technical datasheet9 sizes · construction, technical data, approvalsXLSXKGEZhTSh spec data (Excel)All 9 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does 'Zh' (Ж) represent in KGEZhTSh (КГЭЖТШ)?
'Ж' designates a high-tensile galvanized steel wire rope (железный / стальной грузонесущий трос) integrated into the central cradle or interstices of the cable. It absorbs extreme axial pulling and suspension forces so the Class 5 copper phase conductors remain strain-free. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Where is KGEZhTSh used instead of KGETSh or KGESh?
KGEZhTSh is specified for steep and inclined coal seams (where gravity pulls the shearer cable down-dip), long-distance heavy excavator towing, and inclined gallery or shaft winch feeders where tensile loads exceed the 15–20 N/mm² limit of copper conductors. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Does the steel wire rope (Ж) also function as the protective earth conductor?
The galvanized steel wire rope is bonded to the protective earth terminal and sits in conductive contact with the core screens, while copper earth strands or composite copper/steel lays ensure low fault-loop impedance per GOST 24334. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
How is KGEZhTSh terminated at the machine gland?
At the cable entry gland of the shearer or excavator, the central galvanized steel wire rope is anchored to a mechanical strain-relief clevis or clamp inside the stuffing box, transferring all towing pull directly to the machine chassis. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
