GOST KGE / KGESh screened mining & excavator cablesGOST 24334 / TU 3541660/1140 V · 1.9/3.3 kVHeavy-Duty (Т) · Dual Sheath

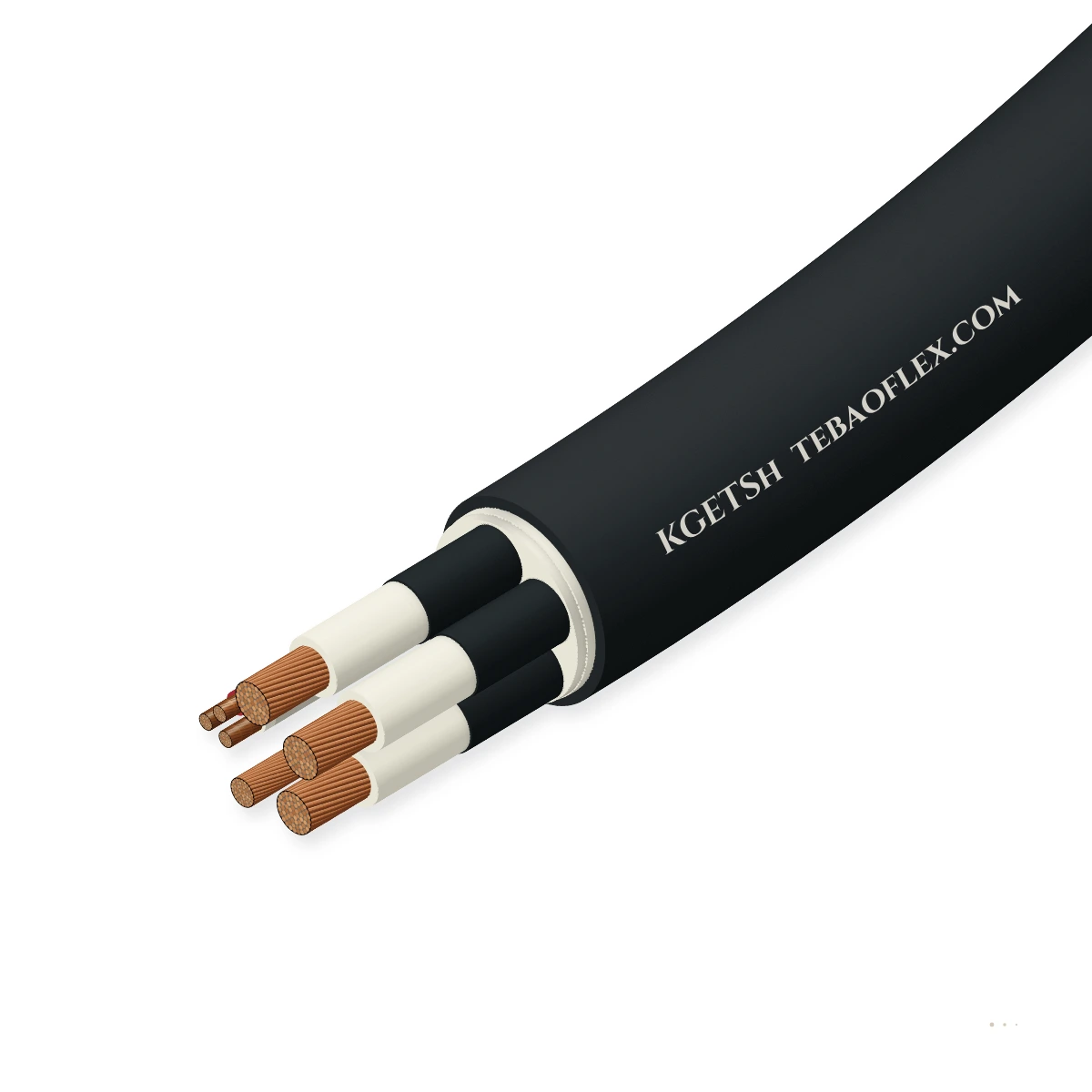

KGETSh Heavy-Duty Screened Mining Trailing Rubber CableGOST 24334 / TU 3541 660/1140 V & 1.9/3.3 kV heavy-duty (Т) screened mine trailing cable

KGETSh (КГЭТШ) is an extra-heavy-duty (Т = тяжелый) screened underground mine (Ш = шахтный) trailing rubber cable per GOST 24334 and TU 3541 for 660/1140 V and 1.9/3.3 kV coal shearers and heavy roadheaders, featuring reinforced dual-layer polychloroprene

EMC screen

Anti-torsion braid

Oil-resistant

Flame-retardant

Configuration

Order designation: KGETSh 3×70+1×25+3×2.5 - 1140 V
Outer Ø ≈: 52.2 mm
Copper weight: 2,360 kg/km
Total weight ≈: 4,180 kg/km
Min. bend R (fixed): 261 mm

All sizes (10)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 1.14 & 3.3 kV
Duty class: Heavy-Duty (Т)
Screening: Cu/Semicon Э
Insulation: +90 °C EPR
Outer sheath: Dual RShN-1/5GM5
Min. bend radius: 5×D / 6×D

Typical values for this cable type, based on GOST 24334 / TU 3541 (КГЭТШ) — confirmed in the datasheet and quotation for your order.

Application fit

Is KGETSh right for your machine?

Built for high-power 1140 V and 3300 V longwall coal shearers, heavy hard-rock roadheaders, and armored face conveyors where standard KGESh jackets suffer premature tearing.

Longwall shearer & Bretby handler

Suitable

Double-layer textile-reinforced sheath resists pinch wear inside heavy Bretby drag chains.

Mine roadway & tunnel wall hangers

Suitable

Heavy-duty (Т) jacket absorbs coal-face rock impacts and floor scraping.

Trailing & towing

Suitable

High tear and tensile strength for long-face shearer and roadheader haulage.

Fixed installation

Suitable

Used for high-capacity 1.14 kV and 3.3 kV gate-end feeder runs.

Vertical / spreader reel

With conditions

For vertical shaft or steep-seam steel-rope duty specify KGEZhTSh.

KGEZhTSh

Typical machinesHigh-output longwall coal faces1140 V & 3300 V coal shearersHeavy hard-rock roadheadersUnderground potash & ore haulage

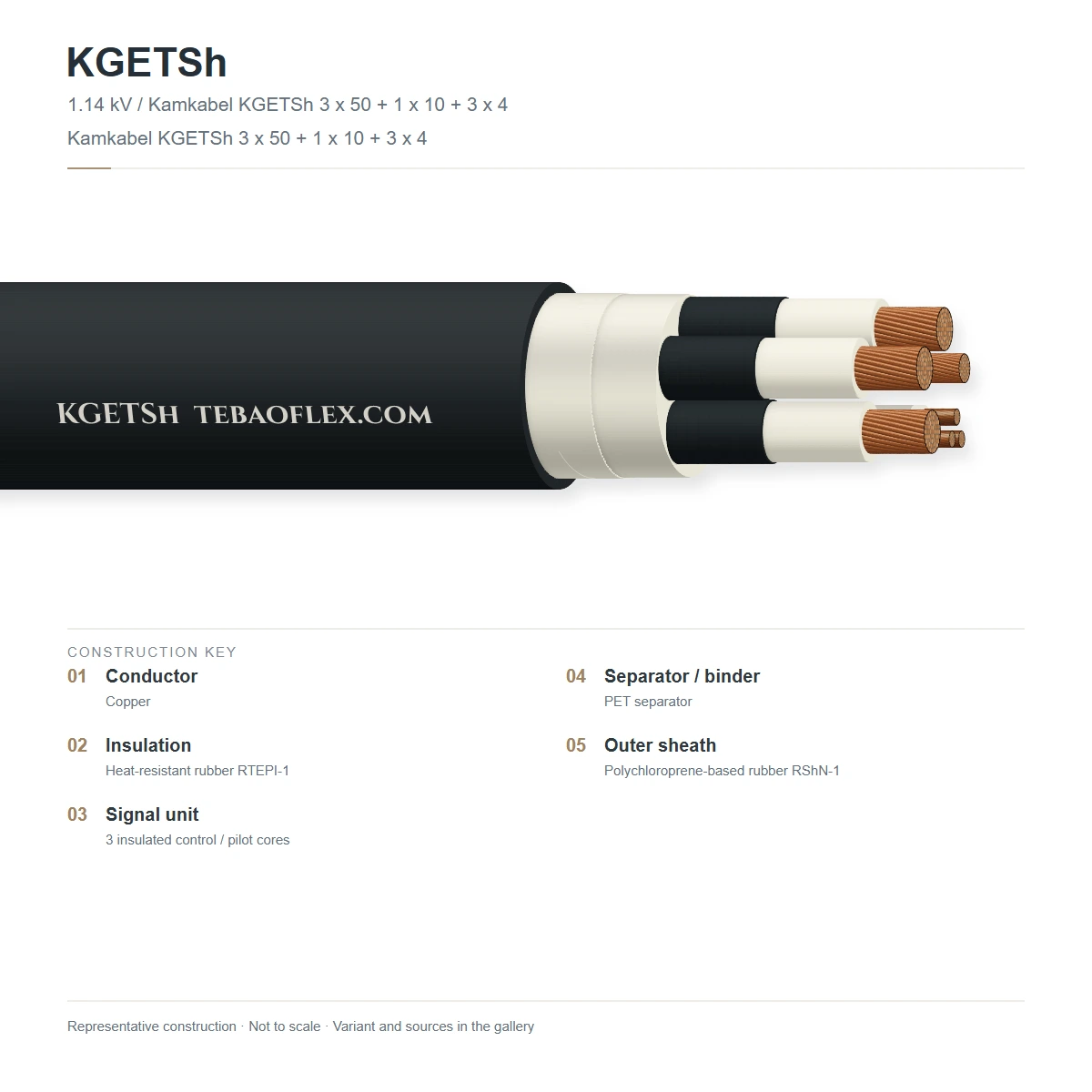

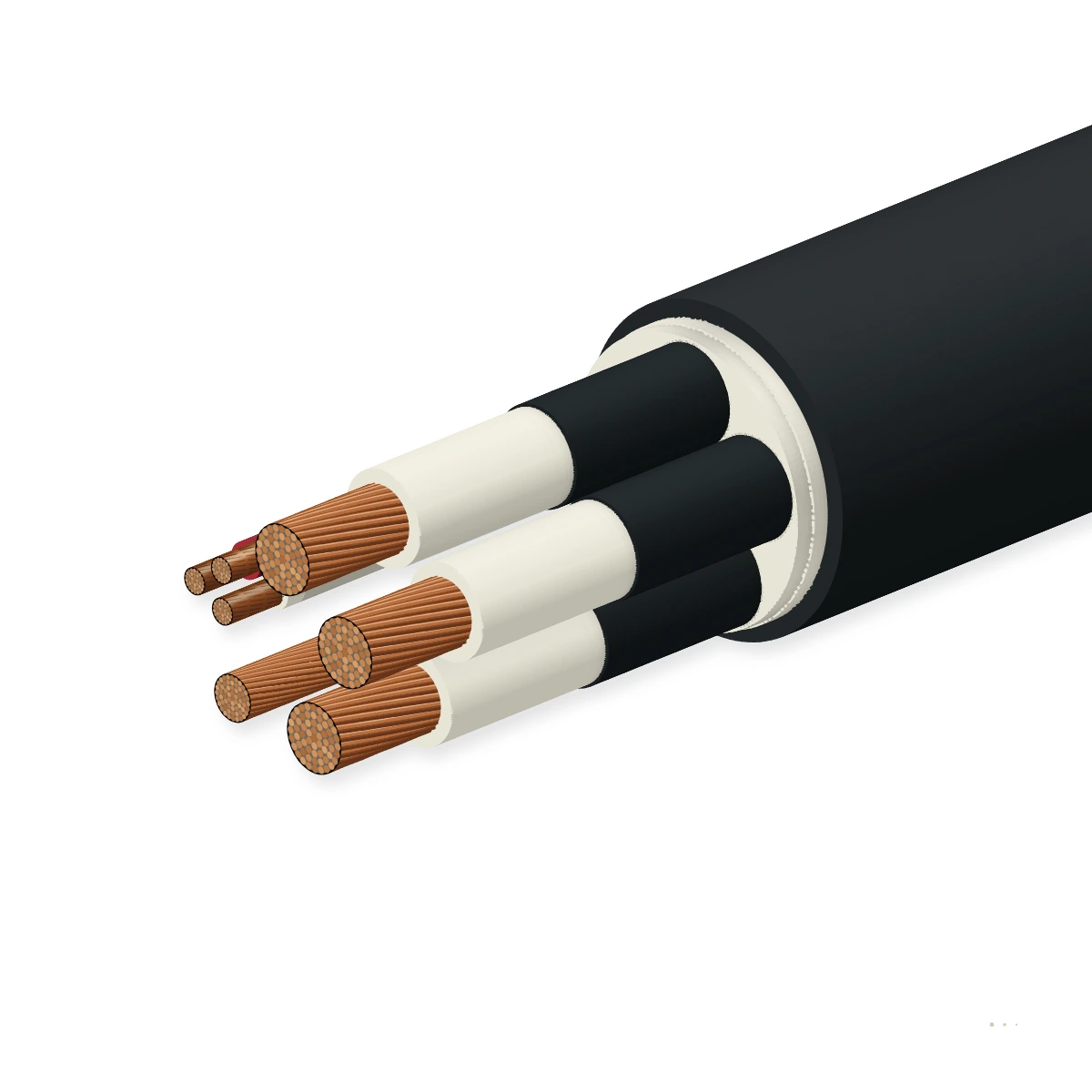

Construction

Layer by layer

Three Class 5 flexible copper phase cores (+90 °C EPR insulation + semi-conductive/metallic screens Э), earth core, screened control

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Phase, earth & control conductors	Finely stranded copper, Class 5 per GOST 22483 / IEC 60228GOST 22483 Class 5
2	Profiled central rubber cradle	Crush-absorbing semi-conductive or reinforced elastomeric centre cradleGOST 24334 / TU 3541
3	+90 °C EPR insulation	Cross-linked ethylene-propylene rubber (EPR) for 1.14 kV or 3.3 kV dutyGOST 24334 / TU 3541
4	Phase & control screens (Э)	Composite copper-polymer / semi-conductive elastomeric core screensGOST 24334
5	Inner sheath	Pressure-extruded polychloroprene inner beddingTU 3541
6	Heavy-duty textile braid (Т)	High-tenacity polyamide anti-tear & anti-torsion reinforcement braidTU 3541
7	Extra-heavy outer sheath (Ш)	Flame-retardant, oil- and tear-resistant polychloroprene RShN-1 / 5GM5GOST 24334

KGETSh 660/1140 V

Heavy-duty 1140 V screened coal-shearer & roadheader trailing cable.

KGETSh 1.9/3.3 kV

Heavy-duty 3300 V screened trailing cable for high-megawatt longwall shearers.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on GOST 24334 / TU 3541 (КГЭТШ). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 660/1140 V (0.66/1.14 kV) & 1.9/3.3 kV AC
AC routine test voltage: 3.5 kV rms (1.14 kV) · 6.5 kV rms (3.3 kV)
Control core rating: 220/380 V AC screened pilot/control
Insulation resistance @ 20 °C: ≥ 100 MΩ·km

Thermal

Max. conductor operating temp.: +90 °C continuous
Max. short-circuit temperature: +250 °C (5 s)
Ambient temperature range: -30 °C to +55 °C

Mechanical

Heavy-duty impact rating: Double-sheath + textile braid resists ≥
Min. bending radius: 5 × D (1.14 kV) · 6 × D (3.3 kV)
Max. tensile load: 25 N/mm² on copper cross-section

Resistance

Flame retardancy: GOST IEC 60332-1-2 underground mine flame
Oil & hydraulic emulsion: DIN EN 60811-404 / GOST RShN-1
Tear & abrasion resistance: Extra-heavy-duty coal-face compound

Reference standards

Primary specification: GOST 24334 / TU 3541 (КГЭТШ)
Conductor standard: GOST 22483 / IEC 60228 Class 5

Identification

Core coding: 3 phase cores + 1 earth + 3 to 6 control
Outer sheath colour: Yellow or Orange high-visibility mine jacket

Sizes

10 standard configurations (KGETSh)

Nominal dimensions, copper weights and electrical parameters for KGETSh per GOST 24334 / TU 3541 (КГЭТШ).

Dimensions & weights
Order designation	Configuration	Phase size mm²	Outer Ø ≈ mm	Copper kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard KGETSh configurations
KGETSh 3×25+1×16+3×2.5 - 1140 V	3×25 + 1×16E + 3×2.5 (1140 V)	25	38.5	960	2,080	192
KGETSh 3×35+1×16+3×2.5 - 1140 V	3×35 + 1×16E + 3×2.5 (1140 V)	35	42.2	1,250	2,560	211
KGETSh 3×50+1×25+3×2.5 - 1140 V	3×50 + 1×25E + 3×2.5 (1140 V)	50	47.0	1,780	3,290	235
KGETSh 3×70+1×25+3×2.5 - 1140 V	3×70 + 1×25E + 3×2.5 (1140 V)	70	52.2	2,360	4,180	261
KGETSh 3×95+1×35+3×2.5 - 1140 V	3×95 + 1×35E + 3×2.5 (1140 V)	95	57.8	3,190	5,320	289
KGETSh 3×120+1×50+3×2.5 - 1140 V	3×120 + 1×50E + 3×2.5 (1140 V)	120	62.5	4,050	6,420	312
KGETSh 3×50+1×25+3×4 - 1.9/3.3 kV	3×50 + 1×25E + 3×4 (1.9/3.3 kV)	50	50.5	1,830	3,740	252
KGETSh 3×70+1×35+3×4 - 1.9/3.3 kV	3×70 + 1×35E + 3×4 (1.9/3.3 kV)	70	55.8	2,510	4,720	279
KGETSh 3×95+1×50+3×4 - 1.9/3.3 kV	3×95 + 1×50E + 3×4 (1.9/3.3 kV)	95	61.2	3,390	5,960	306
KGETSh 3×120+1×50+3×4 - 1.9/3.3 kV	3×120 + 1×50E + 3×4 (1.9/3.3 kV)	120	66.0	4,110	7,080	330

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per GOST 24334 / TU 3541 (КГЭТШ).

Electrical & ampacity data
Configuration	Max. DC R @ 20 °C Ω/km	Current rating in air (A)	Current rating installed (A)	Mutual C pF/m ≈	AC test V rms
3×25 + 1×16E + 3×2.5 (1140 V)	0.799	122	104	151	3,500
3×35 + 1×16E + 3×2.5 (1140 V)	0.568	150	128	168	3,500
3×50 + 1×25E + 3×2.5 (1140 V)	0.396	187	159	192	3,500
3×70 + 1×25E + 3×2.5 (1140 V)	0.279	229	195	226	3,500
3×95 + 1×35E + 3×2.5 (1140 V)	0.211	276	235	267	3,500
3×120 + 1×50E + 3×2.5 (1140 V)	0.165	319	271	308	3,500
3×50 + 1×25E + 3×4 (1.9/3.3 kV)	0.396	187	159	192	6,500
3×70 + 1×35E + 3×4 (1.9/3.3 kV)	0.279	229	195	226	6,500
3×95 + 1×50E + 3×4 (1.9/3.3 kV)	0.211	276	235	267	6,500
3×120 + 1×50E + 3×4 (1.9/3.3 kV)	0.165	319	271	308	6,500

Current ratings apply at +30 °C ambient in free air; apply standard derating factors for elevated ambient or drum layers.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage withstand test	3.5 kV (1.14 kV) or 6.5 kV (3.3 kV) rms / 5 min	100 % of drums
Screen continuity & resistance	GOST 24334 phase and pilot screen check	100 % of drums
Sample tests
Heavy-duty impact & tear test	TU 3541 dual-sheath crush & tear verification	Per production batch
Flame & oil resistance	GOST IEC 60332-1-2 & EN 60811-404	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

GOST 24334 / TU 3541GOST IEC 60332-1-2EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX KGETSh (КГЭТШ) 1140V / 3300V

Delivery form: Fumigated export wooden drums
Standard drum lengths: 300 m · 500 m · 1000 m (or custom cut
MOQ: 100 m (stock sizes) · 300 m (custom build)
Lead time: 3–5 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFKGETSh Heavy-Duty Screened Mining Trailing Rubber Cable – technical datasheet10 sizes · construction, technical data, approvals XLSXKGETSh spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20
