GOST KGE / KGESh screened mining & excavator cablesGOST 13497 / GOST 15150-T6/6 kV · 10/10 kVTropical UV, Mould & Termite Proof

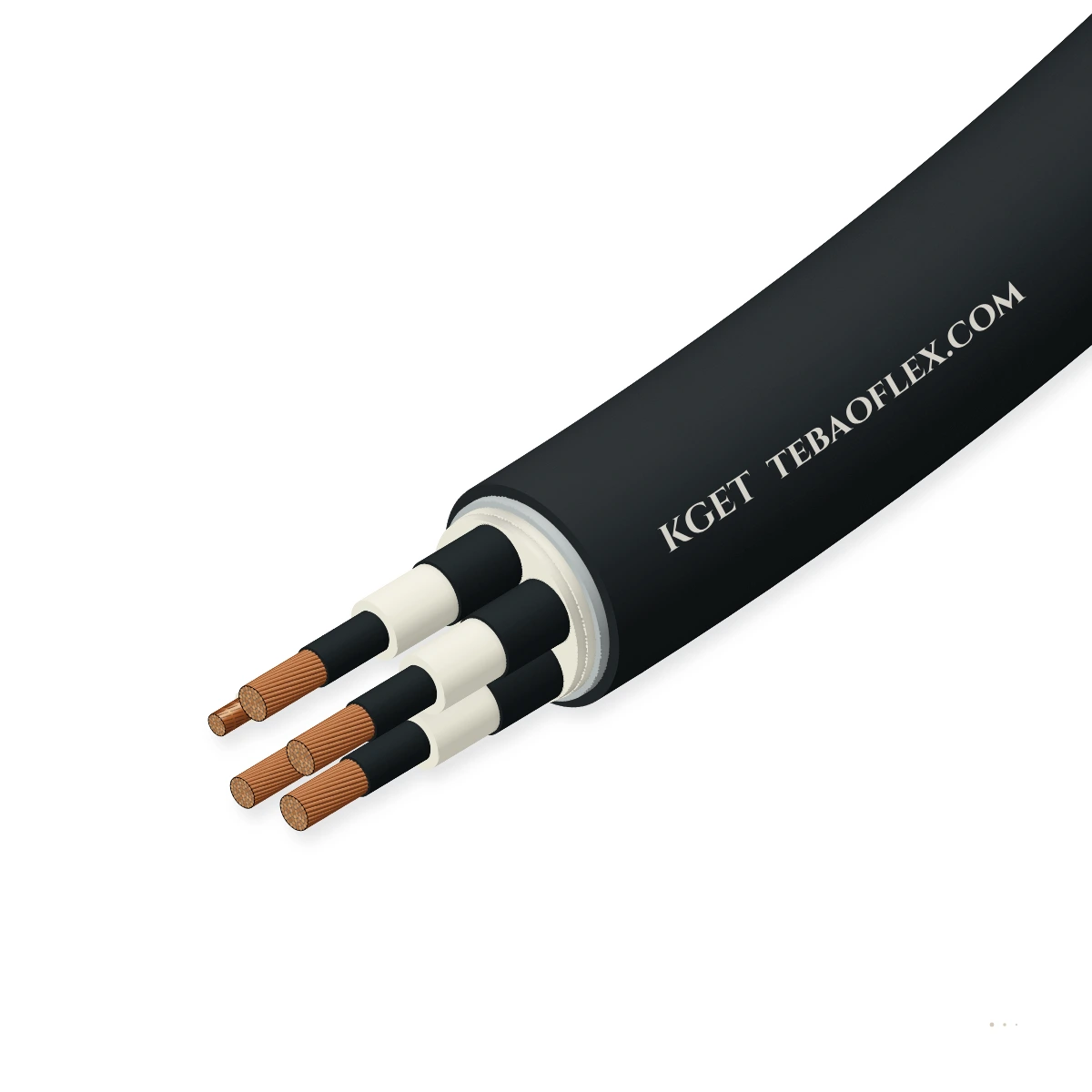

KGET Tropical-Grade Screened Excavator Rubber Trailing CableGOST 13497 / 15150-T 6/6 kV & 10/10 kV tropical-grade screened excavator rubber trailing

KGET (КГЭТ) is a tropical-climate execution (Т = тропическое исполнение per GOST 15150) 6/6 kV (3.6/6 kV) and 10/10 kV (6/10 kV) screened flexible rubber excavator trailing cable per GOST 13497, compounded with mould-, termite-, ozone-, and intense

EMC screen

Ozone, UV & moisture

Oil-resistant

Approved

Configuration

Order designation: KGET 3×50+1×16 - 6 kV
Outer Ø ≈: 47.8 mm
Copper weight: 1,600 kg/km
Total weight ≈: 3,320 kg/km
Min. bend R (fixed): 287 mm

All sizes (10)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 6/6 & 10/10 kV
Climate class: Tropical T1
Conductor: Class 5 Tinned
Insulation: Ozone-Proof EPR
Outer sheath: Tropical PCP (Т)
Min. bend radius: 6×D

Typical values for this cable type, based on GOST 13497 / GOST 15150-T (КГЭТ) — confirmed in the datasheet and quotation for your order.

Application fit

Is KGET right for your machine?

Engineered for open-pit bauxite, laterite nickel, copper, iron-ore, and phosphate mines operating electric rope shovels and draglines in high-humidity tropical and subtropical regions.

Trailing & towing

Suitable

Tropicalised polychloroprene sheath resists red-laterite abrasion, monsoon mud, and solar UV.

Drilling jumbo & rotary mast feed

Suitable

Supplies 6 kV and 10 kV rotary blast-hole drills on high-temperature open-cast benches.

Motorised monospiral reel

Suitable

Suitable for excavator cable reels and pit-bench cable carrier cars.

Immersion & wet locations

Suitable

Withstands tropical monsoon flooding and 98 % relative humidity at +45 °C.

Mine roadway & tunnel wall hangers

With conditions

Designed for surface mines; for underground coal faces use KGESh or KGETSh.

KGETSh

Typical machinesTropical open-pit bauxite & nickel minesEquatorial copper, gold & iron mines6 kV & 10 kV electric rope shovelsMonsoon-zone quarry & dredger feeders

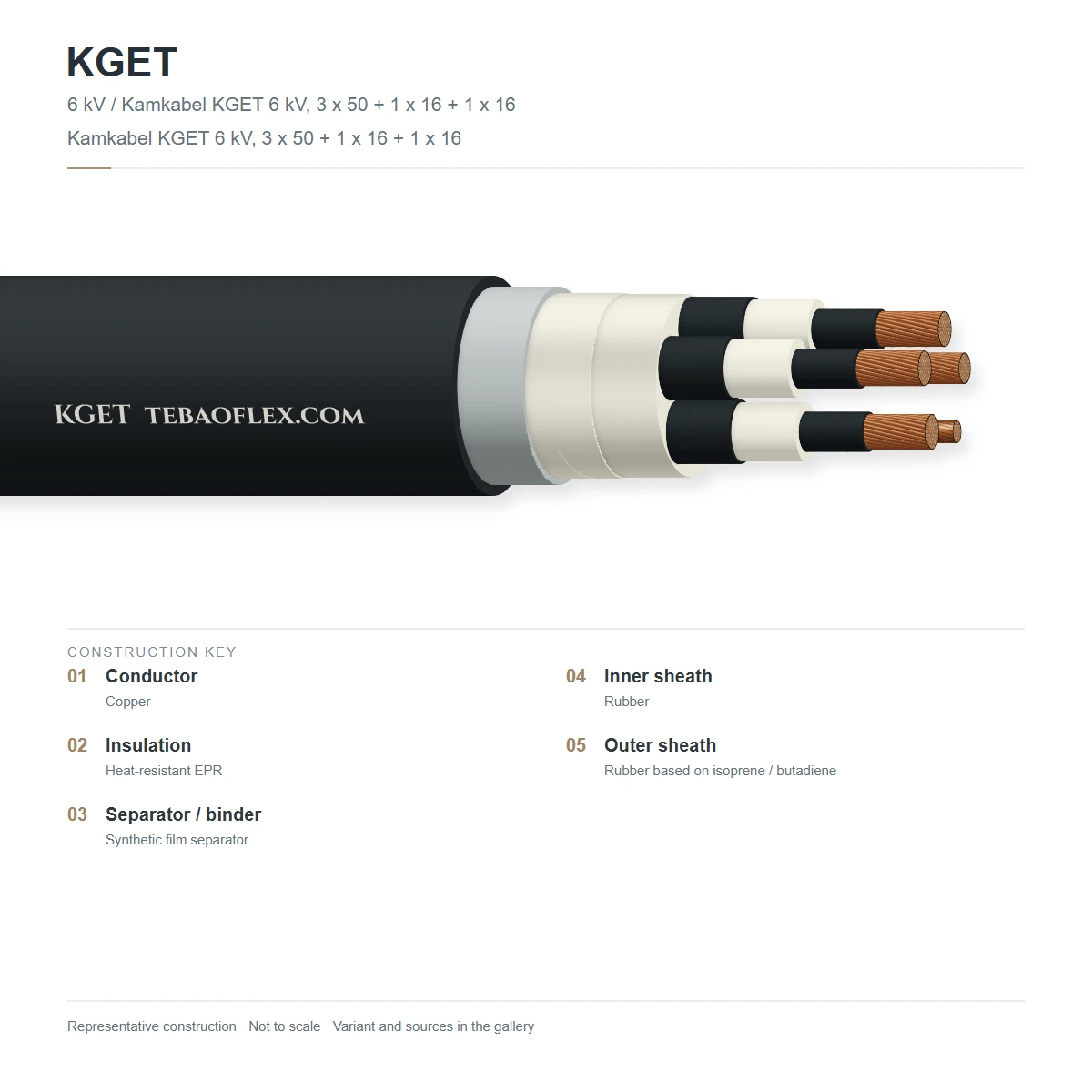

Construction

Layer by layer

Three Class 5 tinned copper 6 kV or 10 kV phase conductors, inner and outer semi-conductive rubber screens (Э), ozone-proof EPR

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Tinned copper conductors	Finely stranded tinned annealed copper, Class 5 per GOST 22483 / IEC 60228GOST 22483 Class 5
2	Central semi-conductive cradle	Tropicalised conductive elastomer cradle separating phase and earth coresGOST 13497
3	Inner conductor screen	Extruded semi-conductive rubber stress-control layerGOST 13497
4	Tropicalised MV EPR insulation	Ozone- and thermal-ageing-resistant ethylene-propylene rubber (+85/+90 °C)GOST 13497
5	Outer core screen (Э)	Semi-conductive rubber screen in continuous contact with the earth coreGOST 13497
6	Tropical outer sheath (Т)	Fungistatic, termite-deterrent, UV- and oil-resistant polychloroprene compoundGOST 15150-T / GOST 13497

KGET 6 kV (3×16..150 + 1×E)

6/6 kV (3.6/6 kV) tropical-grade excavator trailing cable.

KGET 10 kV (3×25..120 + 1×E)

10/10 kV (6/10 kV) tropical-grade high-voltage shovel & dragline trailing cable.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on GOST 13497 / GOST 15150-T (КГЭТ). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage: 6 kV (3.6/6 kV) & 10 kV (6/10 kV) AC, 50/60
AC routine test voltage: 15 kV rms (6 kV) · 20 kV rms (10 kV) / 5 min
Auxiliary / earth core rating: 380 V AC
Semi-conductive screen resistivity: ≤ 250 Ω·cm

Thermal

Max. conductor operating temp.: +85 °C / +90 °C continuous
Ambient temperature range: -20 °C to +55 °C (solar surface up to +75 °C)
Relative humidity rating: Up to 98 % RH at +35 °C per GOST 15150-T1

Mechanical

Min. bending radius: 6 × cable outer diameter
Max. tensile load on copper: 19.6 N/mm² (2.0 kgf/mm²)

Resistance

Mould & fungus resistance: GOST 9.048 / IEC 60068-2-10 zero fungal
Solar UV & ozone resistance: Intense equatorial solar radiation stabilised
Oil & flame resistance: GOST IEC 60332-1-2 & EN 60811-404

Reference standards

Primary specification: GOST 13497 / GOST 15150-T1 (КГЭТ)
Conductor standard: GOST 22483 / IEC 60228 Class 5 tinned copper

Identification

Core coding: 3 screened MV phase cores + 1
Outer sheath colour: Yellow, Orange, or Black with embossed

Sizes

10 standard configurations (KGET)

Nominal dimensions, copper weights and electrical parameters for KGET per GOST 13497 / GOST 15150-T (КГЭТ).

Dimensions & weights
Order designation	Configuration	Phase size mm²	Outer Ø ≈ mm	Copper kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard KGET configurations
KGET 3×16+1×10 - 6 kV	3×16 + 1×10 (6/6 kV)	16	36.5	560	1,710	219
KGET 3×25+1×10 - 6 kV	3×25 + 1×10 (6/6 kV)	25	40.0	820	2,150	240
KGET 3×35+1×10 - 6 kV	3×35 + 1×10 (6/6 kV)	35	43.2	1,110	2,610	259
KGET 3×50+1×16 - 6 kV	3×50 + 1×16 (6/6 kV)	50	47.8	1,600	3,320	287
KGET 3×70+1×25 - 6 kV	3×70 + 1×25 (6/6 kV)	70	53.0	2,260	4,250	318
KGET 3×95+1×35 - 6 kV	3×95 + 1×35 (6/6 kV)	95	58.8	3,095	5,420	353
KGET 3×120+1×50 - 6 kV	3×120 + 1×50 (6/6 kV)	120	64.0	3,960	6,590	384
KGET 3×35+1×10 - 10 kV	3×35 + 1×10 (10/10 kV)	35	48.5	1,110	3,120	291
KGET 3×50+1×16 - 10 kV	3×50 + 1×16 (10/10 kV)	50	53.2	1,600	3,890	319
KGET 3×70+1×25 - 10 kV	3×70 + 1×25 (10/10 kV)	70	58.5	2,260	4,890	351

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per GOST 13497 / GOST 15150-T (КГЭТ).

Electrical & ampacity data
Configuration	Max. DC R @ 20 °C Ω/km	Current rating in air (A)	Current rating installed (A)	Mutual C pF/m ≈	AC test V rms
3×16 + 1×10 (6/6 kV)	1.240	93	79	136	11,000
3×25 + 1×10 (6/6 kV)	0.799	122	104	151	11,000
3×35 + 1×10 (6/6 kV)	0.568	150	128	168	11,000
3×50 + 1×16 (6/6 kV)	0.396	187	159	192	11,000
3×70 + 1×25 (6/6 kV)	0.279	229	195	226	11,000
3×95 + 1×35 (6/6 kV)	0.211	276	235	267	11,000
3×120 + 1×50 (6/6 kV)	0.165	319	271	308	11,000
3×35 + 1×10 (10/10 kV)	0.568	150	128	168	17,000
3×50 + 1×16 (10/10 kV)	0.396	187	159	192	17,000
3×70 + 1×25 (10/10 kV)	0.279	229	195	226	17,000

Current ratings apply at +30 °C ambient in free air; apply standard derating factors for elevated ambient or drum layers.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
15 kV / 20 kV AC dielectric test	15 kV (6 kV) or 20 kV (10 kV) rms for 5 min	100 % of drums
Semi-conductive screen resistance	≤ 250 Ω·cm per GOST 13497	100 % of drums
Sample tests
Tropical damp-heat & ozone test	GOST 15150-T1 98 % RH & ozone chamber check	Per production batch
Mould & solar radiation resistance	GOST 9.048 fungistatic & UV weathering test	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

GOST 13497GOST 15150-T1EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX KGET (КГЭТ) 6 kV / 10 kV TROPICAL

Delivery form: Fumigated export wooden drums
Standard drum lengths: 300 m · 500 m · 1000 m (or custom cut
MOQ: 100 m (stock sizes) · 300 m (custom build)
Lead time: 3–5 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFKGET Tropical-Grade Screened Excavator Rubber Trailing Cable – technical datasheet10 sizes · construction, technical data, approvals XLSXKGET spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does KGET (КГЭТ) differ from standard KGE (КГЭ)?

While both are 6 kV/10 kV screened open-pit excavator trailing cables per GOST 13497, KGET ('Т' = тропическое исполнение) is specifically engineered for tropical and equatorial surface mines with tinned copper conductors, ozone/UV-stabilised EPR, and a fungistatic, termite-resistant polychloroprene jacket. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

Why are tinned copper conductors used in KGET?

In tropical open-pit mines operating at +40 °C to +55 °C with 98 % relative humidity and acidic laterite groundwater, bare copper wires rapidly oxidize and turn brittle. Tinning every Class 5 copper strand prevents sulphide and moisture corrosion. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

Can KGET be supplied for 10 kV open-pit shovel distribution systems?

Yes. KGET is manufactured in both 6/6 kV (tested at 15 kV AC) and 10/10 kV (tested at 20 kV AC) voltage classes to power large electric rope shovels, walking draglines, and mobile pit crushers. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

Does the tropical jacket resist cracking under intense equatorial sun?

Yes. The outer polychloroprene compound incorporates UV absorbers and antiozonants verified under GOST 15150-T1 solar radiation exposure so the cable can lie on sunlit quarry benches without surface crazing. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
