GOST KGE / KGESh screened mining & excavator cablesGOST 24334380/660 V · 660/1140 VPhase & Control Screened (КГЭШ)

KGESh Screened Mine Excavator and Underground Trailing CableGOST 24334 380/660 V & 660/1140 V screened underground mine & roadheader trailing cable

KGESh (КГЭШ) is the workhorse GOST 24334 380/660 V and 660/1140 V screened flexible rubber trailing cable for underground coal mines, roadheaders, drilling rigs, and loading machines, featuring individual semi-conductive elastomeric screens over every

EMC screen

Oil-resistant

Flame-retardant

Anti-torsion braid

Configuration

Order designation: KGESh 3×16+1×10+3×2.5 - 1140 V
Outer Ø ≈: 31.8 mm
Copper weight: 630 kg/km
Total weight ≈: 1,360 kg/km
Min. bend R (fixed): 159 mm

All sizes (10)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 660/1140 V
Conductor: Class 5 Cu
Screening: Semicon Rubber Э
Insulation: RTI-1 / EPR
Outer sheath: RShN-1 Mine PCP
Min. bend radius: 5×D

Typical values for this cable type, based on GOST 24334 / TU 16.K73.05 (КГЭШ) — confirmed in the datasheet and quotation for your order.

Application fit

Is KGESh right for your machine?

Designed for general underground mine trailing duty on roadheaders, shuttle cars, face loaders, feeder breakers, and mobile gate-end switchgear at 660 V and 1140 V.

Mine roadway & tunnel wall hangers

Suitable

Individual semi-conductive rubber screens trip mine leakage relays before phase-to-phase arcing can ignite methane.

Trailing & towing

Suitable

Flexible 5×D construction trails smoothly behind roadheaders, loaders, and drilling carriages.

Longwall shearer & Bretby handler

Suitable

Non-metallic conductive rubber screens resist wire fatigue in cable handler troughs.

Fixed installation

Suitable

Widely hung on roadway gallery hooks to interconnect gate-end boxes and face fans.

Vertical / spreader reel

Not suitable

For steep seams or high tensile loads use steel-reinforced KGEZhTSh.

KGEZhTSh

Typical machinesUnderground coal & ore minesRoadheaders & gallery loadersUnderground drilling & bolting rigsGate-end starter interconnect

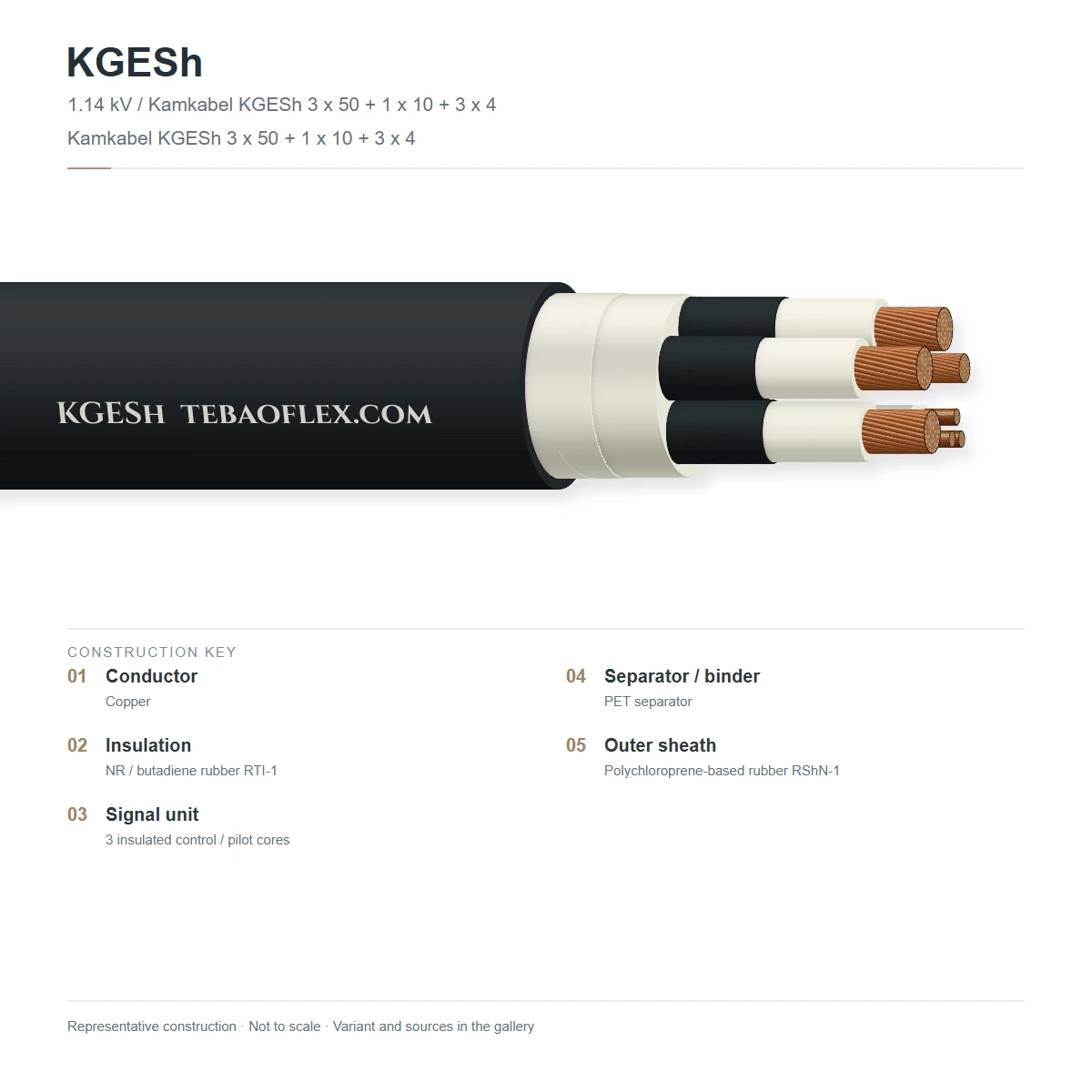

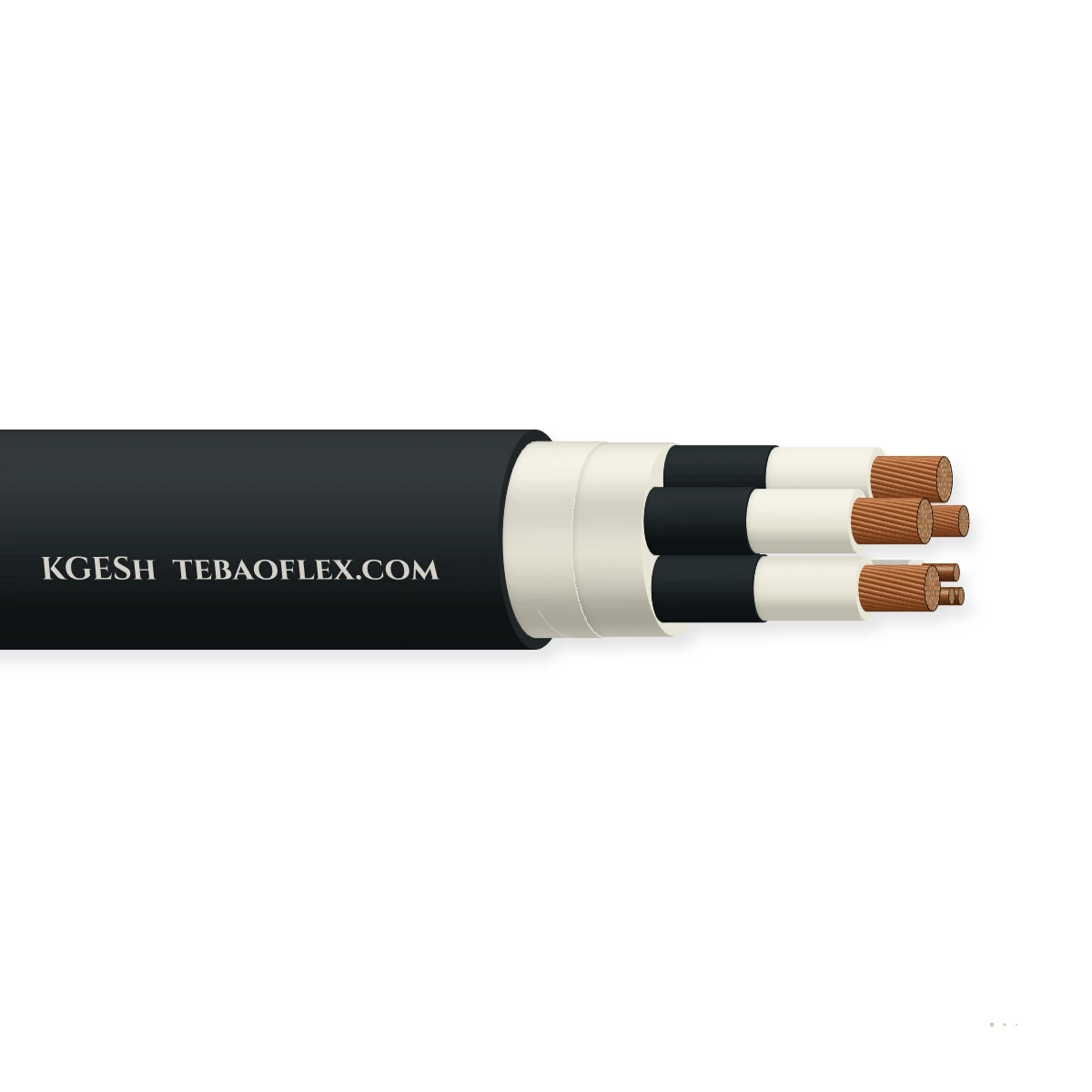

Construction

Layer by layer

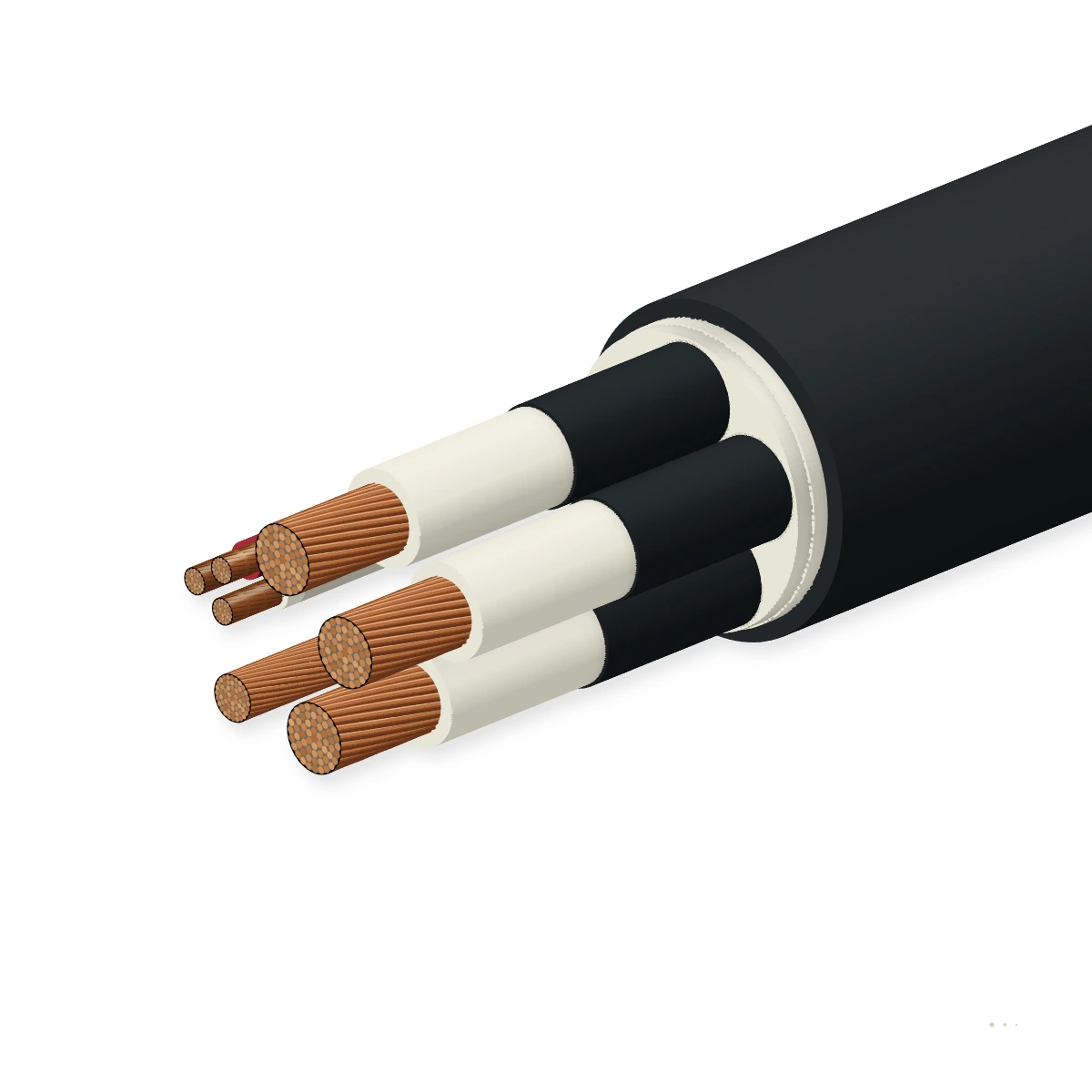

Three Class 5 flexible copper power cores + 1 earth conductor + 1 to 3 control cores, individual semi-conductive rubber screens (Э) over

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Phase, earth & control conductors	Finely stranded annealed copper, Class 5 per GOST 22483 / IEC 60228GOST 22483 Class 5
2	Semi-conductive centre cradle	Extruded conductive rubber core maintaining electrical contact between screens and earthGOST 24334
3	Core insulation	Insulating rubber RTI-1 (+75 °C) or ethylene-propylene rubber EPR (+90 °C)GOST 24334
4	Individual core screens (Э)	Extruded semi-conductive rubber layer over each power and control core (≤ 300 Ω·cm)GOST 24334
5	Flame-retardant mine sheath (Ш)	Heavy-duty flame-retardant, oil- and tear-resistant polychloroprene RShN-1GOST 24334

KGESh 660/1140 V (3P+1E+1..3C)

Standard 1140 V screened underground mine trailing cable for shearers, roadheaders, and loaders.

KGESh 380/660 V (3P+1E+1C)

Compact 660 V screened trailing cable for underground drills, pumps, and auxiliary face equipment.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on GOST 24334 / TU 16.K73.05 (КГЭШ). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 660/1140 V (0.66/1.14 kV) & 380/660 V AC
AC routine test voltage: 3.5 kV rms (1140 V) · 2.5 kV rms (660 V)
Specific volume resistance of: ≤ 300 Ω·cm per GOST 24334
Insulation resistance @ 20 °C: ≥ 50 MΩ·km

Thermal

Max. conductor operating temp.: +75 °C (+90 °C with EPR insulation)
Max. short-circuit temperature: +200 °C / +250 °C (5 s)
Ambient temperature range: -30 °C to +50 °C

Mechanical

Min. bending radius: 5 × cable outer diameter
Max. tensile load on copper: 19.6 N/mm² (2.0 kgf/mm²)
Torsional flexibility: ±180°/m without screen cracking

Resistance

Flame retardancy: GOST IEC 60332-1-2 underground mine flame
Oil & mine water resistance: GOST 24334 RShN-1 polychloroprene
Cold bend resilience: Tested down to -30 °C (-50 °C in HL

Reference standards

Primary specification: GOST 24334 (КГЭШ)
Conductor standard: GOST 22483 / IEC 60228 Class 5

Identification

Core coding: Color/numbered power cores + earth +
Outer sheath colour: Yellow or Black with embossed КГЭШ 1140 В

Sizes

10 standard configurations (KGESh)

Nominal dimensions, copper weights and electrical parameters for KGESh per GOST 24334 / TU 16.K73.05 (КГЭШ).

Dimensions & weights
Order designation	Configuration	Phase size mm²	Outer Ø ≈ mm	Copper kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard KGESh configurations
KGESh 3×4+1×4+1×2.5 - 660 V	3×4 + 1×4E + 1×2.5 (660 V)	4	20.5	178	540	102
KGESh 3×6+1×6+1×2.5 - 660 V	3×6 + 1×6E + 1×2.5 (660 V)	6	22.4	255	660	112
KGESh 3×10+1×10+3×2.5 - 1140 V	3×10 + 1×10E + 3×2.5 (1140 V)	10	28.5	455	1,080	142
KGESh 3×16+1×10+3×2.5 - 1140 V	3×16 + 1×10E + 3×2.5 (1140 V)	16	31.8	630	1,360	159
KGESh 3×25+1×10+3×2.5 - 1140 V	3×25 + 1×10E + 3×2.5 (1140 V)	25	35.5	890	1,750	178
KGESh 3×35+1×10+3×2.5 - 1140 V	3×35 + 1×10E + 3×2.5 (1140 V)	35	38.8	1,180	2,180	194
KGESh 3×50+1×16+3×2.5 - 1140 V	3×50 + 1×16E + 3×2.5 (1140 V)	50	43.2	1,670	2,820	216
KGESh 3×70+1×25+3×2.5 - 1140 V	3×70 + 1×25E + 3×2.5 (1140 V)	70	48.5	2,330	3,680	242
KGESh 3×95+1×35+3×2.5 - 1140 V	3×95 + 1×35E + 3×2.5 (1140 V)	95	53.8	3,160	4,720	269
KGESh 3×120+1×35+3×2.5 - 1140 V	3×120 + 1×35E + 3×2.5 (1140 V)	120	58.2	3,880	5,640	291

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per GOST 24334 / TU 16.K73.05 (КГЭШ).

Electrical & ampacity data
Configuration	Max. DC R @ 20 °C Ω/km	Current rating in air (A)	Current rating installed (A)	Mutual C pF/m ≈	AC test V rms
3×4 + 1×4E + 1×2.5 (660 V)	5.074	40	34	117	3,500
3×6 + 1×6E + 1×2.5 (660 V)	3.382	51	43	120	3,500
3×10 + 1×10E + 3×2.5 (1140 V)	1.958	70	60	126	3,500
3×16 + 1×10E + 3×2.5 (1140 V)	1.240	93	79	136	3,500
3×25 + 1×10E + 3×2.5 (1140 V)	0.799	122	104	151	3,500
3×35 + 1×10E + 3×2.5 (1140 V)	0.568	150	128	168	3,500
3×50 + 1×16E + 3×2.5 (1140 V)	0.396	187	159	192	3,500
3×70 + 1×25E + 3×2.5 (1140 V)	0.279	229	195	226	3,500
3×95 + 1×35E + 3×2.5 (1140 V)	0.211	276	235	267	3,500
3×120 + 1×35E + 3×2.5 (1140 V)	0.165	319	271	308	3,500

Current ratings apply at +30 °C ambient in free air; apply standard derating factors for elevated ambient or drum layers.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC voltage withstand test	3.5 kV rms (1140 V) or 2.5 kV rms (660 V) / 5 min	100 % of drums
Semi-conductive screen resistivity	≤ 300 Ω·cm per GOST 24334	100 % of drums
Sample tests
Roller-bench flexing & torsion test	GOST 24334 cyclic flex without screen discontinuity	Per production batch
Mine flame propagation test	GOST IEC 60332-1-2 self-extinguishing	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

GOST 24334TU 16.K73.05EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX KGESh (КГЭШ) 660/1140V GOST 24334

Delivery form: Fumigated export wooden drums
Standard drum lengths: 300 m · 500 m · 1000 m (or custom cut
MOQ: 100 m (stock sizes) · 300 m (custom build)
Lead time: 3–5 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFKGESh Screened Mine Excavator and Underground Trailing Cable – technical datasheet10 sizes · construction, technical data, approvals XLSXKGESh spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does KGESh (КГЭШ) stand for in the GOST mining cable system?

'К' stands for Кабель (cable), 'Г' stands for Гибкий (flexible), 'Э' stands for Экранированный (screened), and 'Ш' stands for Шахтный (underground mine duty). It is the standard screened flexible rubber trailing cable for 380/660 V and 660/1140 V underground coal and ore mining machinery.

Why are both the power cores and the control cores individually screened in KGESh?

In gassy underground coal mines, any damage that bridges a live 1140 V power core to a low-voltage pilot core could inject hazardous voltage into remote control stations. Surrounding both power and control cores with grounded semi-conductive elastomeric screens ensures immediate relay tripping. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

When should I upgrade from KGESh to KGETSh or KGEZhTSh?

Use standard KGESh for general underground roadheaders, face loaders, and drilling rigs. Upgrade to KGETSh ('Т' = тяжелый heavy-duty) for severe mechanical impact on high-power shearers, or KGEZhTSh ('Ж' = steel-rope reinforced) when steep seams or long trailing pulls impose high axial tension. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

Can KGESh be supplied with +90 °C EPR insulation instead of +75 °C rubber?

Yes. We supply KGESh with ethylene-propylene rubber (EPR) insulation rated for +90 °C continuous conductor operation, providing higher current ratings and superior thermal ageing life in warm deep-mine headings. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
