Fixed installation
Low-inductance twisted pairs (≥ 6 twists/ft) and PE insulation prevent 20–150 kHz loop detuning on 300+ m runs.
Product

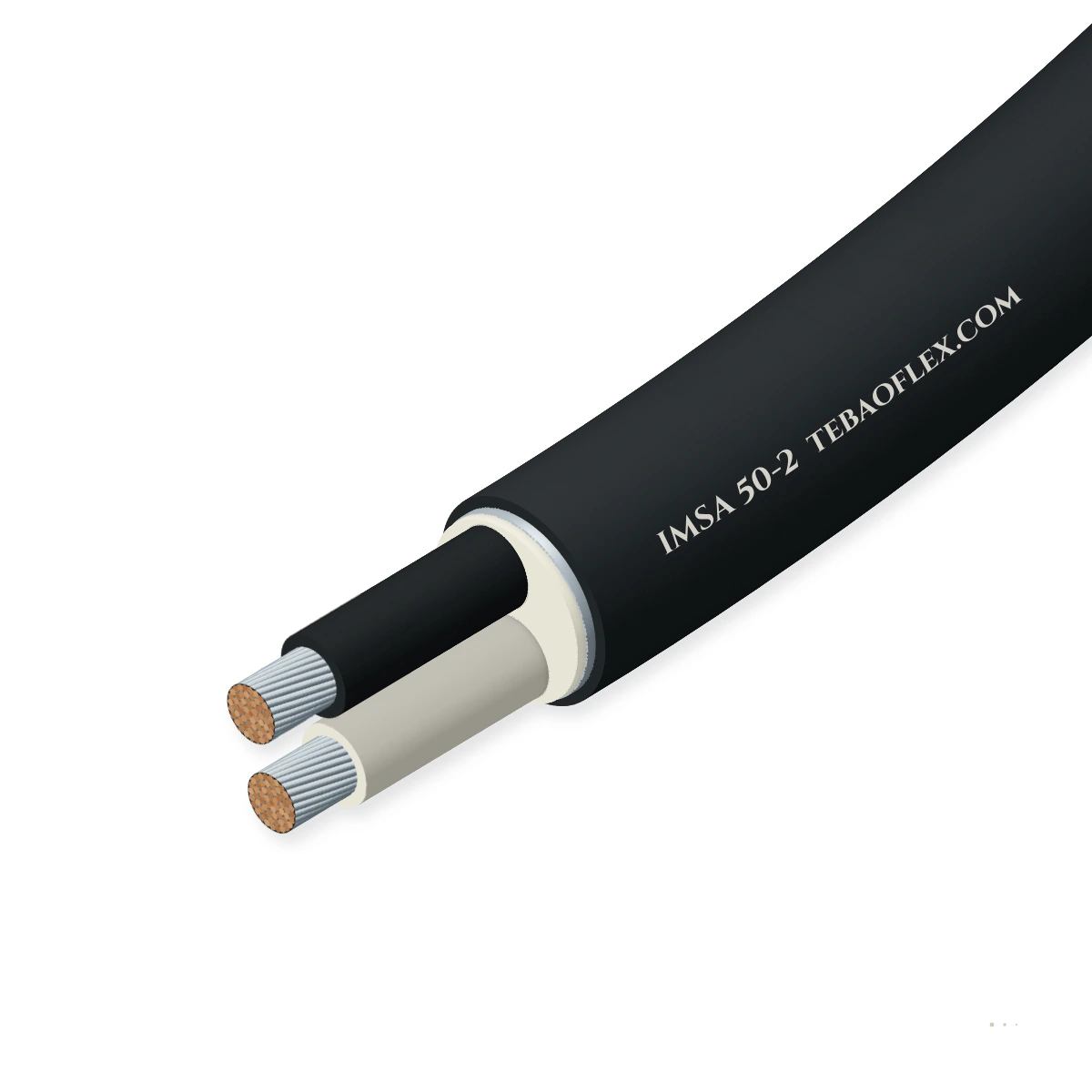

IMSA 50-2 loop-detector lead-in traffic signal cable (IMSA Spec 50-2, 600 V, -40 to +80 °C) connecting roadway inductive vehicle loops to controller cabinets via 18–12 AWG tinned copper twisted pairs, PE insulation, 100 % Al/PET foil shield, and HDPE jacket.
Typical values for this cable type, based on IMSA Specification 50-2 (1984 / 2012) Shielded Loop-Detector Lead-In Cable — confirmed in the datasheet and quotation for your order.
Application fit
Select IMSA 50-2 as the shielded home-run lead-in feeder from roadside pull boxes to NEMA TS2 / 170 / ATC traffic signal cabinets, toll-plaza vehicle classifiers, and parking gate loop amplifiers.
Low-inductance twisted pairs (≥ 6 twists/ft) and PE insulation prevent 20–150 kHz loop detuning on 300+ m runs.
100 % Al/PET foil shield and Sn-Cu drain wire rejects 60 Hz AC street-lighting hum and adjacent loop crosstalk.
Polyethylene core insulation and carbon-black HDPE outer jacket resist flooded roadside handholes, de-icing road salts, and wet conduits.
Designed for fixed underground conduit and aerial span-wire messenger routing, not dynamic drag chains.
Use JZ-50440 CP for drag-chain controlConstruction

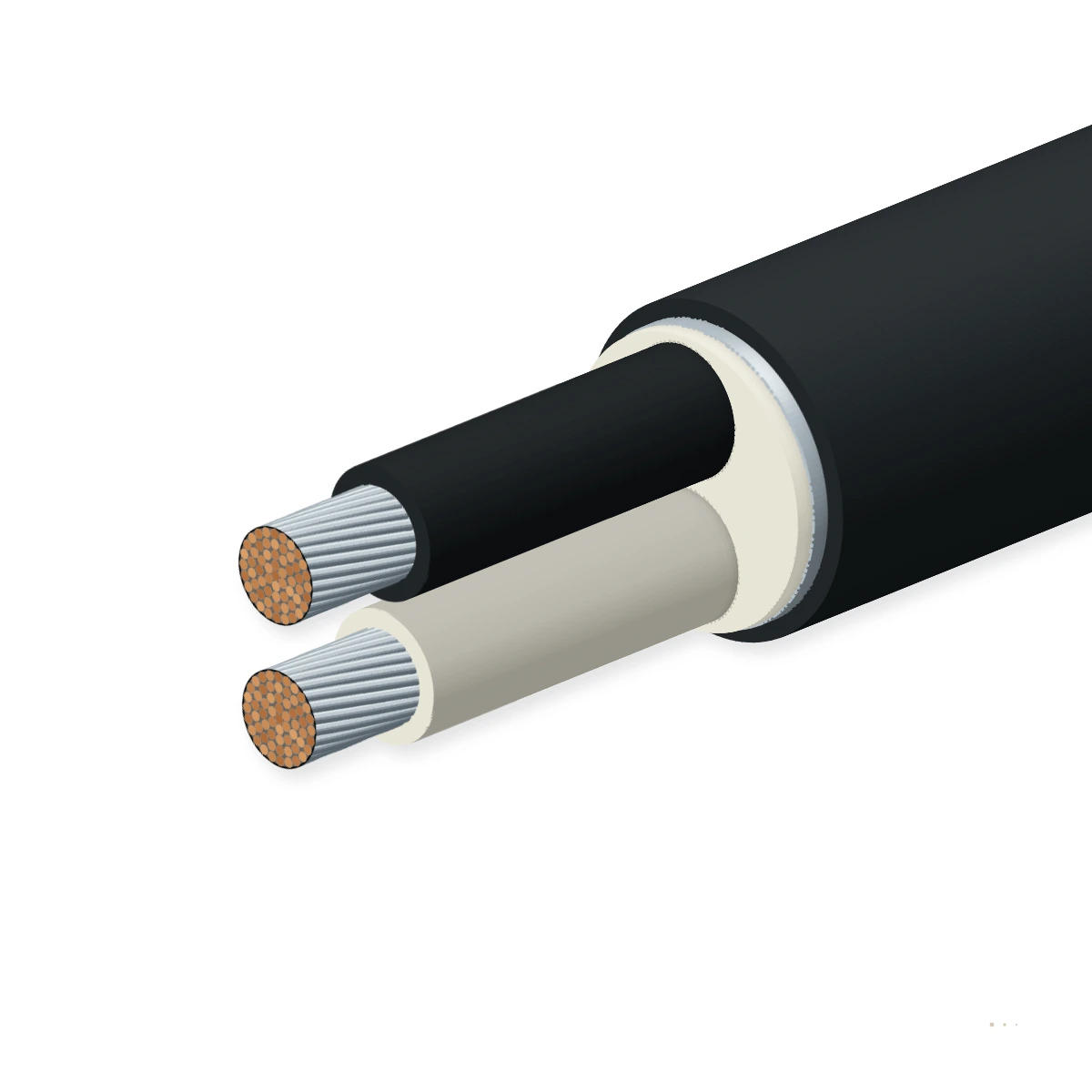

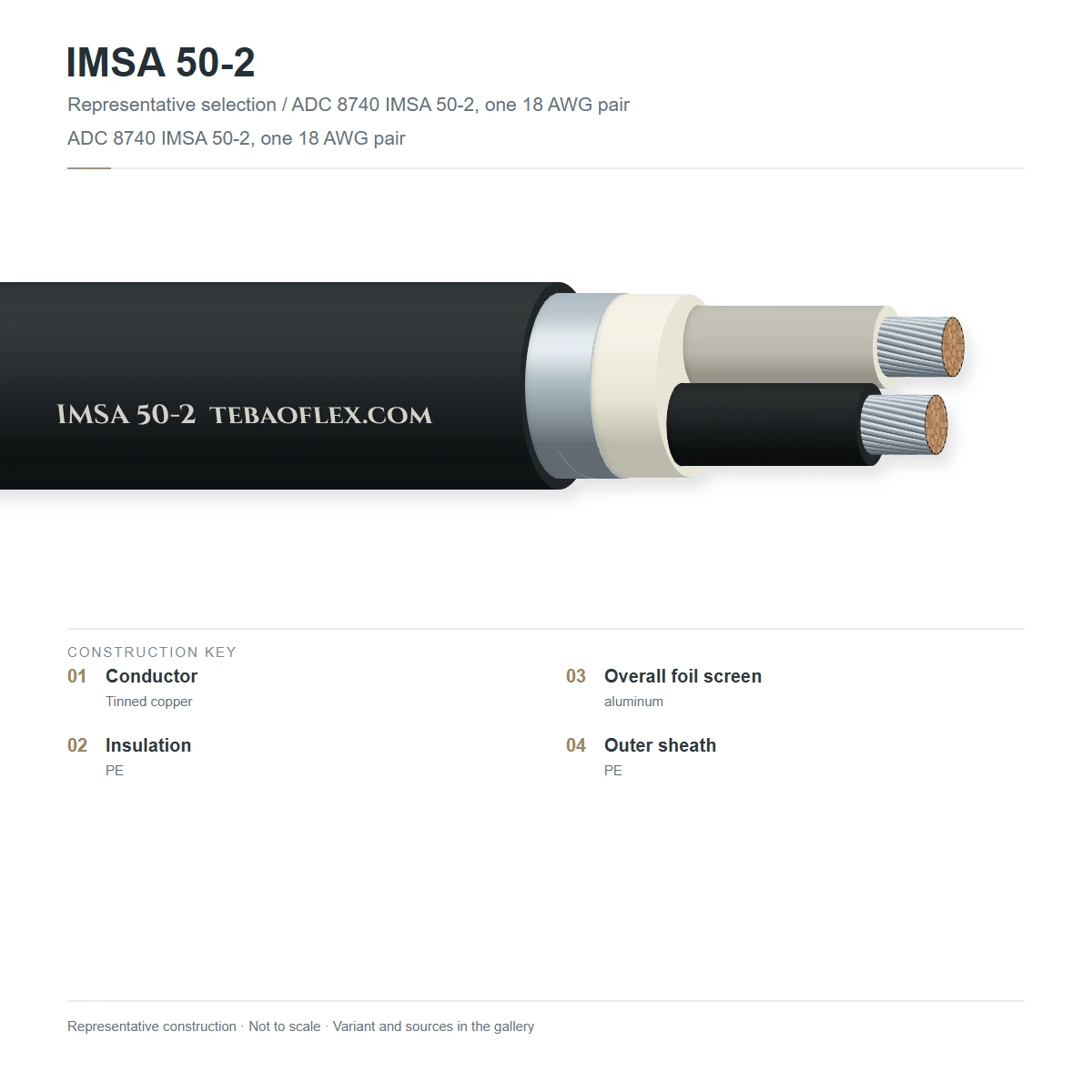

IMSA 50-2 construction: 7- or 19-strand tinned copper conductors (18, 16, 14, or 12 AWG), PE insulation, tightly twisted pairs, 100 % aluminum-polyester foil shield + tinned copper drain wire, and UV-resistant black PE outer jacket.
| # | Layer | Material & reference |
|---|---|---|
| 1 | Stranded tinned copper pairs | Concentric stranded tinned copper per ASTM B33 (18 AWG 7/19-strand, 16 AWG, 14 AWG, or 12 AWG)Tin coating prevents corrosion inside damp roadside splice boxes |
| 2 | Low-capacitance PE insulation | Low-density or high-molecular-weight polyethylene (color-coded per IMSA Table: Black/Red, Black/White, etc.)Low capacitance (~65–80 pF/ft) keeps loop resonant frequency stable |
| 3 | 100 % Al/PET shield + drain wire | Aluminum-polyester foil tape (100 % coverage) with 20–16 AWG stranded tinned copper drain wireBlocks electrostatic interference from 120/240 V traffic signal lamp conductors |
| 4 | Black polyethylene outer jacket | Weather- and moisture-resistant black polyethylene per ICEA S-61-402 / IMSA 50-2Smooth low-friction jacket for long underground conduit pulls and aerial lashings |
1-pair overall foil-shielded loop detector lead-in cable for single intersection loops
2-pair, 3-pair, 4-pair, and 6-pair individually foil-shielded lead-in trunk cable for multi-lane approaches
Technical data
Sizes
Engineering dimensions, conductor stranding, mass and electrical ratings for IMSA 50-2 per IMSA Specification 50-2 (1984 / 2012) Shielded Loop-Detector Lead-In Cable.
| Order designation | Cross-section / size | Conductor build | Wall ≈ mm | Outer Ø ≈ mm | Metal kg/km | Weight ≈ kg/km | Min. bend R fixed mm | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Standard IMSA 50-2 configurations | ||||||||
| IMSA 50-2 1PR 18AWG | 1 PR × 18 AWG | Solid / Stranded Cu | 1.10 | 6.10 | 18.9 | 43.0 | 61 | |
| IMSA 50-2 1PR 16AWG | 1 PR × 16 AWG | Solid / Stranded Cu | 1.10 | 6.90 | 25.5 | 58.0 | 69 | |
| IMSA 50-2 1PR 14AWG | 1 PR × 14 AWG | Solid / Stranded Cu | 1.10 | 7.90 | 34.8 | 79.0 | 79 | |
| IMSA 50-2 1PR 12AWG | 1 PR × 12 AWG | Solid / Stranded Cu | 1.10 | 9.10 | 49.3 | 112.0 | 91 | |
| IMSA 50-2 2PR 18AWG | 2 PR × 18 AWG | Solid / Stranded Cu | 1.10 | 9.40 | 37.8 | 86.0 | 94 | |
| IMSA 50-2 2PR 16AWG | 2 PR × 16 AWG | Solid / Stranded Cu | 1.17 | 10.60 | 50.6 | 115.0 | 106 | |
| IMSA 50-2 2PR 14AWG | 2 PR × 14 AWG | Solid / Stranded Cu | 1.31 | 11.90 | 68.2 | 155.0 | 119 | |
| IMSA 50-2 3PR 18AWG | 3 PR × 18 AWG | Solid / Stranded Cu | 1.12 | 10.20 | 49.3 | 112.0 | 102 | |
| IMSA 50-2 4PR 18AWG | 4 PR × 18 AWG | Solid / Stranded Cu | 1.23 | 11.20 | 62.5 | 142.0 | 112 | |
| IMSA 50-2 6PR 18AWG | 6 PR × 18 AWG | Solid / Stranded Cu | 1.49 | 13.50 | 90.2 | 205.0 | 135 | |
| IMSA 50-2 4PR 14AWG | 4 PR × 14 AWG | Solid / Stranded Cu | 1.56 | 14.20 | 116.6 | 265.0 | 142 | |
| IMSA 50-2 6PR 14AWG | 6 PR × 14 AWG | Solid / Stranded Cu | 1.90 | 17.30 | 169.4 | 385.0 | 173 | |
| Configuration | Max. DC R @ 20 °C Ω/km | Primary rating (A or nF/km) | Secondary rating | Dielectric test V AC rms |
|---|---|---|---|---|
| 1 PR × 18 AWG | 21.40 | 10.0 | 8.5 | 2,000 |
| 1 PR × 16 AWG | 13.50 | 10.0 | 8.5 | 2,000 |
| 1 PR × 14 AWG | 8.50 | 18.0 | 15.3 | 2,000 |
| 1 PR × 12 AWG | 5.40 | 18.0 | 15.3 | 2,000 |
| 2 PR × 18 AWG | 21.40 | 10.0 | 8.5 | 2,000 |
| 2 PR × 16 AWG | 13.50 | 10.0 | 8.5 | 2,000 |
| 2 PR × 14 AWG | 8.50 | 18.0 | 15.3 | 2,000 |
| 3 PR × 18 AWG | 21.40 | 10.0 | 8.5 | 2,000 |
| 4 PR × 18 AWG | 21.40 | 10.0 | 8.5 | 2,000 |
| 6 PR × 18 AWG | 21.40 | 10.0 | 8.5 | 2,000 |
| 4 PR × 14 AWG | 8.50 | 18.0 | 15.3 | 2,000 |
| 6 PR × 14 AWG | 8.50 | 18.0 | 15.3 | 2,000 |
Quality & approvals
Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.
| Testing & inspection | Test value / reference | Frequency |
|---|---|---|
| Routine tests | ||
| Dielectric spark / high-voltage withstand test | 100 % in-line spark and AC/DC dielectric withstand per IMSA Specification 50-2 (1984 / 2012) Shielded Loop-Detector Lead-In Cable | Every manufactured length |
| Conductor DC resistance & continuity check | Within maximum 20 °C resistance limit specified for IMSA 50-2 | Every spool or drum length |
| Sample tests | ||
| Insulation resistance & dimensional verification | Wall thickness, concentricity and insulation resistance per IMSA Specification 50-2 (1984 / 2012) Shielded Loop-Detector Lead-In Cable | Per production batch |
| Environmental, mechanical & EMC qualification | Qualified to IMSA Specification 50-2 (1984 / 2012) Shielded Loop-Detector Lead-In Cable thermal, mechanical and environmental performance criteria | Type qualification |
