NACE SP0169 ECTFE/HMWPE CP cableNACE SP0169 · 600 V DC ICCPECTFE Fluoropolymer + HMWPENascent Chlorine (Cl₂) & Brine Proof

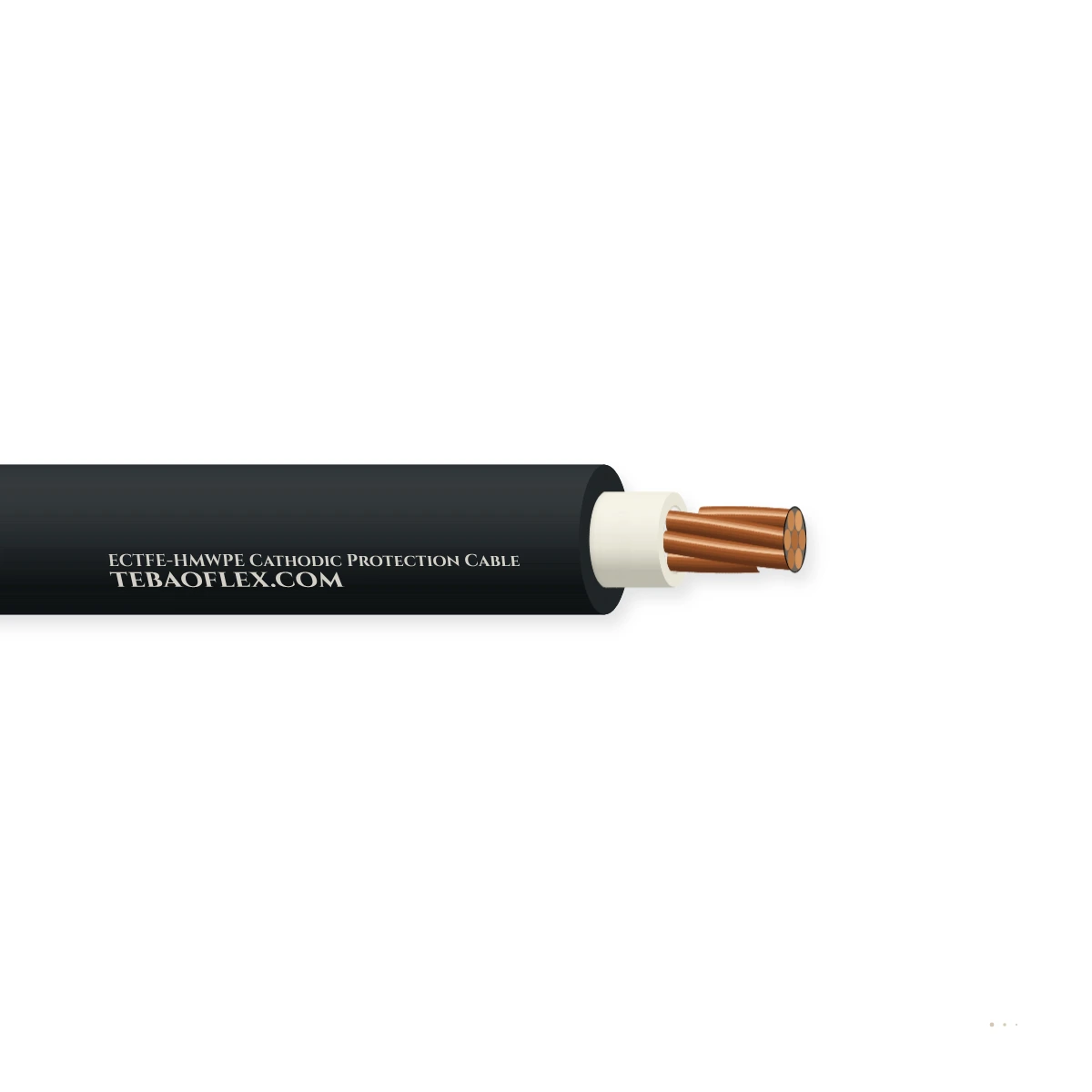

ECTFE-HMWPE Cathodic Protection Cable600 V DC dual-layer ECTFE fluoropolymer + HMWPE deep-anode cathodic protection cable

Severe-duty Impressed Current Cathodic Protection (ICCP) deep-anode bed lead cable (ECTFE-HMWPE) built to NACE SP0169, ASTM D3275 and ASTM D1248 with a 20–30 mil (0.51–0.76 mm) nascent-chlorine-impervious ECTFE fluoropolymer primary insulation and a 65.

Oil-resistant
Water-resistant
Outdoor & humid
Approved
Order designation
ECTFE/HMWPE 1×8 AWG
Outer Ø ≈
8.8 mm
Copper weight
75 kg/km
Total weight ≈
118 kg/km
Min. bend R
70 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
600 V DC / AC
impressed-current anode lead
Primary insul.
ECTFE (20–30mil)
0.51–0.76 mm fluoropolymer
Outer jacket
HMWPE (65 mil)
1.65 mm high-MW polyethylene
Conductor
8 to 1/0 AWG
7- or 19-strand annealed Cu
Service temp.
−40 to +75 °C
ECTFE core rated to +150 °C
Min. bend R
8 × OD
vertical anode borehole lowering

Typical values for this cable type, based on NACE SP0169 / ASTM D3275 / ASTM D1248 / UL 83 — confirmed in the datasheet and quotation for your order.

Application fit

Is ECTFE-HMWPE Cathodic Protection Cable right for your machine?

Specifically engineered for Individual Anode Leads in deep-well anode beds (30–150 m depth), brackish/seawater groundbeds and coke-breeze columns where anodic electrolysis generates concentrated nascent chlorine (Cl₂), hydrochloric acid (HCl, pH < 1) and oxygen gas.

TBM gantry & advancing tunnel reel

Suitable

Withstands vertical suspension in deep-well coke-breeze anode boreholes saturated with nascent Cl₂ and acidic brine.

Immersion & wet locations

Suitable

Submersible in saline groundwater, brackish estuaries and offshore/jetty impressed-current anode beds.

Fixed installation

Suitable

Routed directly from MMO/Ti or high-silicon cast-iron anodes up to the surface anode junction box.

Typical machinesDeep-Well ICCP Pipeline Anode GroundbedsTank Farm & Refinery Subsurface Cathodic ProtectionBrackish, Saline & Marine Jetty Anode BedsWater & Gas Transmission Steel Pipeline Networks

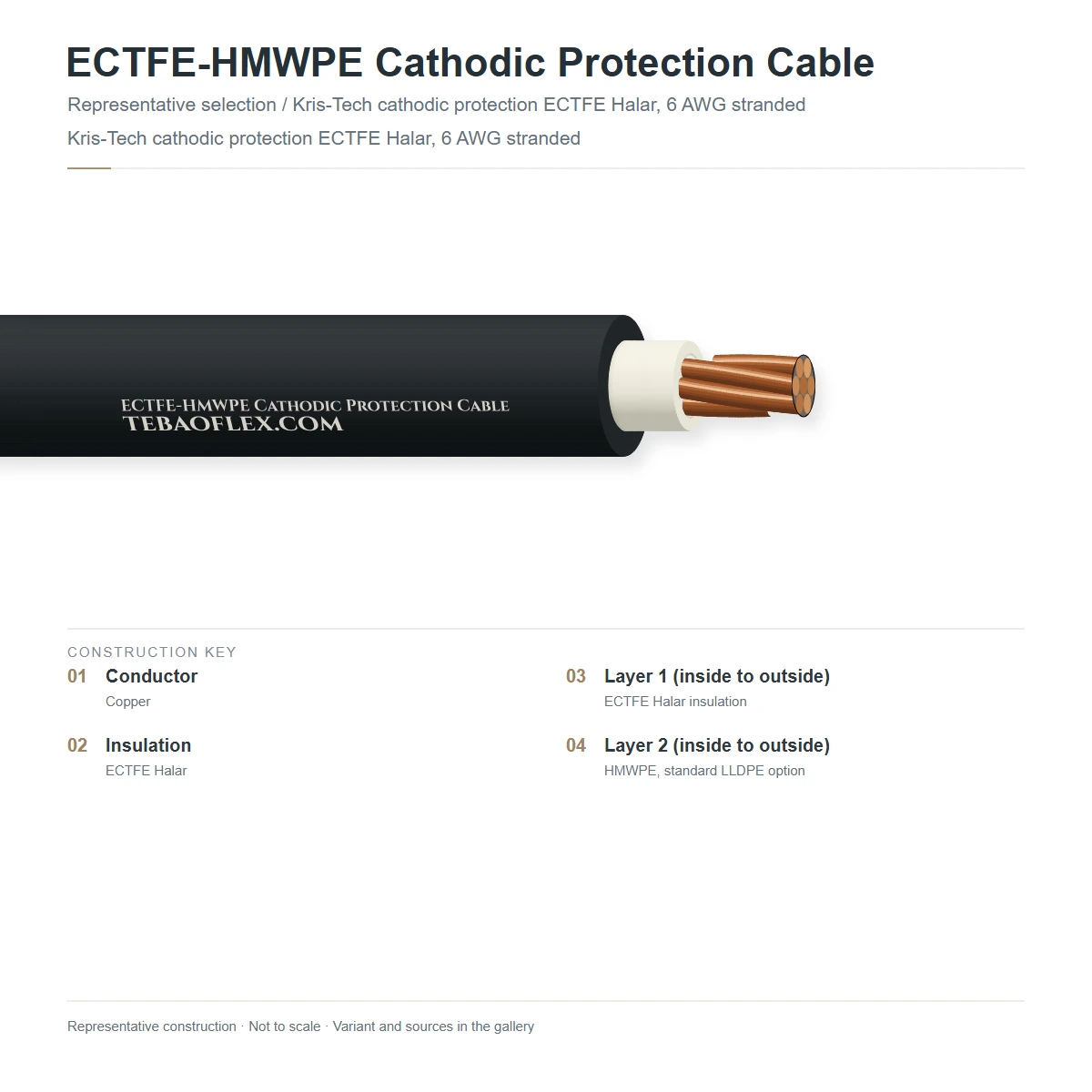

Construction

Layer by layer

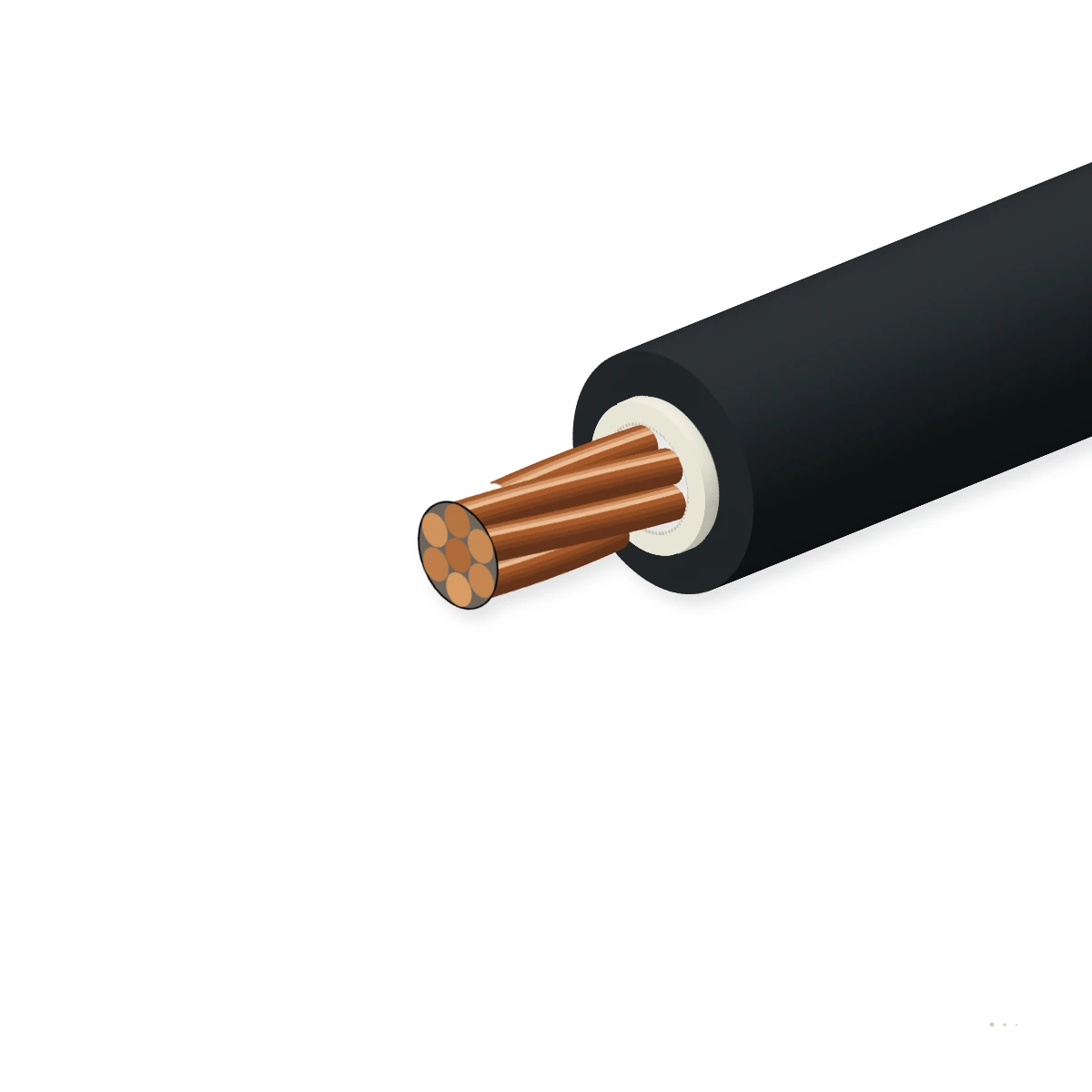

Shown: ECTFE/HMWPE 1×8 AWG (8.37 mm²) 600 V DC with 7-strand compressed annealed bare copper conductor, 0.51 mm (20 mil) virgin ECTFE fluoropolymer primary insulation and 1.65 mm (65 mil) carbon-black HMWPE outer jacket.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Concentric-lay stranded bare (or tinned) copperASTM B3 / B8 7-wire (#8–#2 AWG) or 19-wire (#1–#1/0 AWG) annealed copperLow DC voltage drop from rectifier junction box to deep MMO/cast-iron anode
2Primary ECTFE fluoropolymer chlorine barrier20 mil (0.51 mm) or 30 mil (0.76 mm) extruded Ethylene Chlorotrifluoroethylene (ASTMImpervious to nascent atomic/molecular chlorine (Cl₂) and HCl oxidation that rapidly embrittles single-layer
3Heavy-duty HMWPE outer mechanical jacket65 mil (1.65 mm) High-Molecular-Weight Polyethylene (ASTM D1248 Type I, Class C, Cat. 5Resists sharp calcined petroleum coke-breeze abrasion and borehole pulling tension

ECTFE / HMWPE Dual-Layer (Deep Anode Lead)

ECTFE fluoropolymer inner Cl₂ barrier + HMWPE outer jacket for highest shock & abrasion resistance

PVDF / HMWPE Dual-Layer

PVDF inner chlorine/bromine barrier + HMWPE outer jacket alternative

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on NACE SP0169 / ASTM D3275 / ASTM D1248 / UL 83. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated operating voltage
600 V DC / AC continuous
Dielectric spark & water-immersion test
10 kV AC dry spark test + 5.0 kV AC water-immersion dielectric test
Insulation resistance @ 20 °C
≥ 5,000 MΩ·km

Thermal

Continuous operating temperature
−40 °C to +75 °C (limited by outer HMWPE; ECTFE core rated to +150 °C)
Thermal cycling & overload stability
Verified thermal ageing and short-circuit withstand per standard

Mechanical

Nominal insulation / jacket wall
0.51 mm (20 mil) ECTFE + 1.65 mm (65 mil) HMWPE (#8–#2 AWG)
Tensile strength & elongation at break
ECTFE ≥ 40 MPa (≥ 200 % elong.) · HMWPE ≥ 19 MPa (≥ 600 % elong.)
Minimum bending radius
8 × OD (borehole lowering) · 6 × OD (fixed)

Resistance

Nascent chlorine (Cl₂), bromine & HCl
Zero stress-cracking or oxidative degradation in pH < 1 chlorine-saturated
Environmental stress-crack resistance
F₀ > 1,000 hours per ASTM D1693 Condition C

Reference standards

Governing cathodic protection standards
NACE SP0169 (AMPP), ASTM D3275, ASTM D1248, ASTM B8 & ICEA S-95-658
Factory QA & material compliance
EN 10204 3.1 routine test certificate · RoHS 2 & REACH compliant

Identification

Jacket colour & sequential footage print
Black UV-stabilised HMWPE with sequential ft/m depth markings
Customs tariff (HS)
8544.49

Sizes

6 standard ECTFE/HMWPE 600 V DC cathodic protection cable sizes

Single-core #8 AWG to #1/0 AWG dual-layer deep-anode lead cables.

Dimensions, wall thickness & weights
Order designationAWG / MetricRatingOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Max. DC cur.
A		Min. bend R
mm		Enquiry
600 V DC Dual-Layer ECTFE / HMWPE Deep-Anode CP Cables
ECTFE/HMWPE 1×8 AWG8 AWG (8.37 mm²) · 7W600 V DC8.8751185570
ECTFE/HMWPE 1×6 AWG6 AWG (13.3 mm²) · 7W600 V DC9.81191687578
ECTFE/HMWPE 1×4 AWG4 AWG (21.2 mm²) · 7W600 V DC11.31892489590
ECTFE/HMWPE 1×2 AWG2 AWG (33.6 mm²) · 7W600 V DC13.0300372130104
ECTFE/HMWPE 1×1 AWG1 AWG (42.4 mm²) · 19W600 V DC14.5379465150116
ECTFE/HMWPE 1×1/0 AWG1/0 AWG (53.5 mm²) · 19W600 V DC15.6478575175125
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • In ICCP anode leads, conductor sizing is governed by allowable loop DC voltage drop (R_DC) rather than thermal ampacity.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % 10 kV AC dry spark + 6 h water-immersion 5 kV AC dielectric testZero pinholes; any tiny jacket defect in an ICCP anode lead causes rapid anodic copper dissolutionEvery spool
Sample tests
ASTM D1693 environmental stress-crack & chlorine immersion auditZero cracking after 1,000 h at +50 °CLot audit

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

NACE SP0169 / AMPP Deep-Anode ICCP CompliantASTM D3275 (ECTFE) & ASTM D1248 (HMWPE) Certified100 % Pinhole-Free Tank HV Dielectric Tested

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX ECTFE/HMWPE CATHODIC PROTECTION <AWG> 600V + SEQUENTIAL FT/M
Delivery form
Non-returnable fumigated wooden or steel drums
Standard lengths
250 m · 500 m · 1000 m standard drums
MOQ
250 m (stock sizes) · 500 m (custom)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFECTFE-HMWPE Cathodic Protection Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXECTFE-HMWPE Cathodic Protection Cable spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does a deep-anode ICCP groundbed require a dual-layer ECTFE/HMWPE cable instead of single-layer HMWPE?
At the positive MMO or cast-iron anode in a deep borehole containing chloride ions, electrolysis generates nascent chlorine gas (Cl₂) and hydrochloric acid (HCl, pH < 1). Single-layer HMWPE is gradually chlorinated and cracked by nascent Cl₂, exposing the copper wire to rapid anodic dissolution. The inner 20 mil ECTFE fluoropolymer layer is chemically inert to Cl₂, while the outer 65 mil HMWPE layer protects the thin fluoropolymer against sharp coke-breeze abrasion.
How does ECTFE/HMWPE compare with PVDF/HMWPE cathodic protection cable?
Both use a fluoropolymer inner chlorine barrier under an HMWPE outer jacket. ECTFE (Ethylene Chlorotrifluoroethylene, ASTM D3275) has higher impact toughness, lower specific gravity and superior resistance to cut-through and stress-cracking during cold borehole installation compared to homopolymer PVDF.
When can single-layer HMWPE cathodic protection cable be used instead of ECTFE/HMWPE?
Single-layer 110 mil HMWPE is ideal for surface header cables, negative structure return leads and shallow horizontal groundbeds where chlorine gas can vent freely and does not accumulate around the cable.
What factory routine tests and certificates are supplied with ECTFE-HMWPE Cathodic Protection Cable?
Every production drum of ECTFE-HMWPE Cathodic Protection Cable undergoes 100 % conductor DC resistance measurement at 20 °C, high-voltage AC/DC dielectric withstand testing, and dimensional verification per NACE SP0169 / ASTM D3275 / ASTM D1248 / UL 83, supplied with an EN 10204 3.1 inspection certificate.
