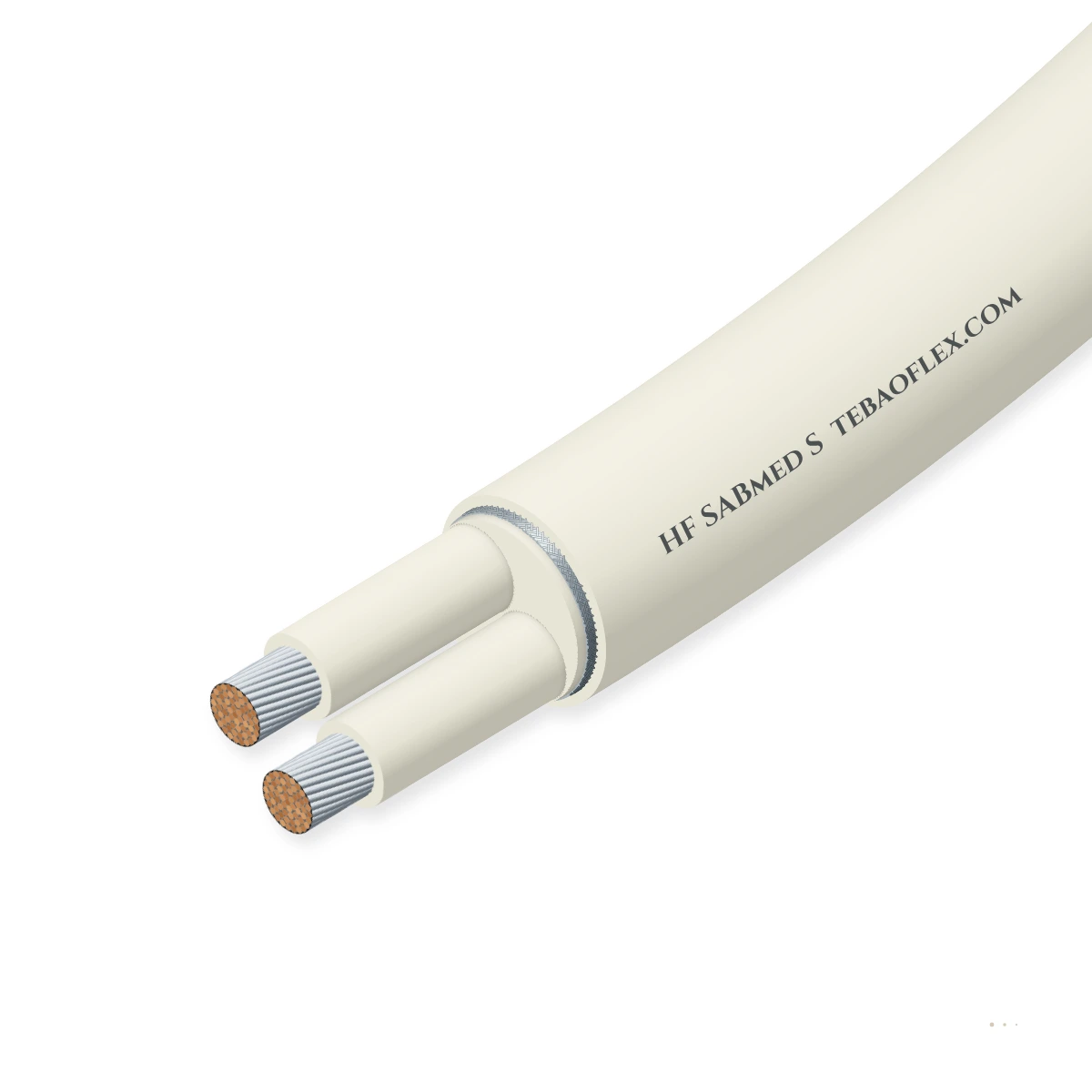

HF SABmed S electrosurgical silicone cableUp to 5.0 kVp HF+134 °C Steam AutoclaveISO 10993 / USP Class VI

HF SABmed S Autoclavable Silicone Electrosurgical High-FrequencyIEC 60601-2-2 / ISO 10993-1 platinum-cured +134 °C steam-autoclavable electrosurgical HF

Biocompatible, reusable high-frequency electrosurgical silicone cable (HF SABmed S) certified to ISO 10993-1 / USP Class VI and IEC 60601-2-2, featuring ultra-fine Class 6 / Litz tinned copper conductors and platinum-cured non-stick medical silicone.

Flame-retardant
Water-resistant
Approved
Order designation
HF-SABMED-S-2X0.50-RND
Configuration
2 × 0.50 mm² Bipolar Rnd
Max HF voltage
3.5 kVp
Nominal OD
4.6 mm
Weight
28.5 kg/km
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
HF peak voltage
Up to 5.0 kVp
IEC 60601-2-2 coagulation & cut
Autoclave rating
+134°C / 2.1 bar
300–500+ steam cycles (ISO 17665)
Biocompatibility
ISO 10993-1 / -5
USP Class VI platinum-cured SiR
Configurations
1C, 2C, 3C, 4C
Monopolar, Bipolar & Hand-Switch
Temperature
−50 to +180 °C
Peaks to +200 °C sterilization
Surface finish
Non-Stick Matte
Low friction, drape-limp & wipe-clean

Typical values for this cable type, based on IEC 60601-2-2 / ISO 10993-1 / USP Class VI / DIN EN ISO 17665-1 — confirmed in the datasheet and quotation for your order.

Application fit

Is HF SABmed S right for your machine?

Purpose-built for reusable monopolar scalpels, bipolar forceps, laparoscopic vessel sealers, resectoscopes and arthroscopic RF ablation wands.

Self-supporting pendant & push-button drop

Suitable

Limp, zero-memory Class 6 / Litz stranding and matte surface coat eliminate wrist torque and tangle on the sterile field.

Immersion & wet locations

Suitable

Withstands alkaline washer-disinfectors (pH 10.5), enzymatic cleaners, H2O2 plasma, EtO and +134 °C / 2.1 bar steam autoclaving.

Furnace, kiln & high-temp zone

Suitable

Platinum-cured silicone resists thermal degradation through hundreds of +134 °C to +138 °C prevacuum steam sterilization cycles.

VFD inverter to AC motor screened feeder

Suitable

Thick high-dielectric silicone/FEP core insulation limits 300 kHz–4 MHz RF capacitive leakage current per IEC 60601-2-2.

Typical machinesMonopolar Electrosurgical Pencils & Active ElectrodesBipolar Microsurgical, Neurosurgical & Ophthalmic ForcepsLaparoscopic & Robotic Bipolar Vessel-Sealing InstrumentsUrological Resectoscopes & Gynecological HysteroscopesArthroscopic, ENT & Spine RF Plasma Ablation Handpieces

Construction

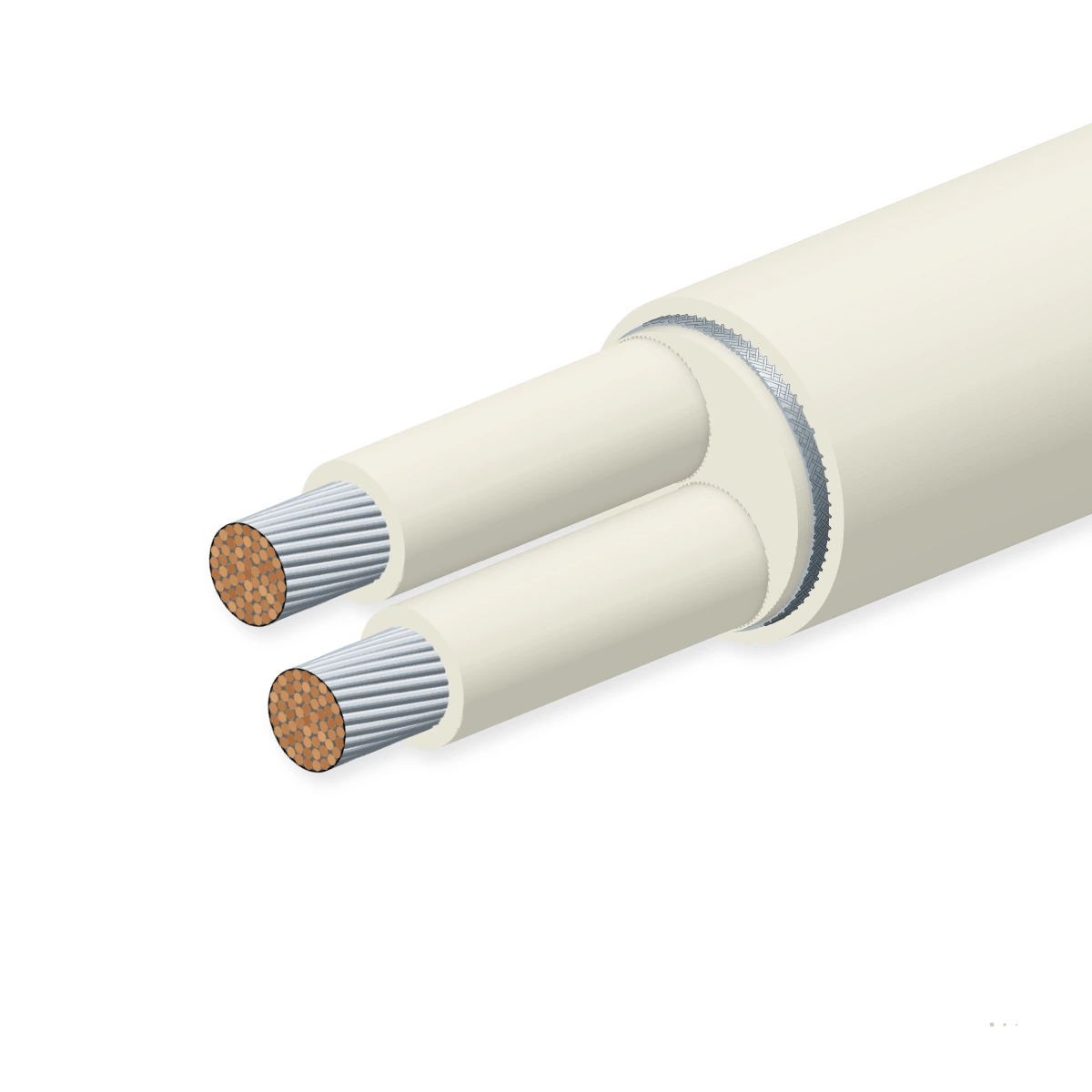

Layer by layer

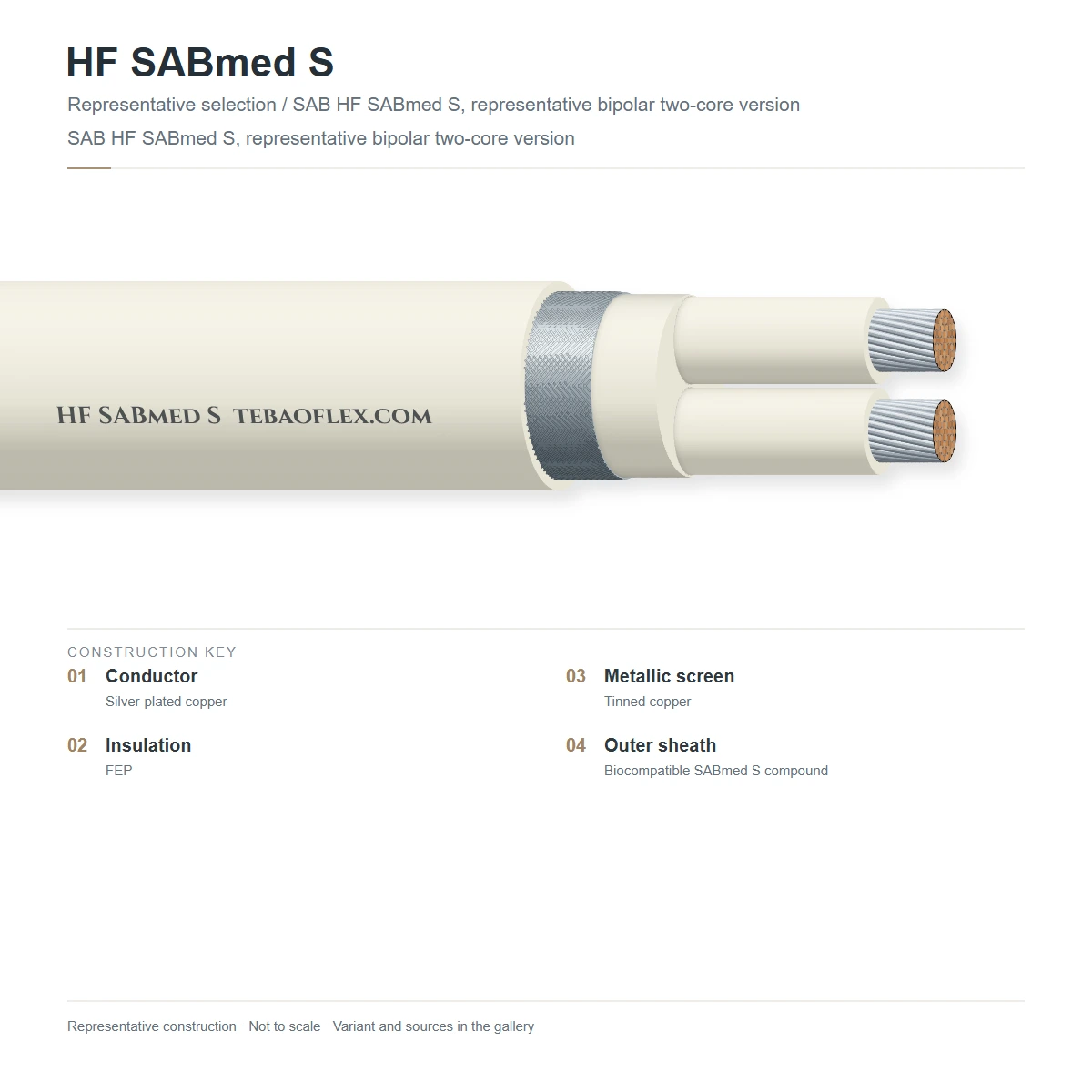

Representative bipolar / hand-switched build: 1, 2, 3 or 4 × (0.25–1.5 mm²) extra-fine 0.05 mm tinned copper strands (IEC 60228 Class 6 or Litz) + high-dielectric FEP or platinum-cured medical silicone primary insulation (rated 3.0–5.0 kVp HF) + low-friction matte platinum-cured USP Class VI / ISO 10993 medical silicone outer sheath.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Ultra-fine Class 6 or Litz tinned copper (Ø 0.05 mm strands)Hundreds of hair-fine 0.05 mm tinned copper wires bunched or Litz-stranded in 0.25 mm² to 1.50 mm² cross-sectionsCarries 300 kHz to 4 MHz electrosurgical RF cut/coag current with minimal skin-effect heating and zero springback torque in the surgeon's hand
2High-dielectric-strength HF silicone or fluoropolymer (FEP) core wallVoid-free platinum-cured silicone rubber or FEP fluoropolymer primary insulation engineered for high-frequency crest voltages up to 5.0 kVpPrevents dielectric breakdown during spray-coagulation pulses and keeps RF capacitive leakage within IEC 60601-2-2 limits
3Platinum-cured ISO 10993 / USP Class VI medical silicone jacketAddition-crosslinked (platinum-catalyzed) biocompatible silicone rubber with permanent non-stick matte surface treatment (zero peroxide by-products)Survives 300–500+ cycles of +134 °C steam autoclaving and alkaline washer-disinfectors without yellowing, blooming or becoming tacky

HF SABmed S Monopolar (1-Core 0.75–1.5 mm², up to 5.0 kVp)

Double-insulated single-core high-voltage RF electrode lead for monopolar endoscopic, arthroscopic and resectoscope loops

HF SABmed S Bipolar Twin / Round (2-Core 0.50–1.0 mm², 2.5–4.5 kVp)

Figure-8 twin-lead or round jacketed 2-core cable for reusable bipolar forceps and laparoscopic coagulators

HF SABmed S Hand-Switched (3-Core & 4-Core Hybrid RF + Cut/Coag Switch)

Combines 1 or 2 high-voltage RF power cores with 2 finger-switch control cores for hand-activated electrosurgical pencils and sealers

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 60601-2-2 / ISO 10993-1 / USP Class VI / DIN EN ISO 17665-1. Values for your order are confirmed in the datasheet and quotation.

Electrical

Max HF rated peak voltage
2.5 kVp (bipolar standard) · 4.5 kVp to 5.0 kVp (monopolar / HV spray coag)
Routine AC test voltage
6.0 kV AC (monopolar) · 4.0 kV AC core-to-core & core-to-water (bipolar)
Operating RF frequency
300 kHz to 4.0 MHz (IEC 60601-2-2 electrosurgical generators)
Core capacitance (bipolar)
≤ 48 pF/m core-to-core (minimizes RF leakage current)

Thermal

Continuous temperature range
−50 °C to +180 °C (short-term +200 °C)
Steam autoclave sterilization
+134 °C to +138 °C at 2.1–2.3 bar for 5–18 min (300–500+ cycles per ISO 17665-1)

Mechanical

Individual strand diameter
0.05 mm (44 AWG) ultra-flexible tinned copper
Min. bend radius
4 × OD (drape-limp zero-memory handling)

Resistance

Biocompatibility
ISO 10993-1 / ISO 10993-5 (non-cytotoxic) · USP Class VI
Sterilization & cleaning
Steam autoclave, EtO, H2O2 gas plasma (STERRAD) & pH 10.5 washer-disinfectors
Halogen & plasticizer free
100 % platinum-cured silicone (zero phthalates, latex or peroxide bloom)

Reference standards

Electrosurgical safety
IEC 60601-2-2 (Clause 201.8.8.3.102–104 HF surgical accessories)
Medical device quality
ISO 10993-1/-5 · USP Class VI · RoHS / REACH

Identification

Standard medical colours
Surgical Blue (RAL 5015), Light Grey (RAL 7035), White, Black, Red, Green, Yellow
Customs tariff (HS)
8544.49 / 9018.90

Sizes

12 standard HF SABmed S monopolar, bipolar & hand-switched electrosurgical cables

Configurations, Class 6 stranding, IEC 60601-2-2 peak HF voltage rating, outer diameter and cable mass.

Configuration, cross-section, HF kVp rating & OD
Order designationCores × Cross-SectionStranding (Ø 0.05 mm)Max HF U_p
kVp		Test U
kV AC		Nom. OD
mm		Weight
kg/km		Enquiry
Monopolar Double-Insulated & Bipolar Figure-8 / Round Electrosurgical Cables
HF-SABMED-S-1X0.75-5KV1 × 0.75 mm² Monopolar384 × 0.05 mm SnCu5.06.03.619.5
HF-SABMED-S-1X1.00-5KV1 × 1.00 mm² Monopolar512 × 0.05 mm SnCu5.06.03.923.8
HF-SABMED-S-1X1.50-5KV1 × 1.50 mm² Monopolar768 × 0.05 mm SnCu5.06.04.330.5
HF-SABMED-S-2X0.50-TWIN2 × 0.50 mm² Fig-8 Twin256 × 0.05 mm SnCu2.54.02.4 × 4.821.0
HF-SABMED-S-2X0.50-RND2 × 0.50 mm² Bipolar Rnd256 × 0.05 mm SnCu3.54.54.628.5
HF-SABMED-S-2X0.75-RND2 × 0.75 mm² Bipolar Rnd384 × 0.05 mm SnCu4.55.05.136.2
HF-SABMED-S-2X1.00-RND2 × 1.00 mm² Bipolar HV512 × 0.05 mm SnCu5.06.05.644.0
3-Core, 4-Core & 5-Core Hand-Switched Monopolar / Bipolar / Vessel-Sealer Cables
HF-SABMED-S-3X0.50-SW3 × 0.50 mm² Hand-Switch256 × 0.05 mm SnCu4.55.04.934.5
HF-SABMED-S-3X0.75-SW1×0.75 + 2×0.25 mm² Pencil384 / 128 × 0.05 mm5.06.04.832.0
HF-SABMED-S-4X0.34-BIP4 × 0.34 mm² Bipolar Sw.175 × 0.05 mm SnCu3.54.54.831.8
HF-SABMED-S-2X0.75+2X0.252×0.75 + 2×0.25 mm² Sealer384 / 128 × 0.05 mm4.55.05.441.5
HF-SABMED-S-2X0.75+4X0.142×0.75 + 4×0.14 mm² Smart384 / 72 × 0.05 mm4.55.05.745.2
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Custom overmould-ready cut leads with silicone strain reliefs, Valleylab/Erbe/Bowa 3-pin or 2-pin plugs, and RFID instrument ID pairs available.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
IEC 60601-2-2 high-frequency & 50 Hz wet dielectric withstand test100 % spark test + water-immersion AC/HF breakdown and HF capacitive leakage verification100 % of manufactured length
Sample tests
+134 °C / 2.1 bar steam-autoclave endurance cycling (300–500 cycles)Verify zero jacket cracking, tackiness or dielectric loss after repeated prevacuum steam sterilizationQualification & batch audit
ISO 10993-5 cytotoxicity & USP Class VI extractables verificationCertified platinum-cured medical elastomer lot traceabilityEvery silicone compound batch

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 60601-2-2 High-Frequency Surgical Accessory CompliantISO 10993-1 / -5 & USP Class VI Biocompatible Silicone

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

Smooth Sterilizable Unprinted Surface (or Biocompatible Laser/Silicone Ink Legend)
Delivery form
Cleanroom-bagged reels (100 m / 250 m) or pre-cut stripping-ready surgical leads
Compliance pack
ISO 10993-5 CoC, USP Class VI compound cert & IEC 60601-2-2 dielectric report
Lead time
2–4 weeks ex-works

Technical documents

Downloads

PDFHF SABmed S Autoclavable Silicone Electrosurgical High-Frequency – technical datasheet12 sizes · construction, technical data, approvalsXLSXHF SABmed S spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
