fiber optic cable seriesMIL-C-55036Twin Coax + Tactical-55 to +85 °C Field Reel

CX-11230/G / CX-11230A/G Tactical Twin-Coaxial FieldTactical field twin-coaxial (and hybrid optical-coax) deployable communication cable

CX-11230/G & CX-11230A/G Tactical Twin-Coaxial Field Communication Cable engineered with two miniature 50 Ω / 75 Ω braided coaxial cores (plus optional tactical G.657.A2 optical channels) under a cold-flexible -55 °C polyurethane or.

Tactical Reel Deployment

MIL-Spec PUR / Neoprene

Dual Tin-Copper Braid

-55 °C Cold Flex

CX-11230 variant

Order designation: CX-11230A/G
Outer Ø: 8.2 mm
Weight ≈: 78 kg/km
Max. pull load: 1,800 N
Coax impedance: 50 Ω

All sizes (3)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Military spec: MIL-C-55036
Coaxial cores: 2 × 50 Ω / 75 Ω
Outer Ø: 8.4 mm nominal
Tensile load: 1,100 to 1,800 N
Temperature: -55 to +85 °C
Bend radius: 8 × OD flexing

Typical values for this cable type, based on MIL-C-55036 / MIL-DTL-17 / IEC 60794-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is CX-11230/G / CX-11230A/G right for your machine?

Built for rapid payout and retrieval from tactical hand or vehicle reels across rough terrain, vehicle tracks, mud and -55 °C arctic cold.

Motorised monospiral reel

Suitable

Repeated deployment and rewind on tactical field communication drums (DR-8 / RL-159).

Trailing & towing

Suitable

Withstands ground dragging, military vehicle wheel-over crush, fuel spills and abrasion.

Immersion & wet locations

Suitable

Waterproof neoprene/PUR jacket resists mud immersion, salt spray and field decontamination.

Energy chain / drag chain

With conditions

Designed for field reeling rather than high-speed factory automation drag chains.

Use HITRONIC PCF DUPLEX

Typical machinesTactical Command Post & Radar LinksDeployable Microwave & Troposcatter DishMobile Defense & Emergency TelecomField Test Range TelemetryOutdoor Broadcast & OB Van Trunking

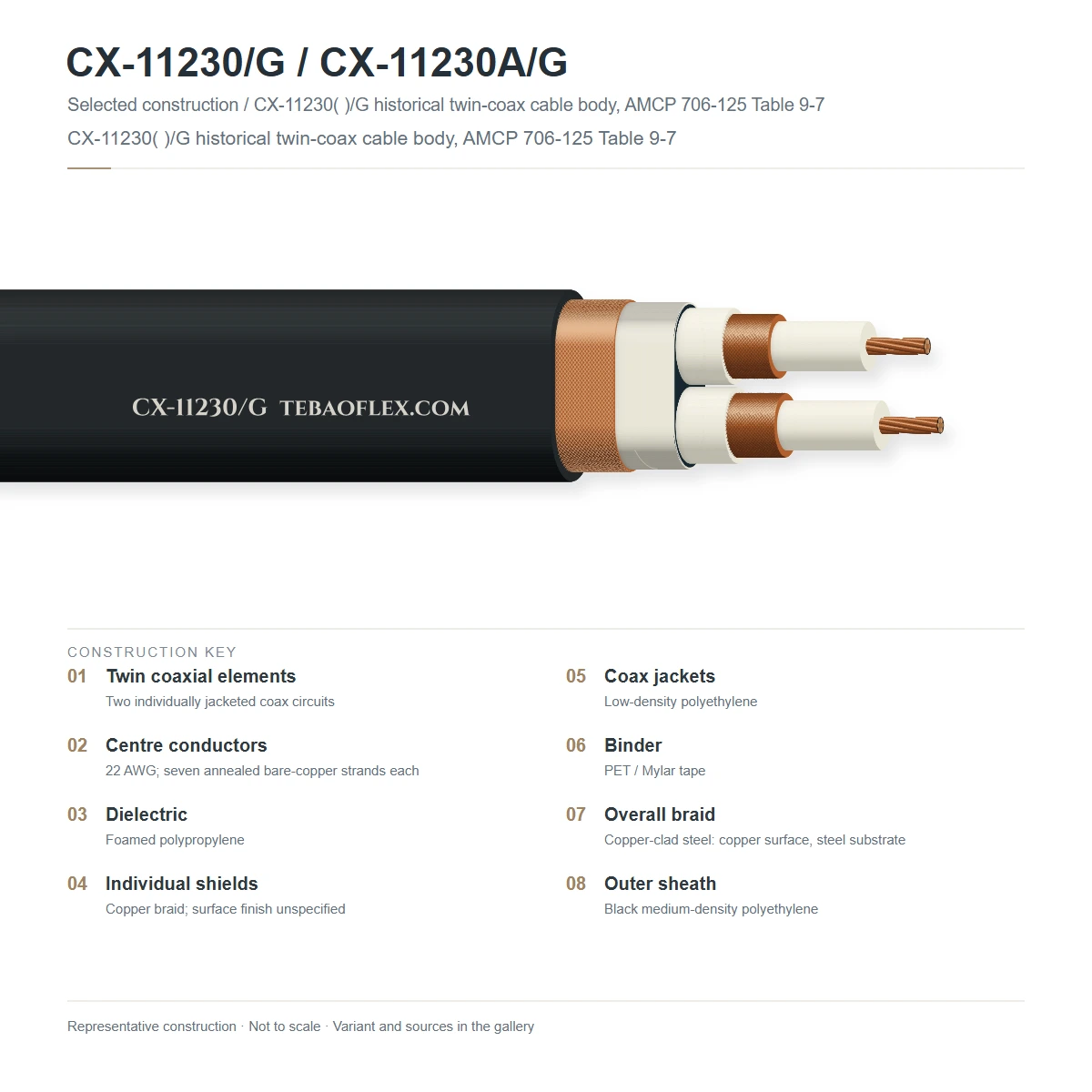

Construction

Layer by layer

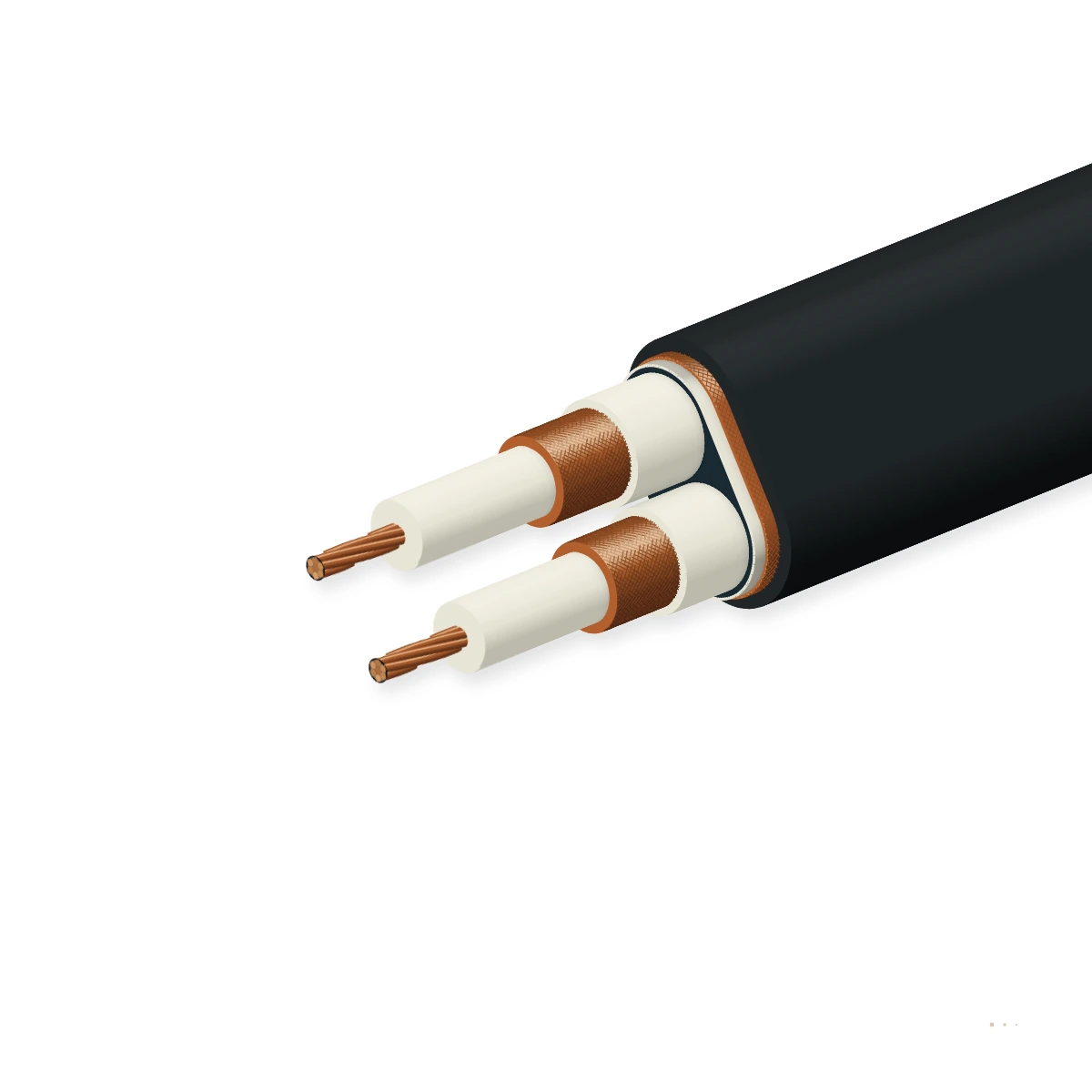

CX-11230/G & CX-11230A/G showing twin stranded copper-clad steel / tinned copper coaxial cores, solid PE dielectric, individual tinned copper braid shields, aramid/textile fillers, and matte black PUR/neoprene field jacket.

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Stranded high-tensile coaxial centre conductors	2 × 7-strand copper-clad steel / silver-plated copper conductors (plus optional 2 × G.657.A2 tight-buffered optical sub-units in hybrid variant)Combines RF conductivity with high flex-fatigue life
2	Low-loss polyethylene coaxial dielectric	Solid or cellular low-density Polyethylene (LDPE) core insulationStable 50 Ω / 75 Ω characteristic impedance & low capacitance
3	Individual coaxial RF braid shields	≥ 90 % coverage tinned or silver-plated copper wire braid over each coaxial core with PVC/TPE inner sub-jacket≥ 85 dB channel-to-channel crosstalk isolation
4	Aramid tensile yarn & non-hygroscopic fillers	High-strength polyaramid roving and elastomeric valley fillers with non-woven binder tapeAbsorbs 1,100–1,800 N field reeling tension
5	Tactical matte PUR / Neoprene outer jacket	Low-gloss Olive Drab or Black arctic-grade polyether Polyurethane (CX-11230A/G) or Polychloroprene (CX-11230/G)Cold-bend tested at -55 °C; fuel, oil and UV resistant

CX-11230/G (Polychloroprene Jacket)

Classic MIL-C-55036 twin-coaxial field cable with heavy-duty neoprene outer sheath

CX-11230A/G (Arctic PUR Jacket)

Lightweight abrasion-resistant polyether PUR jacket with enhanced -55 °C cold flexibility

CX-11230-FO Hybrid (2 Coax + 2 Fibre)

Twin coaxial cores + 2 × 900 µm G.657.A2 optical fibres for combined RF/power + gigabit optical links

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-C-55036 / MIL-DTL-17 / IEC 60794-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance: 50 Ω ± 2 Ω (or 75 Ω option per channel)
Mutual capacitance: ≤ 101 pF/m (50 Ω) · ≤ 67 pF/m (75 Ω)
Attenuation @ 10 / 100 MHz: ≤ 4.8 dB/100m @ 10 MHz · ≤ 16.5 dB/100m @ 100 MHz
Dielectric test voltage: 2,000 V rms (core to shield, 1 min)

Thermal

Operating temperature: -55 °C to +85 °C
Cold-bend flexibility: -55 °C mandrel wrap without jacket cracking
Storage temperature: -55 °C to +85 °C

Mechanical

Nominal outer diameter: 8.4 mm ± 0.3 mm (0.330 in)
Max. pulling tension: 1,100 N (CX-11230/G) · 1,800 N (CX-11230A/G)
Crush resistance: 2,500 N / 100 mm (vehicle wheel-over resilient)
Min. bend radius: 5 × OD (static) · 8 × OD (field reeling)

Optical

Hybrid optical option: 2 × ITU-T G.657.A2 SM or OM3 MM (CX-11230-FO)
Optical attenuation (hybrid): ≤ 0.38 dB/km @ 1310 nm · ≤ 0.25 dB/km @ 1550 nm
Baseband TDM rate: Supports PCM/TDM telemetry up to 20.48 Mbps over coax

Resistance

Oil, fuel & JP-8 jet fuel: ASTM D471 immersion resistant (PUR & Neoprene)
Weather, UV & fungus: MIL-STD-810G solar radiation, salt fog & fungus pass
Flame retardancy: IEC 60332-1-2 / UL VW-1 self-extinguishing

Reference standards

Military specification: MIL-C-55036 & MIL-DTL-17 coaxial rules
Environmental test: MIL-STD-810G & IEC 60794-1-21
RoHS & REACH: 2011/65/EU & EC 1907/2006 compliant

Identification

Outer sheath colour: Matte Black or tactical Olive Drab (non-reflective)
Sub-unit coding: Coax 1 Black · Coax 2 White/Red
Customs tariff (HS): 8544.2000 / 8544.7000

Sizes

3 standard CX-11230/G & CX-11230A/G tactical cable configurations

Dimensional, impedance and tensile ratings for MIL-C-55036 twin-coaxial and hybrid tactical field cables.

Dimensions & mechanical ratings
Order designation	Channel configuration & sheath	Outer Ø mm	Weight ≈ kg/km	Max. pull N	Impedance Ω
MIL-C-55036 Tactical Twin-Coaxial & Hybrid Field Cables
CX-11230/G	2 × Coax (TX/RX) · Neoprene Jacket	8.4	92	1,100	50
CX-11230A/G	2 × Coax (TX/RX) · Arctic PUR Jacket	8.2	78	1,800	50
CX-11230A/G-2FO	2 × Coax + 2 × G.657.A2 SM Fibre · PUR	8.6	82	1,800	50

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Supplied bulk on wooden drums or pre-terminated in 100 m, 300 m and 400 m field reel assemblies.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
100 % TDR impedance, attenuation & 2.0 kV dielectric test	50 Ω ± 2 Ω, zero impedance spikes, and ≥ 85 dB crosstalk isolation	Every manufactured reel
Sample tests
-55 °C cold impact & mandrel bend test	No jacket cracking or core break after conditioning at -55 °C	Type qualification
Repeated tactical reel payout & crush test	1,000 reel cycles and 2,500 N/100 mm crush without signal degradation	Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-C-55036 Tactical CableMIL-STD-810G EnvironmentalRoHS 2 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX CX-11230A/G MIL-C-55036 TACTICAL TWIN COAX

Delivery form: Fumigated export wooden or steel drums
Standard drum lengths: 1000 m · 2000 m · 4000 m (or custom cut lengths)
MOQ: 500 m (standard) · 1000 m (custom build)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFCX-11230/G / CX-11230A/G Tactical Twin-Coaxial Field – technical datasheet3 sizes · construction, technical data, approvals XLSXCX-11230/G / CX-11230A/G spec data (Excel)All 3 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
