CAN Bus, SAE J1939, DeviceNet & CC-Link CablesCLPA Ver. 1.10 & Ver. 2.0110 Ω ± 15 Ω · 3×20 AWG (DA/DB/DG)10 Mbps (100m) to 156 kbps (1200m)

CC-Link Fieldbus CableCLPA Ver. 1.10 / 2.0 110 Ω ± 15 Ω 3×20 AWG (0.5 mm²) Blue/White/Yellow CC-Link fieldbus

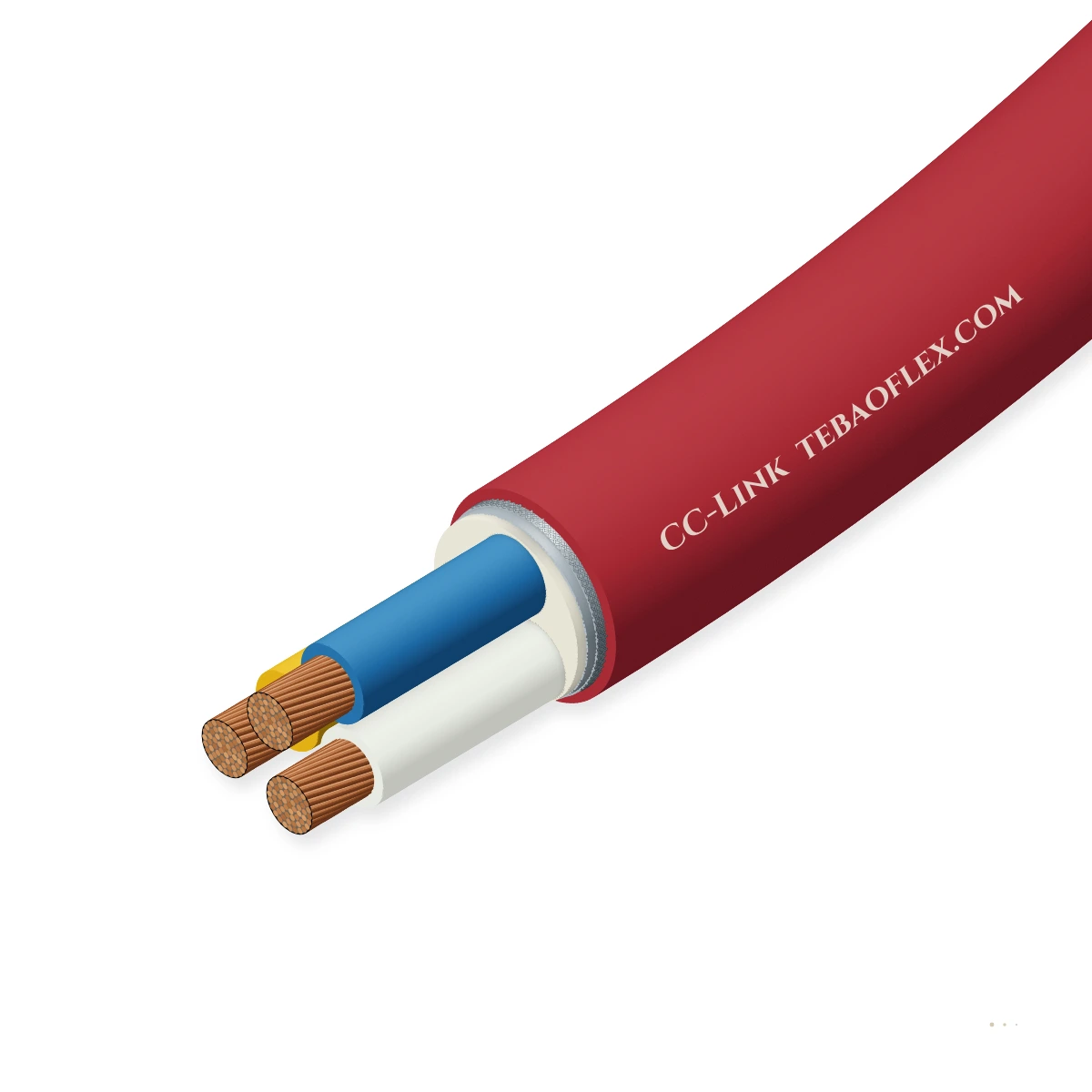

CC-Link Fieldbus Cable is the CLPA Ver. 1.10 and Ver. 2.0 compliant 110 Ω ± 15 Ω (10 MHz) 3-core RS-485 fieldbus cable (156 kbps up to 1,200 m; 10 Mbps up to 100 m), built with three 20 AWG (0.50 mm²) tinned or bare copper conductors — DA (Blue), DB

Low-EMC design
EMC screen
Anti-torsion braid
Oil-resistant
Order designation
CC-Link Ver. 1.10 Movable Flex Oil-PVC 3×20 AWG
Outer Ø ≈
7.7 mm
Copper weight
37 kg/km
Total weight ≈
80 kg/km
Min. bend R (fixed)
46 mm
All sizes (5)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance Z0
110 Ω ± 15 Ω
At 10 MHz (130 ± 15 Ω @ 1 MHz)
Core layout
3 × 20 AWG
DA (Blue) · DB (White) · DG (Yellow)
Capacitance
< 60 pF / m
≈ 52 pF/m at 1 kHz (foamed PE)
Attenuation
≤ 1.6 / 4.8 dB
Per 100 m at 1 MHz / 5 MHz
Data rate / reach
10 Mbps / 1,200
100 m @ 10 Mbps · 1,200 m @ 156 kbps
Shielding
Foil + ≥90%
Al/PET + drain + tinned Cu braid

Typical values for this cable type, based on CLPA CC-Link Specification Ver. 1.10 / Ver. 2.0 — confirmed in the datasheet and quotation for your order.

Application fit

Is CC-Link right for your machine?

Engineered for Mitsubishi Electric MELSEC and CLPA CC-Link factory automation cells, automotive welding lines, flat-panel display (FPD) cleanrooms, semiconductor tools, and battery manufacturing

Fixed installation

Suitable

Ver. 1.10 fixed PVC (OD 7.7 mm) runs up to 100 m at 10 Mbps or 1,200 m at 156 kbps without repeaters.

Energy chain / drag chain

Suitable

Movable extra-fine-wire PUR / oil-resistant elastomer variant endures ≥ 5 million drag-chain cycles.

Switchgear & control cabinet wiring

Suitable

Standard Blue (DA), White (DB), Yellow (DG), and Drain wire match all CC-Link terminal blocks and M12 plugs.

Immersion & wet locations

With conditions

Oil-resistant PVC and PUR sheaths handle machine-shop coolants; protect underground runs in conduit.

PROFIBUS DP
Typical machinesAutomotive body-in-white & stampingSemiconductor, FPD & OLED cleanroomsLithium-ion cell & pack assemblyMachine tool & PLC remote I/O islands

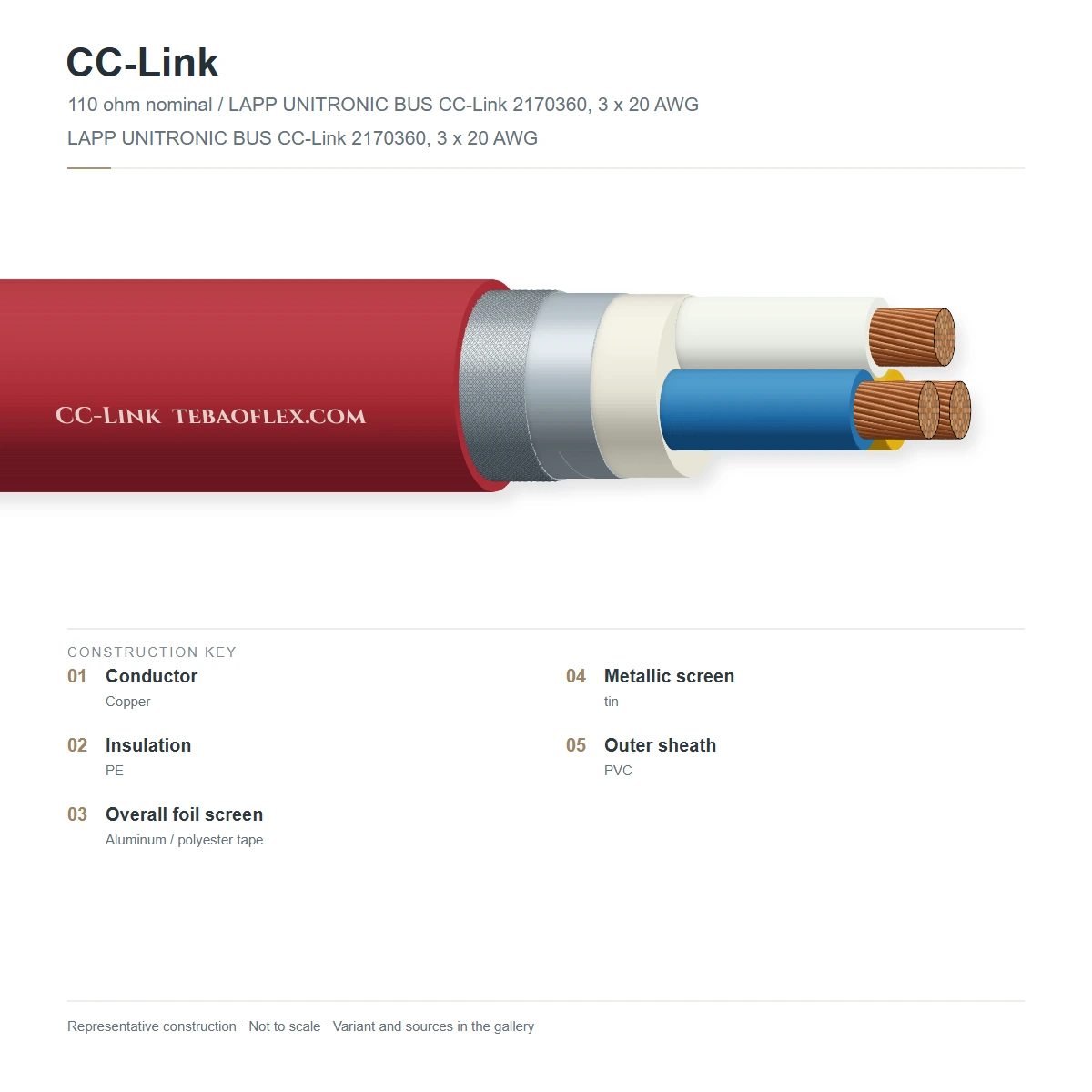

Construction

Layer by layer

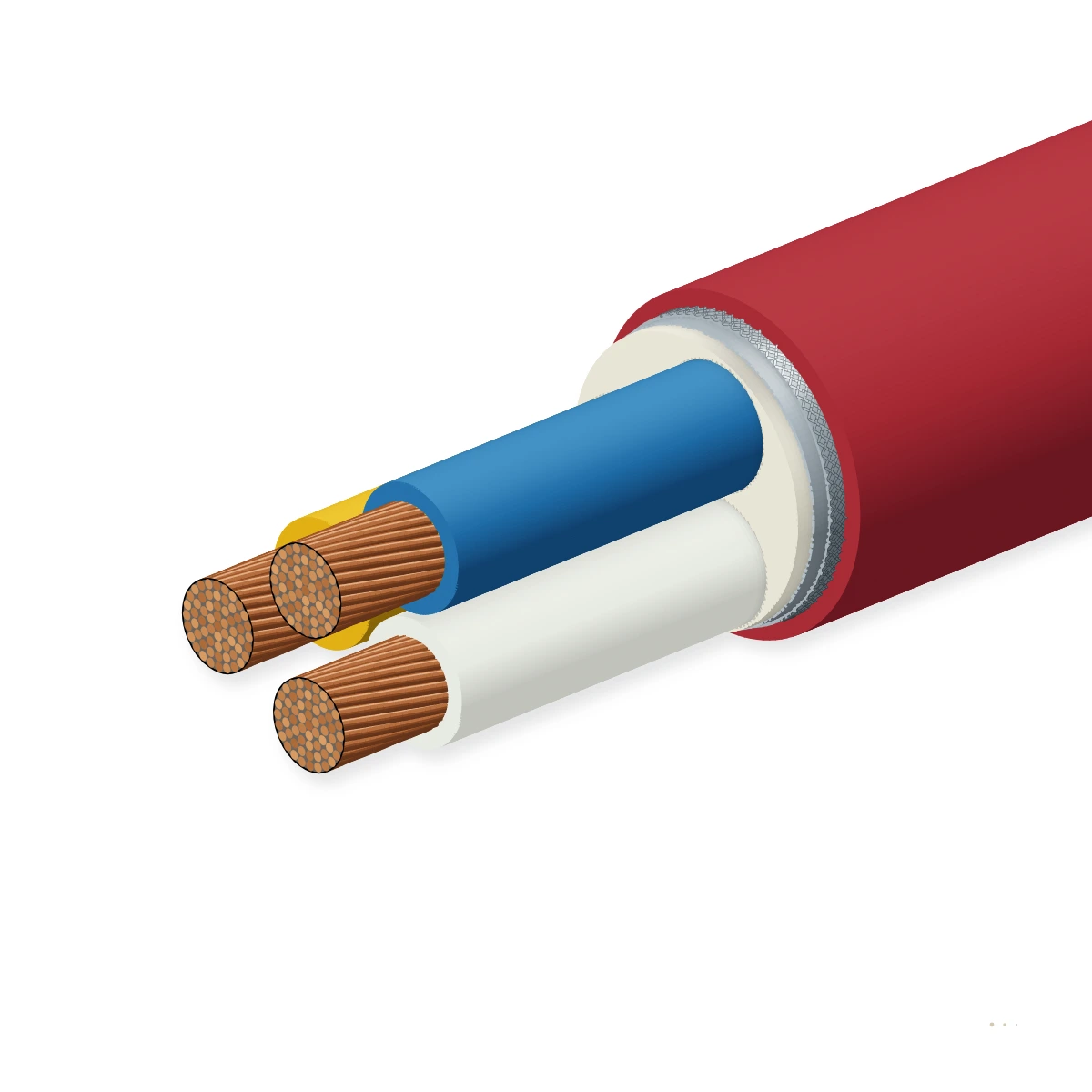

Three 20 AWG (0.50 mm²) stranded copper conductors insulated with foamed polyethylene (FPE) in Blue (DA), White (DB), and Yellow (DG) laid

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
13 × 20 AWG stranded copper conductors7×0.32 mm (0.56 mm², fixed) or 65×0.10 mm / 19×0.18 mm (0.50 mm², drag-chain)CLPA Ver. 1.10
2Foamed polyethylene (FPE) dielectricLow-permittivity cellular PE in Blue (DA), White (DB), and Yellow (DG) tuned to 110 Ω atCLPA Ver. 1.10
3Al/PET foil + drain wire100 % coverage aluminium/polyester tape with stranded tinned copper drain wire (SLD)CLPA Ver. 1.10
4High-density tinned copper braidTinned copper wire braid, optical coverage ≥ 90 %CLPA Ver. 1.10
5Outer sheath (7.7 mm OD)Lead-free flame- and oil-resistant PVC (Brick Red / Brown) or movable Drag-Chain PURUL 20276 / CL2 / CM

CC-Link Ver. 1.10 Standard Fixed PVC (FANC-110SBH eq., 7.7 mm)

3×20 AWG (7/0.32 mm) 110 Ω fixed trunk cable for trays, conduits, and PLC cabinets.

CC-Link Ver. 1.10 Movable Drag-Chain PUR / PVC

3×0.50 mm² extra-fine stranded 110 Ω continuous-flex cable for gantry robots and drag chains.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on CLPA CC-Link Specification Ver. 1.10 / Ver. 2.0. Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z0
110 Ω ± 15 Ω at 10 MHz (130 Ω ± 15 Ω at 1
Max. conductor DC resistance @ 20 °C
≤ 37.8 Ω/km per core (≤ 75.6 Ω/km loop)
Mutual capacitance @ 1 kHz
≈ 52 pF/m (CLPA limit < 60 pF/m)
Velocity of propagation (VoP)
≈ 75 % (0.75 c) · delay ≤ 4.5 ns/m
Attenuation (1 MHz / 5 MHz)
≤ 1.6 dB/100m @ 1 MHz · ≤ 4.8 dB/100m @ 5 MHz
Operating / test voltage
300 V UL · 2.0 kV AC / 1 min dielectric test

Thermal

Operating temp. (fixed / chain)
-30 °C to +80 °C fixed · -20 °C to +75 °C
Storage temperature
-40 °C to +80 °C

Mechanical

Nominal outer diameter
7.7 mm ± 0.3 mm (standard 3×20 AWG)
Min. bending radius
6 × D fixed · 10 × D drag-chain

Resistance

Oil & coolant resistance
UL Oil Res 80 °C · EN 60811-404
Flame retardancy
UL 1581 VW-1 / CL2 / CM · IEC 60332-1-2

Reference standards

Primary specification
CLPA CC-Link Cable Specification Ver. 1.10
Termination resistor value
110 Ω ± 5 % (1/2 W) for Ver. 1.10 cable

Identification

Core colours (CLPA mandatory)
DA = Blue · DB = White · DG = Yellow + Bare
Outer sheath colour
Brick Red / Brown (standard) or Matte Black

Sizes

5 standard configurations (CC-Link)

Nominal dimensions, copper weights, impedance and transmission parameters for CC-Link per CLPA CC-Link Specification Ver. 1.10 / Ver. 2.0.

Dimensions & weights
Order designationConfigurationConductor sizeOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard CC-Link configurations
CC-Link Ver. 1.10 Fixed PVC 3×20 AWG (0.5 mm²)3×20 AWG (Fixed PVC 7.7 mm)0.50 mm² (20 AWG)7.7367846
CC-Link Ver. 1.10 Movable Flex Oil-PVC 3×20 AWG3×20 AWG (Flex Oil-PVC)0.50 mm² (20 AWG)7.7378046
CC-Link Ver. 1.10 Drag-Chain PUR 3×20 AWG3×20 AWG (Drag-Chain PUR)0.50 mm² (20 AWG)7.8387647
CC-Link Ver. 1.10 Compact Patch 3×22 AWG (0.34 mm²)3×22 AWG (Compact Patch)0.34 mm² (22 AWG)6.5275639
CC-Link Ver. 1.10 + Power Hybrid (3×20 AWG + 2×18 AWG)3×20 AWG + 2×18 AWG (Power Hybrid)0.50 + 0.75 mm²9.65612458
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per CLPA CC-Link Specification Ver. 1.10 / Ver. 2.0.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
1 MHz & 10 MHz characteristic impedance & attenuationZ0 = 110 ± 15 Ω @ 10 MHz (130 ± 15 Ω @ 1 MHz); IL ≤ 1.6 / 4.8 dB/100m @ 1/5 MHz100 % of reels
DC resistance, capacitance & 2 kV AC dielectric≤ 37.8 Ω/km per core; < 60 pF/m; 2.0 kV AC / 1 min100 % of reels
Sample tests
Braid optical coverage & shield transfer impedance≥ 90 % tinned copper braid coveragePer production batch
5-million-cycle drag-chain flex test (PUR variant)Zero conductor breaks or impedance drift > 10 %Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CLPA Ver. 1.10 / Ver. 2.0UL AWM 20276 / CL2 / CMCE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX CC-LINK VER.1.10 3X20AWG 110 OHM
Delivery form
Non-returnable plywood reels or export drums
Standard reel lengths
100 m · 305 m · 500 m · 1000 m
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFCC-Link Fieldbus Cable – technical datasheet5 sizes · construction, technical data, approvalsXLSXCC-Link spec data (Excel)All 5 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why does CC-Link use a 3-core (DA, DB, DG) symmetry instead of a standard 2-core twisted pair?
CC-Link places the differential RS-485 signals DA (Blue) and DB (White) together with the signal reference ground DG (Yellow) in a balanced 3-core trefoil lay inside a double shield (Al/PET foil + ≥90 % tinned copper braid + drain wire). This trefoil geometry equalizes capacitance to ground and supports 10 Mbps noise immunity next to servo drives.
What is the difference between CC-Link Ver. 1.10 cable and older Ver. 1.00 cable?
Older Ver. 1.00 cables mixed 110 Ω and 130 Ω types requiring different terminating resistors. CLPA Ver. 1.10 standardized the cable impedance profile to 110 Ω ± 15 Ω at 10 MHz (130 Ω ± 15 Ω at 1 MHz) using a single 110 Ω ± 5 % terminating resistor across all Ver. 1.10 and Ver. 2.0 installations.
How far can CC-Link Ver. 1.10 cable transmit at each baud rate?
A single repeaterless trunk using standard 3×20 AWG (0.5 mm²) Ver. 1.10 cable supports 100 m at 10 Mbps, 150 m at 5 Mbps, 400 m at 2.5 Mbps, 600 m at 625 kbps, and up to 1,200 m at 156 kbps. Each production reel undergoes 100 % characteristic impedance verification, mutual capacitance and DC loop resistance testing, and dielectric spark/withstand inspection before dispatch with an EN 10204 3.1 certificate.
Can Fixed and Movable (Drag-Chain) CC-Link Ver. 1.10 cables be mixed in the same segment?
Yes. Under CLPA Ver. 1.10 wiring rules, fixed 7-strand PVC cables and movable extra-fine-strand PUR drag-chain cables share the same 110 Ω characteristic impedance and can be combined in the same trunk via terminal blocks or T-junctions. Each production reel undergoes 100 % characteristic impedance verification, mutual capacitance and DC loop resistance testing, and dielectric spark/withstand inspection before dispatch with an EN 10204 3.1 certificate.
