CAN Bus, SAE J1939, DeviceNet & CC-Link CablesODVA DeviceNet Volume I120 Ω Data + 24 V DC PowerThick (15/18 AWG) & Thin (22/24 AWG)

DeviceNet CableODVA 120 Ω data + 24 V DC power 2-pair Individually & Overall Shielded DeviceNet Thick &

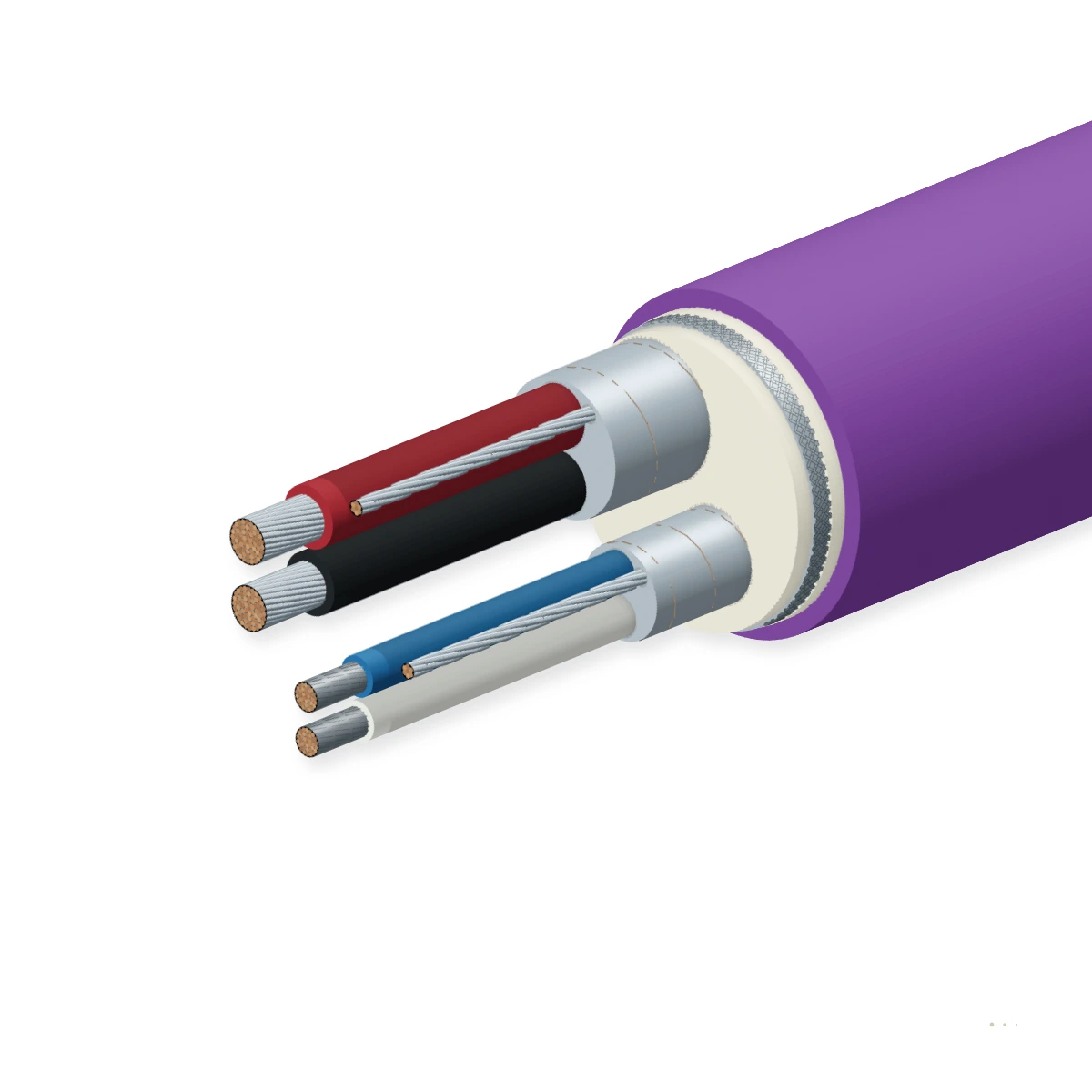

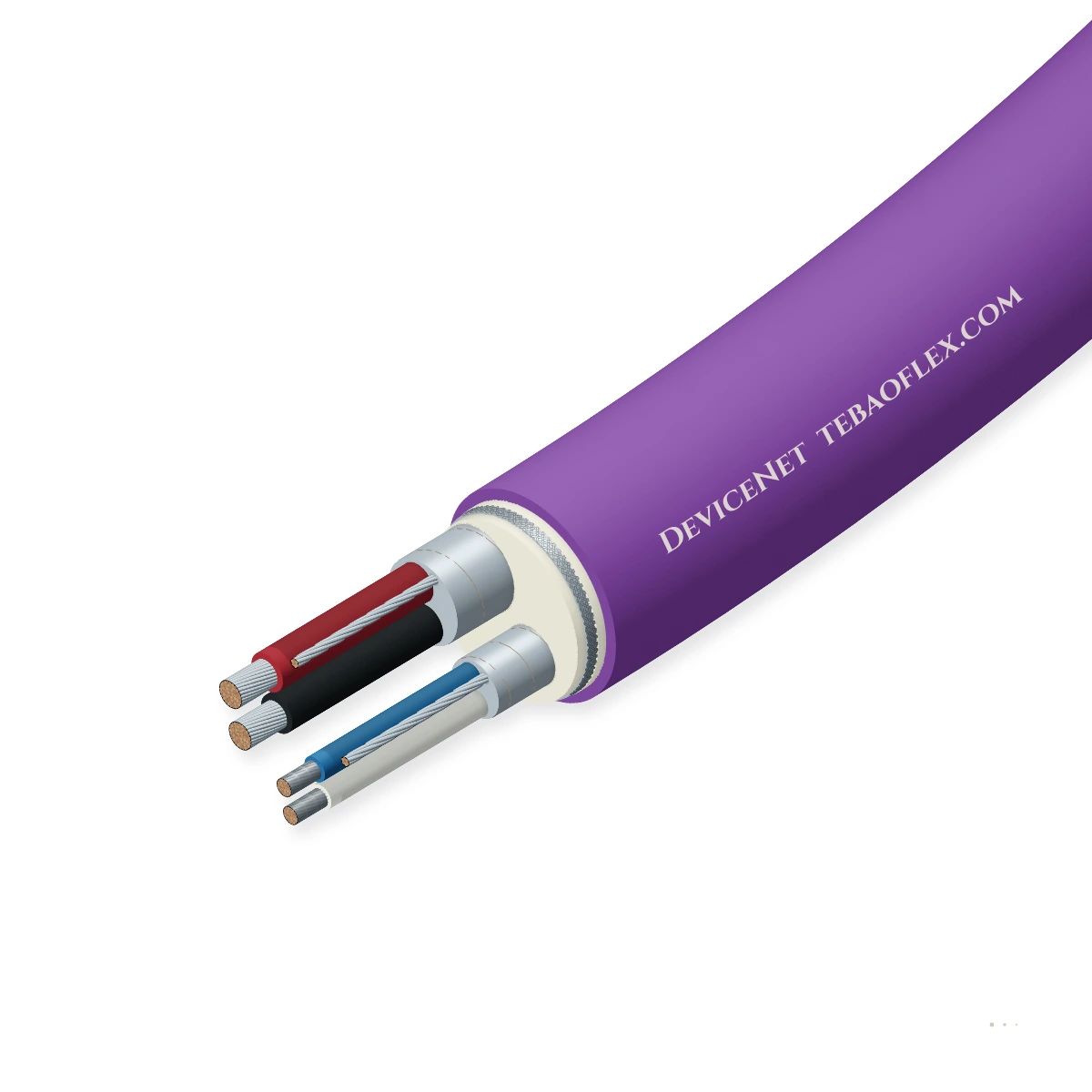

DeviceNet Cable is the ODVA-compliant hybrid 2-pair fieldbus cable combining a 120 Ω ± 12 Ω foamed-PE CAN data pair (Blue CAN_L / White CAN_H) and a 24 V DC bus-power pair (Red V+ / Black V-) with individual Al/PET pair foils, an uninsulated tinned copper

Low-EMC design
EMC screen
Oil-resistant
Flame-retardant
Order designation
DeviceNet Thick Drag-Chain PUR (15/18 AWG)
Outer Ø ≈
12.2 mm
Copper weight
84 kg/km
Total weight ≈
178 kg/km
Min. bend R (fixed)
73 mm
All sizes (5)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Data impedance
120 Ω ± 12 Ω
At 1 MHz (Blue CAN_L / White CAN_H)
Thick Trunk
15 AWG + 18 AWG
Power 15 AWG (8 A) · Data 18 AWG ·
Thin Drop
22 AWG + 24 AWG
Power 22 AWG (3 A) · Data 24 AWG · 6.9
Data capacitance
≈ 39 pF / m
Foamed PE O2YS · VoP 75 %
Data rates
125 / 250 / 500k
Up to 500 m trunk on Thick cable
UL approvals
CL2 / CMG / PLTC
300 V / 600 V tray & drag-chain

Typical values for this cable type, based on ODVA DeviceNet Volume I (Thick Trunk & Thin Drop) — confirmed in the datasheet and quotation for your order.

Application fit

Is DeviceNet right for your machine?

Designed for ODVA DeviceNet factory automation trunks and sensor/actuator drop lines in automotive assembly, semiconductor fabs, conveyor material handling, and robotics.

Fixed installation

Suitable

Thick Trunk (12.2 mm) supports up to 500 m @ 125 kbps and 8 A continuous 24 V DC bus power.

Switchgear & control cabinet wiring

Suitable

Thin Drop (6.9 mm) routes cleanly to M12 5-pin Micro-C and 7/8-inch Mini-C field device receptacles.

Energy chain / drag chain

Suitable

Class 6 extra-fine tinned copper + PUR drag-chain Thick and Thin variants survive ≥ 5 million cycles.

Immersion & wet locations

With conditions

Oil- and sunlight-resistant PVC/PUR jackets handle washdowns; avoid permanent deep immersion.

PROFINET Type A
Typical machinesAutomotive stamping & body shopsSemiconductor & vacuum tool networksConveyor & sortation logisticsRobotic welding & motor control centres

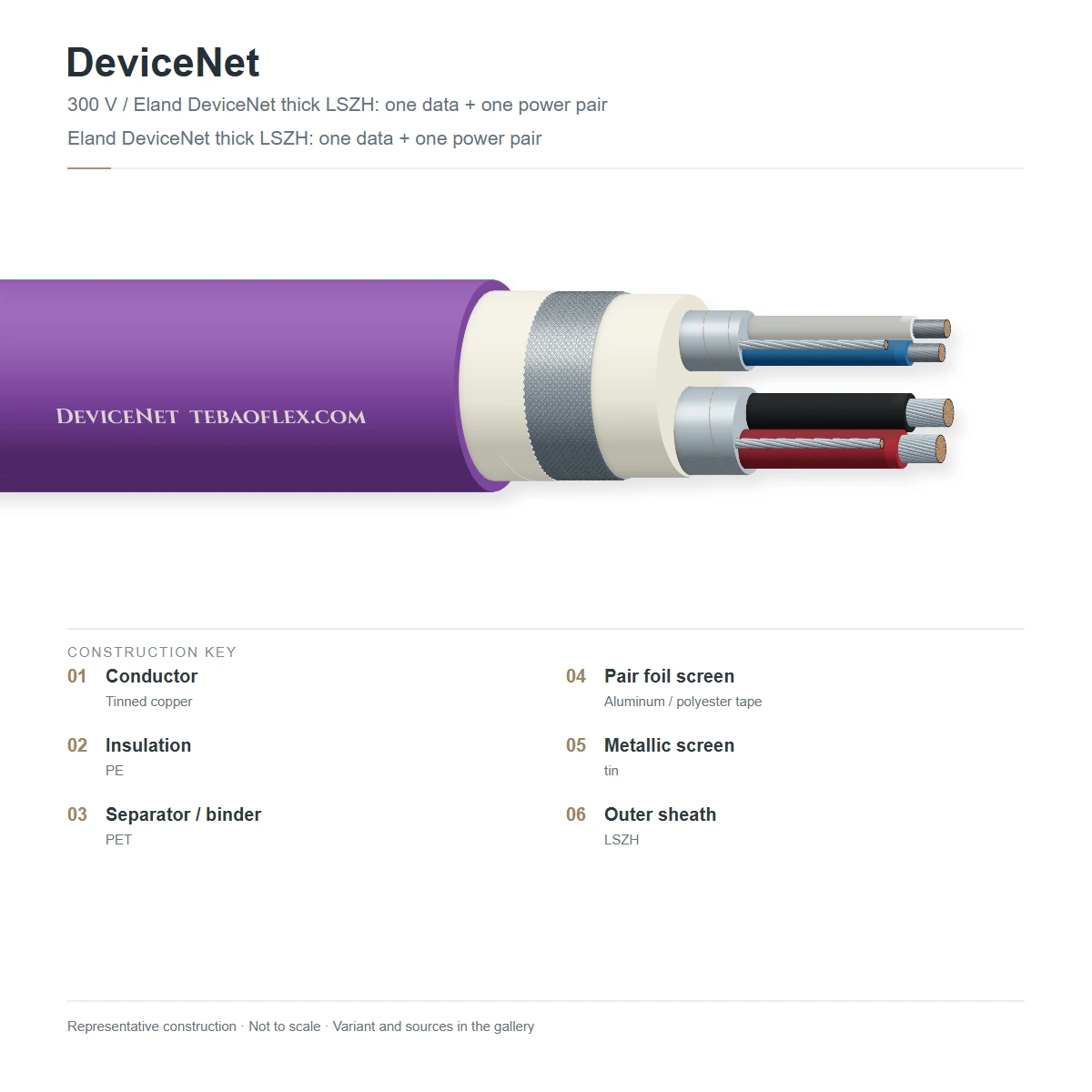

Construction

Layer by layer

Data pair: Blue (CAN_L) + White (CAN_H) tinned copper (18 AWG Thick / 24 AWG Thin) with foamed PE insulation + 100 % Al/PET foil. Power

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded tinned copper data & powerThick: 2×18 AWG data + 2×15 AWG power + 18 AWG drain · Thin: 2×24 AWG data + 2×22 AWGODVA Volume I
2Foamed PE (data) & PVC/PE (power)Low-loss foamed PE on Blue/White 120 Ω data pair; SR-PVC or PE on Red/Black 24 V powerODVA Spec
3Individual Al/PET pair screens100 % coverage aluminium/polyester foil tape applied separately over the data pair andODVA DeviceNet
4Overall tinned copper braid + drainTinned copper wire braid (≥65–85 % coverage) in contact with central stranded tinned CuODVA Volume I
5Industrial outer sheathSunlight- and oil-resistant Grey, Violet, or Yellow PVC (CL2/CMG/PLTC), TPE, orUL 13 PLTC / UL 444 CMG

DeviceNet Thick Trunk (15 AWG Power + 18 AWG Data, OD 12.2 mm)

Main backbone trunk cable for 500 m reach and 8 A 24 V DC power (Fixed PVC/CPE or Drag-Chain PUR).

DeviceNet Thin Drop (22 AWG Power + 24 AWG Data, OD 6.9 mm)

Flexible drop and short-trunk cable for 6 m drops / 100 m trunks and 3 A power (Fixed PVC or Drag-Chain PUR).

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ODVA DeviceNet Volume I (Thick Trunk & Thin Drop). Values for your order are confirmed in the datasheet and quotation.

Electrical

Data pair impedance Z0
120 Ω ± 12 Ω at 1 MHz (Blue / White)
Data pair capacitance & VoP
≈ 39.4 pF/m · VoP ≈ 75 % (delay ≤ 4.46 ns/m)
Data pair attenuation (125 / 500
Thick: 0.42 / 0.81 / 1.31 dB/100m · Thin
Power pair DC resistance @ 20 °C
Thick (15 AWG): ≤ 11.8 Ω/km · Thin (22
Data pair DC resistance @ 20 °C
Thick (18 AWG): ≤ 22.6 Ω/km · Thin (24
Operating voltage & current
300 V (CL2/CMG/PLTC) / 600 V AWM · 8 A

Thermal

Operating temp. (fixed / flex)
-40 °C to +80 °C fixed · -30 °C to +75 °C
Storage temperature
-40 °C to +80 °C

Mechanical

Outer diameter (Thick / Thin)
12.2 mm ± 0.3 mm (Thick) · 6.9 mm ± 0.2 mm
Min. bending radius
6 × D fixed · 10 × D drag-chain

Resistance

Oil & coolant resistance
UL Oil Res I/II · EN 60811-404
Flame retardancy
UL 1685 FT4 / CMG / PLTC · IEC 60332-1-2

Reference standards

Primary specification
ODVA DeviceNet Specification Volume I
North American listings
UL CL2 / CL3 / CMG / PLTC · CSA CMG FT4

Identification

Core colours (ODVA mandatory)
Data: Blue (CAN_L), White (CAN_H) · Power
Outer sheath colour
RAL 7001 Grey (standard), RAL 4001 Violet

Sizes

5 standard configurations (DeviceNet)

Nominal dimensions, copper weights, impedance and transmission parameters for DeviceNet per ODVA DeviceNet Volume I (Thick Trunk & Thin Drop).

Dimensions & weights
Order designationConfigurationConductor sizeOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard DeviceNet configurations
DeviceNet Thick Trunk Fixed PVC (15/18 AWG)2×15 AWG + 2×18 AWG (Thick PVC)1.65 / 0.82 mm²12.28218573
DeviceNet Thick Drag-Chain PUR (15/18 AWG)2×15 AWG + 2×18 AWG (Thick Chain PUR)1.65 / 0.82 mm²12.28417873
DeviceNet Mid-Size Trunk (16/20 AWG)2×16 AWG + 2×20 AWG (Mid Trunk)1.31 / 0.52 mm²9.85612259
DeviceNet Thin Drop Fixed PVC (22/24 AWG)2×22 AWG + 2×24 AWG (Thin PVC)0.34 / 0.22 mm²6.9296441
DeviceNet Thin Drag-Chain PUR (22/24 AWG)2×22 AWG + 2×24 AWG (Thin Chain PUR)0.34 / 0.22 mm²6.9306241
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per ODVA DeviceNet Volume I (Thick Trunk & Thin Drop).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
1 MHz data-pair Z0, capacitance & attenuationZ0 = 120 ± 12 Ω; attenuation ≤ 1.31 (Thick) / ≤ 2.29 (Thin) dB/100m @ 1 MHz100 % of reels
Power & data DC resistance + 2 kV dielectricODVA Volume I resistance limits; 1.5–2.0 kV dielectric100 % of reels
Sample tests
Data-to-power pair crosstalk isolationIndividual Al/PET screens prevent 24 V switching noise couplingPer production batch
UL CMG/PLTC FT4 tray flame & drag-chain flexPass UL 1685 FT4 & ≥ 5M cycles on PUR variantsType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ODVA Volume IUL CL2 / CMG / PLTCCSA CMG FT4 / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX ODVA DEVICENET THICK / THIN 120
Delivery form
Non-returnable plywood reels or export drums
Standard reel lengths
100 m · 305 m · 500 m · 1000 m
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFDeviceNet Cable – technical datasheet5 sizes · construction, technical data, approvalsXLSXDeviceNet spec data (Excel)All 5 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between DeviceNet Thick and DeviceNet Thin cable?
DeviceNet Thick (OD 12.2 mm) uses 15 AWG power cores (8 A capacity) and 18 AWG 120 Ω data cores to support main trunks up to 500 m at 125 kbps, 250 m at 250 kbps, or 100 m at 500 kbps. DeviceNet Thin (OD 6.9 mm) uses 22 AWG power (3 A) and 24 AWG data cores for 6 m drop lines and short trunks up to 100 m.
Why are both the data pair and the power pair individually foil-shielded inside a DeviceNet cable?
Because DeviceNet carries 24 V DC solenoid and sensor power alongside high-speed CAN data in the same jacket, wrapping both the Blue/White data pair and the Red/Black power pair in separate 100 % Al/PET foils prevents 24 V load-switching transients from coupling into CAN_H and CAN_L.
What is the standard ODVA wire colour assignment for DeviceNet 5-pin connectors?
Every ODVA 5-pin Mini-C (7/8-inch) and Micro-C (M12) connector uses the identical 5-wire sequence: Pin 1 = Bare Drain/Shield, Pin 2 = Red (+24 V DC V+), Pin 3 = Black (0 V DC V-), Pin 4 = White (CAN_H), and Pin 5 = Blue (CAN_L).
Can DeviceNet Thick or Thin cables be installed in continuous drag chains?
Standard PVC CL2/PLTC DeviceNet cables are designed for fixed raceways and trays. For moving gantries and energy chains, specify our DeviceNet Drag-Chain PUR versions, which use Class 6 extra-fine tinned copper strands and an oil-resistant polyurethane sheath rated for ≥ 5 million cycles. Each production reel undergoes 100 % characteristic impedance verification, mutual capacitance and DC loop resistance testing, and dielectric spark/withstand inspection before dispatch with an EN 10204 3.1 certificate.
