PN-G-90006 Polish Underground Mining Power & Control Cables (YnOGY / YKGY / YHKGY)PN-G-90006 · YnOGYekm0.6/1 kV · Class 5 Flexible Cu (G)Flexible Braided Screen (ekm) + Yn PVC

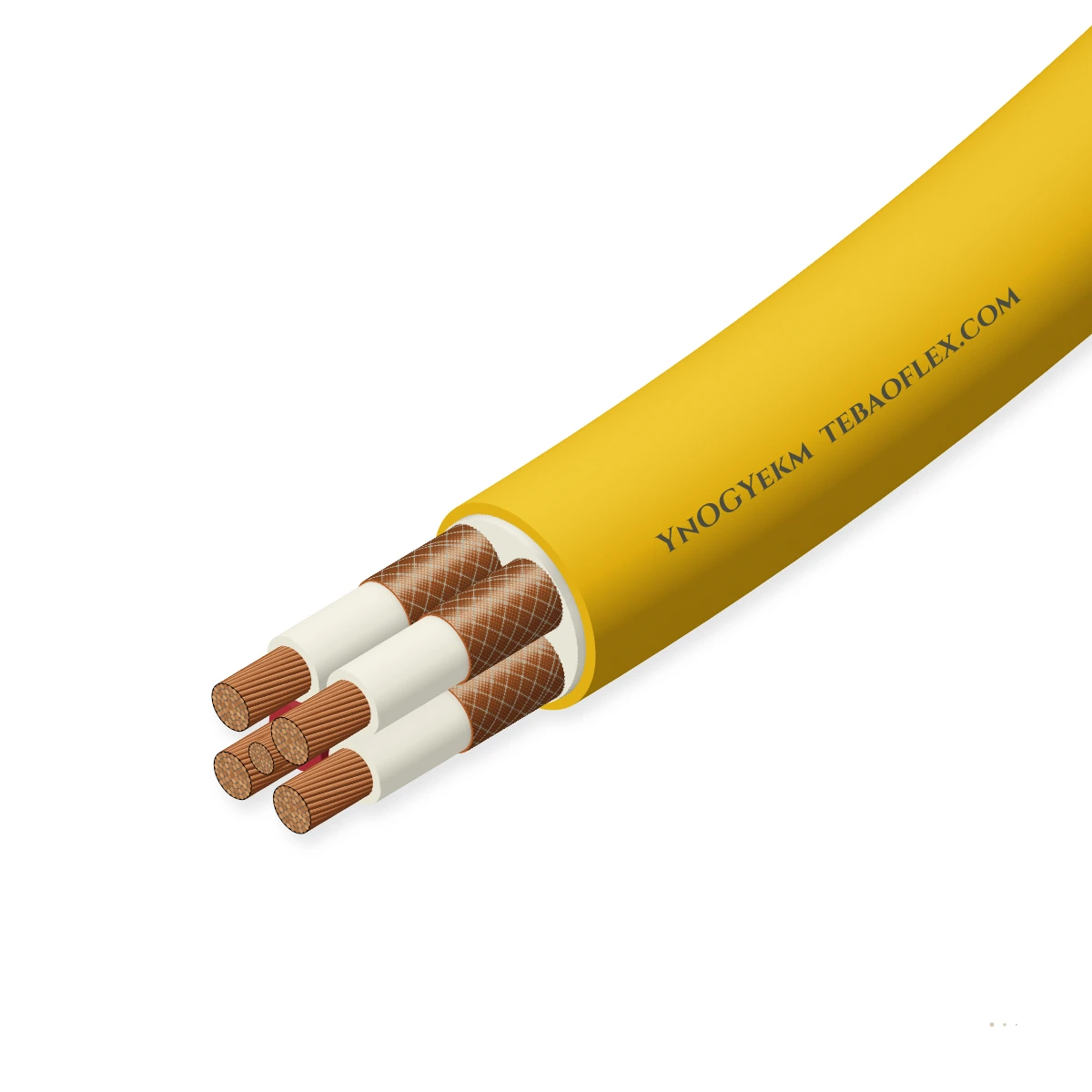

YnOGYekm CablePN-G-90006 0.6/1 kV Class 5 Cu (G), PVC-insulated (Y), flexible Cu-elastomer screen

YnOGYekm Cable is a Polish-standard (PN-G-90006) 0.6/1 kV extra-flexible screened underground mining power and control cable featuring Class 5 flexible copper conductors ('G'), PVC core insulation ('Y'), a flexible tinned/bare copper wire braid embedded in

Flame-retardant
EMC screen
Low-EMC design
Oil-resistant
Order designation
YnOGYekm 7 × 2.5 mm² 0.6/1 kV
Outer Ø ≈
18.4 mm
Copper weight
240 kg/km
Total weight ≈
505 kg/km
Min. bend R (fixed)
110 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
PN-G-90006
Polish underground mining specification
Designation
YnOGYekm
ekm = flexible braided composite screen
Rated voltage
0.6/1 kV AC
3.5 kV AC / 5 min dielectric test
Conductor
Class 5 Flexibl
PN-EN 60228 flexible stranded copper
Flexible screen
Cu Braid +
Anti-kink 'ekm' flexing screen
Outer sheath
Yn Mining FR-PVC
Self-extinguishing high-LOI PVC

Typical values for this cable type, based on PN-G-90006 / ZN-TF (YnOGYekm 0.6/1 kV Composite-Screened Flexible Mining Cable) — confirmed in the datasheet and quotation for your order.

Application fit

Is YnOGYekm right for your machine?

Engineered for semi-mobile underground mining machinery, suspended monorail power/control loops, roadheader auxiliary panels, and vibrating VFD drives where repetitive flexing would displace a

Fixed installation

Suitable

Installs cleanly between flameproof gate-end switchgear and vibrating underground machinery.

Switchgear & control cabinet wiring

Suitable

High-coverage braided composite screen ('ekm') delivers superior high-frequency VFD EMC attenuation and earth-fault capture.

Immersion & wet locations

Suitable

Conductive bedding matrix and Yn mining PVC sheath block moisture migration along the screen.

Energy chain / drag chain

With conditions

Designed for suspended monorail loops and semi-mobile flexing; for heavy coal-face reeling use rubber trailing cables.

YnOGYek
Typical machinesSuspended underground monorail loopsRoadheader & stage-loader auxiliary controlMethane-hazardous (Group I) coal mine drivesUnderground VFD pump & booster fan feeders

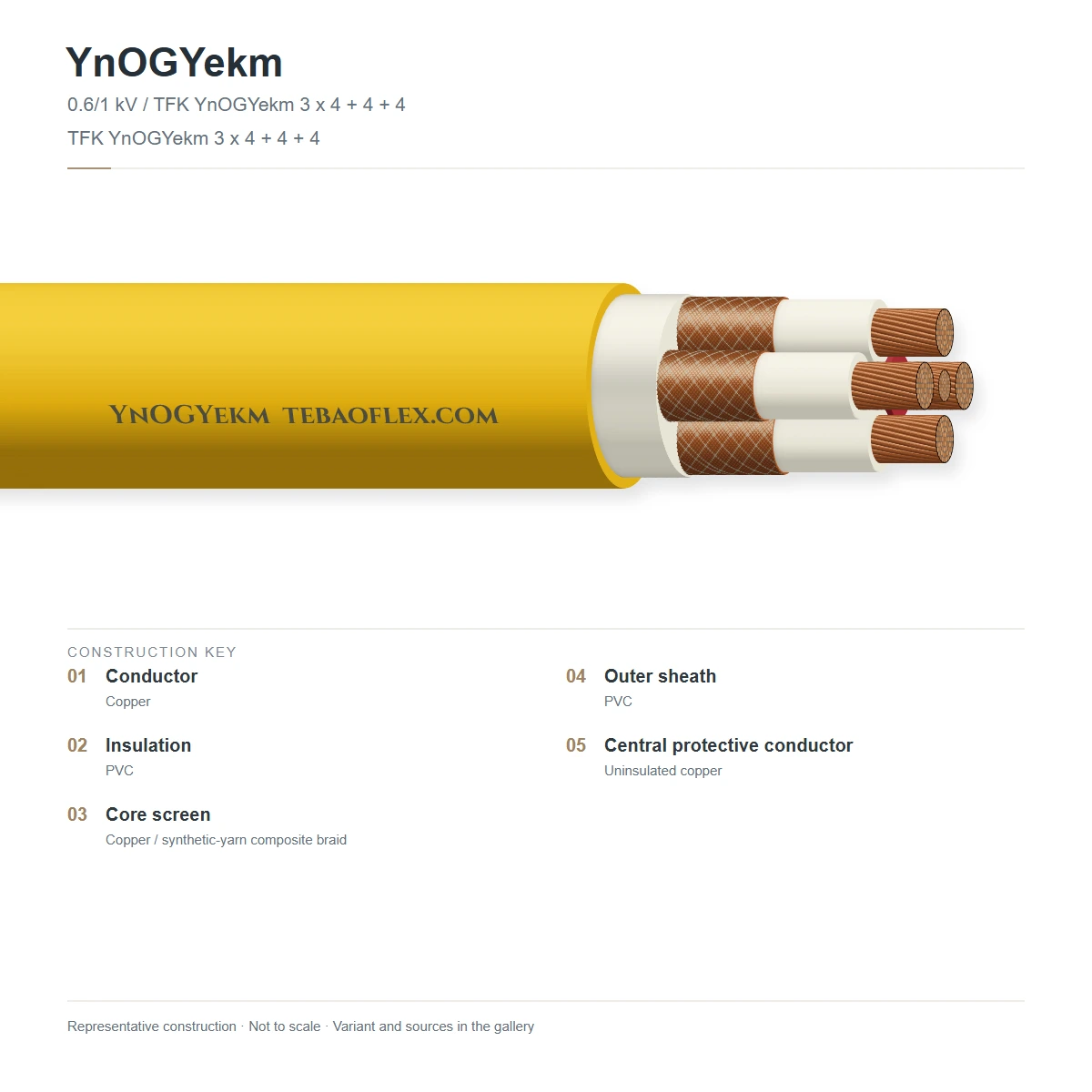

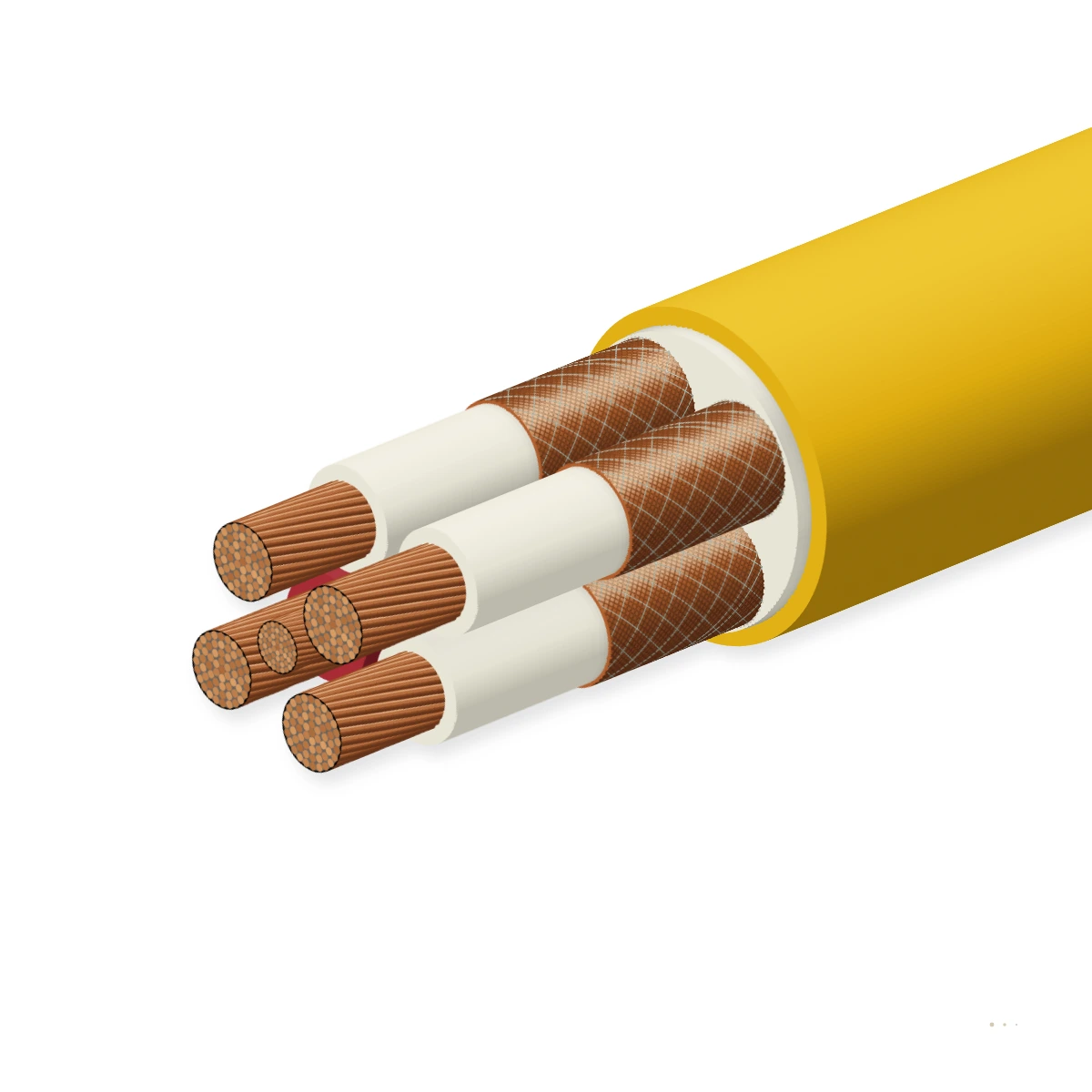

Construction

Layer by layer

Flexible multi-wire stranded copper conductors (PN-EN 60228 Class 5, 1.5 to 95 mm²), PVC core insulation ('Y'), inner PVC filler bedding

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible Class 5 copper conductor (G)Multi-wire flexible annealed copper per PN-EN 60228 Class 5PN-G-90006 / PN-EN 60228
2PVC core insulation (Y)Insulating polyvinyl chloride (PVC) compoundPN-G-90006
3Inner PVC beddingExtruded flexible PVC inner filler sheathPN-G-90006
4Flexible copper-elastomer compositeFine annealed/tinned copper wire braid in a semi-conductive elastomeric/polymer matrixPN-G-90006
5Flame-retardant mining PVC outerSelf-extinguishing, oil-resistant mining PVC compound (Yn)PN-G-90006 / PN-EN 60332-1-2

YnOGYekm Multi-Core Control (4×2.5 to 19×2.5 mm²)

Extra-flexible composite-screened control and telemetry cables for monorails and mobile skids.

YnOGYekm Flexible Power (4×6.0 to 4×70 mm²)

0.6/1 kV flexible power feeders with anti-birdcaging 'ekm' braided copper screen.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90006 / ZN-TF (YnOGYekm 0.6/1 kV Composite-Screened Flexible Mining Cable). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV AC (600/1000 V)
AC dielectric test voltage
3,500 V AC for 5 minutes (core-to-core &
Max. conductor operating temp.
+70 °C continuous · +160 °C short-circuit
Screen coverage & fault rating
≥ 85 % optical Cu braid + 100 %

Thermal

Operating temperature range
-25 °C to +70 °C (fixed) · -5 °C to +70 °C
Minimum installation temp.
-5 °C

Mechanical

Min. bending radius
6 × D (fixed) · 10 × D (flexible routing)
Flexing screen stability
Braided 'ekm' construction prevents helical

Resistance

Flame retardance
PN-EN 60332-1-2 & PN-G-04035 mining flame
Mine water & oil resistance
Resistant to saline mine water, hydraulic

Reference standards

Primary specification
PN-G-90006 · ZN-TF / WUG underground mining
Conductor standard
PN-EN 60228 Class 5

Identification

Core identification
HD 308 S2 colour code or black numbered cores
Outer sheath colour
Black or Yellow mining PVC ('Yn')

Sizes

6 standard configurations (YnOGYekm)

Nominal dimensions, copper weights, DC resistance and current ratings for YnOGYekm per PN-G-90006 / ZN-TF (YnOGYekm 0.6/1 kV Composite-Screened Flexible

Dimensions & weights
Order designationCores × SizeMain cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard YnOGYekm configurations
YnOGYekm 4 × 2.5 mm² 0.6/1 kV4 × 2.5 mm² + ekm2.5 mm²15.615535594
YnOGYekm 7 × 2.5 mm² 0.6/1 kV7 × 2.5 mm² + ekm2.5 mm²18.4240505110
YnOGYekm 4 × 6.0 mm² 0.6/1 kV4 × 6.0 mm² + ekm6.0 mm²19.8320630119
YnOGYekm 4 × 16 mm² 0.6/1 kV4 × 16 mm² + ekm16.0 mm²26.67601,250160
YnOGYekm 4 × 35 mm² 0.6/1 kV4 × 35 mm² + ekm35.0 mm²34.21,5652,260205
YnOGYekm 4 × 70 mm² 0.6/1 kV4 × 70 mm² + ekm70.0 mm²44.03,0103,980264
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90006 / ZN-TF (YnOGYekm 0.6/1 kV Composite-Screened Flexible Mining Cable).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV AC dielectric test (core-to-screen)3,500 V AC for 5 min per PN-G-90006100 % of drums
Phase & 'ekm' screen DC resistance @ 20 °CPN-EN 60228 Class 5 & braided screen resistance check100 % of drums
Sample tests
Bending flex test on 'ekm' screen & Yn LOINo copper strand breakage or screen displacementPer production batch
PN-EN 60332-1-2 & PN-G-04035 mining flame testPass Polish underground mining fire propagation testWUG / type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90006PN-EN 60332-1-2CE / WUG Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX YnOGYekm 0.6/1KV PN-G-90006
Delivery form
Non-returnable timber drums or heavy export
Standard drum lengths
250 m · 500 m · 1000 m · custom cut lengths
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFYnOGYekm Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXYnOGYekm spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between the 'ekm' screen in YnOGYekm and the 'ek' screen in YnOGYek?
In YnOGYek, 'ek' is a helical copper wire screen bound with a copper equalizing tape. In YnOGYekm, 'ekm' (ekran miedziany modyfikowany / elastyczny) uses a fine copper wire braid integrated with a semi-conductive elastomeric/polymer layer so the screen will not birdcage or shift under repeated bending and torsional movement.
Why does YnOGYekm allow a tighter bending radius (6×D fixed / 10×D flexing) than YnOGYek?
Because the 'ekm' braided composite screen expands and contracts symmetrically around bends without open helical wire gaps or stiff copper equalizer tapes, it tolerates tighter bending radii on monorail loops and mobile mining skids. Each production drum undergoes 100 % conductor DC resistance verification,
Is YnOGYekm suitable for 0.6/1 kV VFD drives in underground mines?
Yes. The combination of a 100 % coverage semi-conductive layer and a ≥ 85 % tinned/bare copper braid provides superior high-frequency common-mode EMI containment from kilohertz to tens of megahertz. Each production drum undergoes 100 % conductor DC resistance verification, insulation thickness gauging, and
Can YnOGYekm be supplied with a green-yellow protective earth core (-żo)?
Yes. All multi-core YnOGYekm sizes are available either with a dedicated green-yellow core (YnOGYekm-żo) or without a green-yellow core (YnOGYekm-o) where the concentric screen and separate pilot/earth cores are used. Each production drum undergoes 100 % conductor DC resistance verification, insulation thickness gauging, and
