PN-G-90006 Polish Underground Mining Power & Control Cables (YnOGY / YKGY / YHKGY)PN-G-90006 · YnOGYek0.6/1 kV · Class 5 Flexible Cu (G)Copper Wire/Tape Screen (ek) + Yn PVC

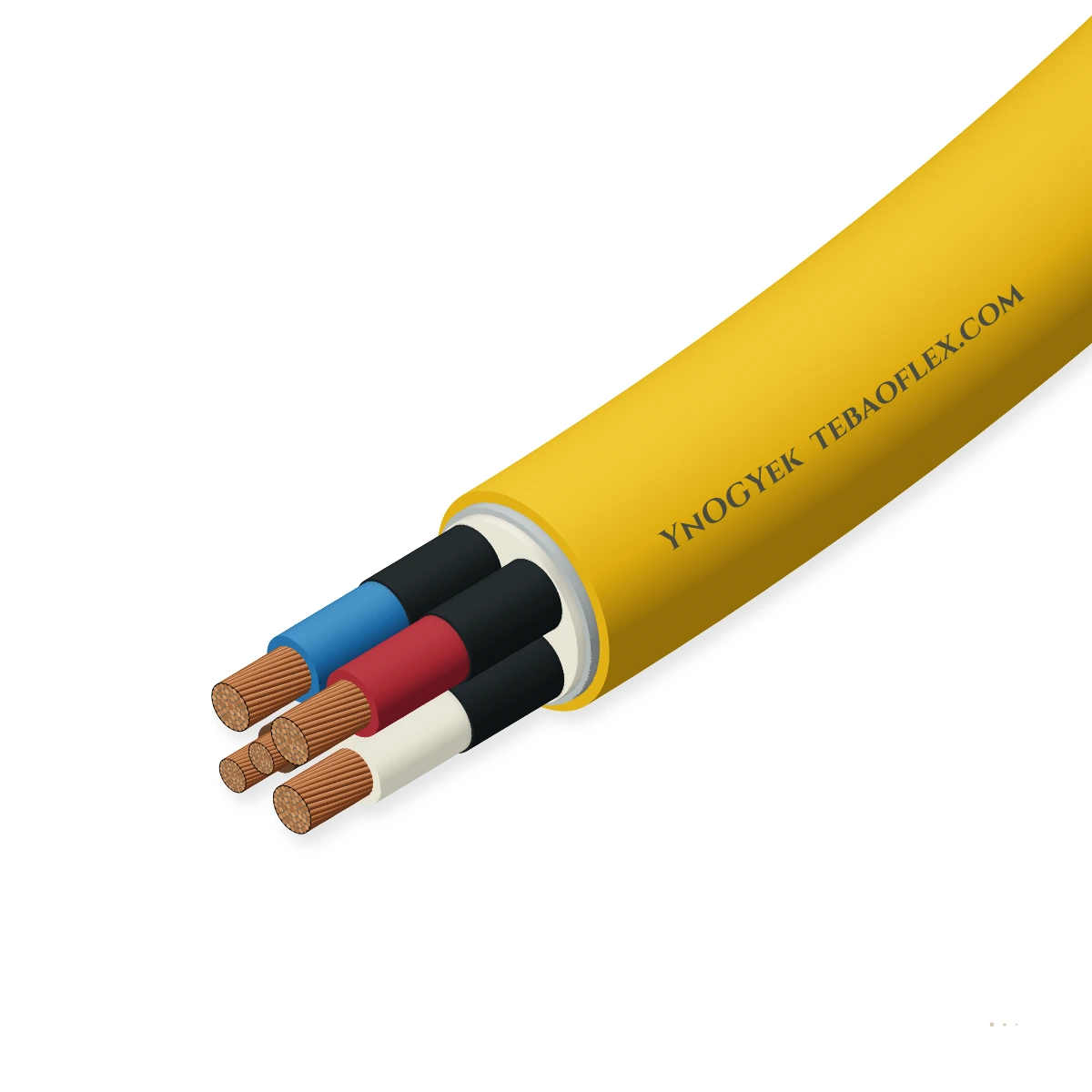

YnOGYek CablePN-G-90006 0.6/1 kV Class 5 Cu (G), PVC-insulated (Y), copper-screened (ek), FR-PVC (Yn)

YnOGYek Cable is a Polish-standard (PN-G-90006) 0.6/1 kV screened flexible underground mining power and control cable combining Class 5 flexible copper conductors ('G'), PVC core insulation ('Y'), an extruded inner PVC bedding, an overall concentric copper

Flame-retardant
EMC screen
Low-EMC design
Oil-resistant
Order designation
YnOGYek 7 × 2.5 mm² 0.6/1 kV
Outer Ø ≈
18.0 mm
Copper weight
230 kg/km
Total weight ≈
485 kg/km
Min. bend R (fixed)
144 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
PN-G-90006
Polish underground mining specification
Designation
YnOGYek
ek = overall copper wire/tape screen
Rated voltage
0.6/1 kV AC
3.5 kV AC / 5 min dielectric test
Conductor
Class 5 Flexibl
PN-EN 60228 flexible stranded copper
Metallic screen
Cu Wires +
Fault-current & EMC earth screen
Outer sheath
Yn Mining FR-PVC
Self-extinguishing high-LOI PVC

Typical values for this cable type, based on PN-G-90006 / ZN-TF (YnOGYek 0.6/1 kV Screened Flexible Mining Cable) — confirmed in the datasheet and quotation for your order.

Application fit

Is YnOGYek right for your machine?

Engineered for underground coal and copper mine machinery interconnections, VFD motor feeds, and gassy roadway circuits where an overall copper fault screen ('ek') is required to trigger

Fixed installation

Suitable

Flexible Class 5 stranding simplifies routing between flameproof gate-end boxes and stationary mining drives.

Switchgear & control cabinet wiring

Suitable

Concentric copper screen ('ek') provides low-impedance earthing and EMI containment for VFD and telemetry circuits.

Immersion & wet locations

Suitable

Inner PVC bedding and outer Yn mining PVC sheath protect the copper screen against saline mine moisture.

Energy chain / drag chain

With conditions

Suitable for semi-stationary flexing; where extra-flexible braided elastomeric screening is needed select YnOGYekm.

YnOGYekm
Typical machinesMethane-hazardous (Group I) underground coal minesUnderground copper & salt mining machineryFlameproof gate-end box & VFD interconnectionsScreened underground control & signalling bus

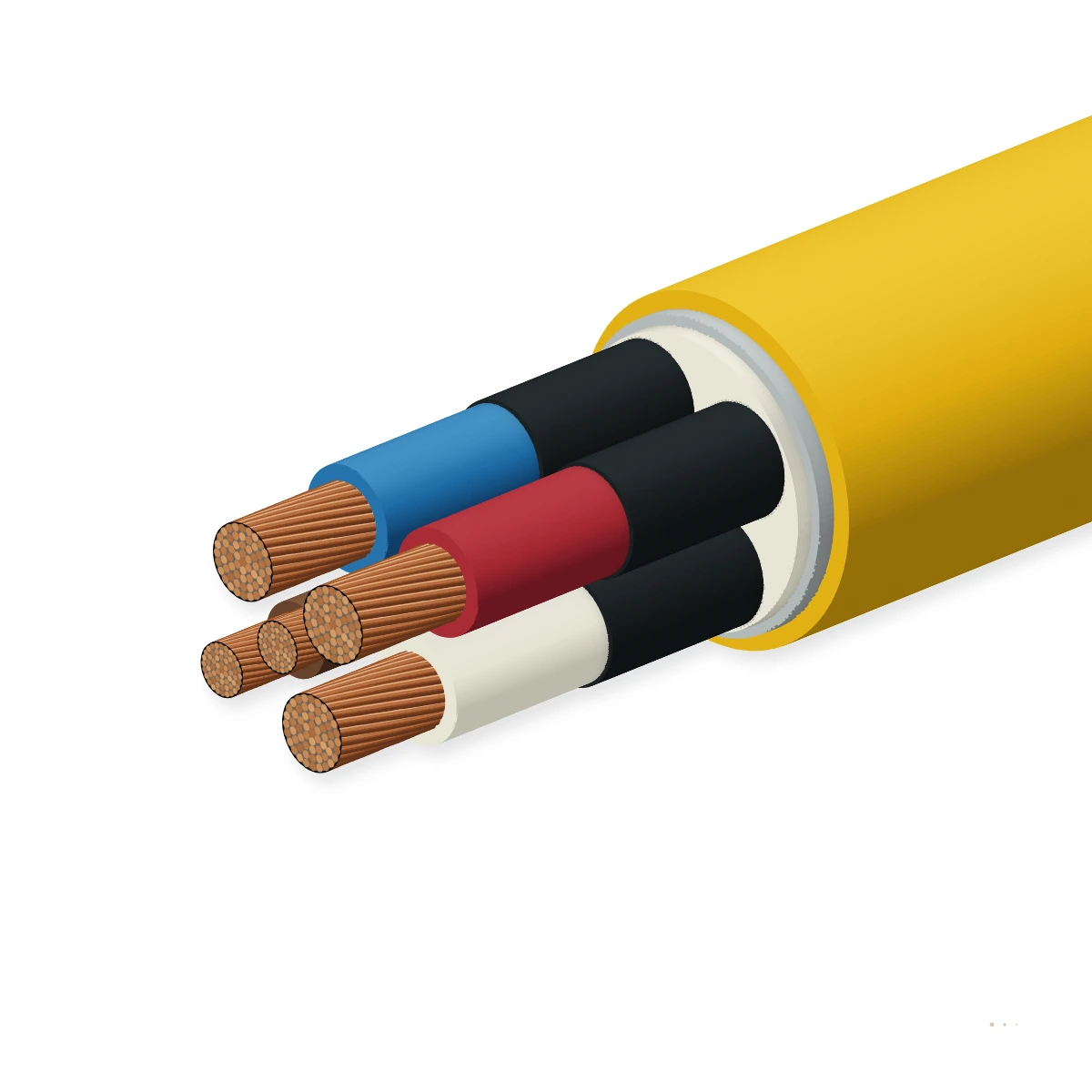

Construction

Layer by layer

Flexible multi-wire stranded copper conductors (PN-EN 60228 Class 5, 1.5 to 95 mm²), PVC core insulation ('Y'), inner PVC filler/bedding

12345
Schematic, not to scale — generated from the layer data

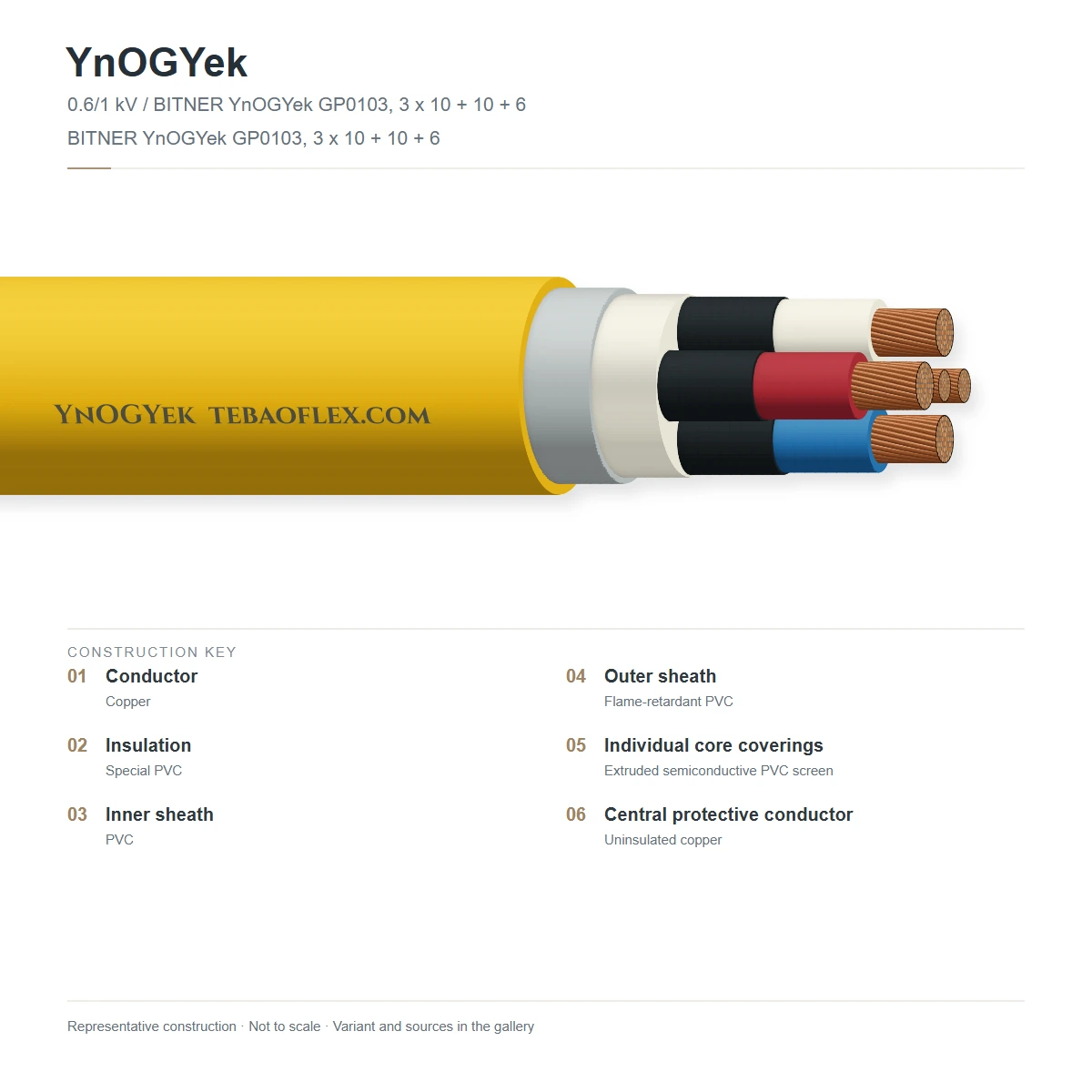

#LayerMaterial & reference
1Flexible Class 5 copper conductor (G)Multi-wire flexible annealed copper per PN-EN 60228 Class 5PN-G-90006 / PN-EN 60228
2PVC core insulation (Y)Insulating polyvinyl chloride (PVC) compoundPN-G-90006
3Inner PVC bedding & semi-con layerExtruded PVC inner filler sheath lapped with semi-conductive tapePN-G-90006
4Concentric copper wire & tape screenHelically applied annealed copper wires with counter-helical copper equalizing tapePN-G-90006
5Flame-retardant mining PVC outerSelf-extinguishing, oil-resistant mining PVC compound (Yn)PN-G-90006 / PN-EN 60332-1-2

YnOGYek Screened Control & Pilot (4×2.5 to 19×2.5 mm²)

Screened flexible multi-core control and interlocking cables for underground flameproof switchgear.

YnOGYek Screened Power (3×10+10 to 4×70 mm²)

0.6/1 kV flexible power cables with concentric copper earth screen ('ek').

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90006 / ZN-TF (YnOGYek 0.6/1 kV Screened Flexible Mining Cable). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV AC (600/1000 V)
AC dielectric test voltage
3,500 V AC for 5 minutes (core-to-core &
Max. conductor operating temp.
+70 °C continuous · +160 °C short-circuit
Screen fault conductivity
Copper wire + tape screen ('ek') sized per

Thermal

Operating temperature range
-25 °C to +70 °C (fixed) · -5 °C to +70 °C
Minimum installation temp.
-5 °C

Mechanical

Min. bending radius
8 × D (fixed) · 12 × D (flexible routing)
Conductor flexibility
Class 5 flexible multi-wire copper ('G')

Resistance

Flame retardance
PN-EN 60332-1-2 & PN-G-04035 mining flame
Mine water & oil resistance
Resistant to saline mine water, oils, and

Reference standards

Primary specification
PN-G-90006 · ZN-TF / WUG underground mining
Conductor standard
PN-EN 60228 Class 5

Identification

Core identification
HD 308 S2 colour code or black numbered cores
Outer sheath colour
Black or Yellow mining PVC ('Yn')

Sizes

6 standard configurations (YnOGYek)

Nominal dimensions, copper weights, DC resistance and current ratings for YnOGYek per PN-G-90006 / ZN-TF (YnOGYek 0.6/1 kV Screened Flexible Mining Cable).

Dimensions & weights
Order designationCores × SizeMain cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard YnOGYek configurations
YnOGYek 4 × 2.5 mm² 0.6/1 kV4 × 2.5 mm² + ek2.5 mm²15.2148340122
YnOGYek 7 × 2.5 mm² 0.6/1 kV7 × 2.5 mm² + ek2.5 mm²18.0230485144
YnOGYek 4 × 6.0 mm² 0.6/1 kV4 × 6.0 mm² + ek6.0 mm²19.4310610155
YnOGYek 4 × 16 mm² 0.6/1 kV4 × 16 mm² + ek16.0 mm²26.27451,220210
YnOGYek 4 × 35 mm² 0.6/1 kV4 × 35 mm² + ek35.0 mm²33.81,5402,210270
YnOGYek 4 × 70 mm² 0.6/1 kV4 × 70 mm² + ek70.0 mm²43.62,9803,920349
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90006 / ZN-TF (YnOGYek 0.6/1 kV Screened Flexible Mining Cable).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV AC dielectric test (core-to-screen)3,500 V AC for 5 min per PN-G-90006100 % of drums
Phase & 'ek' screen DC resistance @ 20 °CPN-EN 60228 Class 5 & screen conductance check100 % of drums
Sample tests
Yn sheath oxygen index (LOI) & tear checkSelf-extinguishing mining PVC verificationPer production batch
PN-EN 60332-1-2 & PN-G-04035 mining flame testPass Polish underground mining fire propagation testWUG / type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90006PN-EN 60332-1-2CE / WUG Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX YnOGYek 0.6/1KV PN-G-90006
Delivery form
Non-returnable timber drums or heavy export
Standard drum lengths
250 m · 500 m · 1000 m · custom cut lengths
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFYnOGYek Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXYnOGYek spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20
