PN-G-90006 Polish Underground Mining Power & Control Cables (YnOGY / YKGY / YHKGY)PN-G-90006 · YnKGY-żo0.6/1 kV · Class 5 Flexible Cu (G)With Green-Yellow Core (-żo) + Yn PVC

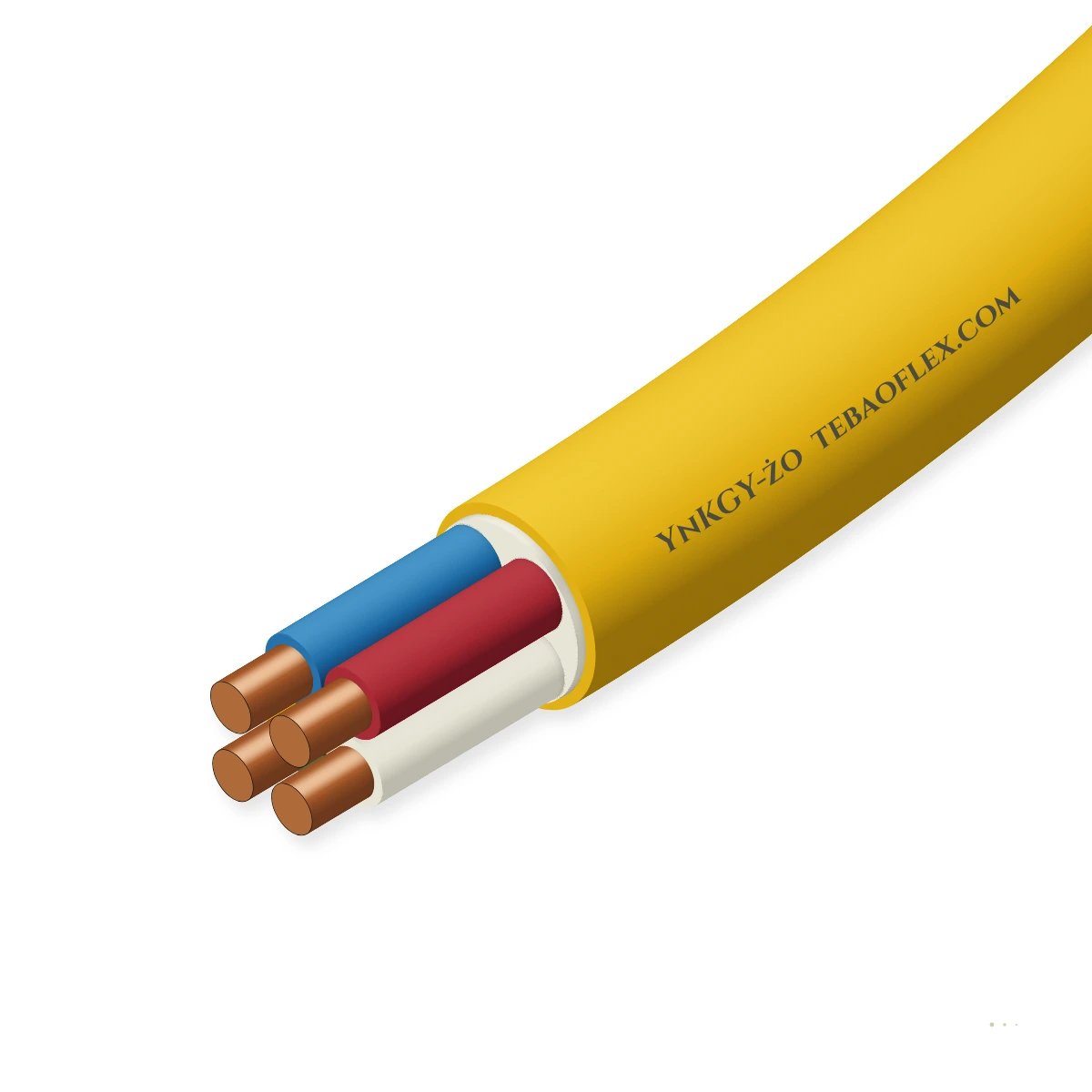

YnKGY-żo CablePN-G-90006 0.6/1 kV flexible Cu (G), PVC-insulated (Y), FR-PVC (Yn) mining power cable

YnKGY-żo Cable is a Polish-standard (PN-G-90006) 0.6/1 kV flexible underground mining power and control cable ('K') constructed with Class 5 flexible copper conductors ('G') including a dedicated green-yellow protective earth conductor ('-żo'), PVC core

Flame-retardant
Oil-resistant
Water-resistant
Approved
Order designation
YnKGY-żo 5 × 4.0 mm² 0.6/1 kV
Outer Ø ≈
16.2 mm
Copper weight
192 kg/km
Total weight ≈
415 kg/km
Min. bend R (fixed)
130 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
PN-G-90006
Polish underground mining power cable
Designation
YnKGY-żo
Yn (FR-PVC) · K (power) · G (Cl.5) · -żo
Rated voltage
0.6/1 kV AC
3.5 kV AC / 5 min dielectric test
Conductor
Class 5 Flexibl
PN-EN 60228 flexible copper
Protective core
-żo (Green-Yell
Integral PE protective conductor
Outer sheath
Yn Mining FR-PVC
Self-extinguishing high-LOI PVC

Typical values for this cable type, based on PN-G-90006 / ZN-TF (YnKGY-żo 0.6/1 kV Flexible Underground Mining Power Cable) — confirmed in the datasheet and quotation for your order.

Application fit

Is YnKGY-żo right for your machine?

Engineered for 0.6/1 kV underground mine roadway feeders, movable district transformer interconnections, pump/fan motor circuits, and multi-core control panels where flexible Class 5 copper and an

Fixed installation

Suitable

Suspended along underground gallery wall hooks and cable trays without requiring heavy pulling winches.

Switchgear & control cabinet wiring

Suitable

Class 5 flexible conductors ('G') and integral green-yellow core ('-żo') simplify termination inside compact flameproof enclosures.

Immersion & wet locations

Suitable

Extruded inner bedding and thick Yn mining PVC outer sheath resist saline mine groundwater and oils.

Energy chain / drag chain

Not suitable

Fixed and semi-fixed underground mining power cable.

YnOGY
Typical machinesUnderground coal, copper & zinc-lead minesMovable roadway transformer & switchgear skidsUnderground dewatering pumps & auxiliary fansMining lighting, interlocking & control networks

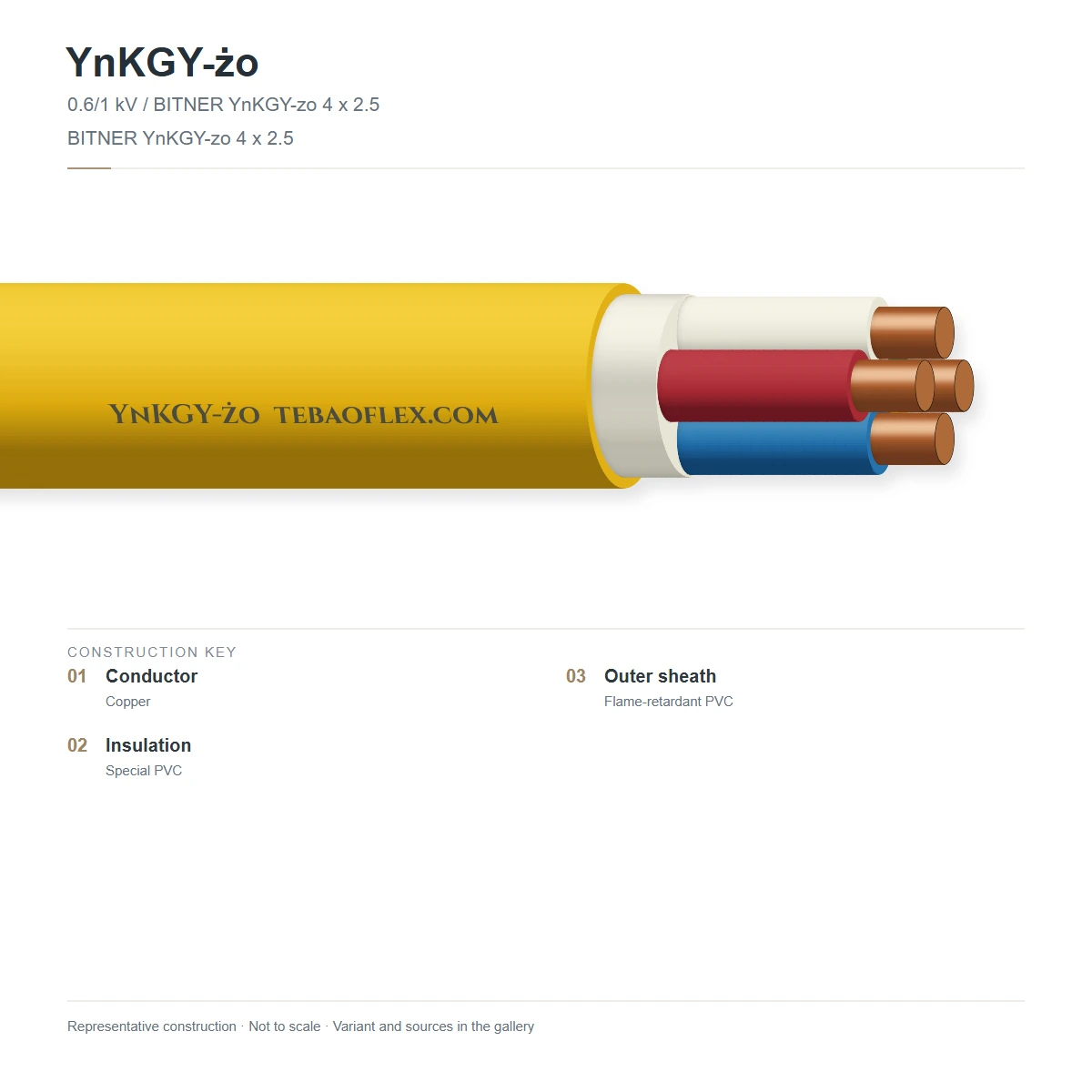

Construction

Layer by layer

Flexible multi-wire stranded copper conductors (PN-EN 60228 Class 5, 3 to 37 cores, 1.5 to 120 mm²), PVC core insulation ('Y') including

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible Class 5 copper conductor (G)Multi-wire flexible annealed copper per PN-EN 60228 Class 5PN-G-90006 / PN-EN 60228
2PVC core insulation (Y) with -żo coreInsulating polyvinyl chloride (PVC) compound; protective conductor coloured Green-YellowPN-G-90006 / HD 308 S2
3Inner PVC filler beddingExtruded PVC inner bedding filling interstices for gas-tight flameproof gland sealingPN-G-90006
4Flame-retardant mining PVC outerHeavy-duty self-extinguishing, oil-resistant mining PVC compound (Yn)PN-G-90006 / PN-EN 60332-1-2

YnKGY-żo Control & Auxiliary (3×1.5 to 19×2.5 mm²)

Flexible multi-core 0.6/1 kV control and auxiliary power cables with green-yellow PE core.

YnKGY-żo Main LV Feeders (4×6.0 to 4×95 mm² / 5×10 to 5×70 mm²)

Flexible 4-core and 5-core underground gallery power feeders.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90006 / ZN-TF (YnKGY-żo 0.6/1 kV Flexible Underground Mining Power Cable). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV AC (600/1000 V)
AC dielectric test voltage
3,500 V AC for 5 minutes
Max. conductor operating temp.
+70 °C continuous · +160 °C short-circuit
Min. insulation resistance @ 20 °C
≥ 20 MΩ·km

Thermal

Operating temperature range
-25 °C to +70 °C (fixed) · -5 °C to +70 °C
Minimum installation temp.
-5 °C

Mechanical

Min. bending radius
8 × D (fixed) · 12 × D (during repositioning)
Gland sealing profile
Extruded inner filler bedding ensures

Resistance

Flame retardance
PN-EN 60332-1-2 & PN-G-04035 mining flame
Mine water & oil resistance
Resistant to acidic/saline mine water and

Reference standards

Primary specification
PN-G-90006 · ZN-TF / WUG underground mining
Conductor standard
PN-EN 60228 Class 5

Identification

Core identification
Green-Yellow (-żo) + HD 308 S2 colours (or
Outer sheath colour
Black (or Yellow mining visibility sheath)

Sizes

6 standard configurations (YnKGY-żo)

Nominal dimensions, copper weights, DC resistance and current ratings for YnKGY-żo per PN-G-90006 / ZN-TF (YnKGY-żo 0.6/1 kV Flexible Underground Mining Power

Dimensions & weights
Order designationCores × SizeMain cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard YnKGY-żo configurations
YnKGY-żo 3 × 2.5 mm² 0.6/1 kV3G 2.5 mm²2.5 mm²12.07221096
YnKGY-żo 5 × 4.0 mm² 0.6/1 kV5G 4.0 mm²4.0 mm²16.2192415130
YnKGY-żo 5 × 10 mm² 0.6/1 kV5G 10 mm²10.0 mm²21.8480845174
YnKGY-żo 4 × 25 mm² 0.6/1 kV4G 25 mm²25.0 mm²27.69601,490221
YnKGY-żo 4 × 50 mm² 0.6/1 kV4G 50 mm²50.0 mm²35.81,9202,680286
YnKGY-żo 4 × 95 mm² 0.6/1 kV4G 95 mm²95.0 mm²46.43,6484,780371
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90006 / ZN-TF (YnKGY-żo 0.6/1 kV Flexible Underground Mining Power Cable).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV AC dielectric & spark test3,500 V AC for 5 min per PN-G-90006100 % of drums
Class 5 conductor DC resistance @ 20 °CPN-EN 60228 Class 5 resistance verification100 % of drums
Sample tests
Yn sheath oxygen index (LOI) & wall thicknessSelf-extinguishing mining PVC checkPer production batch
PN-EN 60332-1-2 & PN-G-04035 mining flame testPass Polish underground mining fire propagation testWUG / type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90006PN-EN 60332-1-2CE / WUG Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX YnKGY-zo 0.6/1KV PN-G-90006
Delivery form
Non-returnable timber drums or heavy export
Standard drum lengths
250 m · 500 m · 1000 m · custom cut lengths
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFYnKGY-żo Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXYnKGY-żo spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How do YnKGY-żo and YKGYyn-żo relate in Polish mining nomenclature?
Both designations refer to 0.6/1 kV PVC-insulated ('Y'), flexible copper ('G'), flame-retardant mining PVC-sheathed ('Yn' or 'yn') underground mining power cables ('K') with a green-yellow protective conductor ('-żo'). Some Polish factories place the flame-retardant sheath prefix at the front ('YnKGY-żo') while others place it at the end ('YKGYyn-żo').
Why does YnKGY-żo include an extruded inner filler bedding?
In underground gassy mines, cables entering Ex d flameproof switchgear must form a pressure-tight seal inside the elastomeric compression gland ring. The extruded inner PVC bedding fills all core interstices so gas cannot migrate through the core lay. Each production drum undergoes 100 %
What does the suffix '-żo' mean?
In Polish electrical standards, '-żo' (żyła ochronna zielono-żółta) indicates that one of the insulated cores is a green-yellow protective earth conductor (equivalent to 'G' in VDE '5G10' notation). Each production drum undergoes 100 % conductor DC resistance verification, insulation thickness gauging, and high-voltage AC
When should I use armoured YKGYFtZnyn or YKGYFoyn instead of unarmoured YnKGY-żo?
Use unarmoured YnKGY-żo on protected messenger-wire hooks and inside substation chambers where low weight and Class 5 flexibility are needed. Where the cable is exposed to rock-fall impact or shaft tension, specify steel-tape armoured YKGYFtZnyn or steel-wire armoured YKGYFoyn. Each production drum undergoes 100
