AD8 Permanent-Submersion Rubber & Pool CablesAD8 Submersible450/750 VChlorinated Pool Water

PROFIPLAST PBS-POOL Chlorinated-Water-Resistant PermanentEN 50525-2-21 AD8 · 450/750 V (0.6/1 kV) · Chlorinated-water proof · Non-staining blue

PROFIPLAST PBS-POOL is a specialized 450/750 V (up to 0.6/1 kV) AD8 permanent-submersion flexible elastomer cable engineered for commercial and Olympic swimming pools, aquatic therapy basins, robotic pool cleaners, and underwater luminaires. Its

Water-resistant

Ozone, UV & moisture

Oil-resistant

Approved

Configuration

Order designation: PROFIPLAST PBS-POOL 2×6.0
Outer Ø ≈: 13.4 mm
Copper weight: 115 kg/km
Total weight ≈: 275 kg/km
Min. bend R (fixed): 54 mm

All sizes (12)

Request a quote Datasheet WhatsApp

Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum

Rated voltage: 450/750 V
Water class: AD8 Submersion
Chlorine proof: ≤ 1.5–3.0 mg/L
Conductor max.: +90 °C (air)
Min. bend R: 4 × D / 6 × D
Outer jacket: Non-staining

Typical values for this cable type, based on EN 50525-2-21 AD8 / VDE 0285 — confirmed in the datasheet and quotation for your order.

Application fit

Is PROFIPLAST PBS-POOL right for your machine?

Purpose-built for permanent immersion in chlorinated, brominated, and saltwater swimming pools, waterparks, fountain basins, underwater floodlights, and automated pool-cleaning robots.

Immersion & wet locations

Suitable

Certified for AD8 permanent submersion in chlorinated, ozonated, and saltwater swimming pools.

Trailing & towing

Suitable

Smooth, non-marking blue jacket glides across pool tiles without staining PVC liners or grout.

Fixed installation

Suitable

Ideal for underwater LED floodlights, wave-machine pumps, and counter-current swim jets.

Motorised monospiral reel

Suitable

Flexible Class 5 tinned copper cores handle reeling on commercial robotic pool cleaner caddies.

Mine roadway & tunnel wall hangers

Not suitable

Formulated for clean/chlorinated aquatic basins; use S1BN8-F or H07RN8-F for abrasive sewage or mine sumps.

S1BN8-F 0.6/1 kV

Typical machinesOlympic & Commercial Swimming PoolsRobotic Pool Cleaners & DredgersUnderwater LED & Fountain LightingThermal Spa & Thalassotherapy BasinsAquaculture & Marine Aquariums

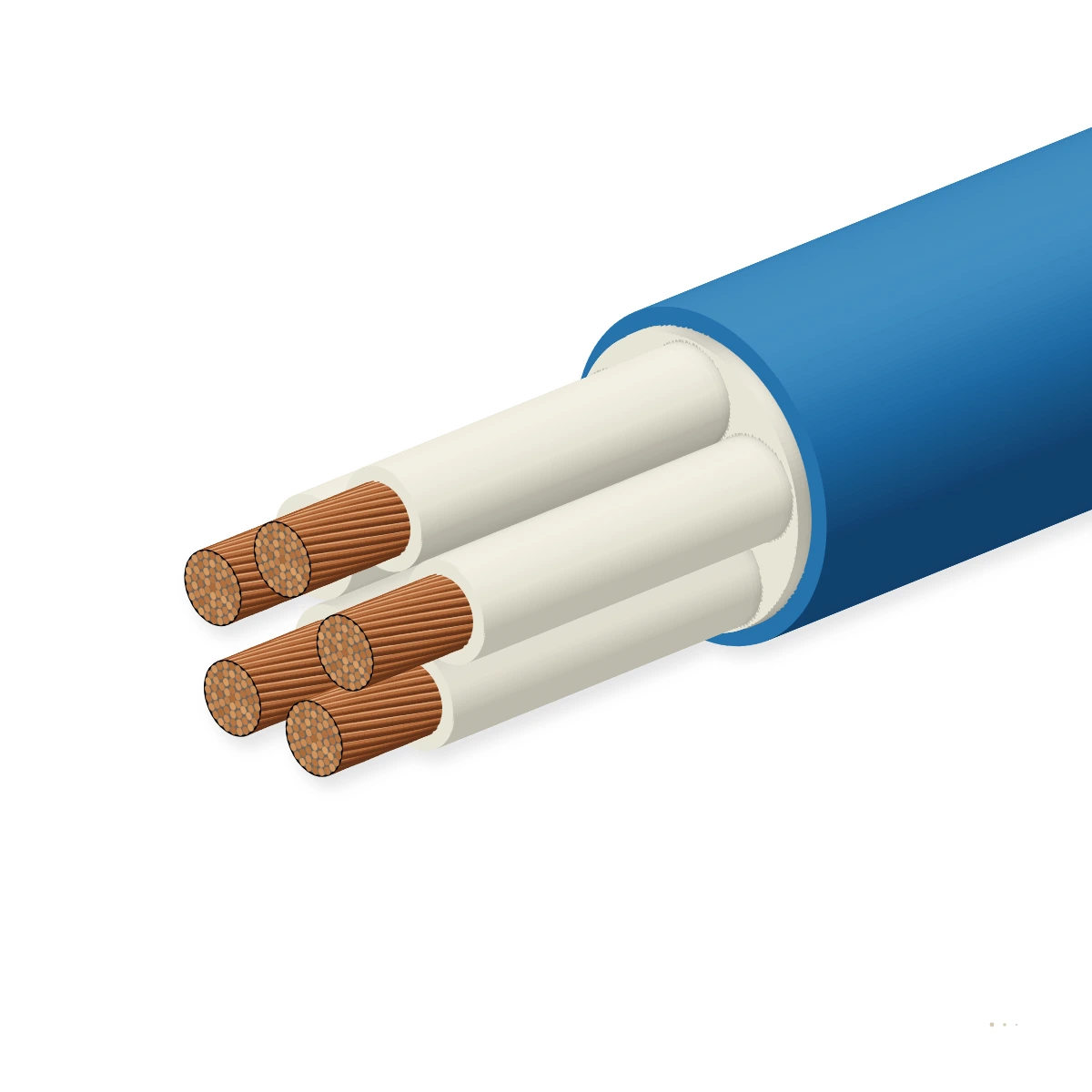

Construction

Layer by layer

Fine-stranded tinned copper conductors, low-water-absorption cross-linked EPR insulation, and non-staining sky/ocean-blue

Schematic, not to scale — generated from the layer data

#	Layer	Material & reference
1	Flexible tinned copper conductor	Class 5 fine-stranded tin-coated annealed copper wire preventing capillary oxidationEN 60228 Class 5
2	Low-water-uptake EPR insulation	Special cross-linked ethylene-propylene elastomer (Type 3GI3 / EI4-AD8) with ultra-lowEN 50363-1
3	Tight-pitch water-blocked lay-up	Cores stranded with short pitch and hydrophobic elastomeric intersticesVDE 0285 AD8
4	Chlorine-resistant pool elastomer sheath	Cross-linked chlorine-, bromine-, and hydrolysis-resistant specialty elastomer compoundEN 50525-2-21 AD8

PBS-POOL 2× / 3G (1.0–2.5 mm²)

Compact flexible cord for underwater SELV 12/24 V LED pool luminaires and commercial robotic pool cleaners.

PBS-POOL 4G / 5G (1.5–16 mm²)

Three-phase + PE/N submersible feeder for wave machines, fountain pumps, and movable pool floors.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-21 AD8 / VDE 0285. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U: 450/750 V AC (0.6/1 kV fixed)
Routine AC test voltage: 2.5 kV rms / 5 min in water bath
Wet insulation resistance: ≥ 1000 MΩ·km at +20 °C
SELV / PELV compatibility: 12 V / 24 V AC/DC & 230/400 V AC
Conductor stranding: EN 60228 Class 5 tinned copper
Operating frequency: 50 / 60 Hz & DC

Thermal

Max. water temperature (AD8): +40 °C continuous submersion
Max. conductor temp. (in air): +90 °C continuous
Max. short-circuit temperature: +250 °C (max. 5 s)
Mobile ambient range: -25 °C to +60 °C
Fixed ambient range: -40 °C to +80 °C
Winter freeze resistance: Withstands ice formation in outdoor pools

Mechanical

Min. bend radius (fixed): 4 × overall diameter (D)
Min. bend radius (mobile cleaner): 6 × overall diameter (D)
Max. submersion depth (AD8): Up to 50 m water head (5 bar)
Max. tensile pull on copper: 15 N/mm²
Surface friction: Low-drag non-marking smooth finish
Abrasion resistance: Resistant to ceramic tile & concrete

Resistance

Chlorinated pool water: Resistant up to 1.5–3.0 mg/L free Cl₂
Brominated & ozonated water: Resistant to pool sanitizing chemicals
Saltwater & thalassotherapy: 100 % seawater & brine resistant
UV & outdoor sunlight: Colour-fast blue UV-stabilised jacket
Liner & tile non-staining: Zero plasticizer migration on PVC liners
RoHS / REACH status: Halogen-free / RoHS 3 compliant

Reference standards

Submersible design basis: EN 50525-2-21 Annex D/E (AD8)
Swimming pool installation norm: IEC 60364-7-702 / HD 60364-7-702
Underwater luminaire norm: EN 60598-2-18 swimming pool lights
Conductor standard: EN 60228 Class 5
Water submersion category: AD8 permanent submersion
Quality certification: EN 10204 3.1 test certificate

Identification

Core identification (≤ 5 cores): HD 308 S2 colours (with G/Y in 3G–5G)
Core identification (≥ 7 cores): White numbers on black cores + G/Y
Outer sheath colour: Pool blue (RAL 5015 / 5012) or black
Surface marking: TEBAOFLEX PBS-POOL AD8 450/750V [n×mm²]
Length marking: Sequential metre marking
Batch traceability: Lot number & year code

Sizes

12 standard configurations (PROFIPLAST PBS-POOL)

Nominal dimensions, copper weights and electrical parameters for PROFIPLAST PBS-POOL per EN 50525-2-21 AD8 / VDE 0285.

Dimensions & weights
Order designation	Configuration	Phase size mm²	Outer Ø ≈ mm	Copper kg/km	Weight ≈ kg/km	Min. bend R fixed mm
Standard PROFIPLAST PBS-POOL configurations
PROFIPLAST PBS-POOL 2×1.5	2×1.5	1.5	8.6	29	102	34
PROFIPLAST PBS-POOL 2×2.5	2×2.5	2.5	10.2	48	145	41
PROFIPLAST PBS-POOL 2×4.0	2×4.0	4.0	11.8	77	205	47
PROFIPLAST PBS-POOL 2×6.0	2×6.0	6.0	13.4	115	275	54
PROFIPLAST PBS-POOL 3G1.5	3G1.5	1.5	9.4	43	125	38
PROFIPLAST PBS-POOL 3G2.5	3G2.5	2.5	11.1	72	180	44
PROFIPLAST PBS-POOL 4G1.5	4G1.5	1.5	10.4	58	155	42
PROFIPLAST PBS-POOL 4G2.5	4G2.5	2.5	12.2	96	225	49
PROFIPLAST PBS-POOL 4G4.0	4G4.0	4.0	14.2	154	325	57
PROFIPLAST PBS-POOL 4G6.0	4G6.0	6.0	16.2	230	445	65
PROFIPLAST PBS-POOL 5G1.5	5G1.5	1.5	11.4	72	190	46
PROFIPLAST PBS-POOL 5G2.5	5G2.5	2.5	13.5	120	275	54

Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per EN 50525-2-21 AD8 / VDE 0285.

Electrical & ampacity data
Configuration	Max. DC R @ 20 °C Ω/km	Current rating in air (A)	Current rating installed (A)	Mutual C pF/m ≈	AC test V rms
2×1.5	13.633	22	19	80	2,500
2×2.5	8.179	30	26	82	2,500
2×4.0	5.074	40	34	84	2,500
2×6.0	3.382	51	43	87	2,500
3G1.5	13.633	22	19	80	2,500
3G2.5	8.179	30	26	82	2,500
4G1.5	13.633	22	19	80	2,500
4G2.5	8.179	30	26	82	2,500
4G4.0	5.074	40	34	84	2,500
4G6.0	3.382	51	43	87	2,500
5G1.5	13.633	22	19	80	2,500
5G2.5	8.179	30	26	82	2,500

Current ratings apply at +25/+30 °C ambient in free air; apply standard derating factors for elevated ambient or drum coiling.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

ConductorClass 5 stranding
Spark test100 % in-line
Lay-upCores, earth, fillers
SheathingInner, braid / screen, outer
Electrical testsAC voltage, resistance
DimensionsOD, wall thickness
Inspection documents & dispatchDrum & dispatch

Testing & inspection	Test value / reference	Frequency
Routine tests
AC water-bath dielectric voltage test	2.5 kV rms for 5 minutes after 24 h water immersion	Every drum
Tinned conductor DC resistance	Complies with EN 60228 Class 5 tinned limits at 20 °C	Every drum
Sample tests
Chlorinated water immersion ageing	No surface chalking, swelling or cracking in chlorinated water at +40 °C	Per batch
Long-term AD8 gravimetric water absorption	Passes EN 50363 AD8 water uptake and wet IR stability test	Type approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

EN 50525-2-21 AD8IEC 60364-7-702CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX PROFIPLAST PBS-POOL AD8 450/750V

Delivery form: Fumigated export wooden drums or coils
Standard drum lengths: 500 m · 1000 m (or custom cut lengths)
MOQ: 100 m (stock sizes) · 300–500 m (production)
Lead time: 2–4 weeks ex-works
Incoterms: EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFPROFIPLAST PBS-POOL Chlorinated-Water-Resistant Permanent – technical datasheet12 sizes · construction, technical data, approvals XLSXPROFIPLAST PBS-POOL spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation

Revision: 2026-10-20
Updated: 2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why do standard black H07RN-F or H07RN8-F rubber cables fail prematurely in swimming pools?

Standard polychloroprene (H07RN8-F) is engineered for raw water and sewage, but free chlorine, bromine, and ozone sanitizers in swimming pools attack conventional carbon-filled neoprene, causing black smudging on pool tiles, jacket chalking, and premature embrittlement; PBS-POOL uses a chlorine-stabilised non-staining blue elastomer. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

Can PROFIPLAST PBS-POOL be used on both underwater LED lights and robotic pool cleaners?

Yes, 2-core PBS-POOL (2×1.5 to 2×6.0 mm²) is ideal for 12 V / 24 V SELV underwater LED floodlights and commercial robotic pool cleaners, while 3G, 4G, and 5G sizes feed submerged pumps, movable pool floors, and fountain jets. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

Is PBS-POOL suitable for saltwater electrolysis and thermal spa pools?

Yes, its cross-linked elastomer jacket and tinned Class 5 copper conductors resist saline electrolysis pools, brominated thermal spas up to +40 °C water temperature, and ozonated competition basins. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.

Does the blue PBS-POOL jacket leave marks on white PVC pool liners or ceramic grout?

No, the pigment-stabilised pool-blue outer sheath contains zero migrating plasticizers or carbon black, ensuring it will not stain PVC pool membranes, fibreglass shells, or light-coloured tile grout. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
