PN-G-90100 Polish Mining Rubber CablesPN-G-901051.8/3–3.6/6 kVOpen-Cast Mining Rubber

OGc CablePN-G-90105 / PN-89/E-90143 · 0.6/1 kV to 3.6/6 kV · +90 °C EPR ('c') · Open-cast &

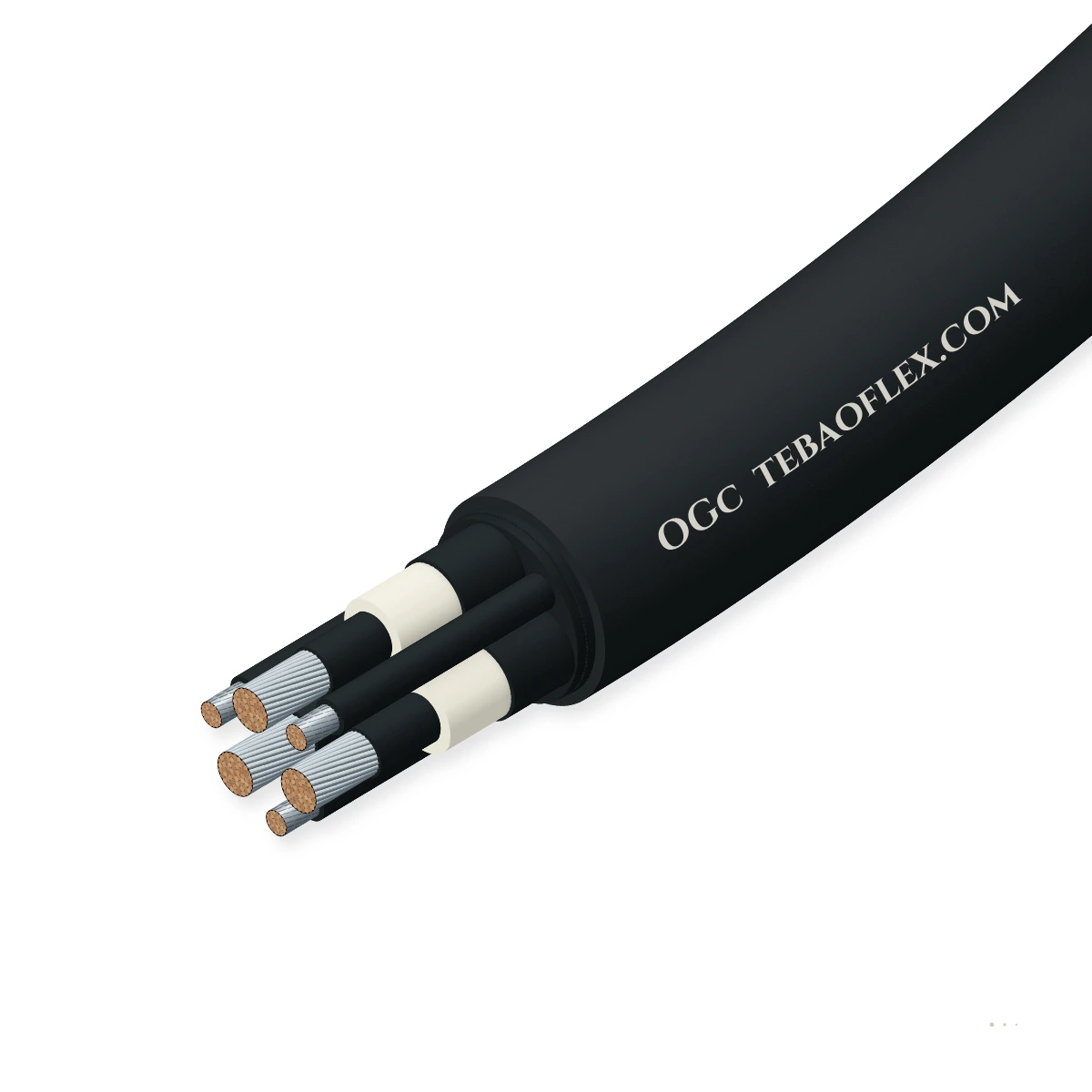

OGc is a heavy-duty flexible rubber power feeder cable manufactured to PN-G-90105 / PN-89/E-90143 for open-cast lignite mines, quarry excavators, mobile crushing plants, and field transformer links. Built with Class 5 copper conductors, +90 °C

Outdoor & humid
Ozone, UV & moisture
Oil-resistant
Flame-retardant
Order designation
OGc 1.8/3 kV 3×50+1×25
Outer Ø ≈
41.6 mm
Copper weight
1,680 kg/km
Total weight ≈
3,080 kg/km
Min. bend R (fixed)
250 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
1.8/3 & 3.6/6 kV
Also available in 0.6/1 kV heavy grade
Conductor max.
+90 °C
Heat-resistant 'c' EPR · +250 °C SC
Ambient (outdoor)
-40 to +60 °C
Cold-climate open-pit quarry duty
Min. bend R
6 × D / 10 × D
Fixed routing / mobile trailing
Core layout
1, 3 or 4 cores
16 mm² to 185 mm² power feeders
Weathering
UV & ozone proof
Open-pit year-round outdoor exposure

Typical values for this cable type, based on PN-G-90105 / PN-89/E-90143 — confirmed in the datasheet and quotation for your order.

Application fit

Is OGc right for your machine?

Designed for surface lignite mines, open-pit quarries, bucket-wheel excavators, mobile belt-conveyor drive stations, and outdoor skid-mounted substations.

Trailing & towing

Suitable

Primary overland trailing feeder for open-pit shovels, mobile crushers, and conveyor head drives.

Fixed installation

Suitable

Excellent for temporary and semi-permanent open-cast bench distribution and pontoon pumps.

Drilling jumbo & rotary mast feed

Suitable

Withstands sub-zero -40 °C winter conditions on surface blast-hole drilling rigs.

Motorised monospiral reel

With conditions

Suitable for slow bench-repositioning reels; use NTSCGEWÖU for dynamic high-tension reeling.

NTSCGEWÖU 3.6/6–18/30 kV

Mine roadway & tunnel wall hangers

Not suitable

OGc is designed for surface/open-cast use; specify '-G' cables (OnGc-G or OnGcekgż-G) underground.

OnGcekgż-G
Typical machinesOpen-Cast Lignite & Coal MinesQuarry Shovels & Mobile CrushersOverland Belt Conveyor StationsDredging & Dewatering PontoonsOutdoor Mobile Substations

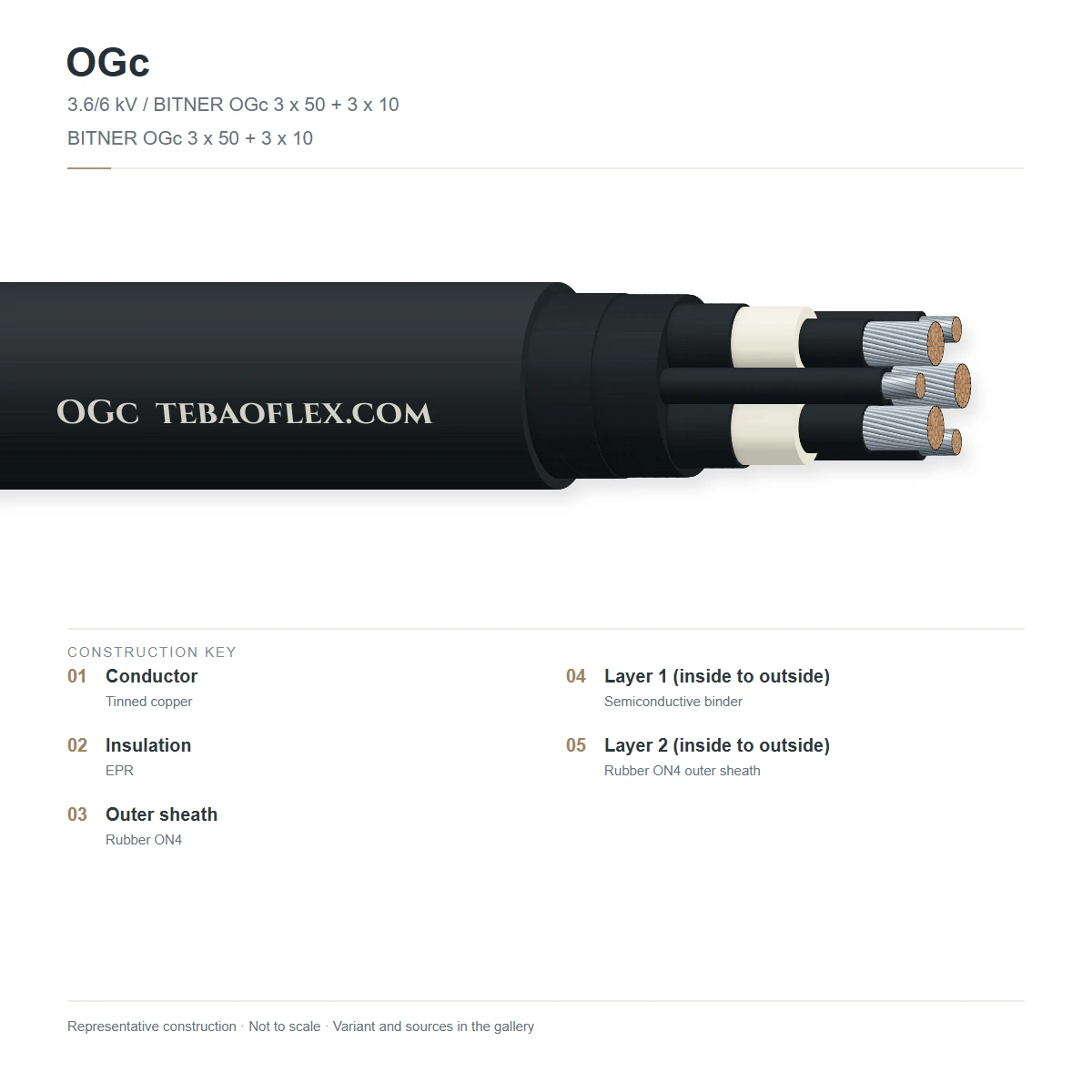

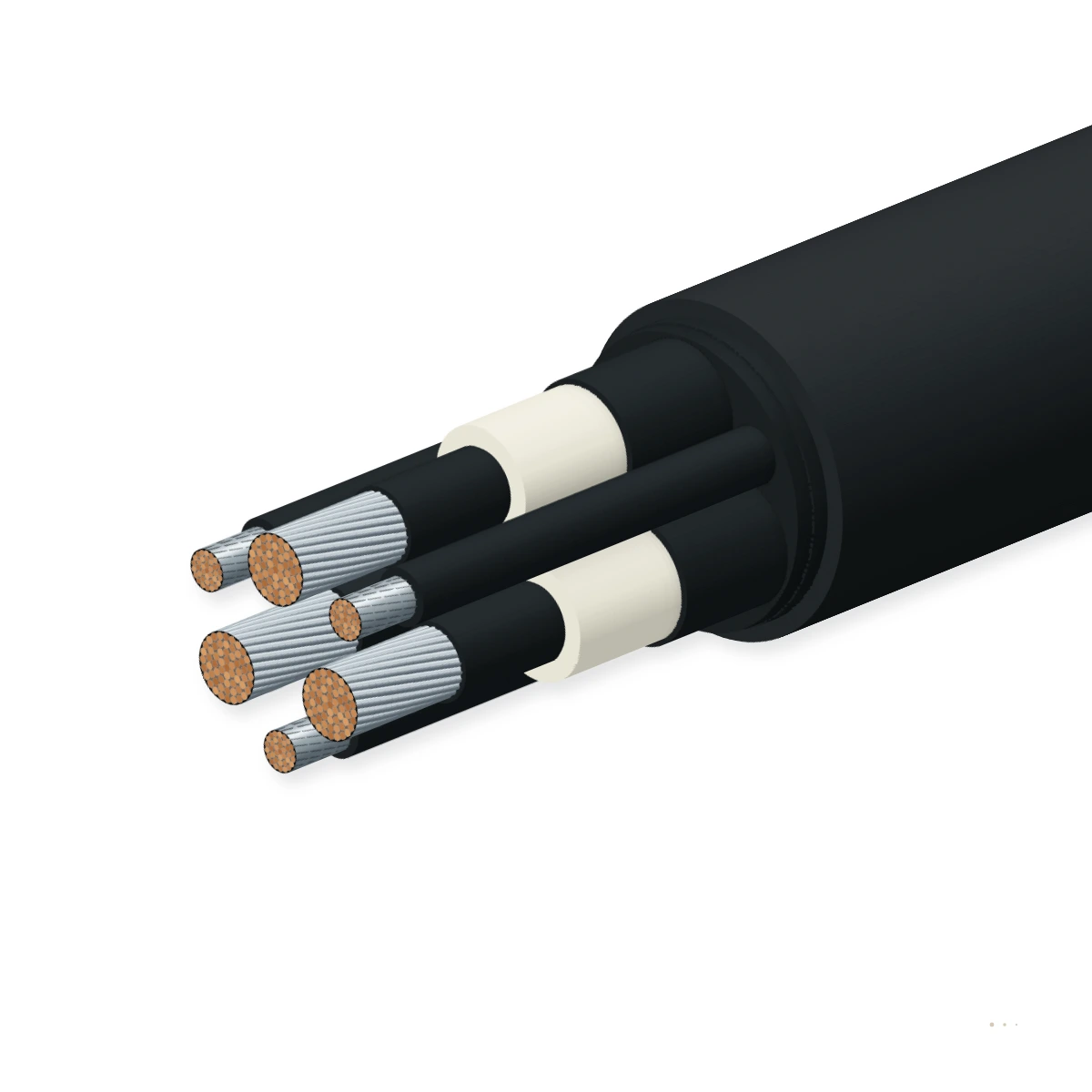

Construction

Layer by layer

Class 5 copper conductors with +90 °C ozone-resistant EPR insulation ('c'), rubber filler bedding, and thick weather/abrasion-resistant

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Flexible copper conductorClass 5 fine-stranded plain or tinned annealed copper wireIEC 60228 Class 5
2+90 °C EPR dielectric ('c')Ozone- and heat-resistant cross-linked ethylene-propylene rubber compoundPN-G-90105
3Elastomeric inner filler & beddingExtruded rubber inner covering providing circular cross-section and impact cushioningPN-89/E-90143
4Heavy-duty open-cast outer rubberAbrasion-, oil-, UV-, and cold-resistant polychloroprene/chlorosulphonated elastomerPN-G-90105

OGc 1.8/3 kV (3+1 cores)

Four-core (3 phase + reduced PE) trailing feeder for open-pit quarry machinery and belt conveyor stations.

OGc 3.6/6 kV (1× or 3×)

Single-core and three-core medium-voltage flexible rubber cables for mobile substation jumpers and excavators.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90105 / PN-89/E-90143. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV, 1.8/3 kV, or 3.6/6 kV
Maximum system voltage Um
1.2 kV, 3.6 kV, or 7.2 kV
Routine AC test voltage
3.0 kV / 6.5 kV / 11.0 kV rms
Specific insulation resistance
≥ 500 MΩ·km at +20 °C
Nominal frequency
50 / 60 Hz
Conductor stranding class
IEC 60228 Class 5

Thermal

Max. conductor operating temp.
+90 °C continuous ('c' EPR)
Max. short-circuit temperature
+250 °C (max. 5 s)
Outdoor mobile ambient range
-40 °C to +60 °C
Fixed ambient range
-50 °C to +60 °C
Min. laying temperature
-25 °C
Emergency overload temp.
+105 °C

Mechanical

Min. bend radius (fixed)
6 × overall diameter (D)
Min. bend radius (flexing)
10 × overall diameter (D)
Max. tensile pull on copper
15 N/mm²
Bench dragging abrasion
Heavy-wall elastomer outer jacket
Cold-impact resilience
No cracking down to -40 °C
Tear strength
≥ 15 N/mm

Resistance

UV & sunlight resistance
Carbon-stabilised black elastomer
Ozone resistance
Ozone-inert EPR insulation & sheath
Oil & diesel resistance
EN 60811-404 resistant
Flame retardance
IEC 60332-1-2 self-extinguishing
Water & mud exposure
Suitable for flooded quarry benches
Halogen status
Chloroprene elastomer

Reference standards

Primary product standard
PN-G-90105 / PN-89/E-90143
Conductor standard
IEC 60228 Class 5
Flame test standard
PN-EN 60332-1-2
Open-cast mining rules
Polish surface mining equipment code
Environmental compliance
CE & RoHS compliant
Quality certification
EN 10204 3.1 mill certificate

Identification

Core identification
HD 308 colours or numbered cores
Protective earth core
Green/yellow
Outer sheath colour
Black
Sheath marking
TEBAOFLEX OGc [U0/U] [n×mm²] CE
Length marking
Sequential metre marking
Batch traceability
Lot number & year code

Sizes

12 standard configurations (OGc)

Nominal dimensions, copper weights and electrical parameters for OGc per PN-G-90105 / PN-89/E-90143.

Dimensions & weights
Order designationVoltage & ConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
0.6/1 kV & 1.8/3 kV OGc heavy open-cast & quarry feeders
OGc 1.8/3 kV 3×16+1×101.8/3 kV 3×16+1×101629.25571,340175
OGc 1.8/3 kV 3×25+1×161.8/3 kV 3×25+1×162533.58741,840201
OGc 1.8/3 kV 3×35+1×161.8/3 kV 3×35+1×163536.81,1622,290221
OGc 1.8/3 kV 3×50+1×251.8/3 kV 3×50+1×255041.61,6803,080250
OGc 1.8/3 kV 3×70+1×351.8/3 kV 3×70+1×357046.82,3524,020281
OGc 1.8/3 kV 3×95+1×501.8/3 kV 3×95+1×509552.43,2165,190314
3.6/6 kV OGc medium-voltage open-cast excavator feeders
OGc 3.6/6 kV 1×503.6/6 kV 1×505021.5480820129
OGc 3.6/6 kV 1×953.6/6 kV 1×959526.29121,390157
OGc 3.6/6 kV 1×1503.6/6 kV 1×15015030.81,4402,040185
OGc 3.6/6 kV 3×25+1×163.6/6 kV 3×25+1×162538.48742,210230
OGc 3.6/6 kV 3×50+1×253.6/6 kV 3×50+1×255046.21,6803,510277
OGc 3.6/6 kV 3×95+1×503.6/6 kV 3×95+1×509557.03,2165,740342
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per PN-G-90105 / PN-89/E-90143.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
AC voltage withstand test6.5 kV rms (1.8/3 kV) or 11.0 kV rms (3.6/6 kV) for 5 minutesEvery drum
Conductor DC resistanceComplies with IEC 60228 Class 5 at 20 °CEvery drum
Sample tests
Cold-bend & cold-impact test at -40 °CNo sheath or insulation cracking under sub-zero flexingPer batch
Ozone, UV & oil resistance testPasses EN 60811-403 ozone test and EN 60811-404 oil immersionType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90105 / PN-89/E-90143IEC 60332-1-2CE / RoHS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX OGc [U0/U] [n×mm²] PN-G-90105 CE
Delivery form
Fumigated export wooden drums or coils
Standard drum lengths
500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (production)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFOGc Cable – technical datasheet12 sizes · construction, technical data, approvalsXLSXOGc spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How does OGc differ from underground '-G' cables like OnGc-G or OnGcekgż-G?
OGc lacks the '-G' underground mine suffix and phase screens, as it is engineered specifically for surface open-cast lignite mines, quarries, mobile substations, and overland conveyor drives operating at 0.6/1 kV, 1.8/3 kV, and 3.6/6 kV in cold outdoor environments down to -40 °C.
Why is OGc widely used in 1.8/3 kV and 3.6/6 kV single-core and four-core versions?
Open-cast mines and quarries frequently use single-core OGc cables as flexible jumpers inside mobile transformer stations and 3+1 core OGc cables to feed belt-conveyor drive heads, pontoon dewatering pumps, and mobile crushers. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
What temperature rating does the 'c' in OGc provide?
The 'c' designation specifies +90 °C heat-resistant ethylene-propylene rubber (EPR) insulation with a +250 °C short-circuit rating, allowing higher continuous current loads under summer solar radiation on exposed quarry benches. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
When should NTSCGEWÖU be chosen instead of OGc?
Choose NTSCGEWÖU when the medium-voltage cable must be wound dynamically under high tension on motorized excavator drums or requires semi-conductive and copper phase screens for earth-fault monitoring. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
