Product

Control & signal cableNR/PS/SIG/00005 Type E1/E2650/1100 V Screened + SWA25 kV AC OLE Immunized

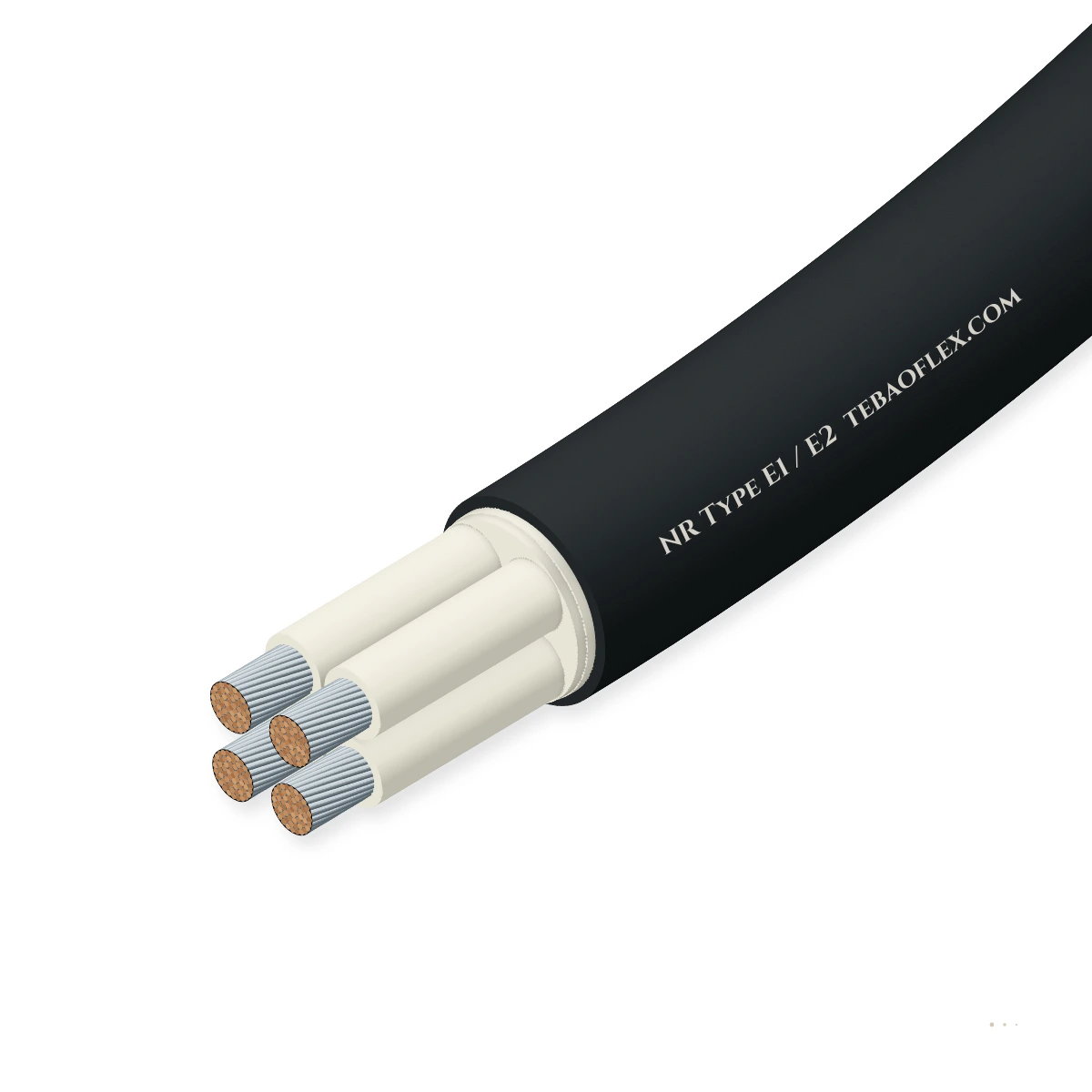

NR Type E1 / E2 Network Rail Type E1 / E2 Screened ArmouredNetwork Rail NR/PS/SIG/00005 650/1100 V screened & SWA-armoured signalling cable

NR Type E1 and E2 UK Network Rail screened and armoured trackside signalling cable (NR/PS/SIG/00005, 650/1100 V AC, -25 to +85 °C) for 25 kV AC OLE routes, with tinned copper cores, GP4 EPR insulation, copper screen, SWA armour, and EM2 PCP sheath.

Approved
EMC screen
Low-EMC design
Outdoor & humid
Order designation
NR Type E1 12×1.5
Outer Ø ≈
26.40 mm
Wall thickness
2.90 mm
Total weight ≈
1,240.0 kg/km
Min. bend R (fixed)
265 mm
All sizes (11)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
NR specification
NR/PS/SIG/00005
Type E1 multicore & E2 twin/tail
Rated voltage
650/1100 V AC
3500 V AC dielectric test
EMC & armour
Cu screen + SWA
Collective screen + steel wire
Core insulation
BS 7655 GP4 EPR
85 °C thermoset rubber cores
Outer sheath
BS 7655 EM2 PCP
Heavy-duty oil/flame rubber
Service temp.
-25…+85 °C
Direct burial & exposed routes

Typical values for this cable type, based on Network Rail NR/PS/SIG/00005 (formerly RT/E/PS/00005) Type E1 / E2 Screened SWA — confirmed in the datasheet and quotation for your order.

Application fit

Is NR Type E1 / E2 right for your machine?

Select NR Type E1 and NR Type E2 for 25 kV AC overhead-line-electrified (OLE) corridors, direct-buried under-track crossings (UTX), and vandal-exposed trackside routes requiring both EMC screening and steel wire armour.

VFD inverter to AC motor screened feeder

Suitable

Collective copper screen combined with SWA armour provides EMC screening against 25 kV 50 Hz AC OLE traction interference.

Fixed installation

Suitable

SWA armour and EM2 PCP inner/outer sheaths protect against ballast crushing, direct burial loads, and rodent/vandal damage.

Immersion & wet locations

Suitable

GP4 EPR core insulation plus elastomeric bedding and EM2 polychloroprene outer sheath withstand flooded UTX ducts and trackside trenches.

Typical machines25 kV AC Electrified UK Mainline SignallingUnder-Track Crossings (UTX) & Direct BurialExposed Embankment & Viaduct Cable RunsTrackside Interlocking & Point ControlHigh-EMI Traction Substation Approaches

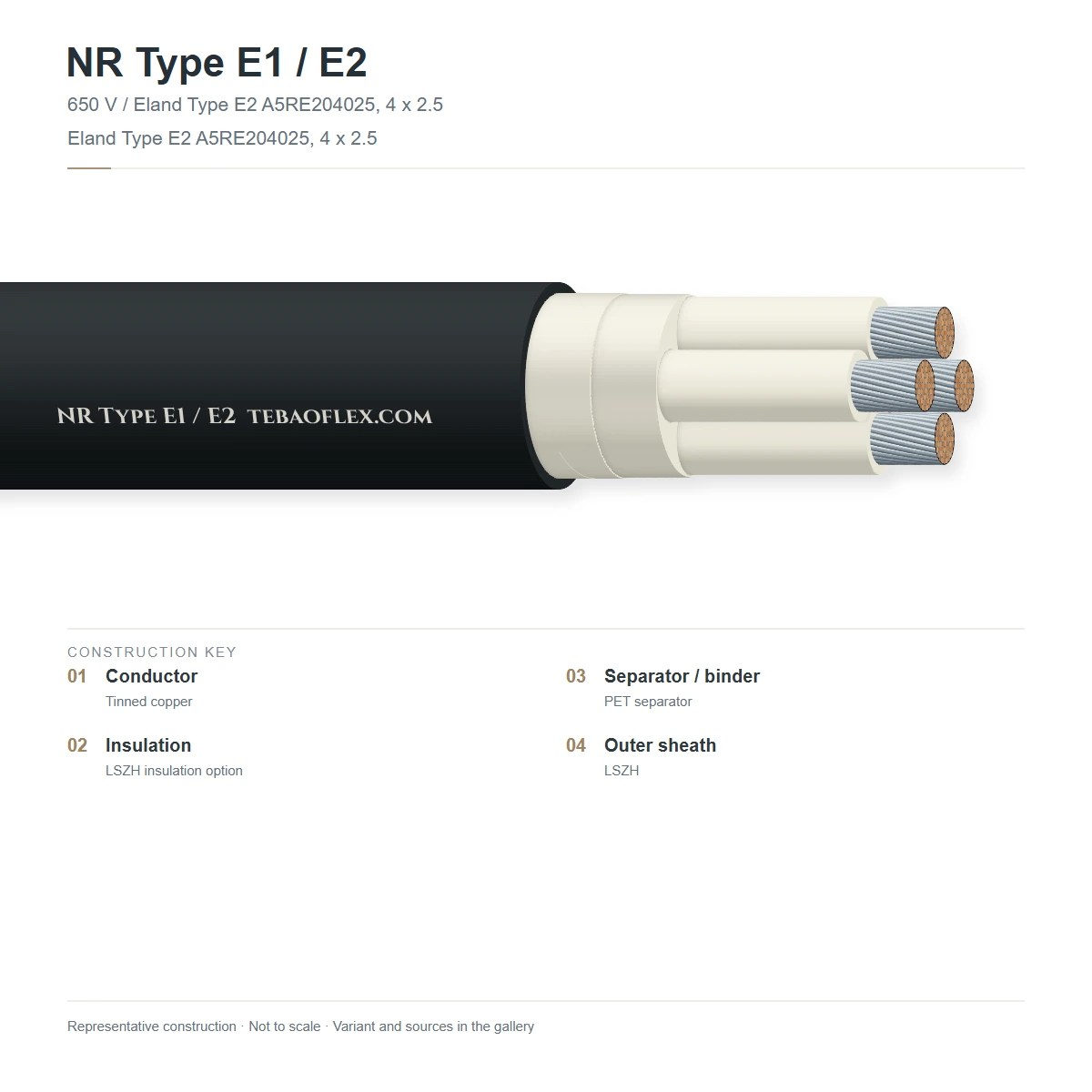

Construction

Layer by layer

NR/PS/SIG/00005 Type E1 / E2 construction: tinned copper conductors, BS 7655 GP4 EPR insulation (white numbered cores), collective copper screen, elastomeric bedding sheath, galvanised steel wire armour (SWA), and BS 7655 EM2 black PCP outer sheath.

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Tinned copper conductorsTinned annealed copper per BS EN 60228 (1.5 mm² 30/0.25 mm Class 5; 2.5 mm² to 35 mm² stranded)Corrosion-resistant conductors matching Network Rail termination standards
2Type GP4 EPR core insulation85 °C ethylene-propylene rubber compound Type GP4 to BS 7655-1.2 (white with black numbers)650/1100 V rated insulation tested at 3,500 V AC for 5 minutes
3Collective copper EMC screenHelically applied tinned copper tape/wire collective screen over the core assemblyProvides a low-impedance earth path for 25 kV AC traction-induced currents
4Elastomeric armour beddingExtruded elastomeric inner sheath separating the copper screen from the steel armourCushions the core and prevents galvanic contact between copper screen and SWA
5Galvanised steel wire armour (SWA)Single layer of galvanised round steel wires per BS EN 10257-1High tensile and crush protection for direct burial and troughless routing
6Type EM2 heavy-duty PCP sheathBlack polychloroprene elastomer compound Type EM2 to BS 7655-2.1Resists trackside oils, UV, moisture, and flame propagation

NR Type E1 Screened SWA Multicore (2–40 cores × 1.5 / 2.5 mm²)

Screened and steel-wire-armoured circular multicore trackside signalling cable for 25 kV AC routes

NR Type E2 Screened SWA Twin/Feeder (2 cores × 2.5–35 mm²)

Screened and steel-wire-armoured 2-core signalling power and long tail cable

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on Network Rail NR/PS/SIG/00005 (formerly RT/E/PS/00005) Type E1 / E2 Screened SWA. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
650/1100 V AC
AC dielectric test voltage
3,500 V AC RMS for 5 minutes
Max. DC resistance (+20 °C)
12.8 Ω/km (1.5 mm² 30/0.25) · 7.56 Ω/km (2.5 mm²)
EMC screening
Collective tinned copper screen + SWA

Thermal

Operating temperature range
-25 °C to +85 °C
Short-circuit conductor temp.
+250 °C (thermoset GP4 EPR)

Mechanical

Mechanical armouring
Galvanised steel wire armour (BS EN 10257-1)
Min. bending radius
10 × overall cable diameter
Core identification
White GP4 EPR with black printed numbers

Resistance

Oil, fuel & UV resistance
BS 7655-2.1 Type EM2 heavy PCP jacket
Flame retardance
BS EN 60332-1-2 self-extinguishing
Impact & rodent protection
Full round galvanised steel wire armour

Reference standards

Network Rail standard
NR/PS/SIG/00005 (RT/E/PS/00005) Type E1/E2
Material standards
BS 7655-1.2 (GP4) · BS 7655-2.1 (EM2)
RoHS & REACH
RoHS 3 & REACH compliant

Identification

Outer sheath colour
Black embossed/printed
Surface legend
ELECTRIC CABLE 650/1100V NR/PS/SIG/00005 E1/E2 [size] TEBAOFLEX
Customs tariff (HS)
8544.49

Sizes

11 standard configurations (NR Type E1 / E2)

Engineering dimensions, conductor stranding, mass and electrical ratings for NR Type E1 / E2 per Network Rail NR/PS/SIG/00005 (formerly RT/E/PS/00005) Type E1 / E2 Screened SWA.

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard NR Type E1 / E2 configurations
NR Type E1 4×1.54 × 1.530/0.252.1519.50299.2680.0195
NR Type E1 7×1.57 × 1.530/0.252.4021.80378.4860.0220
NR Type E1 10×1.510 × 1.530/0.252.8225.60506.01,150.0260
NR Type E1 12×1.512 × 1.530/0.252.9026.40545.61,240.0265
NR Type E1 19×1.519 × 1.530/0.253.3230.20743.61,690.0305
NR Type E1 27×1.527 × 1.530/0.253.8134.60972.42,210.0350
NR Type E1 37×1.537 × 1.530/0.254.2038.201,214.42,760.0385
NR Type E2 2×2.52 × 2.57/0.672.0919.00277.2630.0190
NR Type E2 2×6.02 × 6.07/1.042.4422.20391.6890.0225
NR Type E2 2×102 × 107/1.352.7525.00501.61,140.0250
NR Type E2 2×162 × 167/1.703.0828.00651.21,480.0280
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for NR Type E1 / E2 subject to standard manufacturing tolerances per Network Rail NR/PS/SIG/00005 (formerly RT/E/PS/00005) Type E1 / E2 Screened SWA.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per Network Rail NR/PS/SIG/00005 (formerly RT/E/PS/00005) Type E1 / E2 Screened SWAEvery manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for NR Type E1 / E2Every spool or drum length
Sample tests
Insulation resistance & dimensional verificationWall thickness, concentricity and insulation resistance per Network Rail NR/PS/SIG/00005 (formerly RT/E/PS/00005) Type E1 / E2 Screened SWAPer production batch
Environmental, mechanical & EMC qualificationQualified to Network Rail NR/PS/SIG/00005 (formerly RT/E/PS/00005) Type E1 / E2 Screened SWA thermal, mechanical and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

Network Rail NR/PS/SIG/00005 (formerly RT/E/PS/00005) Type E1 / E2 Screened SWACE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

ELECTRIC CABLE 650/1100V NR/PS/SIG/00005 E1 12C 1.5MM2 SWA TEBAOFLEX
Delivery form
Export wooden drums, tactical reels or coils
Standard lengths
100 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFNR Type E1 / E2 Network Rail Type E1 / E2 Screened Armoured – technical datasheet11 sizes · construction, technical data, approvalsXLSXNR Type E1 / E2 spec data (Excel)All 11 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How do Network Rail Type E1 / E2 cables differ from Type B1 / B2 and Type C1 / C2?
In NR/PS/SIG/00005, Type B1/B2 are unscreened and unarmoured; Type C1/C2 are steel-wire-armoured (SWA) without a copper screen; and Type E1/E2 combine BOTH a collective copper EMC screen and galvanised steel wire armour (SWA) for 25 kV AC OLE electrified routes.
Why are the copper screen and the steel wire armour separated by an inner bedding sheath in Type E1 / E2?
The elastomeric bedding sheath isolates the collective tinned copper screen from the galvanised steel wire armour (SWA) so the copper screen can be terminated cleanly to the clean signalling earth bar while the SWA is clamped in an outdoor brass cable gland.
Can NR Type E1 / E2 be installed directly in the ground without concrete troughing?
Yes. Because Type E1 / E2 incorporates full round galvanised steel wire armour (BS EN 10257-1) beneath a heavy-duty BS 7655 EM2 PCP outer sheath, it is approved for direct burial, under-track crossings (UTX), and elevated post routes.
What is the difference between Type E1 and Type E2?
Type E1 covers screened, armoured circular multicore signalling cables (typically 4 to 40 cores of 1.5 mm² or 2.5 mm²), whereas Type E2 covers screened, armoured 2-core tail and feeder cables (2.5 mm² up to 35 mm²).
