industrial data rf cable seriesMIL-DTL-24643/30 · NAVSEA75 Ω ± 3 Ω · Video / IF / SonarLSZH XLPO · Double Cu Braid

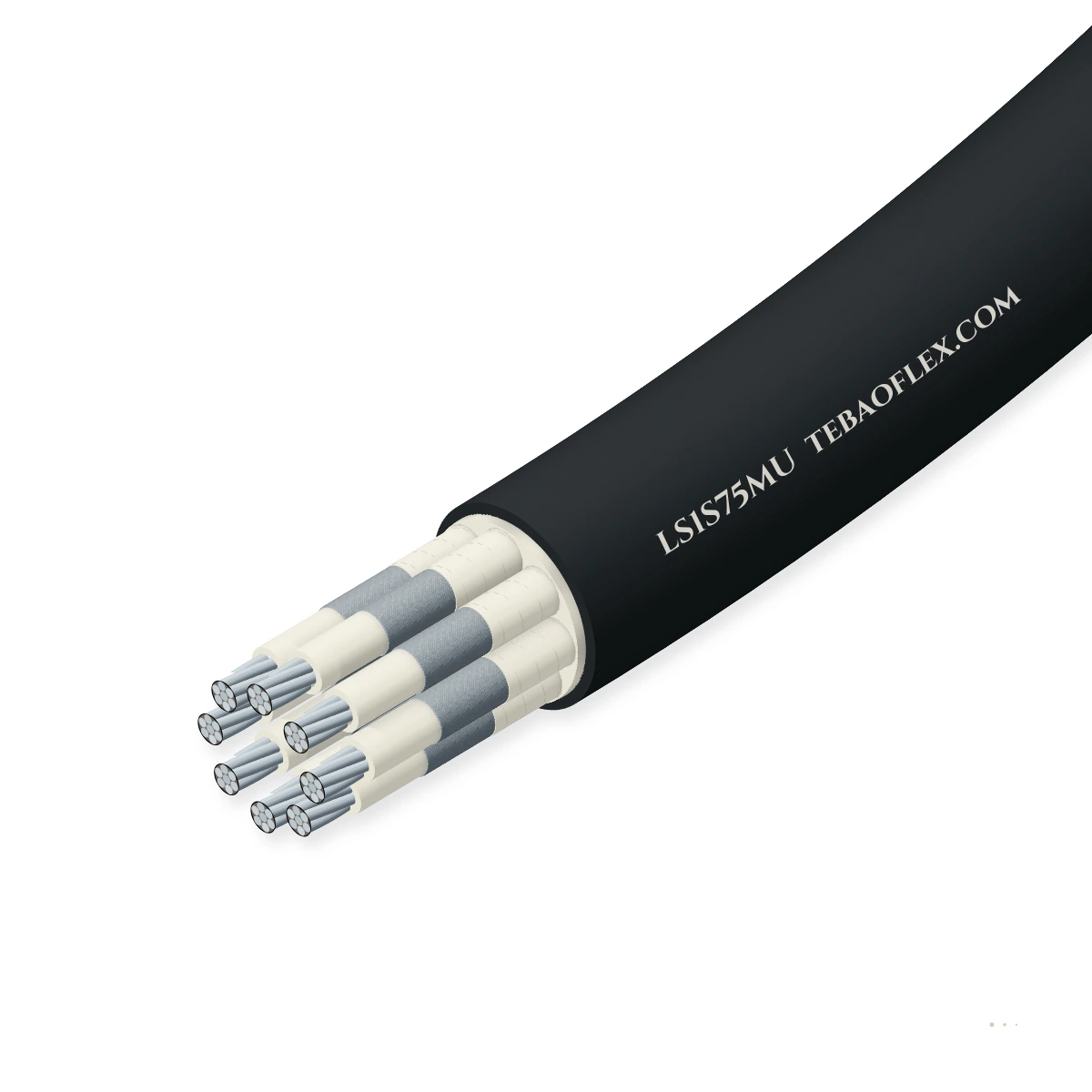

LS1S75MU MIL-DTL-24643 LS1S75MU 75 Ohm Low-Smoke Shipboard RFMIL-DTL-24643/29 · 75 Ω LSZH shipboard video & RF coax · Double tinned Cu braid · XLPO

US Navy 75 Ω LSZH shipboard video and IF coaxial cable (LS1S75MU) per MIL-DTL-24643/29 with a 22 AWG stranded copper center conductor, cross-linked polyolefin dielectric (66 % VoP, 67.3 pF/m), double 95 % tinned copper braids (> 90 dB), and naval LSZH sheath.

Approved
Flame-retardant
Low-EMC design
EMC screen
Order designation
M24643/30-01UO (LS1S75MU)
Outer Ø ≈
10.80 mm
Wall thickness
1.15 mm
Total weight ≈
155.0 kg/km
Min. bend R (fixed)
86 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance
75 Ω ± 3 Ω
MIL-DTL-24643/30 video/IF coax
Velocity (VoP)
66 %
67.3 pF/m solid PE dielectric
Center core
18 AWG (7×26)
Stranded tinned copper Ø 1.21 mm
Shielding
Double Cu braid
Dual bare copper wire braids
Outer jacket
LSZH XLPO
Cross-linked polyolefin (-30…+105°C)
Armor option
LS1S75MUS
Braided aluminum wire armor

Typical values for this cable type, based on MIL-DTL-24643/30 (US Navy Shipboard 75 Ω Low-Smoke Coaxial Cable) — confirmed in the datasheet and quotation for your order.

Application fit

Is LS1S75MU right for your machine?

Specify LS1S75MU and LS1S75MUS for naval combat direction centers, sonar/radar video consoles, flight-deck CCTV cameras, and 75 Ω intermediate-frequency (IF) receiver trunks.

Offshore platform & shipboard deck trays

Suitable

Cross-linked polyolefin LSZH jacket (and aluminum braid armor on LS1S75MUS) resists marine oil mist, salt spray, and shipboard shock.

VFD inverter to AC motor screened feeder

Suitable

Two concentric high-coverage copper braids stop propulsion harmonics and radar pulses from corrupting shipboard video/IF.

Switchgear & control cabinet wiring

Suitable

Replaces legacy PVC RG-216/U and RG-11/U in naval electronics bays with full MIL-DTL-24643 low-smoke zero-halogen fire compliance.

Motorised monospiral reel

Not suitable

Engineered for fixed shipboard cable hangers and bulkhead transits rather than reeling drums.

Use ControlNet 3092F Flex
Typical machinesNaval Combat Information Centers (CIC)Shipboard Flight-Deck & Hangar CCTVSubmarine Sonar & Acoustic DisplaysMarine Satellite TV & IF DistributionOffshore Naval Support Vessels

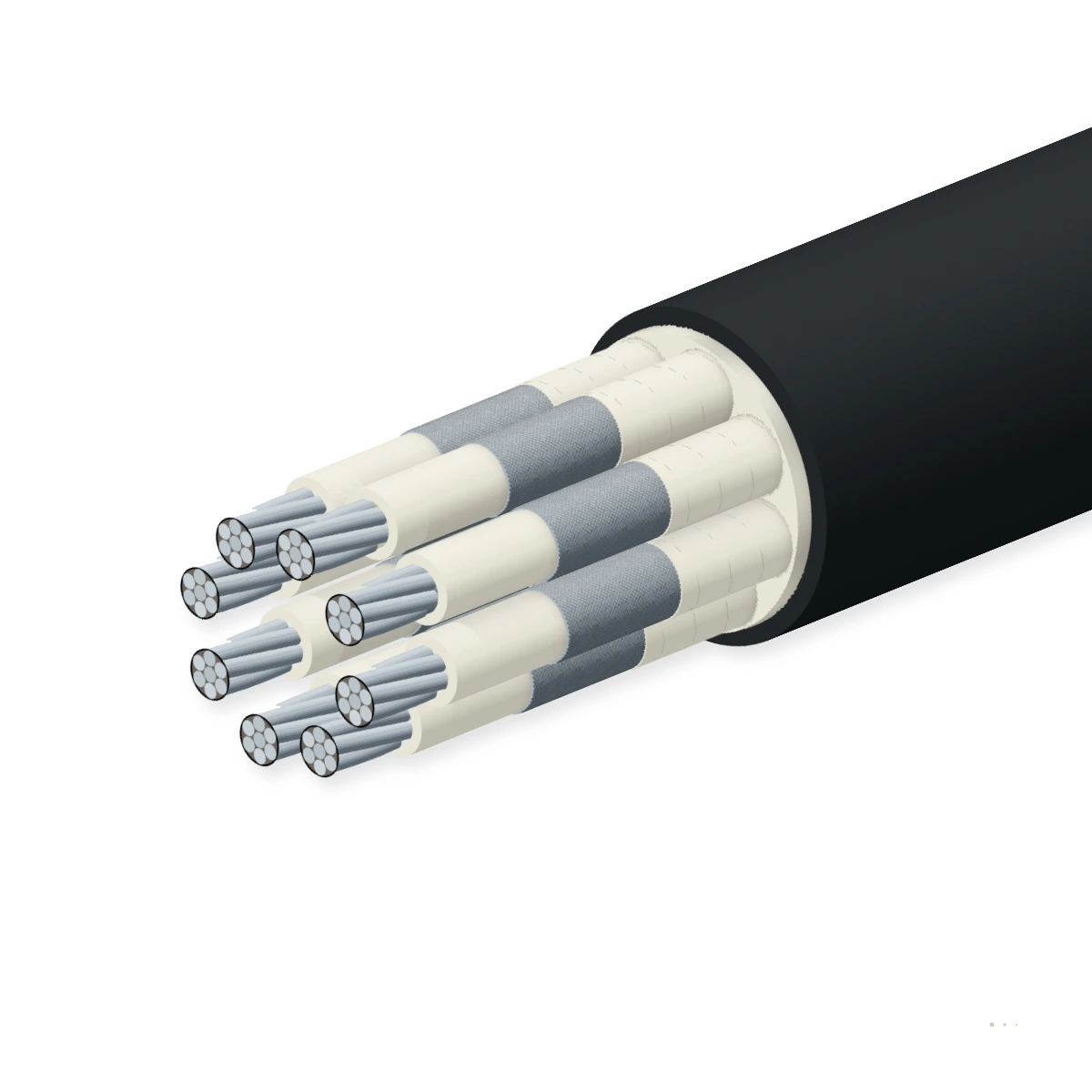

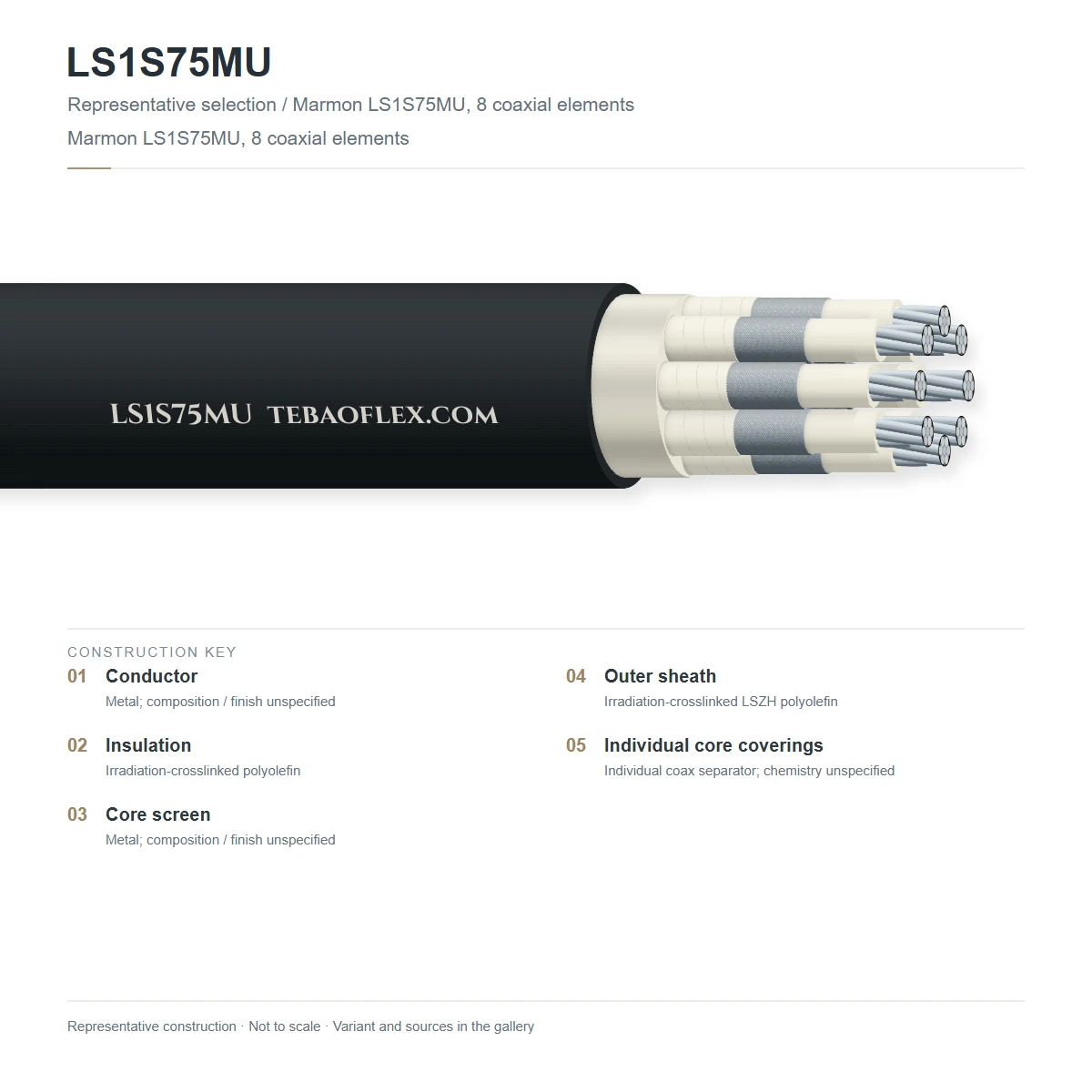

Construction

Layer by layer

MIL-DTL-24643/30 75 Ω shipboard coax: 18 AWG (7×26) tinned copper conductor, Ø 7.24 mm solid PE dielectric, double bare copper braids, and black LSZH XLPO jacket.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
118 AWG stranded tinned copper center conductor7-strand ASTM B33 tinned copper (7×26 AWG, Ø 1.21 mm, RG-216 core geometry)Corrosion-resistant marine termination and flex fatigue durability
2Solid polyethylene (PE) dielectricLow-loss solid polyethylene (Ø 7.24 mm, 66 % VoP, 67.3 pF/m)Precise 75 Ω ± 3 Ω impedance matching for naval video and IF receivers
3Double bare copper wire braid shieldsTwo concentric bare copper wire braids (≥ 95 % combined coverage)High screening attenuation from 10 kHz to 1 GHz
4Cross-linked low-smoke zero-halogen (LSZH XLPO) sheathThermoset cross-linked polyolefin compound (black, Ø 10.80 mm; armored Ø 12.45 mm on MUS)Zero-halogen, low-toxicity, self-extinguishing naval fire safety

M24643/30-01UO (LS1S75MU)

Unarmored 75 Ω low-smoke zero-halogen shipboard coaxial cable (Ø 10.80 mm)

M24643/30-01AU (LS1S75MUS)

Braided aluminum wire armored 75 Ω shipboard coaxial cable (Ø 12.45 mm)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on MIL-DTL-24643/30 (US Navy Shipboard 75 Ω Low-Smoke Coaxial Cable). Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance
75 Ω ± 3 Ω
Nominal capacitance
67.3 pF/m (20.5 pF/ft)
Velocity of propagation
66 % nominal (solid PE dielectric)
Max. operating voltage
3,700 V RMS (5,000 V RMS dielectric test)
Attenuation @ 50 / 100 / 400 MHz
4.3 / 6.2 / 13.8 dB/100m

Thermal

Operating temperature
-30 °C to +105 °C (XLPO jacket rating)
Dielectric core limit
+85 °C continuous PE dielectric
Halogen & acid gas
< 0.2 % halogen · low smoke optical density

Mechanical

Center conductor
18 AWG (7×26 AWG, Ø 1.21 mm) tinned copper
Overall diameter
10.80 mm (LS1S75MU) · 12.45 mm (LS1S75MUS)
Min. bending radius
8 × OD (unarmored) · 10 × OD (armored)

Resistance

Flame propagation
MIL-DTL-24643 / IEEE 1202 vertical tray flame
Marine oil & fluids
Resists marine diesel, lube oil & salt spray
Shielding effectiveness
≥ 85 dB (double bare copper wire braids)

Reference standards

Military specification
MIL-DTL-24643/30 (M24643/30-01UO & -01AU)
Core RF reference
MIL-DTL-17 RG-216/U low-smoke equivalent
RoHS & REACH
RoHS 3 & REACH SVHC compliant

Identification

Outer jacket colour
Black thermoset cross-linked polyolefin
Surface marking
M24643/30-01UO LS1S75MU 75 OHM SHIPBOARD LOW SMOKE
Customs tariff (HS)
8544.20

Sizes

8 standard configurations (LS1S75MU)

Engineering dimensions, impedance, propagation velocity, and electrical ratings for LS1S75MU per MIL-DTL-24643/30 (US Navy Shipboard 75 Ω Low-Smoke Coaxial Cable).

Dimensions & weights
Order designationImpedance / sizeConductor & dielectricWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard LS1S75MU configurations
M24643/30-01UO (LS1S75MU)75 Ω · 18 AWG Unarmored7×26 Sn-Cu + PE + 2×Braid1.1510.8074.0155.086
M24643/30-01AU (LS1S75MUS)75 Ω · 18 AWG Al-Armored7×26 Sn-Cu + 2×Braid + Al1.1512.45102.0202.0125
LS1S75MU-59 Compact75 Ω · 22 AWG Unarmored7×30 Sn-Cu + PE + 2×Braid0.906.4032.066.052
LS1S75MUS-59 Armored75 Ω · 22 AWG Al-Armored7×30 Sn-Cu + 2×Braid + Al0.908.0048.095.080
LS1S75MU-F Foam 75 Ω75 Ω · 18 AWG Foam PE18 AWG + Foam PE + LSZH1.1010.3070.0138.082
LS1S75MUS-F Foam Armored75 Ω · 18 AWG Al-Armored18 AWG + Foam + Al Braid1.1011.9596.0184.0120
LS2S75MU Dual 75 Ω2 × 75 Ω · 18 AWGDual 75 Ω Shipboard Coax1.4021.80148.0335.0175
LS1S75MWU Watertight75 Ω · 18 AWG WatertightWater-Blocked 75 Ω Coax1.2511.2076.0168.090
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for LS1S75MU subject to standard manufacturing tolerances per MIL-DTL-24643/30 (US Navy Shipboard 75 Ω Low-Smoke Coaxial Cable).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Characteristic impedance, return loss (VSWR) & TDR sweep100 % frequency-domain return loss and TDR impedance verification per MIL-DTL-24643/30 (US Navy Shipboard 75 Ω Low-Smoke Coaxial Cable)Every manufactured length
Dielectric spark & high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per MIL-DTL-24643/30 (US Navy Shipboard 75 Ω Low-Smoke Coaxial Cable)Every spool or drum length
Sample tests
Insertion loss (attenuation), velocity & capacitance checkAttenuation (dB/100m), VoP (%), and capacitance within MIL-DTL-24643/30 (US Navy Shipboard 75 Ω Low-Smoke Coaxial Cable) limitsPer production batch
Screening attenuation, transfer impedance & environmental qualificationQualified to MIL-DTL-24643/30 (US Navy Shipboard 75 Ω Low-Smoke Coaxial Cable) EMC shielding, thermal, and flame/fluid criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

MIL-DTL-24643/30 (US Navy Shipboard 75 Ω Low-Smoke Coaxial Cable)CE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX M24643/30-01UO LS1S75MU 75 OHM LOW-SMOKE SHIPBOARD COAX
Delivery form
Export wooden drums, flange reels or precision coils
Standard lengths
100 m · 305 m · 500 m · 1000 m (or custom cut lengths)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFLS1S75MU MIL-DTL-24643 LS1S75MU 75 Ohm Low-Smoke Shipboard RF – technical datasheet8 sizes · construction, technical data, approvalsXLSXLS1S75MU spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between MIL-DTL-24643/30 (LS1S75MU) and MIL-DTL-24643/29 (LS1S50MU)?
Both share the same 10.80 mm outer diameter and double-braided LSZH XLPO construction, but LS1S75MU (/30) uses a smaller 18 AWG (7×26 AWG, Ø 1.21 mm) tinned copper center conductor inside the Ø 7.24 mm PE dielectric to achieve 75 Ω ± 3 Ω impedance for video, CCTV, and IF links, whereas LS1S50MU (/29) uses a 13 AWG (Ø 2.26 mm) conductor for 50 Ω RF transmitters.
Which legacy coaxial cable does LS1S75MU replace?
LS1S75MU is the low-smoke zero-halogen shipboard replacement for PVC-jacketed RG-216/U and double-braided RG-11/U 75 Ω coaxial cables.
When is the armored LS1S75MUS (M24643/30-01AU) required?
NAVSEA installation rules specify the braided aluminum wire armored -01AU variant where cables run in open overhead racks or weather-deck zones subject to mechanical abrasion and impact.
Can LS1S75MU be terminated with standard 75 Ω RG-216/RG-11 BNC and Type N connectors?
Yes. Its Ø 1.21 mm center conductor, Ø 7.24 mm PE dielectric, and double copper braid dimensions match standard MIL-PRF-39012 75 Ω RG-216/U connectors.

Request a quote

Get an engineering quote for LS1S75MU

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

LS1S75MU MIL-DTL-24643 LS1S75MU 75 Ohm Low-Smoke Shipboard RF

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
- Travel speed (m/min):
- Max. acceleration:
- Cycles per hour:
- Length and quantity:
- Ambient temperature:
- Exposure (outdoor, water, oil, abrasion):
- Destination country:
- Equipment and operating conditions:
