EN 50525-2-81 & Low-Reactance Resistance Welding Cables100/100 V EN 50525-2-81Class D Conductor (0.20 mm Ø)EM5 Polychloroprene Rubber

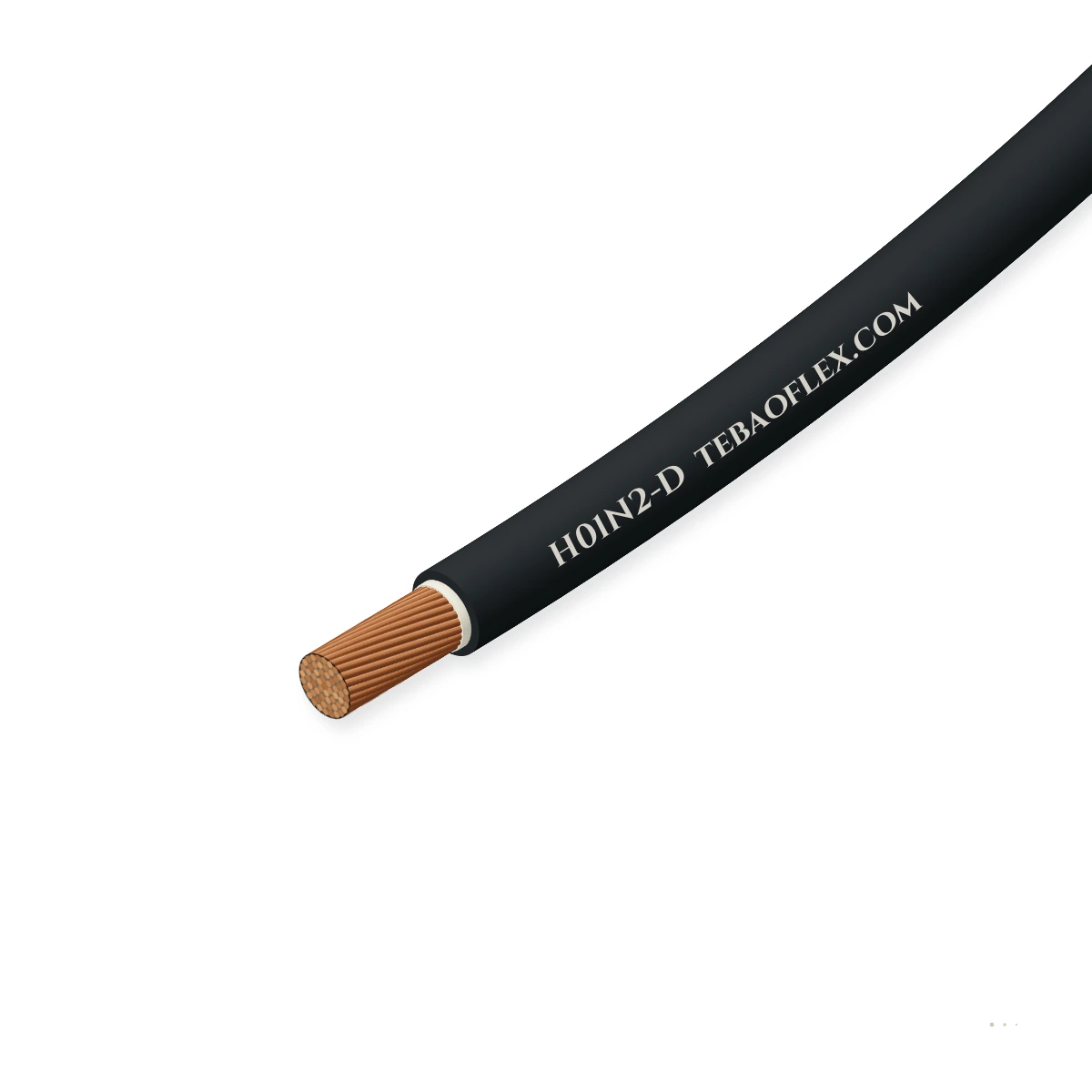

H01N2-D Welding Cable100/100 V EN 50525-2-81 Class D (0.20 mm wires) EM5 polychloroprene arc-welding electrode

H01N2-D is the harmonized European normal-flexibility arc-welding electrode and earth return cable per BS EN 50525-2-81 (formerly HD 22.6 S2) and IEC 60245-6. Built with an EN 60228 Class D rope-stranded bare copper conductor (max. 0.20 mm individual wire diam

EM5 Oil & Welding Spatter Resistant
IEC 60332-1-2 Self-Extinguishing
Manual & Semi-Auto Electrode Leads
HAR / EN 50525-2-81
Order designation
H01N2-D 1×35
Nom. OD
11.40 mm
Copper mass
336.0 kg/km
Total mass ≈
375.0 kg/km
Min. bend R
57.0 mm
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
100 / 100 V
Arc-welding secondary circuits
Conductor class
EN 60228 Class D
Max. 0.20 mm strand diameter
Covering compound
EM5 polychloropr
Cross-linked neoprene elastomer
Cross-sections
10 to 400 mm²
100 A to 1,200 A welding duty
Operating temp
-20 to +85 °C
+250 °C short-circuit max.
Min. bend radius
4 × to 6 × OD
Flexible shop & site routing

Typical values for this cable type, based on EN 50525-2-81 / HD 22.6 / IEC 60245-6 — confirmed in the datasheet and quotation for your order.

Application fit

Is H01N2-D right for your machine?

Engineered for manual MMA (SMAW), MIG/MAG and TIG welding power sources, electrode holders, earth return clamps, shipyard fabrication decks and automotive assembly welding booths.

Trailing & towing

Suitable

EM5 neoprene covering resists dragging across steel plate, slag, hot weld spatter and workshop oils.

Free-hanging vertical run

Suitable

Supple Class D (0.20 mm strand) rope lay hangs cleanly from boom arms and wire-feeder gantries.

Energy chain / drag chain

With conditions

Suitable for normal manual/boom flex; for high-cycle 6-axis robotic welding wrists specify H01N2-E Class E.

H01N2-E Class E extra-flexible
Typical machinesShipbuilding & offshore yardsStructural steel fabricationManual MMA / MIG / TIG weldingMobile generator & battery leadsAutomotive body-in-white repair

Construction

Layer by layer

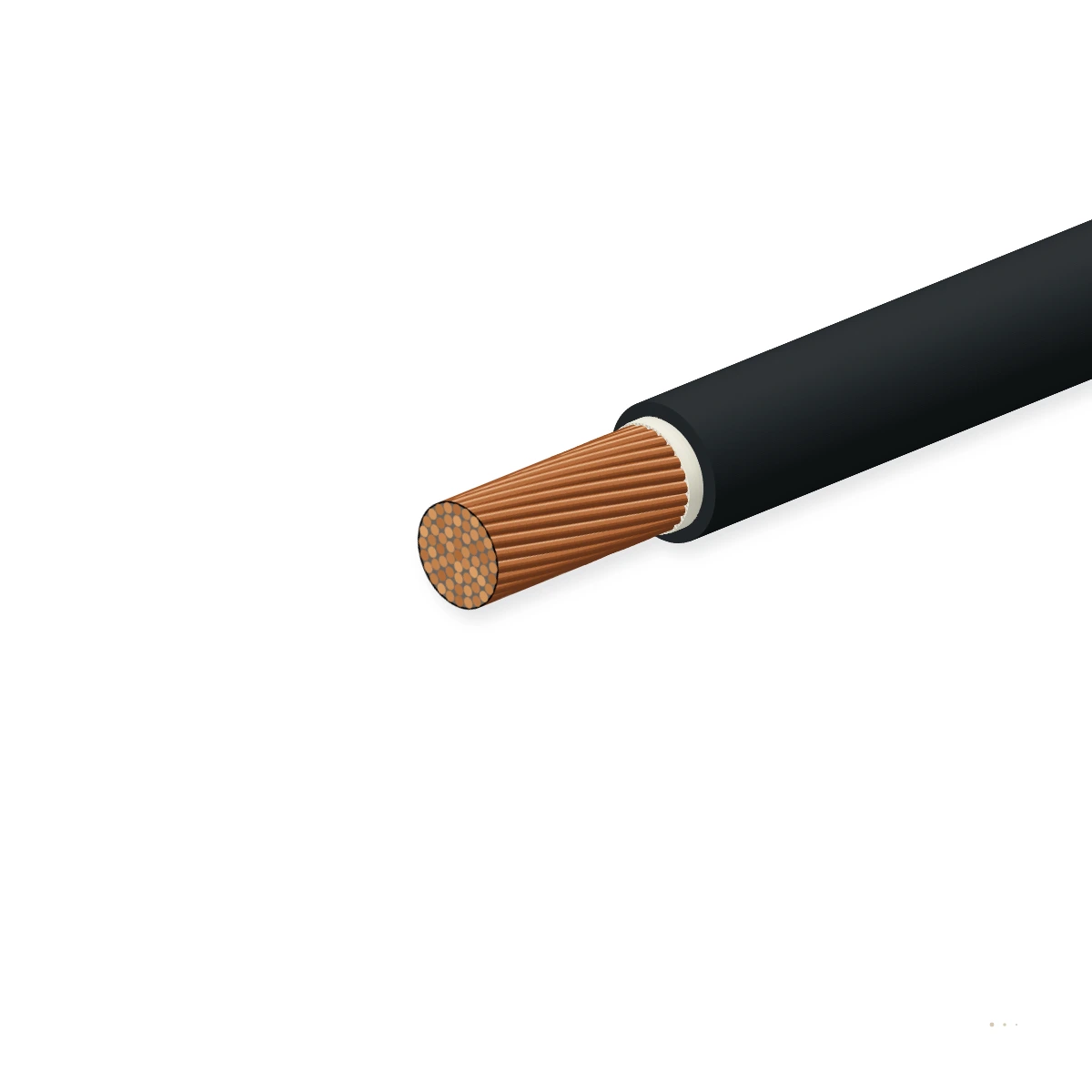

EN 60228 Class D rope-stranded bare annealed copper (max 0.20 mm wire Ø) + PET/paper separator tape + heavy-duty cross-linked polychloroprene (CR / Neoprene Type EM5) single-layer covering.

123

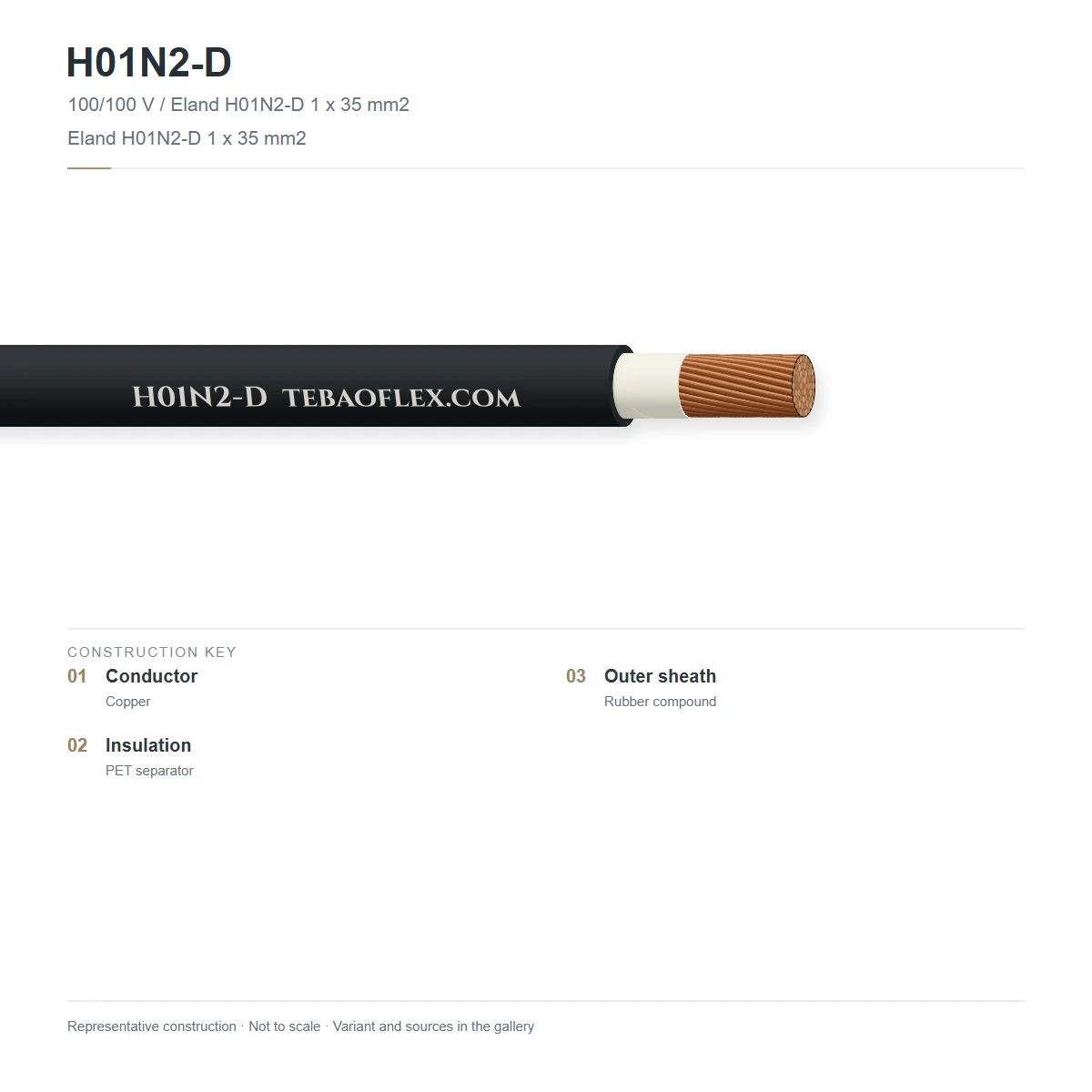

Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Class D flexible bare copper (EN 60228)Multiple-rope-stranded soft annealed copper with maximum 0.20 mm elementary wire diameter per EN 60228 Table 4EN 60228
2Polyester / paper separator tapeHelical non-hygroscopic separator wrap preventing rubber compound adhesion to the fine copper strandsEN 50525-2-81
3Type EM5 polychloroprene covering (N2)Vulcanised cross-linked neoprene rubber covering providing combined electrical insulation and spatter/oil/ozone protectionEN 50363-2-2

H01N2-D Black EM5 (Standard)

Black polychloroprene covering with white embossed HAR / EN 50525-2-81 marking in 10 to 400 mm².

H01N2-D Orange / Red Polarity

High-visibility orange or red EM5 polychloroprene covering for positive electrode identification on multi-lead sites.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-81 / HD 22.6 / IEC 60245-6. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
100 / 100 V AC (up to 150 V DC open-circuit welding voltage)
AC test voltage
1.0 kV rms for 15 minutes in water
Welding duty-cycle multipliers
Rated at 100 %, 85 %, 60 % and 35 % (5-minute base cycle)

Thermal

Max. conductor operating temperature
+85 °C continuous · +250 °C short-circuit
Ambient operating temperature
-20 °C to +60 °C (flexing) · -40 °C to +80 °C (fixed)

Mechanical

Max. elementary wire diameter
0.20 mm (Class D normal flexibility per EN 60228)
Minimum bending radius
4 × D (10–25 mm²) · 5 × D (35–95 mm²) · 6 × D (≥120 mm²)
Covering tensile strength & elongation
≥10.0 N/mm² tensile · ≥300 % elongation at break (EM5)

Resistance

Hot particle / weld spatter test
Passes hot-mandrel penetration and spatter resistance per EN 50525-2-81
Oil & chemical resistance
IRM 902 mineral oil immersion (+100 °C, 24 h) per EN 60811-404
Flame retardancy
Self-extinguishing per IEC 60332-1-2

Reference standards

Product & material standards
BS EN 50525-2-81, HD 22.6, VDE 0285-525-2-81 & IEC 60245-6
Conductor & compound standards
EN 60228 Class D & EN 50363-2-2 Type EM5

Identification

CENELEC code meaning
H = harmonized · 01 = 100/100 V · N2 = polychloroprene welding covering · -D = Class D conductor
Sheath colour
Black (standard), Orange or Red

Sizes

12 standard configurations (H01N2-D)

Nominal dimensions, copper weight, total mass and electrical parameters for H01N2-D per EN 50525-2-81 / HD 22.6 / IEC 60245-6.

Dimensions & masses
DesignationCross-SectionDuty 60% / 100% ANom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
H01N2-D size schedule
H01N2-D 1×101 × 10 mm²105 A / 95 A8.0096.0125.040.0
H01N2-D 1×161 × 16 mm²150 A / 135 A9.00153.6185.045.0
H01N2-D 1×251 × 25 mm²205 A / 180 A10.20240.0275.051.0
H01N2-D 1×351 × 35 mm²255 A / 225 A11.40336.0375.057.0
H01N2-D 1×501 × 50 mm²320 A / 285 A13.20480.0530.066.0
H01N2-D 1×701 × 70 mm²405 A / 355 A15.00672.0725.075.0
H01N2-D 1×951 × 95 mm²490 A / 430 A17.10912.0975.085.5
H01N2-D 1×1201 × 120 mm²570 A / 500 A19.001,152.01,220.095.0
H01N2-D 1×1501 × 150 mm²660 A / 580 A21.001,440.01,520.0105.0
H01N2-D 1×1851 × 185 mm²750 A / 660 A23.001,776.01,860.0115.0
H01N2-D 1×2401 × 240 mm²880 A / 775 A25.802,304.02,410.0129.0
H01N2-D 1×3001 × 300 mm²1020 A / 900 A28.502,880.03,010.0142.5
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to EN 50525-2-81 / HD 22.6 / IEC 60245-6.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
1.0 kV AC water-bath dielectric & DC conductor resistanceZero breakdown; resistance per EN 60228 Class D100 % of drums
Sample tests
EM5 covering thickness, tensile/elongation & hot-set testHot-set elongation ≤175 %; permanent set ≤15 %Every production lot
Hot-particle spatter test, oil immersion & IEC 60332-1-2 flameCertified to BS EN 50525-2-81Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS EN 50525-2-81 (HAR)VDE 0285-525-2-81IEC 60245-6CE / Low Voltage DirectiveRoHS 3 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX <HAR> H01N2-D [size]mm2 EN 50525-2-81 100/100V CE [lot/m]
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFH01N2-D Welding Cable – technical datasheet12 sizes · construction, technical data, approvalsXLSXH01N2-D spec data (Excel)All 12 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the exact construction difference between H01N2-D and H01N2-E?
Both cables share the same 100/100 V rating and Type EM5 polychloroprene rubber covering per EN 50525-2-81. The difference lies in the EN 60228 conductor stranding: H01N2-D uses Class D normal-flexibility stranding with a maximum elementary wire diameter of 0.20 mm, whereas H01N2-E uses Class E extra-flexible stranding with a maximum wire diameter of 0.15 mm.
How does welding duty cycle (35 %, 60 %, 85 %, 100 %) affect H01N2-D current rating?
Arc welding is intermittent over a standardized 5-minute cycle. Because thermal heating scales with the duty factor, a 50 mm² H01N2-D cable rated at 285 A continuous (100 % duty) can safely carry ~320 A at 60 % duty cycle and ~395 A at 35 % duty cycle.
Why does H01N2-D use a single-layer EM5 covering instead of separate insulation and sheath?
Under EN 50525-2-81, the thick vulcanised Type EM5 polychloroprene elastomer acts as a combined insulating and heavy-duty mechanical covering over a polyester separator tape, maximizing flexibility while resisting weld spatter, oil and abrasion.
Can H01N2-D be used for 12 V / 24 V / 48 V battery bank or electroplating busbar jumpers?
Yes. Provided the circuit voltage does not exceed 100 V AC / 150 V DC and the cable is protected against short-circuit mechanical forces, H01N2-D is widely used for flexible battery and rectifier jumpers.
