EN 50525-2-81 & Low-Reactance Resistance Welding Cables100/100 V EN 50525-2-81Class E Ultra-Fine (0.15 mm Ø)Robotic & High-Flex Torch Leads

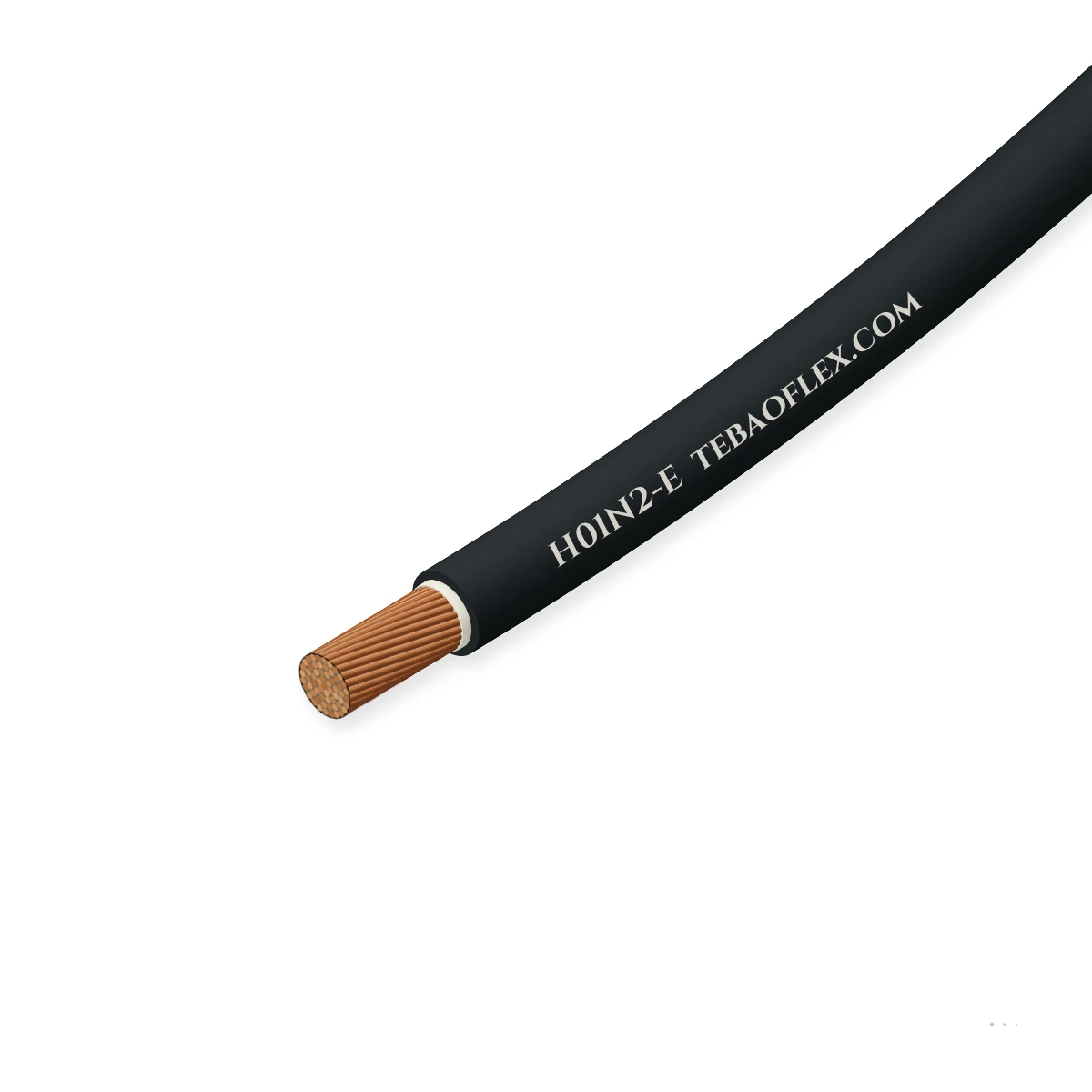

H01N2-E Extra-Flexible Welding Cable100/100 V EN 50525-2-81 Class E (0.15 mm ultra-fine wires) extra-flexible robotic & manual

H01N2-E is the extra-flexible European harmonized arc-welding cable per BS EN 50525-2-81 and VDE 0285-525-2-81. Engineered with an EN 60228 Class E rope-stranded bare copper conductor built from ultra-fine 0.15 mm maximum diameter wires (78 % more strands than

Class E 0.15 mm Extra-Flexible
EM5 Neoprene Oil & Spatter Proof
IEC 60332-1-2 Flame Retardant
HAR / EN 50525-2-81
Order designation
H01N2-E 1×35
Nom. OD
11.40 mm
Copper mass
336.0 kg/km
Total mass ≈
375.0 kg/km
Min. bend R
45.6 mm
All sizes (11)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
100 / 100 V
Arc-welding secondary leads
Conductor class
EN 60228 Class E
Max. 0.15 mm ultra-fine strands
Covering compound
EM5 polychloropr
Cross-linked neoprene rubber
Cross-sections
10 to 240 mm²
High-flex torch & robot leads
Operating temp
-25 to +85 °C
Remains supple in cold yards
Min. bend radius
3.5 × to 5 × OD
Tighter bend than H01N2-D

Typical values for this cable type, based on EN 50525-2-81 / HD 22.6 / IEC 60245-6 — confirmed in the datasheet and quotation for your order.

Application fit

Is H01N2-E right for your machine?

Specified for automated MIG/MAG and TIG welding robots, cobot welding cells, overhead positioner turntables, ergonomic manual TIG/MMA torch whips and cold-weather shipyard welding.

Energy chain / drag chain

Suitable

Ultra-fine 0.15 mm Class E copper rope stranding endures multi-axis robotic dress-pack flexing.

Trailing & towing

Suitable

Cross-linked EM5 neoprene jacket resists hot slag, spatter, cutting fluids and floor abrasion.

Free-hanging vertical run

Suitable

Low bending torque minimizes drag on manual welding torches and overhead balancers.

Motorised monospiral reel

With conditions

Suitable for spring-return welding cable reels when derated for coiled drum heat dissipation.

Typical machinesRobotic MIG/MAG welding cellsPrecision TIG & orbital weldingAutomotive chassis weld linesShipyard & cold-climate constructionSpring-retractable welding reels

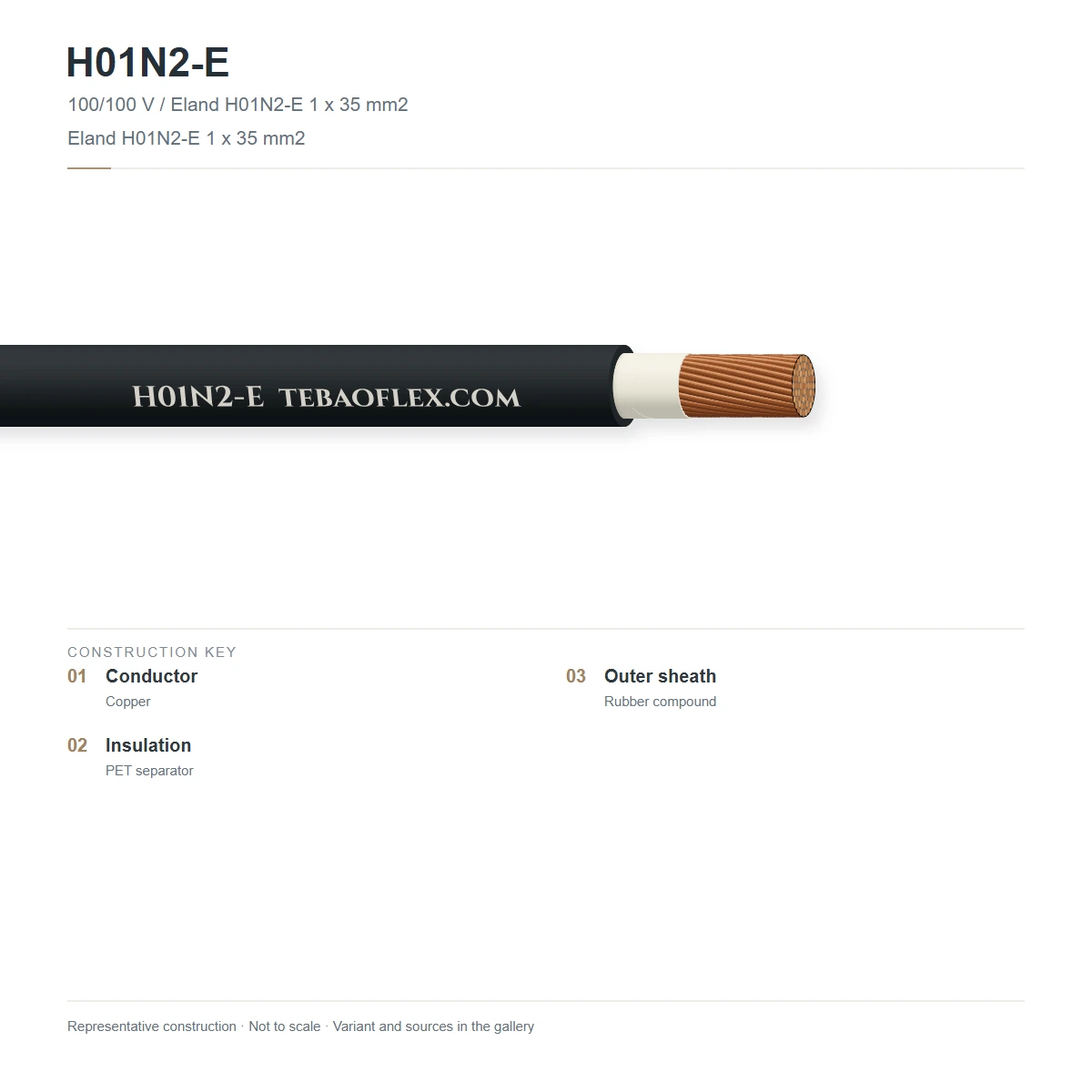

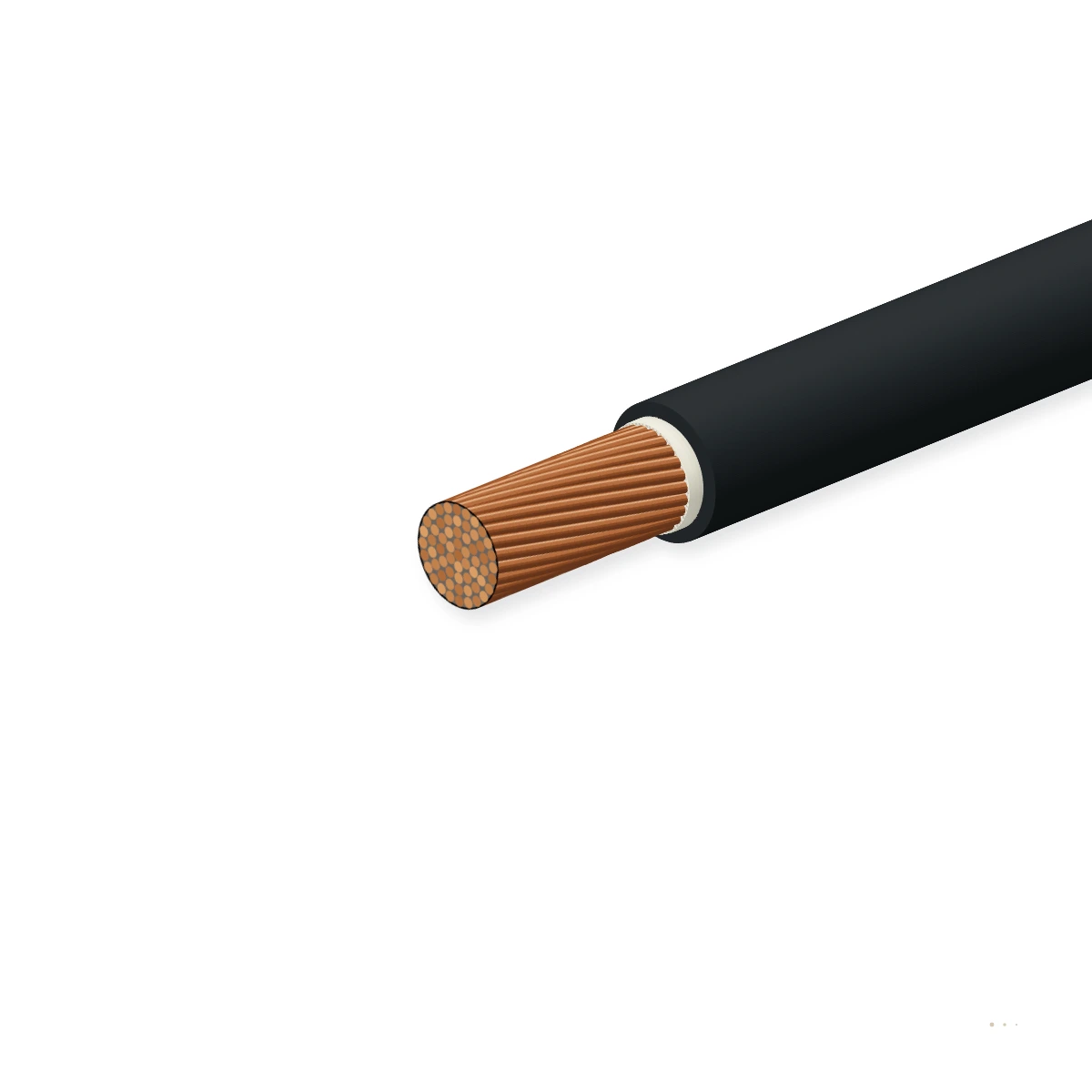

Construction

Layer by layer

EN 60228 Class E ultra-fine rope-stranded bare copper (max 0.15 mm wire Ø) + non-woven polyester separator tape + cross-linked polychloroprene (Type EM5) elastomer covering.

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Class E extra-flexible bare copper (EN 60228)Multi-stage rope-stranded soft annealed copper with maximum 0.15 mm elementary wire diameter (~2,800 wires in 50 mm²)EN 60228
2Low-friction PET separator tapeAllows the ultra-fine copper rope bundles to slide freely during tight bending and torsionEN 50525-2-81
3Type EM5 polychloroprene covering (N2)Heavy-duty vulcanised neoprene elastomer resistant to weld spatter, ozone, UV and mineral oilsEN 50363-2-2

H01N2-E Black EM5 (Robotic & Manual Grade)

Black Type EM5 neoprene sheath with Class E 0.15 mm copper stranding in 10 to 240 mm².

H01N2-E Orange High-Visibility

Orange Type EM5 neoprene sheath for automated welding cells and safety-marked shop floors.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on EN 50525-2-81 / HD 22.6 / IEC 60245-6. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
100 / 100 V AC (up to 150 V DC open-circuit)
AC dielectric test voltage
1.0 kV rms for 15 minutes
Max. DC conductor resistance
Identical to EN 60228 Class D/E Table 4 limits

Thermal

Continuous conductor temperature
+85 °C maximum · +250 °C short-circuit
Flexing ambient temperature
-25 °C to +60 °C (remains flexible down to -25 °C)

Mechanical

Max. elementary wire diameter
0.15 mm (Class E extra-flexible per EN 60228)
Minimum bending radius
3.5 × D (≤25 mm²) · 4 × D (35–95 mm²) · 5 × D (≥120 mm²)
Covering tensile & elongation
≥10.0 N/mm² tensile strength · ≥300 % elongation at break

Resistance

Weld spatter & hot-particle resistance
Complies with EN 50525-2-81 hot-mandrel test
Oil, ozone & weather resistance
IRM 902 oil (+100 °C, 24 h) and ozone resistant per EN 50363-2-2
Flame retardancy
IEC 60332-1-2 self-extinguishing

Reference standards

Reference standards
BS EN 50525-2-81, HD 22.6, VDE 0285-525-2-81 & IEC 60245-6
Conductor standard
EN 60228 Class E (Table 4)

Identification

CENELEC designation
H = harmonized · 01 = 100/100 V · N2 = polychloroprene · -E = Class E extra-flexible
Outer sheath colour
Black or Orange

Sizes

11 standard configurations (H01N2-E)

Nominal dimensions, copper weight, total mass and electrical parameters for H01N2-E per EN 50525-2-81 / HD 22.6 / IEC 60245-6.

Dimensions & masses
DesignationCross-SectionApprox. 0.15mm Wires / 60% ANom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
H01N2-E size schedule
H01N2-E 1×101 × 10 mm²~565×0.15 · 105 A8.0096.0125.032.0
H01N2-E 1×161 × 16 mm²~905×0.15 · 150 A9.00153.6185.036.0
H01N2-E 1×251 × 25 mm²~1415×0.15 · 205 A10.20240.0275.040.8
H01N2-E 1×351 × 35 mm²~1980×0.15 · 255 A11.40336.0375.045.6
H01N2-E 1×501 × 50 mm²~2830×0.15 · 320 A13.20480.0530.052.8
H01N2-E 1×701 × 70 mm²~3960×0.15 · 405 A15.00672.0725.060.0
H01N2-E 1×951 × 95 mm²~5375×0.15 · 490 A17.10912.0975.068.4
H01N2-E 1×1201 × 120 mm²~6790×0.15 · 570 A19.001,152.01,220.076.0
H01N2-E 1×1501 × 150 mm²~8485×0.15 · 660 A21.001,440.01,520.084.0
H01N2-E 1×1851 × 185 mm²~10465×0.15 · 750 A23.001,776.01,860.092.0
H01N2-E 1×2401 × 240 mm²~13580×0.15 · 880 A25.802,304.02,410.0103.2
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to EN 50525-2-81 / HD 22.6 / IEC 60245-6.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
1.0 kV AC water-bath voltage & DC resistance checkZero breakdown; resistance per EN 60228 Table 4100 % of drums
Sample tests
Strand diameter check (≤0.15 mm) & EM5 hot-set testVerifies Class E 0.15 mm stranding and neoprene cross-linkingEvery lot
Dynamic flex endurance, weld spatter & oil immersionCertified to BS EN 50525-2-81 (H01N2-E)Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS EN 50525-2-81 (HAR)VDE 0285-525-2-81IEC 60245-6CE / Low Voltage DirectiveRoHS 3 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX <HAR> H01N2-E [size]mm2 EXTRA-FLEX EN 50525-2-81 100/100V CE [lot/m]
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFH01N2-E Extra-Flexible Welding Cable – technical datasheet11 sizes · construction, technical data, approvalsXLSXH01N2-E spec data (Excel)All 11 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

How many more copper wires are inside H01N2-E compared with H01N2-D?
Because cross-sectional area scales with the square of wire diameter, stepping down from 0.20 mm (Class D) to 0.15 mm (Class E) increases the number of individual copper filaments by ~78 %. For example, a 50 mm² H01N2-D contains ~1,590 wires of 0.20 mm, whereas a 50 mm² H01N2-E contains ~2,830 wires of 0.15 mm.
When is H01N2-E worth specifying over standard H01N2-D?
Specify H01N2-E for 6-axis robotic welding dress packs, cobot torches, manual TIG/MMA whip leads where welders manipulate the torch all shift, and sub-zero outdoor construction sites where maximum limpness is needed.
Do H01N2-E and H01N2-D use the same Dinse connectors and crimp lugs?
Yes. Both cables have the same nominal conductor cross-section and overall outer diameter limits under EN 50525-2-81; for Class E 0.15 mm strands, use flared-entry ferrules or copper tube lugs to capture all fine filaments cleanly.
When should a Water-Cooled Kickless Welding Cable be used instead of H01N2-E?
H01N2-E is a single-core air-cooled cable for arc welding (100–900 A). High-current automotive resistance spot-welding guns (8,000–25,000 A secondary current) require a Water-Cooled Kickless Welding Cable with interleaved 3+3 opposite-polarity conductors and internal water cooling.

Request a quote

Get an engineering quote for H01N2-E

Your selection and application details are copied into the enquiry form below.

01Selected sizes

Use + Add next to a size or configuration.

02Reel & motion

Add your operating conditions here to include them in your enquiry.

03Message for our engineers

H01N2-E Extra-Flexible Welding Cable

Selected sizes:


Reel & motion:
- Reel type:
- Drum core diameter (mm):
- Cable length on drum (m):
