AD8 Potable-Water & Deep-Well Submersible Pump Cables0.6/1 kV AD8 500 m SubmersibleFlat 3C & 4C Borehole ProfileKTW / WRAS / ACS / NSF-61 Potable

Submersible Pump Cable450/750 V & 0.6/1 kV flat 3- & 4-core KTW/WRAS/ACS potable-water EPDM deep-well pump cable

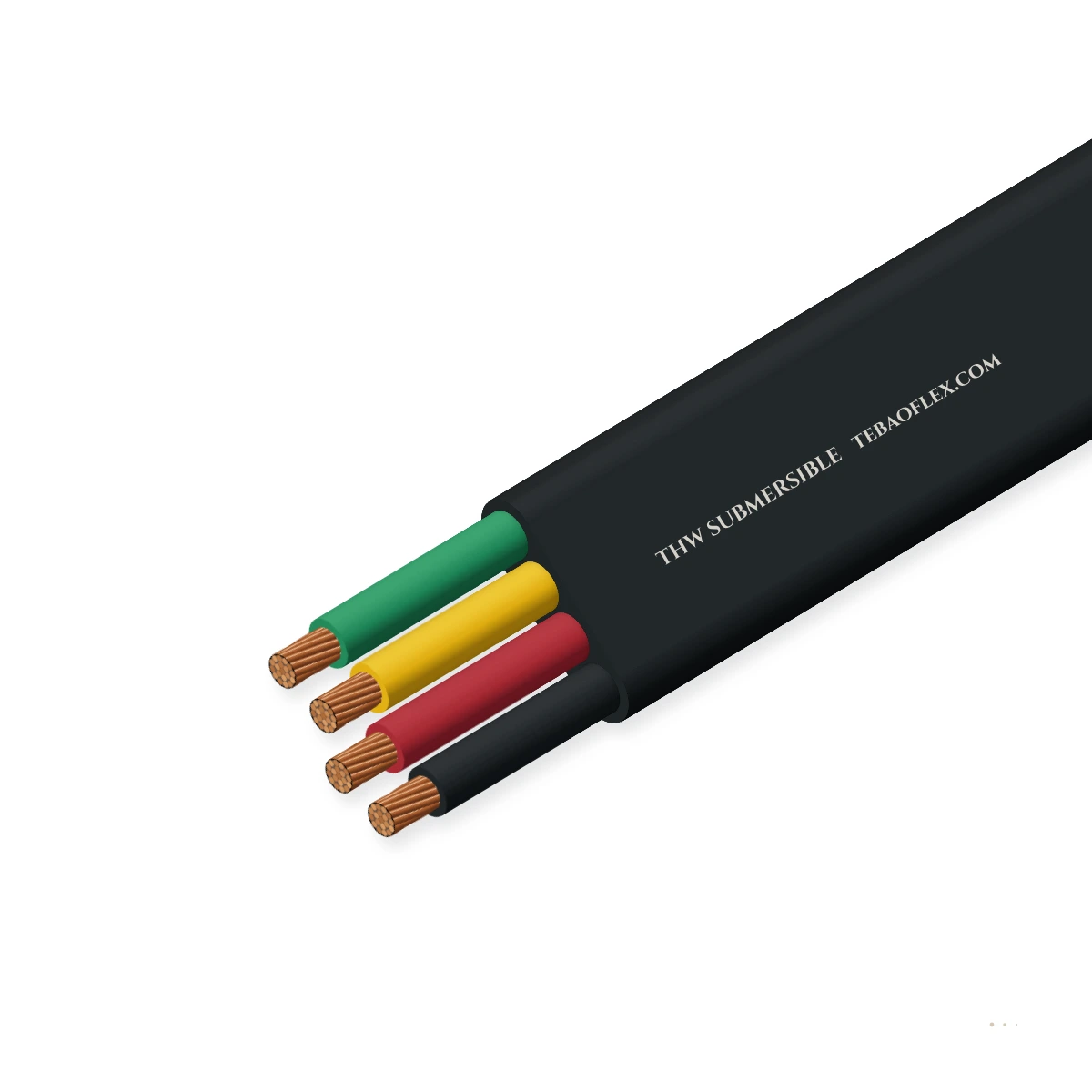

Flat Submersible Pump Cable is a low-profile 3-core and 4-core motor lead and drop cable engineered for continuous AD8 immersion down to 500 m (50 bar hydrostatic pressure) in narrow borehole wells. Built with parallel Class 5 flexible bare or tinned copper co

AD8 500 m (50 bar) Immersion
KTW / WRAS / ACS / NSF-61
Ozone & Hydrolysis Resistant EPDM
0.6/1 kV Motor Drop Rated
Order designation
Flat 3×6.0
Nom. OD
7.50 mm
Copper mass
172.8 kg/km
Total mass ≈
280.0 kg/km
Min. bend R
30.0 mm
All sizes (16)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
450/750 V & 0.6/
Up to 1.2 kV max. AC
Immersion depth
AD8 · up to 500
50 bar hydrostatic pressure
Potable approvals
KTW / WRAS / ACS
Plus NSF/ANSI 61 drinking water
Profile
Flat parallel (3
Fits narrow borehole clearance
Cross-sections
1.5 to 120 mm²
3-core & 4-core (with PE)
Water temp
Up to +70 / +85
+90 °C max conductor temp

Typical values for this cable type, based on DIN VDE 0282 / BS 6920 / KTW / ACS / NSF-61 — confirmed in the datasheet and quotation for your order.

Application fit

Is Submersible Pump Cable right for your machine?

Designed to feed multistage deep-well borehole pumps, municipal drinking-water extraction wells, geothermal heat-pump boreholes, irrigation wells and mine dewatering risers where radial clearance between pump bowls and well casing is minimal.

Free-hanging vertical run

Suitable

Clamps flat along vertical rising mains down to 500 m depth without snagging well casings.

Motor stator, traction & converter leads

Suitable

Used both as the potted submersible motor flat tail and as the full-length borehole drop cable.

Fixed installation

Suitable

Potable-grade EPDM imparts zero taste, odour, TOC leaching or microbial growth to drinking water.

Motorised monospiral reel

Not suitable

Flat profile is engineered for vertical riser clamping along borehole pipes, not motorized cable reels.

H01N2-D round flexible power
Typical machinesMunicipal drinking-water wellsDeep-well agricultural irrigationSubmersible motor lead tailsGeothermal & mineral-water boresMine & tunnel dewatering

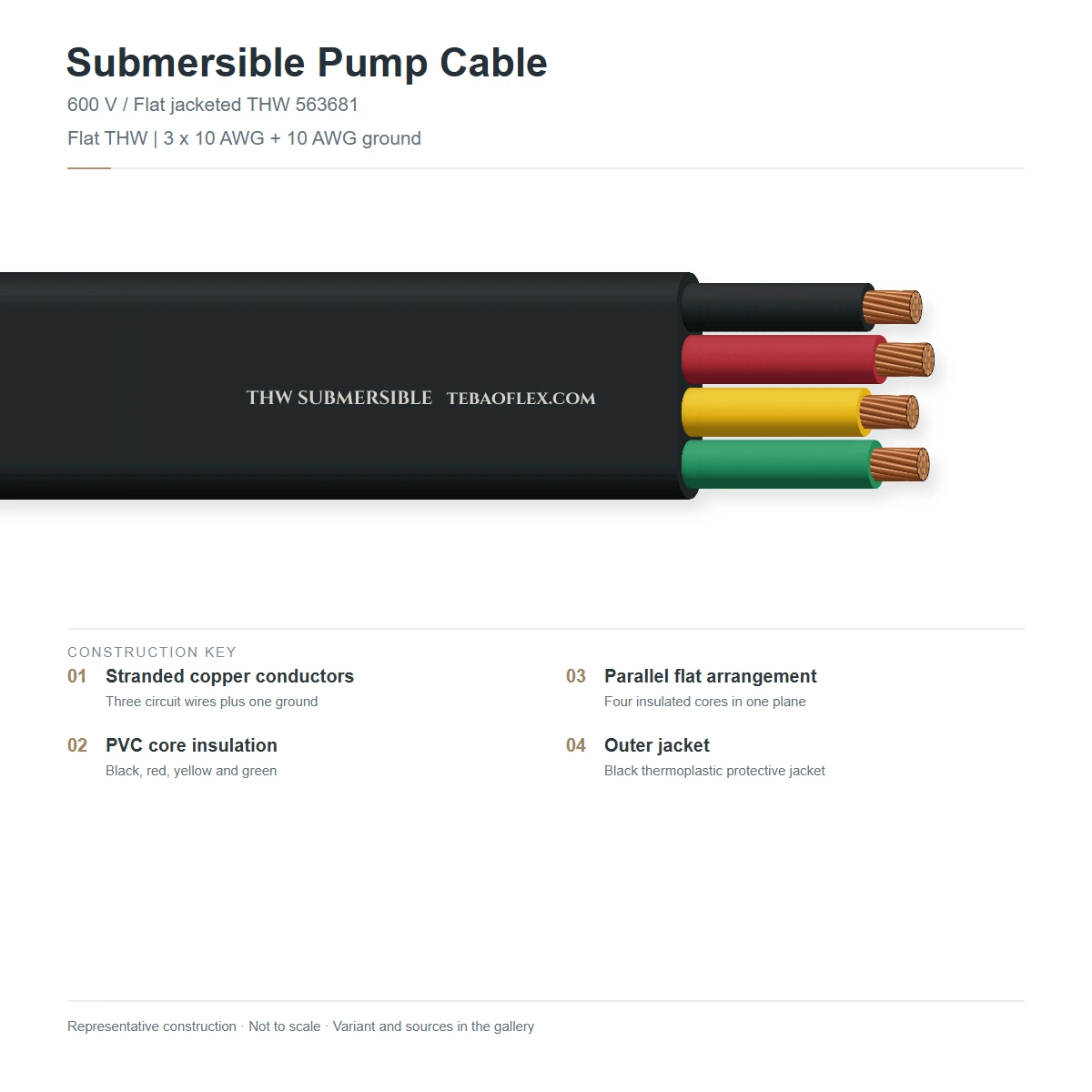

Construction

Layer by layer

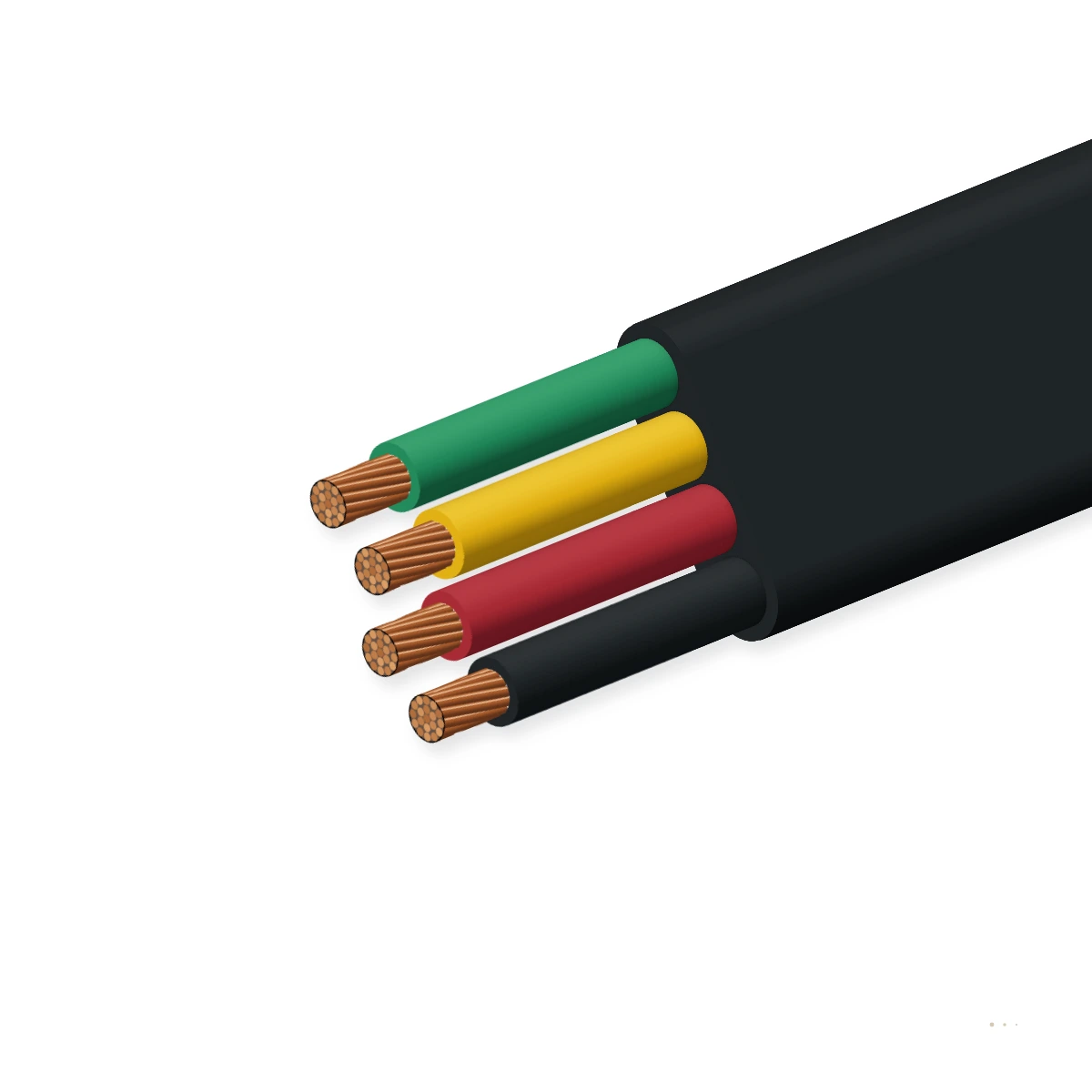

Parallel Class 5 flexible bare or tinned copper conductors (3 or 4 cores) + water-tree-resistant EPR/HEPR core insulation + food-grade cross-linked EPDM potable-water flat outer jacket (blue or black).

123
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Class 5 flexible copper (IEC 60228)Fine-stranded bare (or tinned) annealed copper conductors arranged in a parallel flat planeIEC 60228
2High-grade EPR / HEPR rubber (3GI3)Cross-linked ethylene-propylene rubber insulation with ultra-low water absorption and high insulation resistanceVDE 0282
3Potable-water EPDM flat sheathPeroxide-cured, taste- and odour-free EPDM compound certified to KTW-BWGL, WRAS BS 6920, ACS and NSF-61 (Blue or Black)BS 6920

Flat 3-Core (3 × 1.5 to 3 × 95 mm² — Brown, Black, Grey or Blue/Brown/Black)

3-core flat borehole drop cable or motor tail for 3-phase submersible motors with separate earth or earthed riser pipe.

Flat 4-Core / 4G (4G1.5 to 4G120 mm² — Brown, Black, Grey + Green/Yellow)

4-core flat borehole cable integrating a full-size green/yellow protective earth conductor inside the same flat web.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0282 / BS 6920 / KTW / ACS / NSF-61. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U0/U)
450/750 V & 0.6/1 kV AC (up to 1.2 kV AC max.)
AC test voltage (water bath)
3.5 kV rms for 5 minutes
Insulation resistance in water
≥1,000 MΩ·km at +20 °C

Thermal

Max. conductor operating temperature
+90 °C continuous · +250 °C short-circuit
Permissible water temperature
Up to +70 °C (KTW/WRAS potable) · up to +85 °C (industrial water)

Mechanical

Hydrostatic immersion rating
AD8 permanent submersion up to 500 m depth (50 bar / 5.0 MPa)
Minimum bending radius
4 × cable flat thickness (H) for fixed riser clamping

Resistance

Drinking-water hygiene & leaching
Zero organic carbon (TOC), taste, odour or heavy-metal migration per BS 6920 & KTW-BWGL
Water uptake & hydrolysis
<1.5 mg/cm² gravimetric water absorption; immune to chlorinated water

Reference standards

Potable-water certifications
UBA KTW-BWGL / DVGW W270 (Germany), WRAS BS 6920 (UK), ACS (France), NSF/ANSI 61 (USA)
Electrical reference standards
DIN VDE 0282 / HD 22 / IEC 60228 Class 5

Identification

Core identification
3-core: Brown, Black, Grey (or Blue, Brown, Black) · 4G: + Green/Yellow
Outer jacket colour
Drinking-water Blue (RAL 5015) or Black

Sizes

16 standard configurations (Submersible Pump Cable)

Nominal dimensions, copper weight, total mass and electrical parameters for Submersible Pump Cable per DIN VDE 0282 / BS 6920 / KTW / ACS / NSF-61.

Dimensions & masses
DesignationCores × Size mm²Flat H × W mmNom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
Submersible Pump Cable size schedule
Flat 3×1.53 × 1.5 mm²5.2 × 11.8 mm5.2043.2105.020.8
Flat 3×2.53 × 2.5 mm²5.8 × 13.5 mm5.8072.0145.023.2
Flat 3×4.03 × 4.0 mm²6.8 × 16.2 mm6.80115.2210.027.2
Flat 3×6.03 × 6.0 mm²7.5 × 18.0 mm7.50172.8280.030.0
Flat 3×103 × 10 mm²9.2 × 22.4 mm9.20288.0445.036.8
Flat 3×163 × 16 mm²10.6 × 26.0 mm10.60460.8660.042.4
Flat 3×253 × 25 mm²12.5 × 31.2 mm12.50720.0995.050.0
Flat 3×353 × 35 mm²13.8 × 35.0 mm13.801,008.01,340.055.2
Flat 4G1.54G 1.5 mm²5.4 × 15.2 mm5.4057.6135.021.6
Flat 4G2.54G 2.5 mm²6.2 × 17.8 mm6.2096.0195.024.8
Flat 4G4.04G 4.0 mm²7.2 × 21.0 mm7.20153.6280.028.8
Flat 4G6.04G 6.0 mm²8.0 × 23.8 mm8.00230.4380.032.0
Flat 4G104G 10 mm²9.6 × 29.2 mm9.60384.0595.038.4
Flat 4G164G 16 mm²11.0 × 34.0 mm11.00614.4880.044.0
Flat 4G254G 25 mm²13.0 × 41.0 mm13.00960.01,320.052.0
Flat 4G354G 35 mm²14.5 × 46.0 mm14.501,344.01,780.058.0
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to DIN VDE 0282 / BS 6920 / KTW / ACS / NSF-61.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV AC 5-minute water-bath test & DC resistanceZero breakdown; resistance per IEC 60228 Class 5100 % of drums
Sample tests
Gravimetric water absorption & hot-set curing checkWater absorption <1.5 mg/cm²; hot-set elongation ≤175 %Every batch
BS 6920 / KTW / ACS organoleptic, TOC & microbial testsCertified safe for human drinking-water contactType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

KTW-BWGL & DVGW W270 (Germany)WRAS BS 6920 (UK)ACS Attestation de Conformité Sanitaire (France)NSF/ANSI 61 Drinking WaterCE / RoHS 3

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX FLAT SUBMERSIBLE PUMP CABLE 0.6/1kV [N×mm2] EPDM KTW WRAS ACS AD8 500M [lot/m]
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFSubmersible Pump Cable – technical datasheet16 sizes · construction, technical data, approvalsXLSXSubmersible Pump Cable spec data (Excel)All 16 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why are deep-well borehole submersible pump cables manufactured with a flat profile instead of round?
In standard 4-inch, 6-inch and 8-inch boreholes, the radial clearance between the submersible pump bowls/check-valve flanges and the steel or PVC well casing is often only 6 to 12 mm. A flat parallel cable has a minor thickness (H) roughly half the diameter of an equivalent round cable, sliding past the pump body without getting pinched or scraped during installation.
Why must drinking-water submersible cables use peroxide-cured EPDM instead of standard neoprene (H07RN-F) or PVC?
Standard polychloroprene (H07RN-F) and sulfur-cured rubbers leach organic accelerators, sulfur compounds and odour/taste into water and absorb moisture over multi-year deep immersion. Potable-grade peroxide-cured EPDM meets KTW-BWGL, WRAS (BS 6920), ACS and NSF/ANSI 61 hygiene limits with near-zero water uptake.
How are flat submersible cables spliced to the motor tail at the wellhead?
Flat submersible pump cables are joined using waterproof resin-potted splice kits or dual-wall adhesive-lined heat-shrink tubing over staggered crimp barrels, tested to 50 bar hydrostatic pressure.
What does the 'Nom. OD mm' column in the dimension table represent for a flat cable?
For flat cables, the primary clearance dimension is the minor flat thickness H (e.g. 5.8 mm on 3×2.5 mm²), while the full H × W cross-section (e.g. 5.8 × 13.5 mm) is listed in the adjacent column.
