IEEE 1580 LSX & BS 6883 Offshore / Shipboard Power CablesBS 6883 / UKOOA Type U0.6/1 kV · GP4 EPR + SW4 LSZH1C to 37C · Tinned Cu

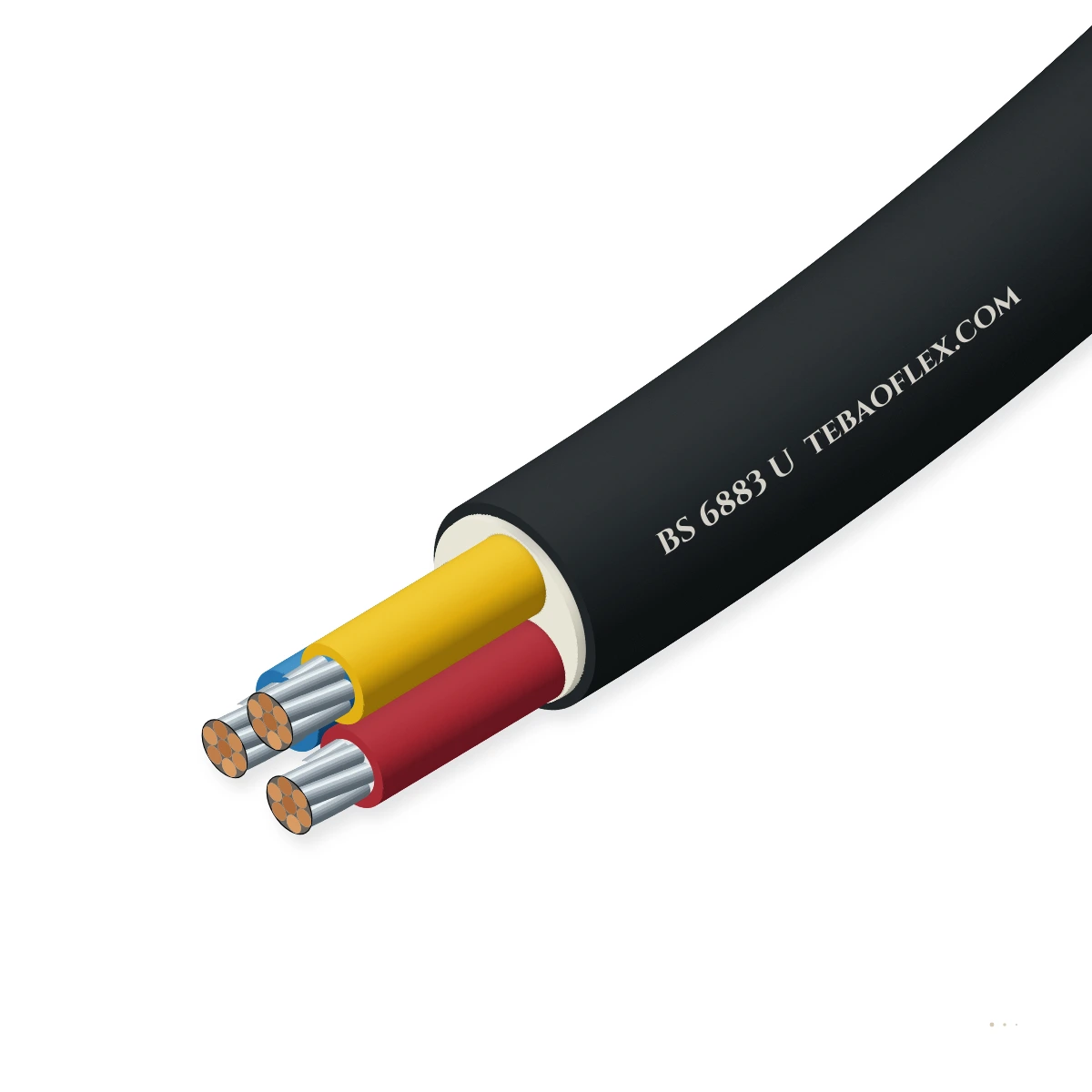

BS 6883 U narmoured Offshore Power CableBS 6883 / UKOOA 0.6/1 kV Class 2/5 tinned Cu GP4 EPR / SW4 unarmoured offshore power cable

BS 6883 U Unarmoured Offshore Power Cable is manufactured to BS 6883 and UKOOA standards for 0.6/1 kV fixed installation on offshore oil and gas platforms, FPSOs, and marine vessels, featuring Class 2 or Class 5 tinned annealed copper conductors (1C to

Flame-retardant
Oil-resistant
Water-resistant
Approved
Order designation
BS 6883 Type U 4C × 6.0 mm² GP4/SW4
Outer Ø ≈
15.1 mm
Copper weight
230 kg/km
Total weight ≈
395 kg/km
Min. bend R (fixed)
91 mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Standard
BS 6883 Type U
UKOOA unarmoured offshore power
Rated voltage
0.6/1 kV AC
3.5 kV AC / 5 min dielectric test
Conductor
Class 2 / 5 SnCu
Tinned annealed copper BS EN 60228
Insulation
Type GP4 EPR
90 °C elastomeric BS 7655-1.2
Outer sheath
Type SW4 EVA/LS
Low-smoke zero-halogen BS 7655-2.6
Flame test
IEC 60332-3-22
Category A bunched vertical flame

Typical values for this cable type, based on BS 6883 / UKOOA (Type U Unarmoured 0.6/1 kV GP4 / SW4) — confirmed in the datasheet and quotation for your order.

Application fit

Is BS 6883 U right for your machine?

Engineered for enclosed switchboard wiring, battery rooms, living quarters, and protected internal tray runs on North Sea and global offshore platforms, FPSOs, and drilling units.

Fixed installation

Suitable

Unarmoured Type U reduces topside weight and simplifies glanding inside safe-area offshore control modules.

Switchgear & control cabinet wiring

Suitable

Single-core 50 mm² to 630 mm² Type U cables route cleanly inside LV switchgear and MCC busbar chambers.

Immersion & wet locations

Suitable

Cross-linked SW4 elastomeric sheath resists salt spray, condensation, ester oils, and diesel fuel.

Energy chain / drag chain

Not suitable

Fixed offshore installation cable per BS 6883.

BS 6883 A
Typical machinesFixed offshore oil & gas platformsFPSO & FLNG processing vesselsOffshore wind substation topsidesMarine LV switchgear & battery rooms

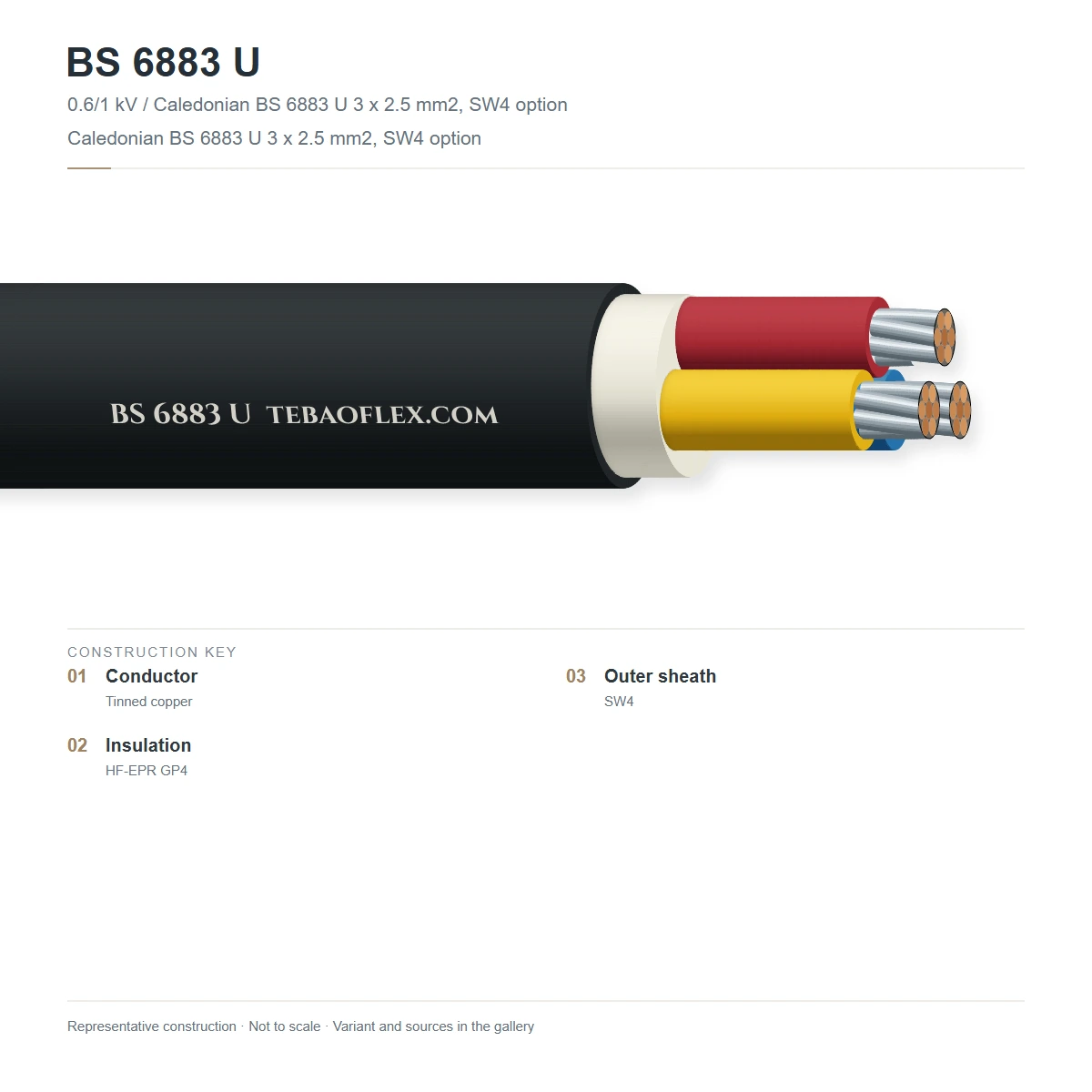

Construction

Layer by layer

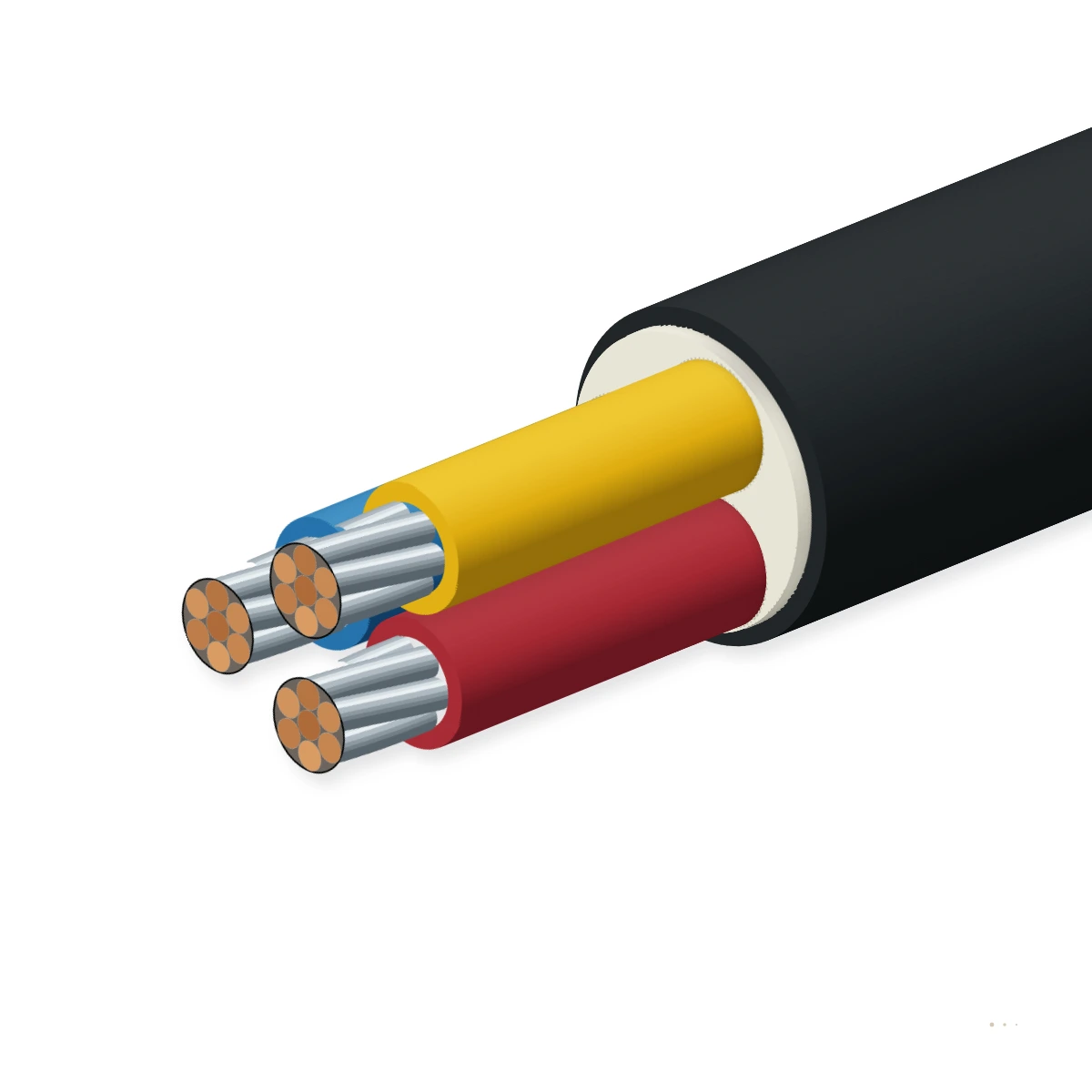

Circular stranded or flexible tinned annealed copper conductors (BS EN 60228 Class 2 or Class 5), polyester separator tape, 90 °C Type GP4

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Tinned annealed copper conductorBS EN 60228 Class 2 circular stranded (or Class 5 flexible) tinned copper (1.5 to 630 mm²)BS 6883 / BS EN 60228
2Type GP4 EPR rubber insulation (90 °C)Cross-linked ethylene-propylene elastomer Type GP4 per BS 7655-1.2BS 6883 / BS 7655-1.2
3Halogen-free binder / fillerLow-smoke zero-halogen core bedding and polyester binder tapeBS 6883
4Type SW4 elastomeric outer sheathCross-linked halogen-free, low-smoke, oil-resistant elastomer Type SW4 per BS 7655-2.6BS 6883 / BS 7655-2.6

BS 6883 Type U Single-Core (1C × 10 to 630 mm²)

Unarmoured single-core GP4/SW4 feeder for LV switchboards, generator tails, and earthing (Green/Yellow).

BS 6883 Type U Multi-Core (2C, 3C, 4C, 5C to 37C × 1.5–95 mm²)

Unarmoured power, lighting, and control cables with UKOOA code designations.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on BS 6883 / UKOOA (Type U Unarmoured 0.6/1 kV GP4 / SW4). Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
0.6/1 kV AC (600/1000 V)
AC dielectric test voltage
3,500 V AC for 5 minutes
Max. conductor operating temp.
+90 °C continuous · +250 °C short-circuit
Insulation resistance constant Ki
≥ 3.67 MΩ·km at +90 °C per BS 6883

Thermal

Operating temperature range
-40 °C to +90 °C (fixed installation)
Minimum installation temp.
-20 °C

Mechanical

Min. bending radius
4 × D (D ≤ 10 mm) · 6 × D (D > 10 mm) per
Tear & abrasion resistance
Cross-linked thermoset Type SW4 elastomer

Resistance

Bunched vertical flame test
BS EN 60332-3-22 Category A & BS EN 60332-1-2
Zero halogen, low smoke & oil
BS EN 60754-1 (< 0.5 % HCl) · BS EN 61034-2

Reference standards

Primary specification
BS 6883 · BS 7655-1.2 (GP4) · BS 7655-2.6
Classification societies
DNV, Lloyd's Register (LR), ABS, BV

Identification

Core identification
1C: Black or G/Y · 2C: Brown/Blue · 3C
Outer sheath colour
Black (Grey or Blue Ex-i on request)

Sizes

6 standard configurations (BS 6883 U)

Nominal dimensions, copper weights, DC resistance and current ratings for BS 6883 U per BS 6883 / UKOOA (Type U Unarmoured 0.6/1 kV GP4 / SW4).

Dimensions & weights
Order designationCores × SizeMain cross-sectionOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard BS 6883 U configurations
BS 6883 Type U 3C × 2.5 mm² GP4/SW43 × 2.5 mm²2.5 mm²10.67216564
BS 6883 Type U 4C × 6.0 mm² GP4/SW44 × 6.0 mm²6.0 mm²15.123039591
BS 6883 Type U 4C × 16 mm² GP4/SW44 × 16 mm²16.0 mm²20.6614875124
BS 6883 Type U 1C × 70 mm² GP4/SW41 × 70 mm²70.0 mm²16.267281097
BS 6883 Type U 1C × 185 mm² GP4/SW41 × 185 mm²185.0 mm²24.41,7762,040146
BS 6883 Type U 1C × 300 mm² GP4/SW41 × 300 mm²300.0 mm²30.22,8803,240181
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per BS 6883 / UKOOA (Type U Unarmoured 0.6/1 kV GP4 / SW4).

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV AC dielectric & insulation resistance3,500 V AC for 5 min per BS 6883; Ki ≥ 3.67 MΩ·km @ 90 °C100 % of drums
DC conductor resistance @ 20 °CBS EN 60228 Class 2 / Class 5 tinned copper limits100 % of drums
Sample tests
GP4 & SW4 hot-set, oil immersion & tear testsBS 7655-1.2 & BS 7655-2.6 elastomeric qualificationPer production batch
BS EN 60332-3-22 Cat A flame, smoke & HCl gasCat A vertical tray burn; < 0.5 % HCl; ≥ 60 % light transmittanceClass society approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

BS 6883 Type UUKOOA Code CompliantDNV / LR / ABS

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX BS 6883 TYPE U 0.6/1KV GP4/SW4
Delivery form
Non-returnable timber drums or heavy export
Standard drum lengths
250 m · 500 m · 1000 m · custom cut lengths
MOQ
100 m (stock variants) · 500 m (custom)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFBS 6883 U narmoured Offshore Power Cable – technical datasheet6 sizes · construction, technical data, approvalsXLSXBS 6883 U spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the difference between BS 6883 Type U and BS 6883 Type A offshore cables?
BS 6883 Type U is an unarmoured ('U') cable consisting of tinned copper conductors, Type GP4 EPR insulation, and a single Type SW4 halogen-free elastomeric outer sheath. BS 6883 Type A ('A') adds an inner elastomeric bedding, a galvanized steel or phosphor-bronze wire-braid armour, and an outer SW4 oversheath.
What are Type GP4 and Type SW4 elastomeric compounds under BS 6883?
Defined in BS 7655, Type GP4 is a 90 °C cross-linked ethylene-propylene rubber (EPR) core insulation with high insulation resistance and flexibility. Type SW4 is a heavy-duty cross-linked low-smoke zero-halogen (LSZH) synthetic elastomer sheath offering high tear strength, oil resistance, and < 0.5 % acid gas emission.
When should I specify BS 6883 Type U instead of NEK 606 or IEC 60092-353?
BS 6883 Type U (with UKOOA two-letter core/size codes) is the primary standard for UK Continental Shelf (UKCS) North Sea fixed production platforms, FPSOs, and brownfield tie-ins where heavier thermoset GP4/SW4 wall thicknesses are specified over thinner IEC 60092 shipboard cables. Each production drum
Are fire-resistant (IEC 60331) versions of BS 6883 Type U available?
Yes. By lapping a phlogopite mica-glass fire barrier tape over the tinned copper conductors beneath the GP4 EPR insulation, we supply BS 6883 / BS 7917 Type U fire-survival cables tested to IEC 60331-21 (750 °C / 830 °C for 90–180 minutes). Each production
