fiber optic cable seriesIEC 61757-2-2 DTS316L FIMT + Wire Armour6,000 N/100 mm Crush

BRUsens DTS BSTE / BSSA M Armoured Distributed TemperatureStainless-steel FIMT & steel-wire-armoured distributed temperature sensing (DTS) cable

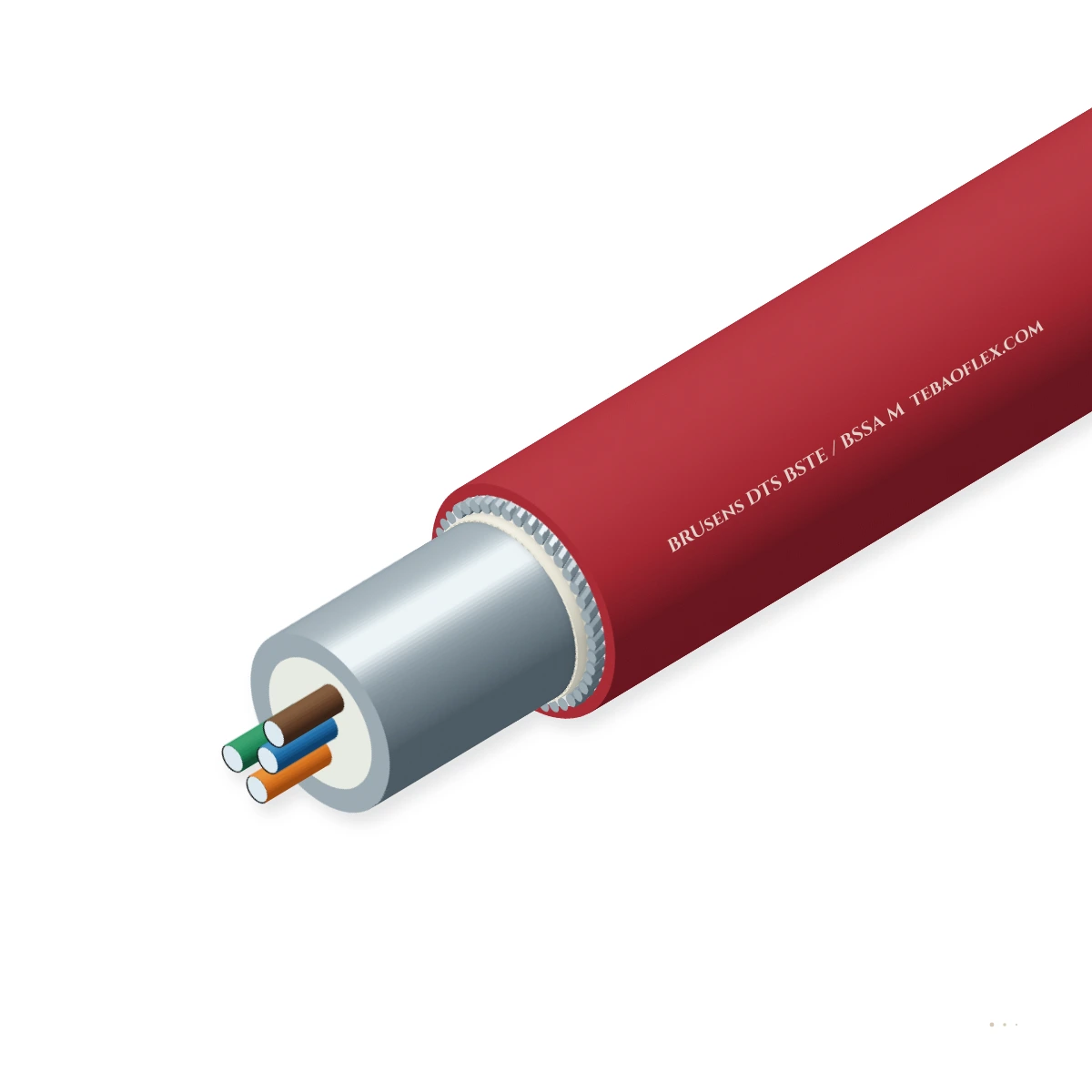

BRUsens DTS BSTE / BSSA M Armoured Distributed Temperature Sensing Cable featuring strain-free multimode/single-mode optical fibres inside a laser-welded 316L stainless-steel FIMT, helical galvanized or stainless steel wire armour,.

Direct Trench Burial
300 bar 316L FIMT
LSZH / HDPE / PA12
IEC 61757-2-2
Order designation
BRUsens DTS BSTE M-02MM02SM
Outer Ø
6.0 mm
Weight ≈
78 kg/km
Max. pull load
7,000 N
Crush rating
7,000 N/100mm
All sizes (6)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Sensing mode
Raman / BOTDA
Strain-free OM3 + SM cores
Outer Ø
4.6 to 6.5 mm
BSSA M (4.6 mm) · BSTE M (6.0 mm)
Tensile load
3,500 to 7,500 N
Stranded steel wire armour
Crush rating
5,000–7,000 N
per 100 mm radial load
Thermal τ₆₃
≤ 2.2 s in water
All-metallic heat conduction
Temperature
-40 to +85 °C
+125 °C PA12/TPEE option

Typical values for this cable type, based on IEC 61757-2-2 / IEC 60794-1-21 / EN 54-22 — confirmed in the datasheet and quotation for your order.

Application fit

Is BRUsens DTS BSTE / BSSA M right for your machine?

Workhorse wire-armoured DTS sensor for direct burial alongside pipelines and HV power cables, concrete dam embedment, conveyor structures, and subsea/borehole grouting.

Fixed installation

Suitable

Direct burial in pipeline trenches, HV cable backfill, dam concrete lifts, and mining conveyors.

TBM gantry & advancing tunnel reel

Suitable

EN 54-22 LSZH armoured variant resists mechanical impact, water jets and rodents in tunnels.

Immersion & wet locations

Suitable

Laser-welded 316L stainless FIMT withstands 30 MPa (300 bar) hydrostatic pressure.

Energy chain / drag chain

Not suitable

Static wire-armoured temperature sensor; not intended for drag-chain flexing.

Use HITRONIC PCF DUPLEX
Typical machinesOil, Gas, LNG & District Heating Pipeline LeakBuried HV/Subsea Export Cable RTTRConcrete Dam Hydration & Seepage ProfilingMining Conveyor Idler & Coal Stockpile FireGeothermal & Hydrogeological Boreholes

Construction

Layer by layer

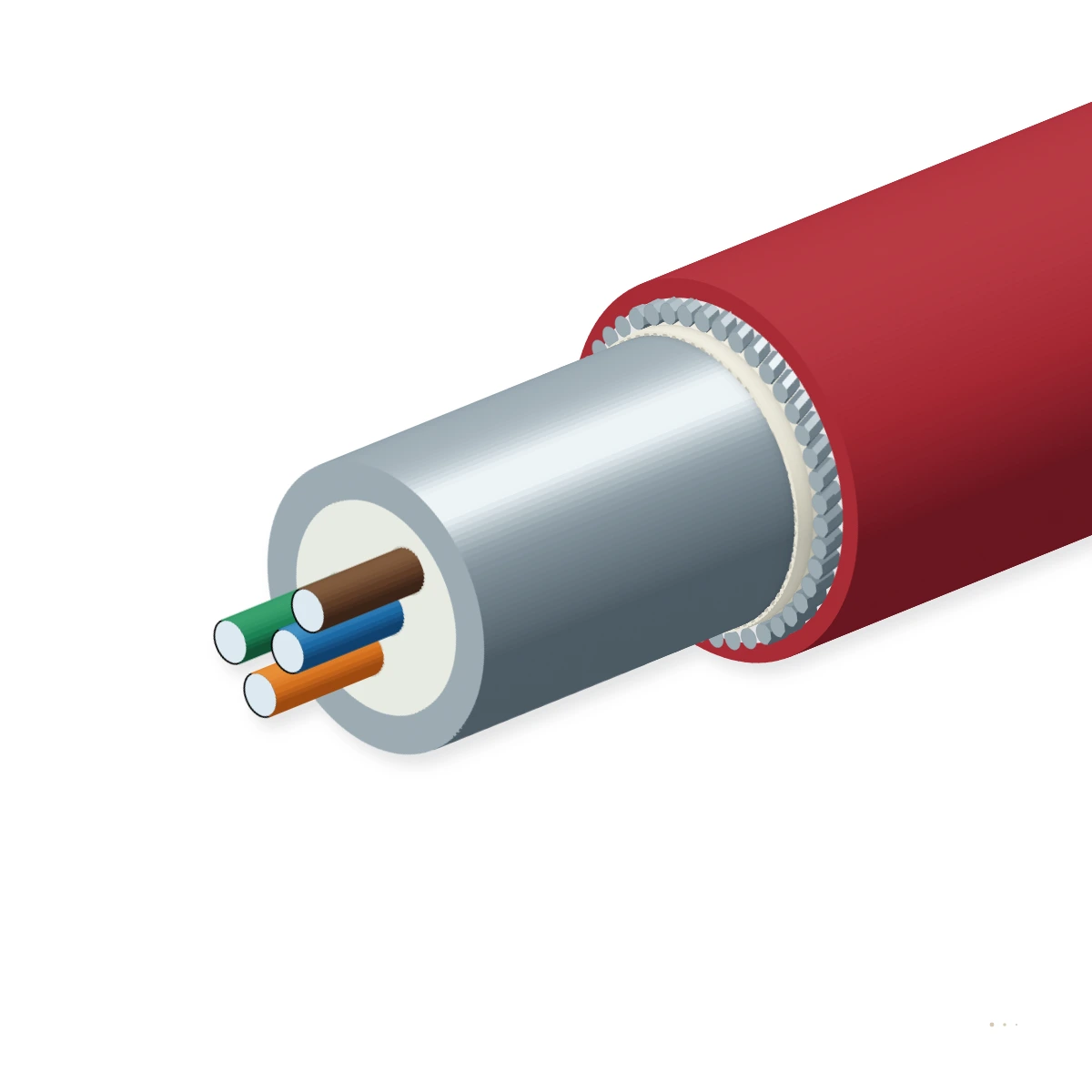

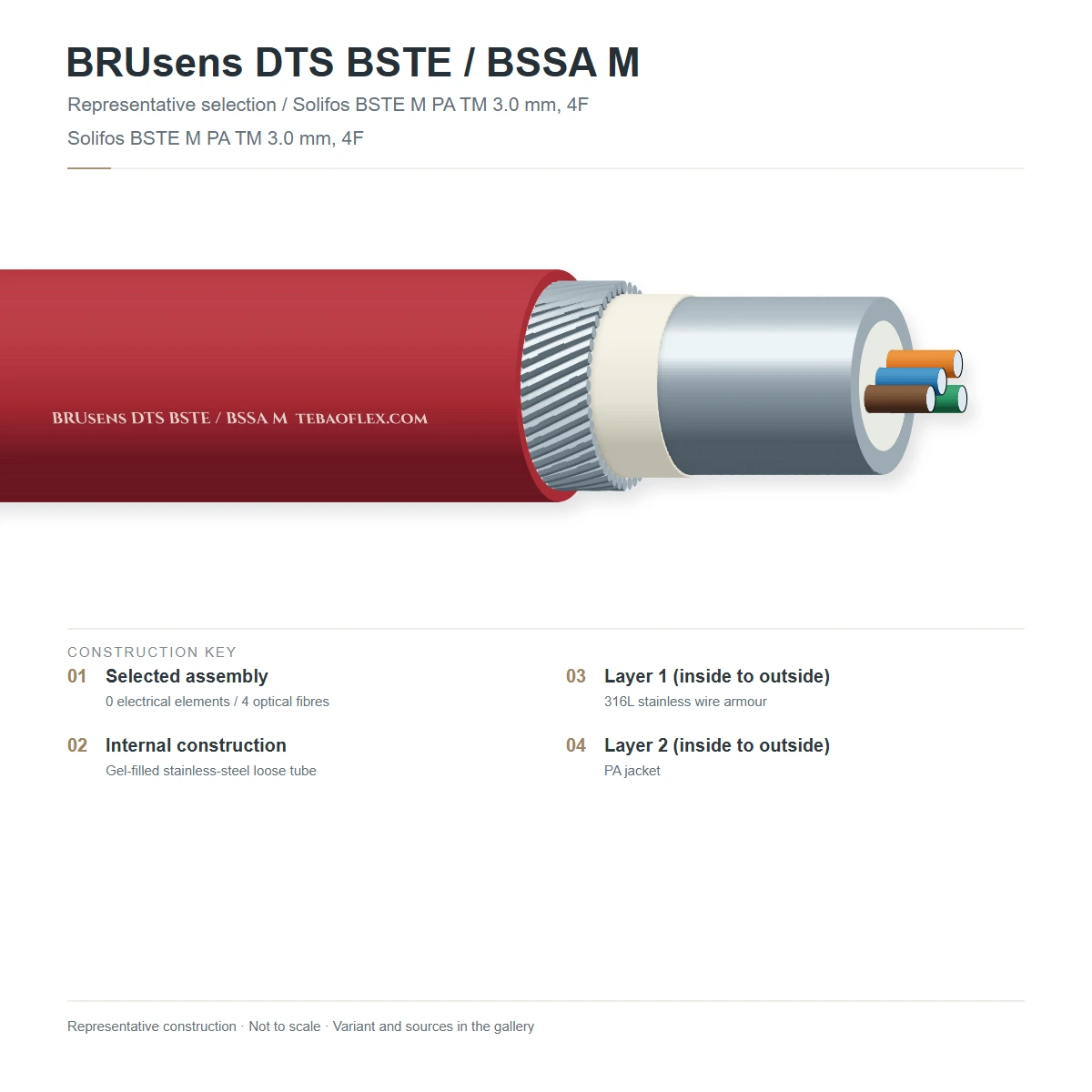

BRUsens DTS BSTE / BSSA M showing strain-free OM3 and G.652.D/G.657.A1 fibres in a laser-welded 316L stainless-steel FIMT, galvanized or 316L stainless steel wire armour, and HDPE/PA12/LSZH sheath.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Strain-free DTS sensing fibres2 to 8 × 50/125 µm OM3 multimode and/or 9/125 µm ITU-T G.652.D/G.657.A1 single-mode fibres with controlled EFLIsolates optical fibres from pulling and soil settlement strain
2Laser-welded 316L stainless-steel FIMTHermetically welded AISI 316L stainless-steel tube filled with non-dripping thixotropic gel (or dry gas)100 % moisture and hydrogen barrier up to 300 bar
3Helical steel wire armour (M)Single layer (BSSA M) or heavy/double layer (BSTE M) of galvanized steel or AISI 316L stainless-steel wires3.5–7.5 kN tensile rating & 5,000–7,000 N/100 mm crush
4Outer protective jacketUV-stabilised HDPE (direct burial), Polyamide 12 (chemical/borehole), or flame-retardant LSZH (tunnel/indoor)High thermal conductivity & abrasion resistance

BRUsens DTS BSSA M (Compact Ø 4.6 mm)

316L FIMT + single-layer steel wire armour + PA12/LSZH/HDPE sheath (3.5 kN pull, 5 kN crush)

BRUsens DTS BSTE M (Heavy-Duty Ø 6.0 mm)

316L FIMT + heavy-gauge steel wire armour + HDPE/LSZH sheath for rocky trenches & concrete dams (7.5 kN pull)

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 61757-2-2 / IEC 60794-1-21 / EN 54-22. Values for your order are confirmed in the datasheet and quotation.

Electrical

Sensing principle
Raman OTDR (MM) & Brillouin BOTDA/BOTDR (SM)
Temperature resolution
±0.1 °C (Raman 50/125 µm OM3)
Armour earthing
Metallic FIMT + wire armour bonded at termination cabinet

Thermal

Operating temperature
-40 °C to +85 °C (+125 °C PA12/TPEE option)
Thermal response (τ₆₃)
≤ 2.2 s in water · ≤ 8.0 s in air
Installation temperature
-20 °C to +60 °C

Mechanical

Nominal outer diameter
4.6 mm (BSSA M) · 6.0 mm (BSTE M)
Max. tensile load
3,500 N (BSSA M) · 7,500 N (BSTE M)
Crush resistance
5,000 N/100 mm (BSSA M) · 7,000 N/100 mm (BSTE M)
Min. bend radius
15 × OD static · 20 × OD dynamic

Optical

Multimode DTS fibres
50/125 µm OM3 (≤ 2.4 / 0.6 dB/km @ 850/1300 nm)
Single-mode fibres
ITU-T G.652.D / G.657.A1 (≤ 0.35 / 0.21 dB/km)
Strain-free margin
Zero fibre strain up to full rated installation pull

Resistance

Hydrostatic pressure
30 MPa (300 bar) on 316L FIMT
Rodent & rock impact
100 % steel wire armour (30 J impact Method E4)
Flame option (LSZH)
IEC 60332-3-24, IEC 60754-2 & EN 54-22

Reference standards

DTS sensor standard
IEC 61757-2-2 & EN 54-22
Cable test standard
IEC 60794-1-21 & IEC 60794-1-22
RoHS & REACH
2011/65/EU & EC 1907/2006 compliant

Identification

Sheath colour
Black (HDPE/PA12) or Red/Orange (LSZH)
Fibre colour code
TIA-598-D 12-colour
Customs tariff (HS)
8544.7000

Sizes

6 standard BRUsens DTS BSSA M & BSTE M armoured configurations

Dimensional and mechanical parameters for compact (BSSA M) and heavy-duty (BSTE M) wire-armoured DTS cables.

Dimensions & mechanical ratings
Order designationFibre compliment & jacketOuter Ø
mm		Weight ≈
kg/km		Max. pull
N		Crush
N/100 mm		Enquiry
BSSA M — Compact Wire-Armoured (Ø 4.6 mm)
BRUsens DTS BSSA M-02MM2 × 50/125 OM3 · LSZH/HDPE4.6463,5005,000
BRUsens DTS BSSA M-04MM4 × 50/125 OM3 · LSZH/HDPE4.6473,5005,000
BRUsens DTS BSSA M-02MM02SM2 × OM3 + 2 × G.652.D SM · HDPE4.6473,5005,000
BSTE M — Heavy-Duty Wire-Armoured (Ø 6.0–6.5 mm)
BRUsens DTS BSTE M-04MM4 × 50/125 OM3 · Heavy SWA6.0787,0007,000
BRUsens DTS BSTE M-02MM02SM2 × OM3 + 2 × G.652.D SM · Heavy SWA6.0787,0007,000
BRUsens DTS BSTE M-04MM04SM4 × OM3 + 4 × G.652.D SM · Heavy SWA6.5927,5007,000
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Available with galvanized carbon steel wires (standard) or full AISI 316L stainless-steel armour wires for marine/corrosive soils.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
100 % eddy-current FIMT weld & bidirectional OTDR testZero weld flaws and ≤ 2.4/0.6 dB/km (OM3) / ≤ 0.35/0.21 dB/km (SM)Every drum length
Sample tests
Tensile & radial crush qualification (IEC 60794-1-21)Up to 7,500 N pull and 7,000 N/100 mm crush with zero fibre strainType qualification
300 bar hydrostatic & thermal cycling (-40 to +85 °C)Δα ≤ 0.05 dB/km across full temperature cycleType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 61757-2-2 & EN 54-22IEC 60794-1-21 & ITU-T G.652.DRoHS 2 & REACH Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX BRUSENS DTS BSTE/BSSA M ARMOURED DTS CABLE
Delivery form
Fumigated export wooden or steel drums
Standard drum lengths
1000 m · 2000 m · 4000 m (or custom cut lengths)
MOQ
500 m (standard) · 1000 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFBRUsens DTS BSTE / BSSA M Armoured Distributed Temperature – technical datasheet6 sizes · construction, technical data, approvalsXLSXBRUsens DTS BSTE / BSSA M spec data (Excel)All 6 sizes with dimensions and data, for your BOM or quotation
