75 Ω Broadcast, Video & CATV Coaxial Cables75 Ω ± 2 Ω Camera TriaxØ 8.4 / 11.0 / 14.5 mmVideo + Telemetry + Power

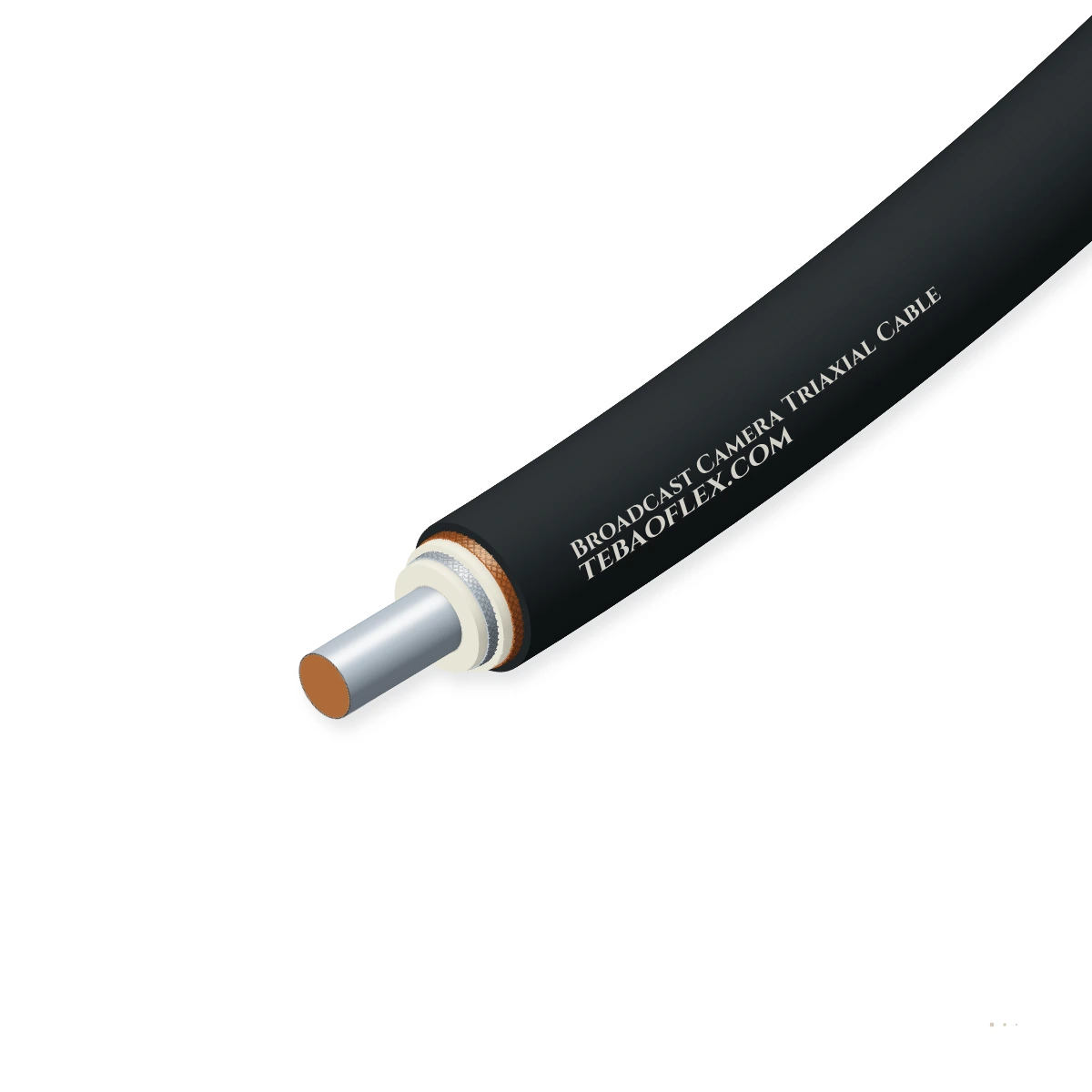

Broadcast Camera Triaxial CableIEC 61196-1 · 75 Ω ± 2 Ω · Ø 8.4 / 11.0 / 14.5 mm · SPC center · Foam PE (82 % VoP) ·

Broadcast Camera Triaxial Cable is a precision 75 Ω ± 2 Ω triaxial system cable that simultaneously transports multiplexed HD/UHD camera video, teleprompter, intercom, tally, return video, and up to 300–600 V camera power between studio CCUs (Camera

EMC screen
Low-EMC design
Oil-resistant
Outdoor & humid
Order designation
Triax 8.4 mm Mobile PUR (Ø 1.0 SPC)
Outer Ø ≈
8.40 mm
Metal weight
45.0 kg/km
Total weight ≈
92.0 kg/km
Min. bend R (fixed)
42 mm
All sizes (4)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Impedance Z₀
75 Ω ± 2 Ω
Inner coax mode (center to inner braid)
Standard sizes
Ø 8.4 / 11.0
Short, medium & long-haul OB runs
Velocity / Cap.
82 % · 54 pF/m
Nitrogen gas-injected foam PE
Dual braids
Inner SPC +
Electrically isolated by TPE/PE layer
Camera power
Up to 600 V rms
Multiplexed CCU power & RF video
Outer sheath
PUR or Studio
Red, black or green · -40 to +80 °C

Typical values for this cable type, based on IEC 61196-1 / SMPTE Camera Triax — confirmed in the datasheet and quotation for your order.

Application fit

Is Broadcast Camera Triaxial Cable right for your machine?

Engineered for live television studios, outside broadcast (OB) trucks, sports stadiums, concert rigging, and deployable tactical camera reels terminated with Fischer 1051, LEMO 3T/4M, or Kings

Trailing & towing

Suitable

Abrasion-resistant matte PUR variant is purpose-built for stage floors, stadium turf, and portable OB camera drums.

Fixed installation

Suitable

Halogen-free FRNC/LSZH variant installs permanently in broadcast studio wall boxes and stadium conduit.

Switchgear & control cabinet wiring

Suitable

Ø 8.4 mm flexible triax handles CCU rack interconnect and camera head jumper tails.

Energy chain / drag chain

With conditions

PUR triax supports camera pedestal and jib tracks at ≥ 7.5 × D dynamic bend radius.

Typical machinesOutside Broadcast (OB) Trucks & StadiumsTelevision Studios & CCU InfrastructureLive Concert & Event Video ProductionParliamentary & Auditorium Camera GridsRemote Pan-Tilt-Zoom (PTZ) Broadcast

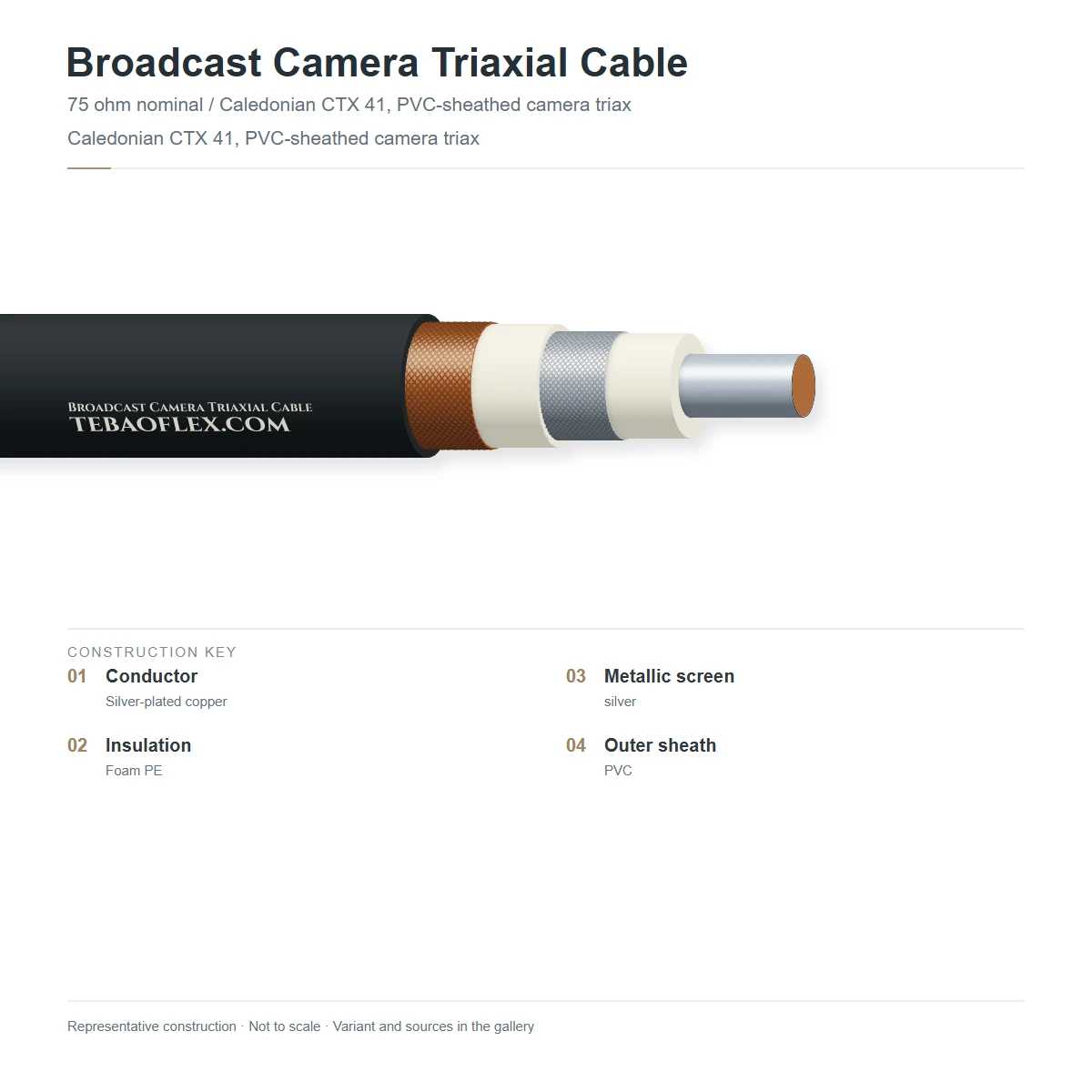

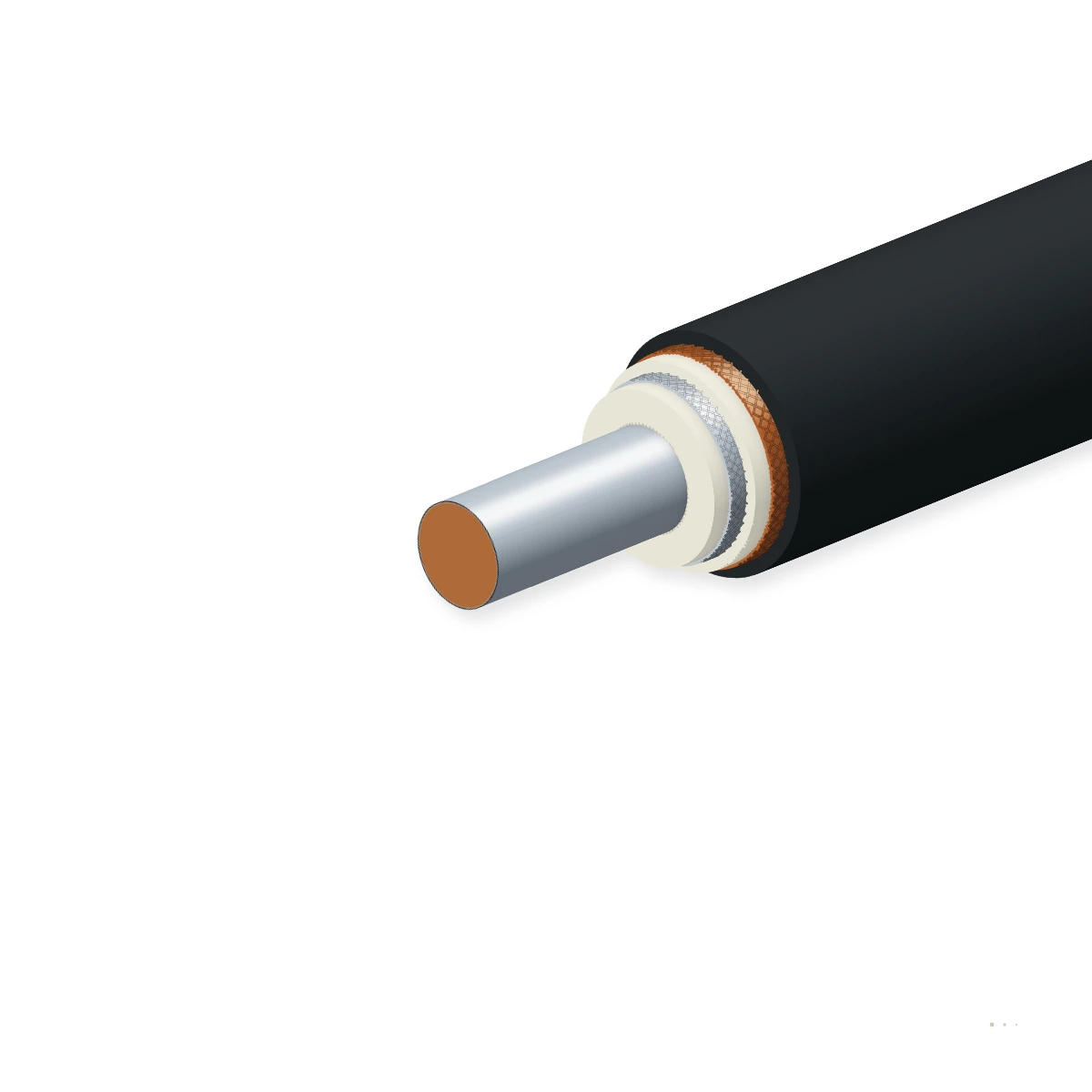

Construction

Layer by layer

Silver-plated copper center conductor, gas-injected foam PE dielectric (82 % VoP), ≥ 85 % silver/bare copper inner braid, TPE/PE

123456
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Silver-plated copper center conductorØ 1.0 mm (Type 8.4), Ø 1.4 mm (Type 11.0), or Ø 2.2 mm (Type 14.5) silver-plated copperIEC 61196-1
2Gas-injected cellular foam PE dielectricLow-loss nitrogen-foamed polyethylene (Ø 4.6 / 6.5 / 9.7 mm, 82 % VoP, 54 pF/m)IEC 61196-1
3Inner signal return braid (Screen 1)Silver-plated or bare oxygen-free copper wire braid (≥ 85 % coverage) carrying RF returnIEC 61196-1
4Inter-shield insulating jacketExtruded thermoplastic elastomer (TPE) or polyethylene isolation wall (> 2.0 kVIEC 61196-1
5Outer protective earth & EMC braidHigh-coverage bare/tinned copper outer guard braid (≥ 85 % coverage) tied to protectiveIEC 61196-1
6Mobile PUR or Studio FRNC/LSZH sheathMatte studio red (RAL 3000), black, or green polyurethane (PUR) for OB reels orIEC 61196-1

Triax 8.4 mm (Ø 1.0 mm Center)

Compact studio & camera-tail triax for CCU runs up to ~400–600 m.

Triax 11.0 mm (Ø 1.4 mm Center)

Universal OB truck & stadium drum cable for CCU runs up to ~900–1,200 m.

Triax 14.5 mm (Ø 2.2 mm Center)

Long-haul stadium & golf-course trunk triax for CCU runs up to ~1,500–2,000 m.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on IEC 61196-1 / SMPTE Camera Triax. Values for your order are confirmed in the datasheet and quotation.

Electrical

Characteristic impedance Z₀
75 Ω ± 2 Ω (center to inner screen)
Nominal capacitance (center / inner)
54.0 pF/m (16.5 pF/ft)
Velocity of propagation (VoP)
82.0 %
Center DC resistance (8.4 / 11
≤ 22.5 / ≤ 11.5 / ≤ 4.6 Ω/km at 20 °C
Inner screen DC resistance (8.4
≤ 9.5 / ≤ 6.5 / ≤ 4.2 Ω/km at 20 °C
Max. operating / test voltage
400–600 V rms / 2.0 kV rms test

Thermal

Operating temperature (fixed)
-40 °C to +80 °C
Operating temperature (mobile OB)
-30 °C to +70 °C
Studio fire performance (FRNC)
IEC 60332-1-2 / IEC 60332-3-24 LSZH
Halogen & smoke rating (FRNC)
IEC 60754-1/2 & IEC 61034
Cold-flex endurance (PUR)
-40 °C outdoor winter OB deployment
Soldering / termination rating
Compatible with crimp/clamp triax plugs

Mechanical

Outer diameters (3 standard sizes)
8.4 mm, 11.0 mm, and 14.5 mm
Dielectric diameters
4.6 mm (8.4), 6.5 mm (11.0), 9.7 mm (14.5)
Min. bend radius (fixed / reeling)
5 × D (fixed) / 10 × D (mobile reeling)
Nominal cable weight (8.4 / 11
92 / 155 / 265 kg/km
Max. pulling tension (8.4 / 11
250 N / 450 N / 800 N
Connector compatibility
Fischer 1051, LEMO 3T/4M, Kings Tri-Loc

Resistance

Cut, notch & vehicle run-over (PUR)
High-tear-strength polyether PUR sheath
Oil, mud & turf chemicals
Resistant to hydraulic oils & stadium
UV & outdoor weather
Weatherproof for outdoor sports & concerts
EMC & ground-loop isolation
Isolated outer braid blocks SCR dimmer hum
Low-friction reeling
Matte non-stick surface finishes
RoHS / REACH status
RoHS 3 compliant

Reference standards

Coaxial / triaxial test norm
IEC 61196-1
Broadcast camera system norm
Sony / Grass Valley / Ikegami / Hitachi CCU
Flame test standard
IEC 60332-1-2 (IEC 60332-3 on FRNC)
PUR sheath standard
EN 50363-10-2 / VDE 0207
Halogen-free standard (FRNC)
IEC 60754-1/2
Quality certification
EN 10204 3.1 + return-loss sweep report

Identification

Dielectric colour
White gas-injected foam PE
Inter-shield jacket colour
White or translucent natural
Outer sheath colour
Red (RAL 3000), Black (RAL 9005), Green
Surface legend
TEBAOFLEX BROADCAST CAMERA TRIAX 75 OHM
Standard drum lengths
100 m, 200 m, 300 m, 500 m, 1000 m
Batch traceability
Lot number & metre marking

Sizes

4 standard configurations (Broadcast Camera Triaxial Cable)

Dimensional, physical and high-frequency electrical parameters for Broadcast Camera Triaxial Cable per IEC 61196-1 / SMPTE Camera Triax.

Dimensions & construction
Order designationConstruction / VariantConductorOuter Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard Broadcast Camera Triaxial Cable variants
Triax 8.4 mm Mobile PUR (Ø 1.0 SPC)75 Ω Dual Isolated Braids (PUR)Ø 1.00 mm (0.78 mm²)8.4045.092.042
Triax 11.0 mm Mobile PUR (Ø 1.4 SPC)75 Ω Dual Isolated Braids (PUR)Ø 1.40 mm (1.54 mm²)11.0078.0155.055
Triax 14.5 mm Long-Haul PUR (Ø 2.2 SPC)75 Ω Dual Isolated Braids (PUR)Ø 2.20 mm (3.80 mm²)14.50145.0265.072
Triax 11.0 mm Studio FRNC/LSZH75 Ω Dual Isolated Braids (LSZH)Ø 1.40 mm (1.54 mm²)11.0078.0164.055
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and weights are nominal production values subject to manufacturing tolerances per IEC 61196-1 / SMPTE Camera Triax.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Sweep structural return loss (1–600 MHz)75 Ω ± 2 Ω; return loss ≥ 26 dB across camera carrier bandsEvery drum
Core-to-inner & inner-to-outer HV test2.0 kV rms (core-inner) & 1.5 kV rms (inner-outer) without breakdownEvery drum
Sample tests
Conductor & inner braid DC loop resistanceLow loop resistance verified for maximum CCU camera power reachPer batch
Reel flex-life & PUR tear/abrasion testZero braid breakage or impedance shift after drum reeling cyclesQualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

IEC 61196-1IEC 60332-1-2 / 60754RoHS 3 / CE

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX BROADCAST CAMERA TRIAXIAL 75 OHM
Delivery form
Spools, reels or export wooden drums
Standard reel lengths
100 m · 305 m (1000 ft) · 500 m · 1000 m
MOQ
100 m (stock) · 305–500 m (production)
Lead time
1–3 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFBroadcast Camera Triaxial Cable – technical datasheet4 sizes · construction, technical data, approvalsXLSXBroadcast Camera Triaxial Cable spec data (Excel)All 4 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why do broadcast studio and OB van cameras use triaxial cable instead of ordinary coaxial cable?
A camera triaxial cable adds a second electrically isolated outer copper braid around the inner 75 Ω coaxial core: the center conductor and inner braid carry bidirectional frequency-multiplexed RF video, audio, teleprompter, and high-voltage CCU camera power, while the outer braid acts as a protective safety ground and 360° EMC shield.
How do I choose between 8.4 mm, 11.0 mm, and 14.5 mm camera triax?
Choose 8.4 mm for studio floor camera tails and runs up to ~400–600 m, 11.0 mm as the universal OB van reel cable for runs up to ~900–1,200 m, and 14.5 mm for permanent stadium trunks or golf/motorsport links up to ~1,500–2,000 m. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
When should I specify PUR vs FRNC/LSZH outer sheathing?
Specify matte polyurethane (PUR) for portable camera reels, OB trucks, and outdoor sports where cables are repeatedly coiled and dragged across rough ground; specify halogen-free FRNC/LSZH for permanent indoor installation inside television studios and stadium risers. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
Which triaxial connectors are compatible with these three diameters?
All three metric sizes (8.4 mm, 11.0 mm, and 14.5 mm) match standard collet and crimp kits for Fischer 1051, LEMO 3T / 4M (BBC), and Kings 75 Ω Tri-Loc broadcast camera connectors. Each production reel undergoes sweep-frequency impedance and return-loss verification, dielectric spark testing, and dimensional inspection before dispatch with an EN 10204 3.1 test certificate.
