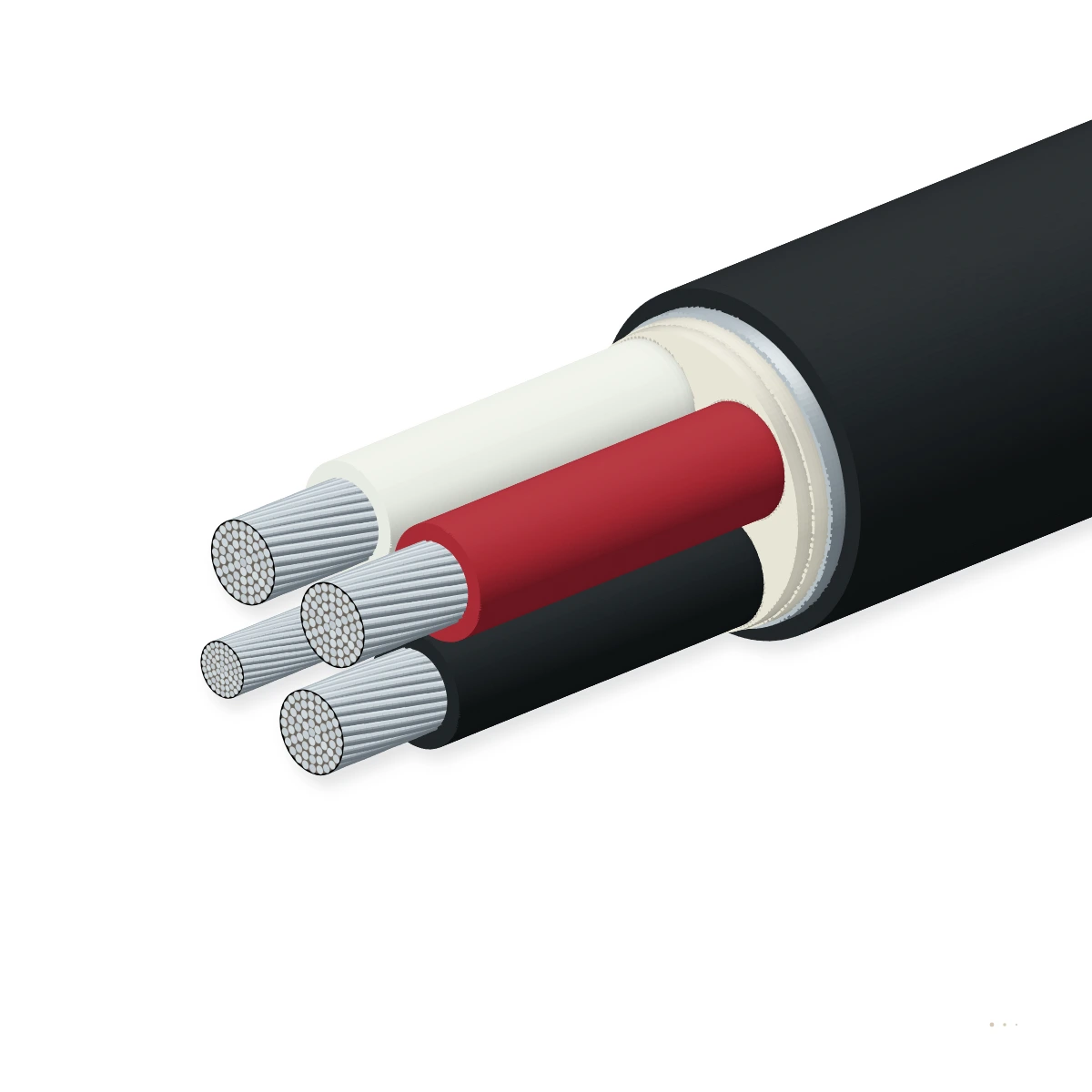

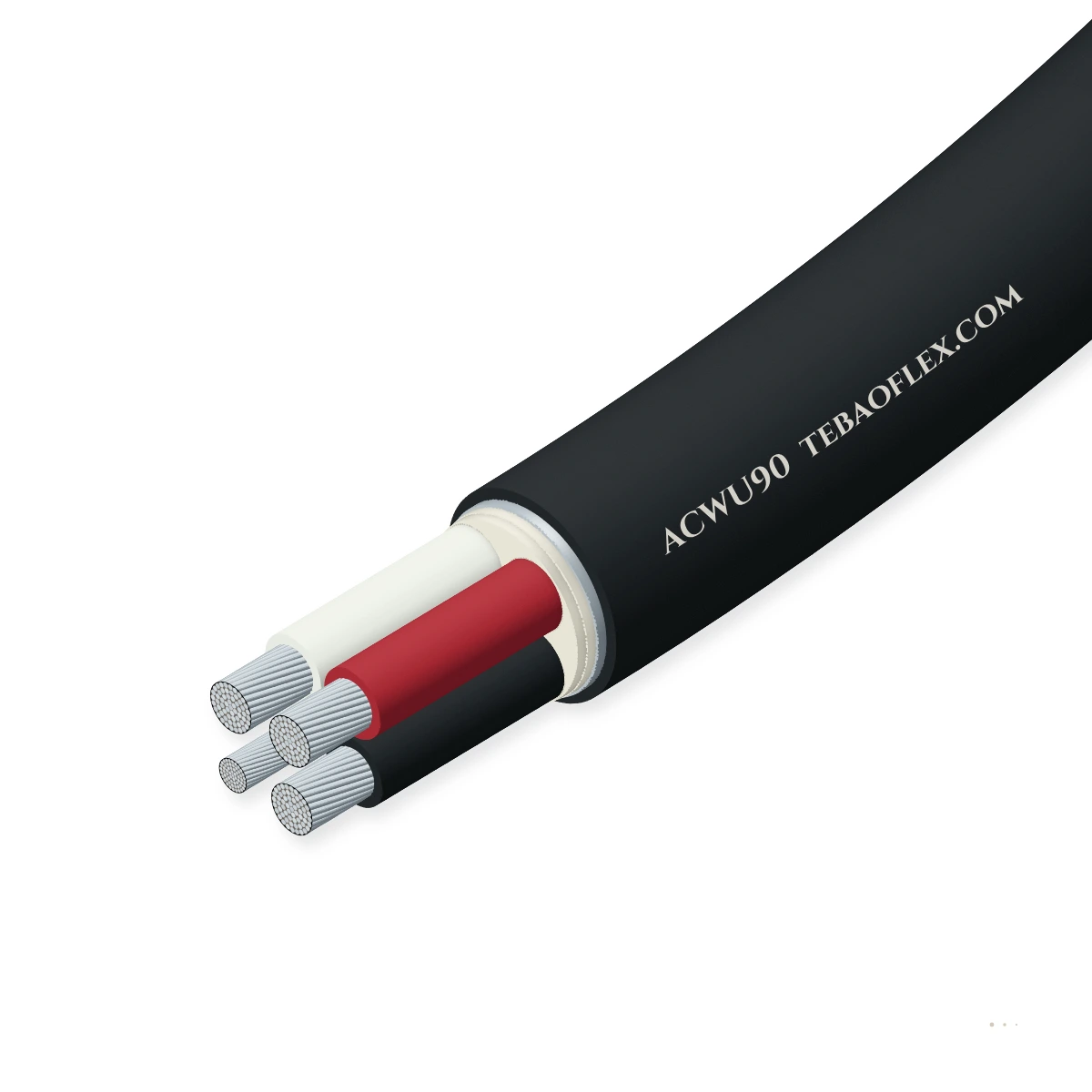

ACWU90 Armoured Power Cable600 V / 1000 V CSA C22.2 No. 51 exposed & underground wet-location AIA armoured cable (Cu

Type ACWU90 (Armoured Cable, Wet Location, Underground, 90 °C) is a Canadian interlocked aluminum-armoured power feeder cable governed by CSA C22.2 No. 51. Built with RW90 cross-linked polyethylene (XLPE, +90 °C wet/dry) copper or AA-8000 (ACM) aluminum conduc

Wet & Direct Earth Burial ('WU')
-40 °C Cold Impact & UV Rated
CSA FT4 Vertical Tray & AG14
CSA C22.2 No. 51 ACWU90
Order designation
ACWU90 3C 6 AWG
Nom. OD
21.30 mm
Copper mass
382.0 kg/km
Total mass ≈
675.0 kg/km
Min. bend R
149.1 mm
All sizes (13)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
600 V / 1000 V
CSA C22.2 No. 51 feeder power
Conductors
Copper or ACM Al
Stranded Cu or AA-8000 aluminum
Core insulation
RW90 XLPE (+90 °
90 °C wet & dry cross-linked PE
Armour + jacket
AIA + FT4 PVC
Interlocked Al + PVC outer sheath
Temp window
-40 to +90 °C
CSA -40 °C cold bend & impact
Min. bend radius
7 × / 12 × cable
Exposed trays & direct burial

Typical values for this cable type, based on CSA C22.2 No. 51 / CEC Part I — confirmed in the datasheet and quotation for your order.

Application fit

Is ACWU90 right for your machine?

Specified for commercial building service entrances, data-centre and hospital distribution risers, underground utility trenches, industrial ventilated cable trays, parking-garage feeders and EV charging hub mains.

Fixed installation

Suitable

Approved for direct earth burial, underground ducts, concrete encasement and open ladder cable trays.

Free-hanging vertical run

Suitable

Self-supporting interlocking aluminum armour installs along vertical building risers and ceiling trapezes.

Switchgear & control cabinet wiring

Suitable

Terminates rapidly with standard dry or wet-location ACWU/TECK connectors.

Typical machinesCommercial & high-rise risersUnderground direct-burial feedersIndustrial plant distributionSolar farm & EV charging mainsWastewater & utility substations

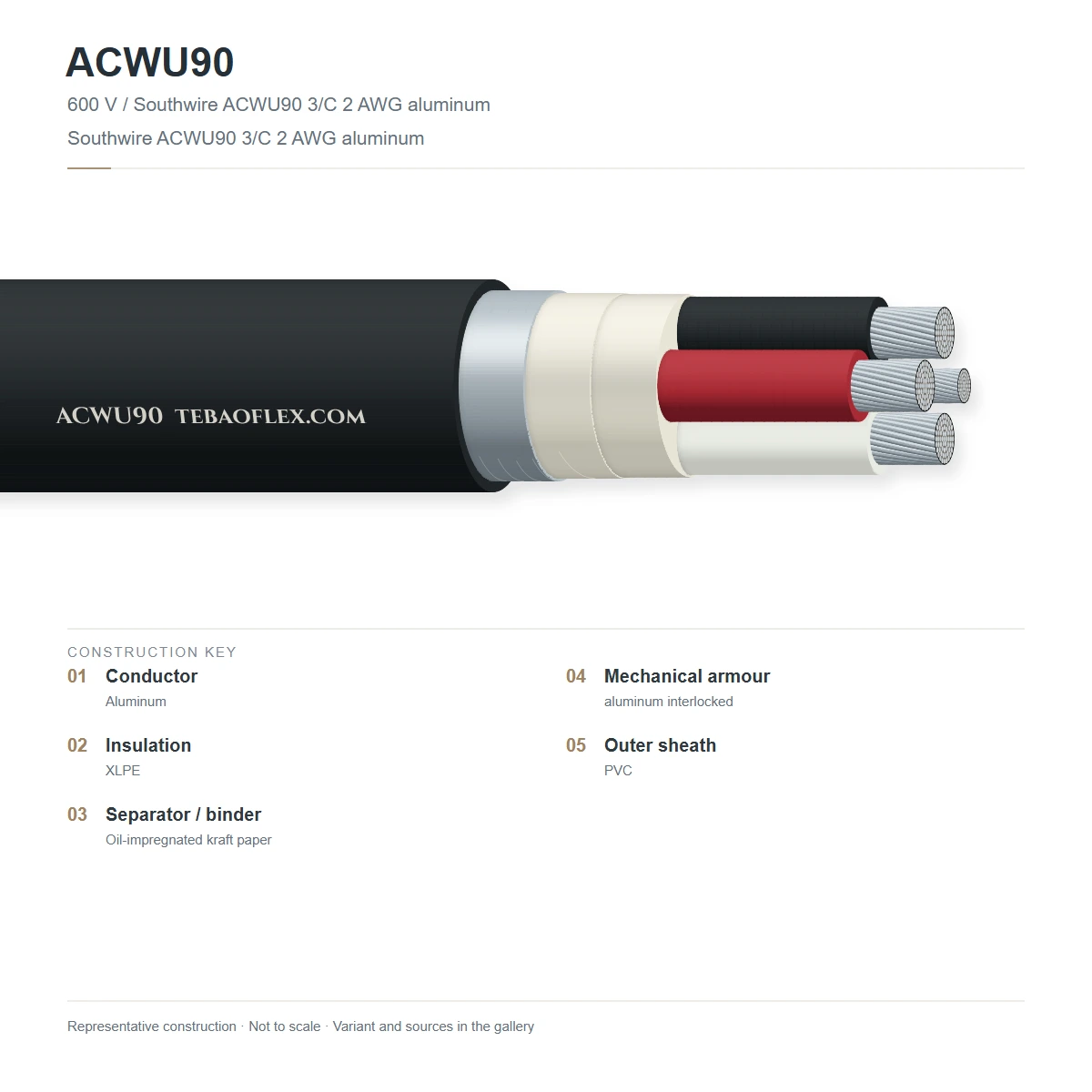

Construction

Layer by layer

Compressed stranded annealed copper or AA-8000 (ACM) aluminum alloy conductors + RW90 XLPE insulation + bare copper or aluminum bonding conductor + polyester binder tape + interlocking aluminum (AIA) strip armour + FT4 / AG14 sunlight-resistant PVC outer jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Stranded copper or AA-8000 (ACM) aluminumClass B compressed concentric stranded copper (14 AWG–750 MCM) or AA-8000 aluminum alloy (6 AWG–1000 MCM) plus bare bonding conductorCSA C22.2 No. 51
2RW90 cross-linked polyethylene (XLPE)90 °C wet/dry thermoset XLPE insulation per CSA C22.2 No. 38 (Red, Black, Blue + White)CSA C22.2 No. 38
3Helical polyester binder tapeSecures the cabled phase and bonding conductors under the armour without an inner PVC jacketCSA C22.2 No. 51
4Interlocking aluminum strip armour (AIA)Corrosion-resistant 5052 aluminum alloy interlocked strip armourCSA C22.2 No. 51
5FT4 / AG14 moisture & UV PVC outer jacket-40 °C cold-impact, sunlight- and moisture-resistant black PVC outer jacket for wet and underground burialCSA C22.2 No. 51

ACWU90 Copper Conductor (14 AWG to 750 MCM — 2C, 3C, 4C)

Compact high-ampacity copper ACWU90 with bare copper bonding wire for industrial and commercial feeders.

ACWU90 ACM Aluminum Conductor (6 AWG to 750 MCM — 1C, 3C, 4C)

Lightweight AA-8000 aluminum alloy ACWU90 reducing cable weight and conductor cost by up to 50 % on heavy building feeders.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on CSA C22.2 No. 51 / CEC Part I. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 V / 1,000 V AC
Dielectric test voltage
3.5 kV AC rms for 5 minutes
Conductor temperature rating
+90 °C wet or dry · +130 °C overload · +250 °C short-circuit

Thermal

Low-temperature rating
-40 °C cold impact & -40 °C cold bend per CSA C22.2 No. 0.3
Continuous operating temperature
-40 °C to +90 °C

Mechanical

Minimum bending radius
12 × OD during pulling · 7 × OD permanent training
Diameter & weight savings vs TECK90
Omitting the inner PVC bedding jacket reduces OD by 8–12 % and weight by 10–15 %

Resistance

Flame & acid-gas emission
CSA FT4 vertical tray flame & AG14 low acid gas (<14 % HCl)
Wet, underground & sunlight rating
Direct burial, wet location ('W'), sunlight UV & oil resistant

Reference standards

Governing standards
CSA C22.2 No. 51, CSA C22.2 No. 38 (RW90) & CEC Part I
Dry-location counterpart
Upgrades bare-armour AC90 (BX) by adding a watertight FT4 PVC outer jacket

Identification

Code breakdown
AC = Armoured Cable · W = Wet Location · U = Underground · 90 = 90 °C RW90 XLPE
Core colour code
3C: Red, Black, Blue · 4C: Red, Black, Blue, White (+ bare bond)

Sizes

13 standard configurations (ACWU90)

Nominal dimensions, copper weight, total mass and electrical parameters for ACWU90 per CSA C22.2 No. 51 / CEC Part I.

Dimensions & masses
DesignationCores × Size (Cu)Bond Wire / CEC 90°C ANom. OD
mm		Copper
kg/km		Total mass ≈
kg/km		Min. bend R
mm		Enquiry
ACWU90 size schedule
ACWU90 3C 12 AWG3C × 12 AWG Cu14 AWG Bond · 30 A14.5098.0265.0101.5
ACWU90 3C 10 AWG3C × 10 AWG Cu12 AWG Bond · 40 A15.90152.0340.0111.3
ACWU90 3C 8 AWG3C × 8 AWG Cu10 AWG Bond · 55 A18.60240.0475.0130.2
ACWU90 3C 6 AWG3C × 6 AWG Cu8 AWG Bond · 75 A21.30382.0675.0149.1
ACWU90 3C 4 AWG3C × 4 AWG Cu8 AWG Bond · 95 A24.40565.0930.0170.8
ACWU90 3C 2 AWG3C × 2 AWG Cu6 AWG Bond · 130 A27.90895.01,340.0195.3
ACWU90 3C 1/0 AWG3C × 1/0 AWG Cu6 AWG Bond · 170 A32.801,360.01,950.0229.6
ACWU90 3C 2/0 AWG3C × 2/0 AWG Cu6 AWG Bond · 195 A35.301,685.02,360.0247.1
ACWU90 3C 3/0 AWG3C × 3/0 AWG Cu4 AWG Bond · 225 A38.102,160.02,930.0266.7
ACWU90 3C 4/0 AWG3C × 4/0 AWG Cu4 AWG Bond · 260 A41.202,670.03,560.0288.4
ACWU90 3C 250 MCM3C × 250 MCM Cu4 AWG Bond · 290 A44.803,110.04,120.0313.6
ACWU90 3C 350 MCM3C × 350 MCM Cu3 AWG Bond · 350 A50.104,310.05,540.0350.7
ACWU90 3C 500 MCM3C × 500 MCM Cu2 AWG Bond · 430 A56.806,110.07,650.0397.6
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Dimensions and tolerances conform to CSA C22.2 No. 51 / CEC Part I.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
3.5 kV AC dielectric test, spark test & DC resistanceZero breakdown; resistance per CSA C22.2 No. 51100 % of reels
Sample tests
-40 °C cold impact, -40 °C cold bend & XLPE hot-setPasses -40 °C arctic impact and bend testsEvery batch
CSA FT4 vertical tray flame, AG14 acid gas & armour crushCSA Certified Type ACWU90 to C22.2 No. 51Type qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

CSA C22.2 No. 51 Type ACWU90CSA FT4 Vertical Tray FlameAG14 Low Acid Gas (<14 %)Direct Burial & Sunlight ResistantRoHS 3 Compliant

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX CSA ACWU90 [N/C AWG] 600V/1000V (-40C) XLPE FT4 AG14 SUN RES [lot/m]
Delivery form
Non-returnable wooden drums, export reels or shrink-wrapped coils
Standard drum lengths
100 m · 250 m · 500 m · 1000 m
MOQ
200 m (stock sizes) · 500 m (custom lengths)
Lead time
2–3 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDFACWU90 Armoured Power Cable – technical datasheet13 sizes · construction, technical data, approvalsXLSXACWU90 spec data (Excel)All 13 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When should I choose ACWU90 versus TECK90?
Choose ACWU90 (CSA C22.2 No. 51) for commercial buildings, underground utility distribution, data centres, solar farms and non-hazardous industrial plants where you want direct-burial and wet-location protection in a lighter, smaller-OD, lower-cost armoured cable. Choose TECK90 (CSA C22.2 No. 131) for heavy mining, pulp/paper, chemical refineries or classified hazardous locations requiring the extra inner PVC bedding jacket.
How does ACWU90 differ from AC90?
AC90 has an exposed bare interlocking aluminum armour and is restricted to dry indoor locations only. ACWU90 adds a moisture-, sunlight- and -40 °C flame-retardant FT4 PVC outer jacket over the aluminum armour, qualifying it for wet locations ('W') and direct earth burial ('U').
Is ACWU90 available with aluminum conductors as well as copper?
Yes. While TECK90 is traditionally manufactured with copper conductors, ACWU90 is widely specified in both annealed copper and compact AA-8000 (ACM) aluminum alloy conductors for large 1/0 AWG to 750 MCM feeders.
Does ACWU90 require conduit when buried underground?
No. The 'U' in ACWU90 certifies direct earth burial under the Canadian Electrical Code without raceway, though sand bedding or mechanical protection is used under vehicular roadways.
