CHCU / CHVU open-cast MV & EHV trailing cablesDIN VDE 0250-8133.6/6 kV · KON ScreenDual Phase + Concentric Screen

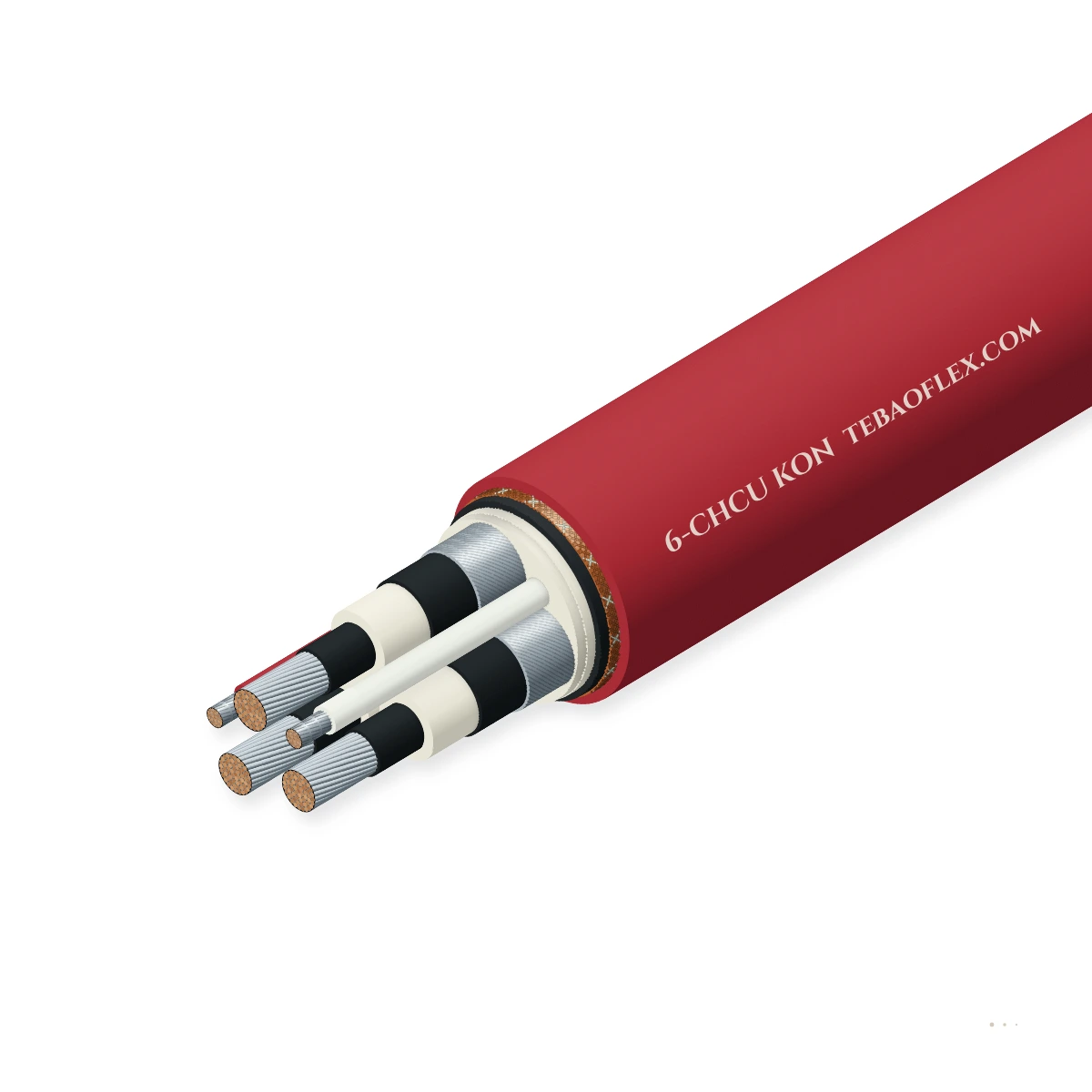

6-CHCU KON Mining Cable with Concentric Monitoring3.6/6 kV (Umax 7.2 kV) MV mining trailing cable with overall concentric KON earth &

6-CHCU KON is a 3.6/6 kV (Umax 7.2 kV) medium-voltage mining trailing cable built to DIN VDE 0250-813 that augments the phase-screened 6-CHCU construction with an overall concentric earth and pilot-monitoring conductor (KON) between the inner and outer

EMC screen
Oil-resistant
Flame-retardant
Anti-torsion braid
Order designation
6-CHCU KON 3×70+35KON 3.6/6 kV
Outer Ø ≈
55.6 mm
Copper weight
2,570 kg/km
Total weight ≈
4,630 kg/km
Min. bend R (fixed)
334 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
3.6/6 kV
Umax 7.2 kV AC (6/10 kV option)
Concentric KON
Overall KON
Radial penetration & earth monitor
Phase screen
Semicon H + Cu C
Triple-extruded EPR + Cu screen
Insulation
3GI3 MV EPR
+90 °C cross-linked EPR
Outer sheath
5GM5 PCP (U)
Extra-heavy tear & oil rubber
Min. bend radius
6×D / 10×D
Fixed 6×D · trailing 10×D

Typical values for this cable type, based on DIN VDE 0250-813 — confirmed in the datasheet and quotation for your order.

Application fit

Is 6-CHCU KON right for your machine?

Engineered for underground and open-cast 6 kV mining machinery where safety regulations mandate both individual phase screening and an overall concentric KON monitoring barrier.

Mine roadway & tunnel wall hangers

Suitable

Overall KON concentric conductor intercepts radial rock-fall or roof-bolt penetration immediately.

Trailing & towing

Suitable

Tough 5GM5 outer sheath protects the concentric KON layer during floor dragging behind shovels and shearers.

Longwall shearer & Bretby handler

Suitable

Helical KON copper wires with counter-helix equalizing tape tolerate Bretby chain flexing.

Fixed installation

Suitable

Approved for underground gallery feeders, shaft approaches, and pit substation interconnections.

Motorised monospiral reel

With conditions

Suitable for low-speed take-up drums; for high-speed crane reeling use NTSCGEWÖU.

NTSCGEWÖU 3.6/6 kV
Typical machinesUnderground coal & potash miningOpen-cast 6 kV shovel & drill feedersMonitored MV mobile substationsTunnel boring machine (TBM) power

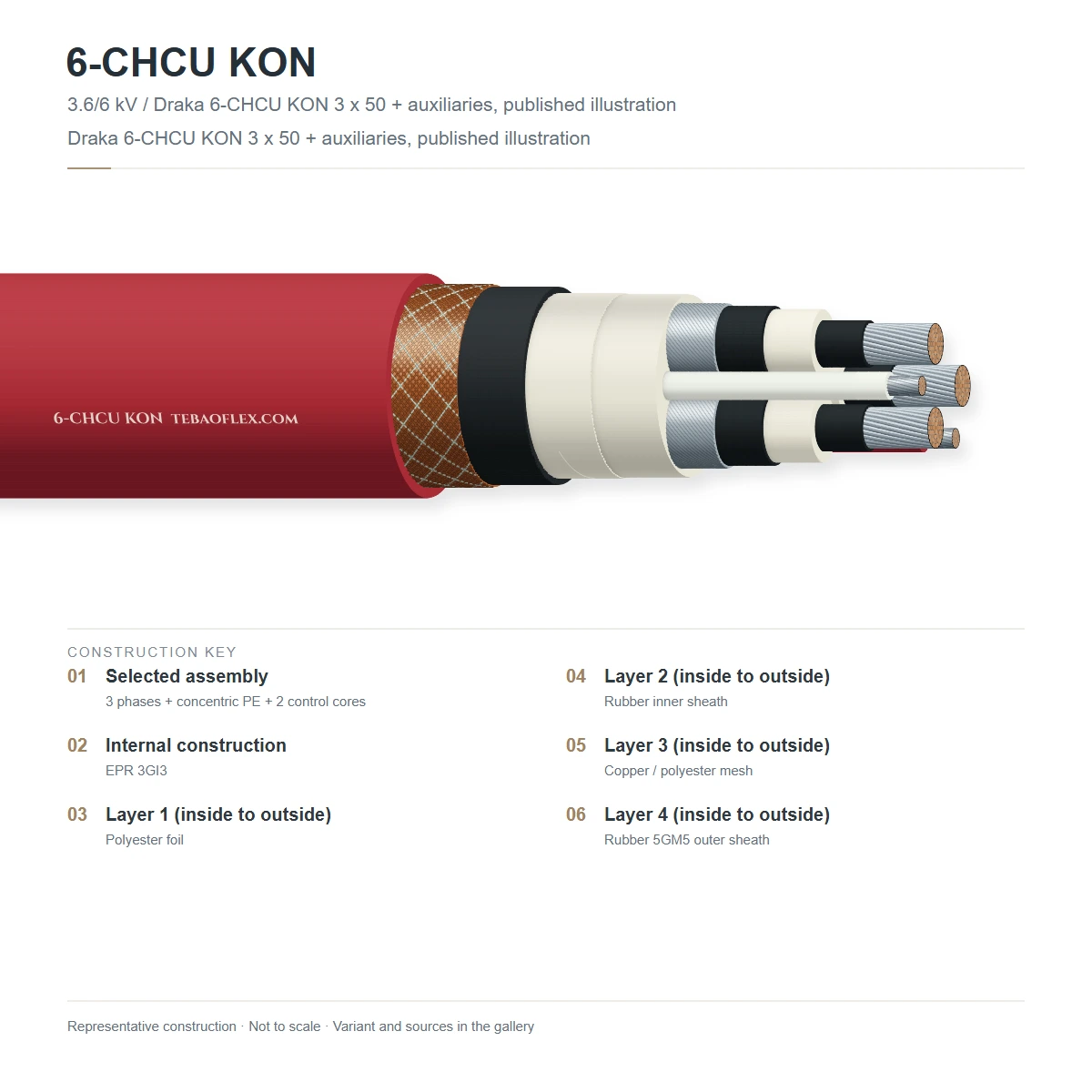

Construction

Layer by layer

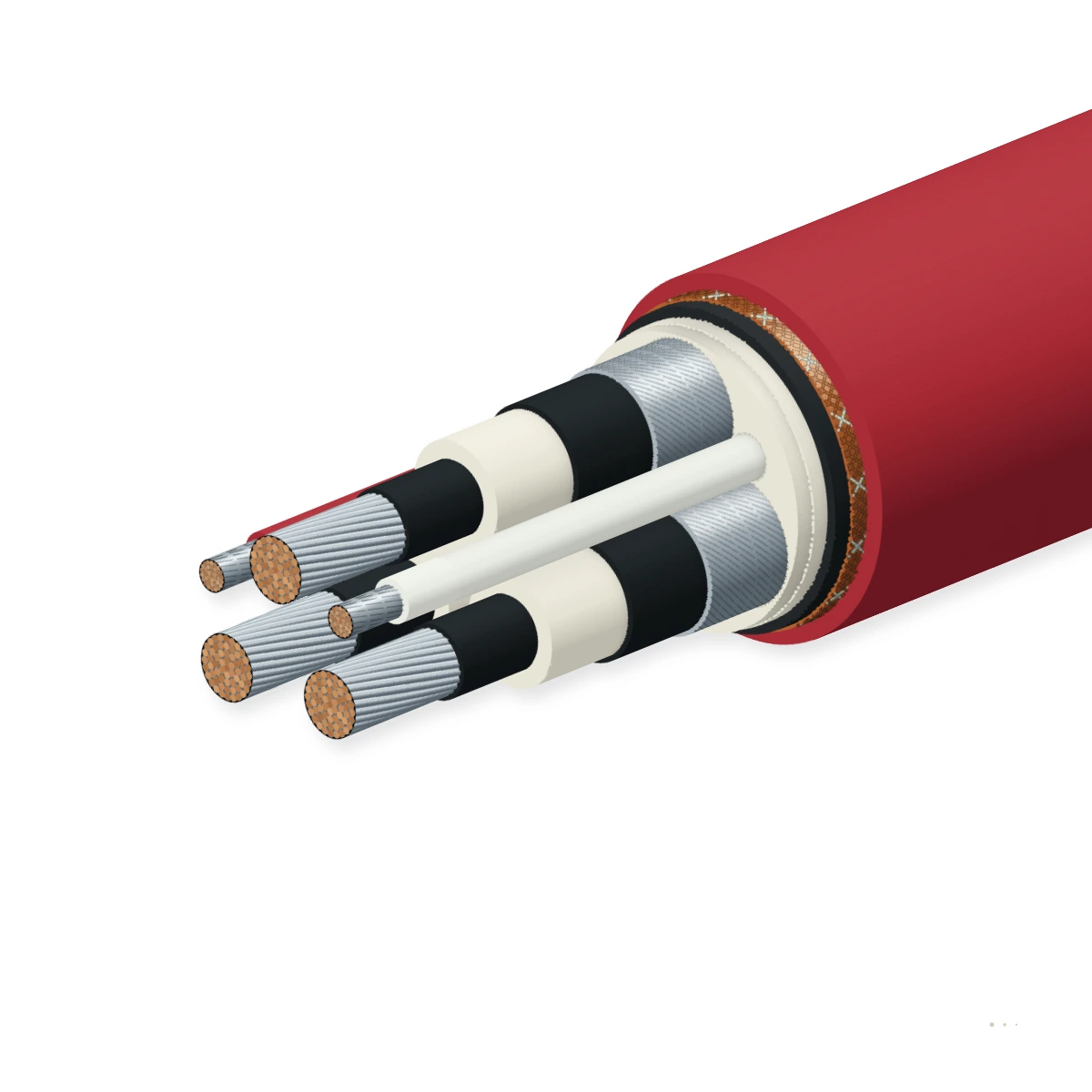

Three Class 5 tinned copper phase cores (triple-extruded 3GI3 EPR + H semicon + C copper screen), control/pilot cores, inner elastomer

1234567
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Phase & pilot conductorsFinely stranded tinned copper, Class 5 per DIN EN 60228DIN EN 60228 Class 5
2Inner & outer semicon (H)Vulcanised semi-conductive elastomeric stress-control layersDIN VDE 0250-813
3MV EPR insulation (3GI3)Cross-linked ethylene propylene rubber compound 3GI3DIN VDE 0207-20
4Individual phase screen (C)Tinned copper wire/tape screen over each phase coreDIN VDE 0250-813
5Inner sheathHeavy-duty elastomer inner bedding compound GM1b / 5GM3DIN VDE 0250-813
6Overall concentric screen (KON)Helical tinned copper wires + counter-helix copper equalizing tape over inner sheathDIN VDE 0250-813
7Outer sheath (5GM5)Extra-heavy flame-retardant, oil- and tear-resistant polychloroprene 5GM5DIN VDE 0207-21

6-CHCU KON (3×S + KON)

3 screened 3.6/6 kV phase cores + overall concentric KON earth/monitoring conductor.

6-CHCU KON + ST

Includes 3 or 4 interstitial control cores alongside the overall concentric KON screen.

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on DIN VDE 0250-813. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage U0/U
3.6/6 kV (Umax 7.2 kV)
AC routine test voltage
11 kV rms / 5 min
Partial discharge level
≤ 20 pC at 2 U0
Concentric KON fault path
Full-circumference copper earth &

Thermal

Max. conductor operating temp.
+90 °C
Max. short-circuit temperature
+250 °C (5 s)
Ambient temperature (trailing)
-25 °C to +60 °C
Ambient temperature (fixed)
-40 °C to +80 °C

Mechanical

Max. tensile load on copper
15–20 N/mm²
Min. bending radius (fixed
6 × D fixed · 10 × D trailing
Radial penetration protection
Overall concentric KON screen + individual

Resistance

Oil & hydraulic fluid
DIN EN 60811-404 resistant
Flame retardancy
DIN EN 60332-1-2 self-extinguishing
Abrasion & tear resistance
DIN VDE 0207-21 compound 5GM5

Reference standards

Primary specification
DIN VDE 0250-813
Conductor standard
DIN EN 60228 Class 5 tinned copper
Compound standard
DIN VDE 0207-20 (3GI3) & 0207-21 (5GM5)

Identification

Core coding
Numbered phase cores 1, 2, 3 + concentric
Outer sheath colour
Yellow or Red with vulcanised legend

Sizes

8 standard configurations (6-CHCU KON)

Nominal dimensions, copper weights and electrical parameters for 6-CHCU KON per DIN VDE 0250-813.

Dimensions & weights
Order designationConfigurationPhase size mm²Outer Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard 6-CHCU KON configurations
6-CHCU KON 3×25+16KON 3.6/6 kV3×25 + 16 KON (3.6/6 kV)2543.21,0602,480259
6-CHCU KON 3×35+16KON 3.6/6 kV3×35 + 16 KON (3.6/6 kV)3546.51,3502,940279
6-CHCU KON 3×50+25KON 3.6/6 kV3×50 + 25 KON (3.6/6 kV)5050.81,8853,690305
6-CHCU KON 3×70+35KON 3.6/6 kV3×70 + 35 KON (3.6/6 kV)7055.62,5704,630334
6-CHCU KON 3×95+50KON 3.6/6 kV3×95 + 50 KON (3.6/6 kV)9561.03,4955,840366
6-CHCU KON 3×120+70KON 3.6/6 kV3×120 + 70 KON (3.6/6 kV)12065.84,4407,060395
6-CHCU KON 3×150+70KON 3.6/6 kV3×150 + 70 KON (3.6/6 kV)15070.45,3108,240422
6-CHCU KON 3×185+95KON 3.6/6 kV3×185 + 95 KON (3.6/6 kV)18575.56,5909,740453
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal factory values subject to ±5 % manufacturing tolerance per DIN VDE 0250-813.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
11 kV AC voltage withstand11 kV rms / 5 min on phase cores100 % of drums
Partial discharge & KON continuity≤ 20 pC at 2 U0; KON transfer impedance check100 % of drums
Sample tests
5GM5 tear & oil resistanceDIN VDE 0207-21 & DIN EN 60811-404Per production batch
Flame propagation testDIN EN 60332-1-2 self-extinguishingType approval

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

DIN VDE 0250-813DIN EN 60332-1-2EN 10204 3.1

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 6-CHCU KON 3.6/6 kV VDE 0250-813 CE
Delivery form
Fumigated export wooden drums
Standard drum lengths
300 m · 500 m · 1000 m (or custom cut
MOQ
100 m (stock sizes) · 300 m (custom build)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDF6-CHCU KON Mining Cable with Concentric Monitoring – technical datasheet8 sizes · construction, technical data, approvalsXLSX6-CHCU KON spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What is the advantage of the overall KON concentric conductor in 6-CHCU KON?
In addition to the individual metallic copper screen (C) around each 3.6/6 kV phase core, 6-CHCU KON places a full-circumference concentric copper conductor (KON) over the inner sheath. This guarantees that any external rock or tool penetrating the outer jacket contacts the grounded KON barrier first.
Can the KON concentric conductor serve as both protective earth and monitoring return?
Yes. Depending on the mine's gate-end protection relay scheme, the KON layer acts either as the primary concentric protective earth conductor or as a monitored pilot/earth-check return loop in conjunction with interstitial pilot cores. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
Is 6-CHCU KON suitable for underground as well as open-cast mining?
Yes. Because it combines flame-retardant 5GM5 polychloroprene sheathing with dual-stage screening (individual phase screens plus overall concentric KON screen), 6-CHCU KON meets safety requirements for both underground galleries and surface mine benches. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
How are the phase cores insulated for 3.6/6 kV service?
Each Class 5 tinned copper conductor is triple-extruded with an inner semi-conductive layer, a 3GI3 ethylene propylene rubber (EPR) dielectric wall, and an outer semi-conductive screen, ensuring partial discharge stays below 20 pC at 7.2 kV. Each production drum undergoes routine dielectric voltage testing, conductor DC resistance verification, and sheath dimensional inspection before dispatch with an EN 10204 3.1 mill test certificate.
