Product

PN-G-90006 FtZn armoured mining cablePN-G-90006 · 3.6/6 kVXLPE (XS) + FtZn Tape ArmourRoadways up to 45° Incline

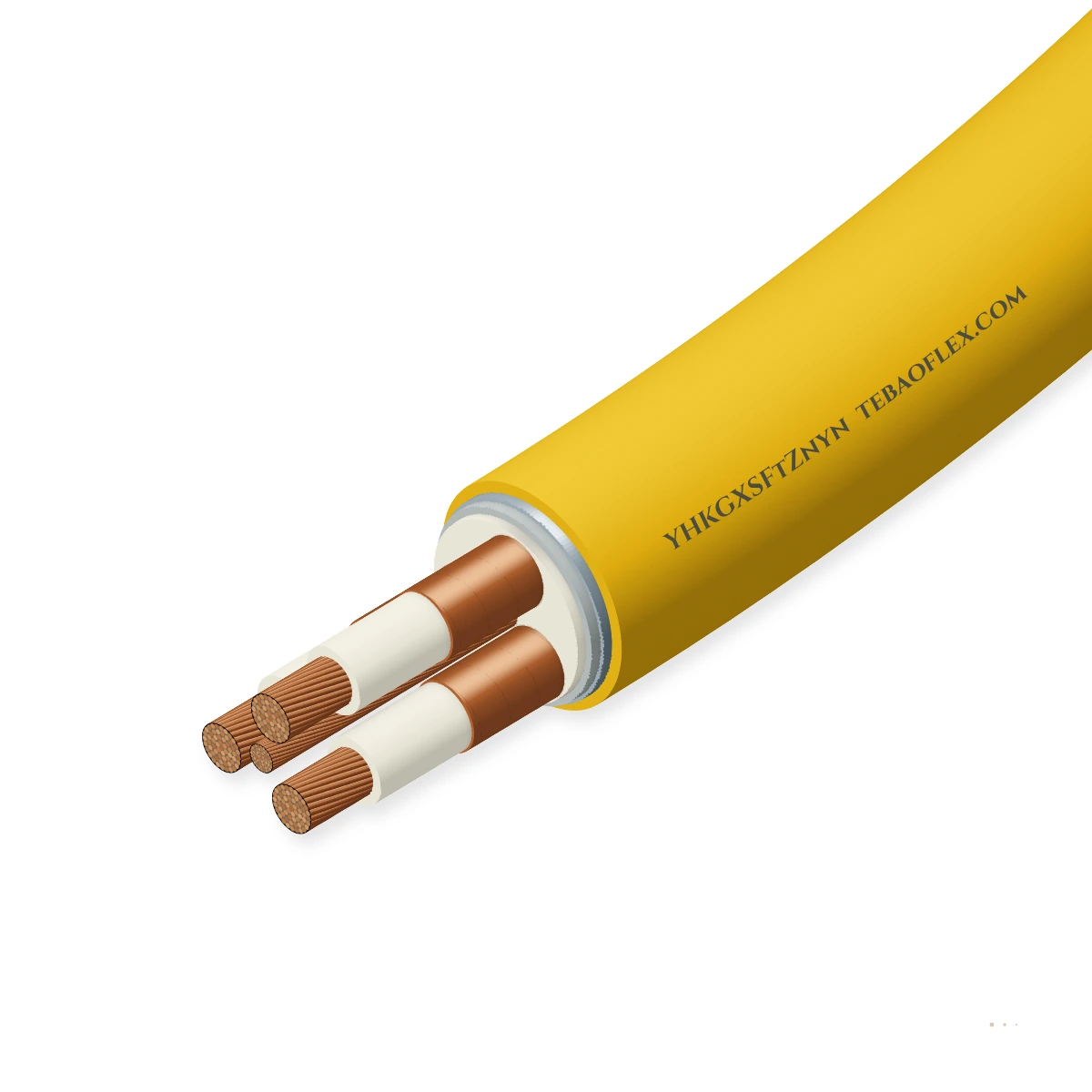

YHKGXSFtZnyn CablePolish 3.6/6 kV XLPE (XS) galvanized flat-steel-tape armoured (FtZn) mining cable

Heavy-duty Polish underground mining medium-voltage power cable (YHKGXSFtZnyn) built to PN-G-90006 with +90 °C XLPE (XS) core insulation, PVC inner bedding, double helical galvanized flat steel tape armour (FtZn) and flame-retardant red PVC (yn) outer.

Flame-retardant
Oil-resistant
Water-resistant
Approved
Order designation
YHKGXSFtZnyn 3×95 3.6/6kV
Outer Ø ≈
48.2 mm
Copper weight
2,565 kg/km
Total weight ≈
4,890 kg/km
Ampacity (air)
288 A
All sizes (10)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
3.6/6 kV
Umax = 7.2 kV (also 0.6/1 kV)
Armour (FtZn)
Galv. steel tape
2 × 0.8 mm or 1.0 mm flat tapes
Insulation (XS)
XLPE (+90 °C)
250 °C short-circuit (5 s)
Outer sheath
PVC-yn (Red)
oxygen index OI ≥ 29 %
Max. incline
Up to 45°
horizontal & inclined drifts
Min. bend R
15 × OD
fixed armoured installation

Typical values for this cable type, based on PN-G-90006 / PN-93/E-90401 / IEC 60502-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is YHKGXSFtZnyn right for your machine?

Engineered for main power distribution along underground mine haulage roadways, conveyor drifts and inclined galleries (up to 45° slope) where high radial crush protection against rockfall and mining equipment is required.

Mine roadway & tunnel wall hangers

Suitable

Double galvanized flat steel tape armour (FtZn) withstands severe radial impact in active haulage drifts.

TBM gantry & advancing tunnel reel

Suitable

Suitable for direct burial in mine floors, culverts and horizontal/inclined drifts up to 45°.

Fixed installation

Suitable

Installed on heavy wall cleats along main underground distribution arteries.

Typical machinesUnderground Coal, Copper & Salt Haulage DriftsConveyor Belt & Crusher Power FeedersInclined Mine Roadways (up to 45°)Heavy Industrial Tunnels & Culverts

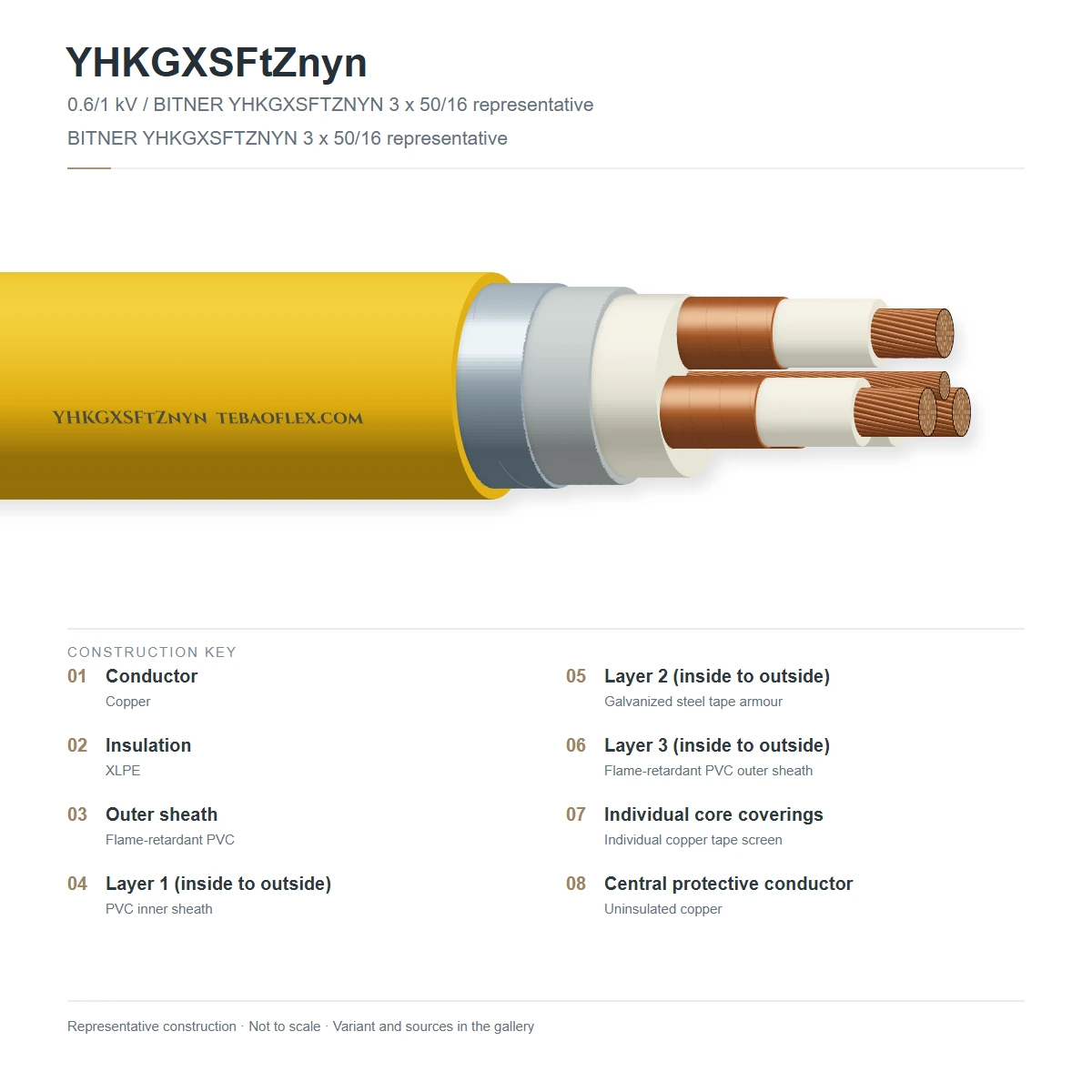

Construction

Layer by layer

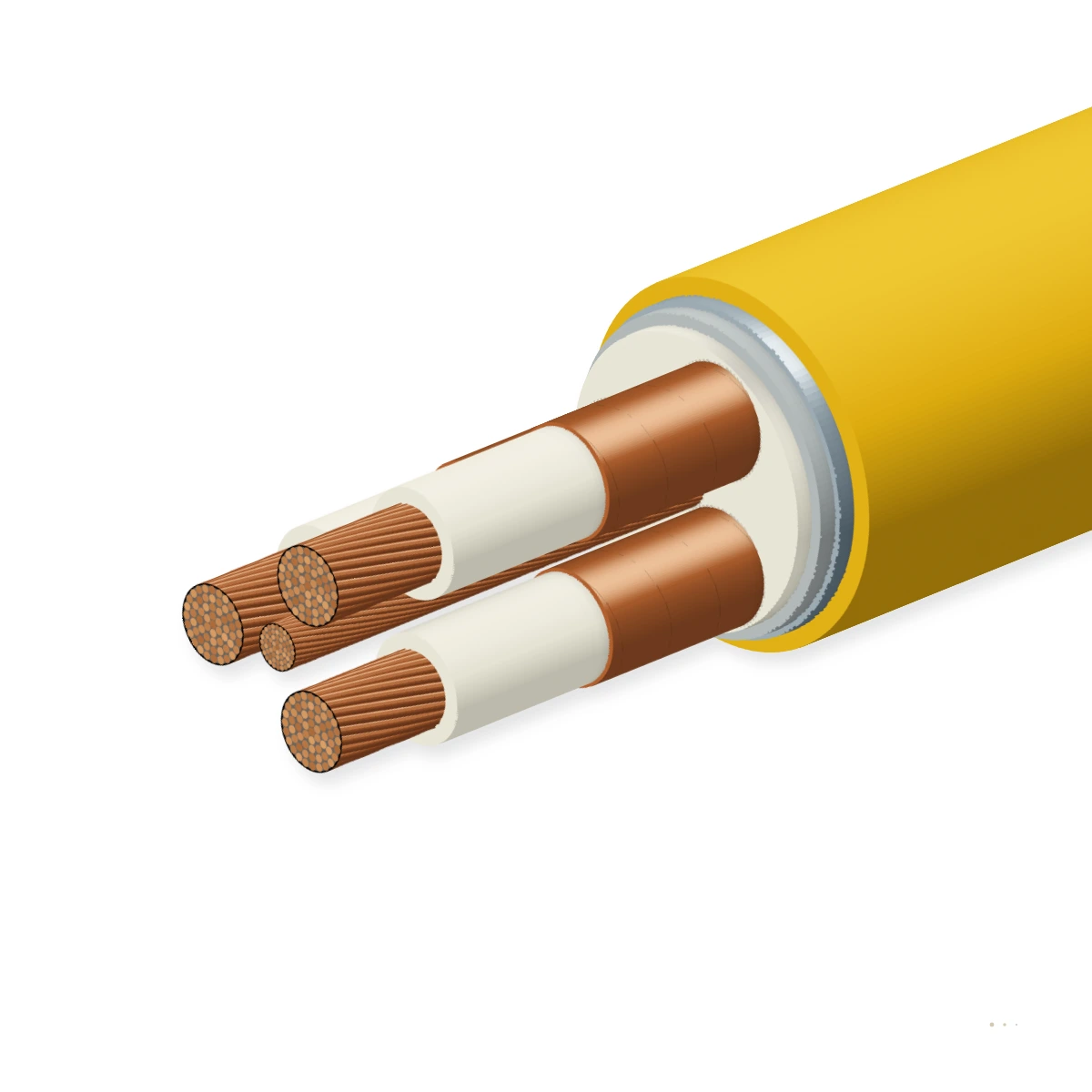

Shown: YHKGXSFtZnyn 3×120 mm² 3.6/6 kV with Class 2 compacted copper conductors, XLPE (XS) insulation, extruded PVC inner bedding (Y), double galvanized flat steel tape armour (FtZn) and red yn PVC outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Compacted stranded bare copper (RMC)IEC 60228 Class 1 (16–25 mm²) or Class 2 (35–240 mm²) annealed copperHigh conductivity and compact circular core geometry
2Cross-linked polyethylene (XS / XLPE)+90 °C XLPE dielectric compoundHigher ampacity and overload margin than PVC-insulated mining cables
3Extruded PVC inner bedding (Y)Flame-retardant PVC inner covering over laid-up coresCushions the XLPE cores against the steel tape armour
4Galvanized flat steel tape armour (FtZn)Two helically applied hot-dip galvanized flat steel tapes (0.5–1.0 mm thick) withDelivers heavy radial crush and rockfall protection in mine roadways
5Flame-retardant mining PVC outer sheath (yn)Self-extinguishing red PVC compound (Oxygen Index ≥ 29 %)IEC 60332-3-22 Cat A bunched flame retardant

YHKGXSFtZnyn (Unscreened + FtZn)

XLPE cores + PVC bedding + galvanized flat steel tape armour + red yn sheath

YHKGXSekFtZnyn (+ Copper Screen ek + FtZn)

Adds individual copper phase screens (ek) for methane-hazard galleries

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90006 / PN-93/E-90401 / IEC 60502-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U₀/U)
3.6/6 kV (Umax = 7.2 kV) · also 0.6/1 kV
50 Hz AC test voltage (5 min)
11 kV AC rms
Max. conductor DC resistance @ 20 °C
1.15 Ω/km (16 mm²) to 0.0754 Ω/km (240 mm²)

Thermal

Max. conductor operating temperature
+90 °C continuous · +250 °C short-circuit (max. 5 s)
Ambient temperature range
−30 °C to +70 °C (fixed) · −5 °C to +50 °C (installation)

Mechanical

Armour construction (FtZn)
2 × galvanized flat steel tapes (100 % overlapping radial coverage)
Max. roadway inclination
Up to 45° slope (for 45°–90° shafts use YHKGXSFoyn)
Minimum bending radius
15 × OD (fixed installation)

Resistance

Flame retardance
PN-EN 60332-1-2 & PN-EN 60332-3-22 Cat A (OI ≥ 29 %)
Corrosion protection
Hot-dip zinc-coated steel tapes under water-impervious yn PVC jacket

Reference standards

Governing standards
PN-G-90006, PN-93/E-90401 & IEC 60502-2
Mining authority compliance
WUG underground mine roadway & incline approved

Identification

Polish code breakdown
YHKG + XS (XLPE) + FtZn (galv. flat steel tape) + yn (FR-PVC)
Outer sheath colour
Red (3.6/6 kV) or Black (0.6/1 kV)
Customs tariff (HS)
8544.60

Sizes

10 standard YHKGXSFtZnyn 3.6/6 kV tape-armoured mining cable sizes

3-core XLPE-insulated, galvanized flat steel tape armoured (FtZn) underground mining power cables.

Dimensions, weights & ampacity
Order designationCross-sectionVoltageOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		In air 25 °C
A		Min. bend R
mm		Enquiry
3.6/6 kV Flat-Steel-Tape Armoured XLPE Mining Cables (YHKGXSFtZnyn)
YHKGXSFtZnyn 3×16 3.6/6kV3×16 mm²3.6/6 kV31.54321,680102472
YHKGXSFtZnyn 3×25 3.6/6kV3×25 mm²3.6/6 kV34.26752,090132513
YHKGXSFtZnyn 3×35 3.6/6kV3×35 mm²3.6/6 kV36.89452,520160552
YHKGXSFtZnyn 3×50 3.6/6kV3×50 mm²3.6/6 kV40.21,3503,140194603
YHKGXSFtZnyn 3×70 3.6/6kV3×70 mm²3.6/6 kV44.01,8903,920240660
YHKGXSFtZnyn 3×95 3.6/6kV3×95 mm²3.6/6 kV48.22,5654,890288723
YHKGXSFtZnyn 3×120 3.6/6kV3×120 mm²3.6/6 kV51.63,2405,790332774
YHKGXSFtZnyn 3×150 3.6/6kV3×150 mm²3.6/6 kV55.44,0506,860378831
YHKGXSFtZnyn 3×185 3.6/6kV3×185 mm²3.6/6 kV59.24,9958,110430888
YHKGXSFtZnyn 3×240 3.6/6kV3×240 mm²3.6/6 kV64.56,48010,040505968
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • For methane-hazard roadways requiring individual phase screens, specify YHKGXSekFtZnyn.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
11 kV AC 5-minute dielectric withstand testNo breakdown across 3.6/6 kV XLPE insulationEvery drum
Sample tests
Armour zinc coating & IEC 60332-3-22 Cat A flame testGalvanized steel tape coating per PN-EN 10244-2; Cat A flame passPeriodic audit

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90006 & WUG Underground Mining ApprovedPN-EN 60332-3-22 Category A Flame RetardantCE, RoHS 2 & REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX YHKGXSFtZnyn 3.6/6kV <size> PN-G-90006 CE
Delivery form
Non-returnable fumigated wooden or steel drums
Standard lengths
250 m · 500 m · 1000 m standard drums
MOQ
250 m (stock sizes) · 500 m (custom)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFYHKGXSFtZnyn Cable – technical datasheet10 sizes · construction, technical data, approvalsXLSXYHKGXSFtZnyn spec data (Excel)All 10 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

What does 'FtZn' mean in YHKGXSFtZnyn?
In Polish cable nomenclature (PN-G-90006), 'Ft' stands for flat steel tape armour (pancerz z taśm stalowych płaskich) and 'Zn' indicates hot-dip zinc galvanizing (ocynkowanych) for corrosion resistance against saline mine water.
Why is YHKGXSFtZnyn limited to a 45° incline while YHKGXSFoyn is used up to 90° vertical?
Flat steel tapes ('FtZn') are wound at a short pitch angle to resist radial crushing, so they cannot bear axial self-weight tension in steep shafts. Round steel wires ('Fo' in YHKGXSFoyn) are laid at a long helical pitch specifically to carry the vertical suspended weight of the cable down a 90° mine shaft.
When should I choose YHKGXSekFtZnyn over YHKGXSFtZnyn?
Choose YHKGXSekFtZnyn whenever the cable operates in a methane-hazard roadway or at 6/10 kV to 12/20 kV, where individual copper screens ('ek') around each XLPE phase core are required.
What factory routine tests and certificates are supplied with YHKGXSFtZnyn?
Every production drum of YHKGXSFtZnyn undergoes 100 % conductor DC resistance measurement at 20 °C, high-voltage AC/DC dielectric withstand testing, and dimensional verification per PN-G-90006 / PN-93/E-90401 / IEC 60502-2, supplied with an EN 10204 3.1 inspection certificate.
