PN-G-90006 Fo shaft wire-armoured cablePN-G-90006 · 3.6/6 kVXLPE (XS) + Fo Round Wire Armour45°–90° Vertical Mine Shafts

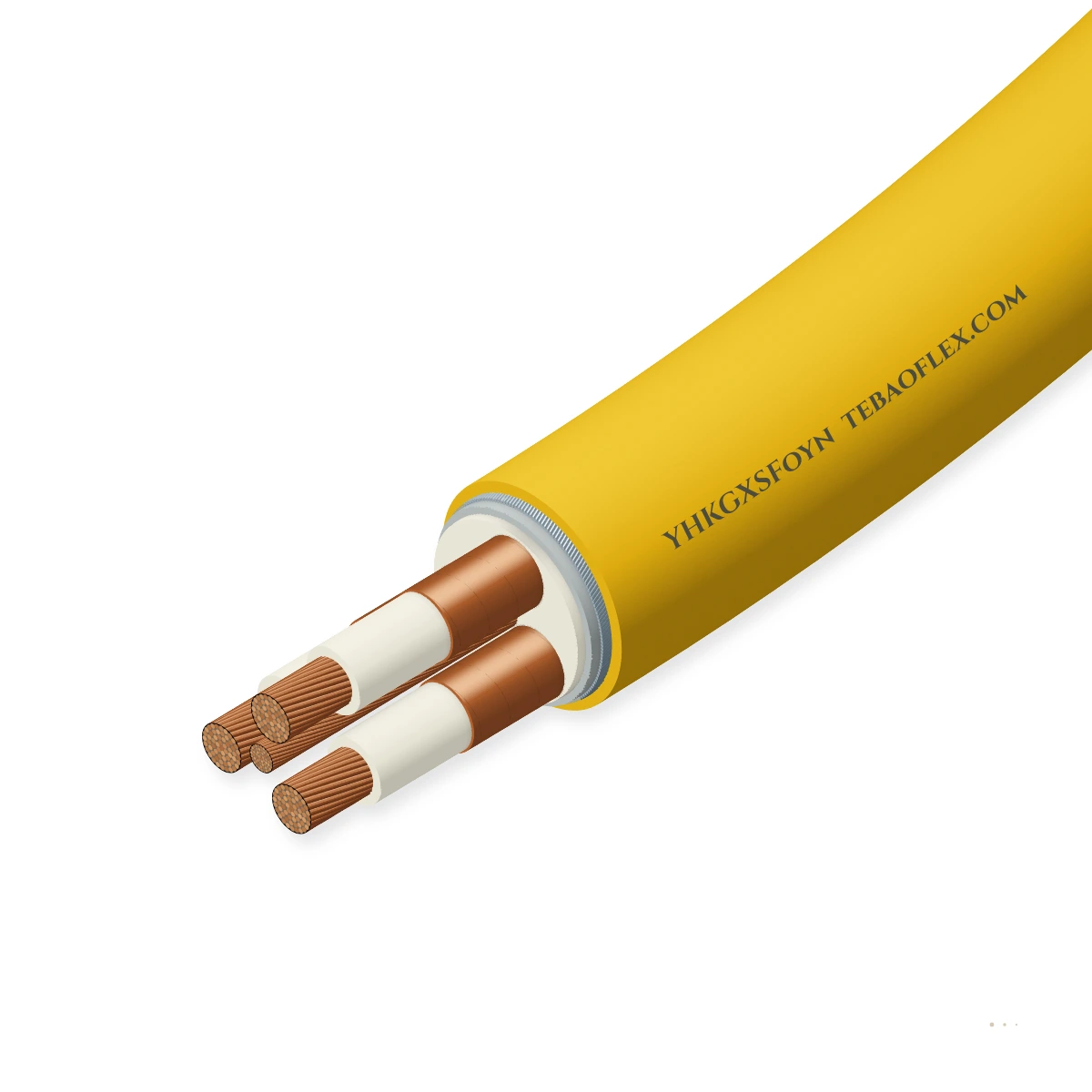

YHKGXSFoyn CablePolish 3.6/6 kV XLPE (XS) galvanized round-steel-wire armoured (Fo) shaft mining cable

High-tensile Polish underground mining medium-voltage cable (YHKGXSFoyn) built to PN-G-90006 with +90 °C XLPE (XS) core insulation, anti-slump inner bedding, galvanized round steel wire armour (Fo) with counter-helix binder tape and red flame-retardant.

Flame-retardant
Oil-resistant
Water-resistant
Approved
Order designation
YHKGXSFoyn 3×120 3.6/6kV
Outer Ø ≈
54.8 mm
Copper weight
3,240 kg/km
Total weight ≈
6,810 kg/km
Ampacity (air)
332 A
All sizes (9)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Rated voltage
3.6/6 kV
Umax = 7.2 kV (also 6/10 kV)
Armour (Fo)
Round steel wire
Ø 2.5–4.0 mm galv. steel wires
Shaft angle
Up to 90° vert.
vertical shafts & 45°–90° drifts
Insulation (XS)
XLPE (+90 °C)
250 °C short-circuit (5 s)
Outer sheath
PVC-yn (Red)
oxygen index OI ≥ 29 %
Min. bend R
15 × OD
fixed shaft & roadway installation

Typical values for this cable type, based on PN-G-90006 / PN-93/E-90401 / IEC 60502-2 — confirmed in the datasheet and quotation for your order.

Application fit

Is YHKGXSFoyn right for your machine?

Specifically engineered for vertical mine shafts (up to 90° and 1,000+ m depth), steep inclined roadways (45°–90°) and heavy ground-subsidence zones where the cable armour must carry high axial self-weight tension as well as radial impact.

Free-hanging vertical run

Suitable

Galvanized round steel wire armour (Fo) carries full vertical self-weight when clamped down 90° mine shafts.

Mine roadway & tunnel wall hangers

Suitable

Approved for steep inclined drifts (45°–90°) and active subsidence zones in coal and copper mines.

TBM gantry & advancing tunnel reel

Suitable

Provides maximum tensile and crush resistance during long winch pulls in deep tunnels.

Typical machinesVertical Mine Hoisting & Ventilation ShaftsDeep Coal & Copper Mine Main FeedersSteep Inclined Haulage Drifts (45°–90°)Subsurface Pumped-Storage & Dewatering Shafts

Construction

Layer by layer

Shown: YHKGXSFoyn 3×120 mm² 3.6/6 kV with Class 2 compacted copper conductors, XLPE (XS) insulation, locked anti-slippage PVC bedding (Y), galvanized round steel wire armour (Fo) with counter-spiral steel tape and red yn PVC outer sheath.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Compacted stranded bare copper (RMC)IEC 60228 Class 2 circular compacted copper (25 to 240 mm²)High mechanical stability under vertical hanging tension
2Cross-linked polyethylene (XS / XLPE)+90 °C dry-cured XLPE dielectric compoundNon-draining thermoset insulation that never migrates in vertical shafts
3Pressure-extruded anti-slump PVC inner bedding (Y)Flame-retardant PVC inner covering gripping the cabled coresPrevents internal core slippage inside vertical shaft cleats
4Galvanized round steel wire armour (Fo) + binder tapeClosed ring of Ø 2.5–4.0 mm hot-dip galvanized round steel wires with counter-wound steelProvides high axial tensile strength for 90° shaft suspension and rockfall protection
5Flame-retardant mining PVC outer sheath (yn)Self-extinguishing red PVC compound (Oxygen Index ≥ 29 %)IEC 60332-3-22 Cat A vertical bunched flame retardant

YHKGXSFoyn (Unscreened + Fo Wire Armour)

XLPE cores + PVC bedding + galvanized round steel wire armour (Fo) + red yn sheath

YHKGXSekFoyn (+ Copper Screen ek + Fo)

Adds individual copper phase screens (ek) for methane-hazard vertical mine shafts

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on PN-G-90006 / PN-93/E-90401 / IEC 60502-2. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage (U₀/U)
3.6/6 kV (Umax = 7.2 kV) · also 6/10 kV (YHKGXSekFoyn)
50 Hz AC test voltage (5 min)
11 kV AC rms
Max. conductor DC resistance @ 20 °C
0.727 Ω/km (25 mm²) to 0.0754 Ω/km (240 mm²)

Thermal

Max. conductor operating temperature
+90 °C continuous · +250 °C short-circuit (max. 5 s)
Ambient temperature range
−30 °C to +70 °C (fixed) · −5 °C to +50 °C (installation)

Mechanical

Armour construction (Fo)
Galvanized round steel wires (Ø 2.5–4.0 mm, tensile 350–500 N/mm²)
Permissible roadway / shaft inclination
0° to 90° vertical (mandatory for > 45° inclines and vertical shafts)
Minimum bending radius
15 × OD (fixed installation)

Resistance

Flame retardance
PN-EN 60332-1-2 & PN-EN 60332-3-22 Cat A (OI ≥ 29 %)
Saline shaft-water resistance
Heavy zinc-coated armour wires + water-blocking yn PVC jacket

Reference standards

Governing standards
PN-G-90006, PN-93/E-90401 & IEC 60502-2
Mining shaft approval
WUG vertical shaft & steep-incline power feeder compliant

Identification

Polish code breakdown
YHKG + XS (XLPE) + Fo (galv. round steel wire armour) + yn (FR-PVC)
Outer sheath colour
Red (MV mining identification)
Customs tariff (HS)
8544.60

Sizes

9 standard YHKGXSFoyn 3.6/6 kV shaft wire-armoured mining cable sizes

3-core XLPE-insulated, galvanized round steel wire armoured (Fo) vertical shaft mining cables.

Dimensions, weights & ampacity
Order designationCross-sectionVoltageOuter Ø ≈
mm		Copper
kg/km		Weight ≈
kg/km		In air 25 °C
A		Min. bend R
mm		Enquiry
3.6/6 kV Round-Steel-Wire Armoured XLPE Shaft Mining Cables (YHKGXSFoyn)
YHKGXSFoyn 3×25 3.6/6kV3×25 mm²3.6/6 kV36.56752,580132548
YHKGXSFoyn 3×35 3.6/6kV3×35 mm²3.6/6 kV39.29453,060160588
YHKGXSFoyn 3×50 3.6/6kV3×50 mm²3.6/6 kV42.61,3503,760194639
YHKGXSFoyn 3×70 3.6/6kV3×70 mm²3.6/6 kV46.81,8904,690240702
YHKGXSFoyn 3×95 3.6/6kV3×95 mm²3.6/6 kV51.22,5655,780288768
YHKGXSFoyn 3×120 3.6/6kV3×120 mm²3.6/6 kV54.83,2406,810332822
YHKGXSFoyn 3×150 3.6/6kV3×150 mm²3.6/6 kV59.04,0508,190378885
YHKGXSFoyn 3×185 3.6/6kV3×185 mm²3.6/6 kV63.04,9959,590430945
YHKGXSFoyn 3×240 3.6/6kV3×240 mm²3.6/6 kV68.56,48011,7805051,028
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Screen-armoured YHKGXSekFoyn (3.6/6 kV to 12/20 kV) is also supplied for methane-hazard vertical shafts.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
11 kV AC 5-minute high-voltage dielectric testZero breakdown across XLPE core insulationEvery drum
Sample tests
Round steel wire tensile strength & IEC 60332-3-22 Cat A flame testWire tensile 350–500 N/mm²; Cat A vertical flame passPeriodic audit

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

PN-G-90006 & WUG Vertical Mine Shaft ApprovedPN-EN 60332-3-22 Category A Flame RetardantCE, RoHS 2 & REACH

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX YHKGXSFoyn 3.6/6kV <size> PN-G-90006 CE
Delivery form
Non-returnable fumigated wooden or steel drums
Standard lengths
250 m · 500 m · 1000 m standard drums
MOQ
250 m (stock sizes) · 500 m (custom)
Lead time
3–5 weeks ex-works
Incoterms
EXW, FCA, FOB, CIF, DAP

Technical documents

Downloads

PDFYHKGXSFoyn Cable – technical datasheet9 sizes · construction, technical data, approvalsXLSXYHKGXSFoyn spec data (Excel)All 9 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

Why is XLPE ('XS') + round wire armour ('Fo') ideal for deep vertical mine shafts?
Historically, paper-insulated lead-sheathed cables drained impregnating oil down vertical shafts, while thermoplastic PVC softened under high load. YHKGXSFoyn combines dry cross-linked XLPE ('XS', +90 °C non-melting) with high-tensile galvanized round steel wire armour ('Fo') that supports vertical suspension at 90° without dielectric migration or core slippage.
What is the role of the counter-helix steel binder tape over the 'Fo' round wires?
When a wire-armoured cable is bent or subjected to a short-circuit electrodynamic jolt in a shaft, the round armour wires tend to birdcage outward. The counter-wound steel tape locks the 'Fo' wires tightly against the bedding.
What is the maximum recommended spacing between shaft cleats for YHKGXSFoyn?
In vertical mine shafts (90°), wooden or elastomeric-lined shaft clamps are typically spaced every 4.5 m to 6.0 m along the shaft buntons so the round wire armour transfers the cable weight evenly.
What factory routine tests and certificates are supplied with YHKGXSFoyn?
Every production drum of YHKGXSFoyn undergoes 100 % conductor DC resistance measurement at 20 °C, high-voltage AC/DC dielectric withstand testing, and dimensional verification per PN-G-90006 / PN-93/E-90401 / IEC 60502-2, supplied with an EN 10204 3.1 inspection certificate.
