ESCC 3901/018 spacecraft equipment wireESA ESCC 3901/018−200 °C to +200 °CTML < 1.0 % / CVCM < 0.1 %

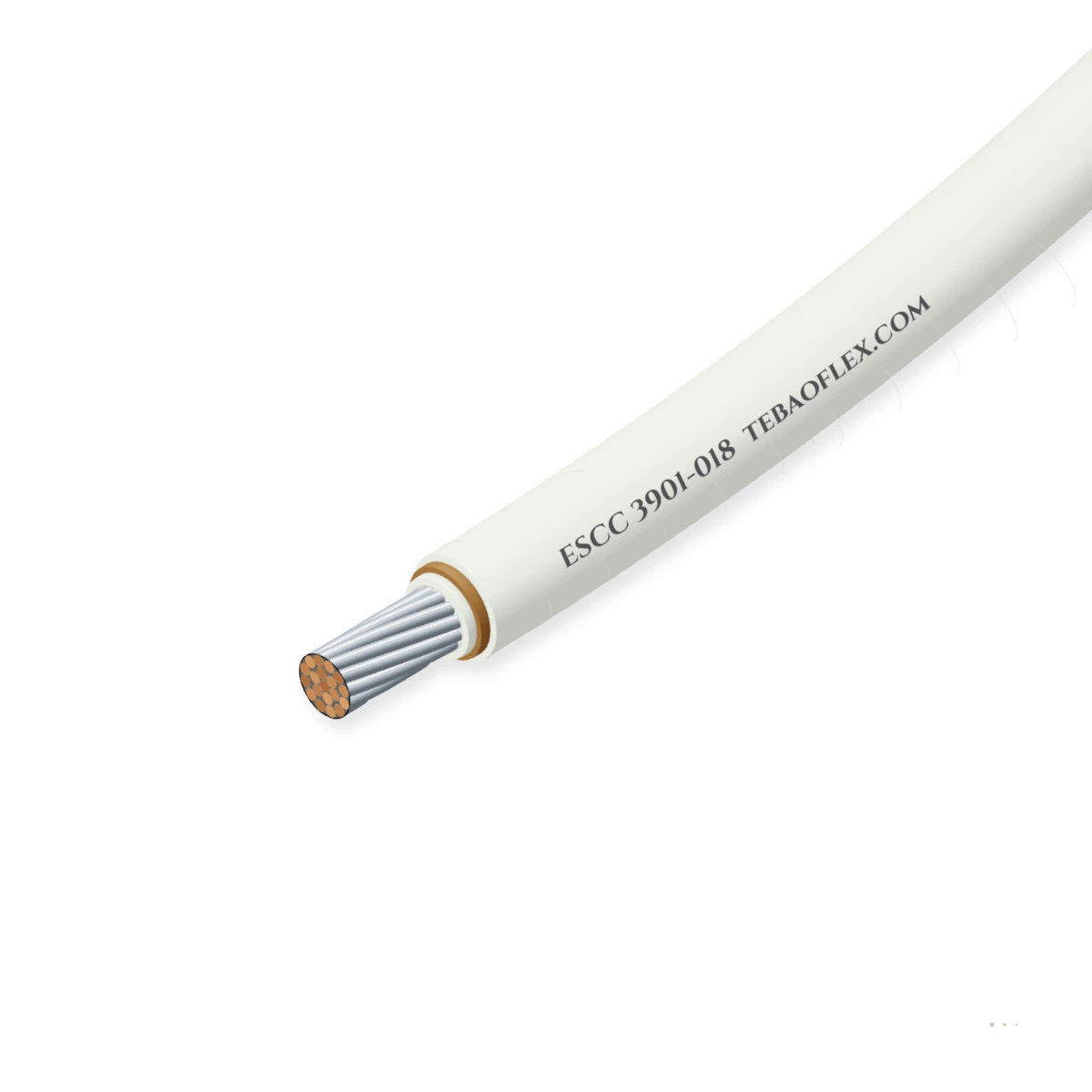

ESCC 3901-018 Space-Grade Polyimide/Fluoropolymer Equipment WireESA ESCC 3901/018 600 Vrms −200…+200 °C polyimide/fluoropolymer low-outgassing spacecraft

Space-grade ultra-lightweight equipment wire, twisted pair and shielded harness cable (ESCC 3901-018) built to European Space Agency ESCC Detail Specification 3901/018, rated 600 Vrms from −200 °C to +200 °C with silver-plated copper or high-strength.

Flame-retardant
Ozone, UV & moisture
Low-EMC design
Approved
Order designation
ESCC 390101803B (1×24)
Configuration
1 × 24 AWG Single
Max OD
0.90 mm
Max DC R20
102.0 Ω/km
Max mass
2.40 g/m
All sizes (12)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Voltage rating
600 Vrms
Sea level to hard space vacuum
Temperature
−200 to +200 °C
Cryogenic eclipse to solar exposure
Outgassing
TML<1% CVCM<.1%
ECSS-Q-ST-70-02C / ASTM E595
Size range
28 to 12 AWG
1C, 2C, 3C, 4C & Shielded
Conductor
AgCu / AgAlloy
≥ 2.0 µm silver plating
Radiation
≥ 100 Mrad
GEO/LEO electron & proton resistant

Typical values for this cable type, based on ESA ESCC Detail Specification 3901/018 & ESCC Generic Specification 3901 — confirmed in the datasheet and quotation for your order.

Application fit

Is ESCC 3901-018 right for your machine?

Engineered for LEO, MEO, GEO and deep-space satellite platforms, scientific payloads, and launch-vehicle avionics where mass, outgassing, arc-tracking resistance and radiation stability are mission-critical.

Switchgear & control cabinet wiring

Suitable

Thin-wall polyimide/PTFE composite cuts satellite harness mass by up to 35 % and passes UV laser wire marking.

Furnace, kiln & high-temp zone

Suitable

Operates continuously from −200 °C liquid-nitrogen/eclipse cold to +200 °C solar vacuum thermal peaks.

Fixed installation

Suitable

Sintered PTFE fluoropolymer topcoat eliminates pure-polyimide hydrolysis and wet arc-tracking (polyimide flashover).

Energy chain / drag chain

With conditions

Standard 19-strand constructions suit solar-array deployment hinges; specify extra-flexible 37-strand for gimbal loops.

Typical machinesLEO / MEO / GEO Communications & Earth-Observation SatellitesDeep-Space Scientific Probes & Optical Telescope PayloadsExpendable & Reusable Launch-Vehicle Upper-Stage AvionicsSpace-Station Pressurised & Unpressurised External HarnessesUltra-High-Vacuum (UHV) Synchrotron & Cryogenic Chambers

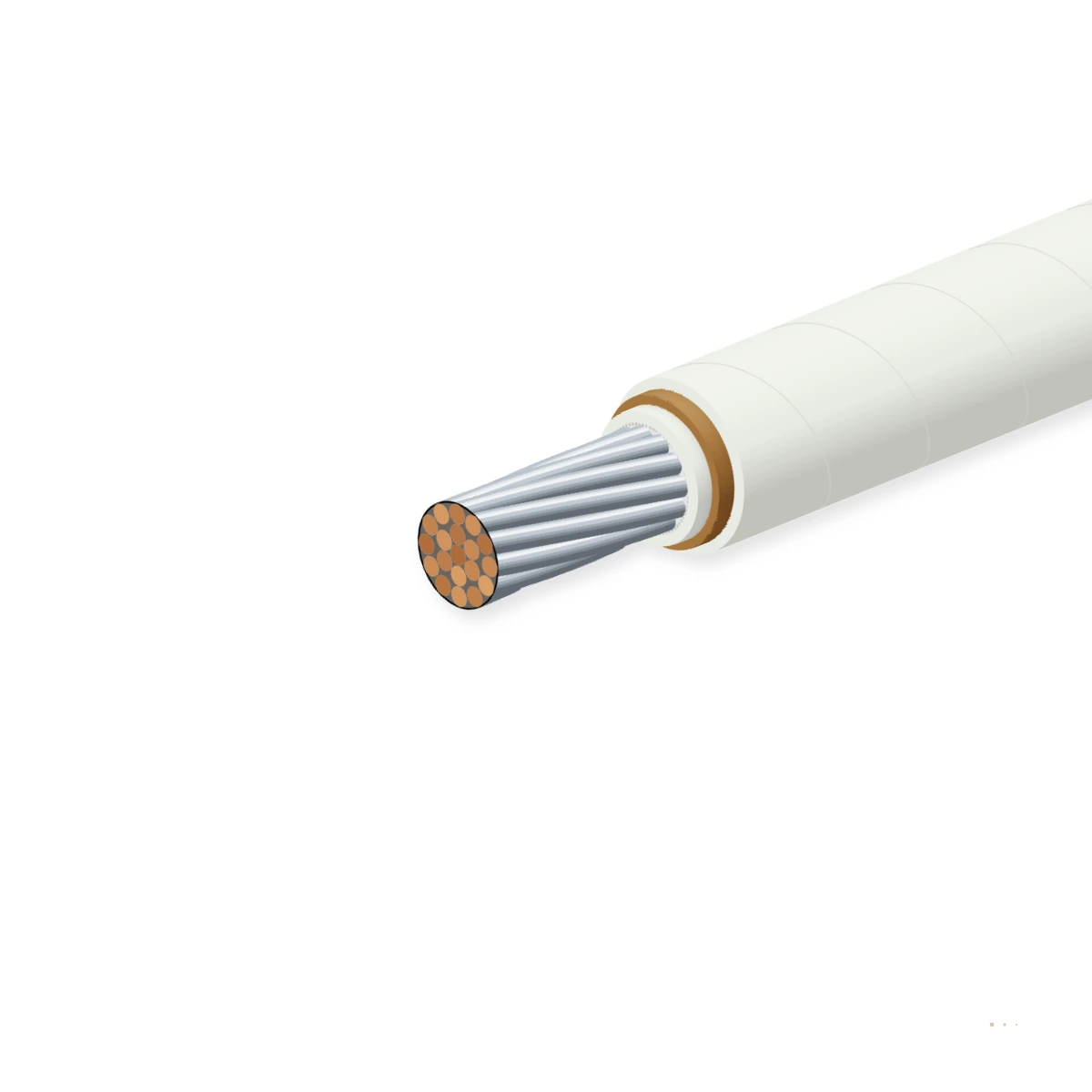

Construction

Layer by layer

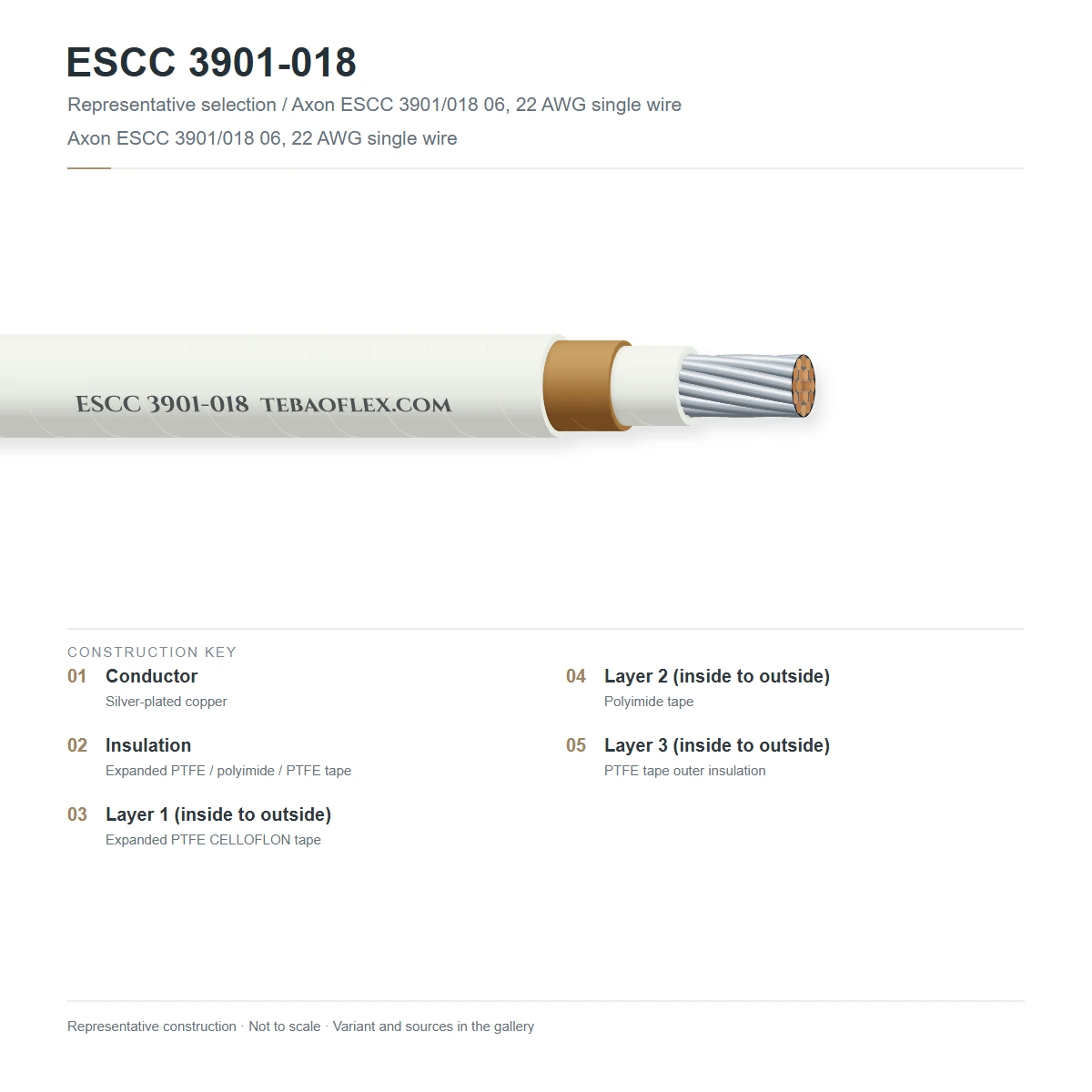

Representative ESCC 3901/018 build: 19-strand silver-plated high-strength copper alloy (28–24 AWG) or silver-plated annealed copper (22–12 AWG) with ≥ 2.0 µm silver coating + wrapped polyimide film + sintered fluoropolymer (PTFE/FEP) outer barrier; shielded variants add a ≥ 90 % silver-plated copper braid and sintered PTFE/polyimide outer jacket.

12345
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Silver-plated copper (SPC) or high-strength copper alloy (SPCA)19-strand or 37-strand conductor with ≥ 2.0 µm pure silver plating: high-strength CuAg/CuCrZr alloy on 28–24 AWG for vibration survival, soft ETP copper on 22–12 AWG for low DC dropWithstands launch random vibration (≥ 20 Grms), prevents red-plague corrosion and enables space-grade soldering or crimping
2Wrapped polyimide film primary dielectricHelically lapped aromatic polyimide tape thermally sealed around the conductorProvides exceptional dielectric breakdown strength (> 150 kV/mm), cut-through resistance and 100 Mrad radiation durability
3Sintered PTFE fluoropolymer outer barrierHomogeneous sintered polytetrafluoroethylene (PTFE) tape-wrapped and fused over the polyimide coreSeals the polyimide against moisture hydrolysis, prevents wet/vacuum Kapton arc propagation, and provides a white UV-laser-markable surface
4Silver-plated copper (SPC) flat/round braid (Shielded variants)≥ 90 % optical coverage silver-plated copper braid over single, twisted-pair, triad or quad coresProvides spacecraft EMC/EMI shielding and electrostatic discharge (ESD)bleed in GEO plasma environments
5Sintered polyimide/PTFE outer jacket (Shielded variants)Fused fluoropolymer/polyimide tape jacket with TML < 1.0 % and CVCM < 0.1 %Protects the shield braid against abrasion on satellite honeycomb panels without outgassing onto optical sensors

ESCC 3901/018 Unshielded (1C, 2C, 3C, 4C)

Single hook-up wire, twisted pair, triad and quad from 28 AWG to 12 AWG for internal avionics boxes and low-mass signal harnesses

ESCC 3901/018 Shielded & Jacketed (1CS, 2CS, 3CS, 4CS)

90 % silver-plated copper braided and PTFE/polyimide jacketed space harness cables for MIL-STD-1553B, SpaceWire and sensor buses

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ESA ESCC Detail Specification 3901/018 & ESCC Generic Specification 3901. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated voltage
600 Vrms (up to 2,500 Hz)
Spark test / dielectric proof
5.0 kVrms in-line spark test · 2.5 kVrms immersion test
Insulation resistance
≥ 5,000 MΩ·km at +20 °C
Arc-tracking resistance
Pass 7-wire dry & wet arc-tracking per ESCC 3901

Thermal

Operating temperature
−200 °C to +200 °C (continuous in vacuum or air)
Thermal shock
100 cycles −196 °C (LN2) to +200 °C with zero cracking

Mechanical

Conductor size range
28, 26, 24 AWG (Cu-Alloy) · 22, 20, 18, 16, 14, 12 AWG (Cu)
Silver plating thickness
≥ 2.0 µm (up to 5.0 µm anti-red-plague option)
Min. bend radius
5 × OD (single core) · 6 × OD (shielded multiconductor)

Resistance

Vacuum outgassing (ECSS / ASTM E595)
TML < 1.0 % (typ. 0.08 %) · CVCM < 0.10 % (typ. 0.01 %)
Radiation resistance
≥ 100 Mrad (10⁶ Gy) gamma / electron fluence
Flammability
Non-flammable in 30 % O2 spacecraft cabin test (ECSS-Q-ST-70-21)

Reference standards

Primary specification
ESA ESCC Detail Spec 3901/018 & Generic Spec 3901
Outgassing & cleanliness
ECSS-Q-ST-70-02C · NASA SP-R-0022A / ASTM E595

Identification

Colour coding
White outer PTFE (UV YAG laser markable) or ESCC colour stripes
Traceability
Full ESCC lot traceability, silver thickness & spark test dossier
Customs tariff (HS)
8544.49

Sizes

12 standard ESCC 3901-018 single-core, twisted-pair & shielded space wire variants

Dimensions, silver-plated conductor stranding, max DC resistance, Finished OD and ultra-low spacecraft harness mass.

ESCC variant, AWG, stranding, OD & mass
ESCC DesignationConfiguration & AWGStranding (mm)
& Material		Cond. OD
mm		Max OD
mm		Max R20
Ω/km		Max Mass
g/m (kg/km)		Enquiry
ESCC 3901/018 Unshielded Single Hook-Up Wire & Twisted Pairs (600 Vrms)
ESCC 390101801B (1×28)1 × 28 AWG Single19 × 0.079 SPCA Alloy0.380.68236.01.15
ESCC 390101802B (1×26)1 × 26 AWG Single19 × 0.100 SPCA Alloy0.480.78148.01.70
ESCC 390101803B (1×24)1 × 24 AWG Single19 × 0.120 SPCA Alloy0.600.90102.02.40
ESCC 390101804B (1×22)1 × 22 AWG Single19 × 0.150 SPC Copper0.761.0654.53.65
ESCC 390101805B (1×20)1 × 20 AWG Single19 × 0.200 SPC Copper0.981.2930.86.10
ESCC 390101806B (1×16)1 × 16 AWG Single19 × 0.300 SPC Copper1.481.8213.713.20
ESCC 390101808B (1×12)1 × 12 AWG Power37 × 0.320 SPC Copper2.242.656.229.50
ESCC 390101811B (2×24)2 × 24 AWG Twisted Pair19 × 0.120 SPCA Alloy0.601.80107.04.95
ESCC 3901/018 SPC Braided & PTFE/Polyimide Jacketed Shielded Space Cables
ESCC 390101831B (1×24S)1 × 24 AWG Shielded19 × 0.120 SPCA + SPC Braid0.601.38102.05.80
ESCC 390101839B (2×26S)2 × 26 AWG Shielded Pair19 × 0.100 SPCA + SPC Braid0.482.04155.07.60
ESCC 390101841B (2×22S)2 × 22 AWG Shielded Pair19 × 0.150 SPC + SPC Braid0.762.6057.212.80
ESCC 390101855B (4×24S)4 × 24 AWG Shielded Quad19 × 0.120 SPCA + SPC Braid0.602.68107.015.40
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Full ESCC 3901/018 range includes 1, 2, 3 and 4 cores unshielded and shielded from 28 AWG to 12 AWG.
