High-temperature wire10⁻¹⁰ mbar UHV PEEK10⁷ Gy Radiation Hard-65 °C to +250 °C

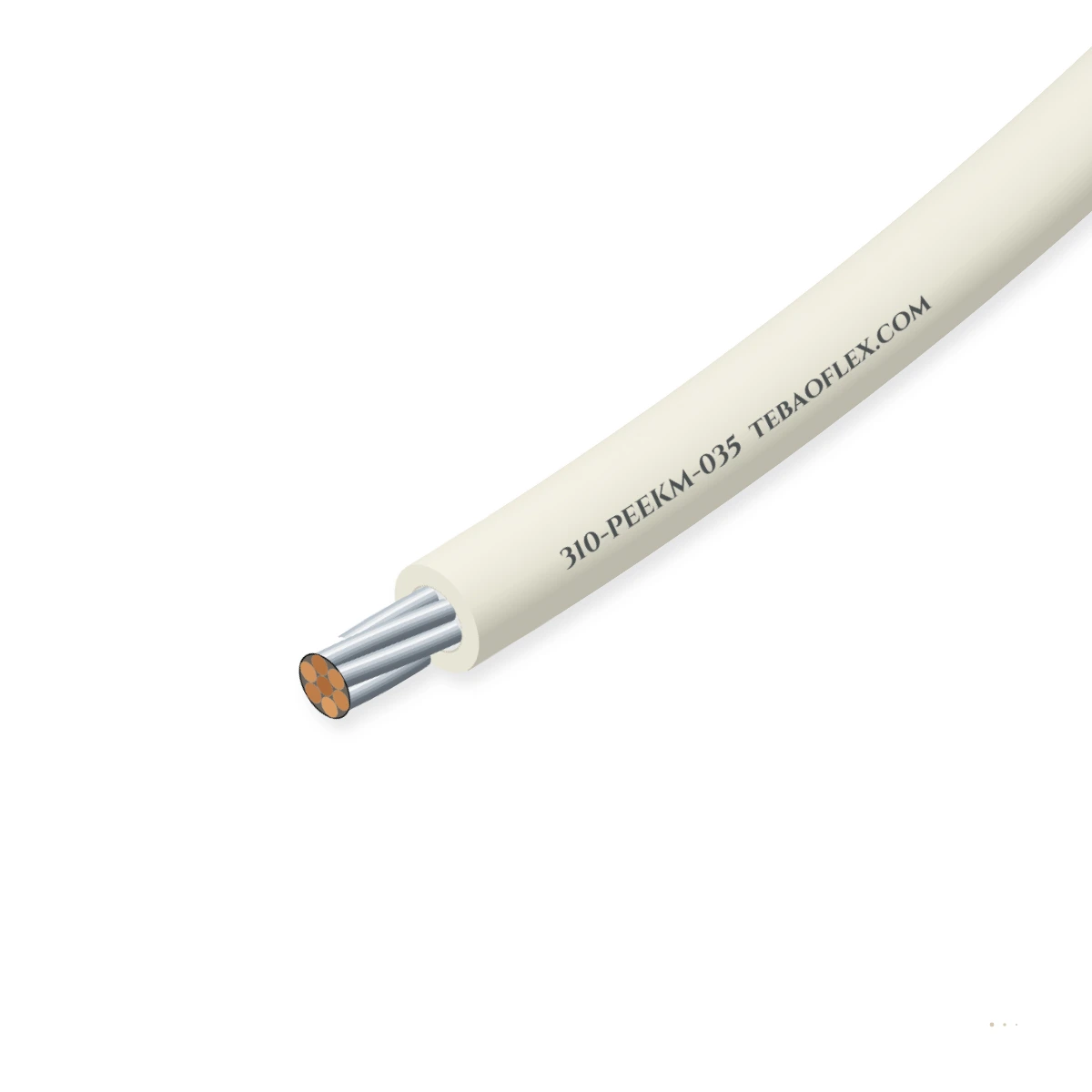

310-PEEKM-035 PEEK-Insulated UHV Hook-Up Wire10⁻¹⁰ mbar UHV & radiation-resistant (10⁷ Gy) PEEK multistrand hook-up wire

310-PEEKM-035 ultra-high-vacuum hook-up wire with a 19×0.07 mm (Ø 0.35 mm, 28 AWG) silver-plated OFHC copper multistrand conductor and virgin extruded polyetheretherketone (PEEK) insulation for 10⁻¹⁰ mbar vacuum, +250 °C bakeout, and 10⁷ Gy radiation.

Approved
Flame-retardant
Ozone, UV & moisture
Order designation
310-PEEKM-035 (28 AWG)
Outer Ø ≈
0.55 mm
Wall thickness
0.10 mm
Total weight ≈
1.1 kg/km
Min. bend R (fixed)
3 mm
All sizes (8)
Request a quoteDatasheetWhatsApp
Engineering reply in 2 business hoursCut-to-length export drumsEN 10204 3.1 certificate per drum
Vacuum rating
≤ 10⁻¹⁰ mbar
TML < 0.3 % · CVCM < 0.01 %
Temperature
-65…+250 °C
4 K static · +260 °C bake peak
Rated voltage
500 V DC
300 V AC · 1.5 kV test
Conductor
Ag-OFC 19-wire
Ø 0.35 mm (19×0.07 mm) + range
Insulation
Virgin PEEK
Extruded unfilled PEEK (0.10 mm)
Radiation dose
≥ 10⁷ Gy (1 GGy)
Halogen-free beamline grade

Typical values for this cable type, based on ASTM E595 UHV Outgassing & IEC 60544 Radiation-Resistant PEEK Wire — confirmed in the datasheet and quotation for your order.

Application fit

Is 310-PEEKM-035 right for your machine?

Select 310-PEEKM-035 when in-vacuum wiring faces intense ionizing radiation, electron/proton beam scatter, or sharp mechanical pinch points where thin polyimide tape could tear.

Furnace, kiln & high-temp zone

Suitable

Extruded virgin PEEK insulation withstands repeated +250 °C (+260 °C peak) UHV bakeout cycles without outgassing halogens.

Switchgear & control cabinet wiring

Suitable

Seamless extruded PEEK wall (Ø 0.55 mm OD on 310-PEEKM-035) resists cut-through, abrasion, and radiation up to 10⁷ Gy.

Fixed installation

Suitable

19-strand silver-plated OFHC copper core flexes smoothly onto Sub-D / Micro-D vacuum feedthrough pins and in-vacuum actuator stages.

Motorised monospiral reel

Not suitable

Precision UHV instrument hook-up wire is designed for vacuum chambers, not industrial cable reels.

Use NSHTÖU for drum reeling
Typical machinesSynchrotron & Free-Electron LasersParticle Accelerators & CERN/ITERNuclear Fusion & Plasma DiagnosticsUHV Sample ManipulatorsSpace Simulation & Ion Thrusters

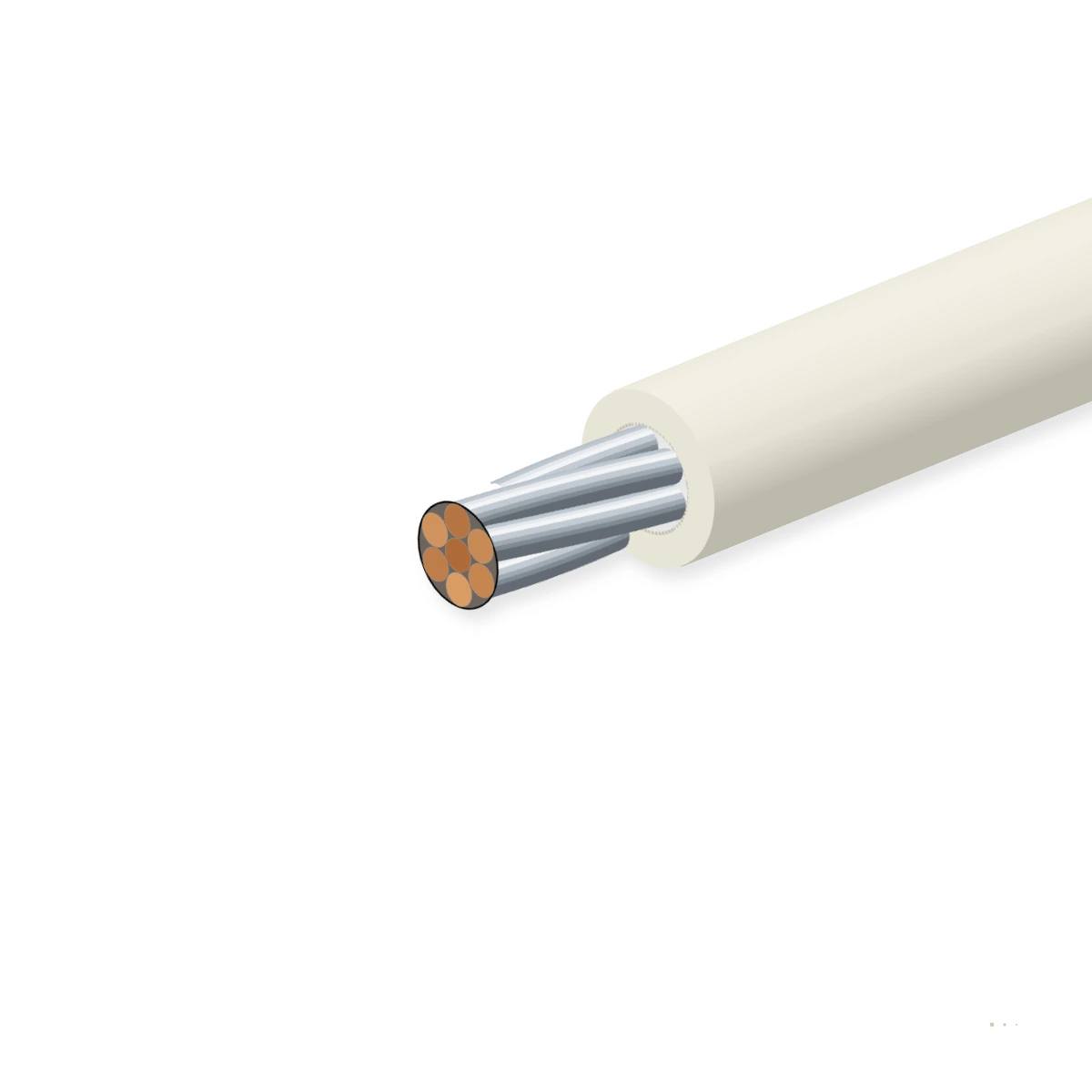

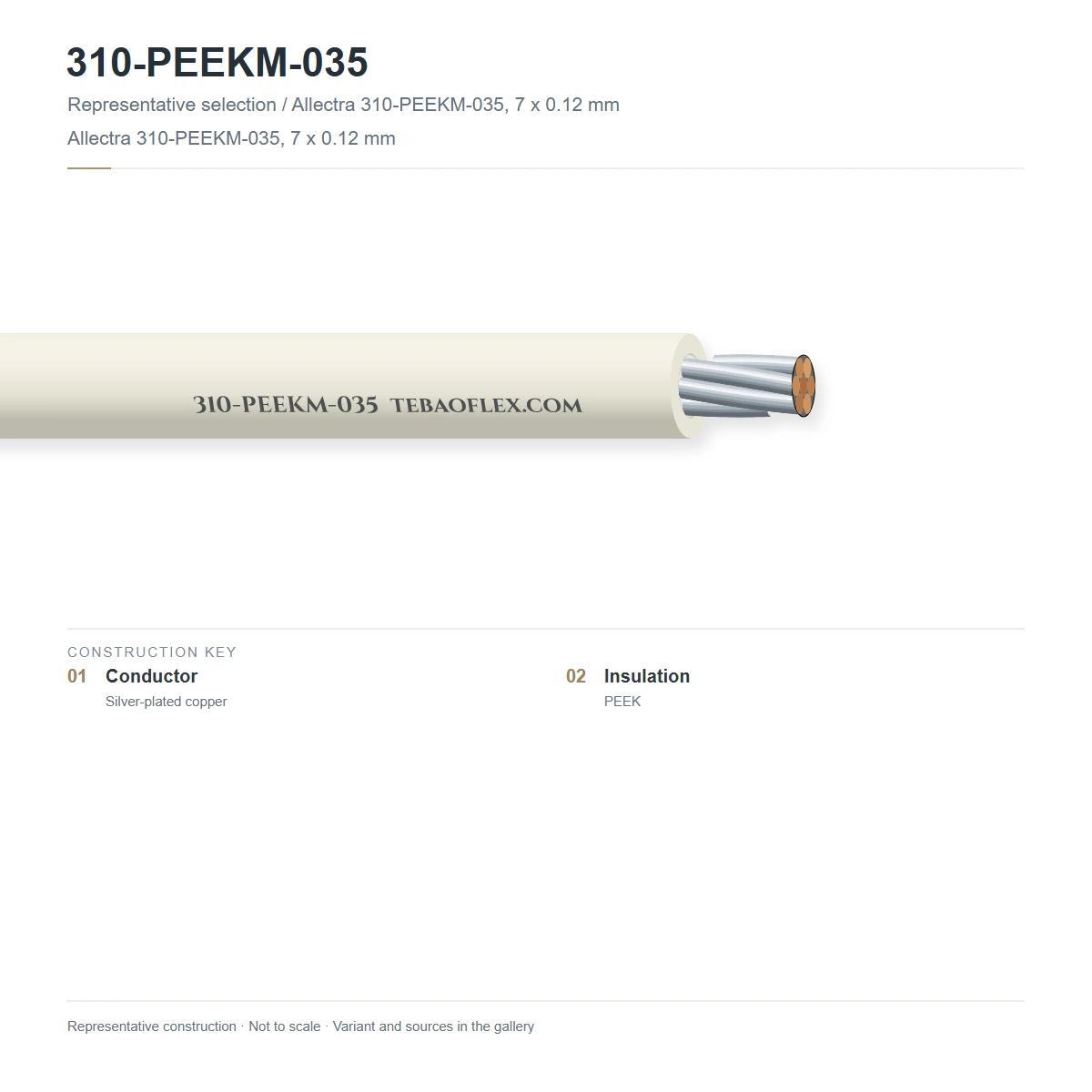

Construction

Layer by layer

Seamless UHV PEEK construction: 19-strand non-magnetic silver-plated OFHC copper conductor and precision thin-wall extruded virgin PEEK insulation.

1234
Schematic, not to scale — generated from the layer data
#LayerMaterial & reference
1Multistrand silver-plated OFHC copper19-strand oxygen-free high-conductivity copper with direct silver plating (19×0.07 mm = Ø 0.35 mm on 310-PEEKM-035)Non-magnetic multistrand geometry resists work-hardening on moving UHV stages
2Clean-room degreased surfaceHydrocarbon-free, silicone-free ultrasonic clean-room finish at conductor boundaryPrevents residual drawing-oil outgassing under 10⁻¹⁰ mbar vacuum
3Extruded virgin PEEK wallUnfilled, unplasticised semi-crystalline polyetheretherketone (PEEK, 0.10 mm to 0.18 mm radial wall)Radiation-hard (10⁷ Gy), halogen-free dielectric with high modulus and cut-through strength
4Natural tan PEEK outer surfaceHomogeneous extruded natural tan virgin PEEK skin (Ø 0.55 mm nominal on 310-PEEKM-035)Zero pigment or additive leaching; low friction for dense vacuum feedthrough harnesses

310-PEEKM-035 (Ø 0.35 mm core)

Standard 19×0.07 mm (0.073 mm² / 28 AWG) Ag-OFC multistrand wire with Ø 0.55 mm PEEK OD

310-PEEKM Series (0.25–1.0 mm)

Extended PEEK multistrand & solid UHV wire series from 32 AWG to 18 AWG for power and heater leads

Technical data

Ratings & operating limits

Typical values: Typical values for this cable type, based on ASTM E595 UHV Outgassing & IEC 60544 Radiation-Resistant PEEK Wire. Values for your order are confirmed in the datasheet and quotation.

Electrical

Rated working voltage
500 V DC / 300 V AC rms
Dielectric test voltage
1,500 V AC rms
Dielectric strength (PEEK)
≥ 20 kV/mm per IEC 60243-1
Volume resistivity
≥ 10¹⁶ Ω·cm at +20 °C
Max. continuous current
2.5 A in vacuum (310-PEEKM-035)

Thermal

Continuous temperature range
-65 °C to +250 °C (4 K static cryo)
UHV bakeout peak temperature
+260 °C short-term (Tm = +343 °C)
Glass transition temp. (Tg)
+143 °C (retains crystalline stiffness above Tg)

Mechanical

Reference model 310-PEEKM-035
Ø 0.35 mm core (19×0.07 mm) · Ø 0.55 mm OD
Full series conductor range
32 AWG to 18 AWG (Ø 0.25 to Ø 1.20 mm)
Min. bending radius
5 × overall wire diameter

Resistance

Vacuum outgassing limit
≤ 1 × 10⁻¹⁰ mbar (TML < 0.3 %, CVCM < 0.01 %)
Ionizing radiation resistance
≥ 1 × 10⁷ Gy (10⁹ rad) gamma / e-beam
Halogen & fluorine content
100 % halogen- and fluorine-free

Reference standards

Outgassing qualification
ASTM E595 / ECSS-Q-ST-70-02C
Radiation qualification
IEC 60544 radiation index > 7
RoHS & REACH
RoHS 3 & REACH compliant

Identification

Insulation colour
Natural unpigmented tan / light brown PEEK
Spool identification
TEBAOFLEX 310-PEEKM-035 UHV PEEK 1E-10 MBAR
Customs tariff (HS)
8544.49

Sizes

8 standard configurations (310-PEEKM-035)

Engineering dimensions, conductor stranding, mass and electrical ratings for 310-PEEKM-035 per ASTM E595 UHV Outgassing & IEC 60544 Radiation-Resistant PEEK Wire.

Dimensions & weights
Order designationCross-section / sizeConductor buildWall ≈
mm		Outer Ø ≈
mm		Metal
kg/km		Weight ≈
kg/km		Min. bend R
fixed mm		Enquiry
Standard 310-PEEKM-035 configurations
310-PEEKM-025 (30 AWG)0.055 mm² (Ø 0.25 mm)7×0.10 mm Ag-OFC0.090.430.50.83
310-PEEKM-035 (28 AWG)0.073 mm² (Ø 0.35 mm)19×0.07 mm Ag-OFC0.100.550.71.13
310-PEEKM-050 (26 AWG)0.15 mm² (Ø 0.50 mm)19×0.10 mm Ag-OFC0.110.721.42.04
310-PEEKM-060 (24 AWG)0.22 mm² (Ø 0.60 mm)19×0.12 mm Ag-OFC0.120.842.12.85
310-PEEKM-075 (22 AWG)0.34 mm² (Ø 0.75 mm)19×0.15 mm Ag-OFC0.131.013.24.15
310-PEEKM-100 (20 AWG)0.60 mm² (Ø 1.00 mm)19×0.20 mm Ag-OFC0.151.305.77.17
310-PEEK-050 (Solid 24 AWG)0.20 mm² (Ø 0.50 mm)1×0.50 mm Solid Ag-OFC0.120.741.92.54
310-PEEK-100 (Solid 18 AWG)0.79 mm² (Ø 1.00 mm)1×1.00 mm Solid Ag-OFC0.151.307.48.97
  • Typical values for this cable type; dimensions and weights for your order are confirmed in the quotation.
  • Outer diameters and weights are nominal engineering values for 310-PEEKM-035 subject to standard manufacturing tolerances per ASTM E595 UHV Outgassing & IEC 60544 Radiation-Resistant PEEK Wire.

Quality & approvals

Testing & inspection

Routine tests on every production length, sample and type tests per batch — documented on an EN 10204 3.1 inspection certificate.

  1. ConductorClass 5 stranding
  2. Spark test100 % in-line
  3. Lay-upCores, earth, fillers
  4. SheathingInner, braid / screen, outer
  5. Electrical testsAC voltage, resistance
  6. DimensionsOD, wall thickness
  7. Inspection documents & dispatchDrum & dispatch
Testing & inspectionTest value / referenceFrequency
Routine tests
Dielectric spark / high-voltage withstand test100 % in-line spark and AC/DC dielectric withstand per ASTM E595 UHV Outgassing & IEC 60544 Radiation-Resistant PEEK WireEvery manufactured length
Conductor DC resistance & continuity checkWithin maximum 20 °C resistance limit specified for 310-PEEKM-035Every spool or drum length
Sample tests
Thermal ageing & dimensional verificationWall thickness, concentricity and post-ageing elongation per ASTM E595 UHV Outgassing & IEC 60544 Radiation-Resistant PEEK WirePer production batch
Flame, outgassing or high-temperature enduranceQualified to ASTM E595 UHV Outgassing & IEC 60544 Radiation-Resistant PEEK Wire thermal and environmental performance criteriaType qualification

Inspection certificate

Issued with every drum, listing the routine test results for that length.

Product approvals

ASTM E595 UHV Outgassing & IEC 60544 Radiation-Resistant PEEK WireCE (2014/35/EU) & RoHS 3 (2015/863/EU) CompliantREACH SVHC & Halogen/Asbestos Compliance Verified

Company certificates

ISO 9001ISO 14001ISO 45001VDE marks approvalUL / cULCE · LVD / EMC

Marking & supply

Ordering & delivery

Sheath marking

TEBAOFLEX 310-PEEKM-035 Ø0.35/0.55MM PEEK UHV 1E-10 MBAR
Delivery form
Precision spools, coils or export wooden drums
Standard lengths
50 m · 100 m · 500 m · 1000 m (or cut harnesses)
MOQ
100 m (stock sizes) · 300–500 m (custom build)
Lead time
2–4 weeks ex-works
Incoterms
EXW, FOB, CIF, DAP

Technical documents

Downloads

PDF310-PEEKM-035 PEEK-Insulated UHV Hook-Up Wire – technical datasheet8 sizes · construction, technical data, approvalsXLSX310-PEEKM-035 spec data (Excel)All 8 sizes with dimensions and data, for your BOM or quotation
Revision
2026-10-20
Updated
2026-10-20

FAQ

Questions engineers ask first

Not covered here? Send your drawing — an engineer replies within 2 business hours.

When should I choose 310-PEEKM-035 PEEK wire over 301-KAPM polyimide wire in a UHV chamber?
Both PEEK and polyimide are halogen-free and outgas-qualified for 10⁻¹⁰ mbar UHV and +250 °C bakeout. Choose 310-PEEKM-035 when the wire requires seamless extruded abrasion/cut-through resistance, higher stiffness for push-through routing, or resistance to hydrolytic/steam environments where polyimide can absorb moisture.
Why is PEEK preferred over PTFE (fluoropolymer) in synchrotrons and particle accelerators?
PTFE suffers polymer chain scission and releases corrosive fluorine gas at radiation doses around 10³–10⁴ Gy. Virgin PEEK has an aromatic ketone backbone that withstands ≥ 10⁷ Gy (10⁹ rad) without embrittlement or halogen outgassing.
What do the numbers '310', 'PEEKM', and '035' signify in 310-PEEKM-035?
'310-PEEK' designates the UHV virgin PEEK-insulated wire series, 'M' denotes a multistrand (19×0.07 mm) silver-plated OFHC copper conductor, and '035' specifies the nominal 0.35 mm conductor diameter (0.55 mm overall diameter).
How is PEEK insulation stripped without nicking the 0.07 mm silver-plated copper strands?
Because PEEK is a tough semi-crystalline polymer, use precision thermal strippers set above +360 °C or calibrated die-blade mechanical strippers matched to the 0.35 mm conductor diameter.
